Guardsman Vandal Resistant
Ceiling/Wall Fluorescent, T5 or T8, GSW Series
Page 1 of 3
Job Information Type:
Job Name:
Cat. No.:
Notes:
Ordering Information
Guardsman
GS
Surface/Wall
Vandal Resistant
Fluorescent
Features
• Excellent for locations where vandal resistance is required,
areas such as hallways stairwells, locker rooms, parking garages
and psychiatric hospitals.
• For ceiling or wall mounted applications.
• Can be vertically or horizontally mounted on wall.
• 20 gauge cold rolled steel, post painted, baked white enamel
housing.
• 20 gauge cold rolled steel post painted baked white enamel,
primary, end caps.
• Vandal proof, secondary, 18 gauge cold rolled steel post painted
baked white enamel, factory installed, end caps secured to end
of housing with spanner head tamper proof screws.
• Linear prismatic lens 50% DR (impact resistant) and 50%
standard acrylic with nominal thickness of 1/8", withstands 70 ft.
lbs impact without breaking.
• Nominal 2' and 4' lengths.
• 73.9% efficient (T8 lamps).
6 " 4 4 (108mm
48 2 mm
4-3/8" (111mm)
6-3/8"
(162mm)
24-3/4" (629mm)
/4
6-1 9m
1 m
24-3/8" (619mm)
6-1/4"
(159mm)
4-3/8" (111mm)
48-3/4" (1238mm)
5 m
3 15/16" (100mm)
(
/4 5 m)
6 4" 9 )
"
6 4" 9mm)
11m
- /
16 mm
2 / 6 9 )
6-1/4" (159mm)
3-15/16" (100mm)
-1 (1
3-15 1 (100mm
-1 1
- 5 1 (100mm)
6-1/4" (159mm)
3-15/16" (100mm)
m)
/4"
3 1
T5 Lamps T8 Lamps
Voltage
120 =120v
277 =277v
UNV =120-277v
Add
appropriate
suffix to catalog
no., i.e.: (C)
Options
Lamp
Qty.
1= 1 Lamp
2= 2 Lamps
Lamps
(by others)
14 = T5 2' Length
17 = T8 2' Length
28 = T5 4' Length
32 = T8 4' Length
54 = T5HO 4'
Length
V
Fixture
Length
Lens
Type
(Nominal Size)
Ballast
Type
2=24"
4=48"
V= High impact 50%
DR acrylic linear
prismatic lens
<20THD <10THD
1 or 2 Lamp Elec. T8 —HI*
1 or 2 Lamp Elec. T8 —P2‡
1 or 2 Lamp Elec. T5 —PG‡
LOL Dimming T5 PF
LOL Dimming T8 PS
*Instant Start Standard
‡Program Rapid Start (UNV only)
NOTE: For T8 UNV, you must use HI Ballast Code.

Job Information Type:
Guardsman Vandal Resistant
Ceiling/Wall Fluorescent, T5 or T8, GSW Series
Page 2 of 3
Mounting Methods
End Cap End Cap
Nut Nut
Nut
Threaded
Nipple
For continuous row mounting. Required
to space fixtures evenly, allowing ends to
be removed and installed.
Specifications
Materials: Chassis Parts–Die-formed code gauge cold
rolled steel. End Caps–(Primary) 20 gauge cold rolled steel,
(Secondary) Vandal proof 18 gauge cold rolled steel.
Finish: Chassis exterior–Post painted white baked acrylic
enamel. End Caps–Post painted baked white enamel. Rust
preventative undercoating.
Refractor: Low brightness linear prismatic lens, 50% DR (impact
resistant) and 50% standard acrylic, 1/8" thickness, withstands 70
ft. lbs impact.
Electrical: Thermally protected class “P” ballast C.B.M.
approved, non PCB. If K.O. is within 3" of ballast, use wire
suitable for at least 90°.
Labels: I.B.E.W./UL and ULc listed. UL listed for damp locations
This product may have a mercury containing lamp. Manage in
accord with Disposal Laws. See: www.lamprecycle.org
Options & Accessories
Fusing: Internal fast blow fusing: Suffix: A.
Internal slow blow fusing: Suffix: C.
Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One
per fixture standard. Suffix: R. One per ballast. Suffix: B.
Emergency Power Pack: Factory installed emergency power
pack includes charger and inverter concealed in fixture channel.
Upon loss of AC power, operates one lamp at reduced light.
T8 Suffix: E1. (consult factory for T5 option)
Stem and Canopy Sets: Suspends fixture 6", 12", 18" or 24"
from surface. Catalog Number: ASC6 CSP (6")
ASC12 CSP (12")
ASC18 CSP (18")
ASC24 CSP (24")

Philips Lightolier
e: [email protected]
t: [phone], Technical info. [phone]
w: www.lightolier.com
GSW Series July 28, 2011
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2011. All rights reserved.
Job Information Type:
Guardsman Vandal Resistant
Ceiling/Wall Fluorescent, T5 or T8, GSW Series
Page 3 of 3
Vertical
Angle
Horizontal
Angle Zonal
Lumens
045 90
0553 553 553
5549 553 557 53
15 526 541 554 153
25 482 509 529 234
35 418 454 481 283
45 337 381 417 293
55 234 300 341 264
65 140 217 268 212
75 66 154 216 158
85 13 99 164 105
90 379 151
95 382 158 91
105 294 150 90
115 283 131 76
125 372 112 59
135 353 85 38
145 336 57 21
155 523 36 10
165 917 23 5
175 910 11 1
180 8 8 8
Vertical
Angle
Horizontal
Angle Zonal
Lumens
045 90
01176 1176 1176
51162 1175 1188 112
15 1116 1155 1184 326
25 1028 1093 1134 502
35 899 973 993 598
45 724 696 665 542
55 483 485 526 443
65 235 367 508 377
75 110 309 468 319
85 20 229 404 243
90 6202 364
95 6 203 351 208
105 5185 300 180
115 5155 253 143
125 5124 201 103
135 588 142 63
145 658 94 34
155 634 56 15
165 614 24 4
175 5 2 3
180 2 2 2

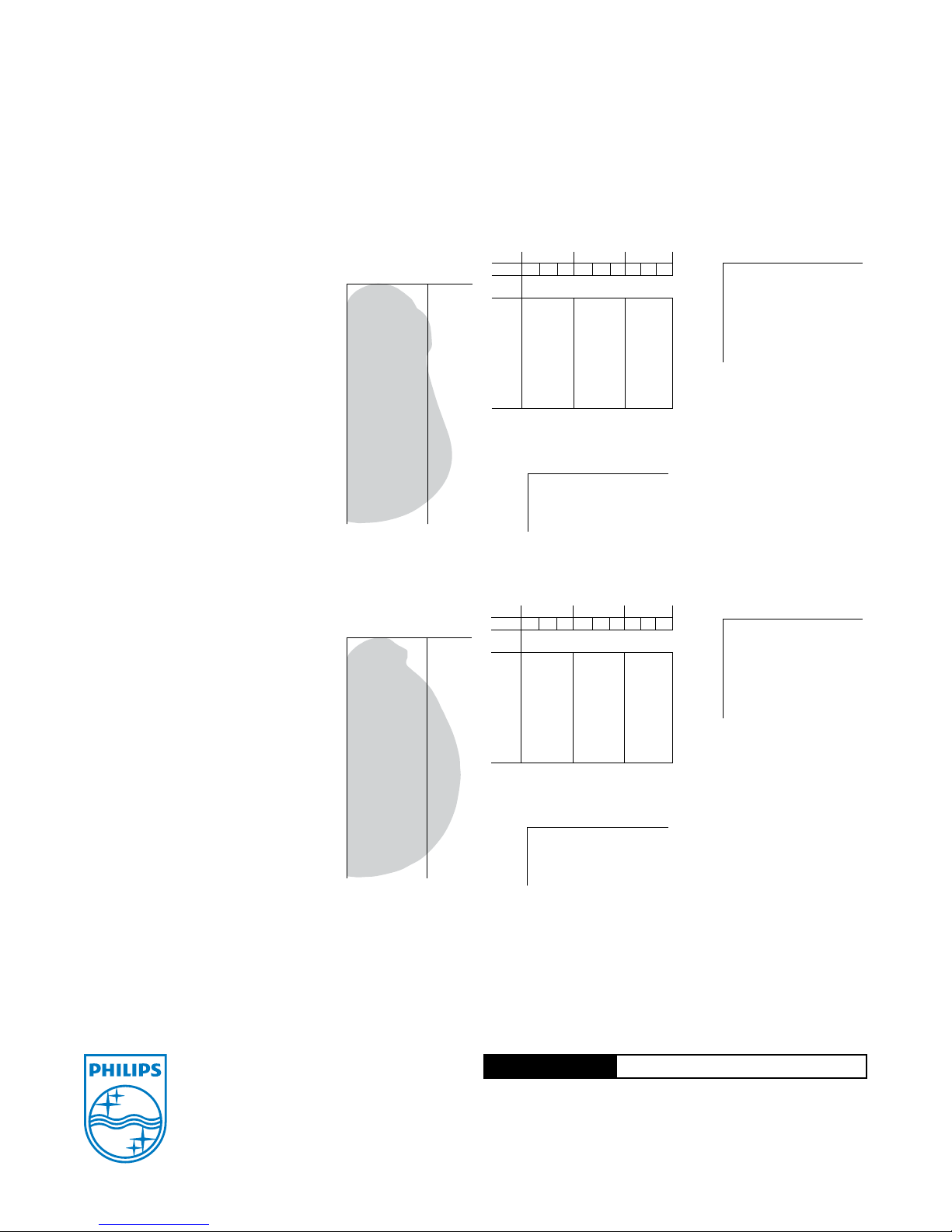

Photometry
Report Number: G2010301
Catalog Number: GS4V232UNVHI
Lamps: (2) F032T8
Luminaire: GSW Series 4' luminaire
Ballast: RIC2S40TP
Report is based on 2850 lumens per lamp.
Efciency: 73.9%
CIE Type: Direct/Indirect
Plane: 0-Deg. 90-Deg.
Spacing Criteria: 1.1 1.2
Shielding Angles: 90 90
Plane: 0-Deg. 90-Deg.
Luminous Length: 6.000 48.000
Model No. GS4V232UNVHI
LER =66.9 IW =55.4 BF =0.88
Comparative yearly lighting energy cost per
1000 lumens = $3.59
Candela Distribution Coefficients of Utilization
Ceiling 80% 50% 30%
Wall 70 50 30 50 30 10 50 30 10
RC
RW
Zonal Cavity Method
Effective Floor Reflectance = 20%
Room Cavity Ratio
176 72 69 64 61 59 58 56 55
269 63 57 55 51 48 51 48 45
363 55 49 49 44 40 45 41 38
458 49 42 43 38 34 40 36 32
553 44 37 39 34 30 36 32 28
649 39 33 35 30 26 33 28 25
745 36 29 32 27 23 30 25 22
842 33 26 29 24 21 27 23 20
940 30 24 27 22 19 25 21 18
10 37 28 22 25 20 17 24 19 16
Zonal Lumen Summary
Zone Lumens % Lamp % Fixt.
0- 30 940 16.5 22.3
0- 40 1538 27. 0 36.5
0- 60 2523 44.3 59.9
0- 90 3463 60.8 82.2
90-120 531 9.3 12.6
90-130 634 11.1 15.1
90-150 732 12.8 17.4
90-180 751 13.2 17. 8
0-180 4214 73.9 100.0
Average Luminance data
in candela / sq. meter
Angle 0˚ 45˚ 90˚
45 3992. 4363. 4830.
55 2937. 3485. 4620.
65 1648. 3204. 5869.
75 946. 3573. 8263.
85 231. 4105. 16163.
Report Number: G2010304
Catalog Number: GS2V217UNVHI
Lamps: (2)F17 T8
Luminaire: GSW Series 2' luminaire
Ballast: ICN-2P32-SC
Report is based on 1400 lumens per lamp.
Efciency: 76.6%
CIE Type: Direct/Indirect
Plane: 0-Deg. 90-Deg.
Spacing Criteria: 1.1 1.2
Shielding Angles: 90 90
Plane: 0-Deg. 90-Deg.
Luminous Length: 6.000 48.000
Model No. GS2V217UNVHI
LER =66.9 IW =29.8 BF =0.93
Comparative yearly lighting energy cost per
1000 lumens = $3.59
Candela Distribution Coefficients of Utilization
Ceiling 80% 50% 30%
Wall 70 50 30 50 30 10 50 30 10
RC
RW
Zonal Cavity Method
Effective Floor Reflectance = 20%
Room Cavity Ratio
188 88 88 77 77 77 71 71 71
279 75 71 66 63 61 61 59 57
372 65 59 57 53 50 53 49 46
465 57 50 50 45 41 46 42 39
559 50 43 44 39 35 41 37 33
655 45 38 40 34 30 37 32 29
750 40 33 36 30 26 33 29 25
847 36 30 33 27 23 30 26 22
943 33 27 30 24 21 28 23 20
10 40 30 24 27 22 19 26 21 18
Zonal Lumen Summary
Zone Lumens % Lamp % Fixt.
0- 30 439 15.7 20.5
0- 40 722 25.8 33.7
0- 60 1279 45.7 59.6
0- 90 1755 62.7 81.8
90-120 257 9.2 12.0
90-130 316 11.3 14.7
90-150 375 13.4 17. 5
90-180 391 13.9 18.2
0-180 2145 76.6 100.0
Average Luminance data
in candela / sq. meter
Angle 0˚ 45˚ 90˚
45 4845. 4785. 4649.
55 3982. 4259. 4153.
65 3031. 3671. 3721.
75 2048. 3349. 3615.
85 753. 3147. 3592.
