2 Your CD
Soundmachine
Introduction
With this CD Soundmachine, you can:
• listen to FM radio; and
• enjoy audio from discs, USB device, and
other external audio devices.
The CD Soundmachine offers you Dynamic
BassBoost(DBB)toenrichsound.
What's in the box
Check and identify the contents of the package:
• Main unit
• AC power cord
• Short user manual
• Safety&noticeleaet

5EN
Overview of the main unit
a Source selector
• Select a source: CD, FM, or USB.
b LED indicator
c POWER
• Turn the CD Soundmachine on or off.
d Display panel
e Disc tray
f VOLUME
• Adjust volume.
g - TUNING +
• Tune to FM radio stations manually.
h DBB
• Turn dynamic bass enhancement on
or off.
i
• Connect a USB device.
j AUDIO IN
• Connect an external audio device.
k FM antenna
• Improve FM radio reception.
a
b
c
d
l
m
n
k
g
j
i
h
f
e
r
q
p
o
MODE PROG
SEARCH
-
PRESET
-
PROGPRESET +
SEARCH +
ALBALB
l ALB/PRESET -/+
• Select a preset radio station.
• Skip to the previous or next album.
• Adjust display brightness.
m MODE
• Selectarepeatorshufemode.
• Activate brightness adjustment.
n / SEARCH+/-
• Skip to the previous or next track.
• Tune to FM radio stations automatically.
• Search within a track.
o PROG
• Program the play sequence of tracks.
• Program FM radio stations.
p
• Open the disc tray.
q
• Start or pause play.
r
• Stop play.
• Erase a program.

6EN
3 Get started
Caution
•Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect power
The CD Soundmachine can be powered by
either AC power or batteries.
Option 1:AC power
Warning
•Risk of product damage! Make sure that the power
supply voltage corresponds to the voltage printed on
the back or the underside of the CD Soundmachine.
•Risk of electric shock! When you disconnect the AC
power, always pull the plug from the socket. Never pull
the cord.
Connect the AC power cord to:
• the AC~ MAINS socket on the back of the
CD Soundmachine.
• the wall outlet.
Tip
•To save energy, turn off the CD Soundmachine after
use.
Option 2: Battery power
Caution
•Batteries contain chemical substances, so they should
be disposed of properly.
Note
•Batteries are not supplied with the accessories.
1 Open the battery compartment.
2 Insert6batteries(type:R14/UM2/CCELL)
withcorrectpolarity(+/-)asindicated.
3 Close the battery compartment.

7EN
Turn on
Switch the POWER slide to ON position.
» The CD Soundmachine switches to the last
selected source.
» The LED indicator turns on.
Note
•In CD or USB mode, if the CD Soundmachine is
idle for 15 minutes, it switches to standby mode
automatically.To exit the standby mode, press .
Turn off
Switch the POWER slide to OFF position.
» The LED indicator turns off.
Adjust display brightness
1 Press and hold MODE for 3 seconds.
2 Press ALB/PRESET -/+ repeatedly to adjust
the display brightness.
OFF
ON
4 Play
Play CD
1 Rotate the source selector to the CD
position.
2 Press to open the disc tray.
3 Insert a disc with the printed side facing
upward, then close the disc tray.
» Play starts automatically.
Play from USB devices
Note
•Make sure that your USB device contains playable audio
content.
1 Rotate the source selector to the USB
position.
2 Insert the USB device into the socket.
» Play starts automatically. If not, press
.

8EN
Play from an external audio
device
You can also listen to an external audio
device such as an MP3 player through this CD
Soundmachine.

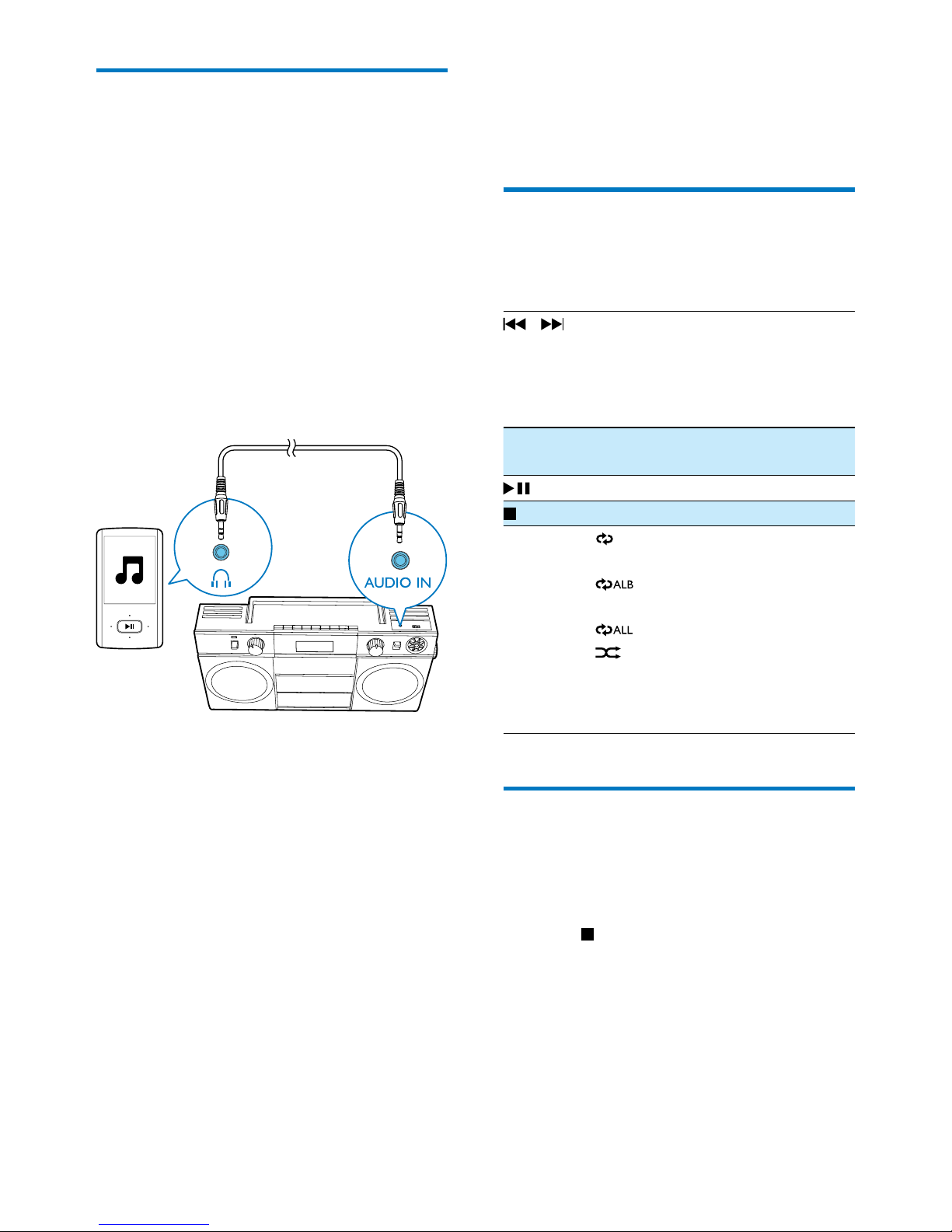

1 Connect an audio cable (3.5mm, not
supplied)to:
• the AUDIO IN socket on the CD
Soundmachine.
• the headphone socket on an external
device.
» The CD soundmachine switches to
Audio-in mode automatically.
2 Play the external device (see the user
manualofthedevice).
5 Play options
Control play
In CD or USB mode, you can control play
through the following operations.
/ Selectanaudiole;
Press and hold to fast-forward
or fast-reverse the track during
playback, then release to resume
play.
ALB-/
ALB+
Skip to the previous or next MP3/
WMA album.
Start or pause play.
Stop play.
MODE [ ]: Play the current track
repeatedly.
[ ]: Play the current album
repeatedly.
[ ]: Play all tracks repeatedly.
[ ]: Play tracks randomly.
To return to normal play, press
MODE repeatedly until the repeat
orshufeiconsdisappear.
Program tracks
In CD or USB mode, you can program the play
sequence of tracks. A maximum of 20 tracks
can be programmed.
1 Press to stop playback.
2 Press PROG to activate the programming
mode.
» [PROG] is displayed and [P01] begins
to blink.
3 For MP3/WMA tracks, press ALB -/ALB +
to select an album.

9EN
4 Press / to select a track number,
then press PROGtoconrm.
5 Repeat steps 3-4 to program more tracks.
6 Press to play the programmed tracks.
» During play, [PROG] (program)is
displayed.
• To erase the program, press twice.
Adjust volume
Rotate the VOLUME knob to adjust volume.
Enhance bass
To turn dynamic bass boost on or off, switch
the DBB slide to ON or OFF.
6 Listen to FM
radio
Tune to FM radio stations
Note
•For better reception, fully extend and adjust the
position of the FM antenna.
1 Rotate the source selector to the FM
position.
2 Press SEARCH +/-.
» The CD Soundmachine tunes to
a station with strong reception
automatically.
3 Repeat step 2 to tune to more stations.
To tune to a radio station manually:
Rotate the tuning knob slowly.
Store radio stations
automatically
In tuner mode, press and hold PROG for 2
seconds.
» The CD Soundmachine stores all the
available FM radio stations.
» Therststoredradiostationisbroadcast
automatically.
Store radio stations manually
Note
•You can program a maximum of 20 FM radio stations.
1 Tune to an FM radio station.
2 Press PROG to activate the storing mode.

10EN
3 Press PRESET + or PRESET - to allocate a
number(1to20)tothisradiostation,then
press PROGtoconrm.
» The preset number and the frequency
of the preset station are displayed.
4 Repeat the above steps to store other
stations.
Note
•To remove a pre-stored FM radio station, store another
station in its place.
Select a preset radio station
In FM tuner mode, press PRESET + or
PRESET - to select a preset radio station.
7 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
Amplier
Max Output Power Total 7 W
Frequency Response 125 -16000 Hz, -3dB
Signal to Noise Ratio >55 dBA
Total Harmonic
Distortion <1 %
Audio-in Input 650 mV RMS
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R, CD-RW,
MP3-CD,WMA-CD
Audio DAC 24Bits / 44.1kHz
Total Harmonic
Distortion <1%
Frequency Response 125 -16000 Hz, -3dB
S/N Ratio >55 dBA
Tuner
Tuning Range 87.5 - 108MHz
Tuning grid 50 kHz
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
<22 dBf
<51.5 dBf
Total Harmonic Distortion <3%
Signal to Noise Ratio >50 dBA

11 EN
General
Power supply
- AC Power
- Battery
220-240 V~, 50/60 Hz;
6 x 1.5 V R14/UM2/C
CELL
Operation Power
Consumption 15 W
Standby Power
Consumption <0.5 W
Max.Loading(USB) 5 V 500 mA
Dimensions - Main Unit
(WxHxD) 447 x 230 x 116 mm
Weight(MainUnit) 2.3 kg
Supported MP3 disc formats
• ISO9660, Joliet
• Maximum title number: 512 (depending on
lenamelength)
• Maximum album number: 255
• Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
• SupportedBit-rates:32~256(kbps),
variable bit rates
USB playability information
Compatible USB devices:
• USBashmemory(USB2.0orUSB1.1)
• USBashplayers(USB2.0orUSB1.1)
• memory cards (requires an additional card
readertoworkwiththisapparatus)
Supported formats:
• USBormemoryleformatFAT12,FAT16,
FAT32(sectorsize:512bytes)
• MP3bitrate(datarate):32-320Kbpsand
variable bit rate
• WMA v9 or earlier
• Directory nesting up to a maximum of 8
levels
• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum
length:128bytes)
Unsupported formats:
• Empty albums: an empty album is an album
thatdoesnotcontainMP3/WMAles,and
is not be shown in the display.
• Unsupportedleformatsareskipped.For
example,Worddocuments(.doc)orMP3
leswithextension.dlfareignoredand
not played.
• AAC,WAV,PCMaudioles
• DRMprotectedWMAles(.wav,.m4a,
.m4p,.mp4,.aac)
• WMAlesinLosslessformat
Maintenance
Clean the cabinet
• Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits, ammonia
or abrasives.
Clean discs
• When a disc becomes dirty, clean it with
a cleaning cloth.Wipe the disc from the
centre out.
• Do not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.
Clean the disc lens
• After prolonged use, dirt or dust may
accumulate at the disc lens.To ensure good
play quality, clean the disc lens with Philips
CD lens cleaner or any commercially
available cleaner. Follow the instructions
supplied with cleaner.

12EN
8 Troubleshooting
Warning
•Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page
(www.philips.com/support).Whenyoucontact
Philips, make sure that the device is nearby
and the model number and serial number are
available.
No power
•Ensure that the AC power plug of the unit
is connected properly.
•Ensure that there is power at the AC
outlet.
•Insert the batteries with their polarities
(+/–signs)alignedasindicated.
•Replace the battery.
No sound or poor sound
•Adjust the volume.
No response from the unit
•Disconnect and reconnect the AC power
plug, then turn on the system again.
•As a power-saving feature, the unit
switches off automatically 15 minutes after
track play reaches the end and no control
is operated.
USB device not supported
•The USB device is incompatible with the
apparatus.Try another one.
No disc detected
•Insert a disc.
•Check if the disc is inserted upside down.
•Wait until the moisture condensation at
the lens has cleared.
•Replace or clean the disc.
•UseanalizedCDorcorrectformatdisc.
Poor radio reception
•Increase the distance between the unit and
your TV or VCR.
•Fully extend the FM antenna.

13 EN
9 Notice
This product complies with the radio
interference requirements of the European
Community.
Anychangesormodicationsmadetothis
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separateintothreematerials:cardboard(box),
paperpulp(buffer)andpolyethylene(bags,
protectivefoamsheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, Inc.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
Note
•The type plate is located on the bottom of the apparatus.

Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
OS685_12_UM_V1.0
