Philips MC-222/33 User manual

1
3140 115 30102
Micro Hi-Fi System Audio
Audio
MC- 220
MC- 222

2
3140 115 30102
México
Es necesario que lea cuidadosamente su instructivo de
manejo.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
Descripción: Microsistema de Audio
Modelo : MC-220/21, MC-222/21
Alimentación: 110–127 / 220–240V; ~50–60 Hz
Consumo: 26 W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6
Col. San Fernando La Herradura
Huixquilucan
Localidad y Tel: Edo. de México C.P. 52784
Tel.[phone]
Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
CAUTION
Use of controls or
adjustments or performance
of procedures other than
herein may result in
hazardous radiation
exposure or other unsafe
operation.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V. no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, inundaciones, incendios, descargas
eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas, etc.).

3
3140 115 30101
3
SIDE A/B
CLOCKTIMER
ON
OFF
PREV NEXT
STOP
iR
PLAY•PAUSERECORD
SOURCE
SELECT
SHUFFLE
STANDBY-ON PROGRAM REPEAT
PROGRAM SHUFFLE
REV
MODE
BAND
1
2
3
4
5
6
8
9
0
!
@
#
7
$
%
!
0
DSC DBB IS
2
CD
REPEAT SHUFFLE SLEEP
TUNER TAPE AUX
MUTE NEWS/TA
VOL
^
&
9
6
*(
5
)

4
3140 115 30101

5
English
Français
Español
3140 115 30101
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 22
Español --------------------------------------------- 38
-------------------------------------------------------- 54

6
English
3140 115 30101
Contents
General Information
Environmental information ................................ 7
Supplied accessories ............................................ 7
Safety information ................................................ 7
Preparations
Rear connections ............................................. 8–9
Optional connection ........................................... 9
Inserting batteries into the remote control ... 9
Controls
Controls on the system and remote
control .................................................................. 10
Basic Functions
Switching the system on ................................... 11
Power-saving automatic standby ..................... 11
Adjusting volume and sound............................ 11
CD Operation
Playing a disc ........................................................ 12
Selecting a different track ................................. 12
Finding a passage within a track ...................... 12
Different play modes: Shuffle and Repeat ..... 13
Programming track numbers ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
Radio Reception
Tuning to radio stations .................................... 14
Programming radio stations ............................. 14
Tuning to preset radio stations ....................... 15
Changing tuning grid .......................................... 15
Tape Operation / Recording
Tape playback ...................................................... 16
Switching tape sides ........................................... 16
Reverse mode options ...................................... 16
General information on recording ................. 16
Synchro start CD recording ............................ 17
Recording from the radio ................................. 17
Recording from the Aux ................................... 17
Recording timer .................................................. 17
Clock/Timer
Setting the clock ................................................. 18
Setting the timer ................................................. 18
Activating and deactivating TIMER ................. 18
Activating and deactivating SLEEP .................. 18
Specifications ........................................... 19

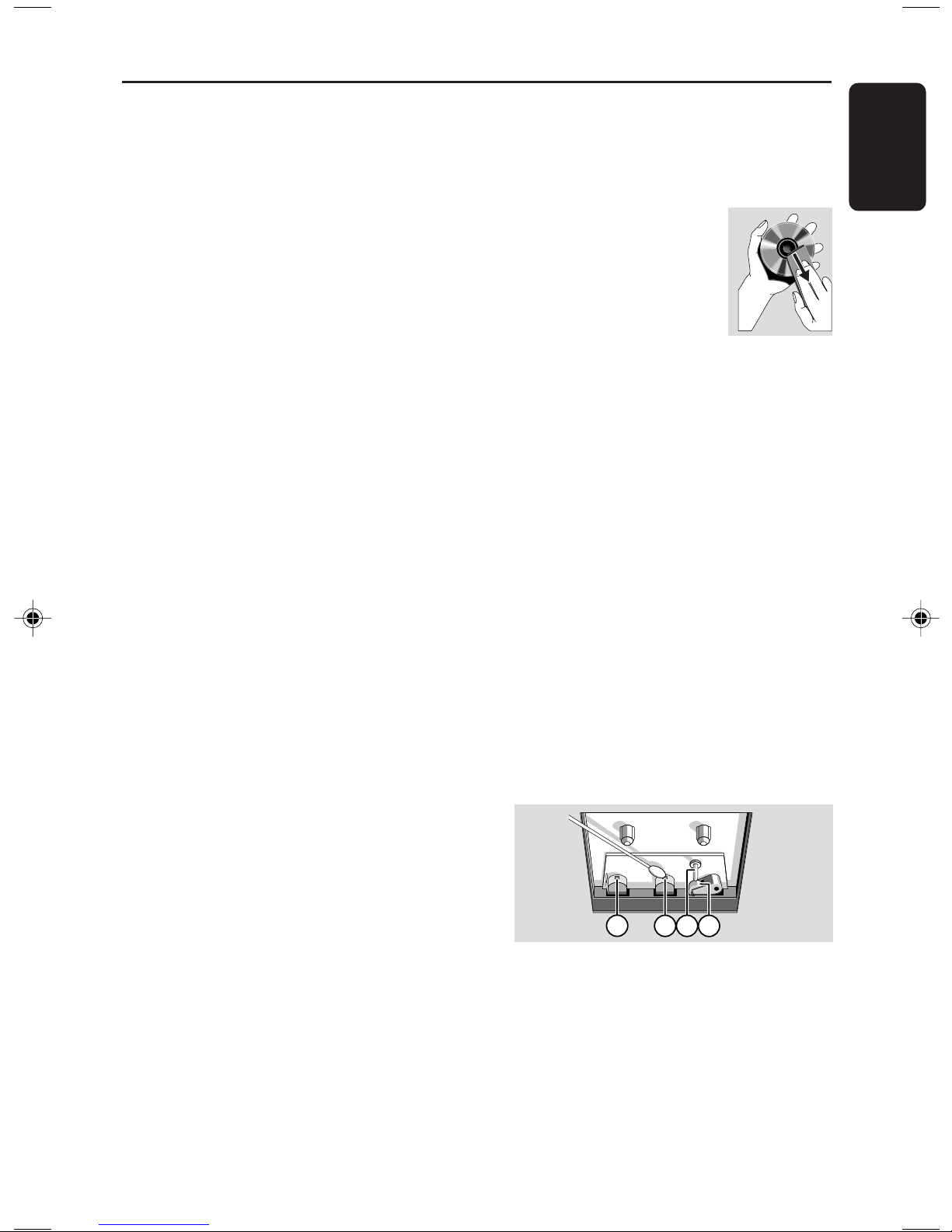

Maintenance.............................................. 19
Troubleshooting ............................. 20–21

7
English
3140 115 30101
General Information
Environmental Information
All unnecessary packaging has been omitted.We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied accessories
– 2 speaker boxes
– remote control
– AM loop antenna
– FM wire antenna
Safety Information
●Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
●Place the system on a flat, hard and stable
surface.
●Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
●Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
●If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
●The mechanical parts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
●When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.

8
English
3140 115 30101
Preparations
AM
aerial
speakers
(right)
speakers
(left)
A
BC
AC power cord
FM wire antenna AM loop
antenna
Rear connections
The type plate is located at the rear of the
system.
APower
Before connecting the AC power cord to the
wall outlet, ensure that the following are done;
– If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.
– All other connections have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
BAntennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
●Position the antenna as far as possible from a TV,
VCR or other radiation source.

9
English
3140 115 30101
Preparations
FM Antenna
●For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) terminal.
CSpeakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", coloured (marked) wire to
"+" and black (unmarked) wire to "-".
12
●Fully insert the stripped portion of the speaker
wire into the terminal as shown.
Notes:
– For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of + / - speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV,VCR, Laser Disc player, DVD player or
CD Recorder to the AUX IN terminals.
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX IN left terminal. Alternatively, you can use
a “single to double” cinch cable (the output sound
still remain mono).
Inserting batteries into the
remote control
Insert two batteries (not supplied) type R03 or
AAA into the remote control with the correct
polarity as indicated by the "+" and "-"
symbols inside the battery compartment.
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, so
they should be disposed off properly.

10
English
3140 115 30101
Controls (illustrations on page 3)
Controls on the system and
remote control
1CLOCK
for CLOCK ....... sets the clock function.
for TAPE .............. shows tape counter in recording
mode.
2REPEAT/ REV MODE/ BAND
for CD ................. repeats a track/CD programme/
entire CD.
for TAPE .............. selects tape reverse modes.
for TUNER ........ selects waveband.
3SHUFFLE/ SIDE A/B
for CD ................. plays CD tracks in random order.
for TAPE .............. switches tape direction.
4Display
– shows the status of the system.
5VOLUME (VOL -/+)
– adjusts the volume level.
–on the system only - adjusts the hour and minutes
for the clock/timer functions.
6INTERACTIVE SOUND controls:
DBB .................... (Dynamic Bass Boost) enhances
the bass.
DSC ..................... (Digital Sound Control) selects
sound characteristics: CLASSIC/
ROCK/JAZZ/POP.
INCREDIBLE SURR.
(IS) ....................... creates a super-enhanced stereo
effect.
7OPEN
– opens tape compartment.
8iR SENSOR
– infrared sensor for remote control.
9Mode Selection
STOP 9............ stops CD playback or erase a
CD programme.
................................. stops tape playback/recording.
PLAY•PAUSE ÉÅ
................................. starts or interrupts CD playback.
................................. starts tape playback.
................................. (on the remote control only)
during tape playback, switches
tape direction.
PRESET 34
( ¡, ™) .............. selects a preset radio station.
PREV ¡1 / NEXT 2™
( ¡, ™ ) ................ skips to the beginning of a
current track/previous/
subsequent track.
Notes for remote control:
– First select the source you wish to control
by pressing one of the source select keys on
the remote control (for example CD,
TUNER).
– Then select the desired function (for
example É , í , ë ).
( à, á) .......... fast searches back and
forward within a track/CD.
................................. fast rewind/wind tape.
TUNING àá
( à, á) .......... tunes to radio stations.
RECORD ........ starts recording.
0SELECT SOURCE
– selects the respective sound source for CD/
TUNER/ TAPE /AUX.
– switches on the system.
!STANDBY ON y
– switches the system to standby/on.
–on the remote control only - switches the
system to standby.
@PROGRAM
for CD ................. programmes tracks and
reviews the programme.
for TUNER ........ programmes tuner stations
manually or automatically.
#TIMER ON•OFF
– activates/deactivates or sets the timer
function.
$OPEN•CLOSE
– opens/closes the CD door.
%n
– connect headphones.
^REPEAT
– repeats a track/CD programme/ entire CD.
&SHUFFLE
– plays CD tracks in random order.
*MUTE
– interrupts and resumes sound reproduction.
(NEWS/TA
– activates RDS news and Traffic
Announcement (not for all versions).
)SLEEP
– activates/deactivates or selects the sleeper
time.
