Philips ReActiv PTE4000CT User manual

Please read this entire manual carefully
before operating your new treadmill
and save it for future use.
User manual
Register your product and get support at
www.philips.com/welcome
PTE4000CT
ReActiv
Treadmill
4.0 T
Register your product and get support at
www.philips.com/welcome

Thank you for your recent purchase of the Philips physical rehabilitation
treadmill 4.0 T.
Philips physical therapy and exercise solutions provide simple, reliable
products that oer the most relevant feedback to caregivers and users
to achieve best-in-class outcomes and empower individuals to build
condence in rebuilding and maintaining healthy lifestyles and keep in
touch with their communities.
Your new product has been manufactured by one of the world’s leading
medical product manufacturers. It is backed by one of the most
comprehensive warranties in the industry. Through our dealers,
distributors and manufacturer’s representatives, we will do all we can to
provide many years of successful and prosperous ownership. Your
warranty and service needs will be addressed either through your
regional sales representative or our highly trained service technicians.
It is their responsibility to provide you with both the technical
knowledge and access to service personnel to make your
ownership experience more informed, and resolve any issues
quickly.
Product registration
Register your product and get support at:
www.philips.com/welcome .
This will ensure we have all your details quickly at hand in dealing with
any after sales support. For fastest support visit us and self service
solution at :
www.philips.com/support
Philips therapy solutions
Delivering better outcomes

Contents
Important safety instructions 4
Important electrical information
Important operation instructions 8
Features 9
Assembly instructions 10
Console operation 17
6
Using a heart rate transmitter 40
Maintenance 43

4
Attention
Read all instructions in this manual before using this device.
Danger
To reduce the risk of electric shock disconnect this device from the
electrical outlet prior to cleaning and/or service work.
Warning
• Before beginning exercise on this product, or any exercise program,
consult a physician. This is especially important for persons over the
age of 35 or persons with preexisting health conditions.
• There are obvious pinch points and other caution areas that can
cause harm.
• Children under the age of 13 should be supervised to ensure that they
do not play with the device.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not operate under a blanket or pillow. Excessive heating can
occur and cause fire, electric shock, or injury to persons.
• Do not attempt to use this product for any purpose other than for
the purpose it is intended.
• Do not operate where aerosol (spray) products are being used or
where oxygen is being administered. Sparks from the motor may
ignite a highly gaseous environment.
Important
safety
instructions

5
• Never operate the product if it has a damaged cord or plug, if the
product is not working properly, call your dealer. If it has been
dropped or damaged, or dropped into water, call your dealer.
• Keep the cord away from heated surfaces.
• The hand pulse sensors are not medical devices. Various factors,
including the user’s movement, may aect the accuracy of heart rate
readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
• Heart rate monitoring systems may be inaccurate. Over exercising
may result in serious injury or death. If you feel faint stop exercising
immediately.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are
not suitable for use on your treadmill. Quality athletic shoes are
recommended to avoid leg fatigue.
• The product should never be left unattended when plugged in.
Unplug from outlet when not in use and before putting on or taking
o parts.
• Connect the product to a properly grounded outlet only. See
Grounding Instructions.
• This appliance is not intended for use by persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their
safety.
• Maximum User Weight: 450 lbs,
• ASTM F2115-05 Specifications 6.1.2.11—The recommended minimum
clearance required around each treadmill for access to, passage
around, and emergency dismount shall be stated. The minimum
dimensions are to be: 0.5 m (19.7 in.) on each side of the treadmill,
and 1m (39 in.) behind the machine.

6
Warning
• Never use a ground fault circuit interrupter (GFCI) wall outlet with
this treadmill. As with any appliance with a large motor, the GFCI
will trip often. Route the power cord away from any moving part of
the treadmill including the elevation mechanism and transport
wheels.
• Never remove any cover without first disconnecting AC power. If AC
voltage varies by 10% or more outside of specified range (90 to
120V), the performance of your treadmill may be affected. Such
conditions are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a licensed
electrician for proper testing.
• Never expose this product to rain or moisture. This product is not
designed for use outdoors, near a pool or spa, or in any other high
humidity environment. The operating temperature specication is 5
to 48 degrees Celsius (40 to 120 degrees Fahrenheit)and humidity is
95% non-condensing (no water drops forming on surfaces).
• Circuit Breakers: Some circuit breakers are not rated for high inrush
currents that can occur when a treadmill is rst turned on or even
during use. If your treadmill is tripping the circuit breaker (even
though it is the proper current rating) but the circuit breaker on the
treadmill itself does not trip, you will need to replace the facility
breaker with a high inrush type. This is not a warranty defect. This is
a condition we as a manufacturer have no ability to control. This
part is available through most electrical supply stores. The electrical
outlet used should have a dedicated 20-amp circuit breaker.
Important
electrical
information

7
Grounding instructions
This product must be grounded. In the unlikely event that the
treadmill’s electrical system should malfunction or break
grounding provides a path of least resistance for electric current,
reducing the risk of electric shock. This product is equipped with a
cord having an equipment-grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Danger
Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualied electrician or
serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will
not t the outlet. Instead have a proper outlet installed by a
qualied electrician.

8
• Never operate this product without reading and completely
understanding the results of any operational change you request from
the console.
• Understand that changes in speed or incline do not occur immediately.
Set your desired speed or incline level on the console and release the
adjustment key. The console will obey the command gradually.
• Use caution while participating in other activities while on your
Treadmill; such as watching television, reading, etc. These distractions
may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are
precision set to function properly with little nger pressure.
Safety tether cord
A safety tether cord is provided with this unit. It is a simple magnetic
design that should be used at all times. It is for your safety should you
fall or move too far back on the treadbelt. Pulling this safety tether cord
will stop treadbelt movement. To use:
• Place the magnet into position on the round metal portion of the
console control head. Your treadmill will not start and operate without
this. Removing the magnet also secures the treadmill from
unauthorized use.
• Fasten the plastic clip onto your clothing securely to assure good
holding power. Note: The magnet has strong enough power to
minimize accidental, unexpected stopping. The clip should be
attached securely to make certain it does not come o. Be familiar
with its function and limitations. The treadmill will stop, depending on
speed, with a one to two step coast anytime the magnet is pulled o
the console. Use the Stop / Pause switch in normal operation.
Important
operation
instructions

9

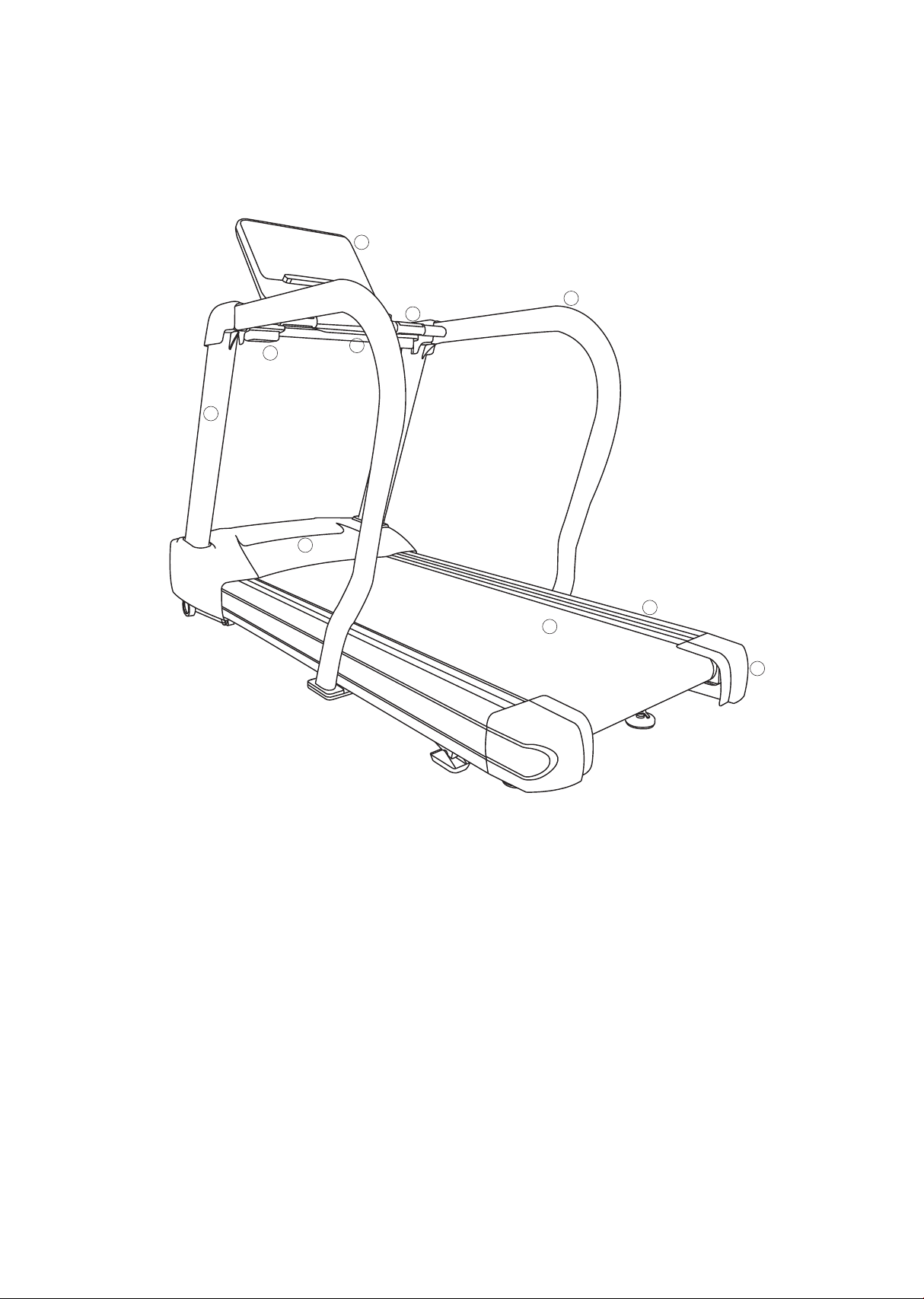

4.0 T – Treadmill
Parts and adjustments
1. Console
2. Handlebar with heart rate grips
3. Safety tether cord placement
4. Water bottle holder
5. Extended handrails
6. Console mast
7. Motor cover
8. Belt
9. Side rail
10. Tracking / Tension adjustment bolts
Features
6
7
8
9
10
2
3
4
5
1

1010
Unpacking
• Cut the straps, then lift the box over the unit and unpack.
• Carefully remove all parts from the carton and inspect for any damage
or missing parts. If parts are damaged or missing, contact your dealer
immediately.
• Locate the hardware package. Remove the tools first. Remove the
hardware for each step as needed to avoid confusion. The numbers in
the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
Tools included
• 5mm L Allen Wrench
• 6mm L Allen Wrench
• 1 Phillips Screwdriver
Assembly
instructions
Parts included
• 1 Main Frame
• 2 Console Mast
• 1 Main Panel
• 1 Console
• 1 Console Bracket Cover
• 4 Handrail Cover
• 2 Console Mast Cover
• 2 End Caps

11
Part Type Description
Hardware for step 1
Qty
128
129
130
Bolt
Flat washer
Split washer
3/8" × 3"
Ø3/8” × Ø35 x 2T
Ø10 × 2.0T
6
10
10
Assembly
Read each step’s instructions and study the drawing carefully to become
familiar with all the parts and procedures before beginning each step.

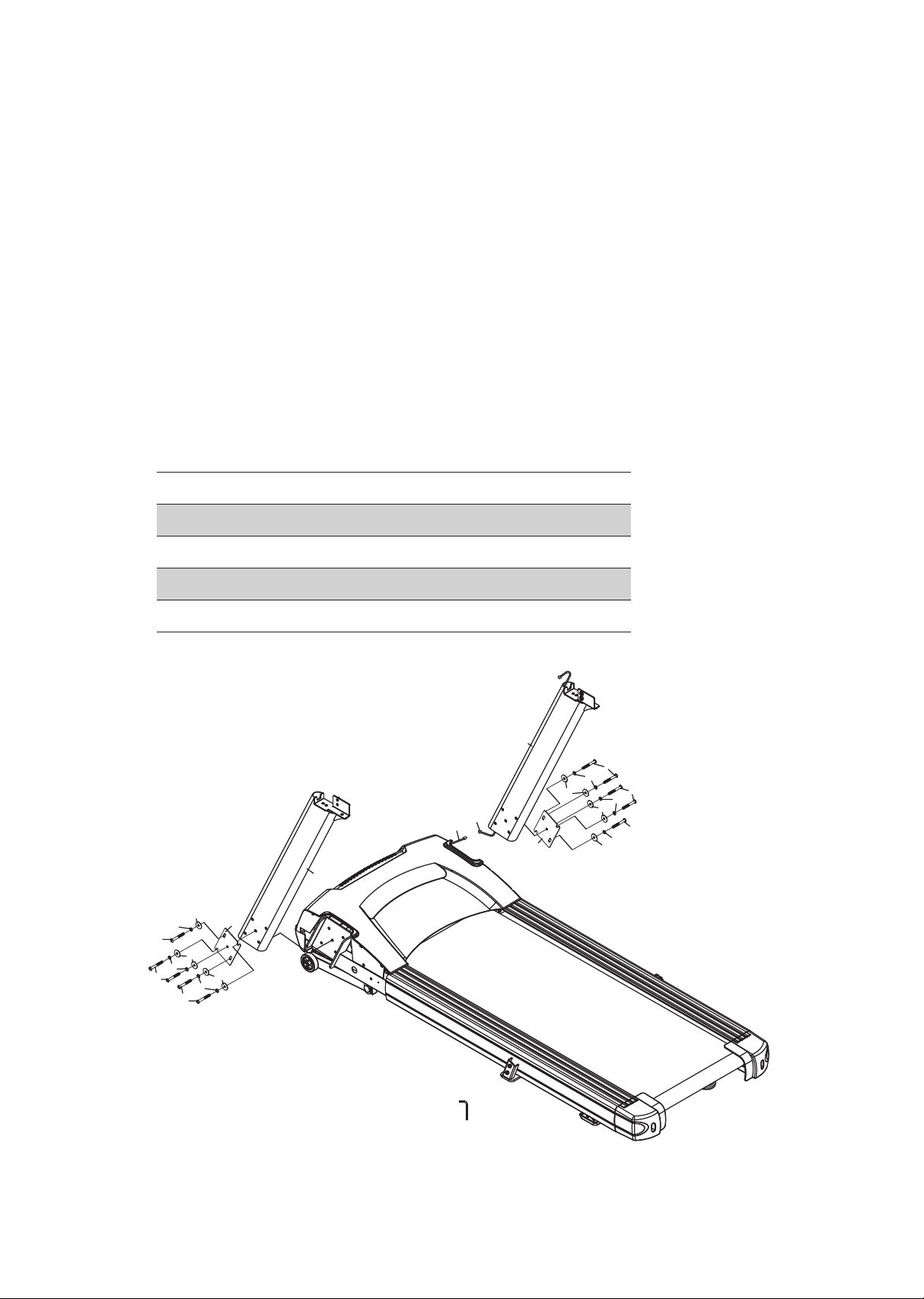

Step 1.
• Attach one Fixing Plate (66) and Left Console Mast (33) to Frame (1)
using five Bolts (128), five Split Washers (130), and five Flat Washers
(129). Do not tighten before putting the console on.
• Connect Wires (41) from the Right Console Mast (34) with another
Wires (178 ) from the Frame (1). Then attach another Fixing Plate (66)
and Right Console Mast (34) to Frame (1) using five Bolts (128), five
Split Washers (130), and five Flat Washers (129). Do not pinch Wires
(41 & 178). Do not tighten before putting the console on.
33
66
128
129
130
128 130
129
128 130
129
34
66
129 130 128
129 130
128
129
130
128
41
142
178

12

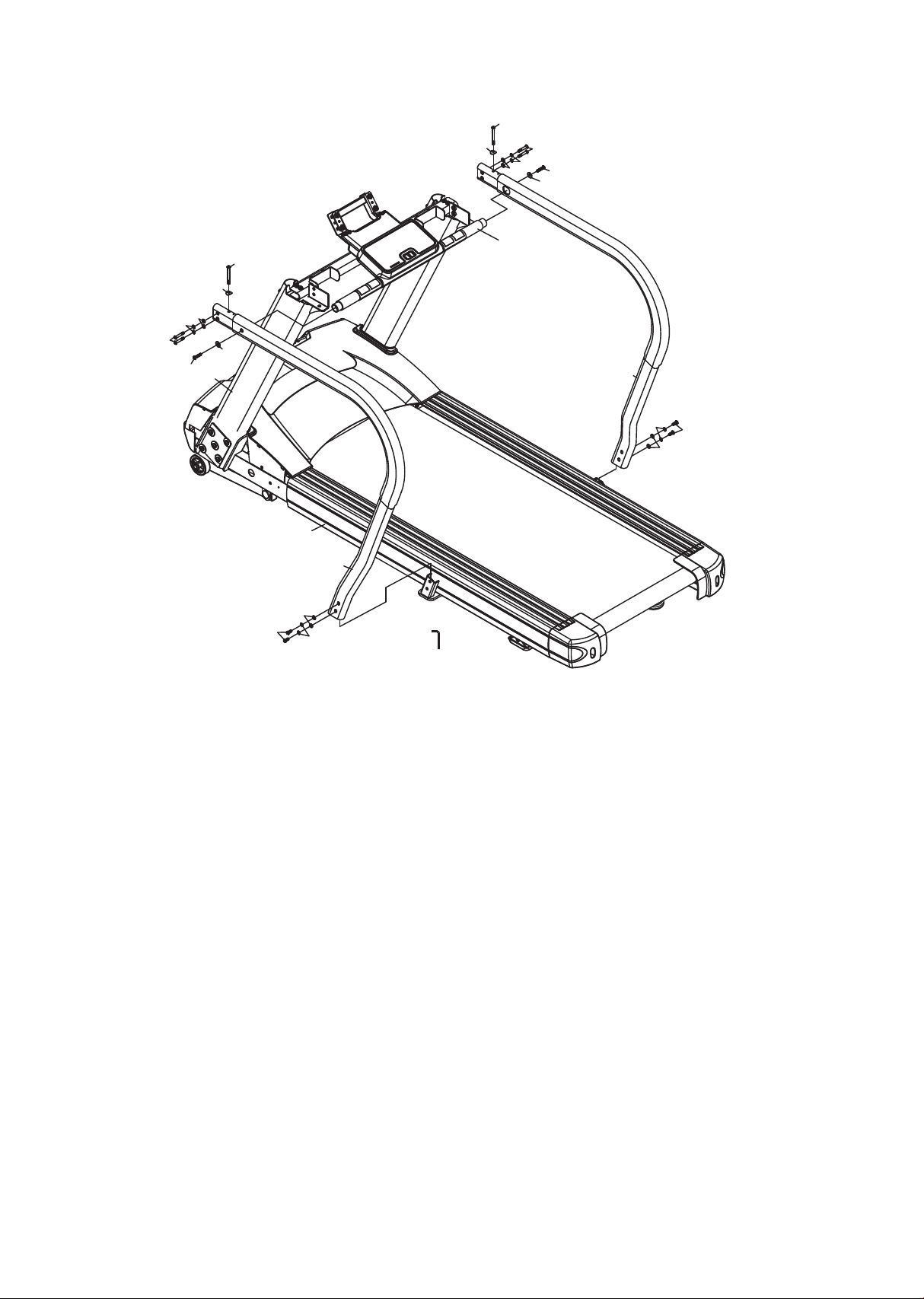

Step 2.
• Connect Wires (41) with Handle Bar Wires (36A) from Handle Bar Frame
(5). Do not pinch Wires (41 & 36A).
• Install Handle Bar Frame (3) onto the console masts using Bolts (131),
Split Washers (130) and Flat Washers (166). Do not tighten before
putting the console on.
• Connect Wires (40) from Lower Console Assembly (3) with Handle Bar
Wires (36A).
• Install Lower Console Assembly (3) onto Handle Bar Frame (3) using
Bolts (167), Split Washers (130) and Flat Washers (166). Do not tighten
before putting the console on.
Part
130
131
166
167
Split washer
Bolt
Flat washer
Bolt
Type Description
Hardware for step 2
Qty
Ø10 × 2.0T
M8 × 45mm
Ø8.5 × Ø16 × 1.5T
M8 × 50mm
6
4
6
2
131
130
166
167
130
166
130
166
166 5
131
130
3
141
41 36(A)
40
36(B)
33
34

13
Part Type Description
Hardware for step 3
Qty
130
131
132
133
135
137
138
166
Split washer
Bolt
Bolt
Curved washer
Bolt
Bolt
Flat washer
Flat Washer
Ø10 × 2.0T
M8 × 45mm
M8 × 80mm
Ø10 × Ø23 × 1.5T
M8 × 20mm
M8 × 35mm
Ø5/16" × Ø23 × 1.5T
Ø8.5 × Ø16 × 1.5T
8
4
4
2
4
2
2
8
Step 3.
•Attach Left Handrail (74) onto Frame (1) and Lower Console Assembly
(3), at the top area using two Bolts (131), two Split Washers (130), two
Flat Washers (166), one Bolt (132) and one Curved Washer (133), at the
bottom area using two Bolts (135), two Split Washers (130) and two Flat
Washers (166). Do not tighten before putting both handrails on.
•Attach Right Handrail (74) onto Frame (1) and Lower Console Assembly
(3), at the top area using two Bolts (131), two Split Washers (130), two
Flat Washers (166), one Bolt (132) and one Curved Washer (133), at the
bottom area using two Bolts (135), two Split Washers (130) and two Flat
Washers (166).
•Tight all bolts and washers from previous step.

14
75
135
130
166
131
130 137
132
133
138
166
74
137
135 130
166
131
130
132
133
138
166
141
3
1
33

15
Step 4.
• Attach Console Frame (4) on Lower Console Assembly (3) using four
Bolts (131), four Split Washers (130) and four Flat Washers (166).
• Connect the Wiring Harness (35、37、38、39、40、58) with Console
(28), attach Console (28) on Console Frame (4) using two Screws (116),
and two Screws (134).
Part Type Description
Hardware for step 4
Qty
116
130
131
134
166
Screw
Split washer
Bolt
Screw
Flat washer
M5 × 12mm
Ø10 × 2.0T
M8 × 45mm
M5 × 40mm
Ø8.5 × Ø16 × 1.5T
6
6
2
2
2
4
28
131
131
166
166
116
134
134
130
130
143 141
38
37
40 58 39 35
3

16
Step 5.
• Attach Right & Left Lower Console Mast (26 & 27) on Frame (1) using
four Screws (116) (Black).
• Attach Right & Left Upper Console Mast (64、65) on Right & Left
Handrail (74、75) using four Screws (136) (Silver).
• Attach Bottle Holder (31) on Handle Bar Frame (5) using four Tapping
Screws (140 ).
• Attach Console Back Cover (32) on Console Frame (4) using four Screws
(116).
Part Type Description
Hardware for step 5
Qty
116
136
140
Screws
Screws
Tapping screws
M5x 12mm
M5x 12mm
M5x 10mm
8
4
4
143
64
136
136
65
136
136
27
116
116
26
116
116
32
116
116
140
140
31
31
174
75
5
4

17
4.0 T Console
Power on
Power the treadmill on by plugging it into an appropriate wall outlet,
then turn on the power switch located at the front of the treadmill
below the motor hood. Ensure that the safety key is installed, as the
treadmill will not power on without it.
When the power switch is turned on the console will go to the start
up display, also known as Idle Mode. The Message Window will be
scrolling the start up message. You may now begin to use the 4.0 T.
Console
operation
Message window
1
Program keys
4
Incline/Decline
keys
3Quick Keys
5
Speed Keys
6
Function Keys
7
2Dot matrix window

18
CSAFE feature
Your console is equipped with a CSAFE feature. The Power (POWER)
port can be used for powering a remote controlled audio-visual system
by connecting a cable from the remote to the Power port at the back of
the console. The Communication port (COMM) can be used to interact
with software applications.
Quick start
This is the quickest way to start a workout. After the console powers up
you just press the Start key to begin. This will initiate the Quick Start
mode. In Quick Start, the Time will count up from zero, all workout data
will start to accrue and the workload may be adjusted manually by
pressing the Plus and Minus keys. As you increase the workload more
rows will light indicating a harder workout.

19
Basic information
When you begin a program the dot matrix will display the workout
Prole.
The Message Window will initially be displaying distance, calories, pulse
and time information. On the bottom left of the lower keypad is a key
labeled Display. Each time this Display key is pressed the next set of
information will appear. If the Display key is pressed during the second
set of information display the Scan mode will come on and the Message
Window will show each set of data for four seconds then switch to the
next set of data in a continuous loop. Pressing the Display key again will
bring you back to the rst set of information as beginning.
The dot matrix window is used for displaying graphic feedback and has
three basic displays for most programs. When you begin a program the
dot matrix window will display a speed profile. On the bottom right of
the lower keypad is a key labeled Prole. Pressing this key will switch the
display to show an incline grade and then a track. When the LEDs are
blinking the graph will scan through the three displays.
The product has a built in heart rate monitoring system. Simply grasping
the hand pulse sensors, or wearing a heart rate chest belt transmitter
will start the heart rate detection, The Message Window will display your
heart rate, or Pulse, in beats per minute (this may take a few seconds).
NOTE: You must enter your correct age during program setup for heart
rate control program to be accurate. Refer to Using a Heart Rate trans-
mitter section for details about these features and how they can help
you work out more eciently.
The Stop key actually has several functions. Pressing the Stop key once
during a program will pause the program for 5 minutes. If you need to
get a drink, answer the phone, or any of the many things that could
interrupt your workout, this is a great feature. To resume your workout
during Pause just press the Start key. If the Stop key is pressed twice
during a workout the program will end and a summary of information of
the exercise session will be displayed, and then the console will return
to the start up screen. If the Stop key is held down for 3 seconds the
console will perform a complete Reset. During data entry for a program
the Stop key performs a Previous Screen function. This allows you to go
back one step in the programming each time you press the Stop key.

20
The program keys may be used to preview each program when in the
idle mode. When you first turn the console on you may press each
program key to preview what the program prole looks like. If you
decide that you want to try a program, press the corresponding
program key and then press the Conrm key to select the program
and enter into the data-setup mode.
The console includes a built-in fan to help keep you cool.
Programmable features
Each of the programs can be customized with your personal
information and changed to suit your needs. Some of the information
asked for is necessary to ensure the readouts are correct. You will be
asked for your Age and Weight. Entering your Age ensures that the
Heart Rate window shows the correct number. Your Age is also
necessary during the Heart Rate control program to ensure the correct
settings are in the program for your Age. Otherwise the work settings
could be too high or low for you; entering your Weight aides in
calculating a more correct Calorie reading. Although we cannot provide
an exact calorie count we do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment,
whether it is in a facility or at home, are not accurate and tend to vary
widely. They are meant only as a guide to monitor your progress from
workout to workout. The only way to measure your calorie burn
accurately is in a clinical setting connected to a host of machines.
This is because every person is dierent and burns calories at a
dierent rate. Some good news is that you will continue to burn calories
at an accelerated rate for at least an hour after you have nished
exercising!
