3139 125 26802
Instructions for use
Colour Television
29PT5683

Great user manuals database on UserManuals.info
2
22

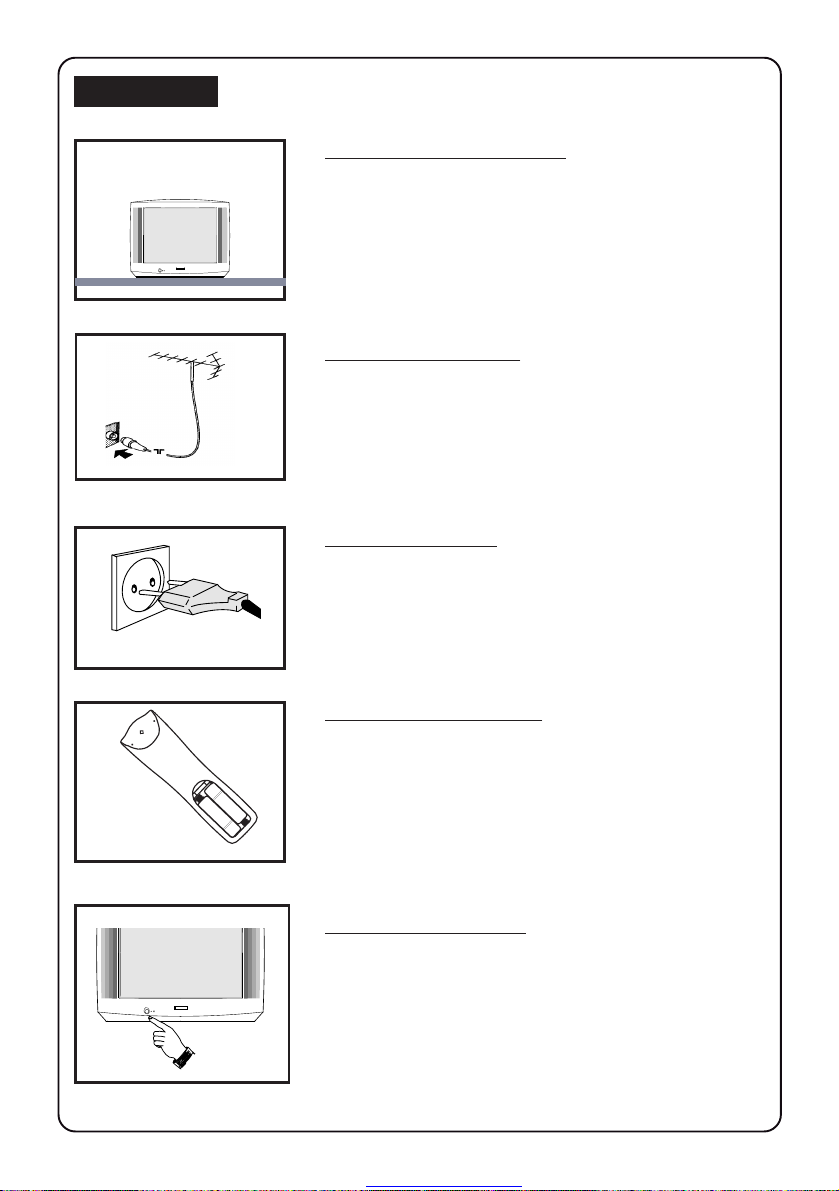

Positioning of the TV set
• Place TV set on a solid base (e.g. a TV/Video cabinet)
• Leave at least 5 cm around each side of TV set for
ventilation to avoid over-heating.
• Do not place TV set near a radiator or other sources of
heat.
• Do not place TV set where it can be exposed to rain or
excessive moisture.
Antenna Connection
• Connect the aerial plug to the antenna socket ¬¬
¬¬
¬on the
backcover.
Mains Connection
• For correct mains voltage, refer to type sticker at the rear
of the TV set
• Consult your dealer if mains supply is different.
Note : This diagram is not representative of the actual
plug and socket.
Use of Remote Control
• Insert correct type of batteries into the compartment.
• Replace the battery cover.
Note : Always remove the batteries from the remote
control handset if it is not used for a long period.
This can help prevent damage to handset from possible
battery leakage.
Switching on the Set
• Press the main power button to switch on/off the TV.
If the set is on standby (indicator is red), press STANDBY
button on the remote control to switch on set.
INSTALLATION
PHILIPS
PHILIPS
÷÷
◊
5 cm 5 cm
5 cm
PHILIPS
+
+

Great user manuals database on UserManuals.info
3
33
PHILIPS

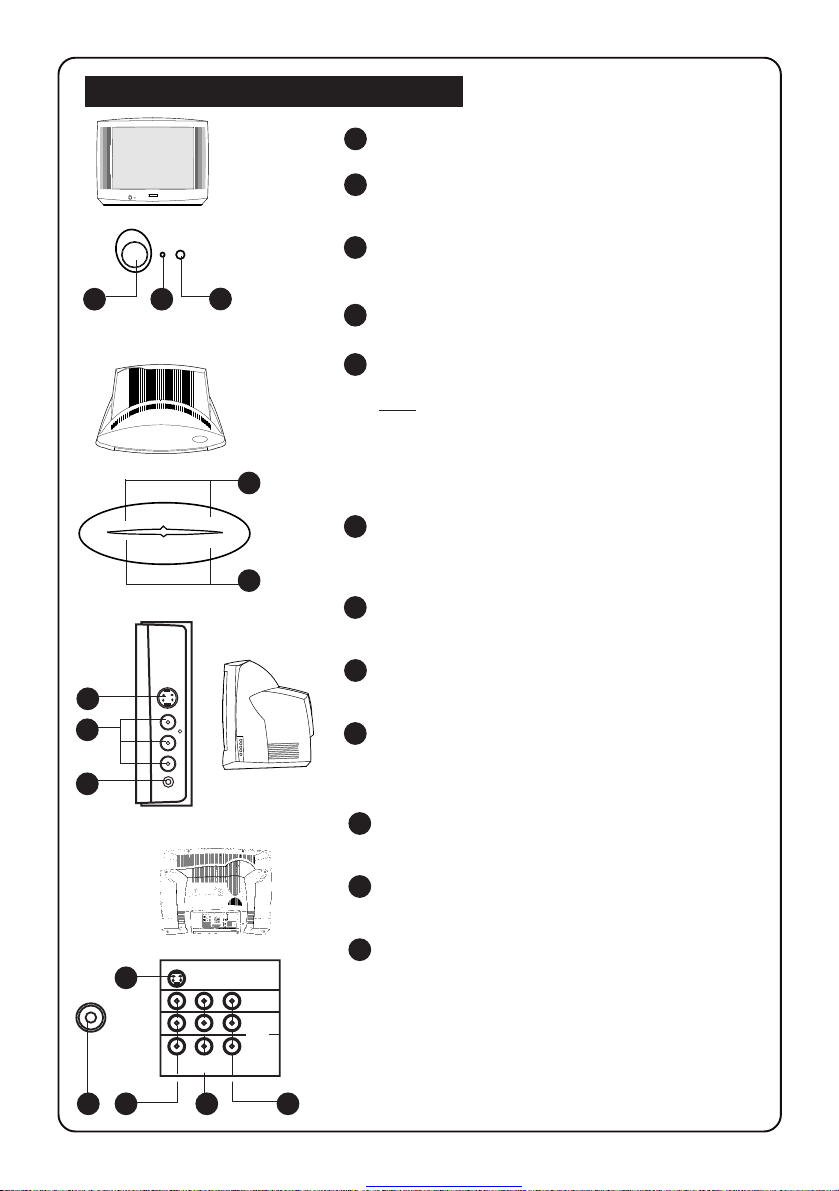

FUNCTIONS OF TV CONTROLS/SOCKETS
A
123
6
4
7
➠
➠
➠
5
➠
S-VIDEO
in
AV1
VIDEO
L
AUDIO
R
in
AV2
out
Monitor
810 11 12
9
1Mains Power button
Switch mains power on or off.
2Standby light indicator
Indicate red light when standby mode is
activated.
3Remote Sensor
Aim remote control handset at remote
sensor when operating the TV.
4Volume +/ – button
Adjust sound volume louder/softer.
5P (Programme) +/ – button
Select channel in ascending/descending order.
Note
• You can enter the main menu by pressing both
the Volume + / – buttons at the same time.
• Press Programme + / – button to select
sub-menu.
• Press Volume + / – button to activate sub-menu.
6AV3 in sockets
Connect to Output sockets of VCR/laser disc
player to the AV3 in sockets to playback
programmes.
7Headphone socket
Connect headphone jack to socket for
personal listening.
8Antenna socket
Connect the aerial plug to the antenna socket
on the backcover.
9S-Video In socket
Connect the S-VIDEO Output socket (if available)
of the VCR to the S-VIDEO in socket to enhance
picture quality.
10 AV1 In sockets
Connect the Output sockets of the VCR/laser disc
to the AV1 in sockets to playback programmes.
11 AV2 In sockets
Connect the Output sockets of the VCR/laser disc
to the AV2 in sockets to playback programmes.
12 Monitor out sockets
Connect the VIDEO out socket of the TV to the
Input socket of VCR to record programmes.
To enhance sound of your TV, connect the
AUDIO L and Rsockets to an external audio
system.
9
K
K
´ L
´ L
P
A
S-VIDEO
VIDEO
in
AUDIO
L
R
n

Great user manuals database on UserManuals.info
4
44
A/CH
PIP UP PIP DOWN
AV
4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
hf
b
ed
2
y

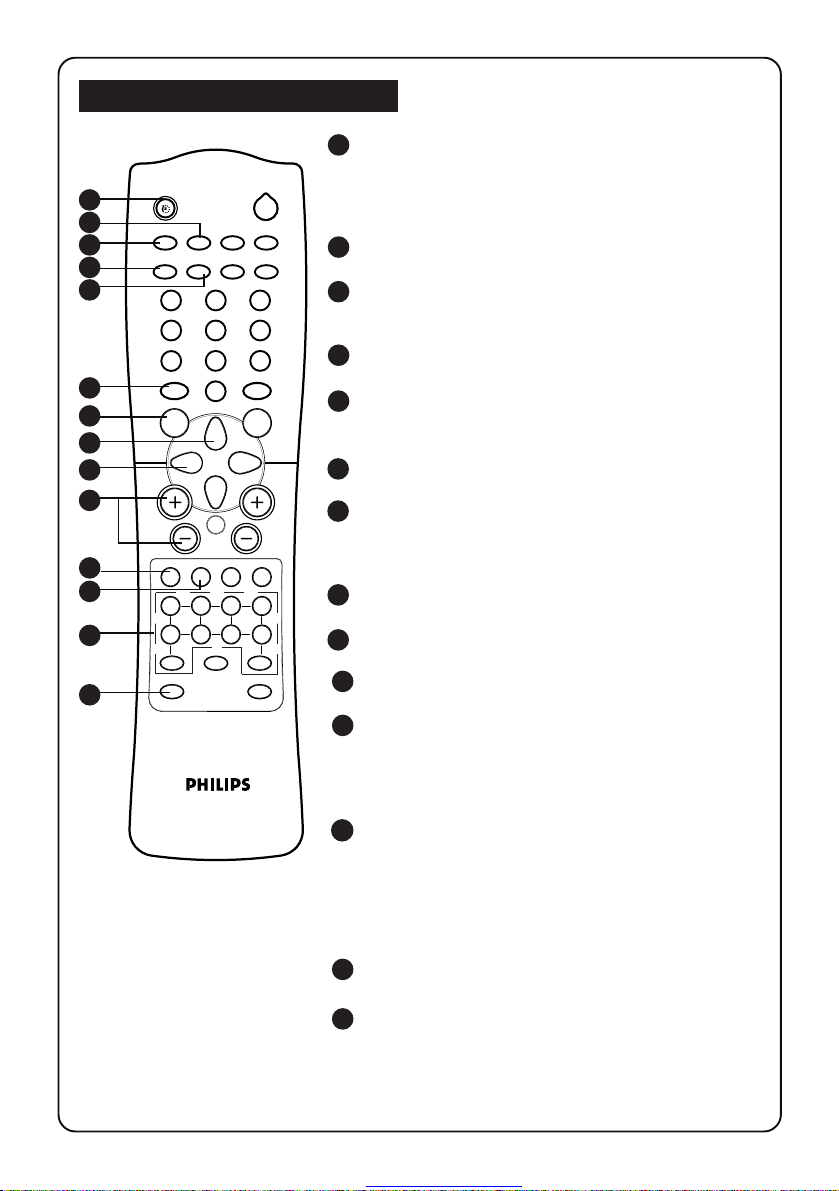

FUNCTIONS OF REMOTE CONTROL
1
1SLEEPTIMER
Allows you to select a time period after which the set
will switch to standby mode automatically. You can
set the timer in steps of 15 minutes from OFF mode
up to a maximum of 120 minutes.

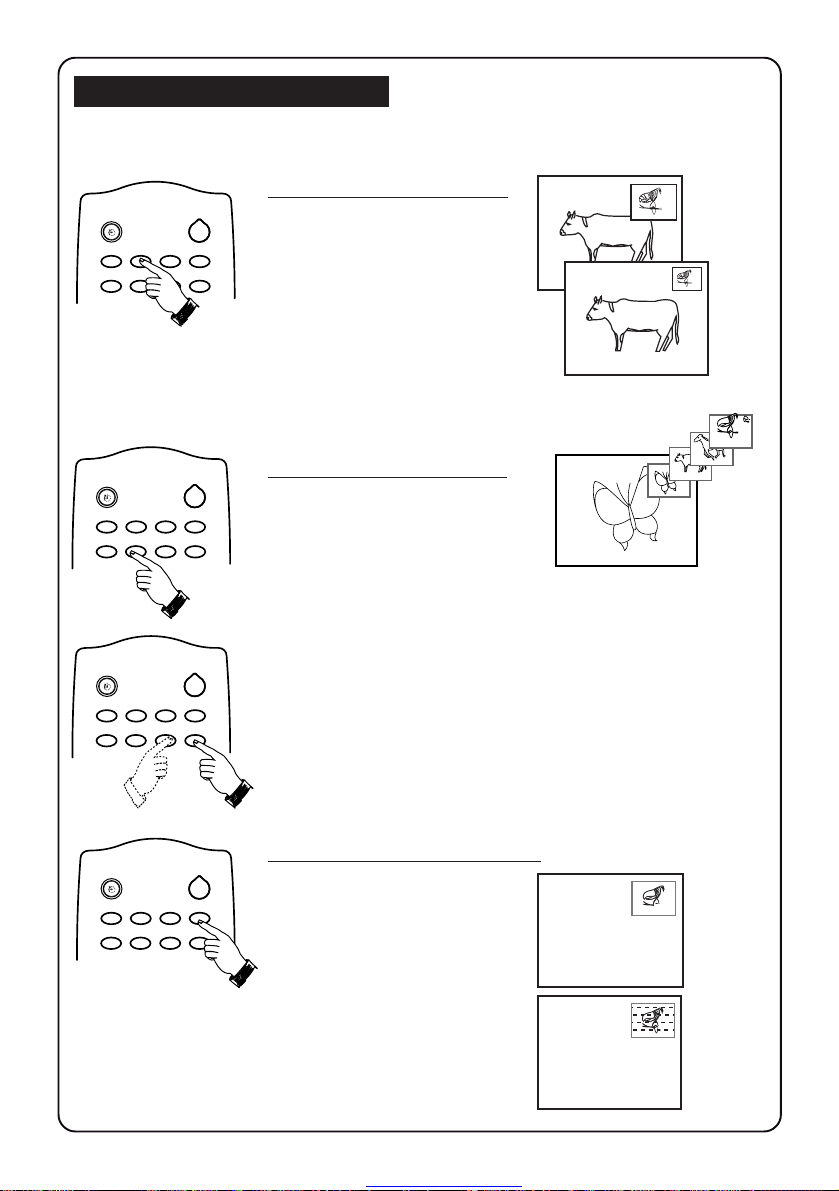

2PIP ON/OFF
Switch on or off PIP (Picture in Picture).
3A/CH (ALTERNATE CHANNEL)
Alternate between last viewed channel and present
channel.
4PIP SWAP
Interchange channel on main screen and subscreen.
5PIP SOURCE
Allows you to select various external connections for
PIP.
6SMART SOUND
Allows you to select 4 types of sound settings
7MENU
Allows you to adjust picture and sound settings and
activate the features and install the channels
automatically.
8CURSOR UP
Allows you to select the sub-menus.
9CURSOR LEFT
Allows you to access or adjust the sub-menus.
10 VOLUME + / –
Increases / decreases volume.
11 AV
Selects AV1, S-VID1, AV2, AV3, S-VID3 and the last
viewed channel respectively. The correct channel
must be selected when viewing a playback
programme.
12 OSD (On-Screen Display)
Displays :
– channel number.
– remaining time of the sleeptimer.
– programme name.
– information line
– transmission mode.
13 TELETEXT
Allows you to select teletext information.
14 INCREDIBLE SURROUND
Allows you to select incredible surround sound
when transmission is in stereo mode.
3
4
5
7
8
9
10
11
2
6
12
13
14

Great user manuals database on UserManuals.info
5
55
A/CH
PIP UP PIP DOWN
AV
4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
hf
b
ed
2
y

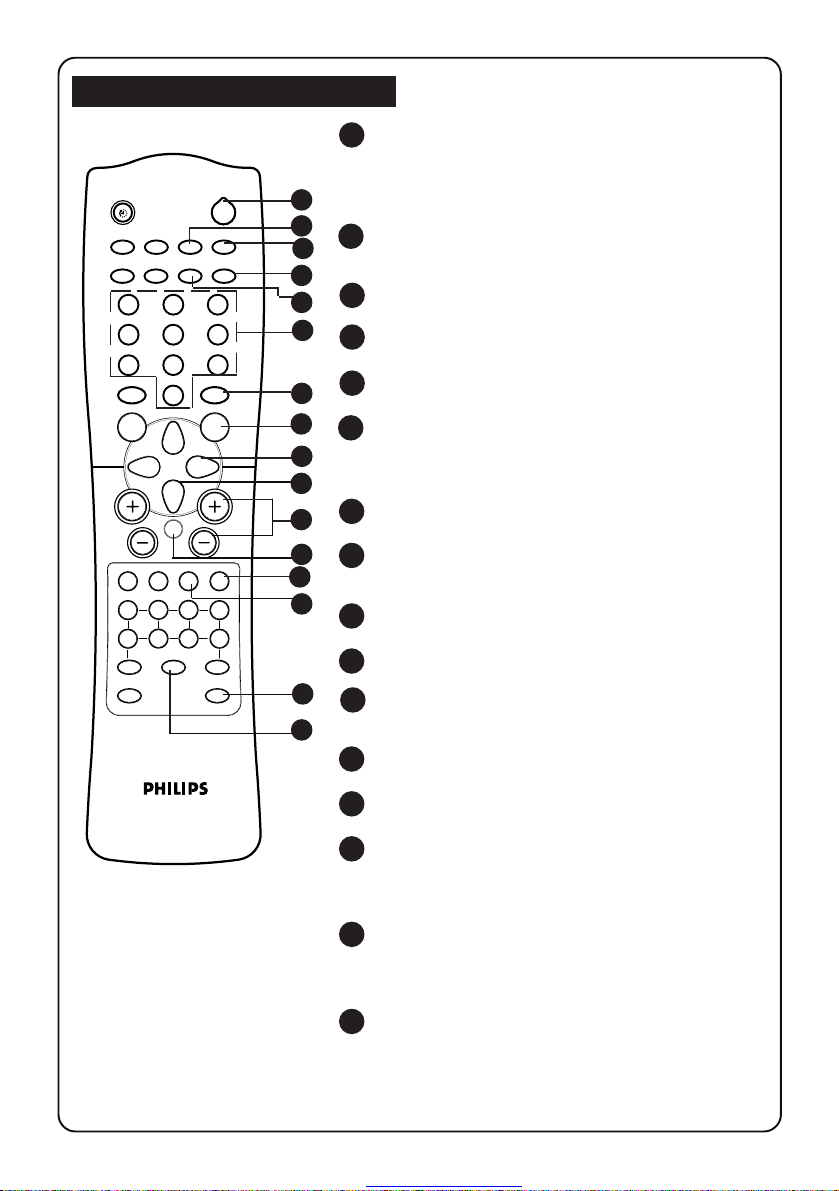

FUNCTIONS OF REMOTE CONTROL
17
18
15
16
19
20
21
22
23
24
25
27
28
26
29
30
15 POWER
Switch set off temporarily to standby mode.
(The red light indicator lights up when set is on
standby mode). To switch on set from standby
mode, press and hold button for a few seconds.
16 PIP POSITION
Allows you to move the PIP screen to your desired
position.
17 PIP FREEZE
Allows you to freeze or resume the PIP screen.
18 PIP DOWN
Selects a PIP channel in descending order.
19 PIP UP
Selects a PIP channel in ascending order.
20 DIGIT (0 - 9)
Allows you select a channel. For a 2-digit channel
number, the second digit must be entered before
the “ – “ sign disappears
21 SMART PICTURE
Allows you to select 4 types of picture settings.
22 SURF
Allows you to select up to a maximum of 10
channels and view quickly the selected channels.
23 CURSOR RIGHT
Allows you to access or adjust the sub-menus.
24 CURSOR DOWN
Allows you to select the sub-menus.
25 CHANNEL + / –
Allows you to select channel in ascending or
descending order.
26 MUTE
Mutes sound. To restore sound, press button again.
27 TIMER
Not applicable.
28 44
44
4
Allows you to switch from Stereo to Mono sound
(stereo transmission) or to choose between
language5and language 6.
29 INCREDIBLE PICTURE
Allows you to view a more vivid and realistic
picture with better contrast when the “ON”
function is selected.
30 GAME
Allows you to select Video mode as input for
video games.

Great user manuals database on UserManuals.info
6
66
MENU SURF
MENU SURF MENU SURFMENU SURF MENU SURF
ACCESSING THE MAIN MENU
The main menu allows you access to the PICTURE, SOUND, FEATURES and INSTALL
menus.
How to call up the main menu
1. Press the MENU button. 2. The main menu appears on the screen.
How to access the menus in the main menu
The 4 buttons (CURSOR DOWN, UP, LEFT and RIGHT) allow you to select the desired
menu, make adjustments and access the sub-menus.
How to exit from the menus
Press the (OSD) button to exit menu from screen or press (MENU) button
repeatedly to exit all menus from screen.
➠
➠
➠
➠
➠
MENU
m
PICTURE BRIGHTNESS
SOUND COLOUR
FEATURES CONTRAST
INSTALL SHARPNESS
COLOUR TEMP
Ñ
Ñ
Ñ

Great user manuals database on UserManuals.info
7
77
OR
MENU
m
A/CH
PIP UP PIP DOWN
AV
4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
hf
b
ed
2
y

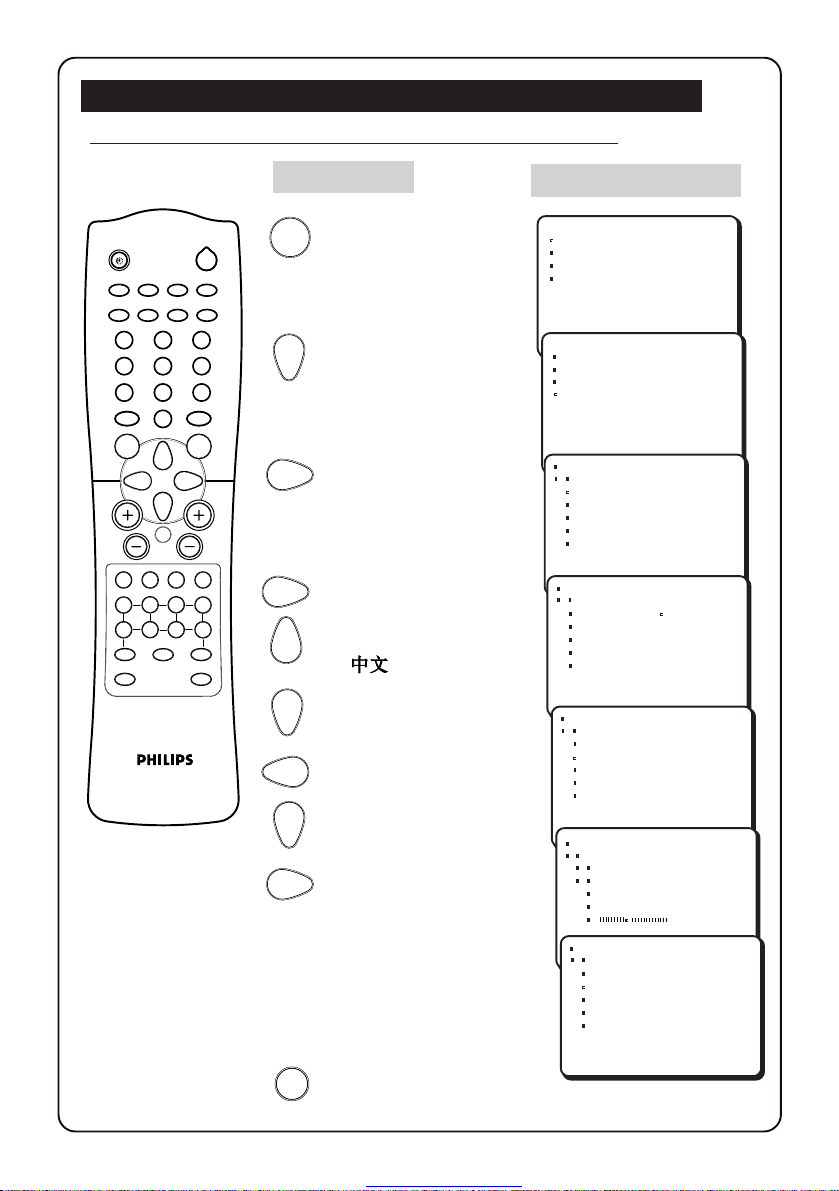

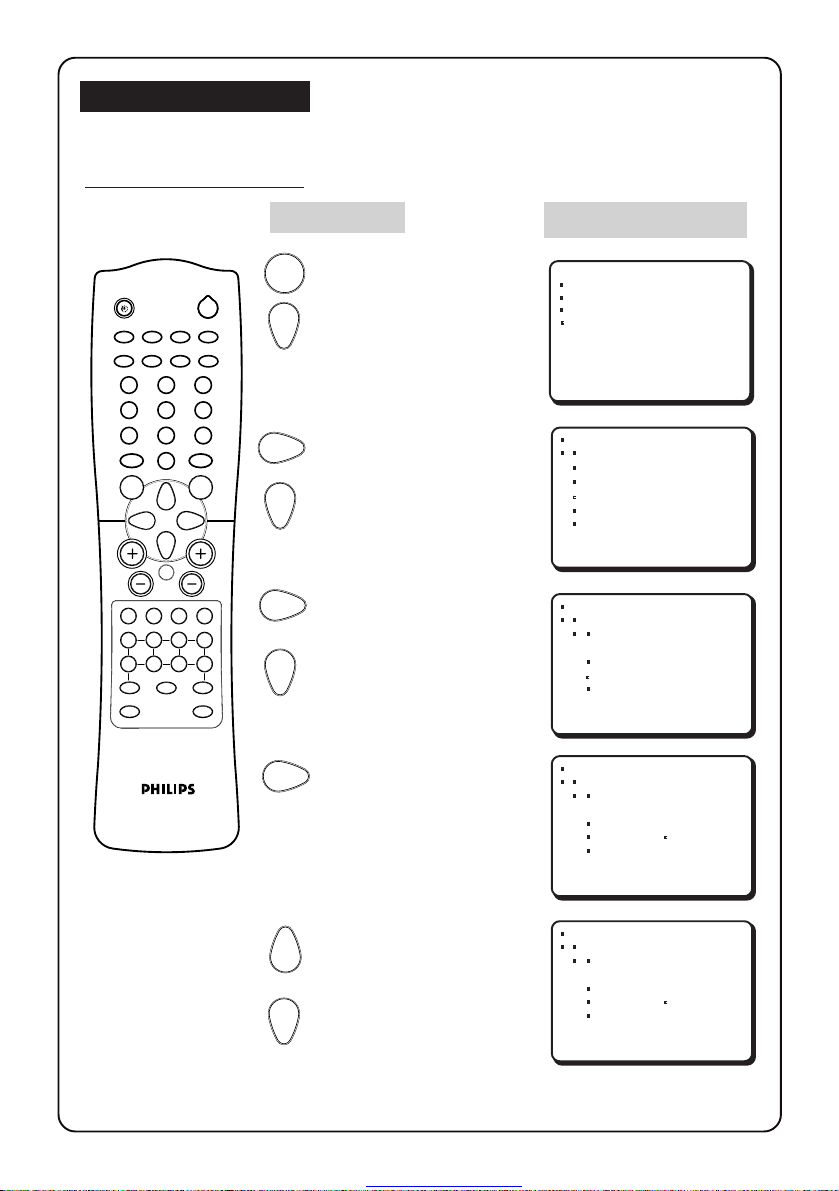

LANGUAGE SELECTION /AUTOMATIC TUNING OF TV CHANNELS
How to tune in the channels automatically (Auto Store)
Press button Result on TV Screen
Enter main menu .
Press button repeatedly
until INSTALL is selected.
Enter install menu.
Enter language mode.
Select desired language
– ENGLISH, B. MELAYU
or .
Go back to language
mode.
Select AUTO STORE.
Start automatic tuning.
Note : To interrupt
tuning, press MENU
button.
Exit menu from screen.
PICTURE BRIGHTNESS
SOUND COLOUR
FEATURES CONTRAST
INSTALL SHARPNESS
COLOUR TEMP
Ñ
Ñ
Ñ
SOUND LANGUAGE
FEATURES AUTO STORE
INSTALL MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ
INSTALL
LANGUAGE ENGLISH
AUTO STORE B. MELAYU
MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ
É
➤
INSTALL
LANGUAGE ENGLISH
AUTO STORE B. MELAYU
MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ
É
➤
INSTALL
LANGUAGE
AUTO STORE
MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ
INSTALL
AUTO STORE
SEARCHING
PLEASE WAIT
CHAN. FOUND 8
Ñ
Ñ
Ñ
INSTALL
LANGUAGE
AUTO STORE
MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ

Great user manuals database on UserManuals.info
8
88
OR
MENU

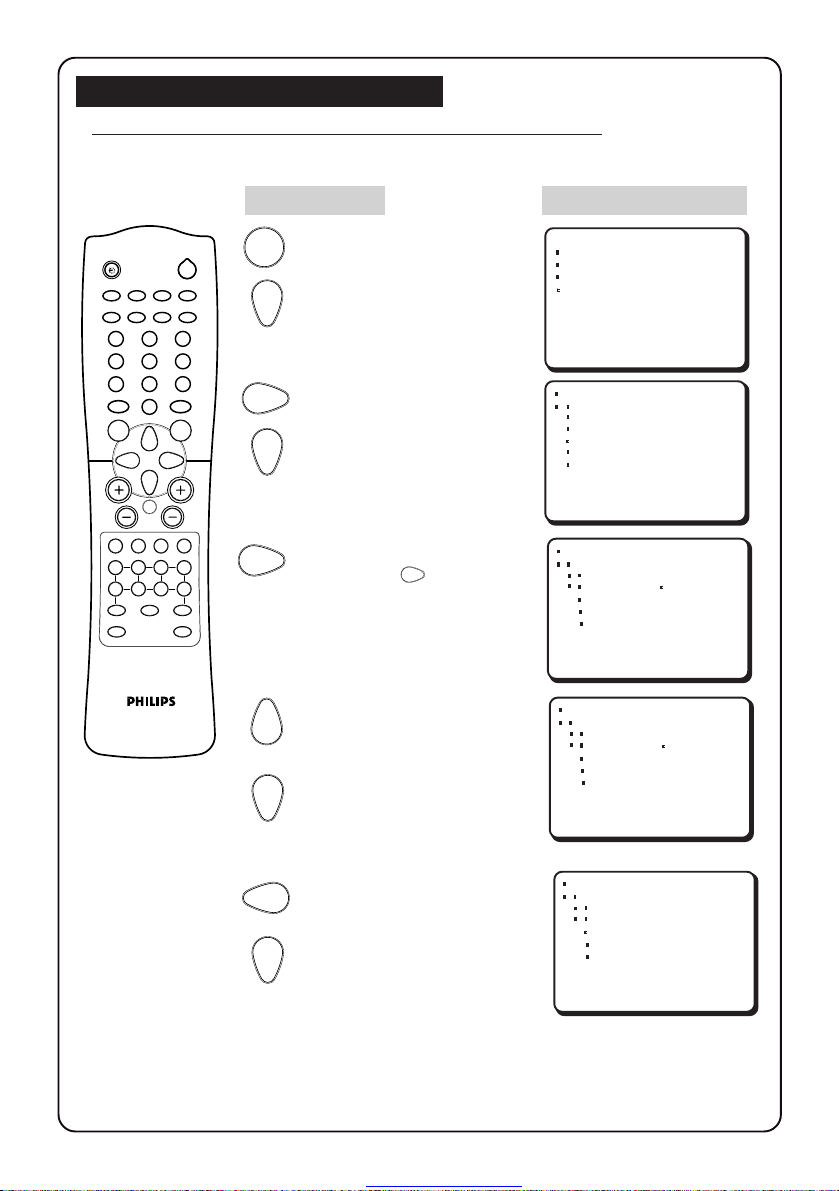

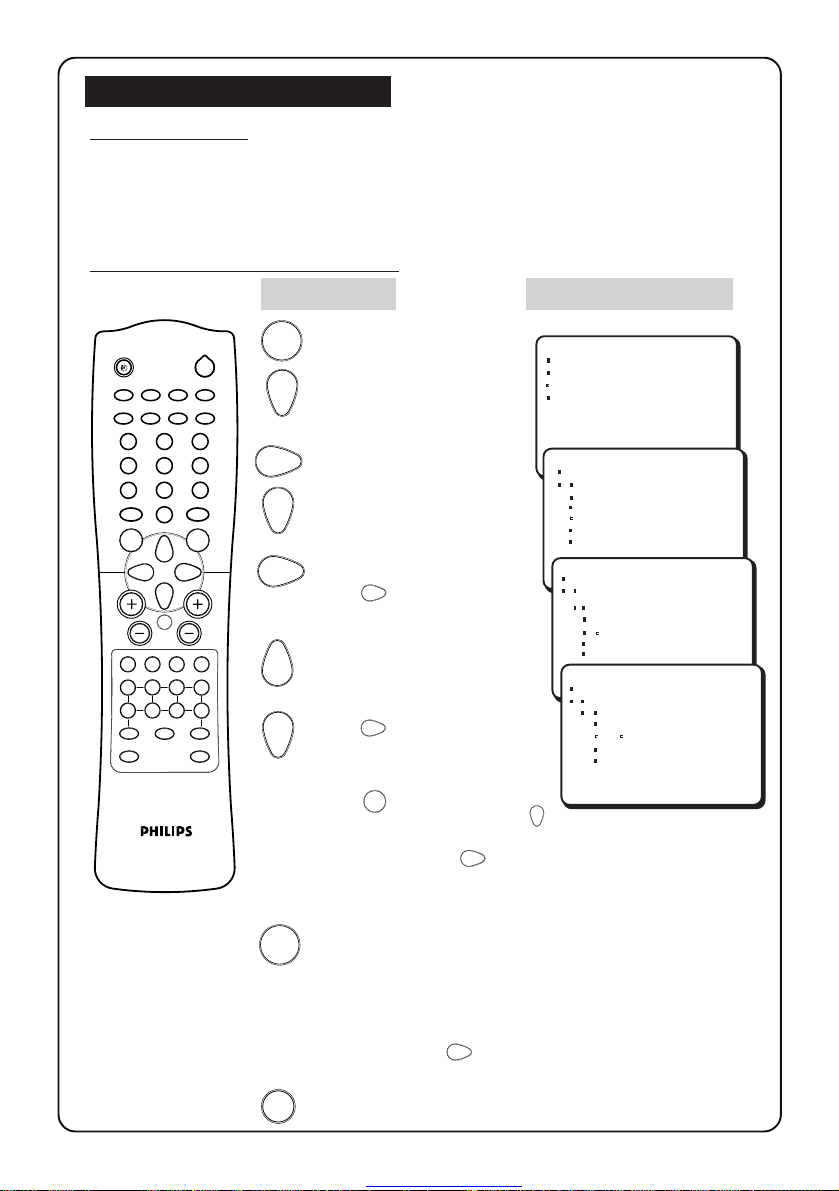

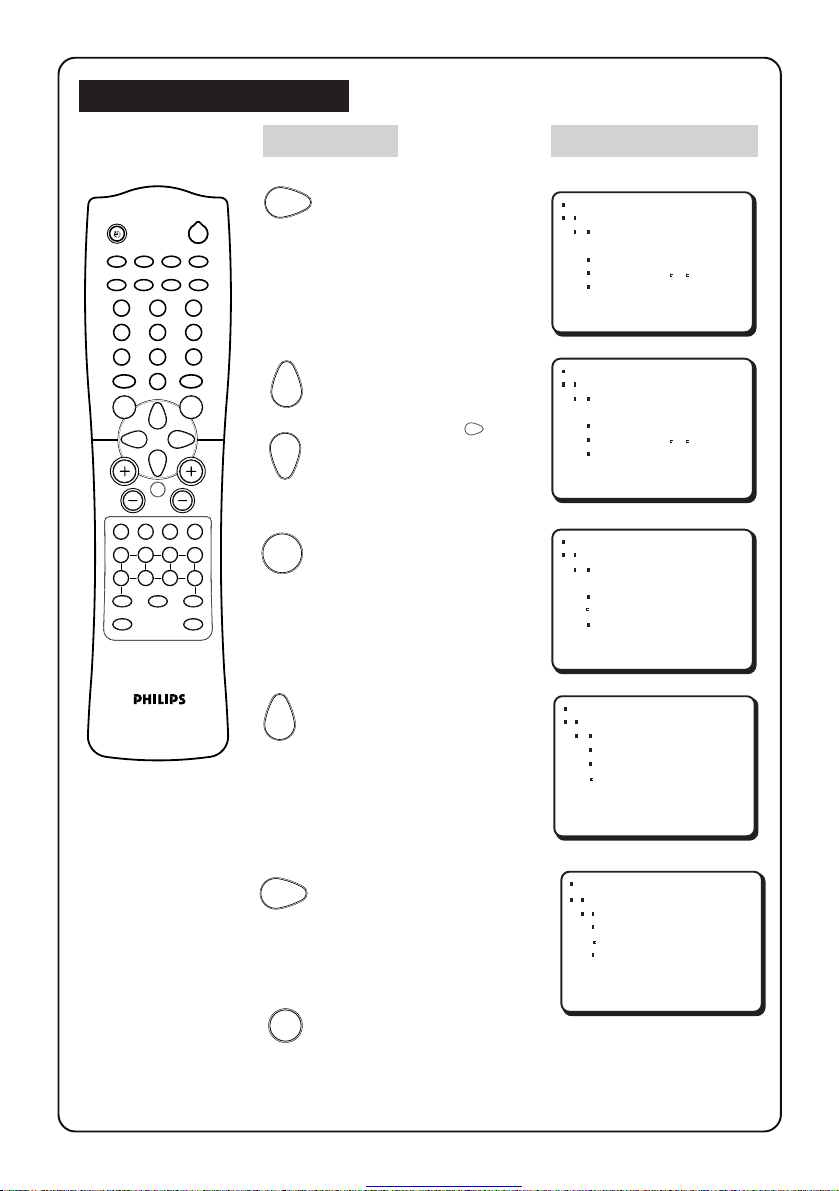

MANUAL TUNING OF TV CHANNELS
How to tune in the channels manually (Manual Store)
Manual tuning of channels allows you to select your preferred programme number
for every available programme.
Press button Result on TV Screen
Enter main menu
Press button repeatedly
until INSTALL is selected.
Enter INSTALL menu
Press button repeatedly
until MANUAL STORE
is selected.
Enter MANUAL STORE
menu. Press button
again to enter SYSTEM
mode.
Select the respective
transmission – AUTO,
NTSC -M, SECAM-DK,
PAL -DK, PAL -I or PAL-BG.
Note : If AUTO is selected,
the respective colour system
will be automatically selected
according to the transmission
system.
Go back to MANUAL STORE.
menu
Highlight SEARCH.
4
INSTALL
MANUAL STORE
SYSTEM AUTO
SEARCH
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
INSTALL
MANUAL STORE
SYSTEM
SEARCH 062.25 MHZ
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
INSTALL
MANUAL STORE
SYSTEM NTSC -M
SEARCH
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
SOUND LANGUAGE
FEATURES AUTO STORE
INSTALL MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ
INSTALL
LANGUAGE
AUTO STORE SYSTEM
MANUAL STORE SEARCH
SORT CHANNEL
CHANNEL EDIT STORE
Ñ
Ñ
Ñ
A/CH
PIP UP PIP DOWN
AV
4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
hf
b
ed
2
y

Great user manuals database on UserManuals.info
9
99
INSTALL
MANUAL STORE
SYSTEM
SEARCH 062.25 MHZ
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤

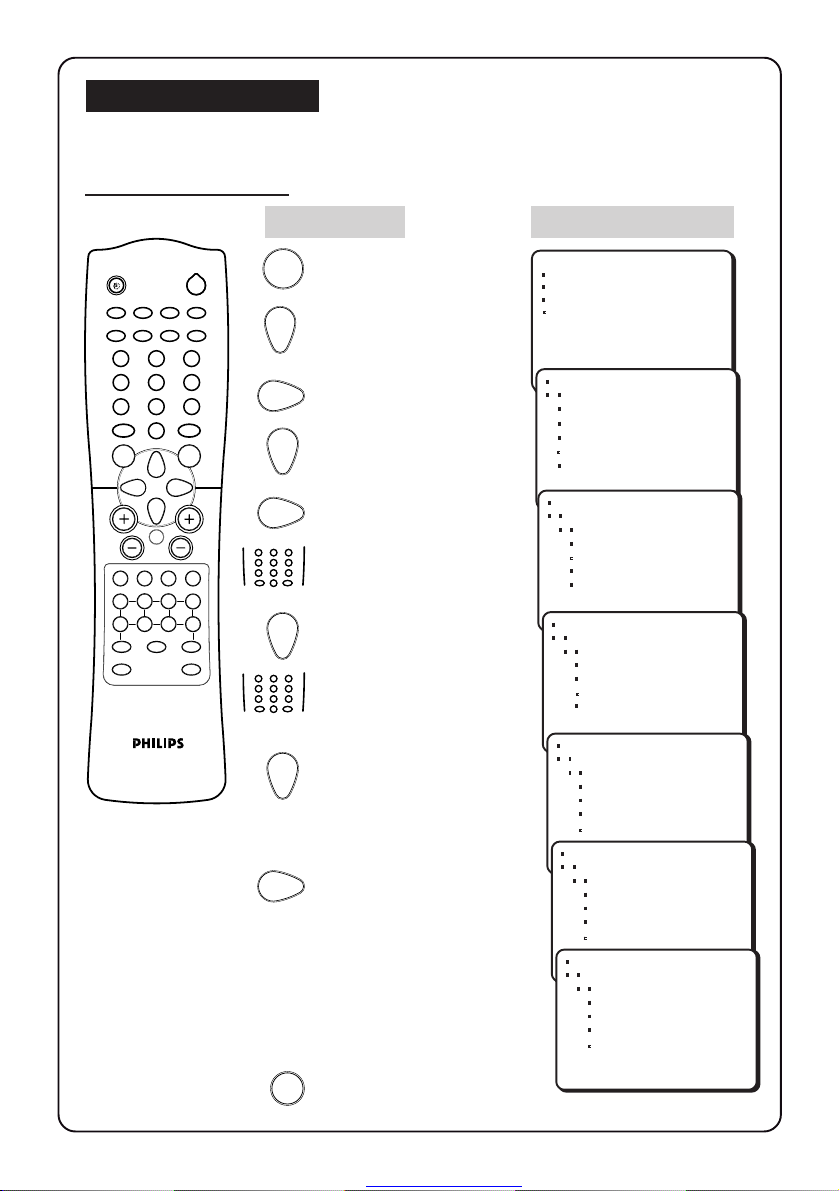

......MANUAL TUNING OF TV CHANNELS
Press button Result on TV Screen
Enter MANUAL STORE
menu.
Enter MANUAL STORE
mode.
Start searching for the next
transmitting channel.
Searching stops once a
transmitting channel is found.
Go back to MANUAL STORE
menu.
Highlight CHANNEL.
Key in the desired channel
number.
Highlight STORE.
Store tuned channel.
To continue searching for
the next transmitting
channel, repeat all the above
steps.
Exit menu from screen.
INSTALL
MANUAL STORE
SYSTEM
SEARCH 196.25 MHZ
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
INSTALL
MANUAL STORE
SYSTEM
SEARCH
CHANNEL 3
STORE
NAME
Ñ
Ñ
Ñ
É
➤
INSTALL
MANUAL STORE
SYSTEM
SEARCH
CHANNEL 8
STORE
NAME
Ñ
Ñ
Ñ
É
➤
INSTALL
MANUAL STORE
SYSTEM
SEARCH
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
INSTALL
MANUAL STORE
SYSTEM
SEARCH 196.25 MHZ
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
OR
m
A/CH
PIP UP PIP DOWN
AV
4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
hf
b
ed
2
y
SMARTSMART
±`
5
13
2
46
79
8
0

Great user manuals database on UserManuals.info
10
1010
INSTALL
MANUAL STORE
SEARCH
CHANNEL
STORE
NAME
Ñ
Ñ
Ñ
É
➤
É
➤

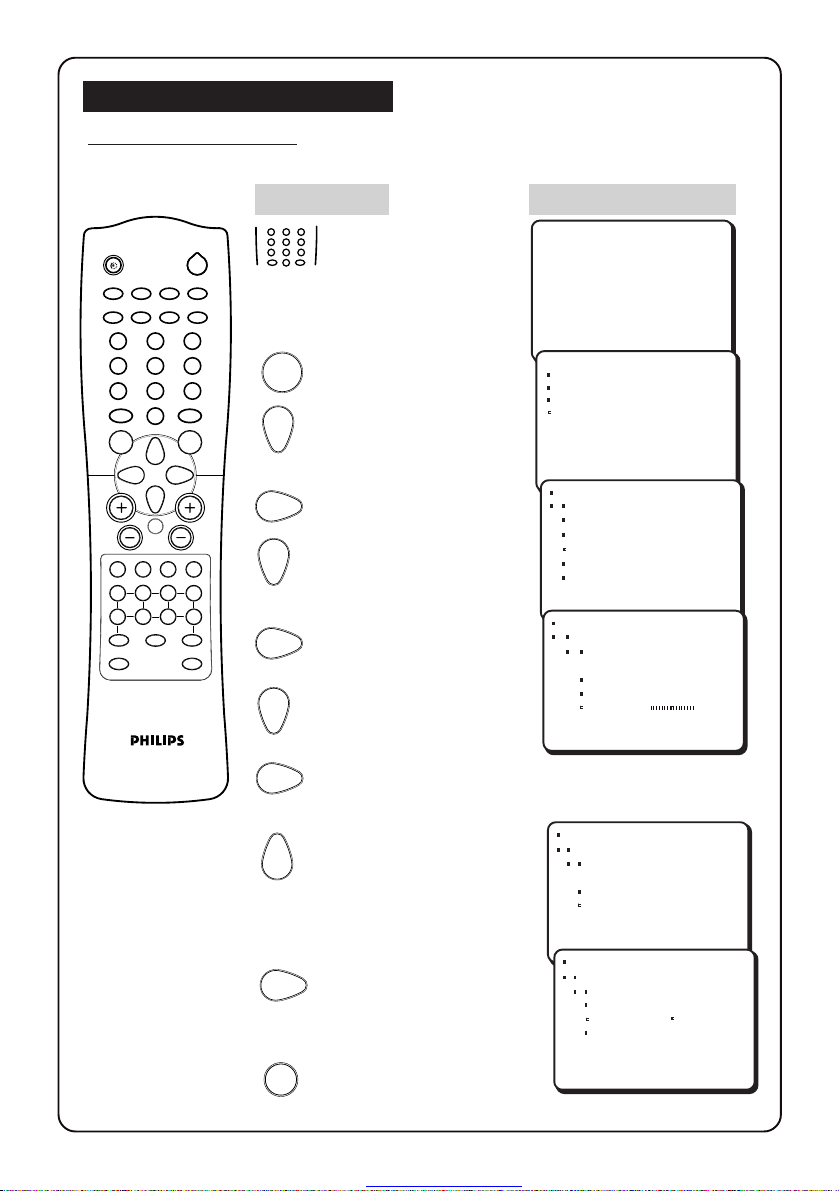

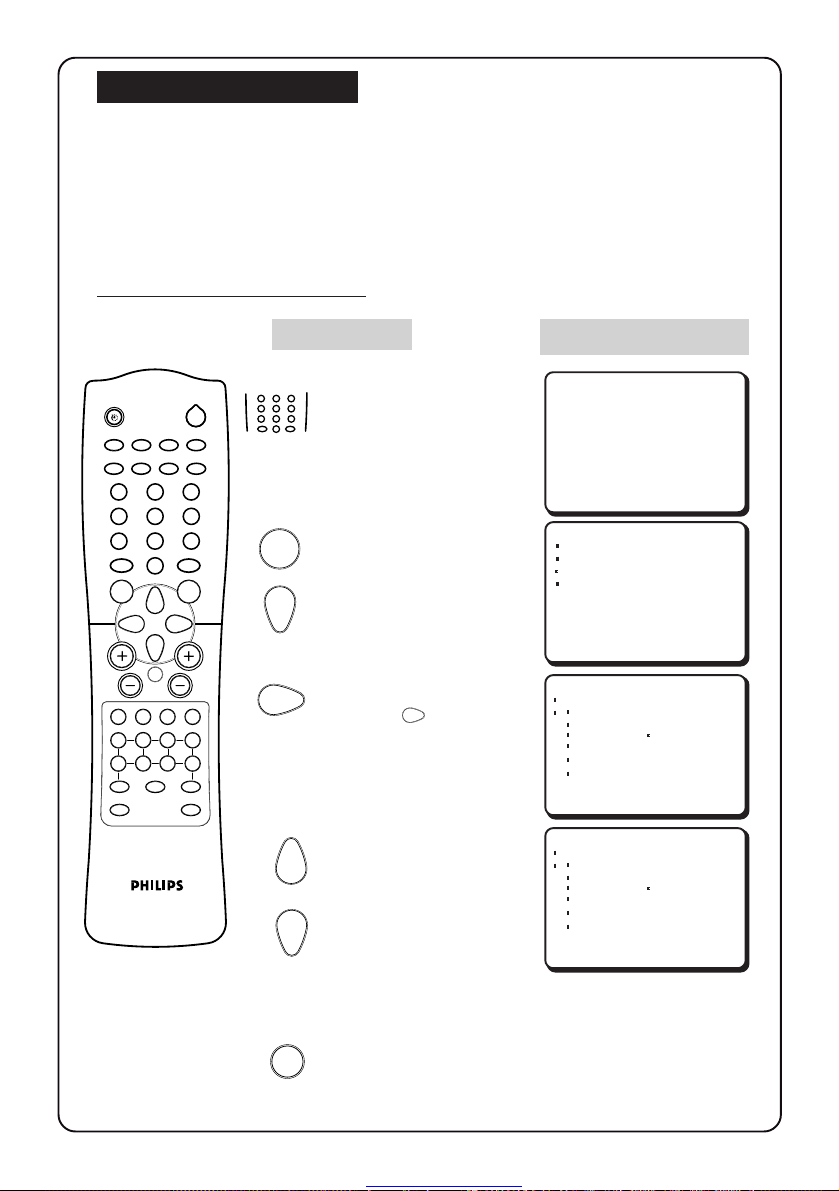

FINE TUNING OF TV CHANNELS
How to do fine tuning
This feature allows you to adjust the picture reception in area of weak reception.
Press Button Result on TV Screen
Select the channel you
want to fine-tune.
Enter main menu.
Press button repeatedly
until INSTALL is selected.
Enter INSTALL menu.
Press button repeatedly
until MANUAL STORE
is selected.
Enter MANUAL STORE
menu .
Press button repeatedly
until FINE TUNE is
selected.
Start fine-tuning until
desired picture and sound
is obtained.
Press button repeatedly
until STORE is selected.
Store last fine-tuned
status.
Exit menu from screen.
MENU
8
SOUND LANGUAGE
FEATURES AUTO STORE
INSTALL MANUAL STORE
SORT
CHANNEL EDIT
Ñ
Ñ
Ñ
➠
INSTALL
MANUAL STORE
SYSTEM
SEARCH 224.25 MHZ
CHANNEL
STORE
Ñ
Ñ
Ñ
É
➤
Ñ
Ñ
Ñ
INSTALL
LANGUAGE
AUTO STORE SYSTEM
MANUAL STORE SEARCH
SORT CHANNEL
CHANNEL EDIT STORE
Ñ
Ñ
Ñ
A/CH
PIP UP PIP DOWN
AV 4
MENU SURF
SMARTSMART
±`
`
nor
vp
A
CH
H
m\
5
13
2
46
79
8
0
GAME
INCREDIBLEINC. SURR.
hf
b
ed
2
y
SMARTSMART
±`
5
13
2
46
79
8
0
m
INSTALL
MANUAL STORE
CHANNEL
STORE
NAME
FINE TUNE
Ñ
Ñ
Ñ
Ñ
Ñ
É
➤
