Philips FC9728/01 User manual

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
ServiceManual
Philips Consumer Lifestyle
Vacuum cleaner
FC9728/01
FC9728/61
FC9728/71
19/05 Version 1.6
Product information
Service scenario:
•Repair
Design
•Color : Monza Red
Performance
•Airflow (max) : 41 l/s
•Input power (IEC) : 1800 W
•Input power (max) : 2000 W
•Sound power level : 78 dB
•Suction power (max) : 400 W
Usability
•Action radius : 10 m
•Carrying handle : Top and front
•Cord length : 7 m
•Tube type : Metal 2-piece telescopic tube
•Wheel type : Rubber
•Tube coupling : ActiveLock
•Power control : Electronic on appliance
Filtration
•Dust capacity : 2 L
•Exhaust filter : Allergy filter
•Motor filter : Lifetime washable filter
Nozzles and accessories
•Accessory storage : On board
•Standard nozzle : TriActive+ nozzle
•Additional nozzle : None
•Accessories included : Crevice tool, Integrated
brush, Small nozzle
Sustainability
•Packaging : > 90% recycled materials
•Stand-by power
consumption : < 0,5 W
•User manual : 100% recycled paper
Weight and dimensions
•Dimensions of product : 505 x 292 x 292 mm
(L x W x H)
•Weight of product : 5.5 kg

FC9728/01 /61 /71
2-19
Safety information
•This product meets the requirements regarding
interference suppression on radio and TV.
•After the product has been repaired, it should function
properly and has to meet the safety standards as
officially laid down at this moment.
Optional (accessories)
•Filterset : FC8003/01
Production date

FC9728/01 /61 /71
3-19
6
3
1
110
120
5
4
Service parts
Pos Service code Description Remark CRP
1 9965 100 78067 Hose assy Incl. C-Bend / Integr. Brush
110 4322 004 27041 Hose assy HE Diam. 45 mm KC CP0185/01
120 4322 004 27061 C-Bend + Intregrated brush 35 mm KC
3 4322 004 26244 2-piece T.T. Tube Active lock CP0187/01
4 4322 004 27021 Crevice nozzle Deep Black KC CP0188/01
5 4322 004 27031 Small nozzle Deep black KC
6 4322 004 26191 Tri-Active+ LC nozzle Deep black 35 mm Act. Lock

FC9728/01 /61 /71
4-19
A
B
14
16
1410
15
1420
1510
1520
Service parts
Pos Service code Description Remark
14 9965 100 78197 Bucket Lid assy Transparant Steel Silver
1410 Bucket Lid
1420 Bucket release button
15 4322 005 38571 Bucket assy
1510 Vortex + Vortex cap
1520 Filter presency Button
16 4322 004 94512 Integrated lter Maestro

FC9728/01 /61 /71
5-19
18
17
1720
1710
19
1910
1920
Service parts
Pos Service code Description
17 9965 100 78139 Accessory cover assy
1710 Accessory cover Spring
1720 Accessory cover Button
18 3000 010 18621 EPA10 Exhaust lter Mid End
Pos Service code Description
19 4322 005 38551 Exhaust grill assy
1910 Exhaust grill Button
1920 Exhaust grill Spring

FC9728/01 /61 /71
6-19
C
C
C
C
20
2010
22
2220
2210
Service parts
Pos Service code Description Remark
20 9965 100 78444 On/o button + CW Button
2010 Spring under Buttons
22 9965 100 78132 Front housing Monza Red
2210 9965 100 79458 Dust outlet seal
2220 Dust outlet

FC9728/01 /61 /71
7-19
D
D
D
D
D
D
23
2310
2320
2330
2340
2350
2390
2360
23100
2370
2380
25
24
26

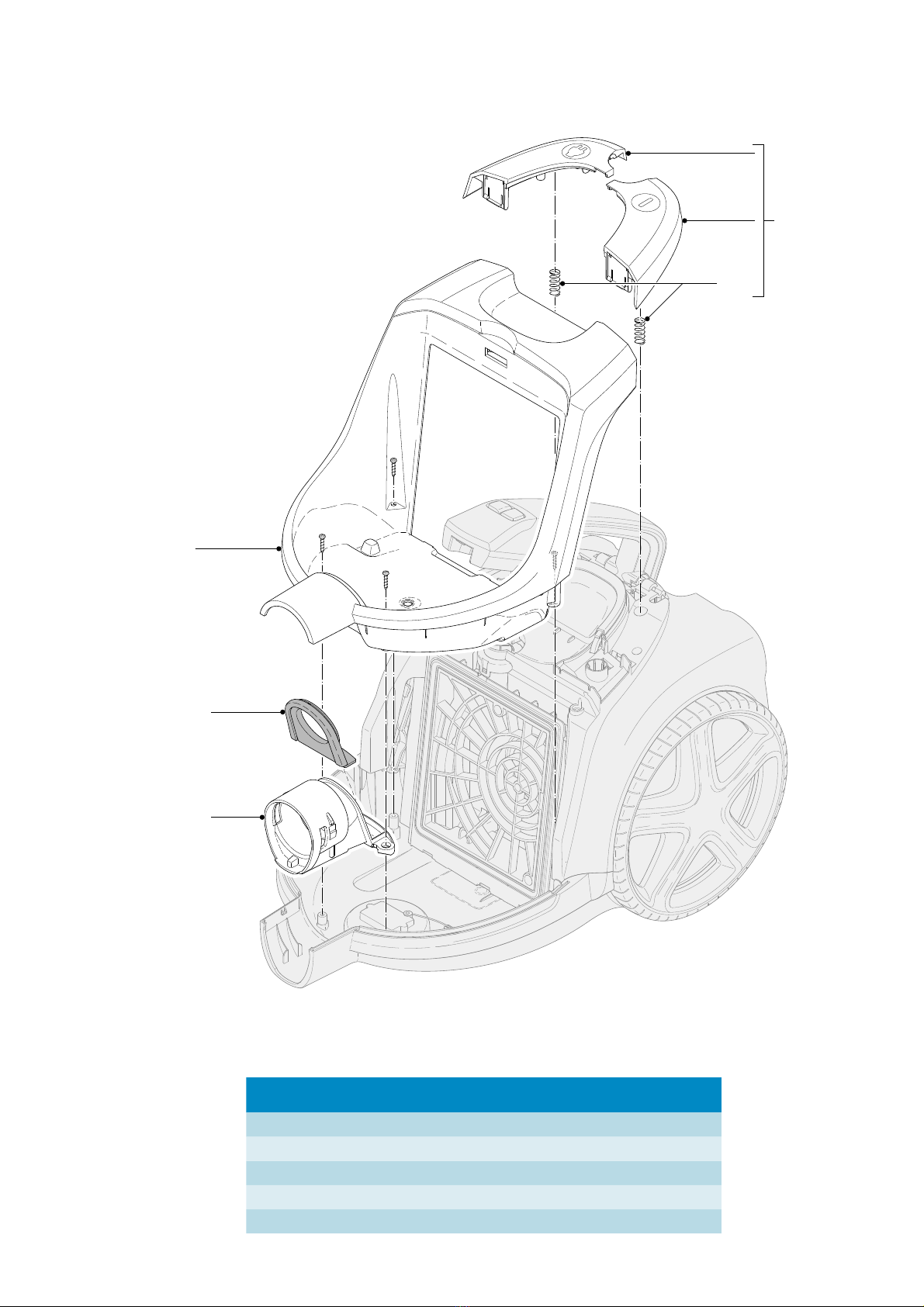

Service parts
Pos Service code Description / Remark
23 9965 100 80387 Handle cover assy incl. buttons
and wiring / Monza Red
2310 9965 100 78137 UI Cover
2320 9965 100 78133 UI Buttons
2330
2340
2350 3000 011 32961 High Power ESP Speed Board
2360
Pos Service code Description / Remark
2370
2380
2390
23100 Top handle lower
24 9965 100 78072 Light box
25 9965 100 78196 Light guide cover
26 9965 100 78128 Back housing

FC9728/01 /61 /71
8-19
F
F
FE
E
HE
E
G
H
30
40
41
38
3010
3030
3020
31
39
27
29
28
Service parts
Pos Service code Description
27 Safety valve assy
28 9965 100 78135 Motor lter Frame
29 Seal for Motor lter frame
30 9965 100 78131 Casterdish assy
3010 Casterdish plate
3020 Casterdish
Pos Service code Description / Remark
3030 Casterdish wheel
31 9965 100 78069 Rearwheel assy / Deep Black
38 Cordwinder lever
39 Lower housing
40 Cord outlet
41 Sealing Motor housing

FC9728/01 /61 /71
9-19
J
J
Y
ZY
34
35
36
37
3610
Service parts
Pos Service code Description Remark
34 Cordwinder cover
35 4322 005 38501 Cordwinder Maestro 1 mm / 7m / Euro plug
3000 016 80011 Cordwinder Maestro 1.00 / 7m / UK plug
3000 016 80021 Cordwinder Maestro 1.00 / 7m / AU plug
36 3000 011 32941 High Power ESP circuit board
3610 Rubber seal PCB
37 9965 100 76936 Switch

FC9728/01 /61 /71
10-19
K
K
Z
32
3240
3270
3210
3220
3250
3260
42
43
Service parts
Pos Service code Description
32 4322 009 01421 Motor assy High Power
3210 4322 006 99782 458NG 650 Watt 230 V
3220 4322 001 76081 Buer front LP
3240 Motor cloth down
3250 Rubber buttons (2x)
Pos Service code Description
3260 Motor housing
3270 Motor cloth around
42 Separation wall
43

FC9728/01 /61 /71
11-19
+5V
+5V
+5V
+5V +5V
+5V+5V
M
MOV1
10D471K
C1
0.68µF
275V
C3
470µF
16V
Mains Voltage
220-240V
50/60Hz
AC1
R35
10M
R34
10M
AC2
F1
15A/
250VAC
ESD
JD1
R1
330k
R7
20k
R2
330k
TR1
BTA16/600B
ZD2
5.1V
1W
D1
1N4007
Motor
R12
10k
R26
51R
J1
4
3
2
1
J2
3
4
2
1
IO_Motor
INT_Sync
R42
1M
R41
1M
D2
1N4007
C8
0.68µF
400V
R3
330k
R4
330k
R5
100R
2W
U1
MC96F8208SM-SOP16
P30/TXD/(SDA)
P02/AN2/AVREF/EINT0 9
P36/XIN 15
P00/AN0/DSDA 11
P37/XOUT 14
3IO_LED5
P12/AN9/EINT11/T1O/PWM1O
8
R44
300R
R25
300R
LED5
W
P13/AN10/EINT12/T2O/PWM2O
7IO_LED4
R43
300R
R24
300R
LED4
W
P14/AN11/MISO
6IO_LED3
R39
620R
LED3
W
P15/AN12/MOSI
5IO_LED2
R38
620R
LED2
W
P16/AN13/SCK
4IO_LED1
VDD
12
VSS
13
R37
620R
LED1
W
C5
0.1µF
50V
EC1
100µF
10V
R17
10k R32
Key1
1k
P35/EINT10/T0O/PWM0O
16IO_Key1
R18
10k
R33
1k
P32/RESETB
1IO_Key2
C4
470p
R28
1k
R15
100R
R22
100R
P01/AN1/DSCL 10
P31/RXD/(SCL) 2
INT_Sync
IO_Motor
Key2
SW1
Electrical diagram

FC9728/01 /61 /71
12-19
•Remove the Bucket assy and Accessory cover assy (17)
including the accessories.
•To remove buttons (20, 21) the Front housing (22) has
to removed first !
•Unscrew the 4 screws (C) in Front housing (22).
•To remove the Front housing start on side of the Hose
inlet to unlock the clicknocks, with your hands or a
screwdriver.
•Then the clicknocks on the sides and at the Motor
housing, after the clicknocks have come loose pull the
Front housing upwards.
•Turn the appliance.

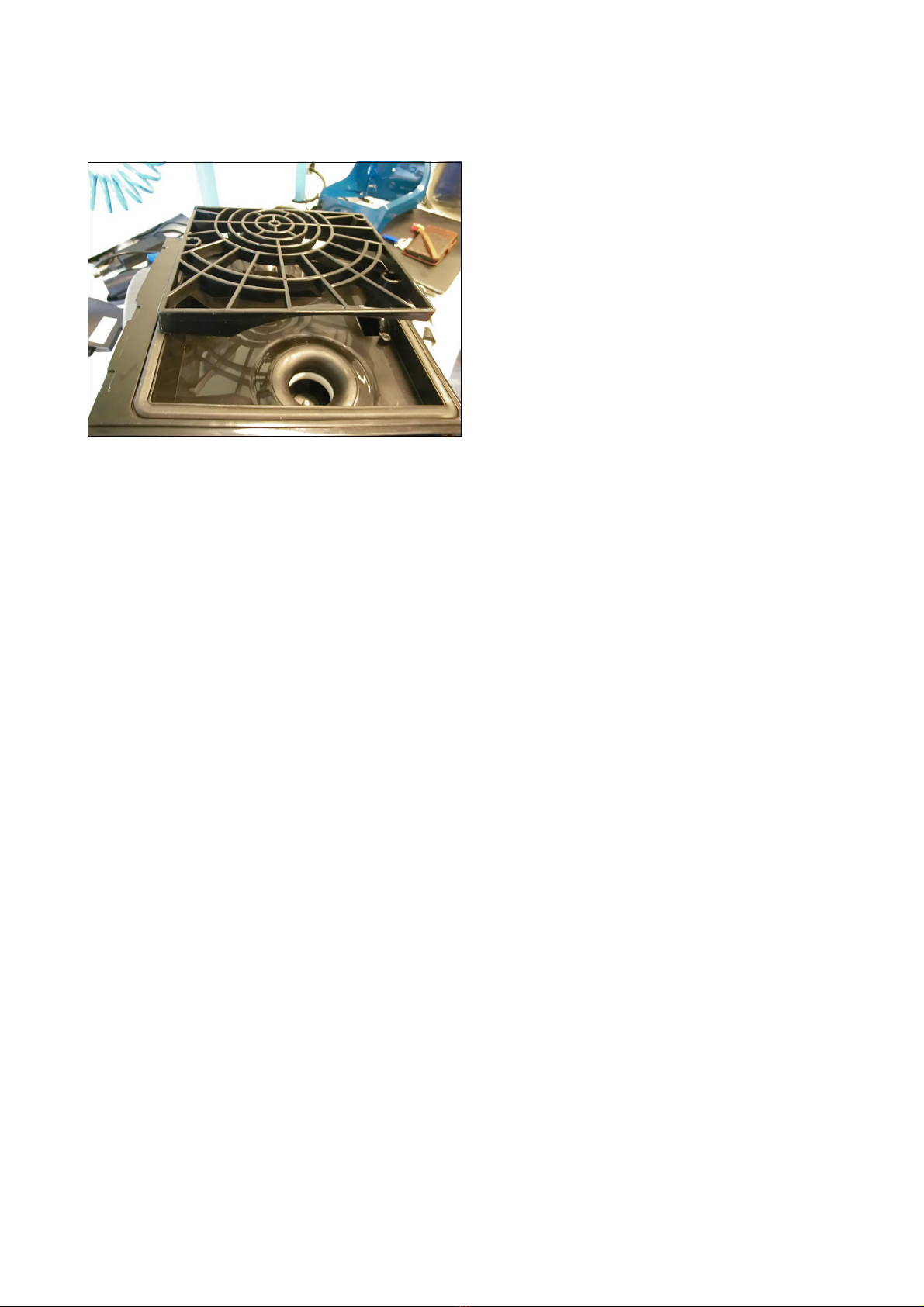

•Remove Exhaust grill assy (19) and Exhaust filter (18)
(on the bottom).
•Turn the appliance back again.
To remove the Buttons
•Use a screwdriver, start on the front side (Fronthousing-
side), lift up, then pull upwards and by pushing with your
thumb.
Disassembly- and Reassembly advice

FC9728/01 /61 /71
13-19
•Take out Light box cover (25) and Light box (24) (both
are not screwed).
•Unscrew the 6 screws (D) to remove Back housing assy
(26) including Handle (23).
•Pull the Back housing upwards with force.
•Disconnect the wires coming from the handle
(2 connectors).
•If necessary Valve assy (27) can be replaced.
•Remove the Cordwinder lever (38).
•Disconnect the wires from the PCB, unscrew the 2 scews
(J) to remove PCBA (36).
•Remove Cordwinder cover (34).
•Unscrew the 4 screws (E) to remove the Motor housing.
Two on top of the Motor housing and 2 from the bottom
of the appliance.
Disassembly- and Reassembly advice

FC9728/01 /61 /71
14-19
•Motor filter Frame (28) can be removed by unscrewing
the 3 screws (F).
•The Separation wall (42) can be removed from the
Motor housing by unscrewing the 2 screws (K). It is also
attached with one of the screws F.
To reassemble
•First place the Cordwinder assy.
Remark: check if rewinding is working !!!
•When replacing the Cordwinder cover:
Start at the backside, then click on the frontside.
Disassembly- and Reassembly advice

FC9728/01 /61 /71
15-19
High Power
Model Number
FC9728/01
FC9728/61
FC9728/71
FC9732/01
FC9732/61
FC9733/01
FC9733/61 FC9734/01
Colour Monza Red Deep Black Dark Royal Blue Magic Purple
Airow (max) 41 l/s 41 l/s 41 l/s 41 l/s
Input power (IEC) 1800 W 1800 W 1800 W 1800 W
Input power (max) 2000 W 2100 W 2100 W 2100 W
Sound power level <79 dB <79 dB <79 dB <79 dB
Suction power (max) 400 W 420 W 420 W 420 W
Dust re-emission class AAAA
Power control Buttons Buttons Buttons Buttons
Tube coupling ActiveLock ActiveLock ActiveLock ActiveLock
Exhaust lter Allergy lter Allergy lter Allergy lter Allergy lter
Standard nozzle TriActive+ nozzle TriActive+ nozzle TriActive+ nozzle
Additional nozzle No Mini Turbo brush No No
Extra accessories No No No No
Accessories included Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Whole range without partlist

FC9728/01 /61 /71
16-19
High Power + High Power (China)
Model Number FC9735/01
FC9735/61 FC9728/81 FC9732/81 FC9735/81
Colour Beluga metallic Monza Red Deep Black Beluga metallic
Airow (max) 41 l/s 41 l/s 41 l/s 41 l/s
Input power (IEC) 1800 W - - -
Input power (max) 2100 W 1800 W 1800 W 1800 W
Sound power level <79 dB <79 dB <79 dB <79 dB
Suction power (max) 420 W 400 W 420 W 420 W
Dust re-emission class AAAA
Power control IR RMC Buttons Buttons IR RMC
Tube coupling ActiveLock ActiveLock ActiveLock ActiveLock
Exhaust lter Allergy lter Allergy lter Allergy lter Allergy lter
Standard nozzle TriActive+ nozzle TriActive+ nozzle TriActive+ nozzle TriActive+ nozzle
Additional nozzle No Cat and Dog nozzle Mini Turbo brush No
Extra accessories ErgoGrip
remote control No No ErgoGrip
remote control
Accessories included Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Whole range without partlist

FC9728/01 /61 /71
17-19
Low Power
Model Number FC9729/09
FC9729/69
FC9741/09
FC9741/19 FC9742/09 FC9743/09
Colour Monza Red Deep Black Ink Black Louros Blue
Energy eciency rating A A+ A+ A+
Airow (max) 41 l/s 41 l/s 41 l/s 41 l/s
Input power (max) 650 W 650 W 650 W 650 W
Sound power level <76 dB <76 dB <76 dB <76 dB
Carpet cleaning class C C C C
Dust re-emission class AAAA
Hard oor cleaning class AAAA
Power control Buttons Buttons Buttons Buttons
Tube coupling ActiveLock SmartLock SmartLock SmartLock
Exhaust lter Allergy lter Allergy lter Allergy lter Allergy lter
Standard nozzle Hard oor nozzle TriActive+ nozzle Milton SF nozzle Milton SF nozzle
Additional nozzle No CarpetClean nozzle,
Hard oor nozzle Hard oor nozzle Hard oor nozzle
Extra accessories No No No No
Accessories included Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Whole range without partlist

FC9728/01 /61 /71
18-19
Low Power
Model Number FC9744/09 FC9745/09 FC9746/09
Colour Opal green Dark Royal Blue Beluga metallic
Energy eciency rating A+ A+ A+
Airow (max) 41 l/s 41 l/s 41 l/s
Input power (max) 650 W 650 W 650 W
Sound power level <76 dB <76 dB <76 dB
Carpet cleaning class C C C
Dust re-emission class A A A
Hard oor cleaning class A A A
Power control Buttons Buttons IR RMC
Tube coupling SmartLock SmartLock SmartLock
Exhaust lter Allergy lter Allergy lter Allergy lter
Standard nozzle Milton SF nozzle Milton SF nozzle Milton SF nozzle
Additional nozzle Hard oor nozzle,
Mini turbo brush Hard oor nozzle Hard oor nozzle
Extra accessories No No ErgoGrip
remote control
Accessories included Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Integrated brush, small
nozzle, crevice tool
Whole range without partlist

FC9728/01 /61 /71
19-19
Version history
17/11 Version 1.1 : FC9728/01 initial release.
18/01 Version 1.2 : In Parts List and Exploded view: Removed Pos. 21: 9965 100 78136 On/o Button.
In Parts List and Exploded view: Changed Pos. 20: 9965 100 78134 Cordwinder Button into
9965 100 78444 On/o button + CW Button.
In Parts List and Exploded view: Changed Pos. 2110: Spring under Buttons into Pos. 2010.
18/12 Version 1.3 : In Exploded view: Changed Pos. 22.
In Parts List: Changed Pos. 2210: Dust outlet seal into
9965 100 79458 Dust outlet seal.
18/12 Version 1.4 : Added new versions: FC9728/61 and FC9728/71.
In Parts List at Pos. 35: Added: 3000 016 80011 Cordwinder Maestro 1.00 / 7m / UK plug.
In Parts List at Pos. 35: Added: 3000 016 80021 Cordwinder Maestro 1.00 / 7m / AU plug.
19/05 Version 1.5 : In Parts List: Changed Pos. 23: 9965 100 78071 Top handle cover / Monza Red into
9965 100 78071 Handle cover assy incl. buttons and wiring /
Monza Red.
In Parts List: Changed Pos. 26: 9965 100 78128 Back housing assy /
(incl. Top handle/buttons/wiring) into
9965 100 78128 Back housing.
19/05 Version 1.6 : In Parts List: Changed Pos. 23: 9965 100 78071 Handle cover assy incl. buttons and wiring /
Monza Red into
9965 100 80387.
