Philips SpeechExec
transcription set
LFH7177
Manage your workload
With a professional PC transcription solution
The SpeechExec Transcription Set is a digital transcription system specifically designed to
make transcription easy and intuitive. The ergonomic accessories and innovative
transcription software let you manage jobs easily and efficiently.
Professional transcription solution
• Ergonomic foot control and headphones for professional use
• Efficient handling of sound files for fast job retrieval
• Automatic file download via USB for quick transcription
• Control all transcription functions with the foot control
• Job status information allows work to be tracked
• Priority setting for getting urgent jobs processed first

Specifications
LFH7177/00
Transcription set
Highlights
Foot control
With the easy-to-use footcontrol you now can handle
all transcription functions with the foot.
Automatic download via USB
When plugged in, the Digital Pocket Memo
automatically downloads your audio files directly onto
the computer.
Efficient handling
The SpeechExec software enables you to efficiently
handle your sound files which makes retrieving your
jobs fast, easy and convenient.
Professional transcription
The ergonomic design of the Philips foot control and
headphones sets new standards in terms of usability in
the professional dictation arena. Transcriptionists can
stop and start dictations with only a slight movement
of the heel, without lifting the foot unnecessarily,
which both increases efficiency and makes the device
a pleasure to work with.
Track work through job status
The professional SpeechExec software allows you to
track your job status information. It grants you a clear
view over your work in progress.
Priority setting
With the included priority setting option, urgent
recordings get processed first.

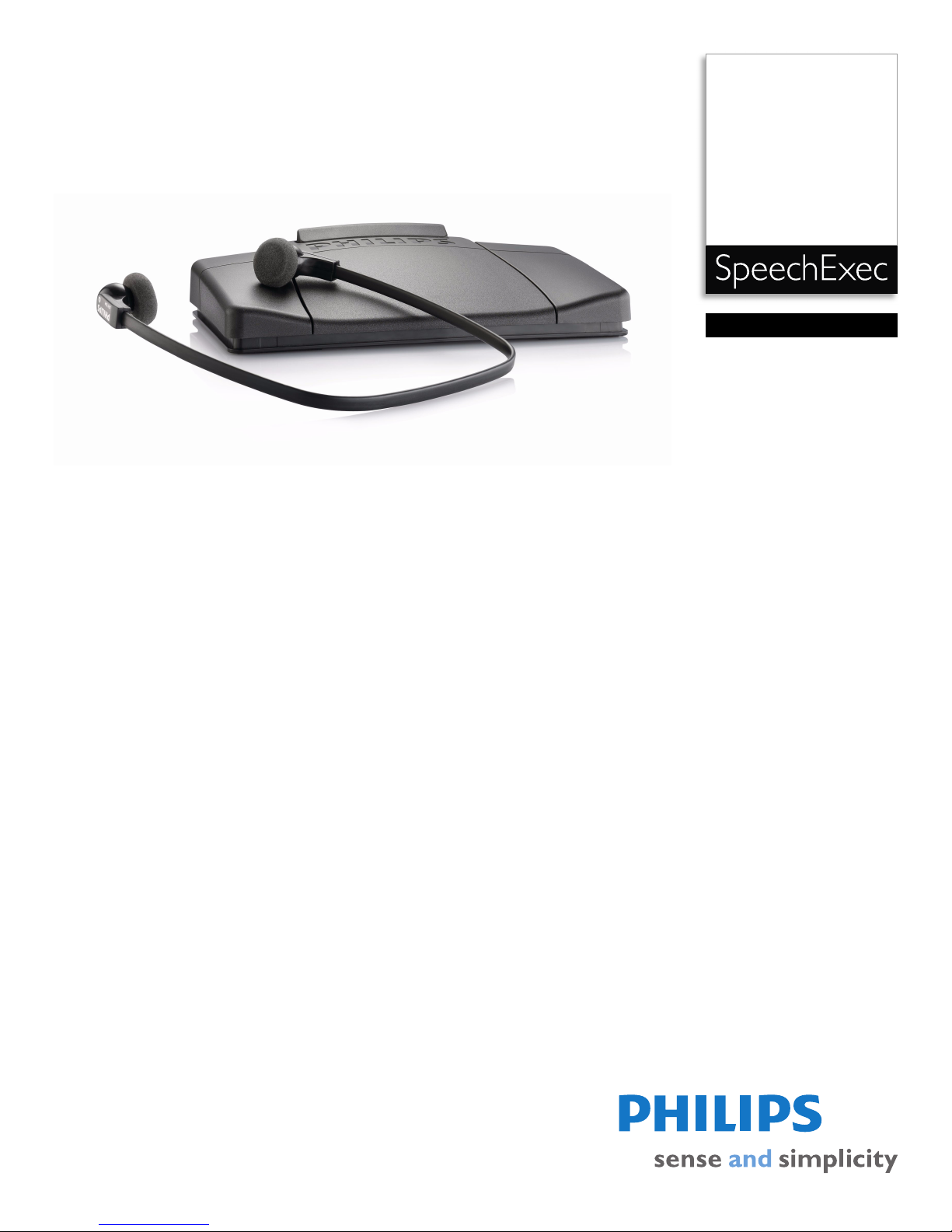

What is included?
• USB foot control
• Stereo headphones LFH0334
• SpeechExec Transcribe software
Convenience
•Configurablefootpedal
• Lightweight headphone design
• Clear job overview
• Versatile audio player
• Playback speed control
• Automatic file routing
Foot pedal
• Connectivity: USB plug
• Product dimensions (W × H × D): 16 x 15 x 1.8 cm/
6.3 x 5.9 x 0.7 in.
• Weight: 0.053 kg/0.12 lb.
Headphones
• Style: under chin
• Cable connection: one-sided
• Cable length: 3.0 m/10 ft.
• Connector: 3.5 mm, stereo, right angled
• Acoustic system: open
• Magnet type: neodymium
• Diaphragm: PET dome
• Voice coil: copper
• Impedance: 2 × 32 Ohm
• Maximum power input: 2 × 10 mW
• Sensitivity: 103 dB
• Speaker diameter: 14 mm/0.6 in.
• Sound quality: optimized for voice playback
• Connector finish: gold-plated
• Product dimensions (W × H × D): 16 x 15 x 1.8 cm/
6.3 x 5.9 x 0.7 in.
• Weight: 0.053 kg/0.12 lb.
System requirements
• Processor: Pentium III 500 Mhz, Pentium IV 1GHz
recommended
• RAM memory: 256 MB (1 GB recommended)
• Hard disk space: 100 MB for SpeechExec, 250MB for
Microsoft .NET
•Soundcard
• Headphone output or speakers
• Operating system: Windows 7/Vista/XP
• Free USB port
•DVD-ROMdrive
Green specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Accessories
• SpeechExec Transcribe software
• Quick start guide
•
Issue date 2011-02-02
Version: 2.1.3
12 NC: 8735 717 70031
UPC: 0 37849 96103 2
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
