WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
PHOENIX CONTACT

Table of Contents
8361_en_02 PHOENIX CONTACT 5
Table of Contents
1 Important Notes .........................................................................................................................7
1.1 Symbols ................................................................................................................ 7
1.2 Safety Notes.......................................................................................................... 7
1.3 Intended Use ......................................................................................................... 8
1.4 Target Group ......................................................................................................... 8
2 Installation and Commissioning .................................................................................................9
2.1 Unpacking the Device............................................................................................ 9
2.2 Mounting the Device.............................................................................................. 9
2.2.1 Front Panel Dimensions ....................................................................... 10
2.2.2 Mounting Cutout .................................................................................. 16
2.2.3 Side View, Mounting Depth .................................................................. 22
2.3 Connecting the Device ........................................................................................ 28
2.3.1 Supply Voltage ..................................................................................... 28
2.3.2 Grounding ............................................................................................ 29
2.4 Switching On ....................................................................................................... 30
2.4.1 Loading Procedure on Windows CE Operating System .......................30
3 Control and Display Elements ..................................................................................................43
3.1 Touchscreen ....................................................................................................... 43
3.2 Display................................................................................................................. 43
4 Interfaces of the Device ...........................................................................................................45
4.1 Standard Interfaces ............................................................................................. 45
4.1.1 Ethernet (X5) ........................................................................................ 46
4.1.2 USB (X9, X10) ..................................................................................... 47
5 Maintenance and Servicing ......................................................................................................49
5.1 Front Panel .......................................................................................................... 49
5.2 Fuse .................................................................................................................... 49
6 Technical Data .........................................................................................................................51
6.1 General................................................................................................................ 51
6.2 WP 04T ............................................................................................................... 53
6.3 WP 06T ............................................................................................................... 54
6.4 WP 07T/WS......................................................................................................... 55
6.5 WP 09T/WS......................................................................................................... 56
6.6 WP 10T ............................................................................................................... 57

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
6PHOENIX CONTACT 8361_en_02
6.7 WP 15T ............................................................................................................... 58

Important Notes
8361_en_02 PHOENIX CONTACT 7
1 Important Notes
1.1 Symbols
The symbols in this manual are used to draw your attention on notes and dangers.
There are three different categories of personal injury that are indicated with a signal word.
1.2 Safety Notes
– Read this manual carefully before using the operating device. Keep this manual in a
place where it is always accessible to all users.
– Proper transportation, handling and storage, placement and installation of this product
are prerequisites for its subsequent flawless and safe operation.
– This user manual contains the most important information for the safe operation of the
device.
– The user manual, in particular the safety notes, must be observed by all personnel wor-
king with the device.
– Observe the accident prevention rules and regulations that apply to the operating site.
– Installation and operation must only be carried out by qualified and trained personnel.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER
This indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
This indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
This indicates a hazardous situation which, if not avoided, could result in minor or moder-
ate injury.
NOTICE
This symbol together with the signal word NOTE and the accompanying text alert the
reader to a situation which may cause damage or malfunction to the device, hardware/
software, or surrounding property.
This symbol and the accompanying text provide the reader with additional information or
refer to detailed sources of information.

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
8PHOENIX CONTACT 8361_en_02
1.3 Intended Use
– The device is designed for use in the industry.
– The device is state-of-the art and has been built to the latest standard safety require-
ments. However, dangerous situations or damage to the machine itself or other proper-
ty can arise from the use of this device.
– The device fulfills the requirements of the EMC directives and harmonized European
standards. Any modifications to the system can influence the EMC behavior.
1.4 Target Group
The use of products described in this manual is oriented exclusively to:
– Qualified electricians or persons instructed by them, who are familiar with applicable
standards and other regulations regarding electrical engineering and, in particular, the
relevant safety concepts.
– Qualified application programmers and software engineers, who are familiar with the
safety concepts of automation technology and applicable standards.
NOTICE: Radio Interference
This is a class A device. This device may cause radio interference in residential areas. In
this case, the user may be required to introduce appropriate countermeasures, and to
bear the cost of same.

Installation and Commissioning
8361_en_02 PHOENIX CONTACT 9
2 Installation and Commissioning
2.1 Unpacking the Device
Unpack all parts carefully and check the contents for any visible damage in transit. Also
check whether the shipment matches the specifications on your delivery note.
If you notice damages in transit or discrepancies, please contact Phoenix Contact immedi-
ately.
2.2 Mounting the Device
The device can be easily and quickly mounted from the rear of the device. A panel thickness
of 1 mm to 6 mm (0.039" to 0.236") is permitted for proper mounting.
1. Insert the device in the mounting cutout from the front.

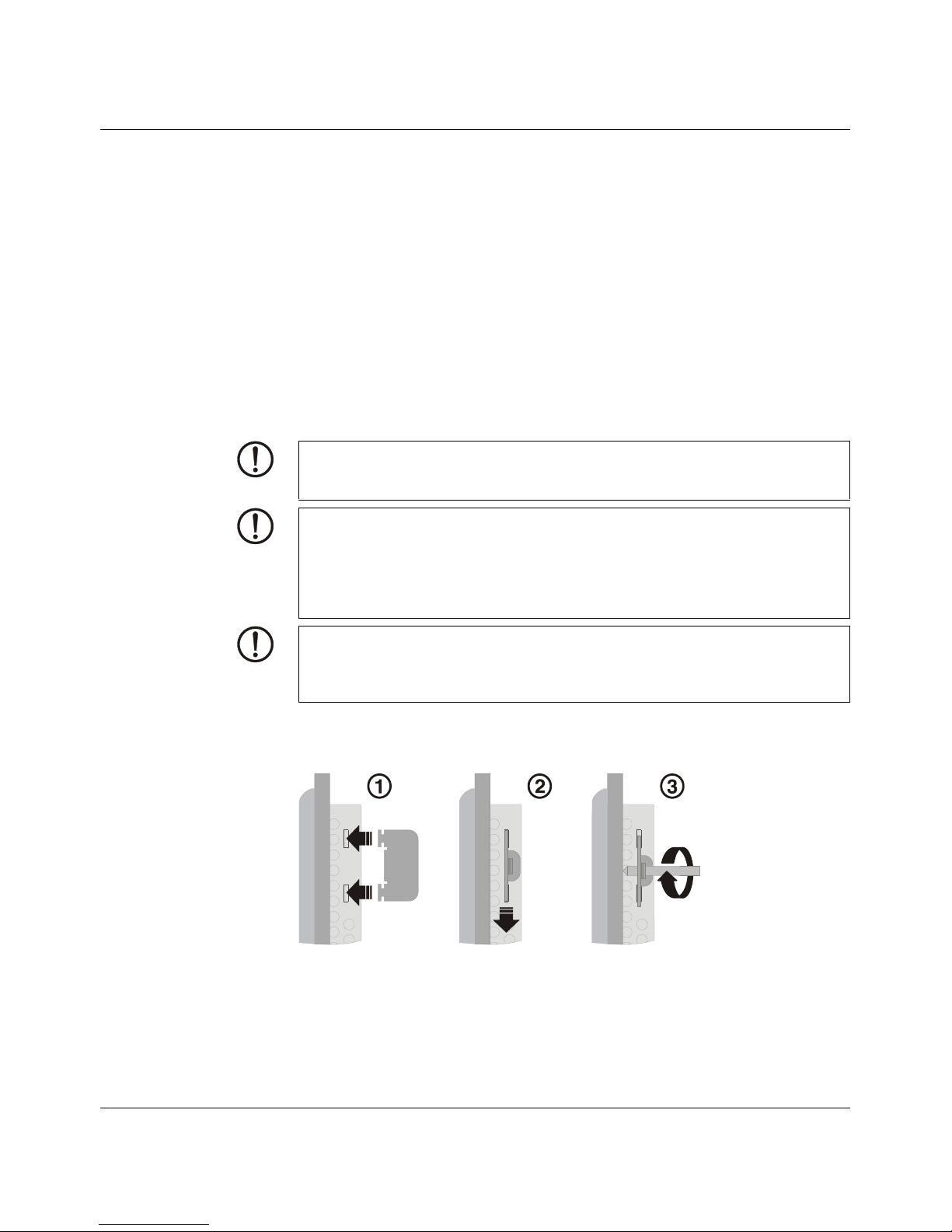

Figure 2-1 Mounting the device using a mounting bracket
2. Insert the mounting brackets into the appropriate openings (figure 1) and pull the brack-
ets downwards until they lock in place (2).
3. Fasten the device into position using the threaded pins (3).
NOTICE: Damage
When installing the device, leave a gap of at least 30 mm (1.181") around the device to
ensure sufficient air circulation.
NOTICE: Damage
When the operating device is installed horizontally, please note that additional sources of
heat beneath the operating device may result in heat accumulation.
Make sure to allow sufficient heat dissipation!
Please observe the permissible temperature range specified in the technical data of the
user manual when operating the device.
NOTICE: Damage
In order to ensure the degree of protection specified in the technical data, always make
sure that the seal lies flat against the mounting surface and the threaded pins of the
mounting brackets are tightened uniformly to a maximum torque of 1 Nm.

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
10 PHOENIX CONTACT 8361_en_02
2.2.1 Front Panel Dimensions

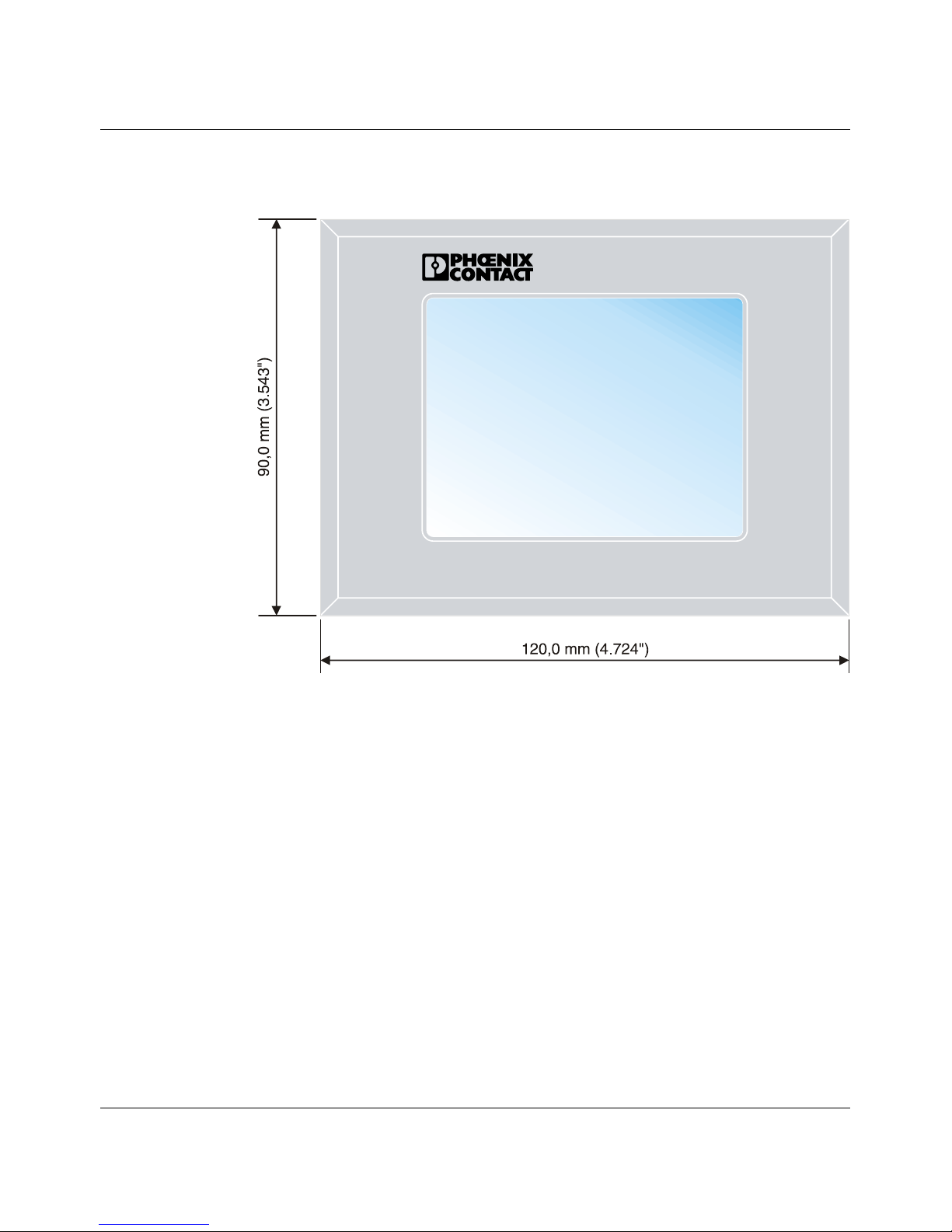

2.2.1.1 WP 04T
Figure 2-2 WP 04T

Installation and Commissioning
8361_en_02 PHOENIX CONTACT 11
2.2.1.2 WP 06T
Figure 2-3 WP 06T

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
12 PHOENIX CONTACT 8361_en_02
2.2.1.3 WP 07T/WS
Figure 2-4 WP 07T/WS

Installation and Commissioning
8361_en_02 PHOENIX CONTACT 13
2.2.1.4 WP 09T/WS
Figure 2-5 WP 09T/WS

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
14 PHOENIX CONTACT 8361_en_02
2.2.1.5 WP 10T
Figure 2-6 WP 10T

Installation and Commissioning
8361_en_02 PHOENIX CONTACT 15

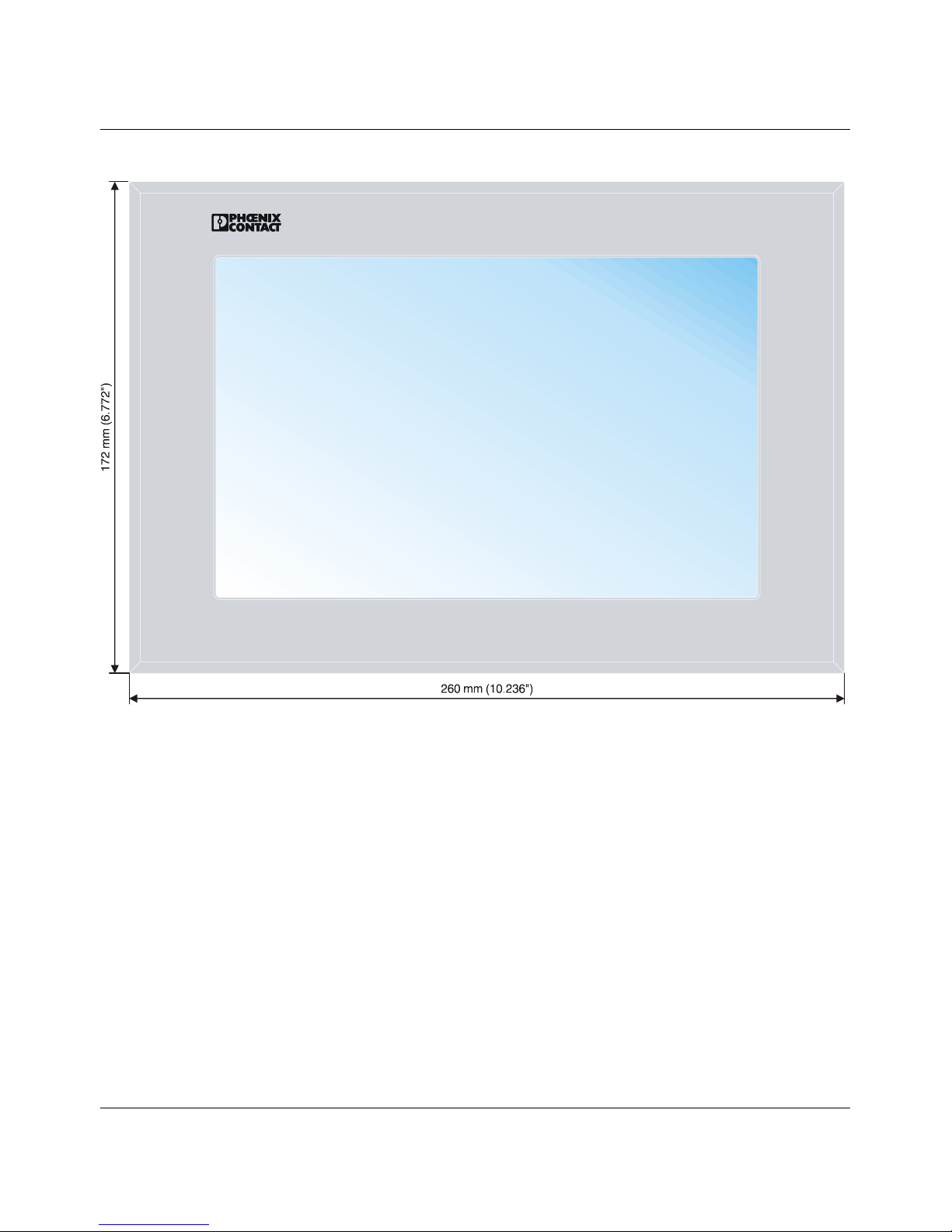

2.2.1.6 WP 15T
Figure 2-7 WP 15T

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
16 PHOENIX CONTACT 8361_en_02
2.2.2 Mounting Cutout

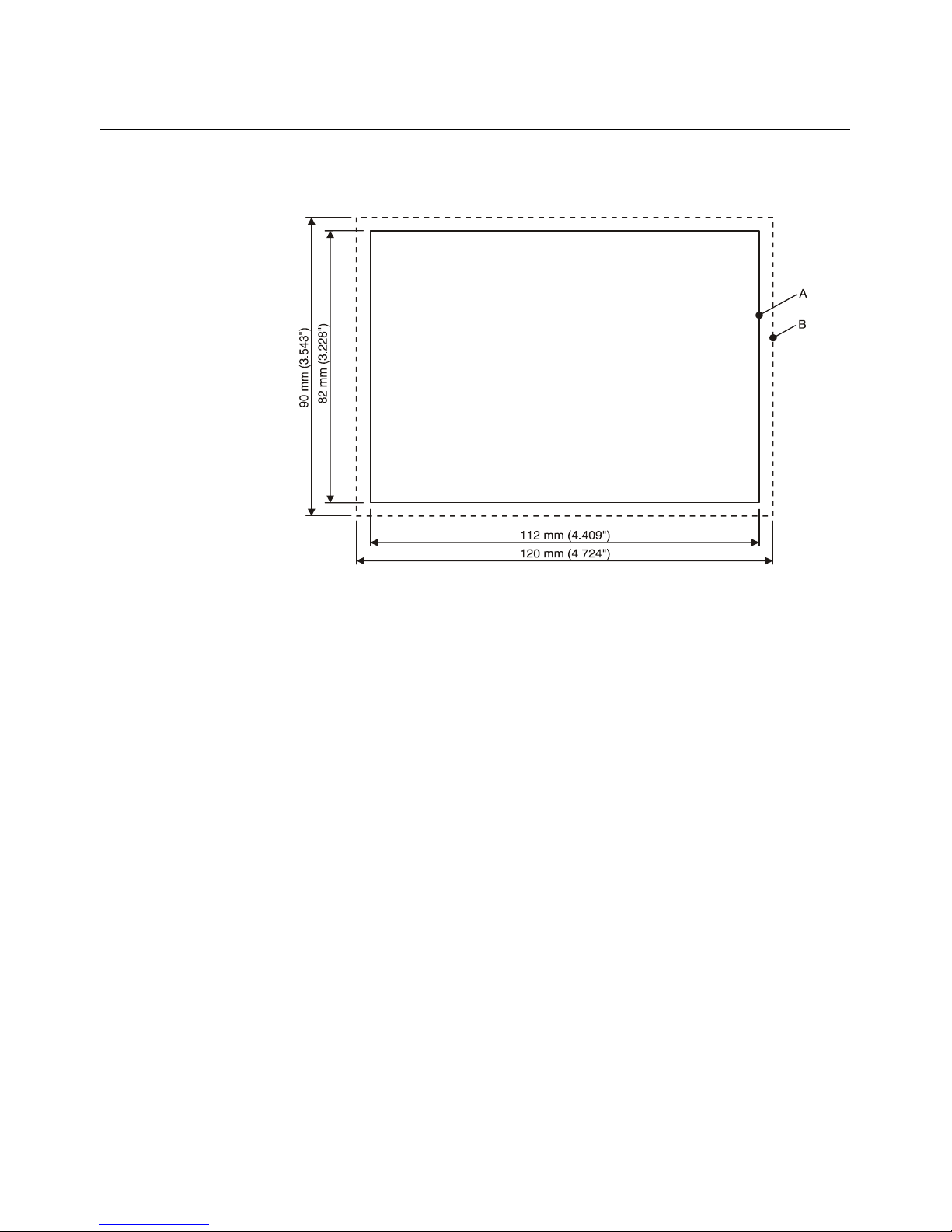

2.2.2.1 WP 04T
Figure 2-8 WP 04T
AMounting Cutout
BFront Panel

Installation and Commissioning
8361_en_02 PHOENIX CONTACT 17
2.2.2.2 WP 06T
Figure 2-9 WP 06T
AMounting Cutout
BFront Panel

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
18 PHOENIX CONTACT 8361_en_02

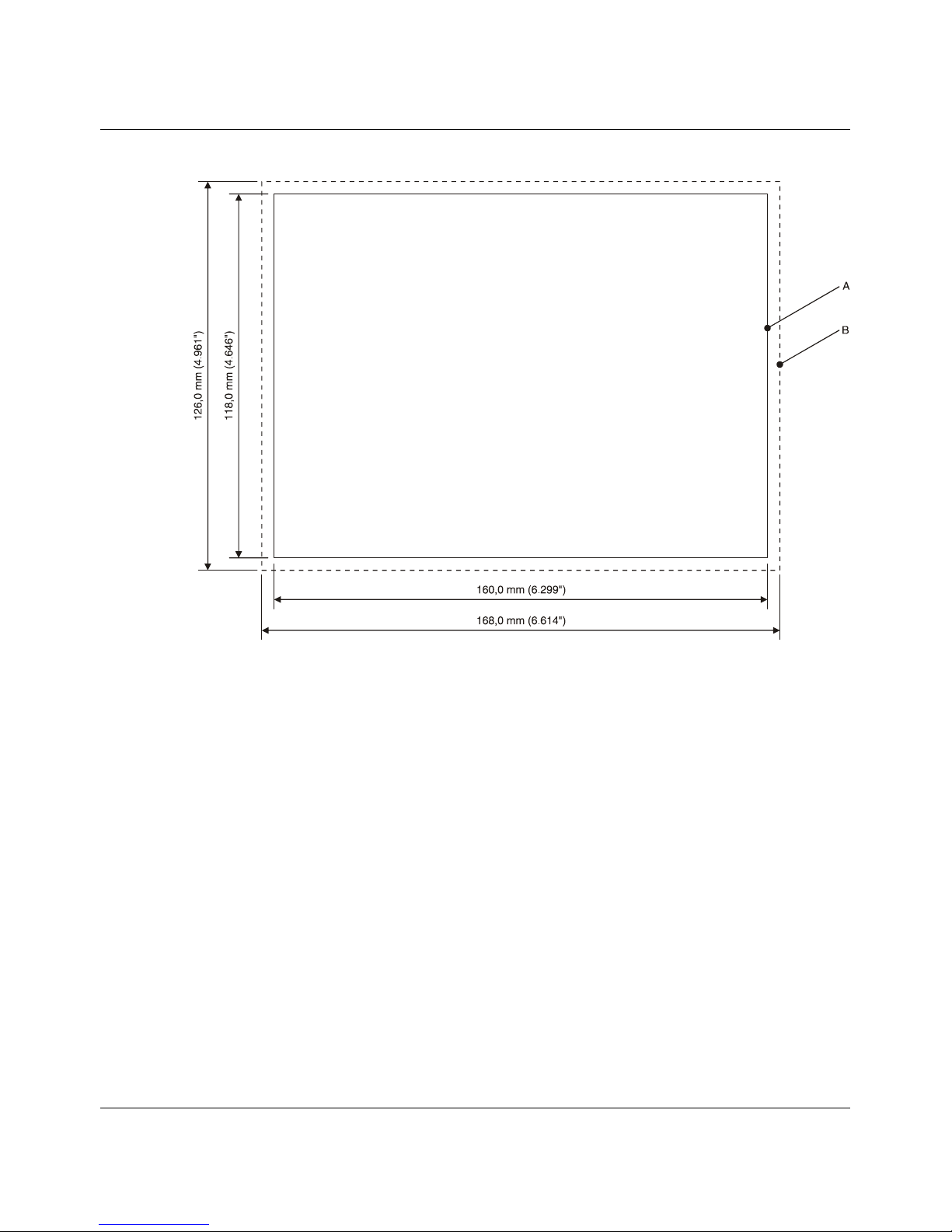

2.2.2.3 WP 07T/WS
Figure 2-10 WP 07T/WS
AMounting Cutout
BFront Panel

Installation and Commissioning
8361_en_02 PHOENIX CONTACT 19

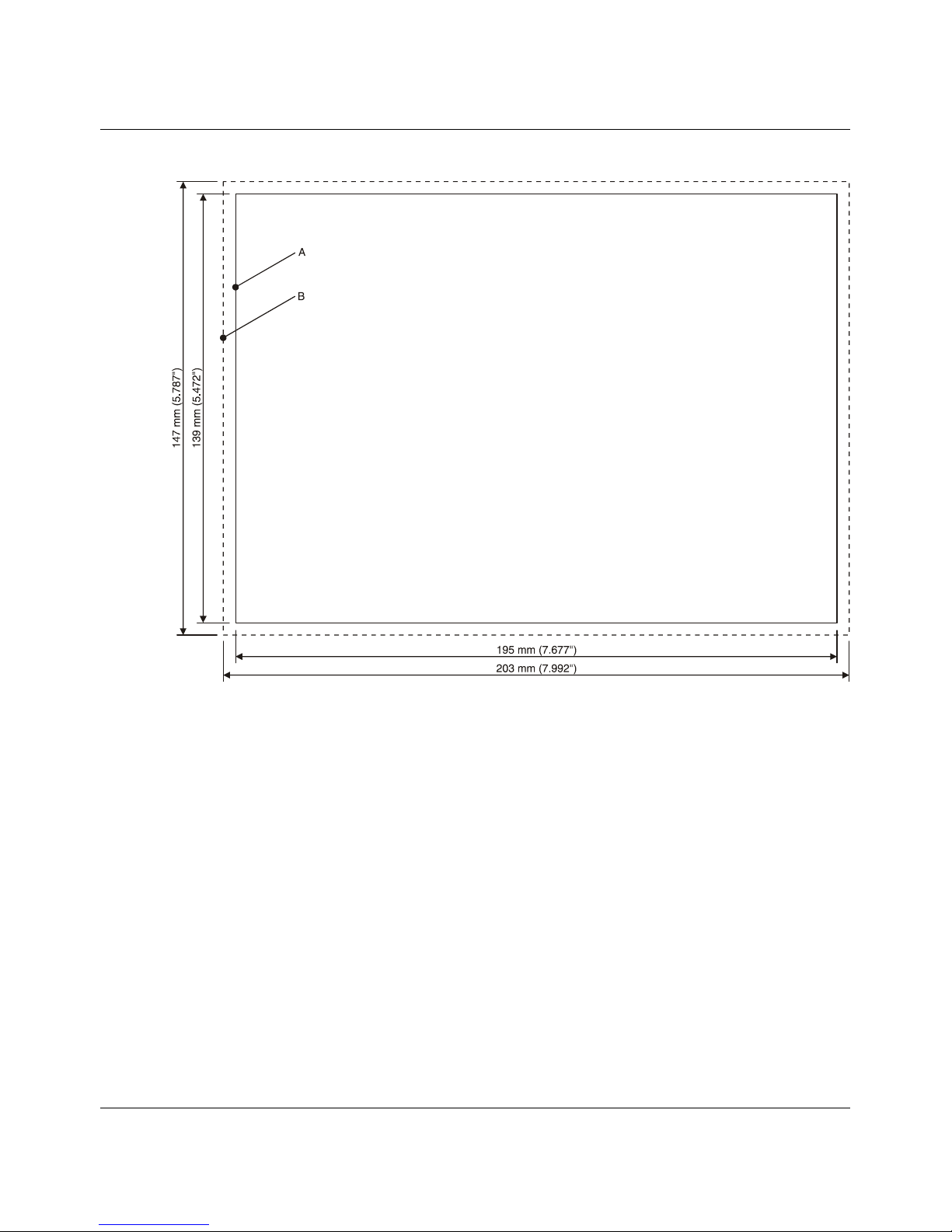

2.2.2.4 WP 09T/WS
Figure 2-11 WP 09T/WS
AMounting Cutout
BFront Panel

WP 04T, WP 06T, WP 07T/WS, WP 09T/WS, WP 10T, WP 15T
20 PHOENIX CONTACT 8361_en_02

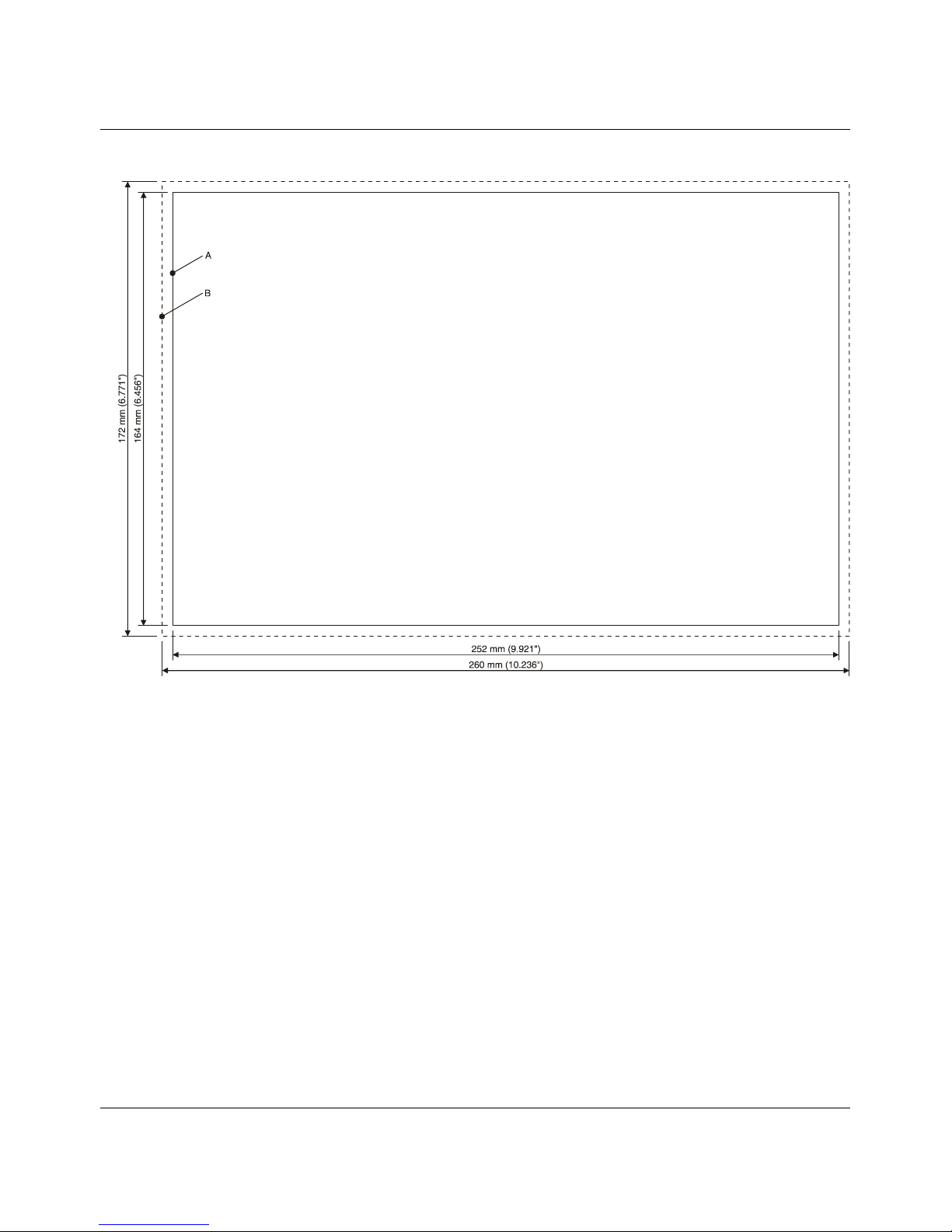

2.2.2.5 WP 10T

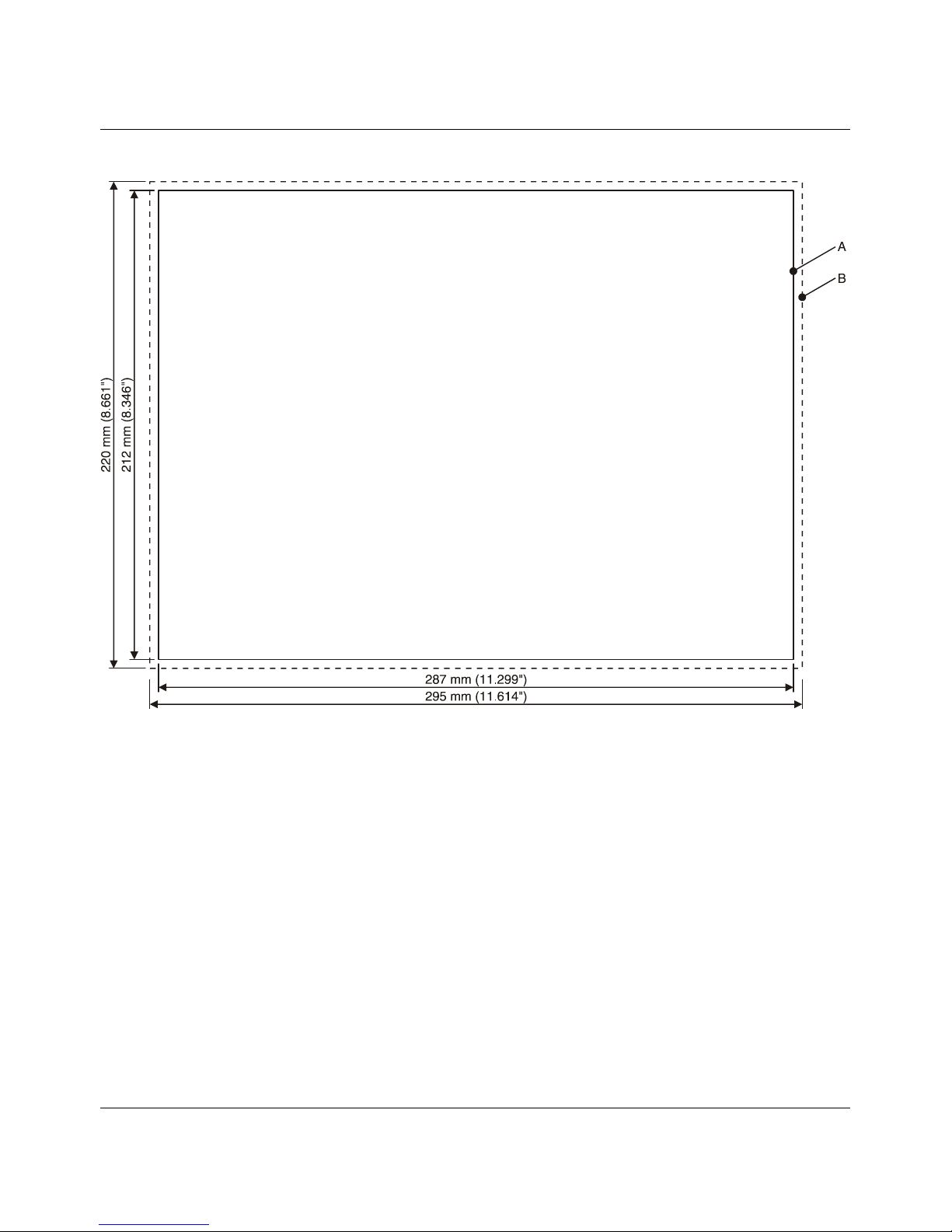

Figure 2-12 WP 10T
AMounting Cutout
BFront Panel
