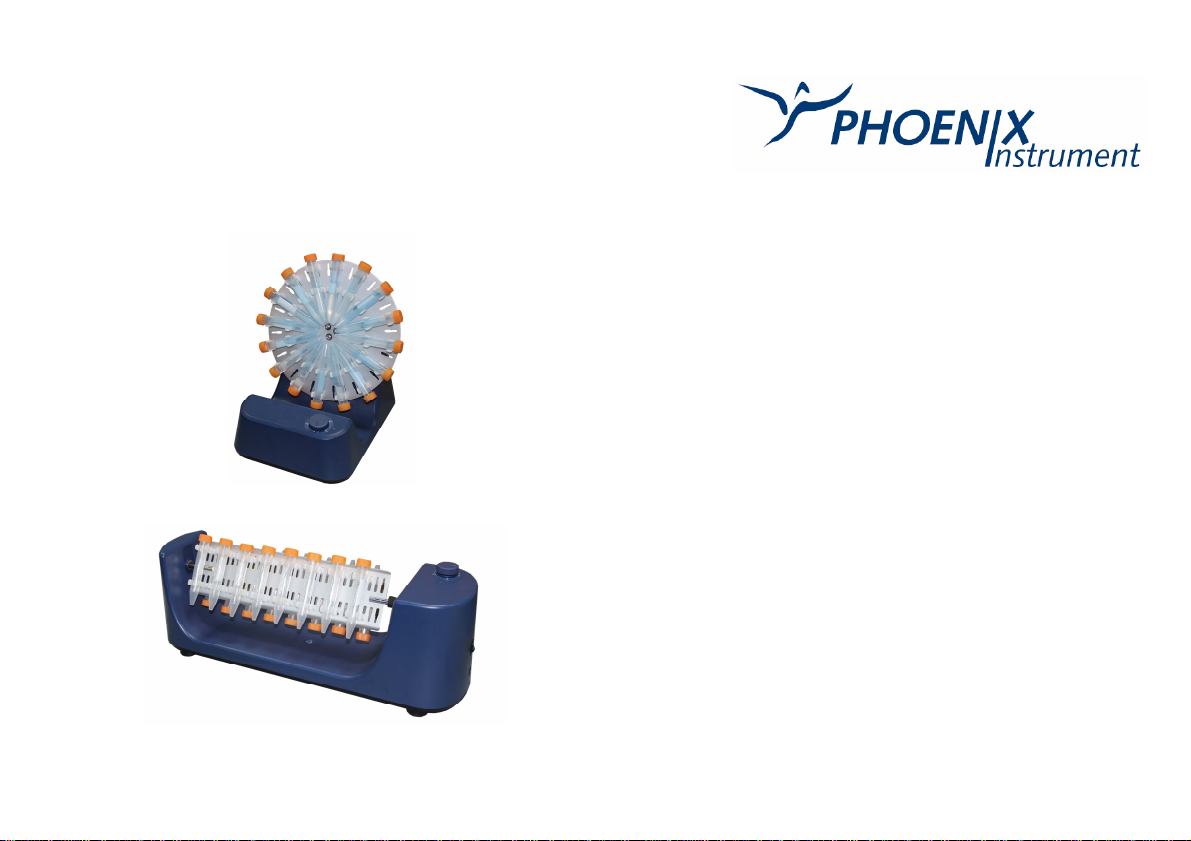

Phoenix Instrument RS-RD 5 User manual

User Manual
Analog Disk Rotator
Analog Linear Rotator
Please read carefully before use, and follow all operating
and safety instructions!
The design and specifications are subject to change
without prior notice.
RS-RD 5 / RS-RR 5

Contents
Preface ................................................................................. 1
Service ................................................................................. 1
Warranty .............................................................................. 1
1. Safety Instructions ....................................................... 2
2. Proper Use ................................................................... 3
3. Inspection .................................................................... 3
3.1 Receiving Inspection.............................................. 3
3.2 Listing of Items ...................................................... 3
4. Control ........................................................................ 4
5. Installation ................................................................... 5
6. Operation ..................................................................... 5
7. Maintenance and Cleaning .......................................... 7
8. Associated standards and regulations .......................... 8
9. Specification................................................................ 9
10. Ordering Information .................................................. 9

1
Preface
Welcome to the “Analog Rotator User Manual”. Users
should read this manual carefully, follow the instructions
and procedures, and beware of all the cautions when using
this instrument.
Service
When help needed, you can always contact manufacturer
for technical support.
Please provide the customer care representative with the
following information:
• Serial Number（on the rear panel）
• Certification
• Description of problem (i.e., hardware or software)
• Methods and procedures adopted to resolve the
problems
• Your contact information
Warranty
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service,
for a period of 24 months from the date of invoice. The
warranty is extended only to the original purchaser. It shall
not apply to any product or parts which have been damaged
on account of improper installation, improper connections,
misuse, accident or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier. You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim.

1. Safety Instructions
Warning!
• Read the operating instructions carefully
before use.
• Ensure that only trained staff works with the
instrument.
Protective ground contact!
• Ensure the socket must be grounded
(protective ground contact) before use.
• When working wear personal safety guards to avoid the risk of:
-Splashing liquids
-Broken glass containers
• Follow the safety instructions, guidelines and accident prevention regulations.
• Do not touch the running parts, moving instrument care not rolling your fingers.
• Set up the instrument in a spacious area on a stable, clean, non-slip, dry and fireproof
surface. Do not operate the instrument in explosive atmospheres, with hazardous
substances or under water.
• If the instrument does not run smoothly, please decrease the motor speed.
• Firmly secure the accessories and vessels in place to avoid damage or risk.
• Preparation of samples may lead to dangerous flammable. Only process samples that
will not react dangerous.
• Use the standard accessories listed in the “accessories” section, and follow the
instructions to use accessories to ensure safety. Please switch off the power before
assembly of accessories, confirm the instrument and accessories are intact before
switch on each time.
• The instrument only be opened by expert，please switch off before use.
• The voltage stated on the nameplate must correspond to the mains voltage.
• Do not cover the instrument during running. Prevent the collision and extrusion to
instrument and accessories.
• Keep away from high magnetic field.

2. Proper Use
The instrument is designed for mixing sticky substance in schools, laboratories or factories.
It can be installed on a variety of impeller, for different viscosity of the medium. This
instrument is not suitable for using in residential areas or other constraints mentioned in
Chapter 1.
Do not use the accessories recommended by the manufacturer, or failure to use the
instructions, may be caused unsafe situation.
3. Inspection
3.1 Receiving Inspection
Unpack the instrument carefully and check for any damages which may have arisen during
transport. If it happens, please contact manufacturer/supplier for technical support.
Note:
If there is any apparent damage to the system,
please do not connect to the power line.
3.2 Listing of Items
Items
Qty
Main unit 1
Power cable 1
User manual 1
Table 1

4. Control
Figure 1
Figure 2
Figure 3
Power switc
Speed control knob
Power lig t
Power interface
Power lig t
Speed control knob

Items Descriptions
Speed control knob Set target speed.
Power switch Switch ON/OFF instrument.
Power interface
Connect the power cable
Power light
Green LED display light
Table 2
5. Installation

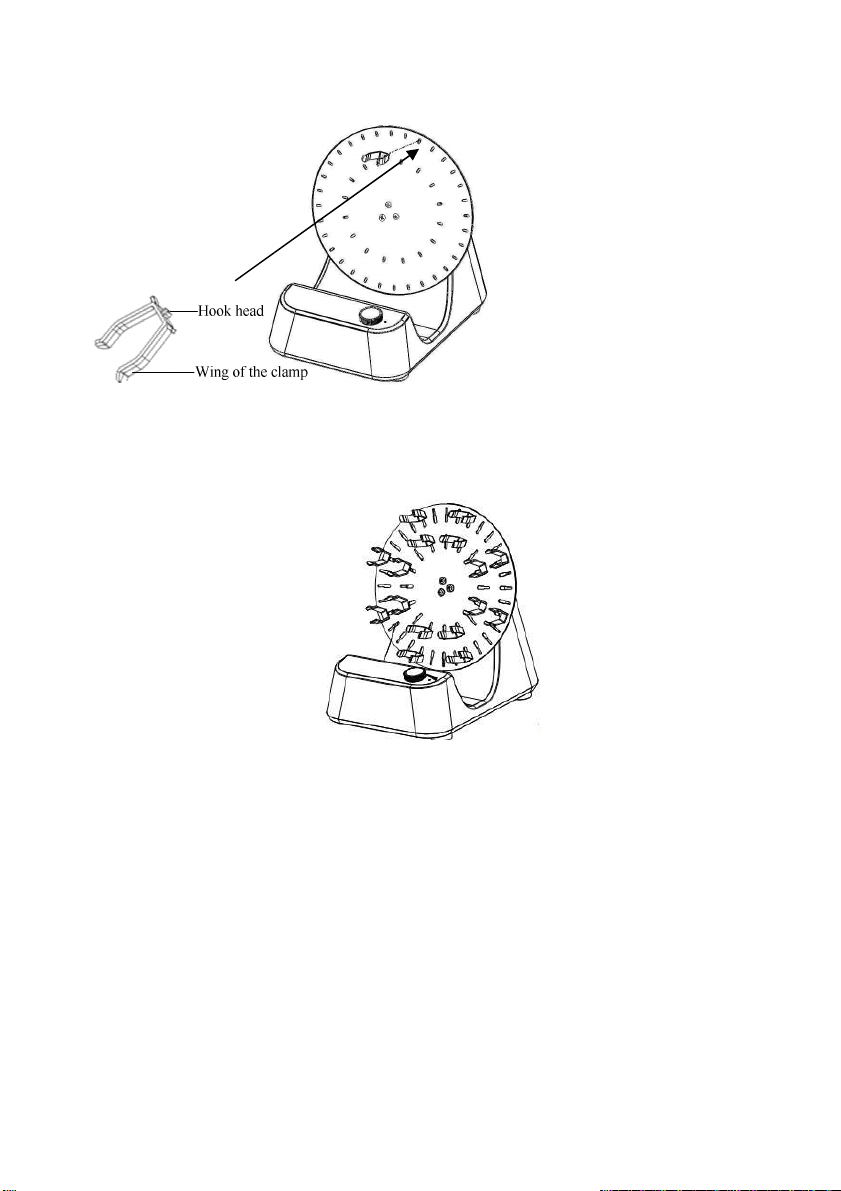

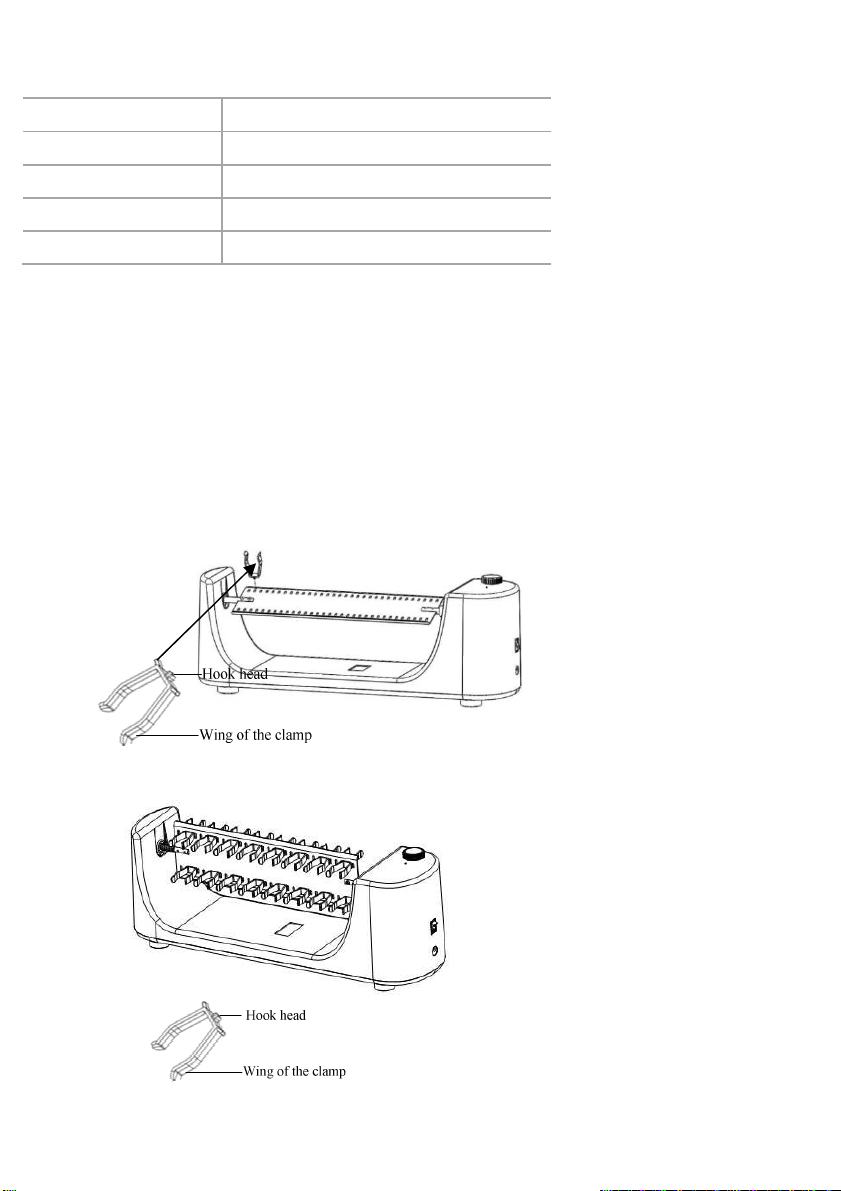

• Install the accessory according following instruction
• Hold the two wings of the clamp, place the hook head in the wide side of the hole, and
snap it into the narrow end.
Figure 4

Figure 5
Figure 6
Figure 7
6. Operation
• Place the instrument in safe and stable surface, ensure the required operating voltage
and power supply voltage matched, and the socket must be earthed reliably.
• Connect the power cable.
• Install the platform.
• Switch ON the instrument.

• Rotate the speed control knob clockwise to set target speed, and the shaking function
will be switched on.
• Rotate the speed control knob to the left-most position to switch off the shaking
function.
• Switch OFF the instrument.
• If these operations above are normal, the instrument is ready to operate. If not, the
instrument may be damaged during transportation, please contact technical support of
manufacturer/supplier.
Note:
The speed value can be altered during shaking.
7. Maintenance and Cleaning
• Proper maintenance can keep instrument working properly and lengthen its lifetime.
• Do not spray cleanser into the instrument when cleaning.
• Do not remove the power line when cleaning. Only use recommended cleansers:
Dyes Isopropyl alcohol
Construction
materials
Water containing tenside /
Isopropyl alcohol
Cosmetics Water containing tenside /
Isopropyl alcohol
Foodstuffs Water containing tenside
Fuels Water containing tenside
• Before using other method for cleaning or decontamination, the user must ascertain
with the manufacturer that this method will not damage the instrument. Wear the
proper protective gloves during cleaning of the instrument.
Note:
• Electronic device cannot clean with cleanser.
• If you require maintenance service, must be
cleaned the instrument in advance to avoid
pollution of hazardous substances, and to
send back into original packing.

• If the instrument will not use for a long time,
please switch off and place in a dry, clean,
room temperature and stable location.
8. Associated standards and regulations
Construction in accordance with the following safety standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC standards:
EN 61326-1
2011/65/EU RoHS (Restriction of certain Hazardous Substances)
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.

9. Specification
Items Specifications
P/N Linear Rotator /Disk Rotator
Voltage [VAC] 100~240
Frequency [Hz] 50/60
Motor rating input[W] 16
Motor rating output[W] 10
Motor type DC motor
Speed range [rpm] 0~80
Shaking motion Orbital
Dimensions[D ×W×H
mm]
150×530×190
/300×220×310
Weight[kg] 1.7/2.0
Permissible ambient
temperature[℃] 5~40
Permissible relative
humidity 80%
Protection class acc.DIN
EN60529 IP21
