MEGAMAT XS
Installation Instructions
(Translation of the original installation instructions)

MEGAMAT XS Foreword
73115 4.0 3
Foreword
Document revision history
Version Date Modification, change
(-) 03/12 First release
(a) 07/12 Edition II
(b) 12/12 RoHS
4.0 09/2019 Installation, ratings plate, declaration of conformity and
installation
Disclaimer and exclusion of liability
DewertOkin is not responsible for damage resulting from:
•failure to observe these instructions,
•changes made to this product which have not been approved by DewertOkin, or
•the use of replacement parts which have not been approved or manufactured by DewertOkin.
Manufacturer's address
DewertOkin GmbH
Weststrasse 1
32278 Kirchlengern, Germany
Germany
Tel: [phone]
Fax.: [phone]
http://www.dewertokin.de
[e-mail]
Creation of a complete operating instruction manual for the entire end product
These instructions are only intended to be used by the end-product manufacturer. They should not
be given to the operator of the end product. The factual information contained within may be used
as a basis when creating the end-product manual.
The warning and danger notices are best suited for use in the end product's manual. However it is
not sufficient to simply follow these notices. You should also carry out an internal risk assessment
for your end product. This can then be used as the basis for the safety notices in your manual.
These installation instructions do not contain all information required to safely operate the end
product. They only describe the installation and operation of the drive as partially completed ma-
chinery.
The instructions are intended for the technicians responsible for manufacturing an end product and
not for the operators of the end product.

Foreword MEGAMAT XS
4 73115 4.0
Notice for customers in EU nations
German Inspection Authority (TÜV SÜD Product Service) testing label
The construction of the MEGAMAT XS drive has been inspected by the German TÜV SÜD Product
Service Inspection Authority. TÜV SÜD Product Service also monitors the production of the
MEGAMAT XS. The official German TÜV SÜD Product Service certifies this construction inspec-
tion and production monitoring.
Figure 1 TÜV SÜD Product Service Safety Mark

MEGAMAT XS Table of Contents
73115 4.0 5
Table of Contents
Foreword 3
Document revision history 3
Disclaimer and exclusion of liability 3
Manufacturer's address 3
Creation of a complete operating instruction manual for the entire end product 3
Notice for customers in EU nations 4
Table of Contents 5
1. General Information 7
1.1 About these installation instructions 7
1.2 Availability of this document 7
1.3 Conventions used 8
2. Safety notices 9
2.1 Proper and intended usage 9
2.2 Safety notices within the installation instruction and the operating instructions for the
entire machine 10
2.3 Selection and qualification of personnel 10
2.4 Notice on safety during operations 10
2.5 Product identification 11
3. Possible combinations 12
4. Description 13
4.1 Components 13
5. Technical specifications 15
6. Installation 17
6.1 Safety notices to observe during installation 17
6.2 Installation procedure 18
7. Operating notes 22
7.1 General information 22
7.2 Notice for operating with optional configuration 23
8. Troubleshooting 24
9. Maintenance 25
9.1 Maintenance 25
9.2 Cleaning and care 25

Table of Contents MEGAMAT XS
6 73115 4.0
10. Disposal 26
10.1 Packaging material 26
10.2 Drive components 26
Declaration of incorporation/installation 27
EU Declaration of Conformity 28
Additional information 29

MEGAMAT XS General Information
73115 4.0 7
1. General Information
1.1 About these installation instructions
These installation instructions must be followed closely in order to install this drive successfully and
safely in the end product. These instructions are not an operating manual for the end product.
These instructions will help you to minimize danger, repair costs and down times. They will also
help you to maximize the reliability and lifespan of the end product.
CAUTION
The notices in these instructions must be followed! Following the guidelines during
installation and connection procedures will help to minimize:
•the risk of accident and injury, and
•damage to the drive system or the end product.
These installation instructions have been written with due care and attention. However, we cannot
guarantee that the data, images and drawings are complete and correct nor do we accept any li-
ability for the information contained therein, unless required by law.
We reserve the right to make unannounced technical changes in the course of our continual
product improvement process!
1.2 Availability of this document
As manufacturer of the end product, you are obligated to comply with Machinery Directive
2006/42/EC. This directive stipulates that the installation instructions must be kept on file for gov-
ernmental inspection purposes.

General Information MEGAMAT XS
8 73115 4.0
1.3 Conventions used
Notices which do not relate to safety are indicated in these instructions with a triangle:
Triangular notice symbol
Safety notice explanations
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE is used to address practices which are not related to personal injury but may
result in damage to the product or surroundings.

MEGAMAT XS Safety notices
73115 4.0 9
2. Safety notices
2.1 Proper and intended usage
The MEGAMAT XS drive is meant to be installed in an end product.
•It provides motor adjustment capabilities for movable reclining bed parts. It should be used in
conjunction with suitable fittings and mechanics:
•It can be used for care purposes (CARE).
•It can be used in a hospital (HOSP).
CAUTION
This drive should only be used for the applications described above. Any other use is
forbidden. Improper usage can lead to accidents or destruction of the unit. Such non-
approved applications will lead immediately to the expiration of all guarantee and war-
ranty claims on the part of the end-product manufacturer against the manufacturer.
Improper usage
Be sure to follow the notices below concerning improper usage. You should include them in your
product manual in order to inform the users of your end product.
WARNING
The MEGAMAT XS drive should not be used:
•in any environment where combustible or explosive gases or vapours (e.g., anaes-
thesiology) may be present,
•with pulling or pushing forces that exceed those specified on the ratings plate,
•in a moist environment,
•outdoors,
•in any application that will be cleaned with an automated washing system.
CAUTION
The MEGAMAT XS drive may not be operated:
•by small children,
•by frail or infirm persons without supervision, or
•in the proximity of small children.
The MEGAMAT XS drive can be used by children of 8 years and older, persons with reduced
physical, sensory or mental capabilities, or persons with lack of experience or knowledge when
they are supervised or instructed concerning the safe use of the device and when they understand
the resulting risks. Do not allow children to play with this device. The cleaning and user mainte-
nance must not be carried out by children without supervision.
CAUTION
You should only use spare parts which have been manufactured or approved by
DewertOkin. Only these parts will guarantee a sufficient level of safety.

Safety notices MEGAMAT XS
10 73115 4.0
2.2 Safety notices within the installation instruction and the operating instruc-
tions for the entire machine
The manufacturer of the end product is only permitted to operate the MEGAMAT XS drive (by itself
an incomplete machine)
•when the end product (for which the MEGAMAT XS drive is intended) is in compliance with all
protective measures specified in the Machinery Directive 2006/42/EC, and
•when the manufacturer expressly declares the compliance of the end product.
The manufacturer of the end product must create a manual for the users of that product. The safety
notices in the end-product manual must be written based on the end product's risk assessment.
2.3 Selection and qualification of personnel
This drive should only be installed into the end product by someone who has completed training in
electronic motor assembly or has equivalent qualifications.
You should only install this drive when you are qualified to do so. Otherwise, a properly qualified
person should be found for this task.
2.4 Notice on safety during operations
Basic safety rules must be followed in order to ensure that the end product can be continually op-
erated in a safe manner. These rules must be observed while using the end product and while in-
stalling the drive.
These rules and safety measures can be categorized as follows:
•Construction measures before the installation (refer to the "Ensuring operational reliability dur-
ing installation" section in Chapter "Installation").
•Safety fundamentals during the drive installation and during cable and wire routing (refer to the
"Safety notices to observe during installation" section in the "Installation" Chapter).
•Using the drive in intermittent duty (refer to the "General information" section in the "Operating
notes" chapter).
•Basic safety rules during operation (refer to the "Operating notes" Chapter).
•The creation of a manual for the end product which contains these and other safety rules.
Creating a user's manual
The manufacturer of the end product must create a manual for the users of that product. The safety
notices in the end-product manual must be written based on the end product's risk assessment.

MEGAMAT XS Safety notices
73115 4.0 11
2.5 Product identification
2.5.1 Ratings plate
A ratings plate on each drive specifies the exact name and serial number of the drive. It also states
the technical specifications valid for that particular drive. The following illustration shows where the
specifications are located on the drive's ratings plate.
The ratings plate shown is an example; the specifications for your drive may differ from this illus-
tration.

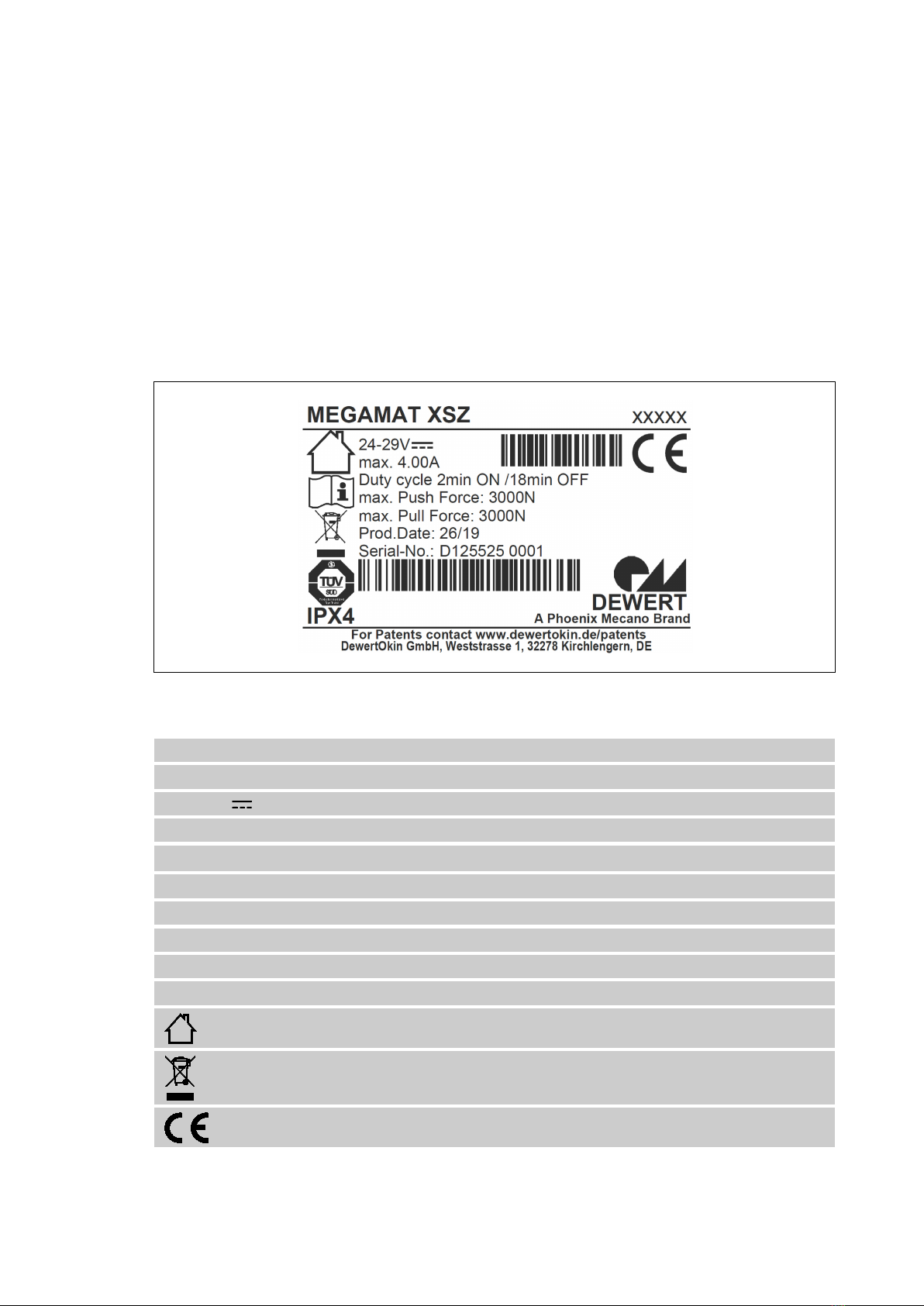

Figure 2 Ratings plate example
MEGAMAT XSZ Model name
xxxxx Article number
24 – 29V Input voltage
Max. 4.00A Current consumption
Duty cycle: 2 min ON / 18 min OFF Intermittent operations: 2 minutes / 18 minutes
max. Push Force Push force
max. Pull Force Pull force
Prod.date Calendar week / year
Serial No. Serial number for your drive
IPX4 Protection degree
Use in dry rooms only!
Follow all special disposal instructions!
Mark of CE conformity

Possible combinations MEGAMAT XS
12 73115 4.0
3. Possible combinations
The MEGAMAT XS single drive can be combined for use with other single drives, double drives or
control units. The following basic combinations are possible:
•a MEGAMAT XS with handset and control unit,
•the MEGAMAT XS in combination with other drives with an additional control unit or double
drive.
Systems can be customized by combining drives with the handset and control units as needed.
Make sure that you switch off the electricity before connecting any components (connect while in a
voltage-free state).
DewertOkin has separate system instruction manuals containing all information and instructions
needed for these systems.
Only a DewertOkin device should be used to control the drive since they have already been
verified to work together.
A control unit or a double drive is needed to operate the MEGAMAT XS single drive. A handset
is also required.
NOTICE
Check with DewertOkin for approval concerning any special device configurations that
are customized for your requirements.

MEGAMAT XS Description
73115 4.0 13
4. Description
The MEGAMAT XS drive is an electrically driven motor that is responsible for moving the end
product in a linear direction. This adjustment is created by the in and out movement of a stroke
pipe. The movements of the MEGAMAT XS drive are controlled using a control unit or a double
drive which is connected to a DewertOkin handset.
The different drive models vary according to their:
•output performance,
•the mounting of the stroke pipe.
We reserve the right to make unannounced technical changes in the course of our continual
product improvement process!
4.1 Components
The main components of the MEGAMAT XS drive are the motor and the stroke pipe. The stroke
pipe is protected by the drive housing when it is retracted. Mounting fixtures are located at the
outer end of the stroke pipe and at the opposite end of the drive. They are used to mount the drive
in the end product.
Figure 3 Main components of the drive MEGAMAT XS
A Head of stroke pipe
B Electrical connection
C
Motor housing
D
Gear clevis
E Guidance profile
C
B
D
A
E

Description MEGAMAT XS
14 73115 4.0
4.1.1 Stroke pipe options
There are two types of stroke pipes available for different types of applications. The stroke pipe can
be screwed onto the spindle screw or it can be mounted unattached. The drive only exerts pushing
force when the stroke pipe is mounted loosely (unattached). The motions of the drives for these
two versions are shown in the following illustrations.
CAUTION
If the stroke pipe is unattached, then the end product must be designed to prevent the
stroke pipe from coming out during operations. This can be accomplished by imple-
menting a fixed end-stop mechanism (refer to the "Safety notices to observe during
installation" in the "Installation" chapter).
Figure 4 Loose fastening nut (stroke pipe not secured): only pushing forces
Figure 5 Stroke pipe screwed onto the spindle screw (attached): both pushing and pulling
forces
Drive motion
Drive motion

MEGAMAT XS Technical specifications
73115 4.0 15
5. Technical specifications
Input voltage 24 V DC – 29 V DC
Current consumption at rated load Max. 4.0 A, depending on version
(refer to the ratings plate on the drive)
Permitted push force Max. 3000 N, depending on version
(refer to the ratings plate on the drive)
Permitted pull force Max. 3000 N, depending on version
(refer to the ratings plate on the drive)
Mode of operation1at max. rated load Intermittent duty 2 minutes /18 minutes
Protection class2) III
Noise level ≤ 65 dB(A)
Drive type Single drive
Load type Push / pull
Adjustment speed3Up to 30 mm/second, depending on the version
Protection degree IPX4 / IPX6
Stroke < 350 mm
Colours Refer to sales brochure
Dimensions and weight
Length x width x height Min. 168 mm x 146 mm x 62 mm
Weight Approx. 1.5 kg, depending on version
Ambient conditions for operation, storage and transport
Transport / storage temperature From -20 °C to +50 °C
From -4 °F to +122 °F
Operating temperature From +10 °C to +40 °C
From +50 °F to +104 °F
Relative humidity From 30% to 75%
Air pressure From 800 hPa to 1060 hPa
Height < 2000 m
1) Mode of operation: intermittent duty 2 min./18 min. This means that after the unit is operated with its rated
load for up to two minutes it must then be paused for 18 minutes. The system can malfunction if this pause
is not observed!
2) Safety extra-low voltage
3) Adjustment speed: the speed at which the clevis can move under no load (the speed varies depending on
the load).

Technical specifications MEGAMAT XS
16 73115 4.0

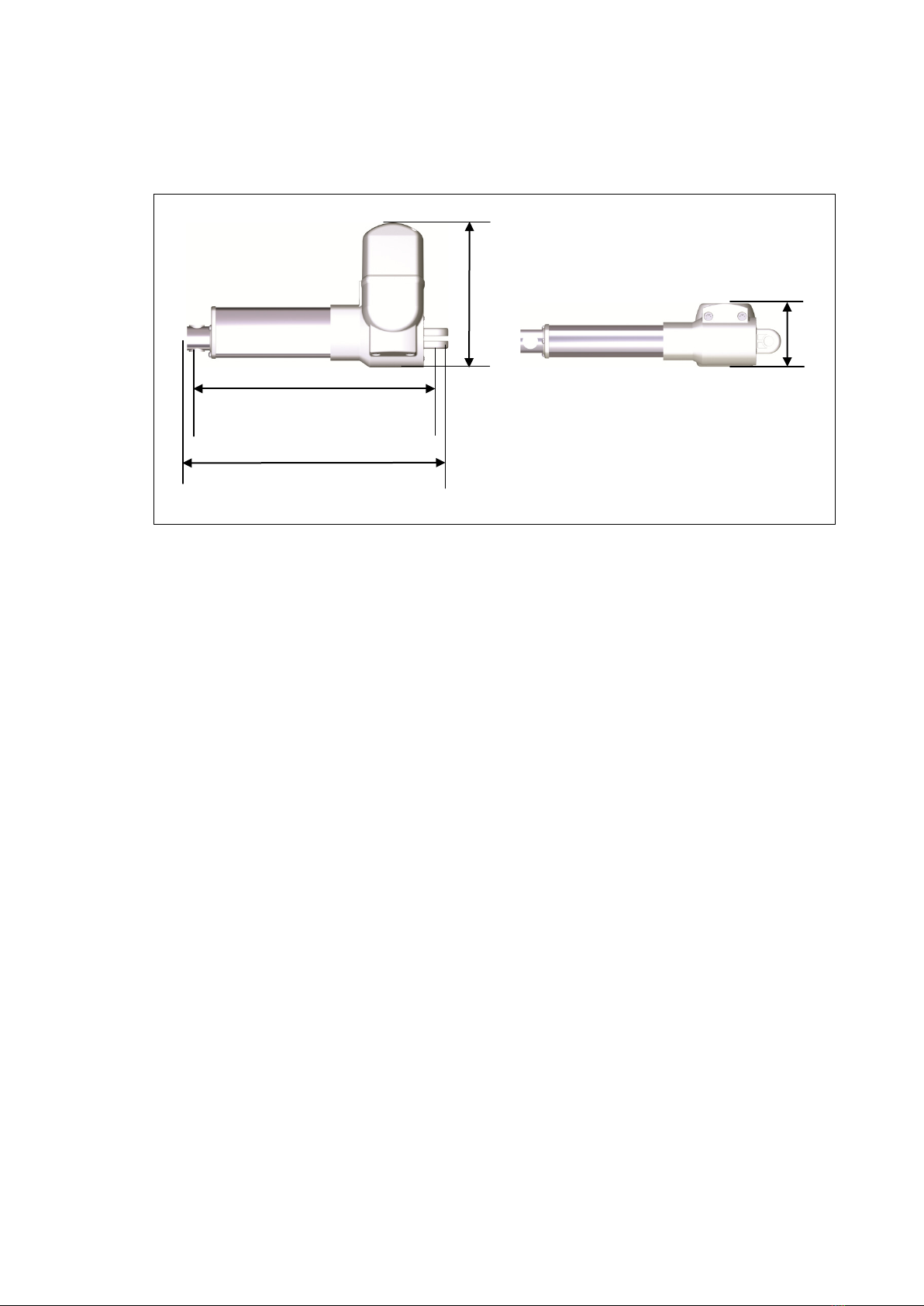

Figure 6 Dimensions of MEGAMAT XS drive (in mm), minimum installation dimension: 145 mm
Min. 168
146
62
145

MEGAMAT XS Installation
73115 4.0 17
6. Installation
6.1 Safety notices to observe during installation
Basic safety rules must be followed in order to ensure that the end product can be continually op-
erated in a safe manner. These rules must be observed while using the end product and while in-
stalling the drive.
6.1.1 Ensuring operational reliability during installation
The safety and reliability of the end product containing the DewertOkin drive can be ensured by us-
ing the proper construction methods described below.
Avoiding fatigue fractures
CAUTION
Drives that are incorrectly installed can undergo fatigue fractures which then create a
risk of injury.
•Install the drive in the end product so that it is properly aligned. This will help pre-
vent shear stress.
•Do not position the drive at a slanted angle when installing it in the end product. A
slanted angle between the intended direction of movement of the end product and
the drive's direction will create shear stress and could lead to a fatigue fracture.
•Be sure to install the drive so that it can always move freely in all operative states.
•You should never screw the stroke pipe into the drive.
Avoiding a pinching hazard
CAUTION
When designing your product, you should take the drive adjustment movement into
account with passive safety mechanisms and with the appropriate safety notices in
your operating instructions.
•Installation methods for ensuring passive safety: Install the MEGAMAT XS drive so
that none of the positions where shear and pinch hazards exist are accessible ex-
ternally.
When preparing safety notices for the operator, Make sure that your operating instructions inform
the user of these safety points.

Installation MEGAMAT XS
18 73115 4.0
Avoiding an over-extension of the stroke pipe (when mounted unattached)
CAUTION
There must be a fixed mechanical end stop built into the end product for MEGAMAT XS
drive models where the stroke pipe is not attached to the spindle screw. If no fixed me-
chanical end stop exists, the stroke pipe can over-extend. This can cause malfunctions,
personal injury, and damage to the drive system.
Avoiding an overrun of the stop point with the end product
Your end product should contain mechanical end stops. These will limit the drive movement and
significantly increase operational safety. DewertOkin recommends that you build such mechanical
end stops into your end product.
If, for technical or cost reasons, you choose not to use end stops, then we strongly recommend the
use of an additional safety limit switch whenever the DewertOkin drive is being used for at-risk
functions. A safety limit switch will protect the drive from a critical failure and overrun in the event
that the top end switch malfunctions.
The safety end switch shuts the drive down as soon as the normal end switch is passed over.
The safety end switch is integrated directly into the drive and does not require any additional in-
stallation. The drive may take up an extra 23 mm when installed with the safety limit switch.
6.2 Installation procedure
NOTICE
Mount the drive in its unloaded position within your end product.
The drive must either be completely retracted or extended at its end position.
Damage to the drive can only be avoided if the drive is installed in its unloaded position. This
ensures safe installation.

MEGAMAT XS Installation
73115 4.0 19
6.2.1 An installation example
Before installing the drive, make sure that you are observing all of the safety notices found in the
"Safety notices to observe during installation" section.
CAUTION
The mains power cable should be unplugged during the installation.
Figure 7 Installing the drive (example)
A Safety clip
B Bracket for securing the drive (on the stroke
pipe side)
C
Head of stroke pipe
D
Mounting bolt
E Gear clevis
F Bracket for securing the drive (on the motor
side)
In the following example, installation of the MEGAMAT XS drive into the end product is shown us-
ing the mounting bolt.
Certain details may change because of technical changes.
1 Move your product into a position where it is supporting no load.
2 Push the drive's gear clevis (E) onto the bracket (F).
3 Insert the mounting bolt (D) into the bracket (F).
4 Secure the mounting bolt (D) with the safety clip (A).
A
B
E
F
D
D
C
A
B

Installation MEGAMAT XS
20 73115 4.0
CAUTION
You should never screw the stroke pipe into the drive. A stroke pipe that has been
screwed into the drive can result in fatigue fractures.
5 If the stroke pipe clevis (C) does not align exactly with the gear clevis (E), the stroke pipe may
be unscrewed out of the drive by no more than a half turn.
CAUTION
The stroke pipe may only be turned one half rotation out of the drive. Do not rotate the
stroke pipe further out. An over-rotation can lead to unsafe operations.
6 Attach the stroke pipe (C) using a mounting bolt (D) to the fitting (B).
7 Secure the mounting bolt (D) with the safety clip (A).
8 Now connect the drive to the control unit or the double drive. Ensure that the electrical connec-
tion cable cannot be pulled out.
If the hand switch will be used to control two drives, you must first connect both drives electri-
cally to each other (for example, over a control unit). Then you can connect the handset.
6.2.2 Electrical connection
CAUTION
Electrical components should be connected or disconnected only when the mains
power cord and the battery plug (when present) are unplugged.
WARNING
Only the following personnel are qualified to work on the power cord or to replace the
power cord:
•someone who has completed training in electronic motor assembly,
•someone with equivalent qualifications, or
•someone who has successfully completed the appropriate DewertOkin training pro-
gram.
You should only work on the power cord when you are qualified to do so. Otherwise, a
properly qualified person should be found for this task.
NOTICE
There is a delay after the supply voltage is applied before the device actually turns on.
Wait at least 15 seconds before initial commissioning.
