Phonic Ear PE 300T User manual

receiver: PE 300R
front top
back
8volume control/
on/off switch 9channel number
Make sure the channel
matches your transmitter
82
6
7
9

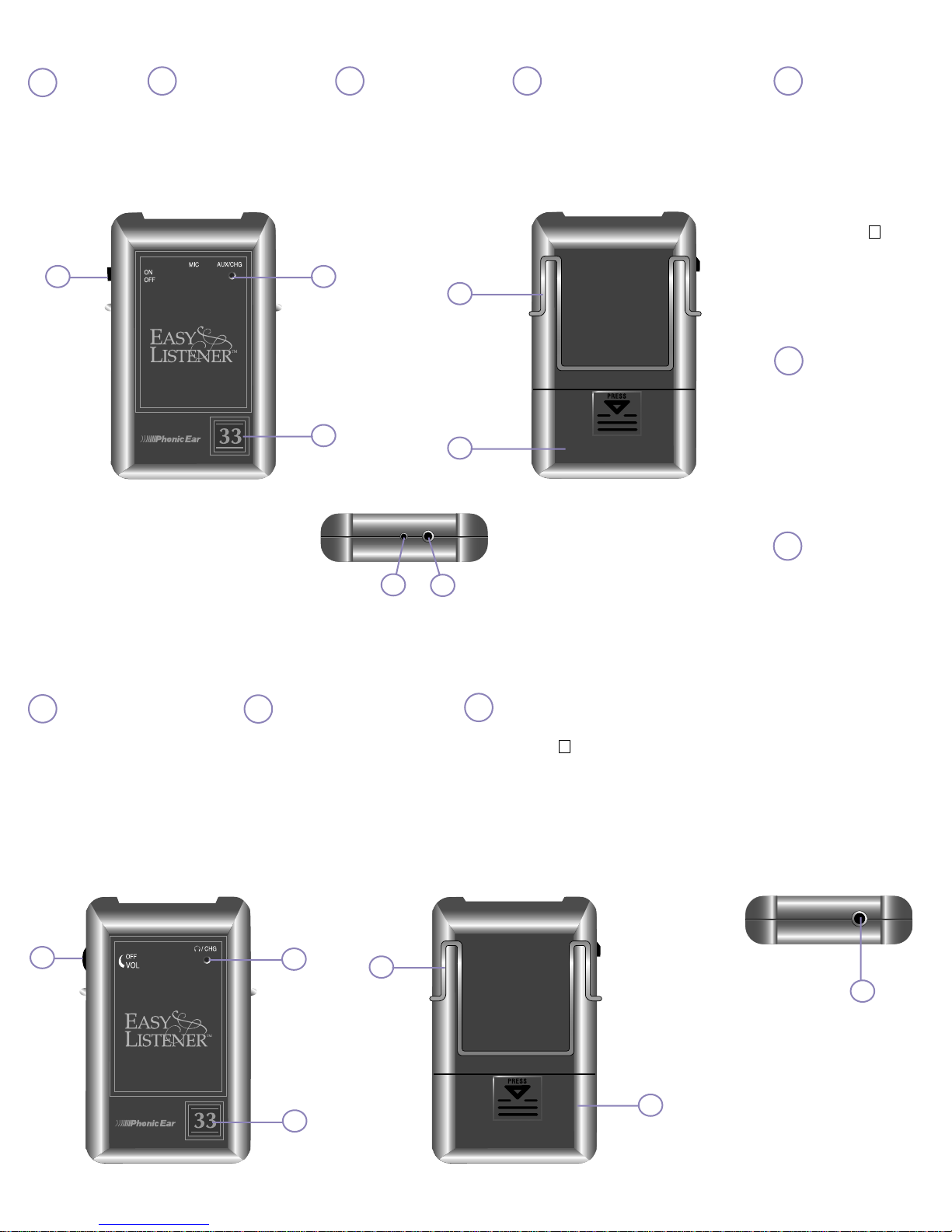

transmitter: PE 300T
front
top
back
5auxiliary/
charge jack
Connect to a CD
player or other device
through the AT0532
cord to transmit a
second sound source;
connect to personal
charger (see 1 )
to recharge NiCad bat-
teries (never recharge
alkaline batteries!)
12
3
7
6
45
1on/off
switch 2charging indicator
Glows red when charging
NiCad batteries (never
recharge alkaline batteries!)
3channel number
Make sure the channel
matches your receiver
6 battery
compartment
Use AA rechargeable
NiCad or disposable
alkaline batteries
(never recharge
alkaline batteries!)
7belt clip
4microphone jack
Plug in a directional microphone (AT0291-L
lapel mic, AT0164-L omni directional mic
or, preferably, the AT0655M mutable
behind-the-neck mic) or AT0529A antenna
10 earphone/charge jack
Plug in a listening accessory; connect to personal
charger (see 1 ) to recharge NiCad batteries
(never recharge alkaline batteries!)
10

receiver: PE 350FSR
11 channel selector switch 12 channel code label
(inside battery compartment)
Identifies the channel assigned to each of the six
positions on the channel selector switch 11 .
front
82
C
H
A
N
N
E
L
N
O
F
R
E
Q
C
O
D
E
1
2
3
4
5
6
22
24
26
28
30
32
+–
–72 MHz +
back
11
12
7
top
10
1batteries Charge every night for 12 hours; never recharge alkaline batteries!
charging replacing
Charge only rechargeable
NiCad batteries
1
2
Plug in
Plug in
CHG
AT0534
Push off
or
1
Plug in
2
Plug in
PE 300C

power
1Clip to belt or wear around neck
AT0291-L directional mic
AT0164-L omni directional mic
15cm/6in max.
Put on microphone
then
2using the transmitter 3using the receiver
recommended
AT0655M
(two wearing options)
AT0712
optional
Plug in microphone
PE 300T
Keep antenna/
cord as straight
as possible.
Do not coil.
4channels 5auxiliary transmission
PE 300T
26
AT0512
2
3
power
volume
1Clip to belt or wear around neck
AT0538-S binaural earbuds
Put on listening accessory
then
AT0606 headset
AT0712
Plug in listening accessory
PE 300R
Keep antenna/
cord as straight
as possible.
Do not coil
AT0512
2
3
transmitter
receiver and
or
26
S
C
H
A
N
N
E
L
N
O
F
R
E
Q
C
O
D
E
1
2
3
4
5
6
22
24
26
28
30
32
+–
–72 MHz +
m
a
t
c
h
m
a
t
c
h
or
Both mic and auxiliary sound source
Auxiliary sound source only
AT0532 connection cord
AT0529A antenna AT0532 connection cord

* Contact Phonic Ear for optimal frequency combinations. Because all Phonic Ear FM products are compatible with each other, the two teachers
may wear different types of Phonic Ear transmitters. Contact Phonic Ear for non-EASY LISTENER cords.
6team teaching*
students
any phonic ear receiver
5
first teacher second teacher
MOD-300-TT
Adjust VOL
as necessary
PE 300T PE 300R PE 300T
32
5
32
accessories
microphones
• Behind-the-neck microphone
(AT0513) or noise-cancelling behind-
the-neck microphone with mute
(AT0655M) (recommended)
• Omni directional mic (AT0164-L)
• Directional mic with mic clip and
lavalier cord (AT0291-L)
• Antenna (AT0529A)
• Lavalier Mic Cord (AT0719)
• Conference mic (AT0720)
• Y-cord for conference mic (AT0721)
transmitter options
• Wire belt clip (AT0489)
• Lavalier cord (AT0512)
• 2 rechargeable NiCad batteries
(AT0665)
• Two-unit charger (AT0534)
• Waist belt (AT0712)
• Team-teaching cord (MOD-300-TT)
listening options
• Attenuated Headset (AT0606)
• Monaural Earbud (AT0538M)
• Binaural Earbuds (AT0538S)
• Earbud Pad (AT0538P)
• Headset Pad (AT0607)
• Stetoclip assembly (AT0359 and
AT0016/AT0545)
• Teleloop assembly (AT0163B and
AT0543G)
miscellaneous
• Wire Belt Clip (AT0489)
• Lavalier Transmitter/Receiver Cord
(black) (AT0512)
• Wall Transformer/Two-Unit Charger
(AT0534)
• 12 Pocket Charger (PE 300C)
• Wall Transformer for PE 300C
(AT0461)
• Rechargeable AA Batteries (2)
(AT0655)
• Auxiliary Input Cord, 5 ft., 15 ft.
(1.5m, 4.5m) (AT0532)
• Carrying Case (AT0542)
• Tote Bag (AT0301)
• Hip Pack
(red, black, royal blue, navy blue)
(AT0594)

specifications
transmitting frequency 72MHz to 76MHz (U.S./Canada)
37, 72, or 173 MHz (outside U.S./Canada)
modulation FM narrow-band
operating range 30m/100ft
user controls Off/on
inputs / outputs 3.5mm auxiliary input jack
2.5mm microphone input jack
battery life 40Hr (AA alkaline)
10Hr (AA NiCad)
size 2.5 x 9.4 x 5.6 cm/1 x 3.7 x 2.2 in
weight 80g/2.8oz
case ABS plastic
transmitter: PE 300T
capacity 12 units (transmitters and/or
receivers)
power supply Wall transformer
user control None
color Black with aluminum trim
size 39.4 x 29.2 x 15.2 cm/
15.5 x 11.5 x 6 in
weight (empty) 1859g/4.1lbs
receiving frequency 72MHz to 76MHz (U.S./Canada)
37, 72, or 173 MHz (outside
U.S./Canada)
modulation FM narrow-band
user controls Off/on/volume
inputs / outputs Accessory output jack
battery life 60Hr (AA alkaline)
15Hr (AA NiCad)
size 2.5 x 9.4 x 5.6 cm/1 x 3.7 x 2.2 in
weight 80g/2.8oz
case ABS plastic
charger: PE 300C
receiver: PE 300R/350FSR
warranty
A one-year limited warranty is issued to the original consumer of this product(s) by Phonic Ear Inc.
U.S./International Canada
Sales and Service Sales and Service
Phonic Ear Inc. Phonic Ear Ltd.
3880 Cypress Drive 10-7475 Kimbel Street
Petaluma, CA 94954-7600 Mississauga, Ontario
U.S. A. L5 1E7 Canada
800.227.0735 800.263.8700
707.769.1110 905.677.3231
707.769.9624 FAX [phone] FAX
time period of warranty
This warranty will go into effect upon the date of original purchase of this equipment, and will remain in effect for one calendar year from that date as long as the instrument remains the
property of the original consumer.
what is covered by this warranty
Any electronic component which, because of workmanship, manufacturing, or design defects, fails to function properly under normal use during the life of this warranty will be replaced or
repaired at no charge for parts or labor when returned to the factory service center. Transportation in is paid by the customer. If it is determined that repair is not feasible, the entire unit may
be replaced with an equivalent unit upon mutual agreement of the manufacturer and customer.
what is not covered by this warranty
This one-year limited warranty does not apply to:
1Malfunctions resulting from abuse, neglect, or accident.
2Peripheral accessories as itemized within the product brochure, when such items are returned after 90 days from the original purchase.
3Alkaline batteries if applicable.
4Instruments connected, installed, used or adjusted in a manner contrary to instructions provided by the manufacturer.
5Consequential damages and damages resulting from delay or loss of this instrument. The exclusive remedy under this warranty is strictly limited to repair or replacement
as herein provided.
6Products damaged in transit unless investigated by the shipper and returned to the warrantor with the investigation report.
Phonic Ear Inc. reserves the right to make changes in the design or construction of any of its instruments at any time without incurring any obligation to make any changes whatsoever on units previously
purchased. This warranty is in lieu of all other expressed warranties. All expressed and implied warranties will terminate upon the expiration of this written warranty. No representative or person is
authorized to represent or assume for us any liability in connection with the sale or use of our products other than as set forth above.
what to do if you need service
If you require service under the terms of this warranty, carefully package the instrument to prevent damage in transit and send it postpaid to the nearest factory service center listed above. In your package,
include the following: a detailed description of the problem, your full name, billing and shipping address and telephone number.

troubleshooting
basics
quick reference guide
try these first: • If another working system is available, interchange accessories
• Reset the system by turning the power off, then on again
no sound from receiver • Recharge or replace the transmitter’s batteries
• Check or replace accessory
•
Verify that the channel number of the transmitter and the receiver are the same
• Turn up volume
• Clean or check battery contacts
no FM reception • Recharge or replace batteries
(“NO FM” light on • Verify that the channel number of the transmitter and the receiver are the same
receiver stays on) • Check or replace microphone
• Clean or check battery contacts
• Turn on transmitter power switch
weak/distorted sounds • Check or replace accessory
• Turn up volume
• Check or replace microphone
intermittent sound/static • Clean headset plug
• Clean microphone plug
• Check or replace microphone
• Clean or check battery contacts
won’t charge • Recharge or replace batteries
• Check or replace wall transformer
• Clean or check battery contacts
• Check that batteries are inserted properly
batteries
1
Plug in
Plug in
2
service: usa: 800.227.0735, then press 7 canada: 800.263.8700
outside usa/canada: call your local Phonic Ear dealer web: www.phonicear.com
charging
If these troubleshooting methods do not produce the desired result, send your
unit(s) to the nearest Phonic Ear service center for repair (see warranty section).
1
Charge every night for 12 hours;
never recharge alkaline batteries!
replacing
Charge only rechargeable
NiCad batteries
Push off
CHG or
Plug in
1
Plug in
2
PE 300C
AT0534
caring for your system
cleaning
Clean as needed, using a soft, damp cloth.
storage
Clean with a soft damp cloth and remove the batteries from the transmitter. Place the units in the PE 300C charger or original packaging.
other important notes
• Protect your units from excessive moisture, heat, and mechanical shocks.
• The AT0534 wall transformer can get warm under normal operation.
• To protect the transmitter’s case front, position it face down on a soft surface when removing or inserting the batteries.
• Always dispose of old batteries in approved battery recycling bins. It may be illegal to dispose in the trash. If you are not sure of proper disposal method, please consult
your local authority.
