Phonic BP-RG User manual

English
BP-RG
Battery Pack

1. Read these instructions before operating this
apparatus.
2. Keep these instructions for future reference.
3. Heed all warnings to ensure safe operation.
4. Follow all instructions provided in this document.
5. Do not use this apparatus near water or in locations
where condensation may occur.
6. Clean only with dry cloth. Do not use aerosol or liquid
cleaners. Unplug this apparatus before cleaning.
7. Do not block any of the ventilation openings. Install
in accordance with the manufacturer
’ s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from tip-
over.
13. Unplug this apparatus during lighting
storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated
“ dangerous voltage ” within the
product
’ s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important operat-
ing and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
CAUTION: Use of controls or adjustments or performance
of procedures other than those specified may result in
hazardous radiation exposure.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
Warning: the user shall not place this apparatus in the confined area during the operation so that the mains switch
can be easily accessible.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

Attention:
1. Turn the power off when the unit is not in use as to save power.
2. When charging, stand the device upright.
3. Keep the device fully charged at all times as to ensure the best conditions for battery use are
upheld. If battery remains unused for long periods of time, it will become dead and possibly
damaged. Users are expected to ensure the battery remains charged to avoid this from
occurring.
4. Please ensure the AC power charger supplied along with this device is used when charging.
Phonic is not responsible for any damage to this, or any other device, when the device is
used in an inappropriate nature.
5. In the event of battery failure, return the unit to the dealer from whom you purchased
the device, for possible replacement at user’s expense. Batteries should not be simply
discarded, and must be disposed of responsibly.
6. Keep the unit away from direct sun light, extreme temperatures (either hot or cold), humidity,
and liquids. Keep out of reach of children.
7. Do not touch the power plugs with any metal items to ensure short circuiting does not occur.
In the event that short circuiting does occur, the fuse within the device will be burned out, and
should be replaced with a new fuse. The device should work again after this is done.
Included Accessories:
One AC to DC recharge adaptor
ON/OFF Switch for the
Flashlight
Power ON/OFF Switch
Cigarette Lighter Socket
Power Level Indicators
(1xRed, 3xGreen)
Charging lndicators
(CHARGE, 80%, FULL)
AC-Power Connector
Flashlight
Left Holder-Grip
Front
FEATURES:
DC 12V 22 Ah Power supply converter
Rechargeable 12 DC-DC Converter to Offer the RoadGear a Mobile Power Supply
Compact Durable Design, yet Powerful Performance
Cigarette Lighter Socket for Expanding Application
Dimension: 225x95x325 (mm) / 8.88x3.75x12.8(inch)
Net Weight:7.75kg / (17.07lb)
3BP-RG

4 BP-RG
Operating Instructions:
1. Connect the BP-RG to the DC-DC converter (CV-RG) and
to the RoadGear unit. Ensure you correctly connect the
positive and negative power terminals of the BG-RG to the
DC-DC converter to avoid damaging equipment.
2. Turn the power switch on.
3. This device may be used and charged simultaneously, if
required.
4. If needed, the light switch may be used to illuminate your
environment. The light should last up to 25 hours.
Charging Information:
1. Since the battery pack has no charge memory, it can be charged at anytime without having to
discharge first.
2. The 4 LED charge indicators show the current charge of the battery pack. When the power
charge is down to very low levels, the power will automatically cut out and a sound will alarm
you to the need to charge. If the battery pack is then left without charge for a long period of time,
it may become completely drained and thus cause serious damage to the battery .
To Charge:
1. Plug the AC power adaptor to the wall outlet and plug the DC head into the battery pack. The
charge LED will then illuminate to show the device is, indeed, charging. If the LED does not
come on, then it may be because there is no power in the wall outlet you are using, or that
either the AC adaptor or DC head are not correctly plugged in.
2. When the battery pack is almost full, the 80% LED indicator will light up. When this happens, it
may take a while before the battery reaches full capacity, as the battery charges faster at low
levels, then slows down somewhat at 80% until fully charged.
3. When the full indicator lights up the battery pack is then fully charged and charging will stop
automatically to avoid causing overcharge damage.

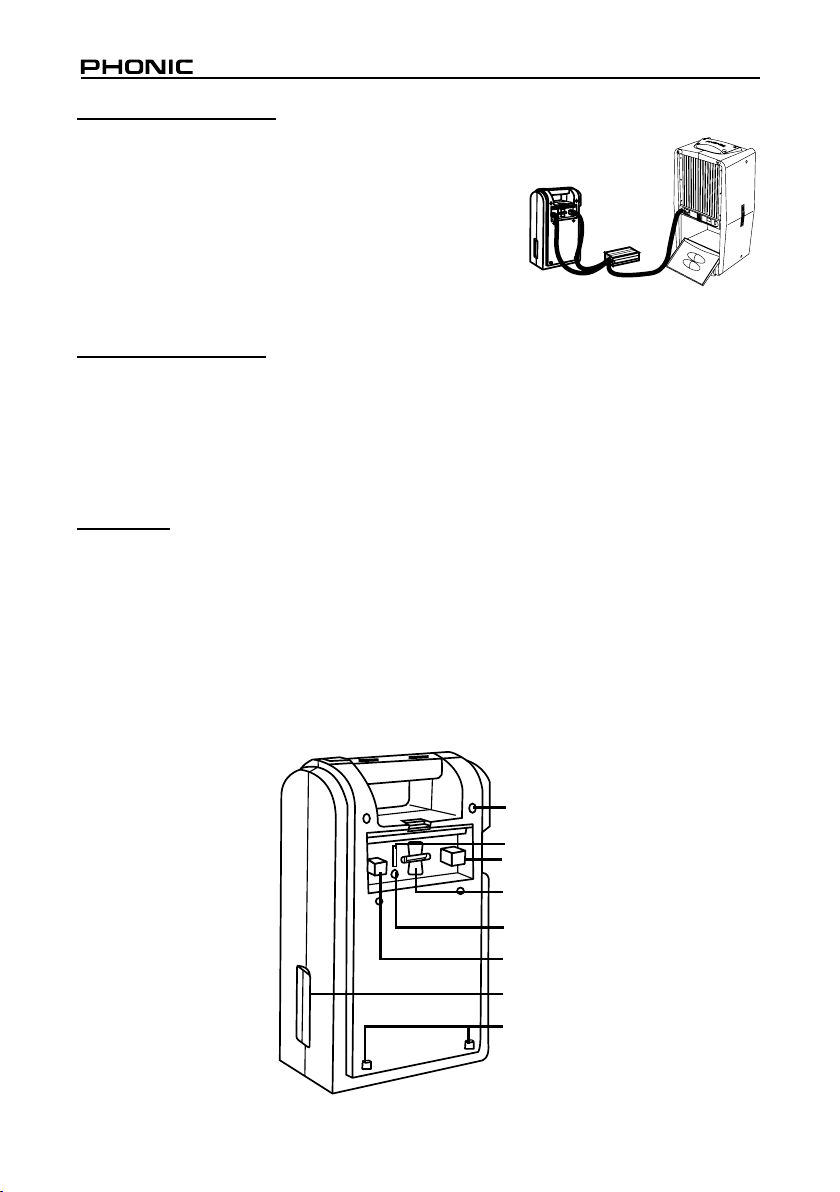

Power / Output
Negative (-) Power
Terminal
Fuse
Positive (+) Power
Terminal
Spare Fuse
Holder Cavity for
Spare Bulb
Right Holder-Grip
Holder for Back Lid
Back

TO PURCHASE ADDITIONAL PHONIC GEAR AND ACCESSORIES
To purchase Phonic gear and optional accessories, contact any authorized Phonic
distributor. For a list of Phonic distributors please visit our website at www.phonic.com and
click on Get Gear. You may also contact Phonic directly and we will assist you in locating
a distributor near you.
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the Phonic distributor in your
country. Phonic does not release service manuals to consumers, and advice users to not
attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you
at http://www.phonic.com/where/.
WARRANTY INFORMATION
Phonic stands behind every product we make with a no-hassles warranty. Warranty
coverage may be extended, depending on your region. Phonic Corporation warrants this
product for a minimum of one year from the original date of purchase against defects in
material and workmanship under use as instructed by the user’s manual. Phonic, at its
option, shall repair or replace the defective unit covered by this warranty. Please retain the
dated sales receipt as evidence of the date of purchase. You will need it for any warranty
service. No returns or repairs will be accepted without a proper RMA number (return
merchandise authorization). In order to keep this warranty in effect, the product must have
been handled and used as prescribed in the instructions accompanying this warranty. Any
tempering of the product or attempts of self repair voids all warranty. This warranty does
not cover any damage due to accident, misuse, abuse, or negligence. This warranty is
valid only if the product was purchased new from an authorized Phonic dealer/distributor.
For complete warranty policy information, please visit http://www.phonic.com/warranty/.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help at http://www.phonic.com/support/. There you
can find answers to frequently asked questions, tech tips, driver downloads, returns
instruction and other helpful information. We make every effort to answer your questions
within one business day.
[email protected] http://www.phonic.com
