plenti SOLAR PS5KWBATTERYPACK User manual

V20220711
48V
LiFePO4
BATTERY PACK
USER MANUAL

V20220711
CONTENT
1. Layout of Front Panel --------------------------------------------------------------------- 1
2. Battery Specifications --------------------------------------------------------------------- 2
3. Working Mode --------------------------------------------------------------------------- 3
3.1. Basic Mode -------------------------------------------------------------------------3
3.2. Description of Buzzer ----------------------------------------------------------------3
3.3. Description of Reset Button ---------------------------------------------------------- 3
3.4. Dormancy and Activation ------------------------------------------------------------ 3
4. LED Indicator Description ------------------------------------------------------------------4
4.1. LED Indicator Description ------------------------------------------------------------ 4
4.2. SOC Capacity Indicator -------------------------------------------------------------- 4
4.3. Status Indicator ---------------------------------------------------------------------4
4.4. Flash Instruction of LED Indicators ---------------------------------------------------- 4
5. Communication -------------------------------------------------------------------------- 5
6. Assignment of ID Addresses --------------------------------------------------------------- 6
7. LCD Display Introduction ------------------------------------------------------------------ 7
7.1. Power-on screen --------------------------------------------------------------------7
7.2. Press “MENU” to enter the main menu ------------------------------------------------ 8
7.3. Dormancy and Activation Function -------------------------------------------------- 12

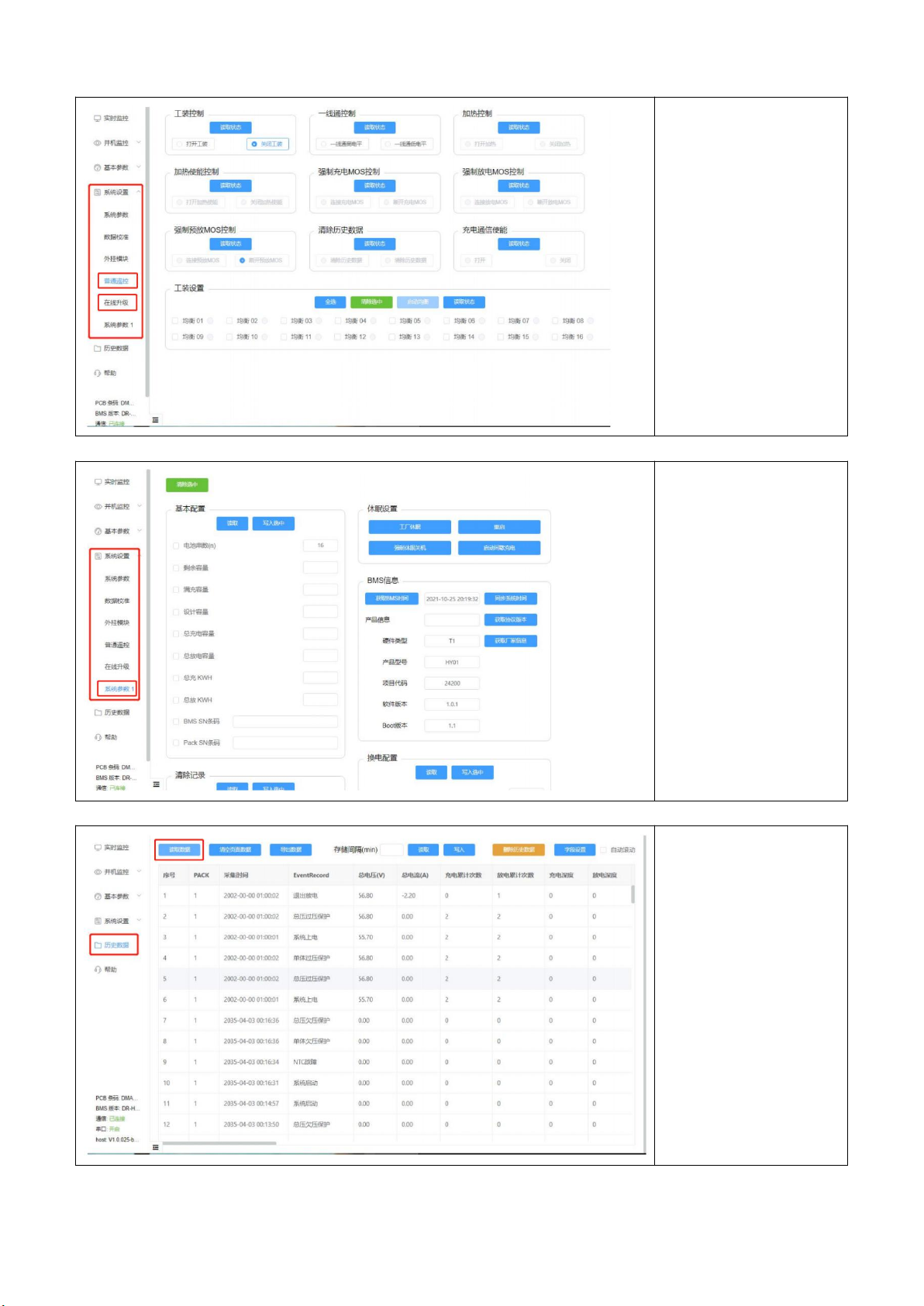

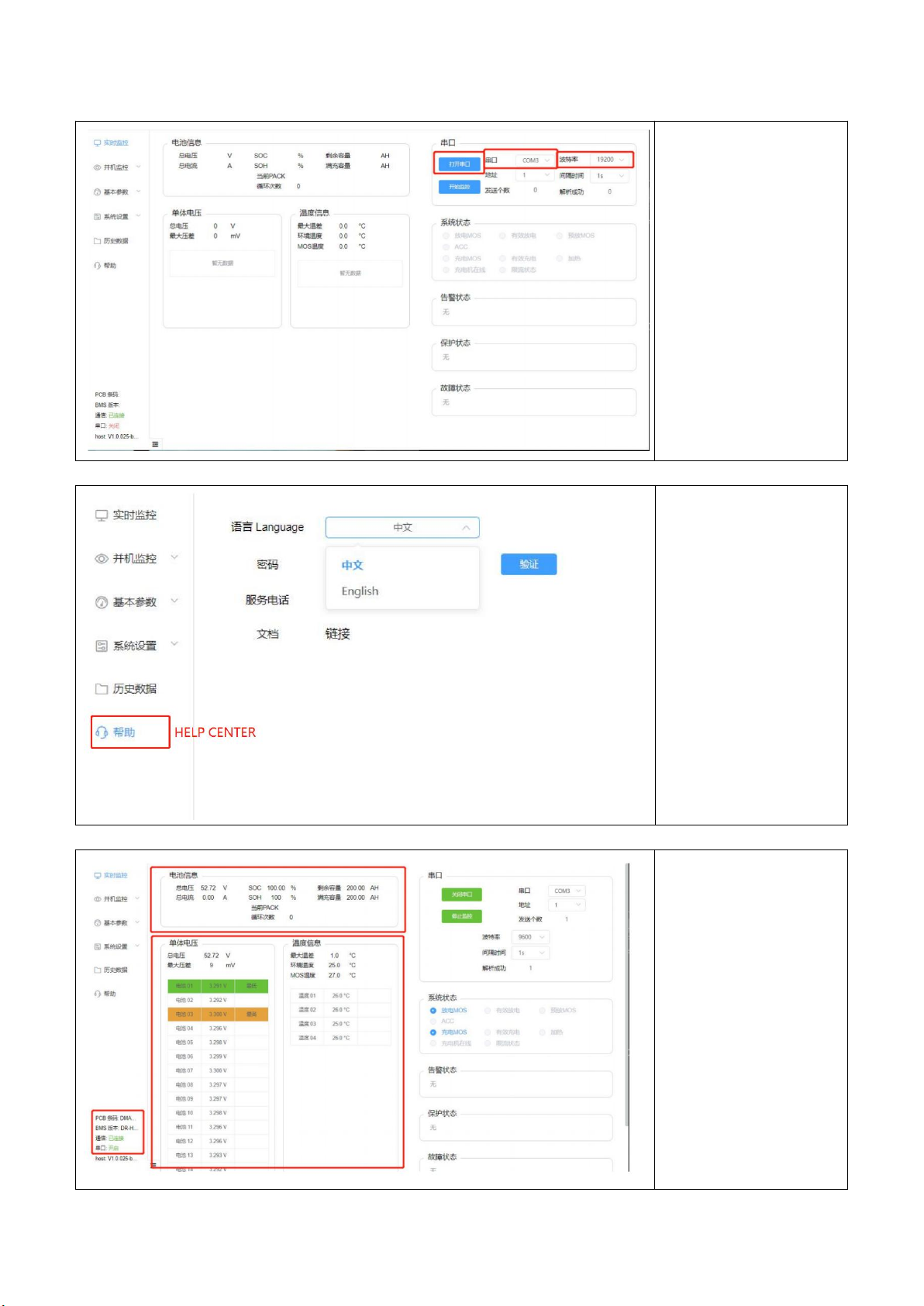

8. Upper Computer Software Introduction ---------------------------------------------------- 13
9. List of Accessories ----------------------------------------------------------------------- 17

V20220711
1
1. Layout of Front Panel
NO.
Name
Function
1
Positive Terminal
Charge & Discharge
2
SOC
Indicators For Capacity
3
ALM
Indicator For Alarms
4
RUN
Indicator For Running Status
5
ADD
Dial Code Of Communication
6
Negative Terminal
Charge & Discharge
7
Power Switch
ON/OFF Switch
8
Reset
Activate/Hibernate BMS
9
RS485*2/CAN*2
Communication Interface
10
LCD Screen
Display Battery Information

V20220711
2
2. Battery Specifications
Nominal Parameters
Model No
LFP48100P
LFP48120P
LFP48150P
LFP48200P
Voltage
51.2 V
51.2 V
51.2 V
51.2 V
Capacity
100Ah
120Ah
150Ah
200Ah
Energy
5KWh
6KWh
7KWh
10KWh
Dimensions (L * W * H mm)
480*440*160
480*440*200
480*440*200
480*440*255
Weight (KG)
Approx 48
Approx 55
Approx 60
Approx 85
Built-in BMS
16S 100A
16S 100A
16S 200A
16S 200A
Electrical Parameters
Operation Voltage
51.2 VDC
51.2 VDC
51.2 VDC
51.2 VDC
Max. Charging Voltage
58.4 VDC
58.4 VDC
58.4 VDC
58.4 VDC
Cut-off Discharge Voltage
43.2 VDC
43.2 VDC
43.2 VDC
43.2 VDC
Max. Continuous Charging and Discharging Current
100A
100A
150A
200A
Peak Discharge Current
150A (5s)
150A (5s)
250A (5s)
250A (5s)
Basic Parameters
Life Time(25°C)
10 years
Communication Method
RS485/CAN
Display Method and Language
LCD, English
Life Cycles (80% DOD, 25°C)
≥6000 times Cycles
Operating Temperature Range
-20℃~70℃
Operating Humidity Range
10%~85%

V20220711
3
3. Working Mode
3.1. Basic Mode
3.1.1. Charging Mode
The BMS turns on the charging MOSFET for charging when it detects an external charging voltage of ≥48V,
and the cell voltage and temperature are within the chargeable range. When the charging current reaches
the effective charging current, it enters the charging mode. Both charging and discharging MOSFETs are on
in charge mode.
3.1.2. Discharging Mode
The BMS enters the discharge mode when it detects that the load is connected and the cell voltage and
temperature are within the dischargeable range and the discharge current reaches the effective discharge
current.
3.1.3. Standby Mode
When neither of the above two modes is met, it enters standby mode.
3.1.4. Hibernation Mode
The BMS will enter sleep (shutdown) mode after a specific time of standby, or when the battery triggers
undervoltage protection, or when the key is executed to shutdown or when the upper computer executes
the shutdown command mode.
The wake-up conditions of hibernation mode:
1. Make charging to activation;
2. Press the button to power on.
3.2. Description of Buzzer
Buzzer function can be enabled or disabled via the upper computer, factory default is disabled.
3.3. Description of Reset Button
When the BMS is dormant, press the button for 1S and then release it, the protection board will be activated
and the LED will light up from "L4" for 0.5 seconds.
When the BMS is active, press the button for 3S and then release it, the board will be dormant and the LED
will light up from "RUN" for 0.5 seconds.
3.4. Dormancy and Activation
3.4.1. Dormancy
The system will enter low-power mode when any of the following conditions are met.
1. Single cell undervoltage protection or overall undervoltage protection is not released within 30 minutes.
2. Press the button for 3 seconds and then release the button.
3. The minimum individual voltage is lower than the sleep setting voltage (default value 3150mV) and the
duration reaches the sleep delay time (default value 1440 minutes), and there is no communication and no
charging/discharging in meanwhile.
4. Forced shutdown via the upper computer software.
Note: Before entering hibernation, make sure that no external voltage is connected to the P-terminus,
otherwise it will not be able to enter the low-power mode.
3.4.2. Activation
When the system is in low-power mode and any of the following conditions are met, the system will exit
low-power mode and enter normal operation mode.
1. Connect to the charger, the charger output voltage should be greater than or equal to 48V.
2. Press the button for 1S, after releasing the button.

V20220711
4
4. LED Indicator Description
4.1. LED Indicator Description
Four green capacity indicators, one red alarm indicator, one green operation indicator
●
●
●
●
●
●
SOC
ALM
RUN
4.2. SOC Capacity Indicator
4.3. Status Indicator
Status
Warning/Normal
RUN
ALM
SOC LED
Mark
●
●
●
●
●
●
OFF
OFF
OFF
ALL OFF
Standby
Normal
Flash 1
OFF
ON as battery capacity indicates
Warning
Flash 1
Flash 2
Charge
Normal
ON
OFF
Over Voltage Warning
ON
OFF
Over Current, Over Voltage
and Temperature Warning
ON
Flash 2
Over Voltage Protection
Flash 1
OFF
Over Current Protection
ON
OFF
Discharge
Normal
Flash 3
OFF
Warning
Flash 3
Flash 2
Low Voltage Protection
Flash 1
Flash 2
Protection of Overcurrent,
Short Circuit, Temperature,
Reverse Polarity etc
OFF
ON
ALL OFF
4.4. Flash Instruction of LED Indicators
ON
OFF
Flash 1
0.25 S
3.75 S
Flash 2
0.5 S
0.5 S
Flash 3
0.5 S
1.5 S
Status
Charge
Discharge
Capacity Indicator
L1●
L2●
L3●
L4●
L1●
L2●
L3●
L4●
0～25%
OFF
OFF
OFF
Flash 2
OFF
OFF
OFF
ON
25～50%
OFF
OFF
Flash 2
ON
OFF
OFF
ON
ON
50～75%
OFF
Flash 2
ON
ON
OFF
ON
ON
ON
75～100%
Flash 2
ON
ON
ON
ON
ON
ON
ON
Running Indicator●
ON
Flash 3

V20220711
5
5. Communication
With RS485 and CAN interface, which supports communicating with multiple machines in parallel and with
the upper computer. RS485 baud rate is 19200, CAN baud rate is 500K.
RS485 INTERFACE
The multi-unit parallel bus connections are shown in the following figure.
Instructions For Compatibility With Inverters
1. Compatible
inverter brands list
Victron, Pylontech, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA,
Sacolor, 拓宝.
2. If your inverter
not on our list above
① If you can provide the communication protocol (a kind of code) of your inverter,
we can customize the BMS to be compatible with your inverter, minimum order
quantity for customzed is 50 pcs.
② Without communication protocol, inverter cannot communicate with our
battery. You need to make some setting on your inverter, for example, select the
user-defined mode and set the corresponding voltage level(according to the
inverter user manual), so that they can work together without communication.
More questions about inverter communication, pls contact our customer service.
8P8C RJ45 Pins Assignment (RS485)
Pins
Definition
1、3
RS485_B
7
RS485_A
2、6
GND
4
CANH
5
CANL
8
NC

V20220711
6
6. Assignment of ID Addresses
When performing parallel communication operation of multiple machines, you need to configure the dialing
address of each PACK first. When the BMS is configured for stand-alone operation, and the dialing address
can be any address; when the BMS is configured for cascade operation mode, the slave dialing address is
selected from 1 to 31, and the host dialing address is selected from 32 or 48 according to the inverter brand.
You can enter the address code of the master or slave battery in the system parameters of the upper
computer to detect and communicate.
Code
ADD
PACK
NO.
Remarks
1
2
3
4
5
6
ON
OFF
OFF
OFF
OFF
OFF
1
PACK 1
Slave Pack
OFF
ON
OFF
OFF
OFF
OFF
2
PACK 2
ON
ON
OFF
OFF
OFF
OFF
3
PACK 3
OFF
OFF
ON
OFF
OFF
OFF
4
PACK 4
ON
OFF
ON
OFF
OFF
OFF
5
PACK 5
OFF
ON
ON
OFF
OFF
OFF
6
PACK 6
ON
ON
ON
OFF
OFF
OFF
7
PACK 7
OFF
OFF
OFF
ON
OFF
OFF
8
PACK 8
ON
OFF
OFF
ON
OFF
OFF
9
PACK 9
OFF
ON
OFF
ON
OFF
OFF
10
PACK 10
ON
ON
OFF
ON
OFF
OFF
11
PACK 11
OFF
OFF
ON
ON
OFF
OFF
12
PACK 12
ON
OFF
ON
ON
OFF
OFF
13
PACK 13
OFF
ON
ON
ON
OFF
OFF
14
PACK 14
ON
ON
ON
ON
OFF
OFF
15
PACK 15
OFF
OFF
OFF
OFF
ON
OFF
16
PACK 16
ON
OFF
OFF
OFF
ON
OFF
17
PACK 17
OFF
ON
OFF
OFF
ON
OFF
18
PACK 18
ON
ON
OFF
OFF
ON
OFF
19
PACK 19
OFF
OFF
ON
OFF
ON
OFF
20
PACK 20
ON
OFF
ON
OFF
ON
OFF
21
PACK 21
OFF
ON
ON
OFF
ON
OFF
22
PACK 22
ON
ON
ON
OFF
ON
OFF
23
PACK 23
OFF
OFF
OFF
ON
ON
OFF
24
PACK 24
ON
OFF
OFF
ON
ON
OFF
25
PACK 25
OFF
ON
OFF
ON
ON
OFF
26
PACK 26
ON
ON
OFF
ON
ON
OFF
27
PACK 27
OFF
OFF
ON
ON
ON
OFF
28
PACK 28
ON
OFF
ON
ON
ON
OFF
29
PACK 29
OFF
ON
ON
ON
ON
OFF
30
PACK 30
ON
ON
ON
ON
ON
OFF
31
PACK 31
OFF
OFF
OFF
OFF
OFF
ON
32
PACK 32
Master Pack: if your inverter is from other brands except
Victron, SMA and Growatt, the ADD of master pack is 32
OFF
OFF
OFF
OFF
ON
ON
48
Master Pack: if your inverter is from Victron, SMA or
Growatt, the ADD of master pack is 48

V20220711
7

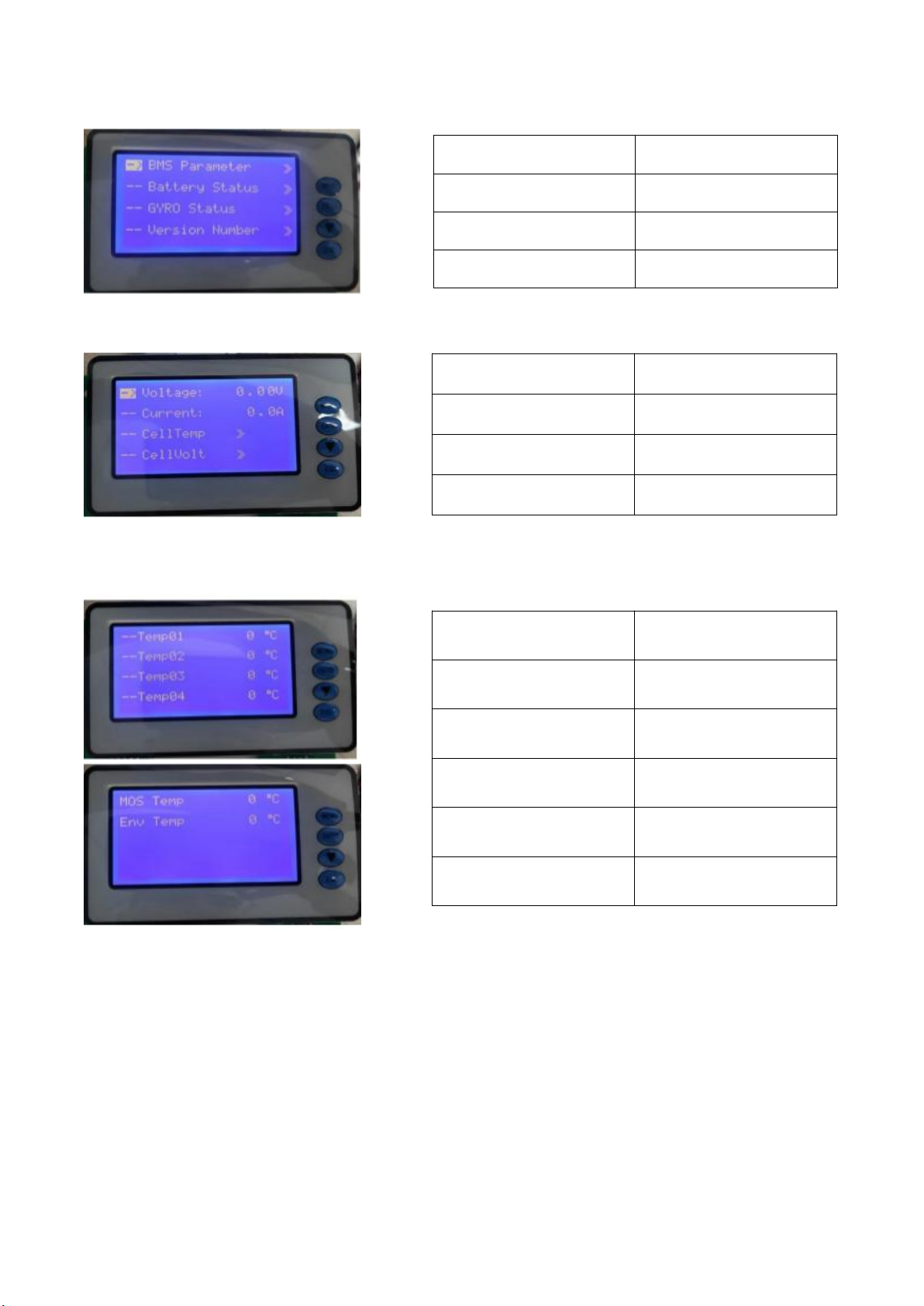

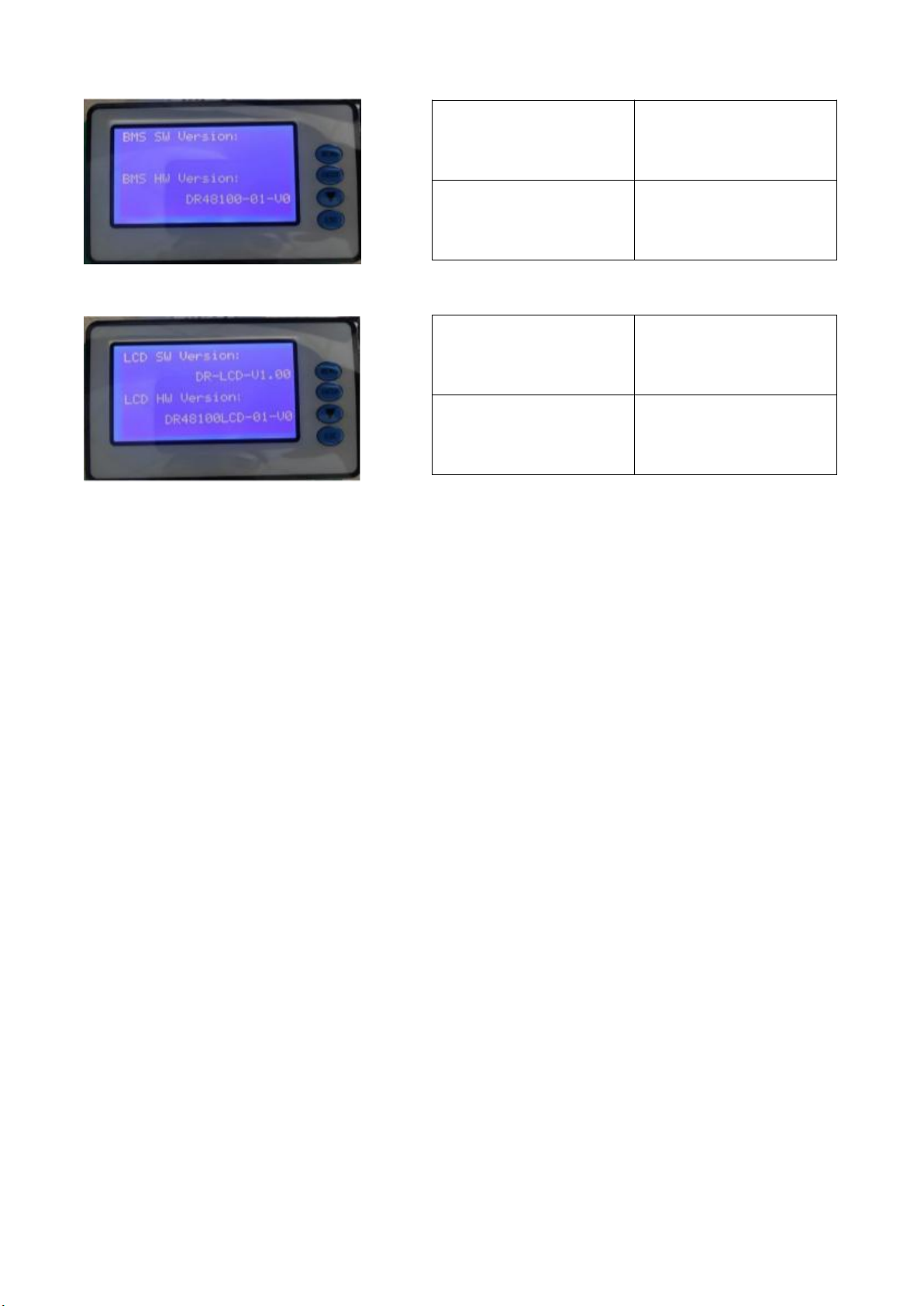

7. LCD Display Introduction

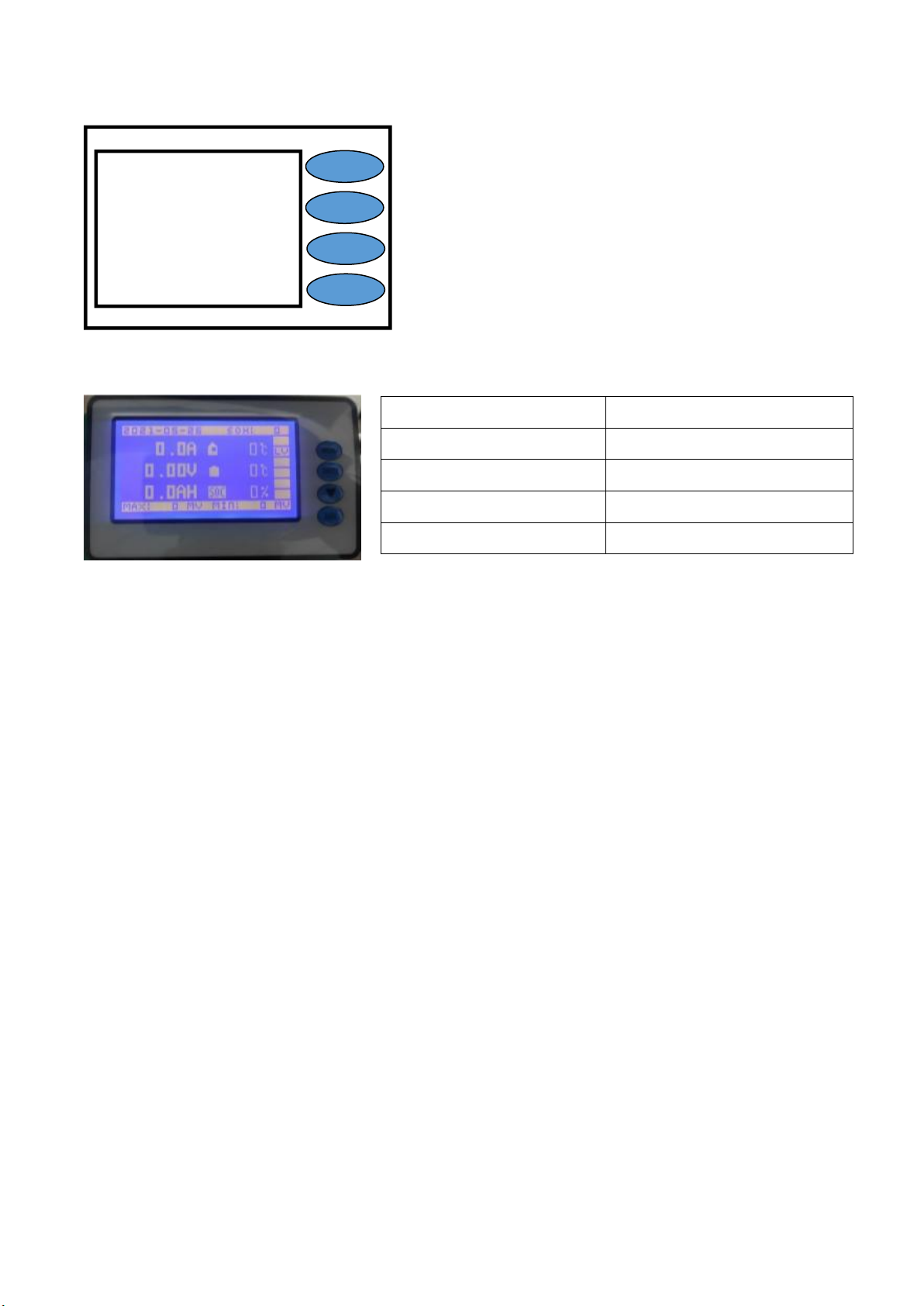

7.1. Power-on screen
Battery protection status：
Over Voltage: OV
Low Voltage: LV
Over Temp: OT
Low Temp: LT
Over Current: OC
Short Circuit: SC
Note: When there is protection situation of the battery, there will show the corresponding protection status,
otherwise, the protection status will not be showed.
System Date
SOH
Charging/Discharging Current
Environmental Temperature
Total Voltage
Max. Temperature of Battery Cell
Remaining Capacity
SOC
Max. Voltage of Single Unit
Min. Voltage of Single Unit
M
MENU
MENU
M
ENTER
ENTER
M
▼
M
ESC
Button description:
MENU：Enter the management system.
ENTER：Enter to the sub-menu.
▼：Move the cursor down or to next page.
ESC：Return to the previous menu.

V20220711
8
7.2. Press “MENU” to enter the main menu
(Note: “》” means there is a sub-menu, press “ENTER” to enter the sub-menu)
7.2.1. Move the cursor to "BMS Parameter" and press “Enter” to enter.
Move the cursor to "Cell Temp" and press "Enter" to check the battery temperature information, then press "
▼" to turn the page.
BMS Parameter
》
Battery Status
》
GYRO Status
》
Version Number
》
Voltage
0.00V
Current
0.0A
Cell Temp
》
Cell Volt
》
Temp 01
xx℃
Temp 02
xx℃
Temp 03
xx℃
Temp 04
xx℃
MOS Temp
xx℃
Env Temp
xx℃

V20220711
9
Move the cursor to "Cell Volt" and press "Enter" to check the battery voltage information, then press "▼" to
turn the page.
Cell 01
xxxxmV
Cell 02
xxxxmV
Cell 03
xxxxmV
Cell 04
xxxxmV
Cell 05
xxxxmV
Cell 06
xxxxmV
Cell 07
xxxxmV
Cell 08
xxxxmV
Cell 09
xxxxmV
Cell 10
xxxxmV
Cell 11
xxxxmV
Cell 12
xxxxmV
Cell 13
xxxxmV
Cell 14
xxxxmV
Cell 15
xxxxmV
Cell 16
xxxxmV
SOC
xx%
Nominal Capacity
0.0AH
Remain Capacity
0.0AH
BMS Cycles
0

V20220711
10
7.2.2. Move the cursor to "Battery Status" and press "Enter" to check the battery status information,
then press "▼" to turn the page.
Move the cursor to "Alarm Status" and press "Enter" to check the battery alarm information, then press "▼"
to turn the page.
Move the cursor to "Protect Status" and press "Enter" to check the battery protection information, then press
"▼" to turn the page.
Status
IDLE/DISCHG/CHARGE/FULL
Alarm Status
》
Protect Status
》
Failure Alarm
》
Over Volt
YES/NO
Low Volt
YES/NO
Over Temp
YES/NO
Low Temp
YES/NO
Low SOC
YES/NO
Diff Volt
YES/NO
Over Curr
YES/NO
Reverse
YES/NO
Over Volt
YES/NO
Low Volt
YES/NO
Over Temp
YES/NO
Low Temp
YES/NO
Over Curr
YES/NO
Short Curr
YES/NO

V20220711
11
Move the cursor to "Failure Alarm" and press "Enter" to check the battery fault information, then press "▼" to
turn the page.
7.2.3. Move the cursor to "GYRO Status" and press Enter to check the gyroscope information, then
press "▼" to turn the page. (Note: This gyroscope is optional)
7.2.4. Move the cursor to "Version number" and press Enter to check the version information, then
press "▼" to turn the page.
Sample Line
N/Y
Charge MOS
N/Y
Dis CHG MOS
N/Y
Sample Chip
N/Y
SC Times
0
Over Temp CNT
0
Over Cur CNT
0
OVER Chg CNT
0
Over Dchg CNT
0
Set X axis:
Place Option:
BMS Version
》
LCD Version
》

V20220711
12
Move the cursor to "BMS Version" and press “Enter” to check the BMS version information.
Move the cursor to "LCD Version" and press “Enter” to check the LCD version information.
7.3. Dormancy and Activation Function
After 1 minute of no button operation in normal running, the display screen will be off (only the backlight is
off). Pressing any button while the screen is off will allow the screen light and operate normally.
BMS SW Version
BMS HW Version
LCD SW Version
LCD HW Version

V20220711
13
8. Upper Computer Software Introduction
Enable the monitoring
software, select the
communication interface
of the corresponding
device, select the
corresponding baud
rate, and finally click
"Open Serial Interface" to
communicate with BMS
and get the basic
parameters.
You can switch the
version in Chinese or
English in help center
After the BMS
communicates with the
upper computer, you can
monitor the basic
parameters and status of
the battery in real time.
These information
include battery voltage,
current, SOC, SOH, cycle
count, battery
temperature, alarm
status, protection status,
etc.

V20220711
14
You can view the
real-time data storage of
the BMS and export as
excel tables.
When monitoring
multiple packs, you need
to set the start and end
address of packs
manually, you can check
and comparethe data of
each pack. And you can
also export as excel
table.
Basic parameters 1.
Click "Read All" when
enter for the first time.
This section includes
reading basic parameter
information, restoring
default parameters,
writing individual
parameters, writing all
parameters, importing
parameters and
exporting parameters (it
is not recommended to
manually modified
default parameters).

V20220711
15
Basic parameters 2.
Click "Read All" when
enter for the first time.
This section includes
heating settings, other
BMS parameter
information, etc. (it is not
recommended to
manually modified
default parameters).
System parameter
setting.
Click "Read All" when
enter for the first time.
You can monitor the
BMS parameters
configuration, sleep
settings and BMS
information in
real-time(it is not
recommended to
manually modified
default parameters).
Data calibration: Here is
calibration content of
BMS data (all has
calibrated by factory, not
recommended for
private calibration).
Plug-in modules: Here
will contains information
about some additional
functional modules.

V20220711
16
Normal remote control:
Here includes the control
of charging and
discharging MOS,
heating and other states
(please consult the
manufacturer for
operation).
Online upgrade:
software online upgrade
function of BMS (please
consult the manufacturer
for operation).
System Parameters 1.
Here includes some basic
parameter information
and dormancy settings.
Click "Read Data" to get
real-time history data
and export data, and
view basic data
information of battery
packs.

V20220711
17
9. List of Accessories
NO.
ITEM
QTY
Remarks
1
Battery Pack
1
2
Parallel Power Cable
2
For 48V 100AH/120AH:
6 gauge cable 0.3M + SC25-8 connector
For 48V 150AH/200AH:
4 gauge cable 0.4M + SC35-8 connector
3
Parallel
Communication Cable
1
RJ45 cable 0.5M
4
Upper computer
Connecting Cable
1
RJ45 to USB cable 2M
5
Screws
4
M8
