Physio Control TrueCPR Setup guide

TrueCPR™
COACHING DEVICE
Instructor Training
Physio-Control Training
Student Edition

TrueCPR™
COACHING DEVICE
Classroom Training

3
Intended Use of the TrueCPR Device
The TrueCPR device is indicated for use on patients in cardiac arrest (unconscious, pulseless, not breathing normally).
The TrueCPR device is not intended for use on children or infants. Only use the device on patients who are 8 years of
age or older.
The TrueCPR device provides coaching and feedback to assist rescuers in performing CPR. Rescuers must be trained in
CPR and the use of the device.
If at any time rescuers are unable to use the device, they should perform CPR unaided.
Getting Started
TrueCPR provides coaching and feedback for compression rate and depth. It does not provide feedback on complete
compression release (recoil).

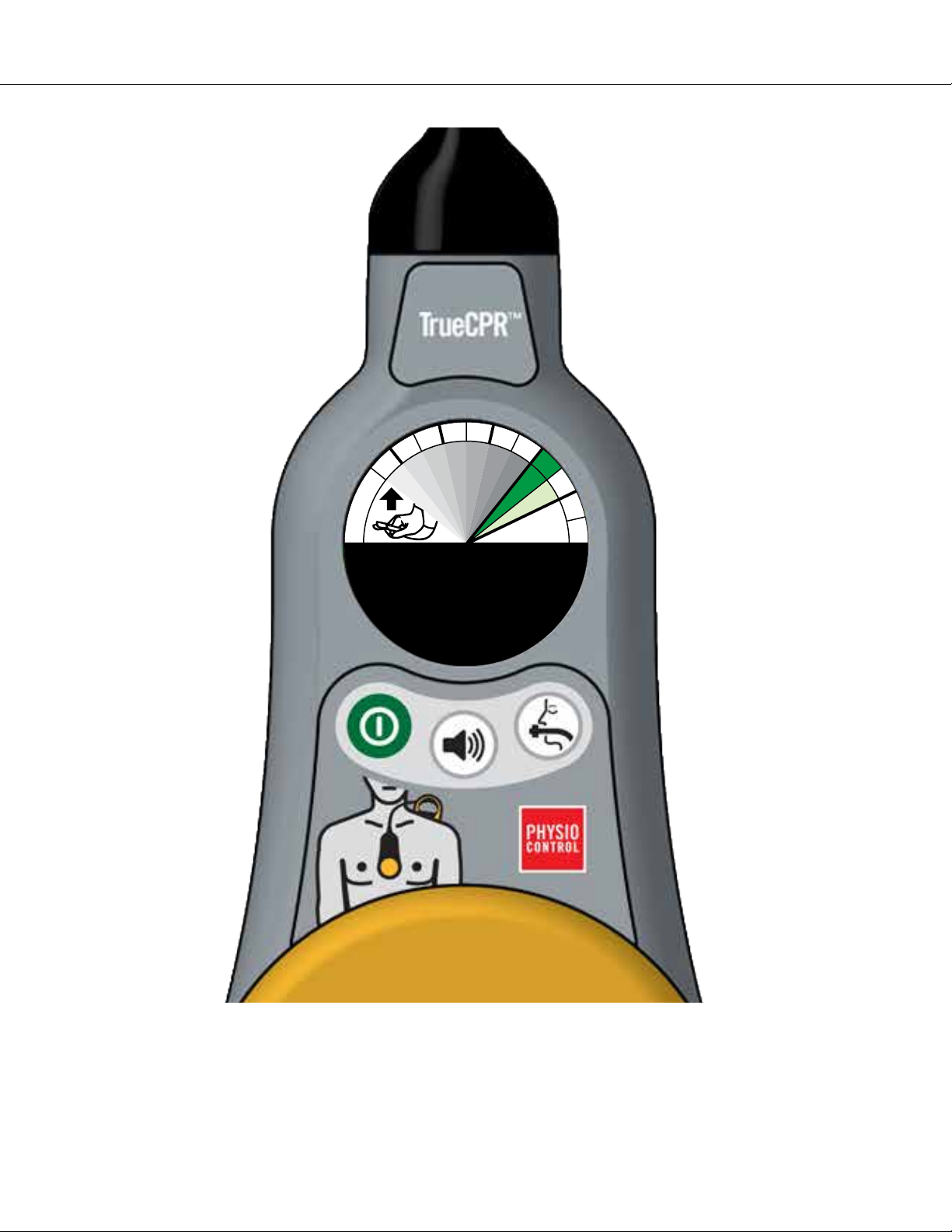

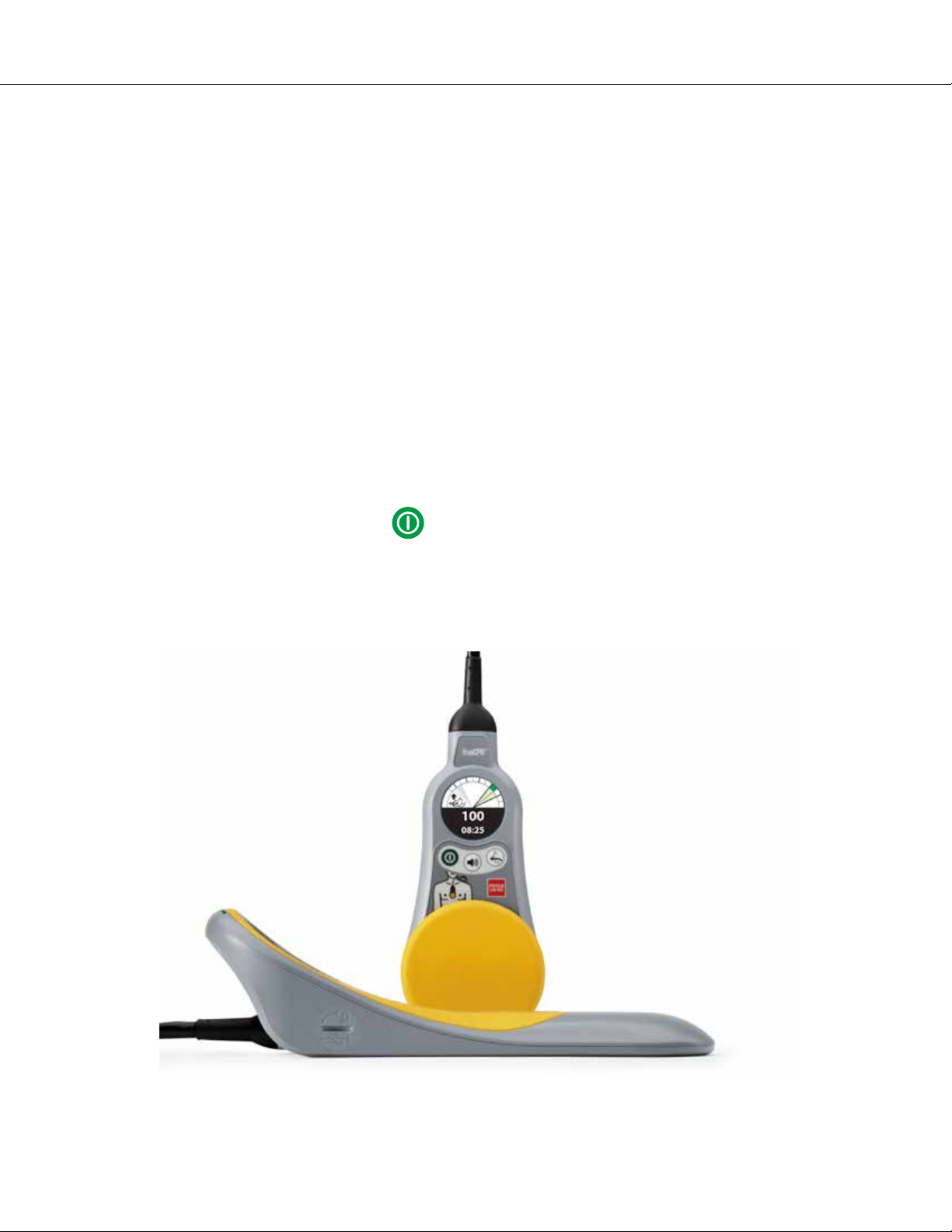

Turn on the device by pressing the green button.
v#.##
####
Allow the device to perform self-calibration. Do not apply pressure to the chest pad until calibration is complete and the
feedback screen appears (approximately 3 seconds).
Press and hold the button for 2 seconds to turn o the device.

TrueCPR™
COACHING DEVICE
Positioning

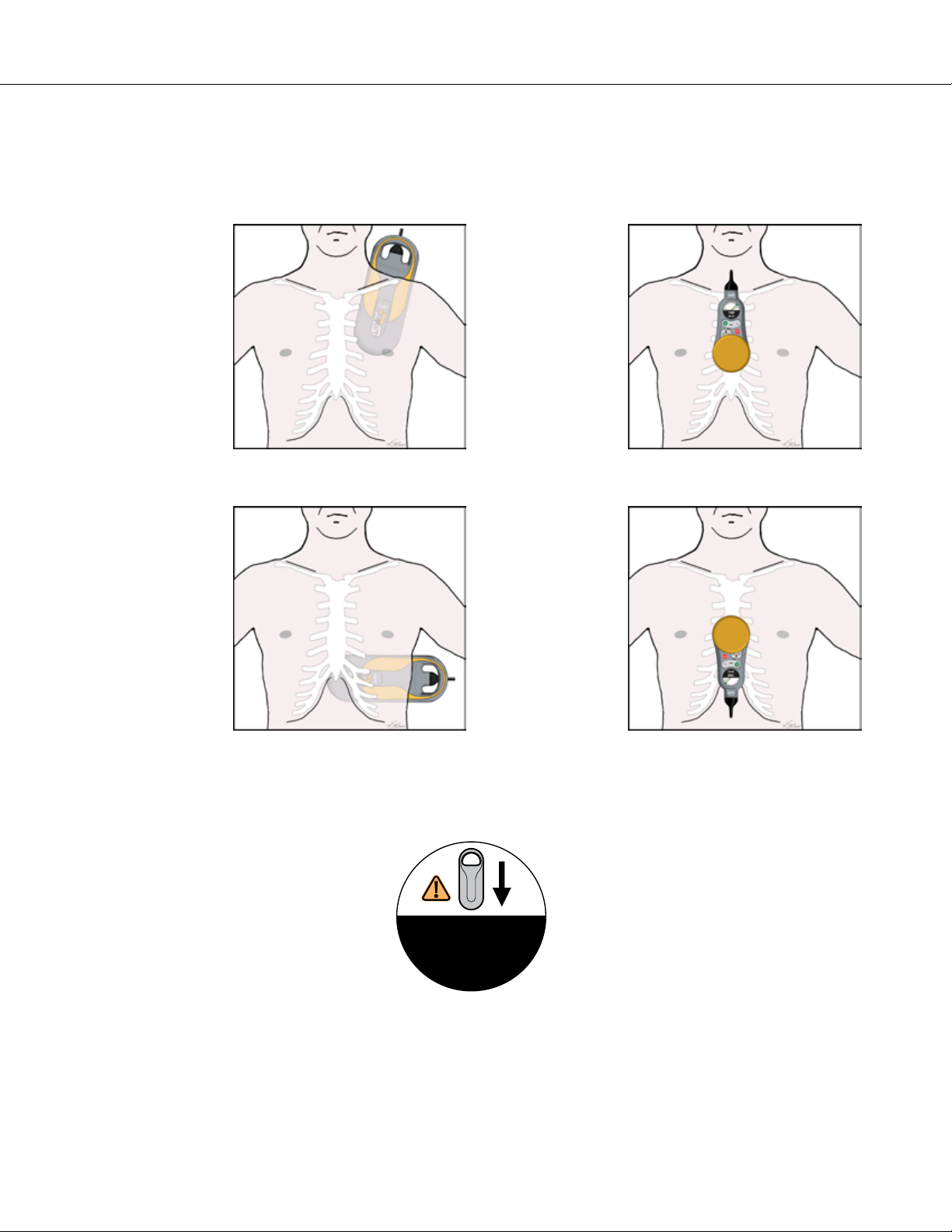

Recommended
Alternate
Chest Pad in Vertical Position
Back Pad in Side Position Chest Pad in Rotated Position
Back Pad in Vertical Position
and
and
If there is a problem with the distance between the pads, an error indicator may appear on the screen. If it is not possible to
establish the proper position for use, perform CPR unaided.
Incorrect distance between chest and back pads

5
Instructor Demonstration
Power On
Device Positioning
Power O

TrueCPR™
COACHING DEVICE
Compression Depth Indicators
Correct : The gray fan moves toward the green target zone.
Gray fan represents compression depth in progress as it
moves across the dial.
Target zone changes from light to dark green when the
compression reaches the target depth of 2-2.4 in (5-6 cm)
Incorrect
Orange arrow means push deeper. Dark gray segment
in outer circle indicates previous compression was too
shallow.
Orange wedge outside compression target zone means
reduce depth; compressions are too deep 2.4 in (>6cm).
100
08:25
100
08:25
100
08:25
100
08:25
Compression
rate

7
Recoil Reminder
100
08:25
The TrueCPR device indicates compression depth and rate on the dial. It does not indicate recoil.
The recoil reminder (hands icon with arrow) is always present during compressions.
The gray fan gets lighter and disappears when it approaches the hands icon.
The hands icon is a reminder to continue to lift your hands until you have no pressure on the chest/device.
Recoil reminder

TrueCPR™
COACHING DEVICE

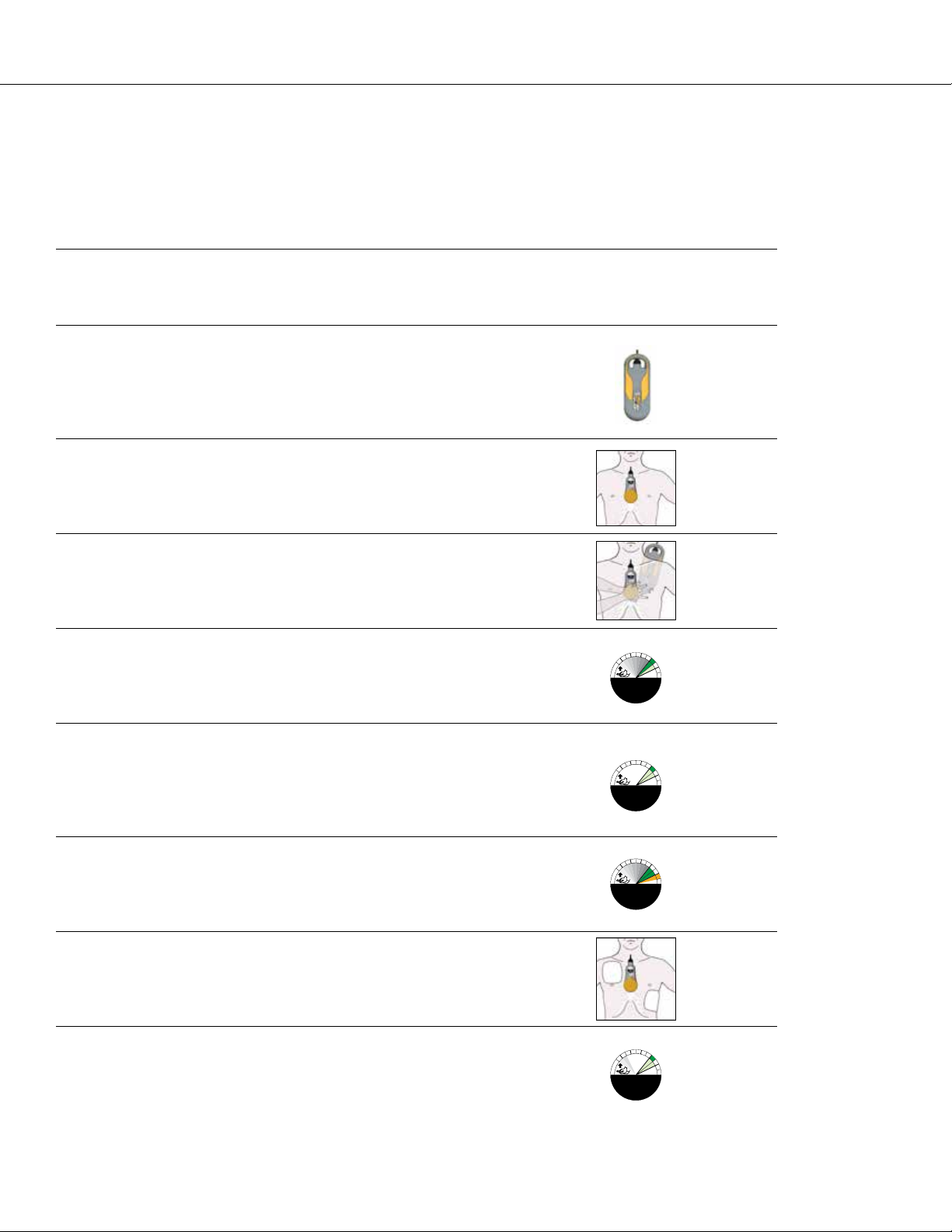

Hands-on practice time
Compressions
Correct Indicators
Incorrect Indicators
Recoil

9
Ventilation Prompts
Countdown to ventilations.
Three short tones sound (at compressions 28, 29,
30 as a cue to start ventilations).
Ventilations.
Two long tones indicate when ventilations should oc-
cur, one tone per ventilation.
23121

TrueCPR™
COACHING DEVICE
100
08:25
100
08:25
100
08:25

11
Hands-on practice time
Power on
Position
Compressions
Ventilations

TrueCPR™
COACHING DEVICE
Additional Indicators

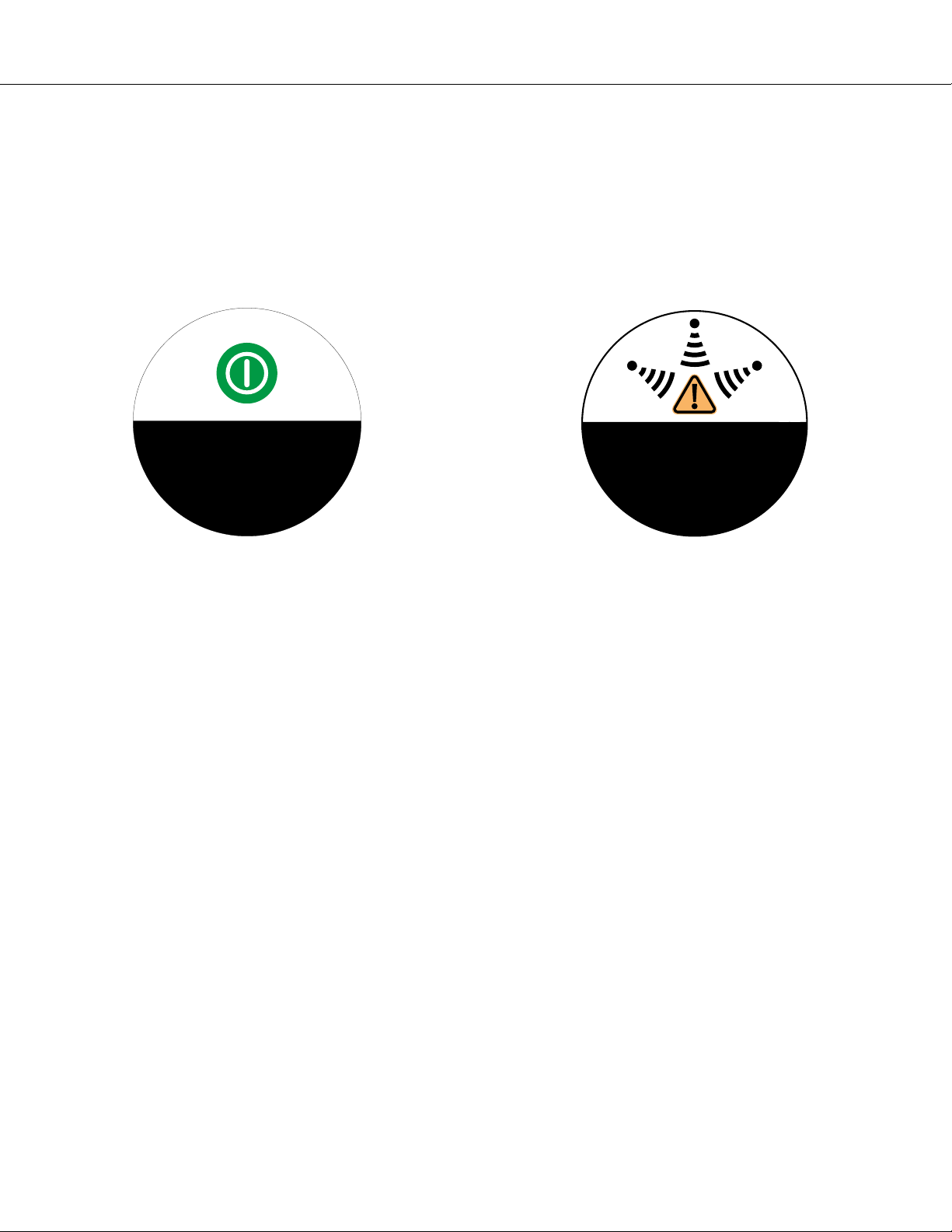

Device cannot provide feedback. Turn device o and back
on. If indicator persists, perform CPR unaided.
Electronic noise is interfering with device. Locate and
remove source of interference. If indicator persists, perform
CPR unaided.
v#.##
####

13
Use on a Mattress
If the patient is on a mattress, place a backboard beneath the patient according to standard protocols. Insert the back
pad between the patient and backboard. If the device cannot be positioned correctly, remove the device and perform
CPR unaided.
Use During Defibrillation
It is acceptable to keep the device on the patient during defibrillation with the following precautions:
1. Do not touch the TrueCPR device during defibrillation.
2. Do not apply defibrillator electrodes on top of the TrueCPR device cable.

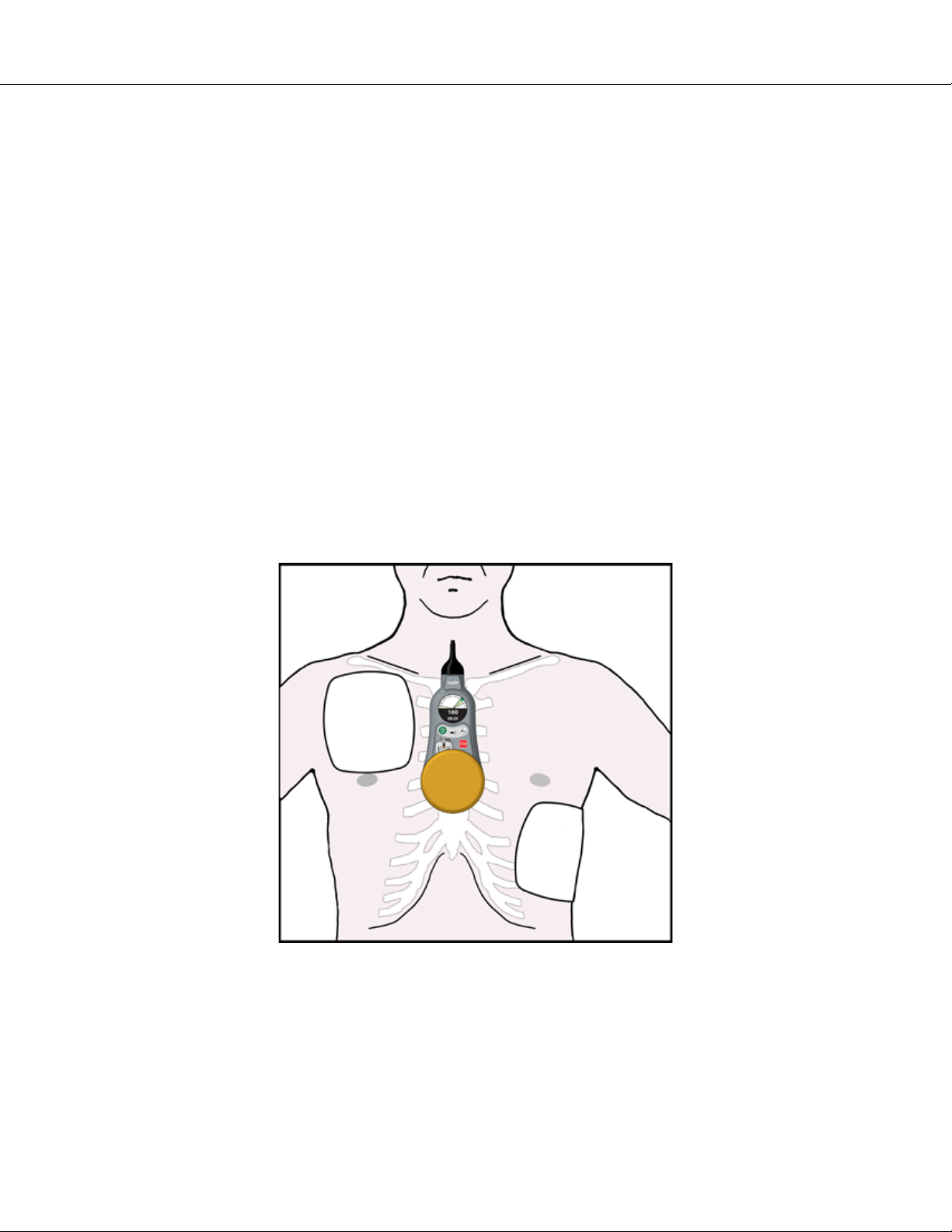

3. Position the chest pad and defibrillator electrodes as shown:
Additional Information

TrueCPR™
COACHING DEVICE
Important Reminders
The TrueCPR device provides coaching and feedback on compression depth and rate, and prompts for venti-
lations. It does not provide feedback on recoil.
Always allow for complete chest release (recoil) by continuing to lift hands o the device after the gray fan has
disappeared.
If proper positioning or correct use is not possible for whatever reason, perform CPR unaided.
Conclusion
This concludes training and hands-on practice sessions.
Refer to the TrueCPR Coaching Device Instructions For Use for complete directions for use, indications, contrain-
dications, warnings and precautions.

15
Quiz
1. It is not necessary to be trained in the use of the TrueCPR device.
A. True
B. False
2. The TrueCPR device indicates compression depth, and rate.
A. True
B. False
3. Back pad
A. Is recommended to be placed underneath the shoulder.
B. Is placed beneath the patient so that it will stay in place.
C. May be placed on either side of the patient.
D. All of the above
4. Proper placement of the chest palm pad is in the middle of the chest,
on the lower half of the sternum.
A. True
B. False
5. The picture is the recommended placement for the chest palm pad
and the back pad.
A. True
B. False
6. When performing chest compressions the grey fan moves across the
screen as the depth increases.
A. True
B. False
7. When releasing your hands o the chest and the grey fan disappears,
you should:
A. Begin your next compression
B. Continue to lift your hands o the patients chest
C. STOP, and allow for calibration
8. This orange wedge indicates the compressions are beyond the
target compression zone. (>6 cm).
A. True
B. False
9. TrueCPR device must be removed during defibrillation.
A. True
B. False
10.The recoil reminder is always present during compressions and does
not indicate complete release.
A. True
B. False
100
08:25
100
08:25
100
08:25
100
08:25

TrueCPR™
COACHING DEVICE
©2016 Physio-Control, Inc.
GDR 3329368_A
For further information please contact your local Physio-Control representative or visit our website at www.physio-control.com.
Physio-Control Headquarters
11811 Willows Road NE
Redmond, WA 98052
www.physio-control.com
Customer Support
P. O. Box 97006
Redmond, WA 98073
Toll free 800 442 1142
Fax 800 426 8049
For use in the US.
