Physio-Control

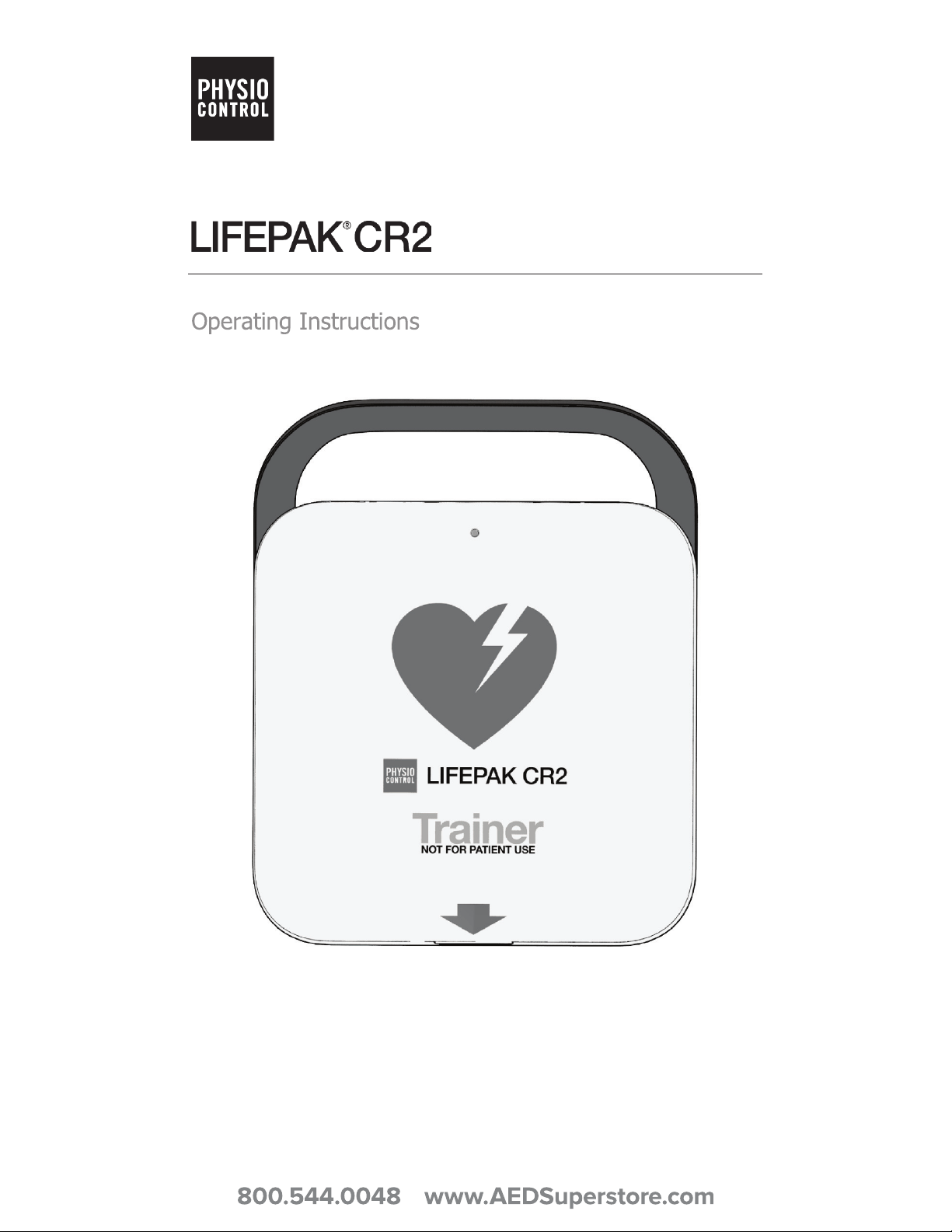

LIFEPAK CR2 AED
Trainer Manual
Get an original copy of the Physio-Control LIFEPAK CR2 AED
Trainer Operating Instructions for information on how to
operate and maintain your device.

TRAINER

3
Getting Started 5
Unpacking and Inspecting the Trainer ..................................... 5
Initial Setup .............................................................................. 5
Controls, Indicators, and Labels 6
Outside Controls, Indicators, and Labels ................................ 6
Inside Controls and Features ................................................... 8
Running the Default Scenario 12
Entering Setup Mode 13
Modifying Training Scenarios 16
Setup Options 17
Language List......................................................................... 23
Using the Trainer 24
Simulating "Device Not Ready" Status .................................. 25
Shutting Down the Trainer 25
Troubleshooting Tips 26
Caring for the Trainer 28
Replacing Training Electrodes ............................................... 28
Replacing Batteries ................................................................ 29
Cleaning the Trainer ............................................................... 30
Recycling Information ............................................................ 31
Accessories and Replacement Parts ..................................... 32
Contents

iv
Software Updates 32
Installing Software Updates ................................................... 32
Troubleshooting Tips for Software Updates .......................... 35
Specifications 36
Symbols 36

5
Getting Started
The LIFEPAK CR2 Trainer provides a way for trainees to
practice responding to a simulated cardiac arrest event. The
Trainer simulates the voice prompts and features of the
LIFEPAK CR2 defibrillator, but does not deliver shocks.
The Trainer is equipped with 2 preset training scenarios. These
scenarios can be easily customized using the setup screen on
the Trainer to provide a wide variety of training options.
Unpacking and Inspecting the Trainer
1. Remove the Trainer and examine the outside for signs of
damage that may have occurred during shipping.
2. Check the remaining contents in the shipping box against
the sales order.
3. The Trainer ships with 4 D cell batteries installed. See
Outside Controls, Indicators, and Labels (on page 6) for
battery compartment locations.
Initial Setup
The general steps below provide an overview of the process
you will follow to prepare the Trainer for use. Detailed
instructions for each step are provided in this manual.
1. Open the Trainer lid and confirm the device turns on.
2. Remove the electrode tray to access the setup screen.
3. Set up Scenarios 1 and 2 according to your preferences or
local protocols. These scenarios can be changed at any
time, if desired.
4. If the Trainer will not be used immediately, turn it off by
pressing the POWER button for at least 3 seconds.

6
Controls, Indicators, and Labels
This section describes the controls, indicators, and labels on
the device.

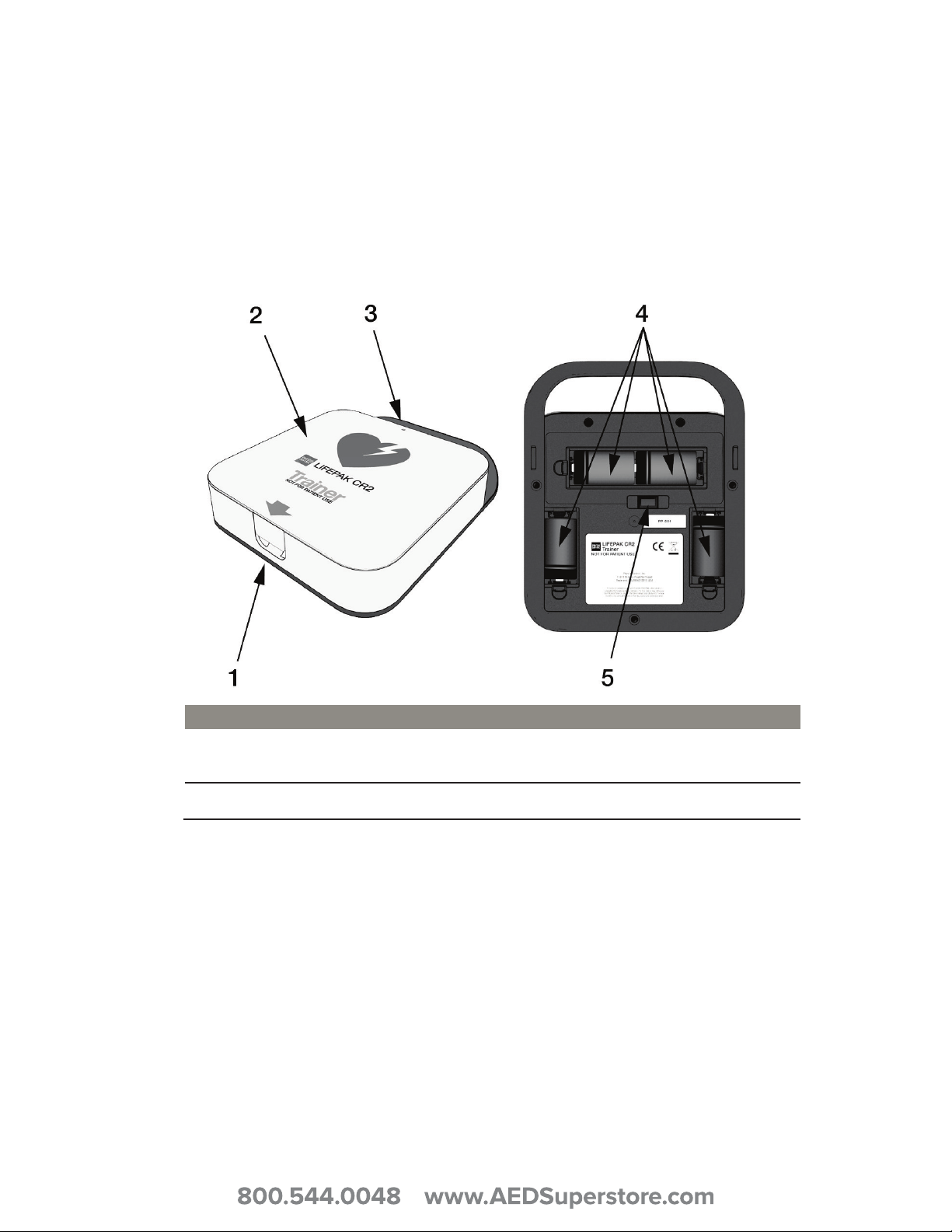

Outside Controls, Indicators, and Labels
ITEM FEATURE DESCRIPTION
1 Latch To open the Trainer, insert your finger in
the recessed area and pull up.
2 Lid Open the lid to turn the Trainer on.

7
ITEM FEATURE DESCRIPTION
3 Power indicator The green LED is off when the Trainer is
turned off, and on when the Trainer is in
use or in Setup mode.
The LED turns to steady on when the lid
is opened. When in Standby mode with
the lid closed, the LED flashes once every
6 seconds. This simulates the behavior of
the Readiness indicator on the LIFEPAK
CR2 defibrillator.
If the POWER button is pressed briefly
during a training session to pause the
scenario, the LED blinks once every
second.
4 Battery
compartments
The battery compartments hold 4 D cell
batteries.
5 USB port The USB port is used to install software
updates.

8

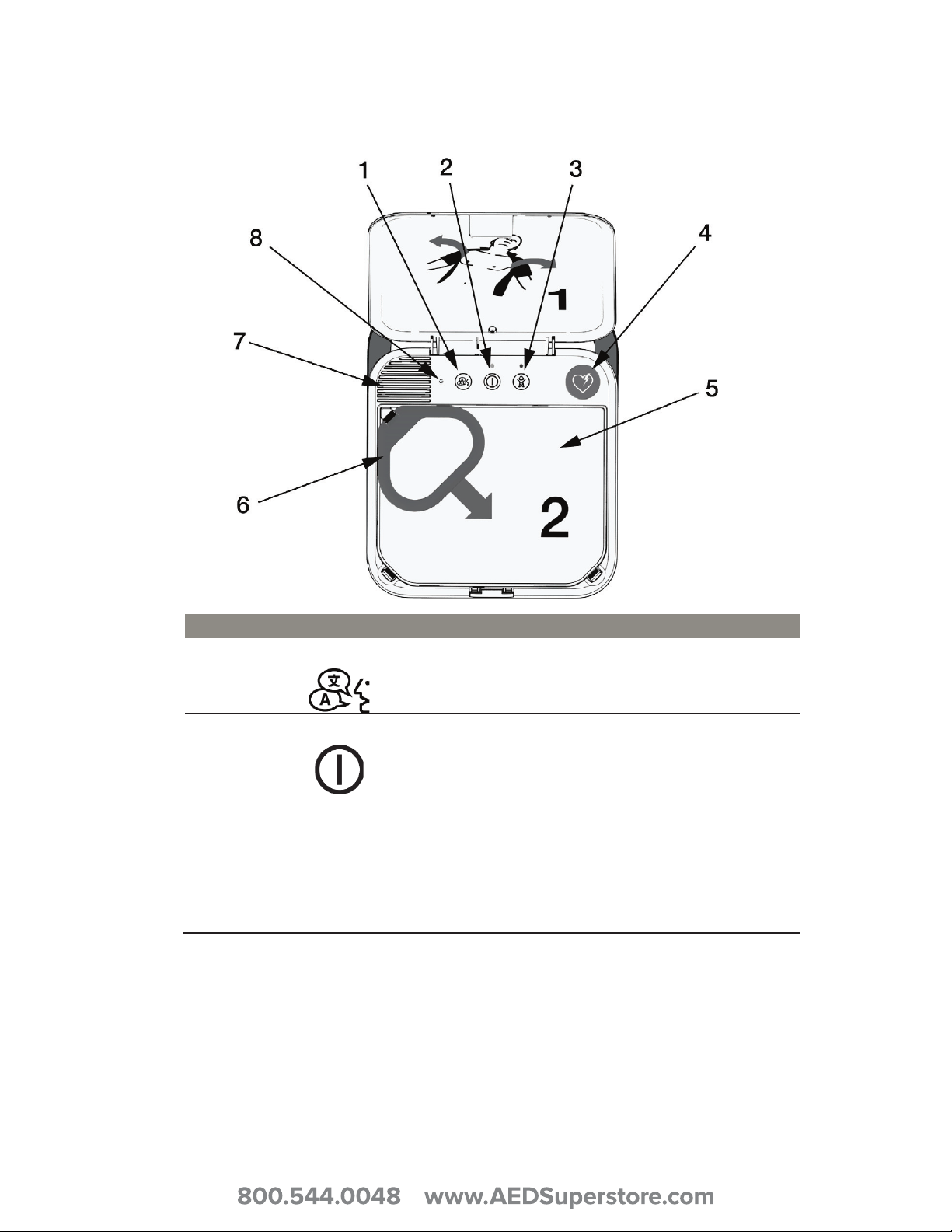

Inside Controls and Features
ITEM FEATURE DESCRIPTION
1 LANGUAGE button During training sessions, press the
LANGUAGE button, if prompted, to
switch between your preset languages.
2 POWER button
Press the POWER button to turn the
device on. Press and hold for at least 3
seconds to turn the device off.
Note: You can also turn the device on by
opening the lid.
During training sessions, press the
POWER button for less than 3 seconds to
pause the scenario, and press again to
resume.

9
ITEM FEATURE DESCRIPTION
3 CHILD MODE
button
During training sessions, press the CHILD
MODE button to switch between Adult
mode and Child mode. The green LED
above the CHILD MODE button is
illuminated when Child mode is selected.
Note: The CHILD MODE button is
disabled after the electrodes are placed
on the manikin.
4 SHOCK
button/indicator
When the Trainer is used to simulate a
fully automatic defibrillator, the SHOCK
indicator flashes to indicate the Trainer is
preparing to deliver a simulated shock.
When the Trainer is used to simulate a
semi-automatic defibrillator, the SHOCK
button flashes to indicate the Trainer is
ready to deliver a simulated shock and a
voice prompt instructs the trainee to
press the flashing button.
5 Reusable electrode
tray cover
The cover for the training electrode tray
can be removed and replaced repeatedly.
To replace a cover that has been
removed, align the cover on the tray and
press the edges into the groove, starting
with the corners.
6 Red handle Pull the red handle to reveal the reusable
training electrodes.
7 Speaker Provides audio voice prompts and tones.
8 Noise sensor The noise sensor monitors the noise level
of the surrounding area while the Trainer
is in use. The Trainer automatically
adjusts the volume of the voice prompts
so they can be clearly heard.
Note: This feature is only active if Volume
is set to Auto. See Entering Setup Mode
(on page 13) for more information.

10
Electrode Tray Features
After the red handle is pulled, the electrodes are revealed as
shown below.
The training electrodes include a sensor that detects when the
electrode pads are pressed onto a firm surface such as a
manikin. During training sessions, this enables the Trainer to
detect when the electrode pads have been placed and
automatically continue the scenario.
Note: The Trainer only detects when the electrode pads are
first applied. It does not detect pads that become loose or
are removed during a scenario.
The training electrodes have reusable adhesive for use on
manikins, and can be used approximately 50 times. See Caring
for the Trainer (on page 28) for information about replacing the
training electrodes.

11

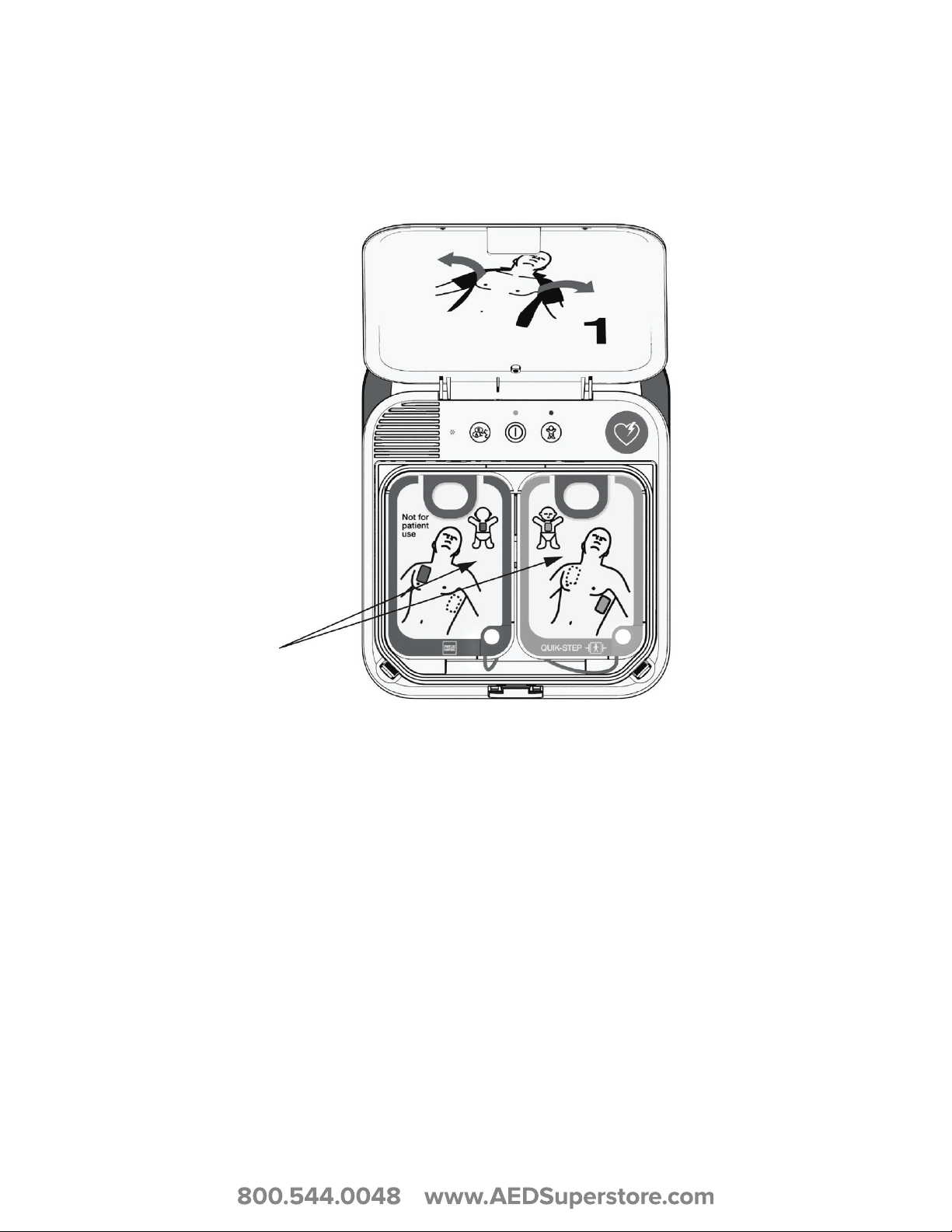

The training electrode liners can be lifted to reveal the
electrode plug, as shown.
When the electrodes are unplugged and the Trainer lid is
closed, the Trainer simulates a LIFEPAK CR2 defibrillator in
which the electrode tray is not properly installed. The Power
indicator turns off, and the Trainer beeps.

12
Running the Default Scenario
To run the default scenario, follow these basic steps.
Note: It is not necessary to turn the Trainer on before you
begin.
1. Start with the lid closed. Open the lid to turn the Trainer on
and begin the scenario.
2. Follow the voice prompts. You can pause the scenario at
any time by pressing the POWER button for less than
3 seconds. Press again to resume the scenario.
3. When you are instructed to place the electrode pads on the
manikin, be sure to press the center of the pads firmly. This
enables the Trainer to detect when the electrode pads have
been placed and automatically continue the scenario.
4. Continue to follow the instructions until the scenario ends
or you decide to stop.
Note: To stop without powering off the Trainer press the
POWER button for less than 3 seconds.
5. Prepare the Trainer for the next use.
xPlace the electrode pads back on the liners.
xCoil the electrode wire neatly and store it under the
liners.
xReseal the electrode tray cover, starting from the
corners.
xClose the lid.
6. When the lid is opened, the same scenario will start at the
beginning.

13
Entering Setup Mode
Setup Mode allows you to customize the two preset scenarios
to meet your training needs. To access the setup screen and
enter Setup Mode, remove the electrode tray as shown in the
following illustrations.
Note: Voice prompts will begin as soon as you open the lid.
The voice prompts stop when you remove the electrode
tray.

14

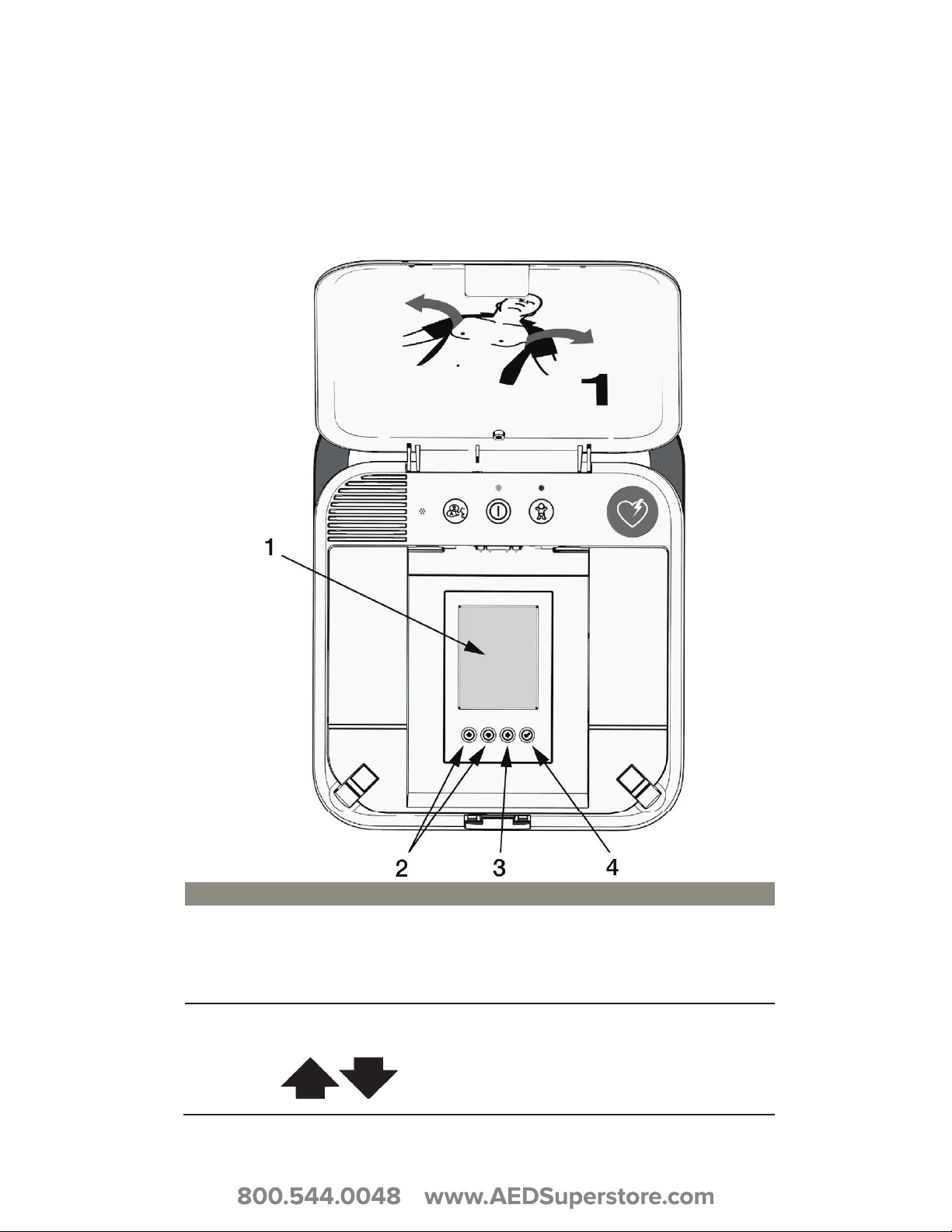

When the electrode tray has been removed, the setup screen
and buttons will be exposed as shown in the following
illustration, and the setup screen will turn on automatically. If
the Trainer is turned off, press the POWER button to turn on the
setup screen.
ITEM FEATURE DESCRIPTION
1 Setup screen Provides menu options for scenario
settings and device information such
as battery level, software version, and
Bluetooth status.
2 Up and Down
Arrow buttons
The arrow buttons scroll through menu
items in the direction indicated.

15
ITEM FEATURE DESCRIPTION
3 Right Arrow button
When the title at the top of the screen
is highlighted (MAIN MENU or
SCENARIO X), the right arrow moves
to the next screen.
When a menu item within a screen is
highlighted, the right arrow moves
through the options for each menu
item.
Note: Settings are saved automatically
when you press the UP or DOWN
button to move to the next menu item.
Do not press the CHECK button until
you have finished making your
selections on the current screen and
want to run the selected scenario.
4 Check button
Selects the current scenario as the
scenario that will be used, and returns
to the Main Menu. When the Trainer is
turned on with the electrode tray
installed, the selected scenario will
run.
Note: If you press the CHECK button
while viewing the Main Menu, the
Trainer will save all settings and turn
off the setup screen to save power.
The setup screen always opens to the Main Menu. Press the
UP and DOWN buttons to scroll through the menu items. To
change a selection, use the RIGHT button to scroll through the
available options. When the desired option is highlighted,
press the UP or DOWN button to scroll to the next menu item.
Selections are saved automatically when you scroll to another
menu item.
Note: Descriptions of all available options are provided in
Setup Options.

16

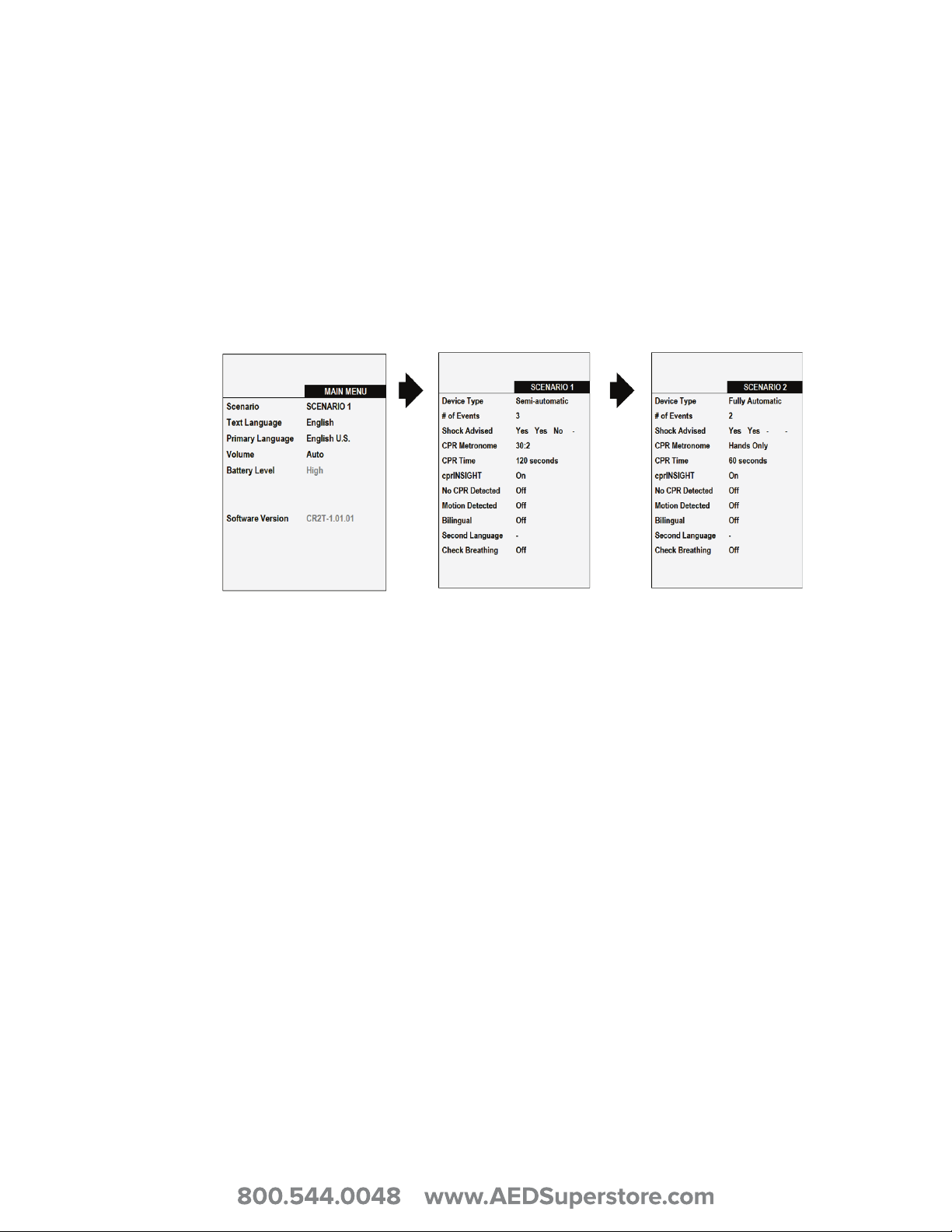

Modifying Training Scenarios
The Trainer has two configurable training scenarios. To modify
a training scenario, you must move from the Main Menu screen
to the desired Scenario screen.
1. Starting in the Main Menu screen, press the UP or DOWN
buttons until MAIN MENU is highlighted, and then press the
RIGHT button until the desired scenario screen is displayed.
2. When the desired scenario is displayed, press the UP or
DOWN button to scroll through the menu items, and use the
RIGHT button to select options.
3. When you have set all of the menu items as desired, you
can either select the current scenario to run during training
sessions, or go to one of the other screens.
xTo select the current scenario, press the CHECK button.
This will select the current scenario and return to the
Main Menu.
xTo continue without selecting the current scenario, go to
the top of the screen and press the RIGHT button until
the desired screen is highlighted.

17
4. To finish setup, go to the Main Menu, ensure the scenario
you want to use is selected, and then install the electrode
tray and close the lid. The green Power indicator will flash
every 6 seconds, indicating that the Trainer is in Standby
mode. When you open the lid, the Trainer will begin the
scenario you selected.
Note: If you close the lid with the Trainer turned on and the
electrode tray out, the Power indicator turns off and the
Trainer beeps to simulate a LIFEPAK CR2 defibrillator that
is not ready for use.
Each time you exit Setup mode, the settings you selected are
saved until you change them again. Each time you restart the
Trainer, it will run the last selected scenario.
Setup Options
The following tables explain the available setup options. Some
menu items are shown for operator information only and
cannot be changed. These are shown in gray table cells, and
are also grayed out on the setup screen.
Additional options appear during software updates. These
options are explained in Installing Software Updates (on
page 32).
The following options appear in the MAIN MENU screen.
MENU ITEM DESCRIPTION OPTIONS
Scenario Sets the scenario that will be
used during training sessions.
Scenario 1,
Scenario 2
Text Language Sets the language to be
displayed on the setup screen.
All available
languages. See
Language List (on
page 23) for
details.
Primary
Language
Sets the spoken language that
will be used for voice prompts.
All available
languages

18
MENU ITEM DESCRIPTION OPTIONS
Volume Sets the audio volume. The
Auto setting automatically
adjusts the volume depending
on surrounding noise levels.
1, 2, 3, 4, 5, 6, 7,
Auto
Battery Level Indicates the current battery
level of the Trainer. See
Replacing Batteries (on page
29) for more information.
High, Medium, Low
Software
Version
Indicates the currently installed
software version for the
Trainer.
Not applicable
Available
Update
This menu item only appears if
a USB software flash drive with
a software update is inserted
into the USB port.
Version number of
available software
update
Update Now? To begin the software update,
highlight No and press the
RIGHT button to change to
Yes. Then press the CHECK
button.
Yes, No
Updating... Indicates the Trainer is
installing the software update.
Do not press the POWER
button or close the lid during
this time.
Passed Indicates the software update
was successfully installed.
Failed Indicates the software update
failed.
Rebooting... Indicates the Trainer is
rebooting to complete the
software installation.

19
The following options appear in the SCENARIO setup screens.
MENU ITEM DESCRIPTION OPTIONS
Device Type Sets the Trainer to simulate
either a fully automatic or
semi-automatic defibrillator.
Note: A fully automatic
defibrillator delivers a shock
without requiring the user to
press the SHOCK button. A
semi-automatic defibrillator
only delivers a shock if the
SHOCK button is pressed.
Fully Automatic,
Semi-automatic
# of Events Sets the number of heart
rhythm analysis cycles that will
be included in the scenario.
When the Trainer is set for
Repeat, the scenario goes
through events 1, 2, and 3, and
then repeats event 4 until the
Trainer is turned off.
1, 2, 3, 4, Repeat
Shock Advised Determines whether each heart
rhythm analysis event in the
scenario will result in a Shock
Advised decision. Select Yes
for Shock Advised and No for
No Shock Advised.
Yes, No
CPR
Metronome
Sets the chest compression to
breath ratio to either Hands
Only (continuous 'tocks' during
CPR time) or 30:2 (instructs the
trainee to provide 2 breaths
after every 30 'tocks').
Hands-Only, 30:2
