SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET
TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET
Please note that it is a legal requirement under England and Wales Building Regulations that the
installation of the stove is either carried out under Local Authority Building Control approval or is
installed by a Competent Person registered with a Government approved Competent Persons
Scheme. HETAS Ltd operate such a Scheme and a listing of their Registered Competent Persons
can be found on their website at www.hetas.co.uk.
HEALTH AND SAFETY PRECAUTIONS
Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act
are met.
Handling
Adequate facilities must be available for loading, unloading and site handling.
Fire Cement
Some types of fire cement are caustic and should not be allowed to come into contact with the skin. In case of contact
wash immediately with plenty of water.
Asbestos
This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the course of installation then
please seek specialist guidance and use appropriate protective equipment.
Metal Parts
When installing or servicing this stove care should be taken to avoid the possibility of personal injury.
STOVE PERFORMANCE
In the UK the stove has been approved by HETAS Ltd as an intermittent operating appliance for burning wood logs only.
It should be noted that it is an offence to burn wood logs in this stove if it is installed within a Smoke Control Area in the
UK, unless it has been accredited as a Smoke Control Exempt appliance (Check with your supplier/installer).
READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY
INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
These instructions together with those in the instruction booklet cover the basic principles to
ensure the satisfactory installation of the stove, although detail may need slight modification
to suit particular local site conditions.
In all cases the installation must comply with current Building Regulations, Local Authority
Byelaws and other specifications or regulations as they affect the installation of the stove.
It should be noted that the Building Regulations requirements may be met by adopting the
relevant recommendations given in British Standards BS 8303, BS 6461 and BS 7566 as an
alternative means to achieve an equivalent level of performance to that obtained following
the guidance given in Approved Document J.
READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY
INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
These instructions together with those in the instruction booklet cover the basic principles to
ensure the satisfactory installation of the stove, although detail may need slight modification
to suit particular local site conditions.
In all cases the installation must comply with current Building Regulations, Local Authority
Byelaws and other specifications or regulations as they affect the installation of the stove.
It should be noted that the Building Regulations requirements may be met by adopting the
relevant recommendations given in British Standards BS 8303, BS 6461 and BS 7566 as an
alternative means to achieve an equivalent level of performance to that obtained following
the guidance given in Approved Document J.
Page 1

3
Page 2
PREPARATORY WORK AND SAFETY CHECKS
IMPORTANT WARNING
This stove must not be installed into a chimney that serves any other heating appliance.
There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit
fumes into the room.

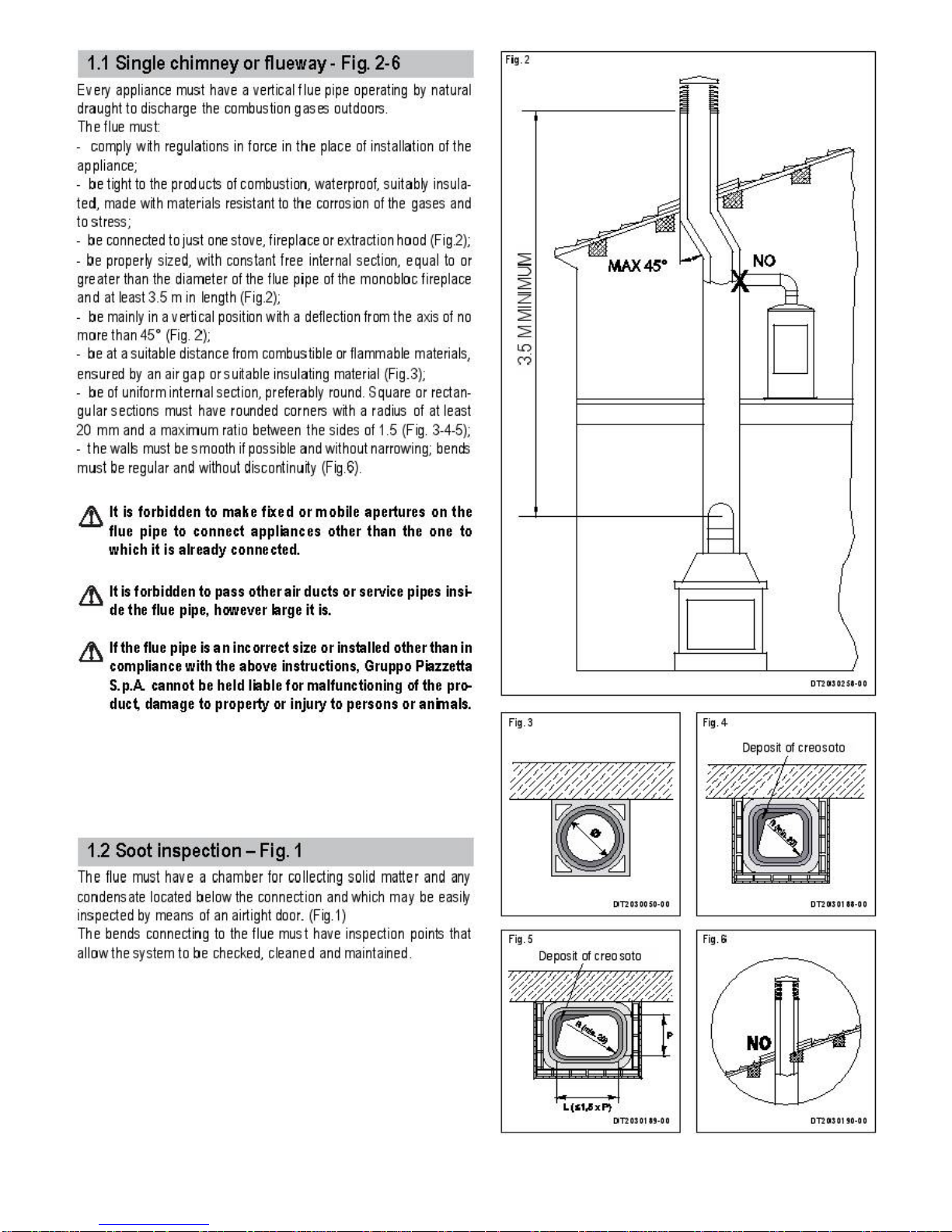

Chimney
In order for the stove to perform satisfactorily the chimney height must be sufficient to ensure an adequate
draught of approximately 15 Pa so as to clear the products of combustion and prevent smoke problems into the
room.
NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet of the stove to the top
of the chimney should be satisfactory. Alternatively the calculation procedure given in BS 5854:1980 may be
used as the basis for deciding whether a particular chimney design will provide sufficient draught.
The outlet from the chimney should be above the roof of the building in accordance with the provisions of Build-
ing Regulations Approved Document J.
If installation is into an existing chimney then it must be sound and have no cracks or other faults which might
allow fumes into the house. Older properties, especially, may have chimney faults or the cross section may be
too large i.e. more than 230 mm x 230 mm. Remedial action should be taken, if required, seeking expert advice,
if necessary. If it is found necessary to line the chimney then a flue liner suitable for solid fuel must be used in
accordance with Building Regulations Approved Document J.
Any existing chimney must be clear of obstruction and have been swept clean immediately before installation of
the stove. If the stove is fitted in place of an open fire then the chimney should be swept one month after
installation to clear any soot falls which may have occurred due to the difference in combustion between the
stove and the open fire.
If there is no existing chimney then either a prefabricated block chimney in accordance with Building Regula-
tions Approved Document J or a twin walled insulated stainless steel flue to BS 4543 can be used. These
chimneys must be fitted in accordance with the manufacturer’s instructions and Building Regulations.
A single wall metal fluepipe is suitable for connecting the stove to the chimney but is not suitable for using for
the complete chimney. The chimney and connecting fluepipe must have a minimum diameter of 150 mm and its
dimension should be not less than the size of the outlet socket of the stove.
Any bend in the chimney or connecting fluepipe should not exceed 45°. 90° bends should not be used.
Combustible material should not be located where the heat dissipating through the walls of fireplaces or flues
could ignite it. Therefore when installing the stove in the presence of combustible materials due account must
be taken of the guidance on the separation of combustible material given in Building Regulations Approved
Document J and also in these stove instructions.
If it is found that there is excessive draught in the chimney then either an adjustable flue damper or alternatively
a draught stabiliser should be fitted. The adjustable flue damper should not close off the flue entirely but should
in its closed position leave a minimum continuous opening free area of at least 20 % of the total cross sectional
area of the flue or fluepipe.
Adequate provision e.g. easily accessible soot door or doors must be provided for sweeping the chimney and
connecting fluepipe, also to permit visual checks on the integrity of the flue when the appliance is serviced.
Page 2

4

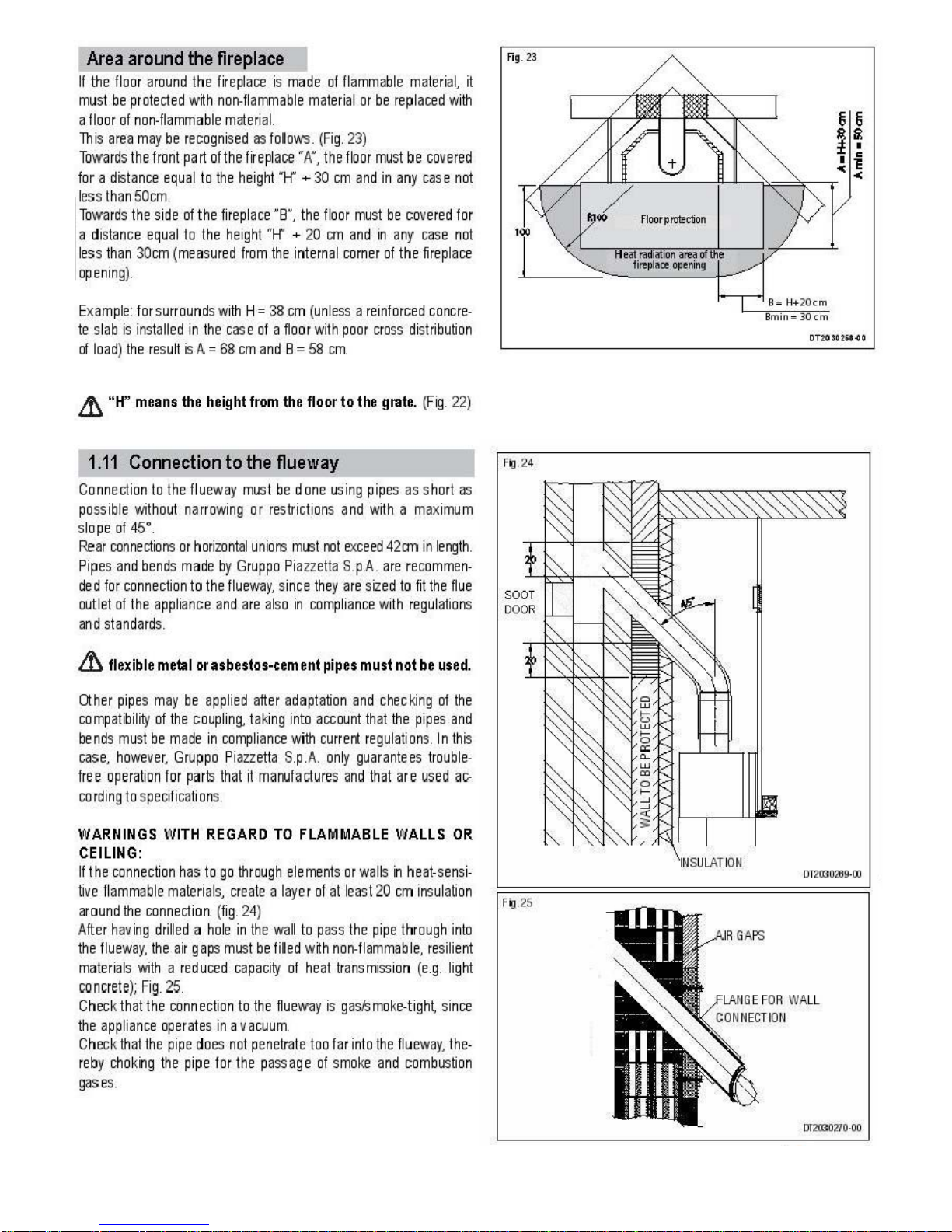

Hearth
The hearth should be able to accommodate the weight of the stove and its chimney if the chimney is not
independently supported. The weight of the stove is indicated in the brochure.
The stove should always be installed on a non-combustible hearth of a size and construction that is in
accordance with the provisions of the current Building Regulations Approved Document J.
The clearance distances to combustible material beneath, surrounding or upon the hearth and walls
adjacent to the hearth should comply with the guidance on the separation of combustible material given in
Building Regulations Approved Document J and also in these stove instructions.
If the stove is to be installed on a wooden floor, it must be covered with a non-combustible material at least
12mm thick, in accordance with Building Regulations Approved Document J, to a distance of 30 cm in front
of the stove and 15 cm to each side measuring from the door of the combustion chamber.
Combustion air supply
In order for the stove to perform efficiently and safely there should be an adequate air supply into the room
in which the stove is installed to provide combustion air. This is particularly necessary if the room is double-
glazed or a flue draught stabiliser is operating in the same room as the appliance. It may be necessary to
increase the air vent size in property with low air permeability ( < 5.0 m3/(h.m2).
The provision of air supply to the stove must be in accordance with current Building Regulations Approved
Document J. An opening window is not appropriate for this purpose.
Connection to chimney
All the stoves have a rear and/or top flue gas connector that allows connection to either a masonry chimney
or a prefabricated factory made insulated metal chimney in accordance with the instructions for the
appliance given in the instruction booklet.
Carbon Monoxide Alarm
A carbon monoxide alarm complying with BS EN 50291 must be fitted in the same room as the appliance in
accordance with the current Building Regulations Part J. It should be positioned on the ceiling at least
300mm from any wall or, if it is located on a wall, as high up as possible (above any doors and windows) but
not within 150mm of the ceiling. The alarm should also be between 1m and 3m horizontally from the
appliance.
Commissioning and handover
Ensure loose parts are fitted in accordance with the instructions given in the instruction booklet.
On completion of the installation allow a suitable period of time for any fire cement and mortar to dry out,
when a small fire may be lit and checked to ensure the smoke and fumes are taken from the stove up the
chimney and emitted safely to atmosphere. Do not run at full output for at least 24 hours.
On completion of the installation and commissioning ensure that the operating instructions for the stove are
left with the customer. Ensure to advise the customer on the correct use of the appliance with the fuels likely
to be used on the stove and warn them to use only the recommended fuels for the stove.
Advise the user what to do should smoke or fumes be emitted from the stove. The customer should be
warned to use a fireguard to BS 6539 in the presence of children, aged and/or infirm persons.
Page 3

5
SUPPLEMENTARY OPERATING INSTRUCTIONS FOR THE UK MARKET
TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET
WARNING NOTE
Properly installed, operated and maintained this stove will not emit fumes into the dwelling.
Occasional fumes from de-ashing and re‑fuelling may occur. However, persistent fume emission is
potentially dangerous and must not be tolerated. If fume emission does persist, then the following
immediate action should be taken: ‑
(a) Open doors and windows to ventilate room
(b) Let the fire out or eject and safely dispose of fuel from the appliance
(c) Check for flue or chimney blockage and clean if required
(d) Do not attempt to relight the fire until the cause of the fume emission has been identified and corrected.
If necessary seek expert advice.
The most common cause of fume emission is flue way or chimney blockage. For your own safety these must be
kept clean at all times.
IMPORTANT NOTES
General
Before lighting the stove check with the installer that the installation work and commissioning checks described in
the installation instructions have been carried out correctly and that the chimney has been swept clean, is sound
and free from any obstructions. As part of the stoves’ commissioning and handover the installer should have
shown you how to operate the stove correctly.
Use of fireguard
When using the stove in situations where children, aged and/or infirm persons are present a fireguard must be
used to prevent accidental contact with the stove. The fireguard should be manufactured in accordance with BS
6539.
If the fire is left unattended a spark guard to BS 3248, specification for spark guards for use with solid fuel
appliances should be used.
Chimney cleaning
The chimney should be swept at least once a year for smokeless fuels and a minimum of twice a year for wood and
other fuels. It is important that the flue connection and chimney are swept prior to lighting up after a prolonged
shutdown period.
If the stove is fitted in place of an open fire then the chimney should be swept one month after installation to clear
any soot falls which may have occurred due to the difference in combustion between the stove and the open fire.
In situations where it is not possible to sweep through the stove the installer will have provided alternative means,
such as a soot door. After sweeping the chimney the stove flue outlet and the flue pipe connecting the stove to
the chimney must be cleaned with a flue brush.
READ THE INSTRUCTION BOOKLET AND THESE INSTRUCTIONS
CAREFULLY BEFORE USING THE STOVE
READ THE INSTRUCTION BOOKLET AND THESE INSTRUCTIONS
CAREFULLY BEFORE USING THE STOVE
Page 4

6
Extractor fan
There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit
smoke and fumes into the room.
Aerosol sprays
Do not use an aerosol spray on or near the stove when it is alight.
Use of operating tools
Always use the operating tools provided when handling parts likely to be hot when the stove is in use.
Chimney Fires
If the chimney is thoroughly and regularly swept, chimney fires should not occur. However, if a chimney fire does
occur turn the air control setting to the minimum, and tightly close the doors of the stove. This should cause the
chimney fire to go out in which case the control should be kept at the minimum setting until the fire in the stove
has gone out. The chimney and flueways should then be cleaned. If the chimney fire does not go out when the
above action is taken then the fire brigade should be called immediately.
After a chimney fire the chimney should be carefully examined for any damage. Expert advice should be sought
if necessary
Permanent air vent
The stove requires a permanent and adequate air supply in order for it to operate safely and efficiently.
In accordance with current Building Regulations the installer may have fitted a permanent air supply vent into the
room in which the stove is installed to provide combustion air. This air vent should not under any circumstances
be shut off or sealed.
HETAS Ltd Approval
Please note that HETAS Approval only covers the use of wood on the stove and approval does not cover
the use of other fuels either alone or mixed with other fuels, nor does it cover instructions for the use of
other fuels.
USER OPERATING INSTRUCTIONS - WOOD
The instructions detailed in the section / in the instruction booklet should be followed.
Door operation
The door handle may become hot during operation, use the tool to open and close the doors, if appropriate.
Lighting of fire
Place some firelighters or paper and dry kindling wood on the grate and cover with a small amount of fuel. Set air
controls to maximum and set light to firelighters or paper. Close the doors and allow fire to burn until fuel is well
alight then load with more fuel and adjust air controls to the required level of heat output.
Before relighting the fire clean the fire bed of ash and clinker and empty the ash pan.
Page 5

7
Refuelling
Keep the firebox well filled (the fuel may be sloped up from the front fire bars), but do not allow fuel to spill over
the top of the front fire bars. Take care that fuel does not project over the front fire bars or damage to the glass
may be caused when the doors are closed
Flueway cleaning
It is important that the baffle plate and all the stove flue ways are kept clean. When burning smokeless fuels they
should be cleaned at least monthly. When burning other fuels they should be cleaned at least once a week, and
more frequently if necessary.
Remove any sooty deposits from the baffle plate until they fall off into the fire.
More soot will be deposited on the baffle plate and in the flue ways if the stove is run at low levels for long
periods. If this is the case then more frequent cleaning will be necessary.
Cleaning and maintenance
The instructions detailed in the section “Maintenance” in the instruction booklet should be followed.
Trouble shooting
The instructions detailed in the relevant section in the instruction booklet should be followed together with the
following additional items:
1. Fire Will Not Burn
Check that:
a) the air inlet is not obstructed in any way,
b) that chimneys and flue ways are clear,
c) that a suitable fuel is being used,
d) that there is an adequate air supply into the room,
e) that an extractor fan is not fitted in the same room as the fire.
2. Fire Blazing Out Of Control
Check that:
a) the doors are tightly closed,
b) the air control is turned down to the minimum setting,
c) the air inlet damper is closed and that it is not prevented from closing completely by a piece of ash,
d) a suitable fuel is being used,
e) the door seals are in good condition.
Registered Office: Robeys Ltd, Goods Road, Belper Derbyshire DE56 1UU
Tel [phone] Fax [phone] Email [email protected] www.robeys.co.uk
Company No. 5741182
Director: Mark Robey Company Secretary: Sharon Robey
Page 6

8

Section Heading Page
1.0 GENERAL RULES 10
1.1 Single chimney or flue way 11
1.2 Soot inspection 11
1.3 Chimney stack 12
1.4 Fresh air intake 13
1.5 Installation environment 14

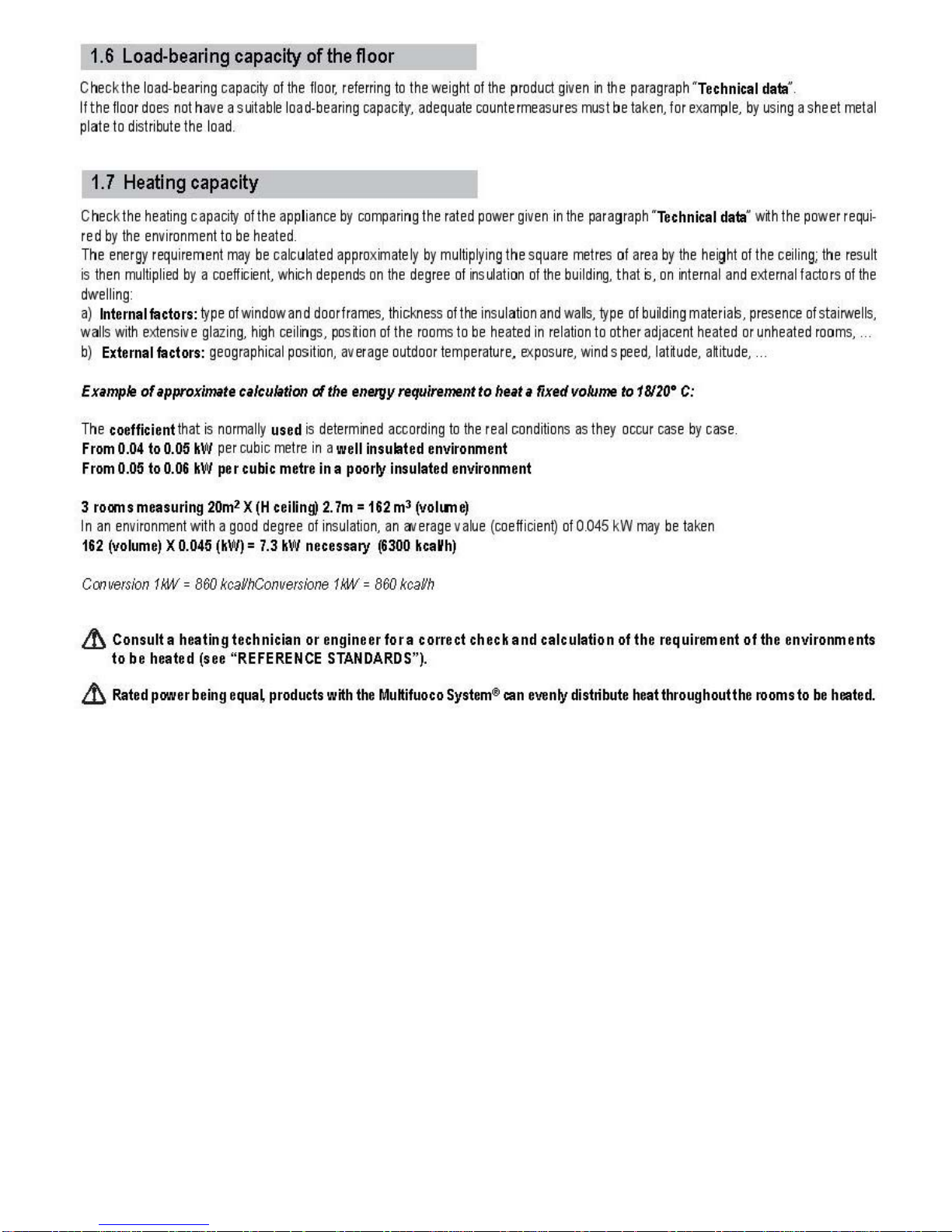

1.6 Load bearing capacity of the floor 14
1.7 Heating capacity 14

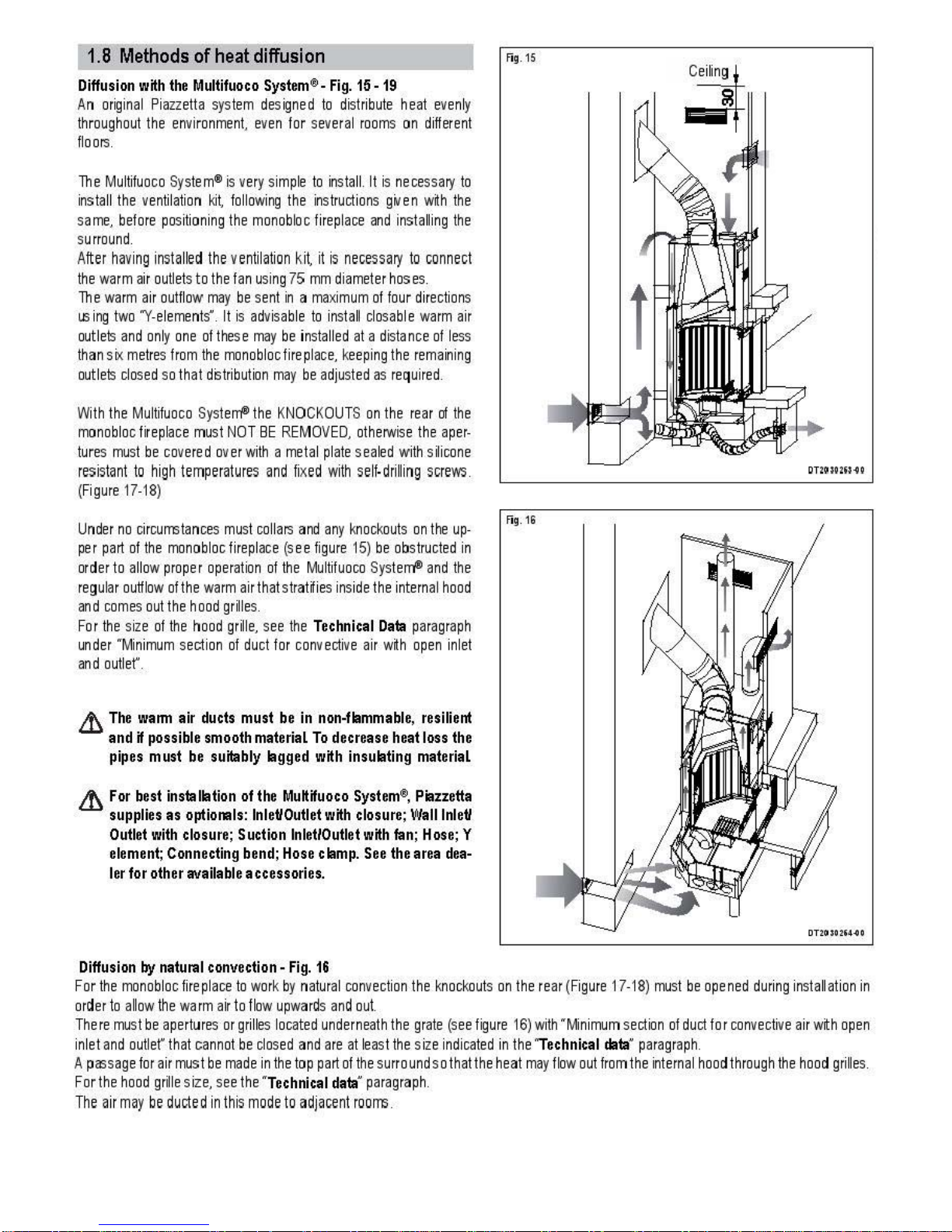

1.8 Methods of heat diffusion 15
1.9 Suitable heat insulating materials 16
1.10 Minimum safety distances 17
1.11 Connection to the flue way 18
1.12 Lining the wall 19
1.13 Hood grille 19
1.14 Wood mantel protection 19
1.15 Electric power supply 20
1.16 Prevention of domestic fires 20
2.0 TECHNICAL DATA AND SPECIFICATIONS 21
2.1 Description of the appliance 21
2.2 Accessories 22
2.3 Features 22
2.4 Product identification data 22
2.5 Technical data 23
2.6 Fireplace dimensions 23
3.0 PREPARATION FOR INSTALLING 24
4.0 INSTALLATION OF THE SMOKE REGISTER 25
5.0 USE 26
5.1 Fuel 26
5.2 Smoke damper regulation 27
5.3 Combustion air regulation 28
5.4 Lighting for the first time 28
5.5 Lighting 29
5.6 Opening the door 29
5.7 Night time operation at a minimum 29
5.8 Operation under adverse weather conditions 30
5.9 Over heating and extinguishing 30
6.0 MAINTENANCE 31
6.1 Periodic control 31
6.2 Cleaning the ceramic cladding 31
6.3 Cleaning the steel parts 31
6.4 Cleaning the painted metal parts 31
6.5 Cleaning the glass 32
6.6 Cleaning the grate and the ash tray 32
6.7 Disposal of the ashes 32
6.8 Cleaning the Aluker 32
6.9 Removing the smoke baffle plates 33
6.10 Cleaning the fan 33
6.11 Shutting down 33
6.12 Closing door system 33
7.0 TROUBLESHOOTING 34
Certificate of Conformity 37
Quick Guides 48
9

CHIMNEY POT
INSPECTION / SOOT DOOR
C
ONTROL FOR FLUE DAMPER.
N
OTE, CAN BE ON SIDE .
CHECK FLOOR FOR LOAD
BEARING CAPACITY
FIXEDAIR OUTLET
10

11

Fig . 10/11 The illustration and table identify the
minimum requirements as dictated by
Building Regulations
12

13

14

15

16

17

18

19

20
