Pickering 40-780B User manual

pickeringtest.com
Issue 3.2 July 2022
40/42-780B User Manual
PXI/PXIe Microwave SPDT Relay Modules

Page (II) PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
Page (II) REED RELAY MODULE 40-110/115/120/125
pickering
© COPYRIGHT (2022) PICKERING INTERFACES. ALL RIGHTS RESERVED.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by
any means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
ISO 9001
Reg No. FM38792

Page (III)
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
Page (III)
REED RELAY MODULE 40-110/115/120/125
pickering
TECHNICAL SUPPORT
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
WARRANTY
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of
three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be
defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
ENVIRONMENTAL POLICY
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and
safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can
be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
Worldwide Technical Support and Product Information
pickeringtest.com
Germany
Tel: [phone]
E-mail: [email protected]
Sweden
Tel: [phone]
E-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
E-mail: [email protected]
Czech Republic
Tel: [phone]
E-mail: [email protected]
France
Tel [phone]
E-mail [email protected]
Pickering Interfaces Headquarters
Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom
Tel: [phone]
E-Mail: [email protected]
China
Tel: [phone]
E-mail: [email protected]

Page (IV) PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
Page (IV) REED RELAY MODULE 40-110/115/120/125
pickering
MEANING / DESCRIPTION SYMBOL
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an external conductor for
protection against electric shock in case of a fault, or the terminal of a protective earth
(ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING / CAUTION
An appropriate safety instruction should be followed or caution to a potential hazard
exists.
Refer to the relevant instructions detailed within the product manual.
HEAVY
If this product is heavy reference should be made to the safety instructions for
provisions of lifting and moving.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling precautions should
be followed.
!
kg
SAFETY SYMBOLS
PRODUCT SAFETY
The following safety symbols may be used on the product and throughout the product documentation.

Page (V)
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
Copyright Statement ...................................................................II
Technical Support and Warranty................................................III
Product Safety .............................................................................IV
Contents (this page)....................................................................V
Warnings and Cautions ..............................................................VII
Section 1
Technical Specication...............................................................1.1
Section 2
Technical Description .................................................................2.1
Functional Description..........................................................2.1
Section 3
Installation....................................................................................3.1
Pre Operation Checks...........................................................3.1
Hardware Installation ............................................................3.2
Software Installation .............................................................3.2
Testing Operation ..................................................................3.3
Section 4
Programming Guide....................................................................4.1
Programming Options For Pickering PXI/PXIe Modules ...4.1
Module Architecture..............................................................4.2
Programming the Module .....................................................4.3
Section 5
Connector Information................................................................5.1
Section 6
Trouble Shooting .........................................................................6.1
Section 7
Maintenance Information............................................................7.1
Appendix A
Part Number List..........................................................................A.1
CONTENTS

Page (VI) PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
THIS PAGE INTENTIONALLY BLANK

Page (VII)
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
Page (VII)
REED RELAY MODULE 40-110/115/120/125
pickering
WARNINGS AND CAUTIONS
WARNING - HAZARDOUS ENVIRONMENTS SYMBOL
atmospheres. If the product is to be used in hazardous environments we recommend that the user
ensures suitable protective measures are taken.
!
WARNING - DANGER OF ELECTRIC SHOCK SYMBOL
This module may contain hazardous voltages. Before removing the module from the rack remove all
supplies and disconnect user I/O signals.
Unused slots in the host chassis are populated with blanking plates to prevent access to user
I/O signals that may be present. Blanking panels are available to order from Pickering in a variety
of slot widths. If the product is not used in this manner for example by using an extender card then
additional care must be taken to avoid contact with exposed signals.
CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL
Certain semiconductor devices used in this equipment are liable to damage due to static voltage.
Observe the following precautions when handling these devices in their unterminated state, or
sub-assemblies containing these devices:
1. Persons removing sub-assemblies from equipment using these devices must be earthed by a
wrist strap and a resistor at the point provided on the equipment.
2. Soldering irons used during the repair operations must be low voltage types with earthed tips and
isolated from the mains voltage by a double insulated transformer.
3. Outer clothing worn must be unable to generate static charges.
4.
anti-static bags.
CAUTION - PRODUCT DOCUMENTATION SYMBOL
and understood before attempting to install or operate the product.
!
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O
signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or
the combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the
chassis and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on
the front of the unit.

Page (VIII) PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
THIS PAGE INTENTIONALLY BLANK

Page 1.1
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
The 40-780B (PXI) and 42-780B (PXIe) Microwave switching
modules consist of one, two, three or four SPDT switches
capable of switching frequencies to 67 GHz in 50 Ω or 2.5 GHz
in 75 Ω. Connections are made via front panel mounted high
quality RF coaxial connectors, SMA/N-Type for 50 Ω and
1.6/5.6 in 75 Ω versions. Remote versions are also available
which can support up to three SPDT relays in a single slot.
The remote versions, as well as occupying less panel space in
the case of the triple options, allow the microwave relays to
be placed closer to the UUT and RF test equipment. This can
yAvailable as PXI or PXIe Modules
y1, 2, 3 or 4 SPDT Relays Per Module
y1, 2 or 3 SPDT Relays From Remote Version
y12.4 GHz, 18 GHz, 26.5 GHz, 40 GHz, 50 GHz &
67 GHz Bandwidth in 50 Ω
y2.5 GHz Bandwidth in 75 Ω
yHigh Power N-Type Options
yTree Networks may be Constructed by
Inter-Linking Individual Modules
yFailsafe & Latching Relay Options
yRelay Cycle Counting Included
yLED Indication (Failsafe Versions Only)
yPXI Version Supported by PXI or LXI Chassis
yVISA, IVI & Kernel Drivers Supplied for Windows
y3 Year Warranty
Microwave SPDT Switch (Part No. 4x-780B)
in Single Relay Format
Remote version
controls 1, 2 or 3
remotely mounted
SPDT microwave
relays via interface
cables
shorten the length of cables and improve system performance.
Remote multiplexers are supplied with a 1.5 m interface cable.
The 4x-780B range gives you the highest RF and microwave
switching performance available within a Pickering switching
system. Although designed for microwave applications, they
have many uses in the RF spectrum where extremely low
insertion loss and ultra high isolation are critical. They may
also be used for lower frequency RF applications where power
handling to 240 W is required (700 W for N-Type options).
Product Compatibility
The 4x-780B range has been introduced as an update to the
existing 40-780A family. These remain orderable but the new
4x-780B is recommended as it provides additional options
such as the PXIe control interface. The RF performance of the
4x-780B is identical to the 40-780A.
NO 1
NC 1
Com 1
Relay 1
pickeringtest.com
4x-780B
PXI/PXIe Microwave SPDT Relay Modules
Issue 4.0 July 2022

Page 1.2 PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Relay Type
To provide maximum flexibility this range is available with either failsafe or
latching relays. For definition, the contacts of failsafe relays return to the
default state when the system power is removed whereas latching relay
contacts retain their last set state when the power is removed.
Relay Cycle Counting
To aid with module “health”
monitoring all versions are provided
with a relay cycle counting cycle
feature. The number of operations per
contact are stored on the module and
can be used to determine if a relay
is approaching EOL. This information
could allow system connections to
be revised so that signals applied to
heavily used contacts are swapped
with lightly used contacts to prolong
the working life of the relay(s).
NO 1
NC 1
Com 1
Relay 1
NO 2
NC 2
Com 2
Relay 2
NO 1
NC 1
Com 1
Relay 1
NO 2
NC 2
Com 2
Relay 2
NO 3
NC 3
Com 3
Relay 3
NO 1
NC 1
Com 1
Relay 1
NO 2
NC 2
Com 2
Relay 2
NO 3
NC 3
Com 3
Relay 3
NO 4
NC 4
Com 4
Relay 4
Microwave SPDT Switch (Part No. 4x-780B)
in Dual, Triple and Quad Relay Formats
Remotely Mounted Microwave Relay Versions
pickering
BANK 1
Remotely Mounted Microwave SPDT Relays
3 off Interface Cables 1.5m Length
4x-780A
Remote
Version
BANK 2BANK 3
Interconnection Between 4x-780B Remote Version and
Remotely Mounted Microwave Relays
Microwave SPDT Relay & Cable
for Remote Mounting
4x-780B
pickeringtest.com Page 2
PXI/PXIe Microwave SPDT Relay Modules

Page 1.3
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering SECTION 1 - TECHNICAL SPECIFICATION
Typical Isolation - 26.5 GHz Versions Typical VSWR - 26.5 GHz Versions
Typical Insertion Loss - 26.5 GHz Versions
Typical Isolation - 18 GHz Versions
Typical Insertion Loss - 18 GHz Versions
Typical VSWR - 18 GHz Versions
Specifications - 18 GHz & 26.5 GHz Versions
Connectors: SMA
Insertion Loss: <0.2 dB to 3 GHz
<0.3 dB to 8 GHz
<0.4 dB to 12.4 GHz
<0.5 dB to 18 GHz
<0.7 dB to 26.5 GHz (26.5 GHz versions only)
Isolation: >80 dB to 3 GHz
>70 dB to 8 GHz
>60 dB to 18 GHz
>55 dB to 26.5 GHz (26.5 GHz versions only)
VSWR: <1.2:1 0 to 3 GHz
<1.3:1 to 8 GHz
<1.4:1 to 12.4 GHz
<1.5:1 to 18 GHz
<1.7:1 to 26.5 GHz (26.5 GHz versions only)
RF Average Carry
Power at 25 °C: 240 W to 3 GHz
150 W to 8 GHz
120 W to 12.4 GHz
100 W to 18 GHz
40 W to 26.5 GHz (26.5 GHz versions only)
4x-780B
pickeringtest.com Page 3
Specifications

Page 1.4 PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
SECTION 1 - TECHNICAL SPECIFICATION

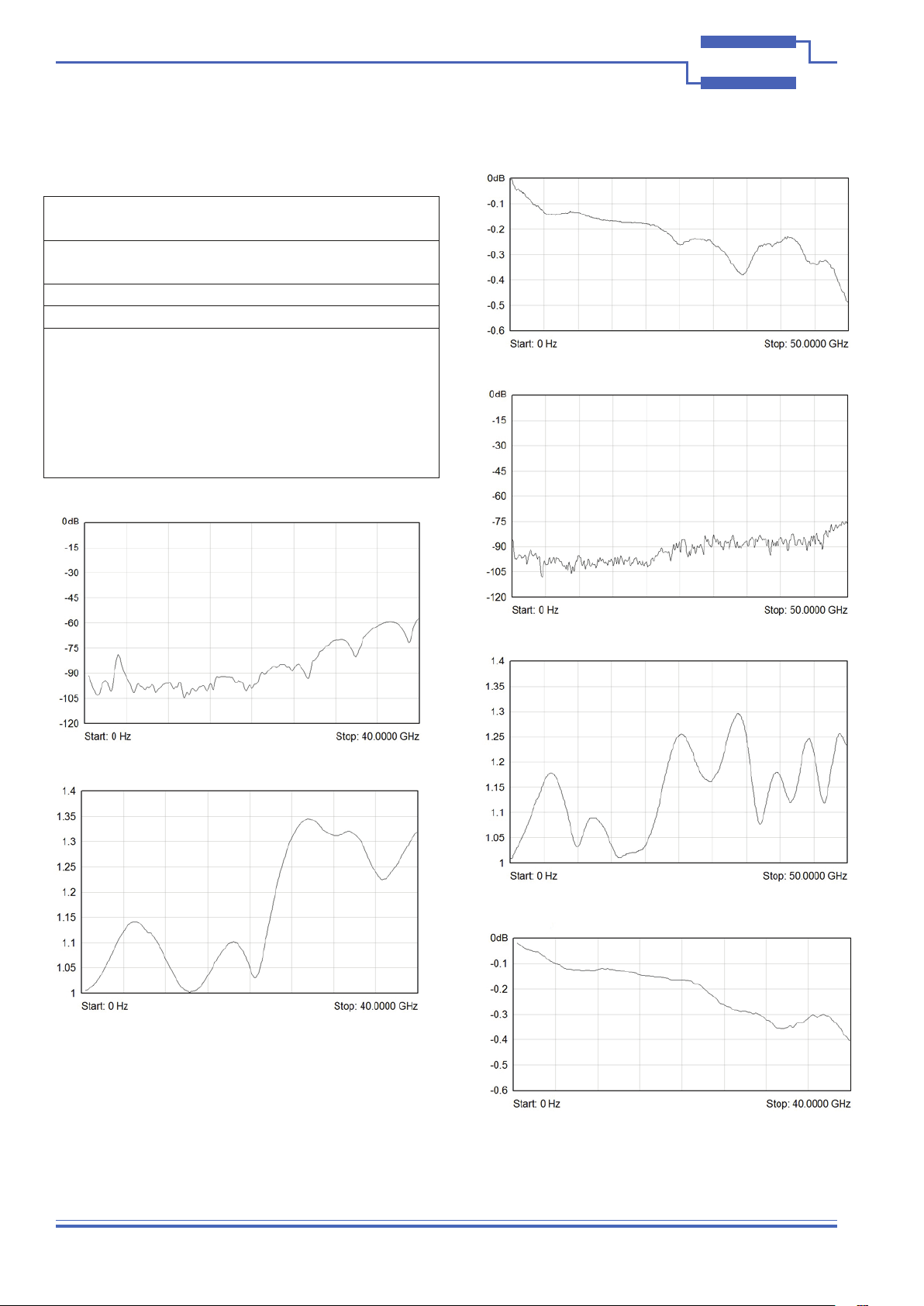

Typical Isolation - 40 GHz Versions
Typical VSWR - 40 GHz Versions
Typical Insertion Loss - 40 GHz Versions
Typical Isolation - 50 GHz Versions
Typical VSWR - 50 GHz Versions
Typical Insertion Loss - 50 GHz Versions
Specifications - 40 GHz & 50 GHz Versions
Connectors: SMA-2.9 (40 GHz)
SMA-2.4 (50 GHz)
Insertion Loss: <0.8 dB to 40 GHz
<1.1 dB to 50 GHz
Isolation: >50 dB to 50 GHz
VSWR: <1.9:1 to 50 GHz
RF Average Carry Power
at 25 °C: 80 W to 6 GHz
60 W to 12.4 GHz
50 W to 18 GHz
20 W to 25.5 GHz
10 W to 40 GHz
5 W to 50 GHz
4x-780B
pickeringtest.com Page 4
Specifications

Page 1.5
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering SECTION 1 - TECHNICAL SPECIFICATION
Specifications - 67 GHz Versions
Connectors: SMA-1.85
Insertion Loss: <0.30 dB to 6 GHz
<0.40 dB to 12.4 GHz
<0.50 dB to 18 GHz
<0.70 dB to 26.5 GHz
<0.80 dB to 40 GHz
<1.10 dB to 67 GHz
Isolation: >70 dB to 6 GHz
>60 dB to 12.4 GHz
>60 dB to 18 GHz
>55 dB to 26.5 GHz
>50 dB to 67 GHz
VSWR: <1.3:1 to 6 GHz
<1.4:1 to 12.4 GHz
<1.5:1 to 18 GHz
<1.7:1 to 26.5 GHz
<1.9:1 to 67 GHz
RF Average Carry Power
at 25 °C: 80 W to 6 GHz
60 W to 12.4 GHz
50 W to 18 GHz
20 W to 26.5 GHz
10 W to 40 GHz
5 W to 50 GHz
3 W to 67 GHz
Typical Isolation - 67 GHz Versions
Typical VSWR - 67 GHz Versions
Typical Insertion Loss - 67 GHz Versions
4x-780B
pickeringtest.com Page 5
Specifications

Page 1.6 PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
SECTION 1 - TECHNICAL SPECIFICATION

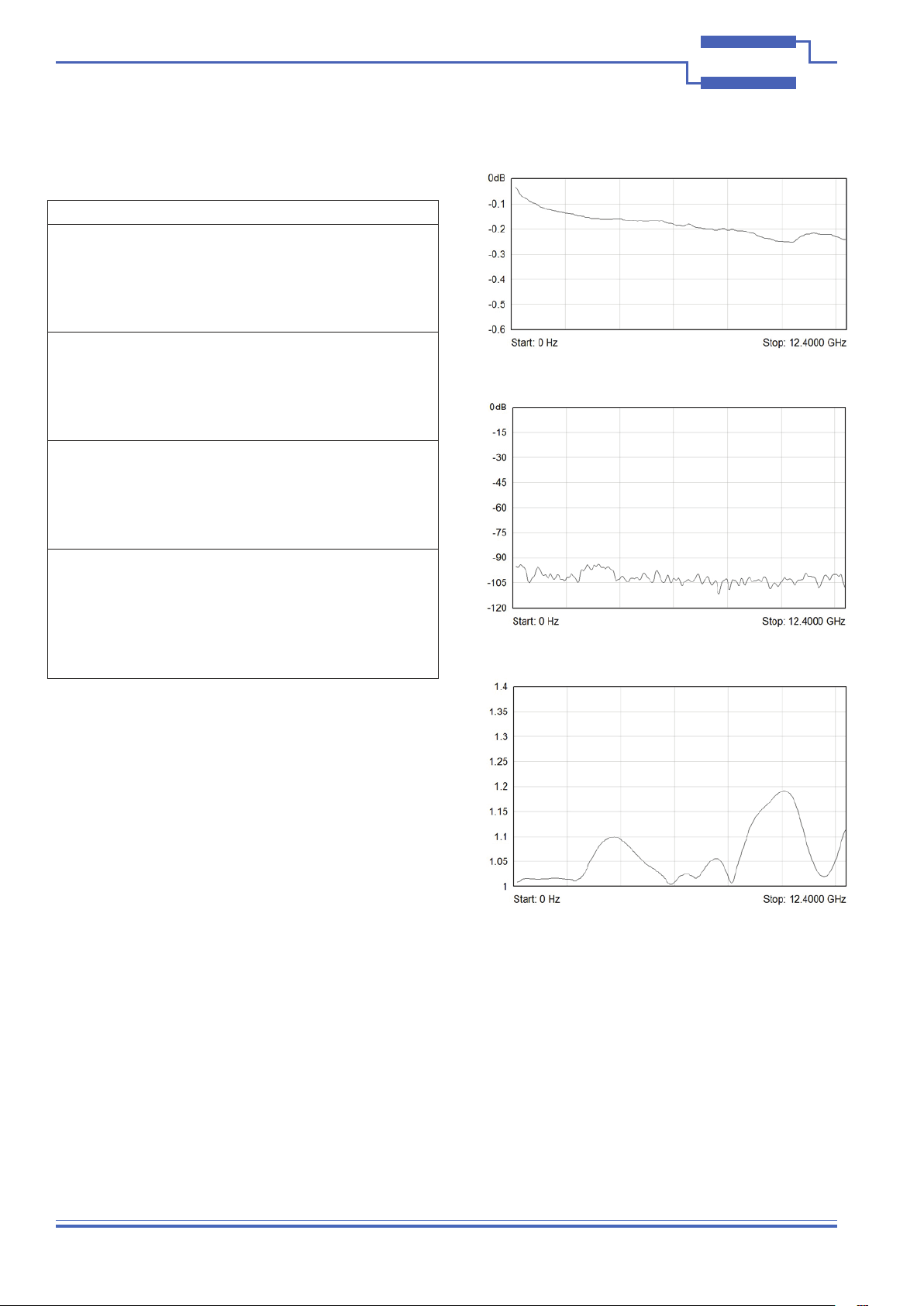

Typical Isolation - 12.4 GHz N-Type Versions
Typical VSWR - 12.4 GHz N-Type Versions
Typical Insertion Loss - 12.4 GHz N-Type Versions
Specifications - 12.4 GHz N-type Versions
Connectors: N-type
Insertion Loss: <0.15 dB to 1 GHz
<0.20 dB to 2 GHz
<0.25 dB to 3 GHz
<0.35 dB to 8 GHz
<0.50 dB to 12.4 GHz
Isolation: >85 dB to 1 GHz
>80 dB to 2 GHz
>75 dB to 3 GHz
>70 dB to 8 GHz
>60 dB to 12.4 GHz
VSWR: <1.15:1 to 1 GHz
<1.20:1 to 2 GHz
<1.25:1 to 3 GHz
<1.35:1 to 8 GHz
<1.50:1 to 12.4 GHz
RF Average Carry Power
at 25 °C: 700 W to 1 GHz
500 W to 2 GHz
400 W to 3 GHz
250 W to 8 GHz
200 W to 12.4 GHz
4x-780B
pickeringtest.com Page 6
Specifications

Page 1.7
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering SECTION 1 - TECHNICAL SPECIFICATION
Typical Isolation - 2.5 GHz 75 Ω Versions
Typical VSWR - 2.5 GHz 75 Ω Versions
Typical Insertion Loss - 2.5 GHz 75 Ω Versions
Specifications - 2.5 GHz 75Ω Versions
Connectors: 1.6/5.6 Female
Insertion Loss: <0.20 dB to 1 GHz
<0.30 dB to 2.5 GHz
Isolation: >80 dB to 1 GHz
>70 dB to 2.5 GHz
VSWR: <1.20:1 to 1 GHz
<1.30:1 to 2.5 GHz
RF Average Carry Power
at 25 °C: 400 W to 1 GHz
240 W to 2.5 GHz
4x-780B
pickeringtest.com Page 7
Specifications

Page 1.8 PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Operating/Storage Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
Mechanical Characteristics
Front panel mounted switches:
• 40-780B single & dual (except -511 & -512)
- Single slot 3U PXI (CompactPCI card)
• 40-780B-511
- Double slot 3U PXI (CompactPCI card)
• 40-780B-512
- Triple slot 3U PXI (CompactPCI card)
• 40-780B triple & quad
- Double slot 3U PXI (CompactPCI card)
• 42-780B single & dual (except -511 & -512)
- Single slot 3U PXIe, compatible with PXIe hybrid slot
• 42-780B-511
- Double slot 3U PXIe, compatible with PXIe hybrid slot
• 42-780B-512
- Triple slot 3U PXIe, compatible with PXIe hybrid slot
• 42-780B triple & quad
- Double slot 3U PXIe, compatible with PXIe hybrid slot
Remote mounted switches:
• 42-780B single, dual & triple remote mount versions
- Single slot 3U PXIe, compatible with PXIe hybrid slot
• 40-780B single, dual & triple remote mount versions
- Single slot 3U PXI (CompactPCI card)
Remote mounted switch versions are supplied with a
1.5 m interface cable for each of the supplied microwave
relays.
Module weight: 200 g (40-780B-522).
3D models for all versions in a variety of popular file
formats are available on request.
Power Requirements - 40-780B Failsafe Versions
+3.3 V +5 V +12 V -12 V
0.13 A 0.01 A 1.0 A 0
Power Requirements - 42-780B Failsafe Versions
+3.3 V +12 V
0.36 A 1.0 A
Power Requirements - 40-780B Latching Versions
+3.3 V +5 V +12 V -12 V
TBD TBD TBD 0
Power Requirements - 42-780B Latching Versions
+3.3 V +12 V
TBD TBD
Connectors
40-780B - PXI bus via 32-bit P1/J1 backplane connector.
42-780B - PXIe bus via XJ3 and XJ4 backplane connectors.
Signals via front panel mounted coaxial connectors:
• 2.5 GHz versions - 75 Ω 1.6/5.6 connectors
• 12.4 GHz versions - 50 Ω N-type connectors
• 18 GHz versions - 50 Ω SMA connectors
• 26.5 GHz versions - 50 Ω SMA connectors
• 40 GHz versions - 50 Ω SMA 2.9 connectors.
• 50 GHz versions - 50 Ω SMA 2.4 connectors.
• 67 GHz versions - 50 Ω SMA 1.85 connectors.
General Specification
Configuration: SPDT Microwave Switch,
1 to 4 independent banks.
Indicators: Blue LEDs indicate activated relays
(failsafe versions only)
Operate Time: 15 ms for 12.4 GHz relays,
10 ms for all others
Expected Life: >2 million operations for 67 GHz relays,
>10 million operations for all other relays
4x-780B
pickeringtest.com Page 8
Specifications

Page 1.9
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering SECTION 1 - TECHNICAL SPECIFICATION
Product Order Codes
4[A]-780B-[B][C][D][E][F]
Interface
0 = PXI
2 = PXIe
Actuator Type
[Blank] = Failsafe
-LA = Latching
Type
5 = SPDT 50 Ω
7 = SPDT 75 Ω (1.6/5.6 only)
Options
[Blank] = Panel Mount
-E = Remote Mount
Frequency
1 = 12.4 GHz (N-type only)
2 = 18 GHz (SMA)
3 = 26.5 GHz (SMA)
4 = 40 GHz (SMA 2.9)
5 = 50 GHz (SMA 2.4) or
2.5 GHz (1.6/5.6) when used
with “7” for option “B”
7 = 67 GHz (SMA 1.85)
Quantity
1 or 2 for Panel Mount (N-type)
1, 2, 3 or 4 for Panel Mount (SMA,
SMA 2.9, SMA 2.4, SMA 1.85, 1.6/5.6)
1, 2 or 3 for Remote Mount
Example part numbers:
A PXI dual, SPDT 26.5 GHz, failsafe, panel mounted module would require part number 40-780B-532
A PXIe single, SPDT 18 GHz, latching, remote mounted module would require part number 42-780B-521-E-LA
Please refer to the user manual for all individually defined valid part numbers.
Connection Accessories
For a complete list of connection accessories and
documentation for the 4x-780B module please refer to our
RF connectors datasheet (90-011D).
Warranty
This module carries a 3 year warranty. The warranty
specifically applies to only the cold switching operations of
the relay within the stated lifetime.
4x-780B
pickeringtest.com Page 9
Ordering Information

Page 1.10 PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Product Customization
Pickering modules are designed and manufactured on our own flexible manufacturing lines, giving complete product
control and enabling simple customization to meet very specific requirements. Customization can include:
• Alternative relay types
• Mixture of relay types
• Alternative number of relays
• Different performance specifications
All customized products are given a unique part number, fully documented and may be ordered at any time in the future.
Please contact your local sales office to discuss.
Side View of the PXI Quad SPDT Microwave Relay Module
PXI & CompactPCI Compliance - 40-780B
The module is compliant with the PXI Specification
2.2. Local Bus, Trigger Bus and Star Trigger are not
implemented.
Uses a 33 MHz 32-bit backplane interface.
PXIe Compliance - 42-780B
The module is compliant with the PXIe Specification
1.0. Local Bus, Trigger Bus & Star Trigger are not
implemented.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable
EU directives:
Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
42-780B-524 PXIe Quad SPDT
Microwave Relay Module
4x-780B
pickeringtest.com Page 10
PXI/PXIe Microwave SPDT Relay Modules

Page 1.11
PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering SECTION 1 - TECHNICAL SPECIFICATION
The 4x-780B is part of a range of switching modules suitable for RF and microwave applications.
Pickering’s Range of PXI & PXIe Microwave Switching Modules
Switch Type Banks Frequency Range Model No.
SPDT
Unterminated
1, 2, 3 or 4 Panel Mount,
1, 2 or 3 Remote Mount
2.5 GHz (75Ω) or
12.4 - 67 GHz (50Ω) 4x-780B
SPDT
Terminated 1 or 2 Panel Mount 18 - 50 GHz (50Ω) 4x-781A
Transfer Switch 1 or 2 Panel Mount 18 - 50 GHz (50Ω) 4x-782B
SP4T or SP6T
Unterminated
1, 2 or 3 Panel Mount,
1, 2 or 3 Remote Mount 6 - 40 GHz (50Ω) 4x-784B
SP4T or SP6T
Terminated or
Unterminated
1 or 2 Panel Mount,
1, 2 or 3 Remote Mount
2.5 GHz (75Ω) or
3 - 67 GHz (50Ω) 4x-785C
SP8T, SP10T
or SP12T
Terminated or
Unterminated
1 or 2 Panel Mount,
1 or 2 Remote Mount 8 - 26.5 GHz (50Ω) 4x-788
4x-782B 4x-784B4x-780B 4x-781A 4x-785C 4x-788
4x-780B
pickeringtest.com Page 11
PXI/PXIe Microwave SPDT Relay Modules

Page 1.12 PXI/PXIe MICROWAVE SPDT RELAY MODULES 40/42-780B
pickering
SECTION 1 - TECHNICAL SPECIFICATION
4x-780B
pickeringtest.com Page 12
Supporting Products & Software
Chassis Compatibility
The PXI versions of this module are compatible with the following chassis types:
• All chassis conforming to the 3U PXI and 3U Compact PCI (cPCI) specification
• Legacy and Hybrid Peripheral slots in a 3U PXI Express (PXIe) chassis
• Pickering Interfaces LXI or LXI/USB Modular Chassis
The PXIe versions of this module are compatible with the following chassis types:
• All chassis conforming to the 3U PXIe specification
• PXIe and Hybrid Peripheral slots in a 3U PXI Express (PXIe) chassis
Chassis Selection Guide
Pickering LXI or LXI/USB Modular Chassis
Only accept our PXI Switching & Simulation Modules:
• Choose from 1000+ Pickering PXI Modules
• Ethernet or USB control enables remote
operation
• Low-cost control from practically any
controller
• LXI provides manual control via Web
browsers
• Driverless software support
• Power sequencing immunity
• Ethernet provides chassis/controller voltage isolation
• Independence from Windows operating system
PXI and PXIe (with PXIe and/or Hybrid slots)
Chassis from any Vendor:
• Mix our 1000+ PXI/PXIe switching &
simulation modules with any vendor’s
PXI/PXIe instrumentation
• Embedded or remote Windows
PC control
• Real-time Operating System Support
• High data bandwidths, especially with PXI Express
• Integrated module timing and synchronization
