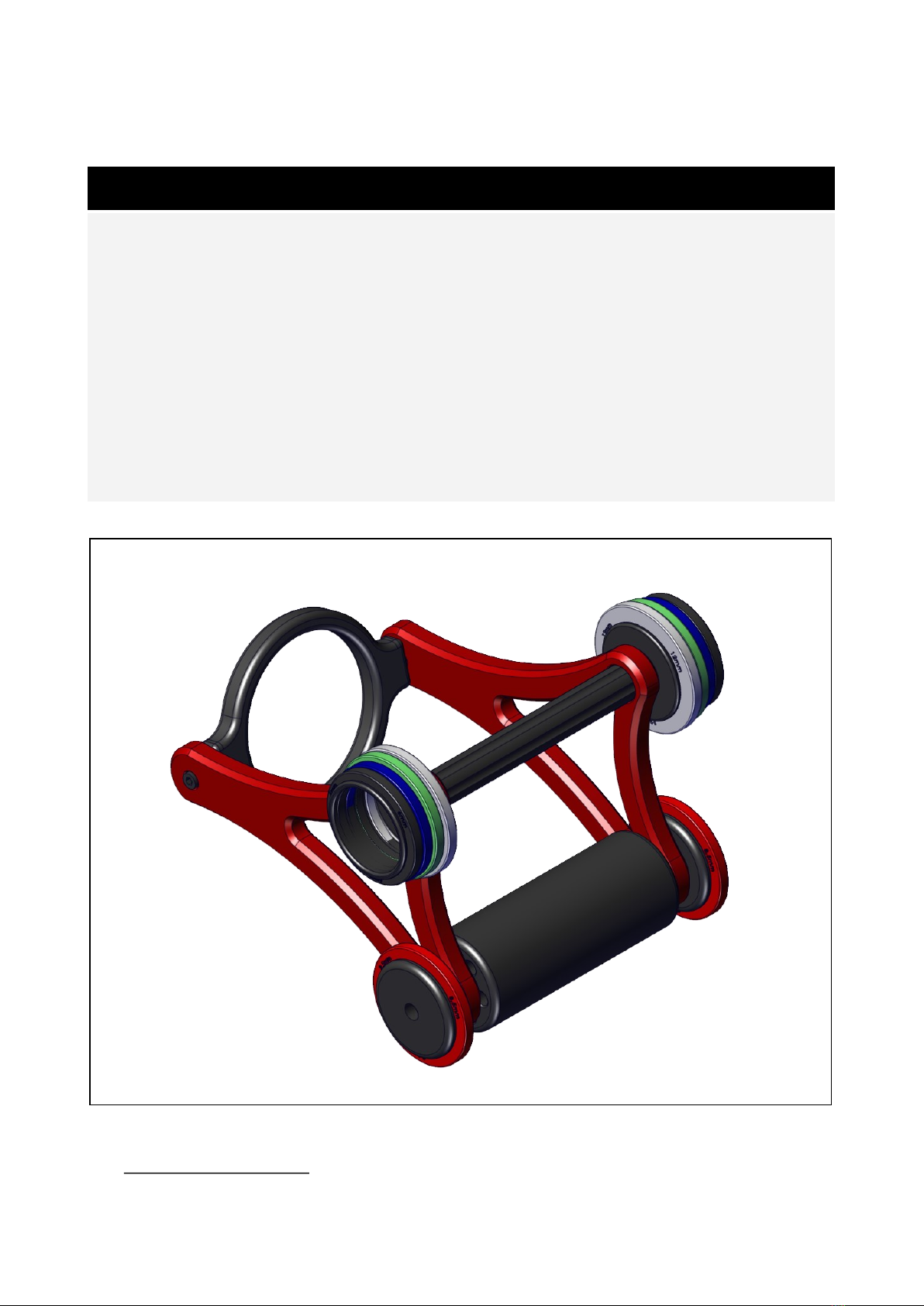

PICOTE LINER GLIDER Use and care manual

These instrucons are for your personal safety. Always ensure that you have
read and understood these instrucons before using any of the Picote range
of Tools. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
LINER GLIDER
OPERATION
& SAFETY
MANUAL

2
TOPIC PAGE/S
SAFETY INFORMATION & SYMBOLS 3
GENERAL INFORMATION & TECHNICAL DATA 5
VOLTAGE & POWER SUPPLY 6
CE DECLARATION OF CONFORMITY 7
OPERATING INSTRUCTIONS 8
MAINTENANCE, SPARE PARTS & TRAINING 10
WARRANTY POLICY & PROCEDURE 11
To watch praccal demonstraon videos, or to download an electronic copy of these Instrucons, please
visit www.picotesoluons.com. Please note that videos are not intended as a replacement or alternave
to this operang and safety manual, but only as an addional learning tool.
TABLE OF CONTENTS

3
SAFETY INFORMATION
This section contains important safety information. Failure to
comply could result in serious injury or death.
Safety Symbols
Safety symbols are used throughout this manual to draw attention to potential hazards.
Personal Protective Equipment (PPE)
Always use Personal Protective Equipment when using the Picote Liner Glider, including
suitable overalls / protective clothing & footwear and the following:
Always wear suitable eye protection when using the Picote Liner Glider to
prevent dust or resin from getting into your eyes.
Always wear suitable chemical resistant gloves when using the Picote Liner
Glider to prevent any direct contact with resin. Any open injuries or skin
irritations should be covered at all times to avoid contact with sewage,
chemicals or dust.
Always wear a suitable respirator when using the Picote Liner Glider to pre-
vent any resin fumes being inhaled or consumed when impregnating and in-
stalling the lining.
Danger risk of serious injury from rotating parts, follow instructions.
Danger risk of serious injury, follow instructions.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

4
Always read all safety warnings and instrucons. Failure to follow warnings and instrucons may result in expo-
sure of chemicals or serious hand injury.
GENERAL MACHINE SAFETY WARNING
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
SAFETY REQUIREMENTS
1. Always wear eye protecon as well as chemical resistant gloves. Other personal
protecve equipment, such as dust or fresh-air mask and overalls should be worn when
necessary. Dust produced when working can be dangerous to your health, inammable
or explosive. Always wear appropriate protecve equipment.
2. Always read carefully the safety data sheet of the resin used to impregnate liner before rst use. Always follow
the resin and liner supplier instrucons for use.
3. Before each use inspect the equipment carefully for any damage. Change damaged parts immediately.
4. When impregnang the lining, it is very important that it is supported on a stable, even surface at all mes. The
liner is easiest to impregnate evenly with Liner Glider when the process is done on sucient size table.
5. If the working environment is extremely hot, use ice or other coolants to increase the working me of the mixed
resin. Check the instrucons from the resin manufacturer for detailed informaon.
6. Ensure that the resin mixing and impregnaon areas are properly venlated before using the equipment. The
operator must wear air respirator system if the working space does not have sucient enough venlaon to
avoid inhalaon of potenally harmful vapors.
7. Only use this equipment with the accessories and spare parts oered by the Picote Soluons. Accessories and
spare parts should only be used in the manner intended and as described by the Picote Soluons.
This secon contains important safety informaon. Failure to comply could result in serious injury.
This secon contains important safety informaon. Failure to comply could result in serious injury.

5

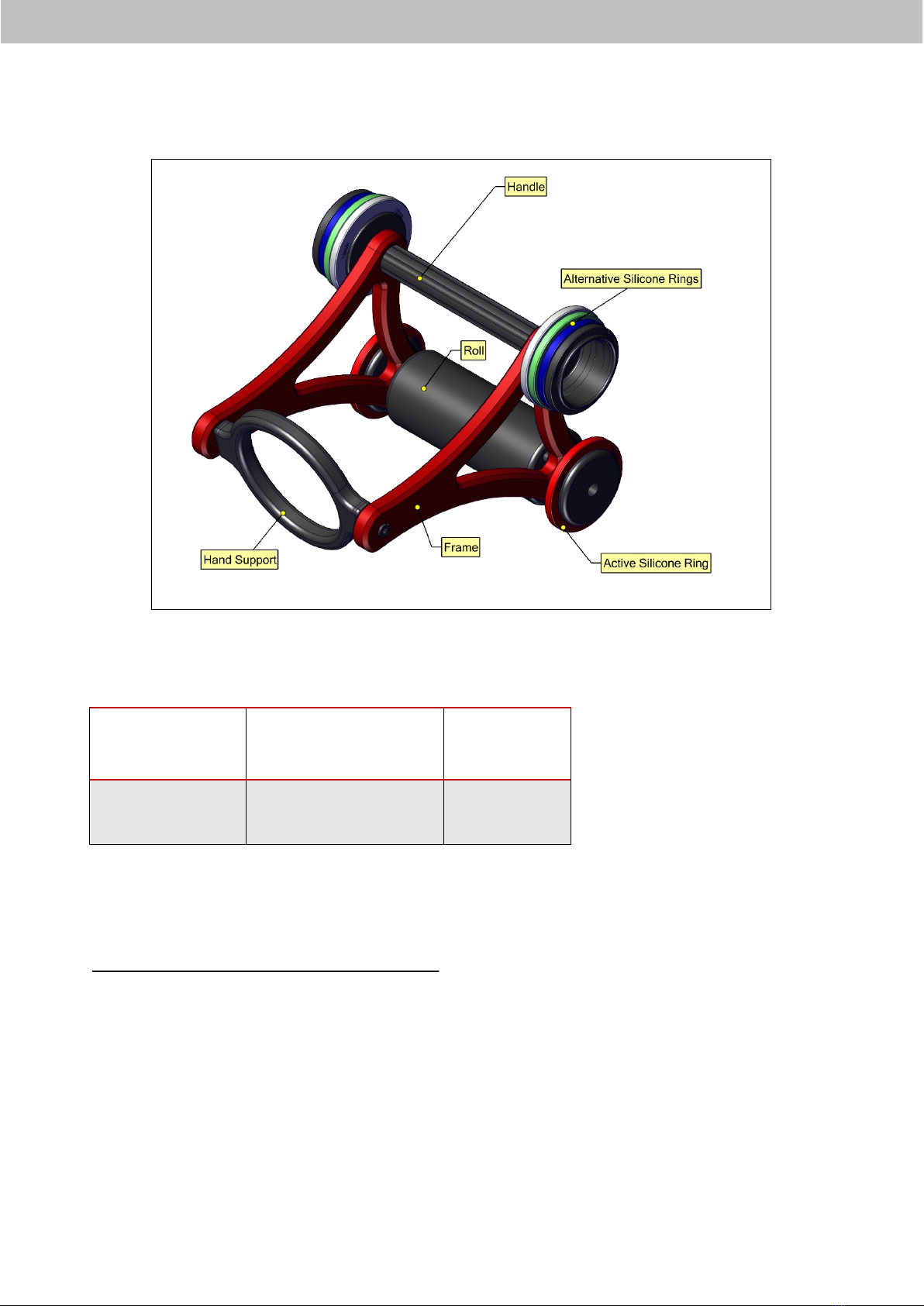

TECHNICAL DATA
Size
(mm/inches)
Pipe Diameter
(mm/inches)
Weight
(kg/lbs)
336x333x263
13.2”x13.1”x10.4”
DN50-DN100 (2”-4”) 4.0 (8.8)
INTENDED USE
This equipment is intended for the following uses:
Impregnaon of liners by spreading the resin evenly inside the liner.
GENERAL INFORMATION

6
OPERATING INSTRUCTIONS
Before operaon:
• Before beginning to impregnate the liner, always make sure that the working area
is properly venlated or use an air respirator system.
• Ensure enough space and even surface for use of Picote Liner Glider.
• Always read and understand the resin safety data sheet before rst use.
• Use proper chemical resistant gloves when handling the resin.
• Select the correct size silicone rings for the liner. See your liner manufacturer data sheets for more
informaon.
• If work takes place in warm condions, make sure you have ice or other coolants available to ensure
sucient working me for preparing and installing the lining.
During work:
• Do not overll the lining to be impregnated. Add the resin in a controlled manner and use the Liner
Glider to spread the resin evenly inside the lining.
• The lining needs to be properly weed out. Dry locaons will create weak points in structure aer the
liner is cured. Check the prepared lining carefully, ensuring that the colour of the lining is constant
throughout its length.
• Avoid using too much resin to avoid possible spills and excess resin slugs in the rehabilitated pipe.
SELECTING THE SILICONE RING
There are ve (5) dierent size silicone rings available with the Liner Glider. Instrucons for changing sili-
cone rings are presented on pages 7-9. The ring size table is shown below.
Silicone Ring Colour Gap
(mm)
Lining Thickness
(mm)
Black 6mm 3mm
Blue 7mm 3.5mm
Red 8.5mm 4.25mm
Green 10mm 5mm
White 12mm 6mm

7
CHANGING THE SILICONE RINGS
Select the correct size silicone rings according to the lining manufacturer instrucons.

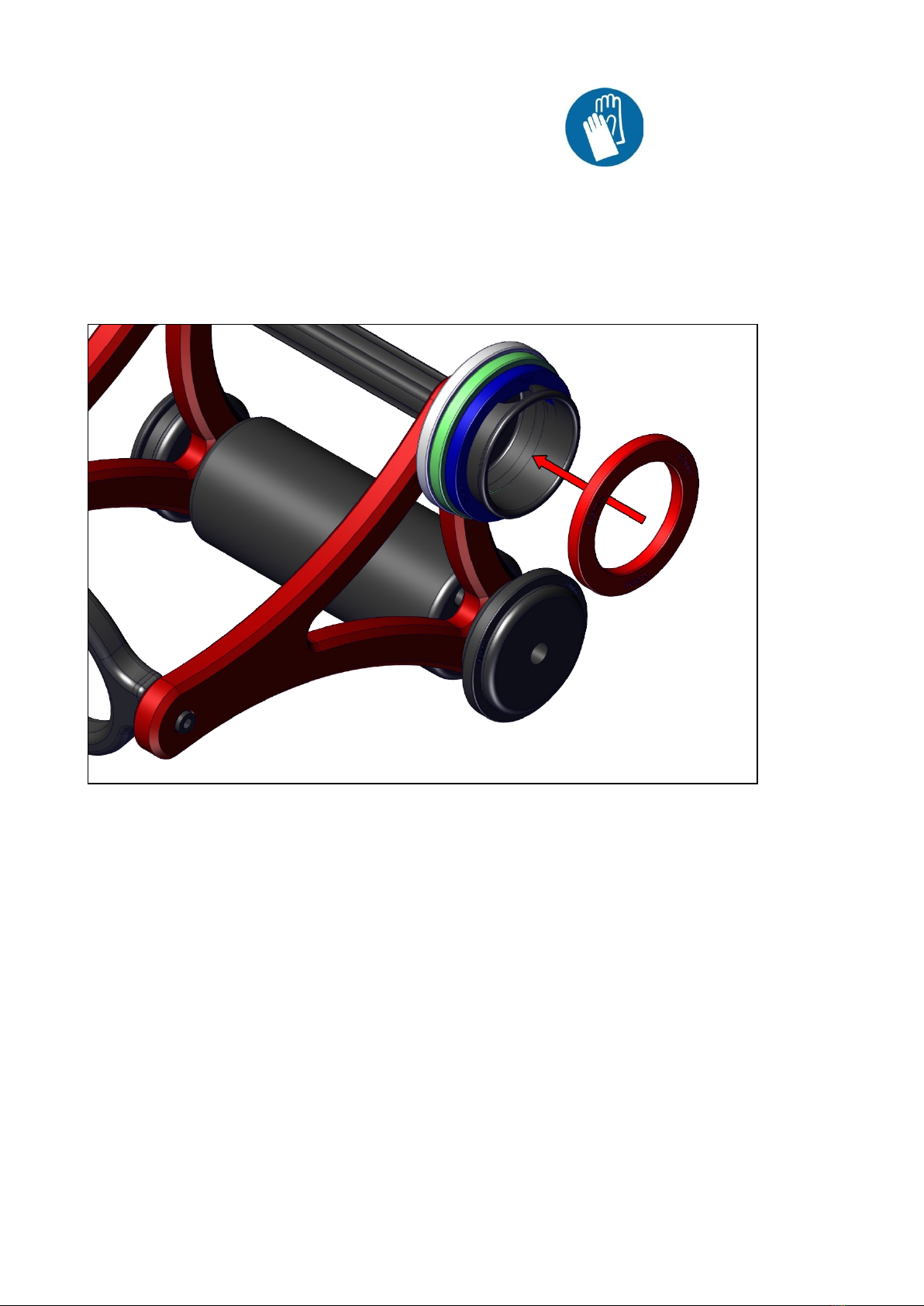

Step 1. To exchange or replace the silicone rings simply pull them out o the roller as indicated in the
gure below. Repeat for the other side.

8
CHANGING THE SILICONE RINGS
Step 2. Pull the correct size silicone rings from the storage rack on each side the handle.
Step 3. Add the correct size silicone rings to the roller. Repeat for the other side.

9
CHANGING THE SILICONE RINGS
Step 4. Push the remaining silicone rings onto each side of the storage rack so they are secured
on the Liner Glider.

10
MAINTENANCE
Carefully inspect the silicone rings and the roller part to ensure that there are no signs of
damage. Replace when required.
If there is problem that you cannot solve using this manual, please consult your Picote Reseller or Picote Soluons
Only use genuine Picote Soluons accessories, aachments, and replacement parts
provided from an authorised reseller. The use of other accessories or aachments could
present a risk of serious injury. Accessories, aachments, and parts should only be installed and used as
intended and indicated in this manual.
ACCESSORIES & SPARE PARTS
PART # DESCRIPTION
2380000000 Picote Liner Glider
238000001 Liner Glider Spare Rings 6mm 2pcs
238000002 Liner Glider Spare Rings 7mm 2pcs
238000003 Liner Glider Spare Rings 8.5mm 2pcs
238000004 Liner Glider Spare Rings 10mm 2pcs
238000005 Liner Glider Spare Rings 12mm 2pcs
900001327 Roll for Picote Liner Glider
For informaon about product training and support please contact your authorised Picote Reseller or
Picote Soluons: training@picotesoluons.com
TRAINING

11
WARRANTY POLICY AND PROCEDURE
Limited Warranty:
Picote warrants to the original End User that the Product purchased by such End User will operate in
accordance with and substanally conform to their published specicaons when shipped or otherwise
delivered to the End User and for a period of one (1) year, except electric motors for which the warranty
period shall be six (6) months, provided, however, that Picote does not warrant any claim or damage under
this
Warranty if such claim or damage results from:
1. Consumable parts or normal wear and tear resulng from use of the Products,
2. Product overload or overheated motor,
3. Regular periodic maintenance of Products,
4. Misuse, neglect, or improper installaon or maintenance of the Products, or use of Products
not for their intended purpose,
5. Products that have been altered, modied, repaired, opened or tampered with by anyone
other than Picote or an authorized Picote Service Centre, or unsuitable or unauthorized spare
parts, accessories or third party products when using the Products or;
6. the use of the Products not in compliance with their respecve Documentaon, user manuals,
safety and maintenance instrucons, and any usage restricons contained therein, or
7. accident, re, power failure, power surge, or other hazard.
Otherwise, the Products are sold AS IS. End User is responsible for using the Products within
their specicaons and instrucons as contained in the Documentaon.
EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR IMPLIED CONDITIONS,
REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT,
SATISFACTORY QUALITY OR ARISING FROM A COURSE OF DEALING, LAW, USAGE, OR TRADE PRACTICE,
ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE LAW. TO THE EXTENT AN IMPLIED
WARRANTY CANNOT BE EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO THE WARRANTY
PERIOD. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY. This disclaimer and exclusion shall
apply even if the express warranty set forth above fails of its essenal purpose.

12
Date: 13 MAR 2019 Rev. 2
Author: Mikko Langvik
Accepted: Dawn Greig
Date: 13 MAR 2019
