DISCLAIMER
The PSHV series winch is a powerful tool and must be used with extreme care. Deviating from the manual’s
instructions may cause personal injury. You may void your warranty if you do not follow the precautions and
guidelines outlined in this manual. Keep this manual in a safe place to reference safety and installation
instructions, maintenance guidelines and operating recommendations. The owner, operator, and installer must
read the entire manual before operating the winch.
SHIPMENT CONTENTS RECOMMENDED TOOLS
1 – winch
8 – bolts
8– lock washers
1 – owner’s manual
• 3/4” wrench or socket
• 13/16” wrench or socket
• 15/16” wrench or socket
• crowbar
• gloves
• safety glasses
• tree saver strap
• safety cut off switch
• rst aid kit
• bow shackles
• chains or straps
• wheel blocks or chocks
• heavy blanket
• torque wrench
SAFETY WARNINGS
DRESS PROPERLY DO NOT ABUSE THE WIRE ROPE
• DO NOT wear loose tting clothing or jewelry.
• Tie back long hair.
• Wear leather gloves when handling the wire
rope.
• Wear non-skid footwear during winch operation.
• Wear eye and ear protection during operation.
KEEP A SAFE DISTANCE
• DO NOT step over or under the wire rope.
• All onlookers must keep away from the work
area.
• Never work on or around the winch drum when
the winch is operating.
• DO NOT alter your winch in any way. Alterations
may weaken the structural integrity of the winch
and void your warranty.
• Operate your winch with an unobstructed view.
• Never carry your winch by the wire rope.
• Never yank the wire rope from the winch.
• Keep the wire rope from heat or sharp edges.
• The cable must be spooled from the bottom
of the drum.
DO NOT OVERWORK YOUR WINCH
• DO NOT maintain power if the motor stalls.
• DO NOT exceed maximum line pull ratings.
• DO NOT overload your winch’s pulling capacity.
We recommend the use of a pulley block to
double line the wire rope on heavy loads.
3

SAFETY WARNINGS (continued)
DO NOT MISUSE YOUR WINCH
• DO NOT lift items vertically. The winch was
designed for horizontal use only.
• DO NOT operate the winch with less than eight
wraps on the drum. The set screw on the drum is
not designed to hold pull force of cable.
• DO NOT use to hold or secure a load. The winch
is not to be used as a tie down.
• Avoid continuous pulls from extreme angles.
This will cause the wire rope to jam as it piles
up on one side.
• Use a nylon sling when winching. Hooking
the wire rope to itself will cause considerable
damage to the wire rope.
• DO NOT move your vehicle to assist the winch in
pulling the load. The combination of the winch
and vehicle pulling could overload the wire rope
and winch.
• Never release the free spool clutch when a load
is connected to the winch.
• DO NOT exceed pulling limitations of winch.
• DO NOT shock loads when winching. A shock
load occurs when increased force is suddenly
applied to the wire rope.
• DO NOT use your winch as a hoist.
• DO NOT use your winch to lift, support, or
transport people.
• DO NOT alter the warning instruction labels.
• DO NOT overheat your winch. Use your winch
intermittently.
• Only use your winch for direct winching. Do
not use your winch for jerking loads, towing, or
securing a load. Any damage incurred as a result
of such action will void the warranty.
• DO NOT winch near electrical power lines.
AVOID UNINTENTIONAL STARTING
• The winch clutch must be disengaged when not
in use and fully engaged when in use.
• Power must be disconnected when not in use.
MAINTAIN YOUR WINCH
• Check your winch carefully before each use.
• Damaged equipment must be properly
repaired or replaced by the manufacturer or an
authorized service center.
• Inspect and maintain the wire rope and winch
frequently.
• Replace frayed rope strands immediately.
• Use only factory approved switches, remote
controls, and accessories.
• Check the tightness of the mounting bolts and
electrical connections periodically.
RE-SPOOL THE WIRE ROPE
• Wear leather gloves while re-spooling.
• DO NOT allow the wire rope to thread through
your hand without a glove.
• Keep a slight load on the wire rope while
re-spooling. Hold the wire rope with one gloved
hand and the remote control in the other.
4

INSTALLATION
MOUNTING
• Before installation, ensure the mounting frame
in use is capable of withstanding the winch’s
rated capacity.
• Ensure the motor, wire rope, drum, and gear
housing is properly aligned.
• Mount winch to a hard and at surface.
• Winch should be mounted as close to center and
as perpendicular as possible to the direction of
the line pull.
• Wound wire rope in an under-wound orientation
only.
• Use the following high tensile G8 steel bolts:
• PSHV10000: Eight (8) 1/2 - 13 (56 lb/ft)
• PSHV15000: Eight (8) 9/16 - 12 (90 lb/ft)
• PSHV18000: Eight (8) 9/16 - 12 (90 lb/ft)
• PSHDH20000: Eight (8) 5/8 - 11 (159 lb/ft)
• PSHDH30000: Eight (8) 5/8 - 11 (159 lb/ft)
• It is always required to use both tie bars in the
nal installation conguration.
• Mount the roller guide in front of the winch.
Do not attach the roller guide to the winch.
This will void the warranty.
• The cable must be spooled from the bottom
of the drum.
• Do not mount the winch backwards and reinstall
cable to come from bottom. It MUST be installed
as it lays from the factory. (see image to right)
HYDRAULIC CONNECTIONS
• 2x male JIC ttings on the motor (8MJIC)
TORQUE CHART
WINCH BOLT TORQUE
PSHV10000 1/2”-13 56 lb/ft
PSHV15000 9/16”-12 90 lb/ft
PSHV18000 9/16”-12 90 lb/ft
PSHDH20000 5/8”-11 159 lb/ft
PSHDH30000 5/8”-11 159 lb/ft
5

SPOOLING
WIRE ROPE PREPARATION
NOTE: The rst use of your winch must be a test
run during a non-recovery situation. During this
trial run begin to recognize the sound of a steady
pull, a heavy pull, load jerking or shifting.
• Spool the wire rope.
• Wear leather gloves while spooling. DO NOT
allow the wire rope to thread through your hand
without a glove.
• Unwind the wire rope carefully along the oor
to avoid kinking.
• Step 1 Make sure the winch is facing the proper
way. with the clutch side being the left side of
the winch and the motor side being the right.
(See step 1)
• Step 2 Thread the end of the cable from the
front, UNDER the drum, and up the back side
placing the end of the wire rope in to the hole at
the end of the drum. The wire rope will protrude
½”- 1”. Tighten the set screw to hold the cable in
place.
• Keep a slight load on the wire rope while
spooling. If you are facing it from the front the
drum will spin down TOWARDS you. Spool the
wire rope until the red cable is fully spooled at
approximately ve wraps.
• Under a load of 500 lbs (230 kg) nish spooling
the wire rope. This will stretch the new wire
rope and create a tight wrap around the drum.
• If there is a rope pile-up on one end of the drum,
reverse the winch to relieve the load and move
your anchor point further toward the center of
the load. Then you can re-wind for a neat layer
of the rope.
• Spool the wire rope on to the drum until the
load is recovered. During operation, make sure
the wire rope lays smoothly on to the drum
without spacing or overlapping.
STEP 1
STEP 2
STEP 3
STEP 4
Front
Back
6

OPERATION
• Apply the parking brake or lock the wheels.
• While the clutch is in the OUT position, spool
the winch cable and connect to an anchor point.
• Check cable rigging before proceeding.
• Plug in the winch remote control.
• Engage the clutch by shifting it into the IN
position. NOTE: When the clutch is engaged,
your load may begin to drift until the remote
is used to recover your load. To ensure safe
operation, it is recommended that winch
operation take place from the driver’s position.
• Start vehicle engine, select neutral or park and
maintain idle engine speed.
• Using the remote control, press IN or OUT until
the vehicle has been retrieved. Regularly check
the winch to ensure the cable is winding onto
the drum evenly. It is recommended you secure
the load using chains or straps at this point.
• Detach the load.
• Re-spool the wire rope after winch operation is
complete.
MAINTENANCE
NOTE: It is highly recommended that you regularly use your winch. Simply power the cable out 15 feet, free
spool ve feet and power in. This will keep all components in good condition so that the winch can be ready
when needed. Contact the manufacturer or authorized outlet for technical assistance and repairs.
LUBRICATION
• The gearbox has been lubricated using high
temperature lithium grease at the factory. No
internal lubrication is required.
• Lubricate cable periodically using light
penetrating oil. Inspect for broken or worn
strands and replace if necessary.
SPARE PARTS
• A comprehensive range of spare parts is
available. Please contact the manufacturer,
Pierce Arrow at 940-538-5643 for more
information.
• DO NOT attempt to disassemble the gearbox.
Disassembly may void the warranty. Call Pierce
Arrow at 940-538-5643 before repairs are made.
ROPE
• Use aircraft grade cable or approved and rated
synthetic rope.
• The life of the rope is directly related to the use
and care it receives.
• Replace damaged or frayed rope with
manufacturer’s identical replacement part.
• Be sure the rope is in good condition and is
properly attached.
• DO NOT use the winch if the rope is frayed.
• DO NOT replace the cable with a cable of lesser
strength.
• When the rope is replaced, apply Loctite 7471
primer or 222 Threadlocker to the wire rope
clamp to prevent loosening of the screw.
7

SPECIFICATIONS
PSHV10000 PSHV15000 PSHV18000 PSHDH20000 PSHDH30000
RATED LINE PULL 10,000 lbs 15,000 lbs 18,000 lbs 20,000 lbs 30,000 lbs
LINE SPEED 46 fpm @ 15.9 gpm 30 fpm @ 15.9 gpm 23 fpm @ 15.9 gpm 23 fpm @ 15.9 gpm 16 fpm @ 15.9 gpm
OPERATION PRESSURE 2,175 psi 2,175 psi 2,175 psi 2,500 psi 2,540 psi
MAX OIL FLOW 15.9 gpm 15.9 gpm 15.9 gpm 15.9 gpm 15.9 gpm
HYDRAULIC MOTOR 5.9 in3 / rev 7.6 in3 / rev 9.5 in3 / rev 9.5 in3 / rev 9.5 in3 / rev
GEAR RATIO
two-stage
planetary gear
16:1
two-stage
planetary gear
16:1
two-stage
planetary gear
19.4:1
two-stage
planetary gear
30:1
two-stage
planetary gear
41:1
WINCH
CONSTRUCTION
aluminum die cast
housings with
steel drum
aluminum die cast
housings with
steel drum
aluminum die cast
housings with
steel drum
aluminum die cast
housings with
steel drum
aluminum die cast
housings with
steel drum
CLUTCH rotating ring gear rotating ring gear rotating ring gear output shaft
disengaged air spool
output shaft
disengaged air spool
BRAKE
spring applied
drag brake together
with over-center
valve, supplied
spring applied
drag brake together
with over-center
valve, supplied
spring applied
drag brake together
with over-center
valve, supplied
multidisc brake multidisc brake
ROTATION OF WINCH underwound underwound underwound underwound underwound
DRUM BARREL DIAMETER 4” 4” 4” 5.8” 6”
DRUM FLANGE DIAMETER 7.9” 9.9” 9.9” 12.4” 13.5”
DISTANCE BETWEEN FLANGES 10” 10” 10” 14” 14”
MOUNTING BOLTS
PATTERN
11.5” x 6.7”
14.7” x 4.5”
12” x 4.5”
14.5” x 6.7”
12” x 4.5”
14.5” x 6.7”
18” x 7.5”
18” x 10.5”
18” x 7.5”
18” x 10.5”
RECOMMENDED
WIRE ROPE 3/8” x 100’ 1/2” x 150’ 1/2” x 150’ 9/16” x 250’ 5/8” x 250’
WINCH WEIGHT 81.4 lbs 158.7 lbs 158.7 lbs 331 lbs 434 lbs
GROSS WEIGHT 102.5 lbs 194 lbs 194 lbs 380 lbs 518 lbs
WINCH DIMENSIONS (LxWxH)24.6” x 9.4” x 9.7” 26.9” x 11.4” x 11.3” 27.1” x 11.4” x 11.3” 34.6” x 14.6” x 13” 41” x 25” x 20”
BOX DIMENSIONS
(LxWxH)26.2” x 14.6” x 11.2” 28.1” x 16.3” x 12.2” 28.1” x 16.3” x 12.2” shipped in crate or
pallet individually
shipped in crate or
pallet individually
8

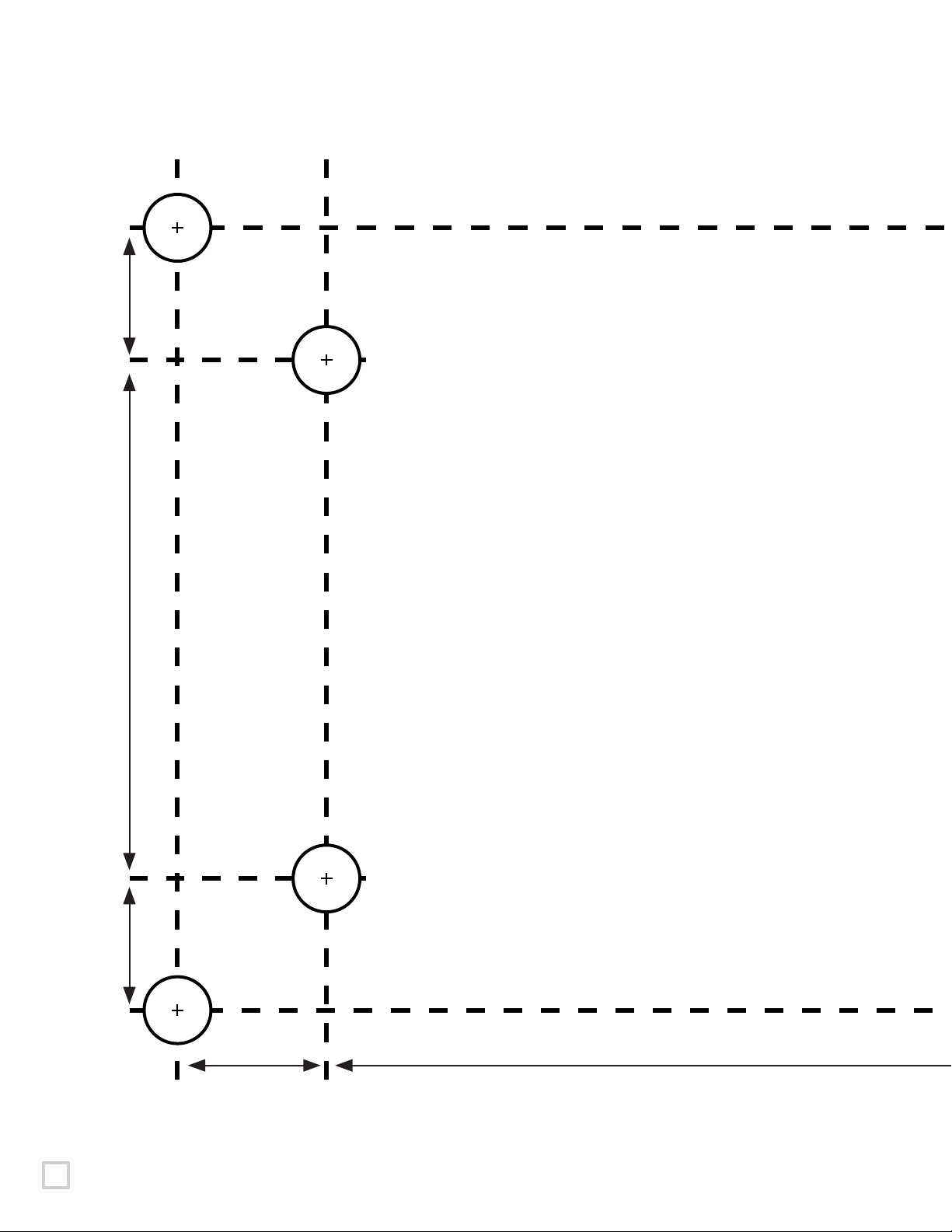

PSHV10000 FOOTPRINT
41.3mm (1.63”)
8-Ø11mm (0.43”)
YOU MAY REMOVE THIS PAGE
9

28.5mm (1.12”) 28.5mm (1.12”)114.3mm (4.50”)
32.5mm (1.28”) 303.5mm (11.95”)
10

PSHV15000 / PSHV18000 FOOTPRINT
32.5mm (1.28”)
8-Ø16mm (5/8”)
YOU MAY REMOVE THIS PAGE
11

28.5mm (1.12”)28.5mm (1.12”) 114.3mm (4.50”)
41.3mm (1.63”) 291.6mm (11.48”)
12

#DESCRIPTION PART N0. QUANTITY
1 hydraulic motor kit 880162 1
2over center valve 883314 1
3 motor support rack 882093 1
4 tie bar kit 880163 1
5 tie bar kit 881172 1
6 drum bushing 880048 2
7 drum kit 881173 1
8 connecting shaft kit 880165 1
9 gearbox support rack 881135 1
10 second stage carrier 881253 1
11 rst stage carrier 880153 1
12 ring gear 880154 1
13 rst shaft kit 880155 1
14 clutch kit 880156 1
15 gearbox kit 881315 1
16 drag brake kit 881338 1
17 brake disc 881127 1
18 brake spring 881128 1
19 brake cover kit 881317 1
20 roller fairlead 880180 1
LINE SPEEDS & DIMENSIONS
PSHV10000
LAYERS
OF WIRE
ROPE
PULL
(LBS)
WIRE
ROPE
(FT)
SPEED @
15.9 GPM
(FPM)
1 10,000 26.2 46
2 8,369 57.4 53.5
3 7,196 89 62.3
PARTS DIAGRAM
PSHV10000
1/2”-13
13

#DESCRIPTION PART N0. QUANTITY
1 hydraulic motor kit 880182 1
2over center valve 883314 1
3 motor support rack 880279 1
4 tie bar kit 880130 1
5 tie bar kit 880131 1
6 drum bushing 880282 2
7 drum kit 880167 1
8 connecting shaft kit 880168 1
9 gearbox support rack 882290 1
10 second ring gear kit 882292 1
11 second stage carrier 880171 1
12 rst stage carrier 880172 1
13 gear box kit B 882306 1
14 rst shaft kit 880174 1
15 clutch kit 882214 1
16 gearbox kit 882307 1
17 drag brake kit 881339 1
18 brake disc 881175 1
19 brake spring 881128 1
20 brake cover kit 882308 1
21 roller fairlead 880180 1
LINE SPEEDS & DIMENSIONS
PSHV15000
LAYERS
OF WIRE
ROPE
PULL
(LBS)
WIRE
ROPE
(FT)
SPEED @
15.9 GPM
(FPM)
1 15,000 23.3 30
2 12,273 51.5 35.8
3 10,390 85 42
PARTS DIAGRAM
PSHV15000
14

#DESCRIPTION PART N0. QUANTITY
1 hydraulic motor kit 880182 1
2over center valve 883315 1
3 motor support rack 882017 1
4 tie bar kit 880130 1
5 tie bar kit 880131 1
6 drum bushing 880282 2
7 drum kit 882018 1
8 connecting shaft kit 880168 1
9 gearbox support rack 882304 1
10 second ring gear kit 882292 1
11 second stage carrier 880171 1
12 rst stage carrier 880172 1
13 gear box kit B 882306 1
14 rst shaft kit 880174 1
15 clutch kit 882214 1
16 gearbox kit 882307 1
17 drag brake kit 881339 1
18 brake disc 881175 1
19 brake spring 881128 1
20 brake cover kit 882308 1
21 roller fairlead 880180 1
LINE SPEEDS & DIMENSIONS
PSHV18000
LAYERS
OF WIRE
ROPE
PULL
(LBS)
WIRE
ROPE
(FT)
SPEED @
15.9 GPM
(FPM)
1 18,000 23 23
2 14,775 51 29
3 12,529 85 34
PARTS DIAGRAM
PSHV18000
15

#DESCRIPTION PART N0. QUANTITY
1hydraulic motor kit,
OMP-160 882186 1
2 multi-disc brake kit 881971 1
3 motor support rack 882142 1
4 motor coupling kit 881973 1
5 drum bushing 880187 1
6 drum 882182 1
7 tie bar 882189 2
8 gearbox support rack 882144 1
9 second stage carrier 882145 1
10 rst stage carrier 882146 1
11 rst shaft kit 882183 1
12 rst gear 882052 1
13 rst and second ring
gear kit 882148 1
14 gearbox rear cover kit 882149 1
15 air inlet cover kit 881982 1
16 cable tensioner 882195 1
17 Roller fairlead 882238 1
LINE SPEEDS & DIMENSIONS
PSHDH20000
LAYERS
OF WIRE
ROPE
PULL
(LBS)
WIRE
ROPE
(FT)
SPEED @
15.9 GPM
(FPM)
1 20,000 23 23
2 17,017 49 27
3 14,813 79 31
PARTS DIAGRAM
PSHDH20000
16

#DESCRIPTION PART N0. QUANTITY
1hydraulic motor kit,
OMP-160 882186 1
2 multi-disc brake kit 881971 1
3 motor support rack 881972 1
4 motor coupling kit 881973 1
5 drum bushing 880204 2
6 drum 882188 1
7 tie bar 882189 2
8 gearbox support rack 881976 1
9 second stage carrier 881977 1
10 rst stage carrier 881978 1
11 rst shaft kit 882191 1
12 rst gear 882052 1
13 rst and second ring gear kit 881980 1
14 gearbox rear cover kit 881981 1
15 air inlet cover kit 881982 1
16 cable tensioner 882195 1
17 Roller Guide 882238 1
LINE SPEEDS & DIMENSIONS
PSHDH30000
LAYERS
OF WIRE
ROPE
PULL
(LBS)
WIRE
ROPE
(FT)
SPEED @
15.9 GPM
(FPM)
1 30,000 36 16
2 25,216 82 19
3 21,745 131 23
PARTS DIAGRAM
PSHDH30000
17

LIMITED WARRANTY
Pierce Arrow Inc. warrants that the goods, equipment, and
merchandise manufactured by Pierce Arrow Inc. are free
from defects in material and workmanship. The limited
warranty includes replacement or repair of defective me-
chanical and electrical parts for a period of one year from
the date of shipment by Pierce Arrow Inc.
OBTAINING WARRANTY SERVICE
Pierce Arrow Inc. must be notied of any defect before
repair or replacement may be granted. The merchandise
must be delivered by the purchaser to Pierce Arrow Inc. in
Henrietta,Texas at the purchaser’s expense.Any repairs not
made by Pierce Arrow Inc. are not covered by the limited
warranty and are the responsibility of the purchaser.
Pierce Arrow Inc. reserves the right to repair or replace de-
fective parts or products in its sole discretion. The cost of
any repairs not covered by the warranty will be charged to
the purchaser.
EXCLUSIONS
All Pierce products are manufactured for a specic intend-
ed purpose. The Pierce Arrow Inc. limited warranty does
not cover, and Pierce Arrow Inc. is not liable for, damage
arising from any use other than the specic intended use
of each product.
All coolers manufactured by Pierce are warranted for gen-
eral cooling, and are not guaranteed to produce cooling
sufcient for any specic purpose or for specic tempera-
ture. Pierce is not liable for any injury or damage arising
from insufciently cooled objects placed in the cooler, in-
cluding but not limited to medications and perishables.
The Pierce Arrow Inc. limited warranty does not cover:
• Ongoing maintenance parts or repair due to nor-
mal wear and tear, and
• Any change or defect due to accident, misuse or
any use for which the equipment was not intended,
improper or unauthorized repair, failure to provide
regular maintenance, and deterioration due to
weather or road conditions.
Purchasers should consult their owner’s manual for safety,
installation, operation, and maintenance guidelines.
The Pierce Arrow Inc. limited warranty does not cover pur-
chaser’s cost of labor, transportation, shipping damages,
installation or removal costs, down time, loss of prot or
goodwill, or any other special, incidental, indirect, or con-
sequential damages, concerning or related to any product
or
part, whether based upon negligence, strict liability, breach
of contract, breach of warranty, misrepresentation, or any
other legal theory.
Merchandise manufactured by Pierce Arrow Inc. is not de-
signed or intended for the movement of people and are
not to be used in the operation of elevators or other im-
proper uses. Any improper use of the product may void the
warranty.
OTHER MANUFACTURERS' WARRANTIES
Pierce Arrow Inc. makes no warranty, expressed or implied,
to nished products manufactured or supplied by other
manufacturers, and sold by Pierce Arrow Inc. to the pur-
chaser, including but not limited to, any vehicle to which
our product is afxed and any accessories. Such merchan-
dise is subject to the manufacturer’s warranty only, which
will be provided upon request.
CONDITIONS OF SALE
When placing an order with Pierce Arrow Inc., the terms
and conditions provided for payment, shipping, delivery
and claims create an agreement between the purchaser
and Pierce Arrow Inc. The agreement is to be performed
in Clay County, Texas.
RETURNS: No returns are accepted without prior au-
thorization. All items must be returned in theirentirety.
Please contact a sales representative for authorization.
Upon authorization, returns must be shipped freight
prepaid and may be subject to a 15% restocking fee.
Please do not send returns COD. No returns will be ac-
cepted later than 30 days from the date of invoice.
DAMAGED GOODS: Pierce Arrow Inc. is not responsible
for, and has no liability for:
• Damage arising during shipment
• Any change or defect due to accident, misuse or
any use for which the equipment was not intended,
improper or unauthorized repair, failure to provide
regular maintenance, and deterioration due to
weather or road conditions.
CLAIMS: Claims for breakage or damages during ship-
ment must be made to the carrier at the time of deliv-
ery. If a signature is required, you must notify the driver
and sign that there was damage. You must notify Pierce
Arrow Inc. of the damage promptly so that a claim can
be filed.
18

19

Thank you for choosing PIERCE!
We strive for 100% customer satisfaction. We are committed to excellent customer service because we
are pulling for you.
SHARE YOUR FEEDBACK
LEARN MORE ABOUT PIERCE PRODUCTS
KEEP IN CONTACT
SHIPPING INFORMATION
Are you 100% satised?
• If YES: Please leave us a review on Google at www.piercearrowinc.com
• If NO: Call us at 800-658-6301 or let us know how we can help at www/piercearrowinc.com/contact-us
Pierce Arrow Inc.
549 US Highway 287 South
Henrietta, Texas 76365
www.piercearrowinc.com
www.youtube.com/piercearrowinc
Toll Free:[phone]
Local: [phone]
Fax: [phone]
We’d be happy to send you a catalog. Or call our team today with further questions.
Check out our resource library to access Pierce specication sheets, wiring diagrams, and manuals.
https://www.piercearrowinc.com/documents/
R
PULLING FOR YOU
Contact us – call, email, fax, telegraph, morse code.
Our sales team and technical service reps are ready and here to help you.
Open Monday – Friday 8 a.m.– 5 p.m. CST.
All orders placed over the weekend will ship the following Monday unless it’s a holiday.
Orders placed during holidays will ship when we return for work.
20
