Piezotronics IMI Sensors 699B06 User manual

Model 699B06
Calibration shaker
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 800-959-4464
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.imi-sensors.com

The information contained in this document supersedes all similar information that
may be found elsewhere in this manual.
Service –Due to the sophisticated
nature of the sensors and associated
instrumentation provided by PCB
Piezotronics, user servicing or repair is
not recommended and, if attempted,
may void the factory warranty. Routine
maintenance, such as the cleaning of
electrical connectors, housings, and
mounting surfaces with solutions and
techniques that will not harm the
physical material of construction, is
acceptable. Caution should be observed
to ensure that liquids are not permitted
to migrate into devices that are not
hermetically sealed. Such devices
should only be wiped with a dampened
cloth and never submerged or have
liquids poured upon them.
Repair –In the event that equipment
becomes damaged or ceases to
operate, arrangements should be made
to return the equipment to PCB
Piezotronics for repair. User servicing or
repair is not recommended and, if
attempted, may void the factory
warranty.
Calibration –Routine calibration of
sensors and associated instrumentation
is recommended as this helps build
confidence in measurement accuracy
and acquired data. Equipment
calibration cycles are typically
established by the users own quality
regimen. When in doubt about a
calibration cycle, a good “rule of thumb”
is to recalibrate on an annual basis. It is
also good practice to recalibrate after
exposure to any severe temperature
extreme, shock, load, or other
environmental influence, or prior to any
critical test.
PCB Piezotronics maintains an ISO-
9001 certified metrology laboratory and
offers calibration services, which are
accredited by A2LA to ISO/IEC 17025,
with full traceability to SI through
N.I.S.T. In addition to the normally
supplied calibration, special testing is
also available, such as: sensitivity at
elevated or cryogenic temperatures,
phase response, extended high or low
frequency response, extended range,
leak testing, hydrostatic pressure
testing, and others. For information on
standard recalibration services or
special testing, contact your local PCB
Piezotronics distributor, sales
representative, or factory customer
service representative.
Returning Equipment –Following
these procedures will ensure that your
returned materials are handled in the
most expedient manner. Before
returning any equipment to PCB
Piezotronics, contact your local
distributor, sales representative, or
factory customer service representative
to obtain a Return Warranty, Service,
Repair, and Return Policies and
Instructions Materials Authorization
(RMA) Number. This RMA number
should be clearly marked on the outside
of all package(s) and on the packing
Service, Repair, and Return
Policies and Instructions

list(s) accompanying the shipment. A
detailed account of the nature of the
problem(s) being experienced with the
equipment should also be included
inside the package(s) containing any
returned materials.
A Purchase Order, included with the
returned materials, will expedite the
turn-around of serviced equipment. It is
recommended to include authorization
on the Purchase Order for PCB to
proceed with any repairs, as long as
they do not exceed 50% of the
replacement cost of the returned
item(s). PCB will provide a price
quotation or replacement
recommendation for any item whose
repair costs would exceed 50% of
replacement cost, or any item that is not
economically feasible to repair. For
routine calibration services, the
Purchase Order should include
authorization to proceed and return at
current pricing, which can be obtained
from a factory customer service
representative.
Contact Information –International
customers should direct all inquiries to
their local distributor or sales office. A
complete list of distributors and offices
can be found at www.pcb.com.
Customers within the United States may
contact their local sales representative
or a factory customer service
representative. A complete list of sales
representatives can be found at
www.pcb.com. Toll-free telephone
numbers for a factory customer service
representative, in the division
responsible for this product, can be
found on the title page at the front of this
manual. Our ship to address and
general contact numbers are:
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLineSM: [phone]
Website: www.pcb.com
E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354
DOCUMENT REVISION: D
ECN: 46162
Component Name
Hazardous Substances
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical
Connectors
O
O
O
O
O
O
Piezoelectric
Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film
Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above
the limit requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

pcb.com | 716 684 0002
71333
Rev. NR
PORTABLE SHAKER TABLE
PRODUCT MANUAL | MODEL 699B06

Model 699B06 | PCB Piezotronics, Inc.
September 2019 | MAN-0325 revNR
PORTABLE SHAKER TABLE
MODEL 699B06
PRODUCT SUPPORT
For answers to questions about this product, consult this manual or the accessory manual. For additional product
support, contact PCB Piezotronics at 800.828.8840. If it is more convenient, fax your questions or comments to PCB
Piezotronics at 716.684.0987 or email our technical staff at [email protected].
WARRANTY
PCB Piezotronics, Inc. Series 699B Portable Vibration Calibrator & Shaker Table products are warrantied against
defective materials and workmanship for TWO YEARS from the date of shipment, unless otherwise specified. Damage
to equipment caused by incorrect power, misapplication, or procedures inconsistent with this manual are not covered
by warranty. If there are any questions concerning the intended application of the product, contact an Applications
Engineer. Batteries and other expendable accessory hardware items are excluded.
COPYRIGHT
Copyright 2019 PCB Piezotronics, Inc. This manual is copyrighted with all rights reserved. The manual may not be
copied in whole or in part for any use without prior written consent of PCB Piezotronics, Inc.
DISCLAIMER
The following paragraph does not apply in any state or country where such statements are not agreeable with local
law:
PCB Piezotronics, Inc. provides this publication “as is” without warranty of any kind, express or implied, including but
not limited to, the implied warranties of merchantability or fitness for a particular purpose. This document is subject to
change without notice, and should not be construed as a commitment or representation by PCB Piezotronics, Inc.
This publication may contain inaccuracies or typographical errors. PCB Piezotronics, Inc. will periodically update the
material for inclusion in neweditions. Changes and improvements to the product described in this manual may be made
at any time.
TRADEMARKS
ICP®is a registered trademark of PCB Piezotronics, Inc.
Microsoft Excel®is a registered trademark of Microsoft Corporation in the United States and/or other countries.
3425 Walden Avenue
Depew NY, 14043, USA
Phone: [phone]
FAX: [phone]
www.pcb.com
[email protected]

Model 699B06 | PCB Piezotronics, Inc.
Page 3
SAFETY CONDITIONS
Prior to the installation and use of this product, review all safety markings and instructions. PCB Piezotronics, Inc.
equipment has been designed and manufactured for use in an industrial environment to be operated by trained,
qualified personnel.
The following warnings, markings, and cautionary notes are used in the manual and on the equipment:
CAUTIONARY NOTES
Loads of up to 800 grams (28.3 ounces) can be mounted directly to the 699B06 mounting platform. Larger
loads may be applied to the platform, however, if prolonged testing of a heavy load is planned, we recommend
using an external transducer suspension system. Under these conditions the vibration waveform should be
viewed on the oscilloscope to aid in positioning the test transducer and platform to reduce distortion that can
occur with very heavy weights.
The 699B06 should always be operated on a stable, flat surface.
The 699B06 is designed for field test applications but care must be taken to maintain the integrity of the
mounting platform assembly.
Hearing protection recommended when operating the 699B06 for an extended amount of time.
The 699B06 should be used with the supplied 4 GB flash drive. Utilizing flash drives with more memory could
cause the 699B06 to time out and re-start when loading a CALROUTE.
Denotes a Hazard That May Cause Injury, refer to this product manual for further instructions.
PCB Piezotronics, Inc. products, like machinery and equipment with live and moving parts, can be a
source of serious hazards unless properly used and protected. The level of noise may be
unacceptable without protection under certain conditions.
Denotes a Possible Hot Surface, refer to this product manual for conditions that could result in a
hot surface temperature
Denotes a Danger of Electrical Shock. The user is committed to ensure that: The handling,
assembly, installation, connection, maintenance and repair operations are undertaken by qualified
personnel whom by their background, training and experience as well as through their knowledge of
statutory regulations, legislation, safety measures and operating conditions are able to carry out any
necessary steps avoiding all possible risks to health and damage.
Caution! Denotes a hazard that can damage equipment or data

Model 699B06 | PCB Piezotronics, Inc.
Page 4
TABLE OF CONTENTS
1. INTRODUCTION.........................................................................................................5
1.1 WELCOME.................................................................................................................................5

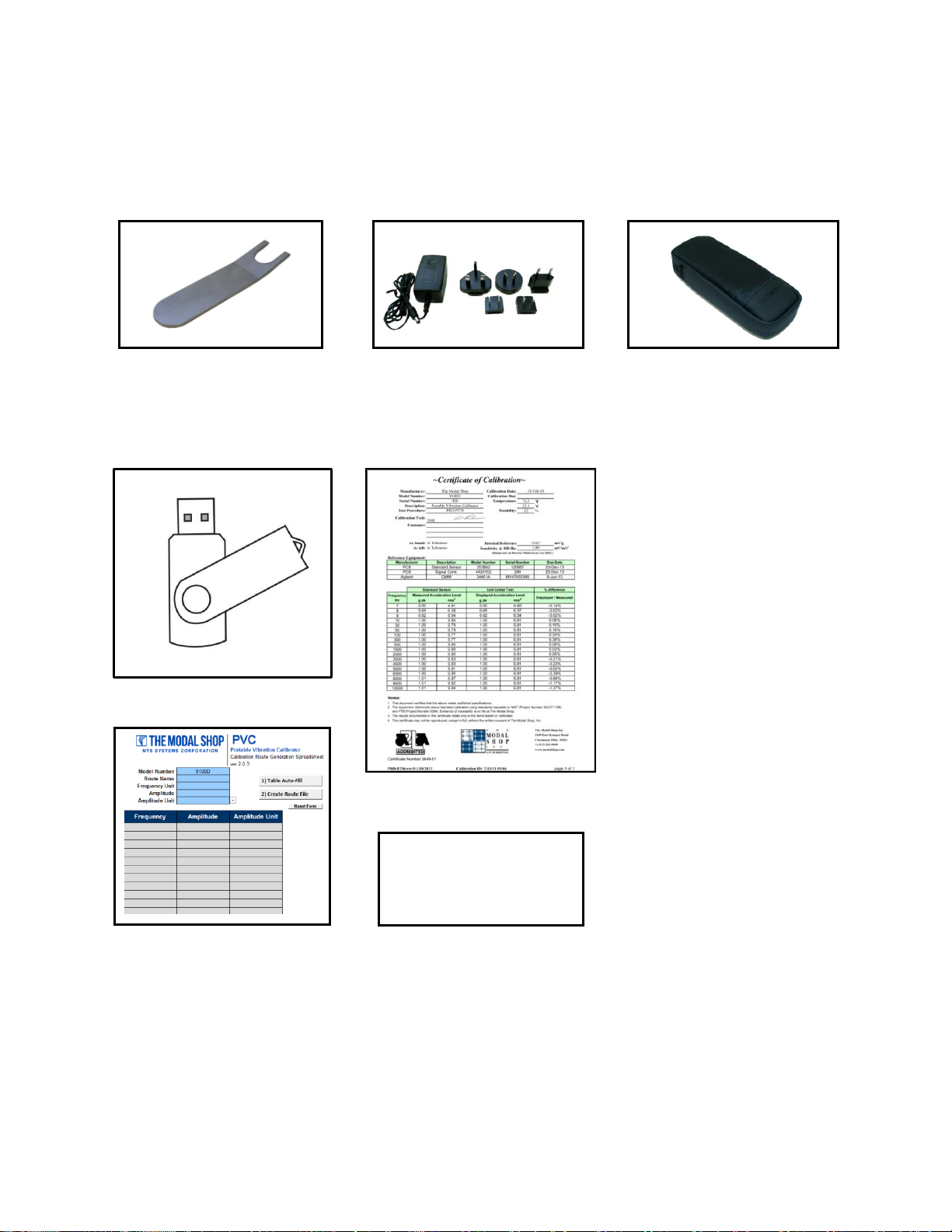

1.2 SUPPLIED ACCESSORIES ......................................................................................................6
1.3 OPTIONAL FIXTURING & ACCESSORIES..............................................................................7
1.4 REPLACEMENT ACCESSORIES.............................................................................................7
1.5 RE-CALIBRATION SERVICES..................................................................................................7
2. 699B06 OPERATION GUIDE .....................................................................................8
2.1 BASIC OPERATION..................................................................................................................8
2.2 ADDITIONAL FEATURES .........................................................................................................9
2.3 CALIBRATION ROUTE ...........................................................................................................10
2.4 DEFINITION OF FREQUENCY UNITS...................................................................................13
2.5 AMPLITUDE BASICS ..............................................................................................................13
2.6 MOUNTING BASICS ...............................................................................................................14
3. THEORY OF OPERATION.......................................................................................16
3.1 INSTRUMENTATION...............................................................................................................16
3.2 BATTERY & CHARGER..........................................................................................................17
3.3 BATTERY INFORMATION & CARE........................................................................................18
4. SPECIFICATION & PERFORMANCE.......................................................................19
4.1 SPECIFICATIONS...................................................................................................................19
4.2 SHAKER LOADING.................................................................................................................21
5. RECOMMENDED PRACTICES................................................................................23
5.1 TESTING THE INTERNAL REFERENCE ACCELEROMETER FOR DRIFT .........................23
5.2 OPERATIONAL VERIFICATION & RECALIBRATION............................................................24
5.3 STANDARD CHECKS FOR TRANSDUCERS........................................................................24
5.4 TYPICAL ACCELEROMETER & VELOCITY SENSOR CHECKOUT.....................................25
5.5 NON-CONTACT DISPLACEMENT SENSOR CALIBRATION................................................27
5.6 NON-CONTACT DISPLACEMENT SENSOR TEST SET-UP ................................................28
5.7 PROXIMITY PROBE DYNAMIC LINEARITY CALIBRATION & CONFIRMATION OF
VIBRATION ALARMS....................................................................................................................30
5.8 TROUBLESHOOTING THE PROXIMITY PROBE SYSTEM..................................................31
5.9 CALIBRATION MOUNTING ADAPTORS................................................................................31
5.10 MAINTENANCE.....................................................................................................................32

Model 699B06 | PCB Piezotronics, Inc.
Page 5
1. INTRODUCTION
1.1 Welcome
Thank you for choosing model 699B06.
The model 699B06 Portable Shaker Table provides a field-tested method for on-the-spot dynamic verification of
accelerometers, velocity pickups and non-contact displacement transducers. Optional mounting fixtures and hardware
needed to connect transducers to the 699B06 mounting platform are available upon request. A closed-loop control
algorithm provides enhanced stability and accuracy of frequency and amplitude levels.
The 699B06 incorporates a built-in sine wave oscillator, power amplifier, electrodynamic shaker, NIST-traceable
reference accelerometer and digital display. The 699B06 is completely self-contained and operates on battery or AC
power.
The built-in reference accelerometer is attached permanently to the shaker armature,maximizing the accuracy between
the reference accelerometer and the test transducer. The 699B06 is designed to provide long-term reliable performance
over the frequency range of 5 Hz to 10 kHz. The 699B06 can be used for a variety of applications that include:
Verification and calibration of vibration transducers and related test systems
Verification of connector and cabling integrity
Confirm machine vibration alarm trip points are set properly and ensure end-to-end functionality of vibration
monitoring systems

Model 699B06 | PCB Piezotronics, Inc.
Page 6
1.2 Supplied Accessories
Accessories pictured below are included with each 699B06 Portable Shaker Table.
Power Supply and Plug Adaptors
(600A25)
A Certificate of Calibration is also
included with every new unit. PCB
Piezotronics recommends annual
recalibration of the 699B06 unit.
The factory service code for the
recalibration is ICS-41.
Mounting Wrench
Accessory Pouch
USB Loaded with CALROUTE
Mounting Accessories
¼-28 to ¼-28 Mounting Stud
(081B20)
10-32 to ¼-28 Mounting Stud
(081A08)
M8 x 1.25 M to ¼-28 M
Mounting Stud (M081A63)
M8 x 1.25 F Thru Hole
Mounting Pad (600A54)
M8 x 1 M to ¼-28 M Mounting
Stud (081M165)
M8 x 1 F Thru Hole Mounting
Pad (600A55)
Mounting Plate, 3- & 4-Hole
High-Temp Vibration Sensors
(600A56)
Mounting Plate, 3- & 4-Hole
High-Temp Vibration Sensors
(600A57)

Model 699B06 | PCB Piezotronics, Inc.
Page 7
1.3 Optional Fixturing & Accessories
For operation in certain applications, such as calibration of non-contact displacement sensors, PCB offers optional
mounting fixturing. Reference the table below when ordering these optional adaptors and accessories.
1.4 Replacement Accessories
1.5 Re-calibration Services
ACCESSORY
DESCRIPTION
600A24
Mounting accessory kit for 699 Series Portable Vibration Calibrators, to adapt to ¼-28
threaded mounting platforms. Includes studs/inserts (¼-28, 10-32, 6-32 and 5-40) and
bases (for adhesive, magnetic, and custom thread patterns).
600B23
Proximity probe adaptor kit, supports probes with common case threads ranging from
M6 to 3/8”. Includes Mitutoyo micrometer (metric) and 699-PPA02 nickel-plated 4140
steel target.
600B22
Proximity probe adaptor kit, supports probes with common case threads ranging from
M6 to 3/8”. Includes Mitutoyo micrometer and 699-PPA02 nickel-plated 4140 steel
target.
080M406
¼” NPT F mounting adaptor to ¼-28 M
600A56
Mounting adapter plate for 3 and 4-hole bolt pattern vibration sensors commonly used
in high-temp applications. Used for mounting sensors made by Bently Nevada, CEC,
Metrix, PCB, Dytran and Endevco to portable vibration calibrators with 1/4-28 F thread
600A57
Mounting adapter plate for 3 and 4-hole bolt pattern vibration sensors commonly used
in high-temp applications. Used for mounting sensors made by Vibro-Meter and PCB to
portable vibration calibrators with 1/4-28 F thread.
600A54
M8 x 1.25 F mounting pad
M081A63
M8 x 1.25 to ¼-28 mounting stud adaptor
600A55
M8 x 1.0 F mounting pad
081M165
M8 x 1 to ¼-28 mounting stud adaptor
ACCESSORY DESCRIPTION
600A25
18 Volt, 1 amp power supply/charger for 699B07 Portable Vibration Calibrator,
universal 100-240 V, 50/60 Hz.
600A26
Replacement battery for 699 Series Portable Vibration Calibrators.
ACCESSORY DESCRIPTION
ICS-41
Calibration of 699 Series Portable Vibration Calibrator

Model 699B06 | PCB Piezotronics, Inc.
Page 8
2. 699B06 OPERATION GUIDE
2.1 Basic Operation
Test Set-Up
Step 1 Mount your sensor to the 699B06 mounting platform.
The 699B06 sensor mounting platform is threaded for a ¼-28 stud. Select an appropriate adaptor
for mounting the sensor.
While tightening the sensor, secure the 699B06 mounting platform with the supplied wrench to
prevent damage to the shaker from torque.
Step 2 Connect sensor signal conditioner and readout device as necessary. Make sure that connections are secure.
Step 3 Power the unit ON by pressing and holding the FREQUENCY dial for 3 seconds.
NOTE: It is good practice to perform calibrations on battery power. Disconnecting from line power ensures a power
surge will not cause the calibrator to power down during test. If excess current is detected during use, the portable
calibrator shuts down to prevent damage.
Setting the Frequency & Amplitude Units
Step 1 Select the correct Frequency Units for your test by pressing the FREQUENCY dial to enter into the
CALIBRATION OPTIONS menu:
Use the FREQUENCY dial to highlight TEST SETTINGS then press.
Within the Test Settings Menu rotate the FREQUENCY dial to highlight FREQUENCY UNIT then
press to toggle between Hertz and CPM.
Step 2 Select the correct Amplitude Units for your test by pressing and releasing the AMPLITUDE dial. The
following options are available:
Step 3 Select the desired vibration amplitude and frequency for testing by turning the AMPLITUDE and
FREQUENCY dials clockwise to increase or counter clockwise to decrease the setting.
Slow Turns –settings will increase or decrease by single steps
Fast Turns –settings will increase or decrease by larger increments
Completing the Test
Step 1 Verify that the level indicated on the 699B06 is the same as the level being shown on the readout of the
sensor under the test
Step 2 Before powering the unit OFF, reduce the vibration amplitude. The 699B06 retains the settings used prior to
shutdown when it ispowered back ON. Reducing the amplitude prior to shutdown ensures the sensor under
test will not be jarred when the 699B06 is powered ON.
Step 3 Power the unit OFF by pressing and holding the FREQUENCY dial for 3 seconds.
To preserve battery charge, the 699B06 will automatically power off after 20 minutes of inactivity
when not plugged into the charger.
ACCELERATION
VELOCITY
DISPLACEMENT
g pk
in/s pk
mils p-p
g RMS
in/s RMS
µm p-p
m/s2pk
mm/s pk
m/s2RMS
mm/s RMS

Model 699B06 | PCB Piezotronics, Inc.
Page 9
After Testing
Step 1 Plug the 699B06 into an AC power source when not in use. This will ensure the batteries are fully charged
for your next test and will also help to maximize the lifespan of the batteries.
Step 2 Periodic calibration checks are recommended.
A dedicated “verification sensor” can be used to check the system readings and results. By using
a dedicated sensor, you can ensure that the system is providing the same result during each test.
Contact PCB Piezotronics for more information on reference accelerometer options.
The 699B06 should be returned to PCB Piezotronics, Inc. for regular recalibration (recommended
annually - Service Code ICS-41) or for any maintenance or repair. The most current factory
recalibration date is displayed on the LCD screen during the 699B06 boot-up sequence.
2.2 Additional Features
Test Settings
The “Test Settings” menu can be found by pressing FREQUENCY dial > “Test Settings.” A screen with the following
will appear, use the FREQUENCY dial to highlight and toggle all settings:
Back –returns user to “Calibration Options” menu
Cal Route: Active or Off
oActive indicates that the 699B06 is currently running a programmed and uploaded CALROUTE.
Turning the FREQUENCY dial will advance the unit from point to point. Turning the AMPLITUDE dial
produces no response in this mode.
oOff indicates that the 699B06 is in manual operation mode. The frequency and amplitude will adjust
if the user turns their respective dials.
Source: Internal or External
oIf external is selected the shaker can be controlled with an external source. See “Input/Output” for
more information.
Frequency Unit: Hertz or CPM (cycles per minute)
Amplitude Units
Amplitude units that are seldom or never used can be turned off by using the “Amplitude Units” feature, found
by pressing FREQUENCY dial > “Amplitude Units.”

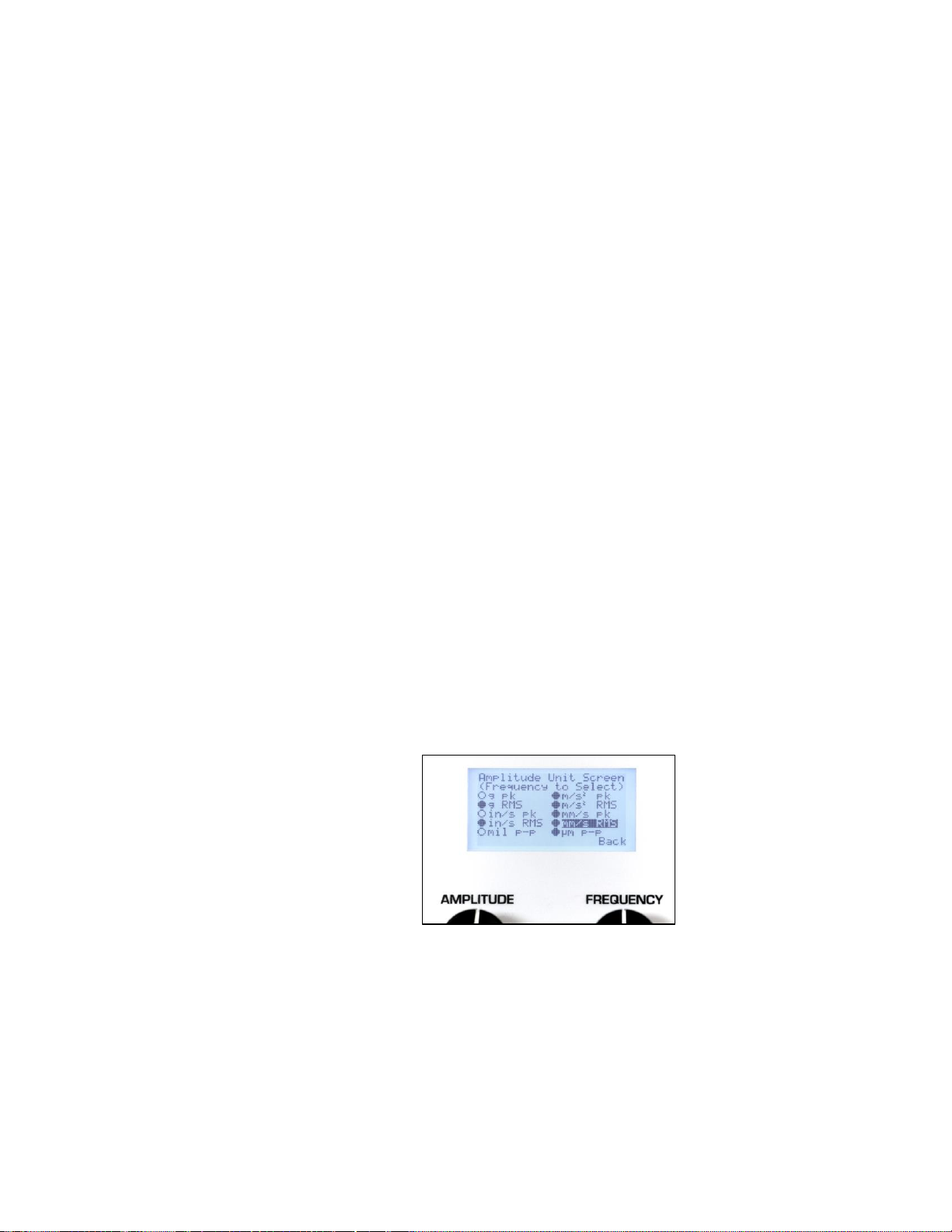

The “Amplitude Unit Screen” shows all 10 available amplitude scales on model 699B06 Portable Shaker Table.
Use the FREQUENCY dial to highlight each scale and press the dial to toggle the scale on or off. A filled circle
next to the scale indicates it is active. An empty circle next to the scale indicates it is inactive. Inactive scales
do not appear when cycling through scales using the AMPLITUDE dial during normal operation.
To go back to the “Calibration Options” menu use the FREQUENCY dial to highlight “Back” then press.

Model 699B06 | PCB Piezotronics, Inc.
Page 10
2.3 Calibration Route
The Calibration Route firmware allows users to create and run semi-automated frequency response and amplitude
linearity tests for vibration sensors on Model 699B06. Tests or “routes” are created in the supplied Microsoft Excel®
“Route Generator” workbook then uploaded to the 699B06 via supplied USB drive. Once uploaded the test is activated.
But the test can also be de-activated at any time, putting the 699B06 back into manual operation mode. When a
Calibration Route is active the 699B06 can only adjust to the pre-defined amplitude and frequency points that have
been programmed.
Creating A New Test (Route)
Version 2010 or later of Microsoft Excel® is required for the CALROUTE features in Route Generator workbook to
operate correctly. Drop-down arrows for frequency and amplitude units may not appear if using older versions of this
software.
Step 1 Open the Route Generator workbook using Microsoft Excel®
Step 2 Route Name: Enter the name of the test in cell B7 next to “Route Name.” When the test file is created and
saved the file name will be this value followed by “_Route.pvc.” The file name must end with _Route.pvc
and the file name cannot contain any special characters such as asterisks or exclamation points.
Step 3 Frequency Unit: Use the drop down arrow to choose the frequency unit (Hertz or CPM) in cell B8. One
cannot toggle between Hertz and CPM during the test.
Step 4 Amplitude Unit: Use the drop down arrow to choose the amplitude unit (g pk, g RMS, m/sec2pk, m/sec2
RMS, in/sec pk, in/sec RMS, mm/sec pk, mm/sec RMS, mils p-p or µm p-p) in cell B10.
Step 5 Amplitude: If desired, enter the amplitude for all test points in cell B9 next to “Amplitude.” This is useful for
a frequency response test where all test points will have the same amplitude value. If creating a linearity
test leave this cell blank since the amplitude values will change for each test point.
Step 6 Press Table Auto-Fill. The grey cells in the table will automatically populate with the values chosen in
steps 3-5. All cells will populate. The table is capable of creating a 30-point test. But any number of test
points can be programmed. Before creating the route file user must delete values in cells for test points
that should not be created (see example).
Step 7 Enter the desired Frequency values for each test point in column A beginning with cell A14. The test will
be conducted in the exact order as programmed. The first test point will be as programmed in row 14; the
next will use row 15 values and so on.
Step 7a The 699B06 can only simulate vibration in CPM values that are multiples of 60. I.e. 1800 CPM, 3600
CPM, 4200 CPM, etc. If a value is entered that is not a multiple of 60, the 699B06 will adjust up or
down to the nearest CPM value that is a multiple of 60.
Step 7b Example: 1900 CPM is entered as a test point. The 699B06 will adjust to 1800 CPM and 1800 CPM
will be displayed.
Step 8 Enter the desired Amplitude values for each test point in column B beginning with cell B14. Skip this step
if all amplitude values have been automatically populated using the Table Auto-Fill button.
Step 9 Delete undesired test points. For example, a 10-point test only requires rows 14-23. The Table Auto-Fill
feature saves typing but one must delete data from cells that are not needed. For a 10-point test, rows 24-
43 should be blank thus they can be highlighted and cleared.
Step 10 Press Create Route File. A .pvc file will be created, save this file to the USB drive in the
Calibration_Route folder.
Step 10a When prompted to save, open the USB Disk
Step 10b Open the CalRecords_PVC folder

Model 699B06 | PCB Piezotronics, Inc.
Page 11
Step 10c Open the Calibration_Route folder
Step 10d Press save
Example Accelerometer Test (Route)
An example of a 10-point accelerometer test, created in the Report Generation Workbook, is shown above. Some
helpful notes…
When run, this test will shake the accelerometer at 1g pk at all points. If the shaker cannot generate 1g pk it
will output the maximum vibration possible given the sensor’s weight and test speed. The shaker will not allow
user to program points that can damage the shaker.
The test will begin at 10 Hz and end at 5000 Hz, with test points at 50,100, 300, 500, 1000, 2000, 3000 and
4000 Hz as well.
The file name will be CaseAccel_Route.pvc, when uploading to the 699B06 one would choose this file.

Model 699B06 | PCB Piezotronics, Inc.
Page 12
Example Proximity Probe Test (Route)
An example of a 10-point proximity probe test, created in the Report Generation Workbook, is shown above. Some
helpful notes…
This test will simulate vibration at 3600 CPM for all test points.
This is a linearity test. Vibration will start at 1.0 mils p-p and escalate to 10.0 mils p-p. The sensor will be
evaluated every 1.0 mils.
The name of the file will be ProxProbe_Route.pvc.
Loading & Activating a Calibration Test (Route)
With the calibration test saved as a .pvc file to the Calibration_Route folder on the USB and the USB inserted into the
port on the 699B06 the following instructions detail how to upload to Model 699B06 and activate:
Step 1 Press the FREQUENCY dial to enter “Calibration Options” menu, rotate to highlight TEST SETTINGS and
press again to enter “Test Settings” menu.
Step 2 Use FREQUENCY dial to highlight and click selection next to “Cal Route:”. Selection will be “Off” or “Active”
depending upon previous status. When clicked user will enter into “Route Option” menu.
Step 3 Use FREQUENCY dial to highlight and click on LOAD FILE FROM USB
Step 4 Up to six route files (tests) are shown. Use FREQUENCY dial to highlight and click on desired file.
Step 5 Display will indicate “Route Load Successful Activate Now?” To activate press the AMPLITUDE dial.
Step 5a To load to memory but not activate the test press FREQUENCY.
The calibration test is now loaded and active. Rotating the FREQUENCY dial allows user to scroll through
programmed test points without saving data. The 699B06 should be used with the supplied 4 GB flash drive. Utilizing
flash drives with more memory could cause the 699B06 to time out and re-start when loading a CALROUTE.

Model 699B06 | PCB Piezotronics, Inc.
Page 13
Executing the Semi-Automated Calibration Test (Route)
The calibration test has been created and saved to the USB. It has also been uploaded and activated in the 699B06
using the previous section. The following instructions detail usage of the 699B06 while the pre-programmed test is
active. To use the 699B06 in manual mode again the calibration route must be de-activated (see next section).
With a Calibration Route active the 699B06 will only cycle to the pre-programmed test points. The
FREQUENCY dial is used to cycle through the test points.
Pressing the amplitude dial will not change amplitude scales while route is active.
Once the Calibration Route is activated, shaker will vibrate at first pre-programmed test point.
Route Option Menu
The Route Option menu is accessed by pressing FREQUENCY dial then using the dial to highlight and click on Test
Settings, then using the dial to highlight the text next to Cal Route: and clicking on it. The menu has the following
functionality and the FREQUENCY dial is used to navigate and select:
Back –returns to Test Settings menu
Activate Route –activates the calibration test stored in memory
Deactivate Route –returns the 699B06 to manual operation, de-activates semi-automated test
Load File From USB –shows a list of up to six pre-programmed tests (routes) read from Calibration_Route
folder on USB drive
Delete Route –returns the 699B06 to manual operation and also deletes the pre-programmed test from
memory
File Information –displays name of semi-automated test, number of test points and date it was created. If no
test is active pressing file while this option is highlighted does nothing.
Eject USB –allows user to safely remove the USB drive from 699B06
2.4 Definition of Frequency Units
Hertz (Hz) is defined as the number of periodic cycles per second and it is a standard unit for measuring signal
frequency.
CPM stands for Cycles Per Minute. CPM is commonly used for testing industrial sensors that monitor rotational
vibration. 1 Hz=60 CPM
2.5 Amplitude Basics

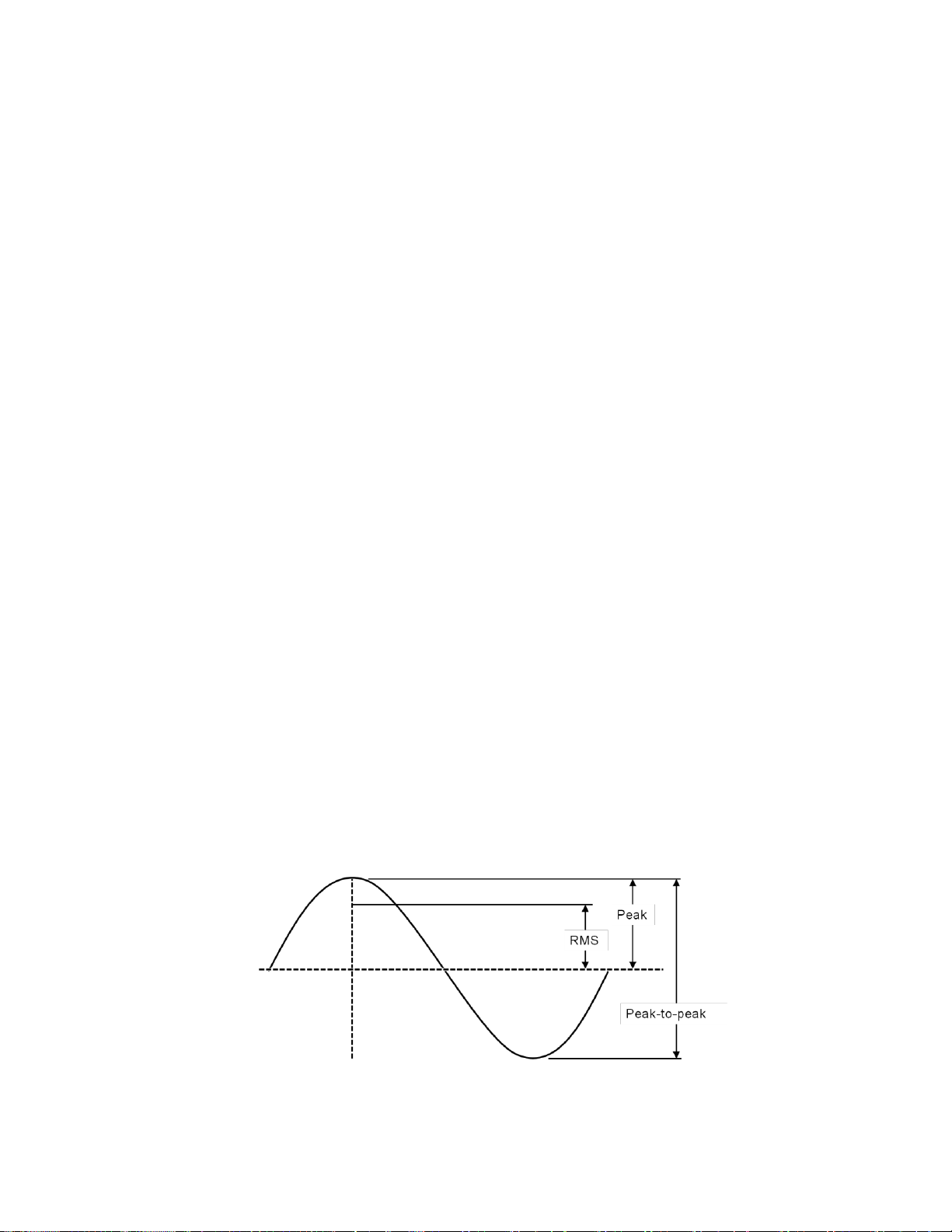

Figure: Sinusoidal Wave

Model 699B06 | PCB Piezotronics, Inc.
Page 14
Root Mean Square (RMS) is a calculation that takes the square root of the average of the squared amplitudes
from a set of data. This type of measurement takes all amplitudes of a signal into account rather than just one,
making it an accurate tool for an overall calculation.
Peak (pk) bases calculations on the highest value of the signal generated during testing. For a sinusoidal
wave (as is produced by the 699B06), the peak value is calculated by RMS*√2. The 699B06 does not measure
a true peak value, but instead estimates the value mathematically based upon the RMS value.
Peak-to-Peak (p-p) is a calculation of the difference between the highest positive peak and the lowest
negative peak of a recorded sine wave. The p-p value is calculated as two times the peak value.
Gravitational acceleration (g) is the acceleration experienced naturally by objects in earth’s gravitational field.
It is approximately equal to 9.80665 m/s2.
2.6 Mounting Basics
Connecting Sensor to 699B06 Platform
Step 1 Mating surfaces of the mounting platform and sensor should be flat, parallel and free of dirt, paint, epoxy,
scratches, etc.
Step 2 Threads in platform, sensor and adaptor (if needed) must match to ensure a proper fit and that testing is
free of errors. Clean any worn threads with a tap or die and coat them in a silicone grease for best results.
Step 3 An adaptor may be needed to connect the sensor to the armature. The 699B06 platform requires a ¼-28
thread.
Step 4 Silicone grease can be applied to the mating surfaces and threads to ensure good mechanical coupling.
This is particularly important when testing at high frequencies.
Step 5 For threaded sensors, please follow the sensor manufacturer’s torque recommendation.
Tightening and Loosening Connections
Step 1 When tightening or loosening the connection between the sensor and the 699B06 mounting platform,
secure the mounting platform with the supplied wrench.
Step 2 It is important to keep sensors and fixtures centered and straight when attaching them to the 699B06
mounting platform. This will ensure a stable, even connection and eliminate potential alignment issues.
External Source Input
As an option, it is possible to drive the 699B06 by using an external signal source or a function generator. First, connect
a signal source to the External Source BNC Input located on the top right corner of the unit. To enable the EXTERNAL
SOURCE IN input, press the FREQUENCY dial to enter the “Calibration Options” menu then rotate FREQUENCY dial
to highlight and click on TEST SETTINGS. Next, use FREQUENCY dial to highlight selection next to “Source:” and
toggle between “Internal” and “External” by pressing the dial, select “External”.
Step 1 When in external signal mode, the vibration amplitude is measured and displayed on the screen, however,
the frequency and amplitude of the shaker is controlled by the external source, not by the 699B06. The
frequency of the input signal is not displayed on this mode.
Step 2 The amplitude and sensitivity values displayed on the screen are for reference only. The measurements
are not accurate while in Ext Sig mode and do not fall under the published specifications for the product.
Caution! Do not exceed 1V RMS! Overdriving the unit may cause clipping, unwanted distortion and
damage to the unit.
Monitor Reference Output

Model 699B06 | PCB Piezotronics, Inc.
Page 15
The 699B06 is controlled by an internal shear mode quartz reference accelerometer. The voltage output of the
reference accelerometer can be monitored through the available Monitor Reference BNC Output by connecting it to a
readout device (e.g. voltmeter or oscilloscope). The nominal sensitivity is 10 mV/g. The exact sensitivity is noted on the
calibration certificate of the 699B06.
USB Connection
The USB connection on the 699B06 serves two purposes:
•The USB connection serves as a power source for optional power supply accessories. Please contact PCB
for more information.
•It is used with the supplied USB flash memory drive to upload CALROUTE pre-programmed tests into the
699B06.
It is also used during the manufacturing and calibration processes.
