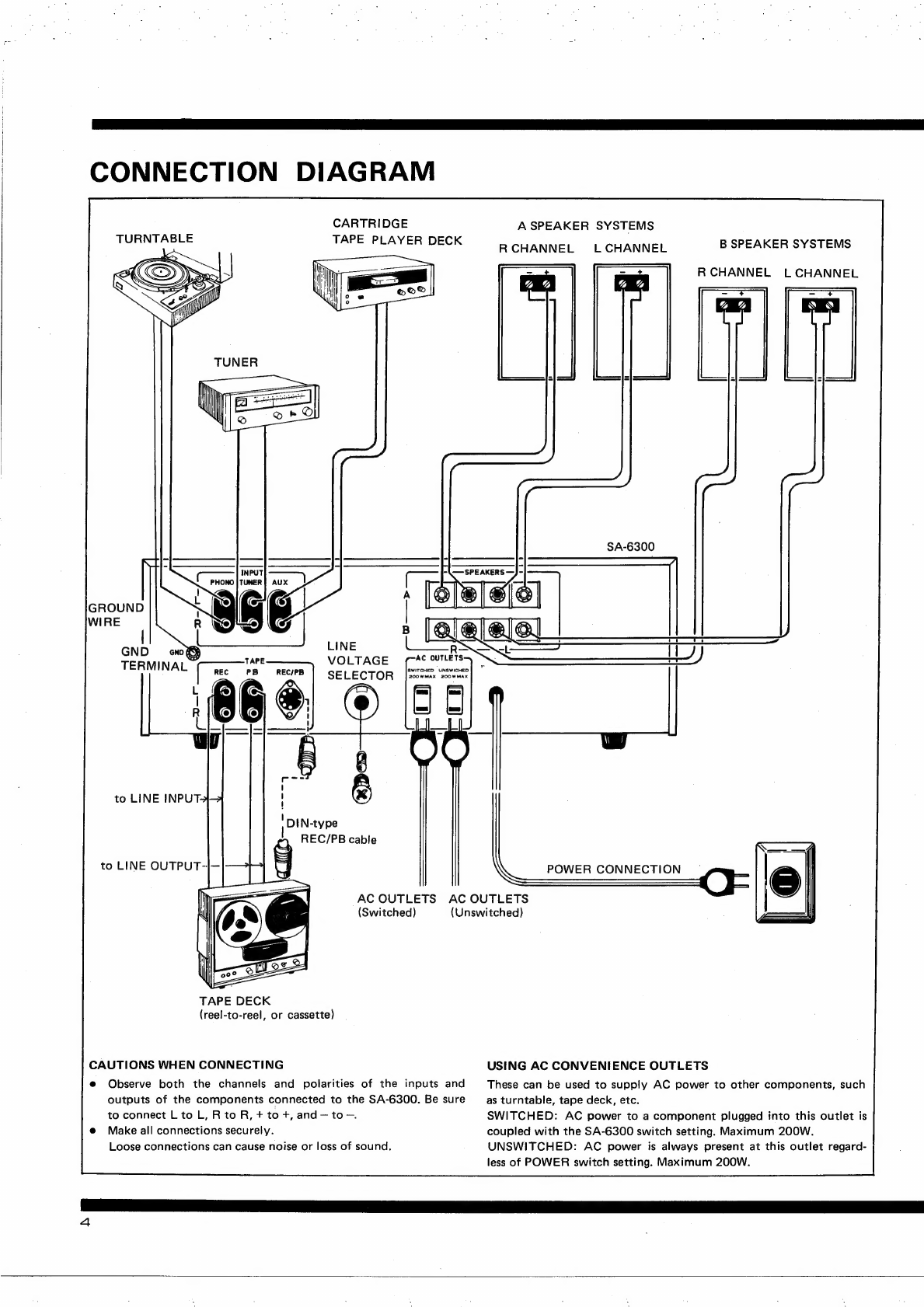

Connection Diagram
Connections
Front Panel Facilities

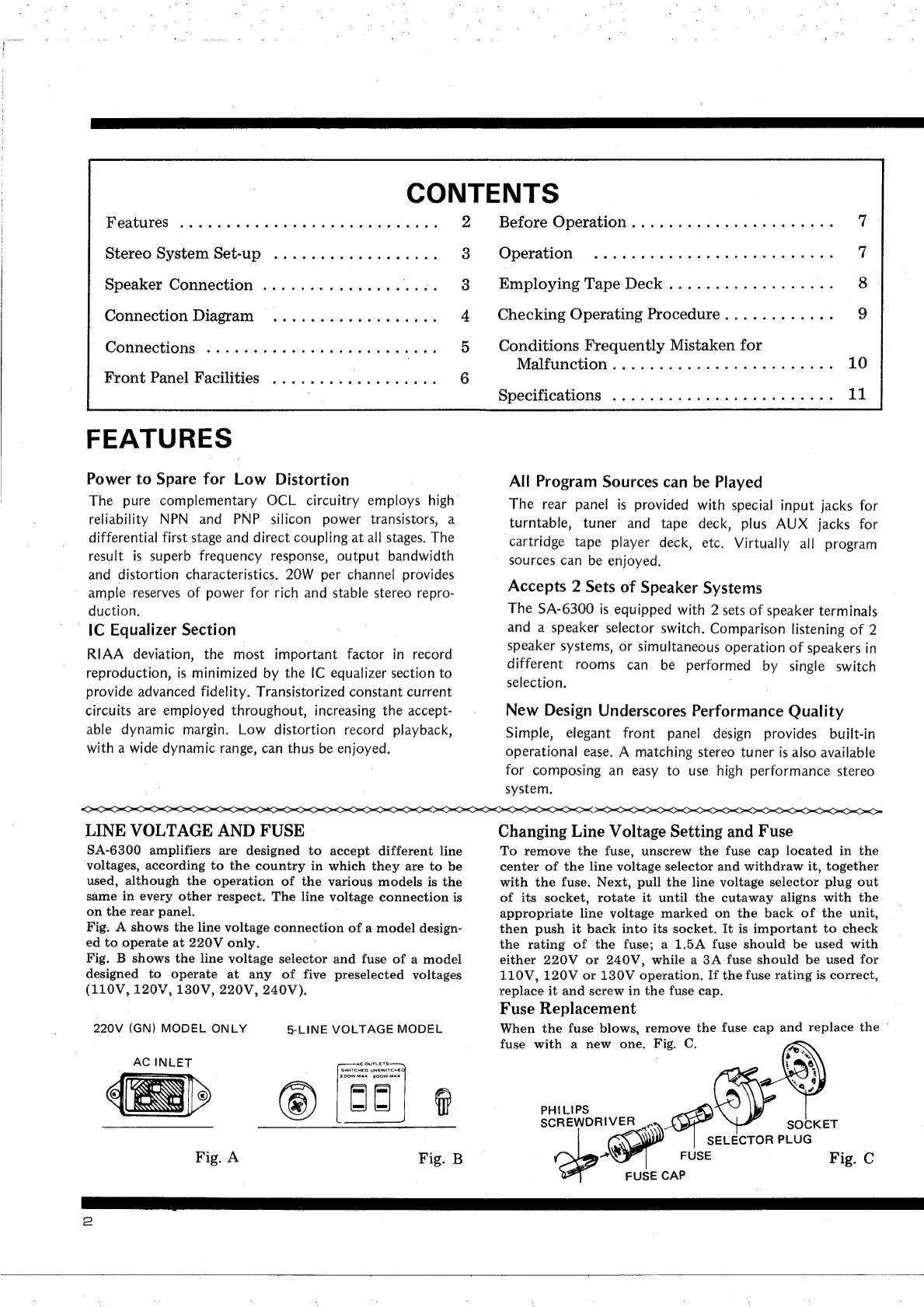

FEATURES
Power to Spare for Low Distortion
The pure complementary OCL circuitry employs high:
reliability NPN and PNP silicon power transistors, a
differential first stage and direct coupling at all stages. The
result is superb frequency response, output bandwidth
and distortion characteristics. 20W per channel provides
ample reserves of power for rich and stable stereo repro-
Operation
Employing Tape Deck
Checking Operating Procedure

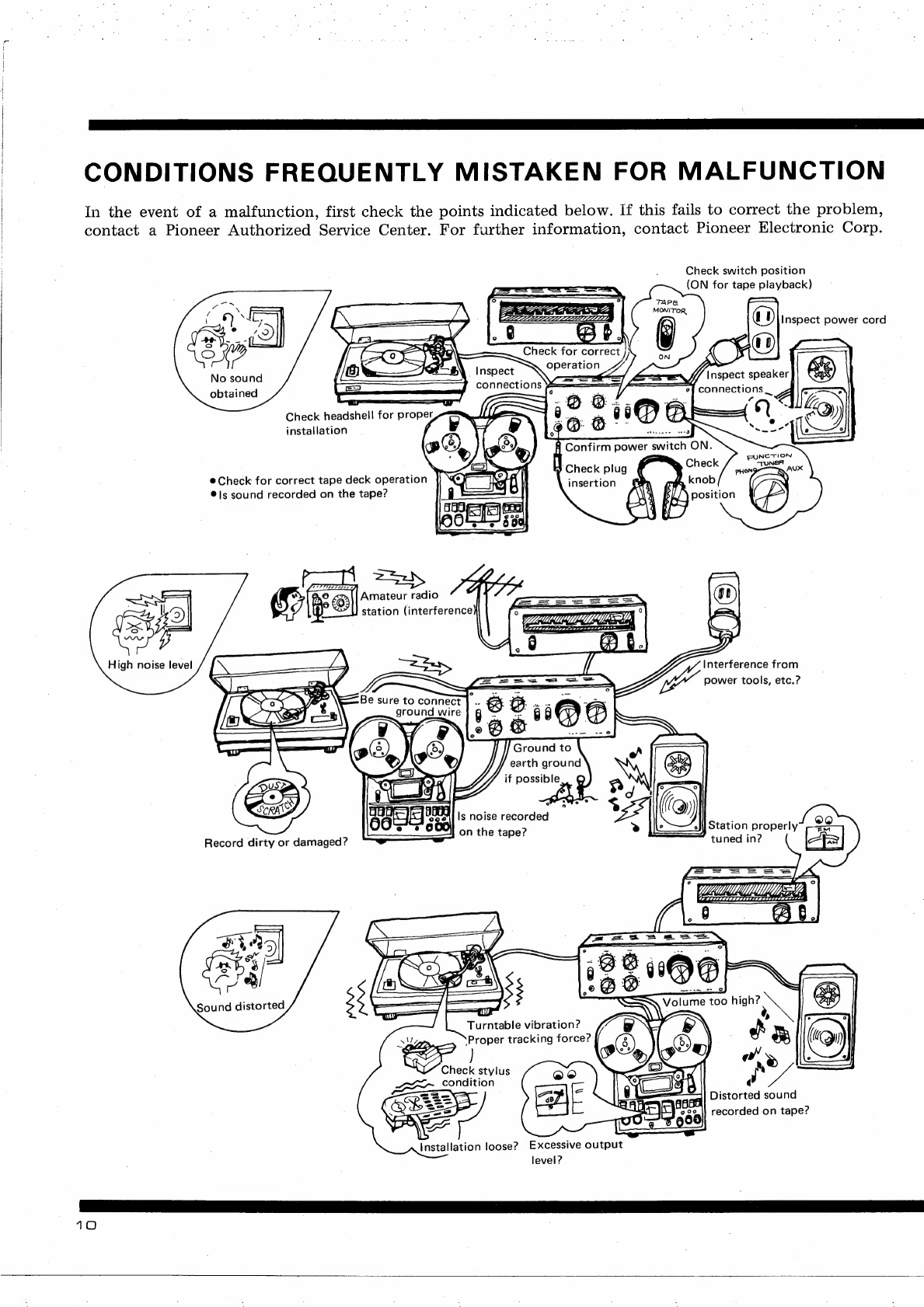

Conditions Frequently Mistaken for
Malfunction
Specifications
All Program Sources can be Played
The rear panel is provided with special input jacks for
turntable, tuner and tape deck, plus AUX jacks for
cartridge tape player deck, etc. Virtually all program
sources can be enjoyed.
Accepts 2 Sets of Speaker Systems
The SA-6300 is equipped with 2 sets of speaker terminals
and a speaker selector switch. Comparison listening of 2
speaker systems, or simultaneous operation of speakers in
different rooms can be performed by single switch
selection. .
duction.
~ IC Equalizer Section
RIAA deviation, the most important factor in record
reproduction, is minimized by the IC equalizer section to
provide advanced fidelity. Transistorized constant current
circuits are employed throughout, increasing the accept-
able dynamic margin. Low distortion record playback,
with a wide dynamic range, can thus be enjoyed.
New Design Underscores Performance Quality
Simple, elegant front panel design provides built-in
operational ease. A matching stereo tuner is also available
for composing an easy to use high performance stereo
system.
a a Oa aa Oe a aa Oe Oa a Oa a Oa Oe a Oe a Oa a Oc ae a ee a ae Oa Oa a Oe Oa Cree Oe ee ee Oe en OO On On On On On On On OO OO OO OO
LINE VOLTAGE AND FUSE Changing Line Voltage Setting and Fuse
SA-6300 amplifiers are designed to accept different line To remove the fuse, unscrew the fuse cap located in the
voltages, according to the country in which they are to be center of the line voltage selector and withdraw it, together
used, although the operation of the various models is the with the fuse. Next, pull the line voltage selector plug out
same in every other respect. The line voltage connection is of its socket, rotate it until the cutaway aligns with the
on the rear panel. appropriate line voltage marked on the back of the unit,
Fig. A shows the line voltage connection of a model design- then push it back into its socket. It is important to check
ed to operate at 220V only. the rating of the fuse; a 1.5A fuse should be used with
Fig. B shows the line voltage selector and fuse of a model either 220V or 240V, while a 3A fuse should be used for
designed to operate at any of five preselected voltages 110V, 120V or 130V operation. If the fuse rating is correct,
(110V, 120V, 130V, 220V, 240V). replace it and screw in the fuse cap.
Fuse Replacement
When the fuse blows, remove the fuse cap and replace the ©
fuse with a new one. Fig. C.
220V (GN) MODEL ONLY 5-LINE VOLTAGE MODEL
SWITCHED UNSWITCHE
2OOW MAX 200W MAN
AC INLET
PHILIPS
SCREWDRIVER
ee SELECTOR PLUG
aS FUSE
FUSE CAP

a
RE
EAE
PIONEER
j
i
i}
STEREO SYSTEM SET-UP
The SA-6300 is an integrated stereo amplifier,
meaning that it combines a pre-amplifier and
power
amplifier
in
one
unit.
For
your
stereo
system,
you
will
need
at
least
one
pair
of
speaker
systems
and
one
program
source
such
as
a
turn-
table,
a
stereo
tuner,
or
a
tape
deck.
These
should
be
of
comparable
high
quality
to
the
SA-6300.
INSTALLATION CAUTIONS
Avoid installing the SA-6300 in locations such as
the following.
e In direct sunlight, near radiators or other heat
sources,
e Humid or dusty surroundings. —
@ Unlevel or unstable supports, or where subject
to vibration.
B I N 4
7 < os, 7
t Fl aos
4 A
fr
q
Ef H a We
hog g Viet
& (i f
ys
3] HN
sf
1
j rah
ff
| Vs
TAPE [i Cae Ge OF OEE OES, Maes
DECK UMTS CE 7 Furniture materials
Spencer
can
improve
tone
SYSTEMS
Fig. 1
SPEAKER CONNECTION
The SA-6300 is provided with 2 sets of speaker
output terminals, A and B.A pair of speakers
should normally be connected to the A terminals.
e As shown in Fig. 2, connect the right chan-
nel (as viewed from the front) speaker to
the R terminals, and the left channel speaker to
the L terminals.
@ Observe plus (+: red) and minus (-: black)
polarities of the output terminals and those of
the
speakers.
When
making
connections
take
care
to
connect
+
to
+
and
-
to
-
between
the
speakers
and
the
SA-6300
speaker
terminals.
SA-6300
SPEAKER
TERMINALS
L channel
SPEAKER SYSTEMS
Fig. 2
R channel
NOTE:
If 2 sets of speaker systems (A & B) are to be used simultaneously
be sure that all speakers systems are 89 or more in impedance.
Damage may be caused of if speakers of less than 8Q are employed.
A WORD ABOUT ROOM ACOUSTICS
The sound heard from an audio system is greatly
influenced by conditions in the listening room.
The size and shape of the room, materials
composing the walls, ceiling and floor, the amount
and distribution of furniture, carpets, draperies, etc.
all affect the resulting sound. In general it is
advisable to place speakers with their backs against
a wall, as this will improve bass response.
Bare rooms with low ceilings, hard floors and hard,
reflective walls (especially a hard wall facing the
speakers) can produce an excessively ‘“‘live’’ bril-
liant sound with lack of clear instrument localiza-
tion and definition. It often helps in such cases to
place a carpet and heavy, soft curtains in the room.
Conversely, a ‘“‘dead’”? sound can be caused in
rooms containing heavy carpeting and a large
amount of upholstered furniture. This can often be
improved by re-arranging the furniture.
3

CARTRIDGE A SPEAKER SYSTEMS
TAPE
PLAYER ‘DECK RCHANNEL L CHANNEL B SPEAKER SYSTEMS
R CHANNEL L CHANNEL
SA-6300
CGR Ga
CO) || C@d
as rr
ro NT
LINE RNS
VOLTAGE AC OUTLETS
r
SELECTOR | ecowmax ‘oowmax
a
DIN-type
REC/PB cable
POWER CONNECTION
AC OUTLETS AC OUTLETS
(Switched) (Unswitched)
(reel-to-reel, or cassette)
CAUTIONS WHEN CONNECTING USING AC CONVENIENCE OUTLETS
@ Observe both the channels and polarities of the inputs and These can be used to supply AC power to other components, such
outputs of the components connected to the SA-6300. Be sure _as turntable, tape deck, etc.
to connect L to L, R to R, + to +, and — to —. SWITCHED: AC power to a component plugged into this outlet is
Make all connections securely. coupled with the SA-6300 switch setting. Maximum 200W.
Loose connections can cause noise or loss of sound. UNSWITCHED: AC power is always present at this outlet regard-
less of POWER switch setting. Maximum 200W.

CONNECTIONS
TURNTABLE
|
Connect
turntable
outputs
to
the
PHONO
jacks,
and
ground
wire
to
the
GND
terminal.
NOTE:
A moving magnet (MM) type cartridge can be directly connected;
however, a low output moving coil (MC) cartridge requires an
accessory matching transformer or head amplifier.
TURNTABLE
TUNER
Connect an AM/FM stereo tuner to the TUNER
jacks.
TUNER output jack
STEREO TUNER
=
u
INPUT ————_,
PHONO TUNER
L = fam
Fig. 4
AUX TERMINALS
These jacks are for auxiliary inputs. They can be
used to connect a cartridge tape player deck,
second tuner, or other source.
PIONEER
TAPE DECK (Reel-to reel or Cassette)
The
SA-6300
can
be
connected
to
a
stereo
tape
deck
(reel-to-reel,
cassette)
for
recording
and
play-
back.
Connecting
cords
are
usually
supplied
with
the
tape
deck.
Connect
as
follows:
Recording Connections
Connect
tape
deck
recording
terminals
(LINE
INPUT)
with
the
TAPE
REC
jacks.
Playback Connections
Connect
the
tape
deck
playback
terminals
(LINE
OUTPUT)
with
the
TAPE
PB
jacks.
Recording
TAPE DECK Connection
Playback
connection
LINE
OUTPUT
LINE
INPUT
TAPE DECK
connecting
terminals
Fig. 5
Connection Via REC/PB Connector
Instead of the recording and playback connection
just described, the tape deck can be connected to
the TAPE REC/PB connector (DIN type) of the
SA-6300 provided an identical connector is fitted
to the tape deck. The single DIN-cable completes
all playback and recording connections at the same
time.
Note that the REC/PB connector corresponds to
TAPE PB and TAPE REC jacks — the signal must
be controlled by means of the TAPE MONITOR
switch on the SA-6300. |
TAPE DECK
TAPE DECK
DIN-type connector Fig. 6
fo i
DIN-type recording/
playback cord

FRONT PANEL FACILITIES
POWER Switch
' Switch for turning AC power ON-OFF.
Pilot Lamp
Lights to indicate power on.
oO pt BAgS
‘Cla
a j
POWER . >
ON 2 + =
| SPEAKERS
< et ane :
‘3
@
© PHONES
PHONES Jack
Stereo headphones can be plugged into this jack for
private listening. Set the SPEAKERS switch to OFF when
using headphones.
SPEAKERS Switch
Switch for selecting speaker systems
OFF: Cuts off sound from speakers (when using
headphones only)
A: Sound obtained from the pair of speaker
systems connected to the A speaker terminals.
B: Sound obtained from the pair of speaker
systems connected to the B speaker terminals.
A+B:
Sound obtained from both A and B speaker
systems.
TREBLE
q
4
H
YY:
+
BALANCE
BASS & TREBLE Controls
Tone controls for low and high frequency sounds.
Clockwise rotation from center enhances, while counter-
clockwise rotation reduces bass or treble.

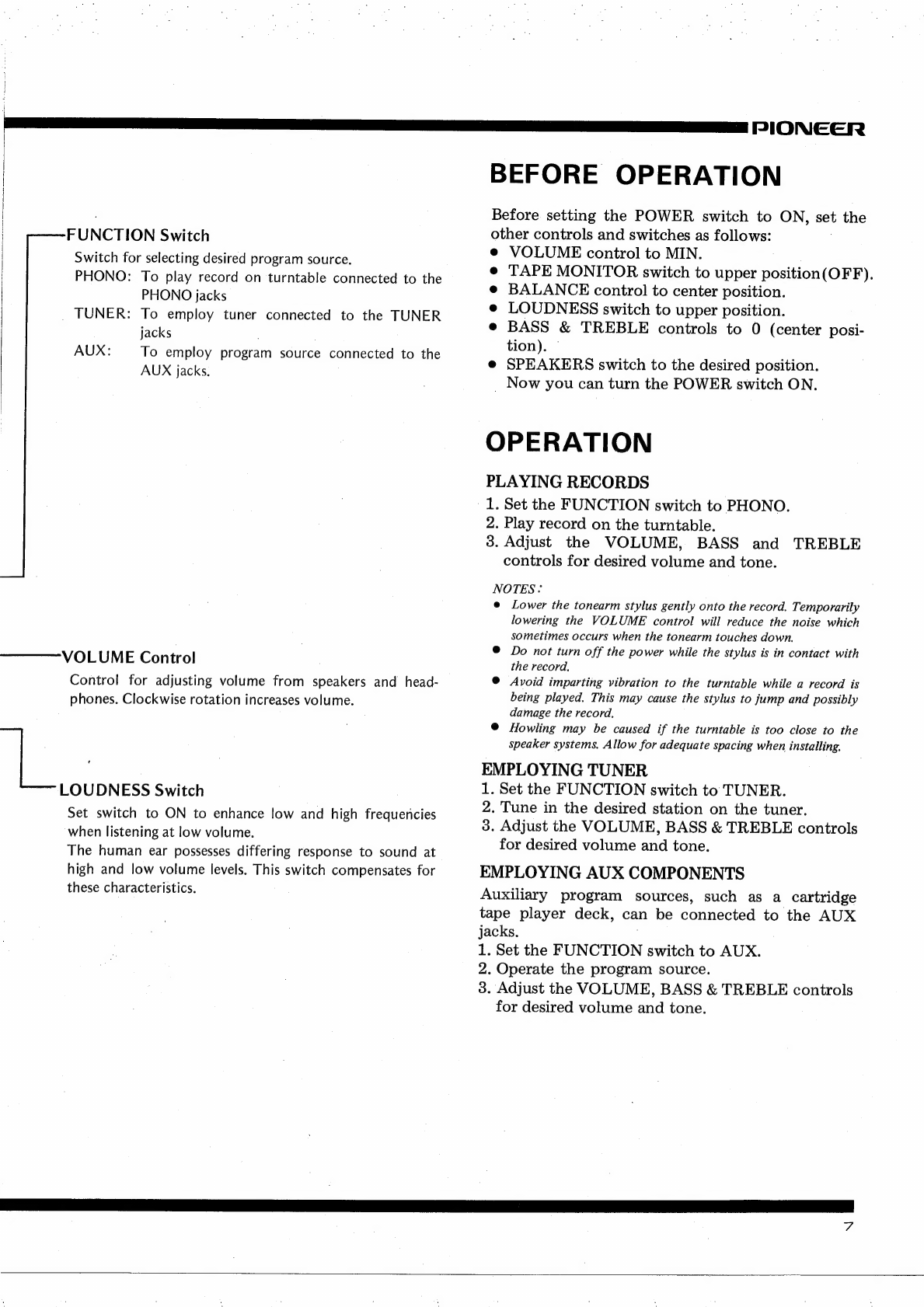

FUNCTION
VOLUME
TUNER
AUX
PHONO
TAPE
MON!TOR LOUONESS
W PIONEER STEREO AMPLIFIER MODEL SA-6300
TAPE MONITOR Switch
Set to ON when using a tape deck for tape playback, or
when monitoring a tape during recording.
NOTE:
Except for tape playback, keep this switch in the up (OFF)
position.
BALANCE Control
Control for adjusting volume balance between left and
right speakers and headphones. Clockwise rotation from
center increases right channel. volume, while counter-
clockwise rotation increases left channel volume.

FUNCTION Switch
Switch for selecting desired program source.
PHONO: To play record on turntable connected to the
PHONO jacks
_ TUNER: To employ tuner connected to the TUNER
jacks
AUX:
To
employ
program
source
connected
to
the
AUX jacks.
—————~— VOLUME Control
Control for adjusting volume from es and head-
phones. Clockwise rotation increases volume.
LOUDNESS Switch
Set switch to ON to enhance low and high frequencies
when listening at low volume.
The human ear possesses differing response to sound at
high and low volume levels. This switch compensates for
these characteristics.
Eevee
PIONIEER
BEFORE
OPERATION
Before setting the POWER switch to ON, set t the
other controls and switches as follows:
@e VOLUME control to MIN. .
TAPE
MONITOR
switch
to
upper
position(OFF).
BALANCE
control
to
center
position.
LOUDNESS
switch
to
upper
position.
BASS
&
TREBLE
controls
to
0
(center
posi-
tion).
SPEAKERS switch to the desired position.
_ Now you can turn the POWER switch ON.
OPERATION
PLAYING RECORDS
1. Set the FUNCTION switch to PHONO.
2. Play record on the turntable.
3. Adjust the VOLUME, BASS and TREBLE
controls for desired volume and tone.
NOTES -
e Lower the tonearm stylus gently onto the record. Temporarily
lowering
the
VOLUME
control
will
reduce
the
noise
which
sometimes occurs when the tonearm touches down.
@ Do not turn off the power while the stylus is in contact with
the record.
® Avoid imparting vibration to the turntable while a record is
being played. This may cause the stylus to jump and possibly
damage the record.
@ Howling may be caused if the turntable is too close to the
speaker systems. Allow for adequate spacing when installing.
EMPLOYING TUNER
1. Set the FUNCTION switch to TUNER.
2. Tune in the desired station on the tuner.
3. Adjust the VOLUME, BASS & TREBLE controls
for desired volume and tone.
EMPLOYING AUX COMPONENTS
Auxiliary
program
sources,
such
as
a
cartridge
tape
player
deck,
can
be
connected
to
the
AUX
jacks.
1. Set the FUNCTION switch to AUX.
2. Operate the program source.
3. Adjust the VOLUME, BASS & TREBLE controls
for desired volume and tone.

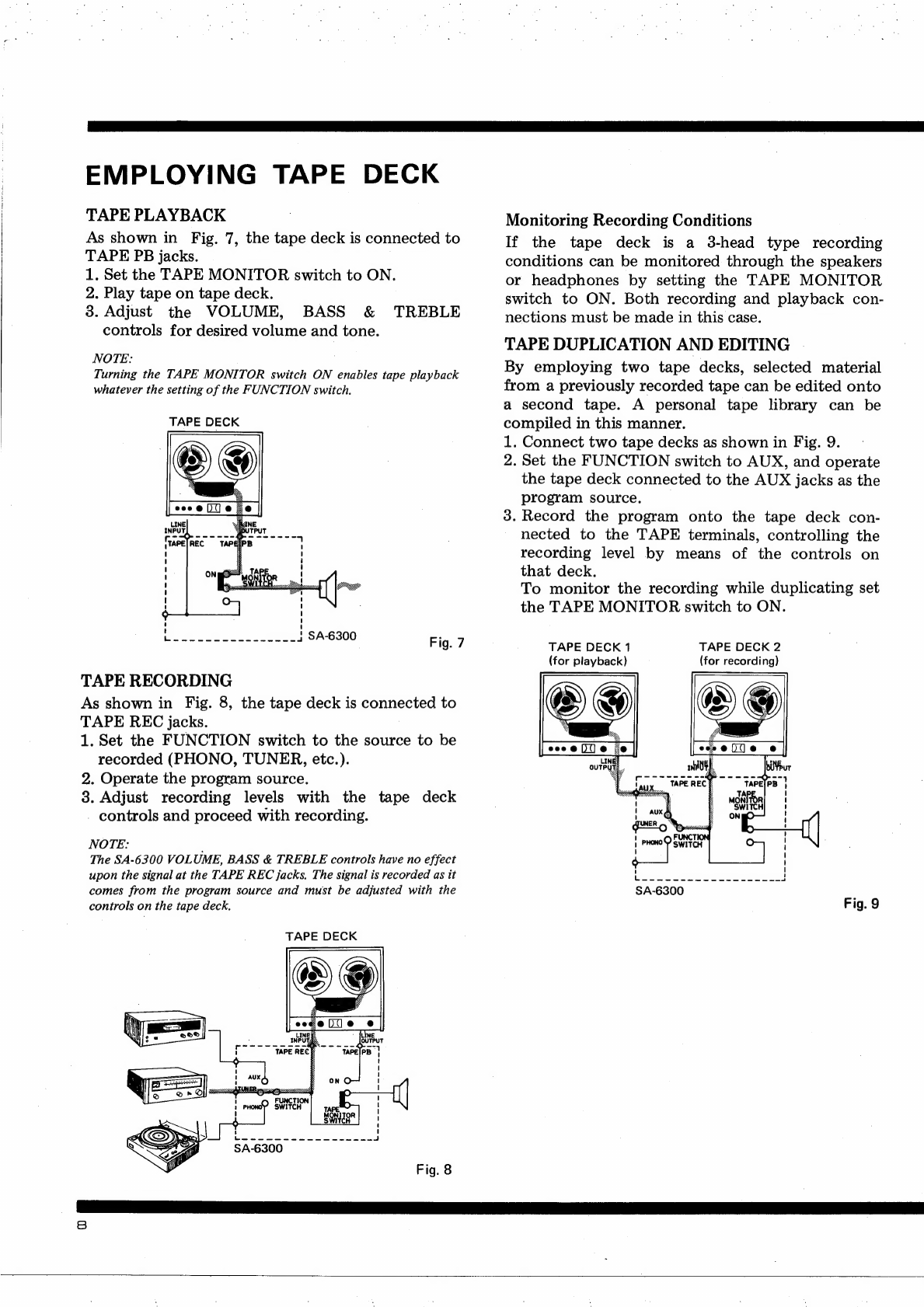

EMPLOYING TAPE DECK
TAPE PLAYBACK
As shown in Fig. 7, the tape deck is connected to
TAPE PB jacks.
1. Set the TAPE MONITOR switch to ON.
2. Play tape on tape deck.
3. Adjust the VOLUME, BASS & TREBLE
controls for desired volume and tone.
NOTE:
Turning the TAPE MONITOR switch ON enables tape playback
whatever the setting of the FUNCTION switch.
TAPE DECK
Fig. 7
TAPE RECORDING
As shown in Fig. 8, the tape deck is connected to
TAPE REC jacks.
1. Set the FUNCTION switch to the source to be
recorded (PHONO, TUNER, etc.).
2. Operate the program source.
3. Adjust recording levels with the tape deck
- controls and proceed with recording.
NOTE:
The SA-6300 VOLUME, BASS & TREBLE controls have no effect
upon the signal at the TAPE REC jacks. The signal is recorded as it
comes from the program source and must be adjusted with the
controls on the tape deck.
TAPE DECK
Fig. 8
Monitoring Recording Conditions
If the tape deck is a 3-head type recording
conditions can be monitored through the speakers
or headphones by setting the TAPE MONITOR
switch to ON. Both recording and playback con-
nections must be made in this case.
TAPE DUPLICATION AND EDITING
By employing two tape decks, selected material
from a previously recorded tape can be edited onto
a second tape. A personal tape library can be
compiled in this manner.
1. Connect two tape decks as shown in Fig. 9.
2. Set the FUNCTION switch to AUX, and operate
the tape deck connected to the AUX jacks as the
program source.
3. Record the program onto the tape deck con-
nected to the TAPE terminals, controlling the
recording level by means of the controls on
that deck.
To monitor the recording while duplicating set
the TAPE MONITOR switch to ON.
TAPE DECK 2
(for recording)
TAPE DECK 1
(for playback)
i ig me
FUNCTIO
a (a
Fig. 9

OPERATION
REFERENCE
GUIDE
SA-6300
Broadcast Reception |
SA-6300
For Playback
REC/PB |
—
7
SA-6300
For Recording
REC/PB .
Cad :
@ , Cfo fm TT} enna
4
©
A-6300
n
PIONEER
SWITCH and BUTTON POSITIONS
FUNCTION
PHONO
ON
FUNCTION
TAPE
ee MONITOR
FUNC TION
TAPE
MONITOR
y
“s
TAPE
MONITOR
FUNCTION
TUNER
Oo
PHON AUX MONITOR
b< .
ON
e Set the SPEAKERS switch
according to the connected
speaker termimals.
e Adjust volume and tone
with the VOLUME, BASS,
TREBLE controls of the
SA-6300.
Set the TAPE MONITOR
switch to ON
Adjust volume and tone
with the controls of the
SA-6300.
@ Set the FUNCTION switch
to the program source to
be recorded.
e With the TAPE MONITOR
switch set to ON, the re-
cording in progress may be
monitored.

CONDITIONS FREQUENTLY MISTAKEN FOR MALFUNCTION
In
the
event
of
a
malfunction,
first
check
the
points
indicated
below.
if
this
fails
to
correct
the
problem,
contact
a
Pioneer
Authorized
Service
Center.
For
further
information,
contact
Pioneer
Electronic
Corp.
Check switch position
(ON for tape playback)
ON
é
\
ae
5)
IIOALOE
+
a)
Inspect
power
cord
Si
rorioct
¥
oO e Check for correct Lo:
operation
No
sound
:
2
EEN,
fi
nspect
speaker
obtained
ef
connections
_
installation hee
H Confirm power swith ON.
_
a ‘Check plug { & Check pHON oS AUX
®
Check
for
correct
tape
deck
operation
iaAsaktion
f
knob
®|s sound recorded on the tape? ai ia position
47
SE
/
AAV
Amateur
radio
station
(interference
SS
is,
jemcah
"ZIRT
Ae
ae
Ward
rarars
Matandaee
oF
High noise level Interference from
power tools, etc.?
°o
Be sure to connect
ground wire
Vi
a Aa
.
lye
Ground
to
@ earth ground
F552 Preto) 2)
2 ee VP
Hiss
Is noise Aciasa ; 0
on the tape? Station properly” -e<
Record
dirty
or
damaged?
tuned
in?
[fs
|
PTOTILLLA LALA chek
LM LULL WEY
|
Turntable
vibration?
aw
Ne
:
&
i
Proper
tracking
force?
go)
&B
‘ate
Check stylus
ZL~ condition
Fe
=
Distorted
sound
recorded on tape?
Installation
loose?
Excessive
output
level?
10

|
|
SPECIFICATIONS
Semiconductors
Amplifier Section
Continuous Power Output
40Hz ~ 20kHz
(Both channels driven)
1kHz (Both channels driven)
20W + 20W (82, Rated power)
20W + 20W (42)
22W + 22W (822)
24W + 24W (4Q)
Total Harmonic Distortion (40Hz ~ 20kHz)
(Continuous Rated Power Output)
(1 W Power Output, 82)
Intermodulation
No more than 0.8%
No more than 0.08%
(Continuous Rated Power Output)
(1 W Power Output, 82)
Power Bandwidth
(IHF, Both channels driven)
Output: Speaker
Headphone
Damping Factor
(40Hz ~ 20kHz, 82)
Input Sensitivity /Impedance
PHONO
TUNER
AUX
TAPE PB
TAPE PB (DIN connector)
No more than 0.8%
No more than 0.08%
5Hz ~ 70kHz (T.H.D. 0.8%)
A,B,A+B
Low impedance
25
2.5mV/50kQ
150m/50k2
150mV/50k2
150mV/50k2
150mV/50kQ
PHONO Overload Level (T.H.D. 0.1%) 150mV
Output Level/ Impedance
TAPE REC
TAPE REC (DIN connector)
Frequency Response
PHONO (RIAA equalization)
TUNER, AUX, TAPE PB
Tone Control
BASS
TREBLE
150mV
30mV/80k2
30Hz ~ 15kHz+0.5dB
20Hz ~ 30kHz+93 dB
+9dB, —8dB (100Hz)
+6dB, —6dB (10kHz)
Loudness Contour (Volume control set at —40dB position)
+8dB (100Hz), +5dB (10kHz)
Hum & Noise (IHF, Short circuited, A Network)
PHONO
TUNER, AUX, TAPE PB
Miscellaneous
Power Requirements .......
70dB
85dB
AC 220V 50/60Hz
or 110, 120, 130, 220 and 240V (switchable) 50/60Hz
Power Consumption .......
Dimensions .........0.6. sy
Weight: Without Package. ...
With Package......
Furnished Parts
+50W 170W
170W (Manufactured for England)
350(W) x 125(H) x 282(D) mm
13-3/4 x 4-15/16 x 11-1/8
6.9kg (14 Ib 3 0z)
7.7kg (16 Ib 15 02)
Operating Instructions: ree 1
Connection Cord with Pin Plugs. . 1 NOTE:
Fuse 3A... 220 (tee 1 . Specifications and the design subject to possible modification with-
Fuse TSA. dae ee eee eee d (5 line voltage model only) out notice due to improvements.
a4

(
i
<73G03Y 76B>
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
U.S. PIONEER ELECTRONICS CORPORATION
75 Oxford Drive, Moonachie, New Jersey 07074, U.S.A.
PIONEER ELECTRONIC CEUROPE) NV.
Luithagensteenweg,"De Meermin”, 2030 Antwerp, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
Printed in Japan <ARB-1374&>p 178-184 Boundary Road, Braeside, Victoria 3195, Australia
