Manual overview
Before using this product, be sure to read Im-
portant Information for the User (a separate
manual) which contains warnings, cautions,
and other important information that you
should note.
How to use this manual
Finding the operation procedure for
what you want to do
When you have decided what you want to do,
you can find the page you need from the Con-
tents.
Finding customisable settings
If you want to look up the settings of this pro-
duct, refer to Setting list at the end of the man-
ual.
Conventions used in this manual
Before moving on, take a few minutes to read
the following information about the conven-
tions used in this manual. Familiarity with
these conventions will help you greatly as you
learn how to use your new equipment.
!Buttons on this product are described in
bold lettering:
e.g.)
Press the Home button to display the
Home screen.
!Menu items, screen titles, and functional
components are described in bold with
double quotation marks “”:
e.g.)
Set “Dimmer”to “OFF”.
!Touch panel keys that are available on the
screen are described in bold in brackets [ ]:
e.g.)
Tap [Radio] on the Home screen.
!Extra information, alternatives and other
notes are presented in the following for-
mat:
e.g.)
pIf the home location has not been stored
yet, set the location first.
!Functions of other keys on the same screen
are indicated with #at the beginning of the
description:
e.g.)
#If you touch [OK], the entry is deleted.
!References are indicated like this:
e.g.)
=For details, refer to Answering a call
automatically on page 17.
Terms used in this manual
“Front display”
In this manual, the screen that is attached to
the body of this product is referred to as the
“Front display”.
“microSD card”
The microSD card and microSDHC card are
collectively referred to as the “microSD card”.
“iPhone”
In this manual, iPod and iPhone will be re-
ferred to as iPhone.
iPhone compatibility
This product supports only the following
iPhone models and iPhone software versions.
Others may not work correctly.
Made for
!iPhone 4: iOS 4.3
!iPod touch (4th generation): iOS 4.3
pOperation methods may vary depending on
the iPhone models and the software ver-
sion of iPhone.
pDepending on the software version of the
iPhone, it may not be compatible with this
equipment.
For details about iPhone compatibility with
this product, refer to the information on our
website.
Engb
4
Chapter
01 Introduction

To ensure safe driving
Certain functions (such as viewing of App-
based visual content and certain touch panel
key operations) offered by this product could
be dangerous and/or unlawful if used while
driving. To prevent such functions from being
used while the vehicle is in motion, there is an
interlock system that senses when the hand-
brake is set. If you attempt to use the functions
described above while driving, they will be-
come disabled until you stop the vehicle in a
safe place, and apply the handbrake. Please
keep the brake pedal pushed down before re-
leasing the handbrake.
Protecting the LCD panel
and screen
pDo not allow direct sunlight to fall on the
LCD screen when this product is not being
used. Extended exposure to direct sunlight
can result in LCD screen malfunction due
to the resulting high temperatures.
pWhen using a mobile phone, keep the aer-
ial of the mobile phone away from the LCD
screen to prevent disruption of the video in
the form of spots, coloured stripes, etc.
pTo protect the LCD screen from damage, be
sure to tap the touch panel keys with your
finger only and gently touch the screen.
Notes on internal memory
Before removing the vehicle
battery
If the battery is disconnected or discharged,
the memory will be erased and must be repro-
grammed.
pSome data remains. Be sure to read Return-
ing the AppRadio to the default or factory
settings first.
=For details, refer to Chapter 9.
Data subject to erasure
The information is erased by disconnecting
the yellow lead from the battery (or removing
the battery itself).
pSome data remains. Be sure to read Return-
ing the AppRadio to the default or factory
settings first.
=For details, refer to Chapter 9.
Engb 5
Chapter
01
Introduction
Introduction

Features
Listening to the radio
You can listen to the radio by using this pro-
duct.
Playing iPod music
You can play and operate the audio source
with the iPhone connected.
Advanced App Mode
With Advanced App Mode, you can display
the iPhone application screen on the display
of AppRadio. And you can operate AppRadio
compatible iPhone applications (such as
AppRadio app) via the display with multi-
touch gestures like tapping, dragging, scrol-
ling, flicking.
pFor details of Advanced App Mode, refer
to the Operation Manual for AppRadio
app.
Hands-free phoning
You can control Bluetooth connection of the
iPhone, and make a call with incoming or out-
going call histories, transferred phone book,
or dials.
Displaying the rear view camera image
You can display what is behind the vehicle if a
rear view camera (e.g. ND-BC4) (sold sepa-
rately) is connected to the system.
Pop-up text
If you touch and hold an image icon, a pop-up
text explaining the function of the icon is dis-
played.
Checking part names and
functions
1234 5
1Volume (+/–) button
2Home button
!Press the Home button to display the
Home screen.
!Press the Home button twice, the audio
source control keys will be displayed on-
screen.
3LCD screen
4Reset button
=For details, refer to Chapter 9.
5microSD card slot
pA microSD card is used only to upgrade
the software of this product.
pFor details of software upgrades, refer to
the information on our website.
pClose the cover of the microSD card slot
if you don’t use a microSD card.
Connecting and disconnecting
an iPhone
CAUTION
!To prevent data loss and damage to the
iPhone, never remove it from this product
while data is being transferred.
!If data loss or corruption occurs on the
iPhone for any reason, it is usually not possi-
ble to recover the data. Pioneer accepts no lia-
bility for damages, costs or expenses arising
from data loss or corruption.
Engb
6
Chapter
02 About AppRadio

Connecting your iPhone
Using the supplied iPhone cable enables you
to connect your iPhone to this product.
pConnection via a USB hub is not possible.
%Connect your iPhone.
Output cable iPhone cable
Disconnecting your iPhone
%Pull out the iPhone cable after checking
that no data is being accessed.
Startup and termination
1 Start the engine to boot up the system.
After a short pause, the splash screen comes
on for a few seconds.
2 Read the disclaimer carefully, checking
its details, and then tap [OK] if you agree
to the conditions.
pOn first-time startup, a language setup
screen appears before the disclaimer. Se-
lect the language of your choice in this
screen.
3 Turn off the vehicle engine to termi-
nate the system.
Quick Start Mode
Your AppRadio features a Quick Start Mode
that puts the AppRadio into a reduced power
mode for five minutes when the vehicle igni-
tion is switched to off (ACC OFF). While in
Quick Start Mode, if you turn the ignition
switch on (ACC ON), AppRadio will immedi-
ately start up. If the unit is in Quick Start Mode
and the ignition is not switched on (ACC ON)
within five minutes, AppRadio automatically
turns off.
Demonstration images
If you do not operate this product for 30 sec-
onds, demonstration images are displayed.
When you turn the ignition switch off (ACC
OFF) and then turn it on again (ACC ON), the
demonstration images will not be displayed.
pIf you reset the system, the demonstration
images will be displayed again.
Engb 7
Chapter
02
About AppRadio
About AppRadio

Home screen
The Home screen is the main screen that al-
lows access to your entertainment sources,
Apps, settings and more.
Reading the screen
12
1Day of the week indicator
2Current time
Using the touch panel keys
Radio
Displays the radio source screen.
=For details, refer to Chapter 4.
iPod
Displays the iPod audio source screen.
=For details, refer to Chapter 5.
Apps
This product is switched to Advanced
App Mode.
=For details, refer to Advanced App
Mode on page 6.
Phone
Displays the phone function screen.
=For details, refer to Chapter 6.
Displays the settings menu screen.
=For details, refer to Chapter 8.
Displays the rear view camera image.
=For details, refer to Chapter 7.
Touch panel keys common
to each function
The touch panel keys for common operations
for each function are described below.
The previous screen returns.
Deletes the input text one letter at
a time, beginning at the end of the
text.
Scrolls through the list and allows
you to view the remaining items.
pThe selected item is high-
lighted.
Audio source control
When you press the Home button twice, the
audio source control keys will be displayed on-
screen. Using these keys, you can operate the
audio source currently playing in the back-
ground without leaving the screen currently
displayed.
Each tap of the key selects whether to
mix or mute radio output with the
iPhone audio output. When radio audio
is mixed, is displayed, and when un-
mixed, is displayed.
pThis setting is only available when
this product is switched to
Advanced App Mode.
Each tap of the key switches between
muted and unmuted audio source.
When muted, is displayed, and
when unmuted, is displayed.
Engb
8
Chapter
03 Basic operation

When “iPod”is selected as the source,
tapping the key switches between play-
back and pause.
When “Radio”is selected as the
source, tapping the key moves to the
next or previous preset channel.
When “iPod”is selected as the source,
tapping the key moves to the next or
previous track.
pWhen you turn the ignition switch off (ACC
OFF) and then turn it on again (ACC ON),
these settings will be reset.
Engb 9
Chapter
03
Basic operation
Basic operation

Starting procedure
1 Press the Home button to display the
Home screen.
2 Tap [Radio] on the Home screen.
3 Use the touch panel keys on the screen
to control the radio.
Reading the screen
12 3
4

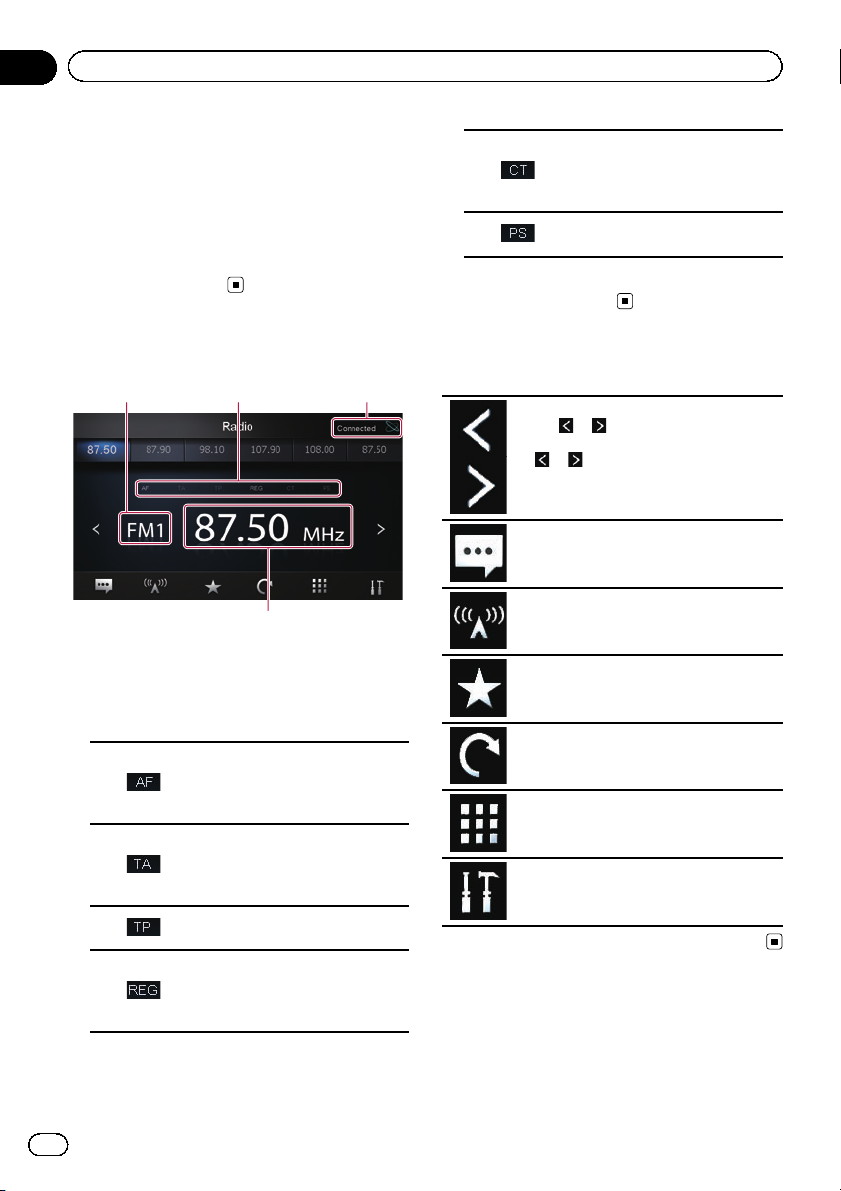

1Band indicator
2RDS status indicator
Each indicator lights when in the following
status.
“AF”is set to “ON”.
=For details, refer to Tuning
into alternative frequencies
on page 12.
“TA”is set to “ON”.
=For details, refer to Receiving
traffic announcements on
page 12.
Traffic programme (TP) is re-
ceived.
“REG”is set to “ON”.
=For details, refer to Limiting
stations to regional program-
ming on page 12.
“CT”is set to “ON”.
=For details, refer to Receiving
date and time data on the
next page.
Programme service (PS) name
is received.
3iPhone connection status indicator
4Frequency indicator
Using the touch panel keys
Tap or to lower or raise frequen-
cies in one-step increments. Hold down
or and the tuner will scan fre-
quencies until a broadcast strong en-
ough for good reception is found.
Displays the radio text (when radio text
is received).
Tapping the key repeatedly switches be-
tween the following bands:
FM1,FM2,FM3,MW or LW.
Stores the frequency to a preset chan-
nel.
Stores the strongest broadcast frequen-
cies.
Inputs the frequency.
Displays the optional menu.
Engb
10
Chapter
04 Using the radio

Using functions
Entering a frequency
1Tap to switch to the frequency band
you want to enter.
2Tap .
3 Enter a frequency of your choice and
tap [Enter].
Storing the frequencies to a
preset channel
1 Adjust to a frequency you want to reg-
ister.
2Tap .
3 Tap the channel of the frequency you
want to register.
Storing the strongest broadcast
frequencies
This function automatically assigns frequen-
cies with good reception to the preset chan-
nels in the selected band.
You can update six channels in each band. Up
to 18 channels in the same band can be up-
dated at one time.
pStoring broadcast frequencies may replace
broadcast frequencies you have already
saved.
pThe lowest frequency is registered for chan-
nels that could not be registered automati-
cally.
%Tap .
Recalling broadcast frequencies
%Tap any frequency on the preset chan-
nel keys.

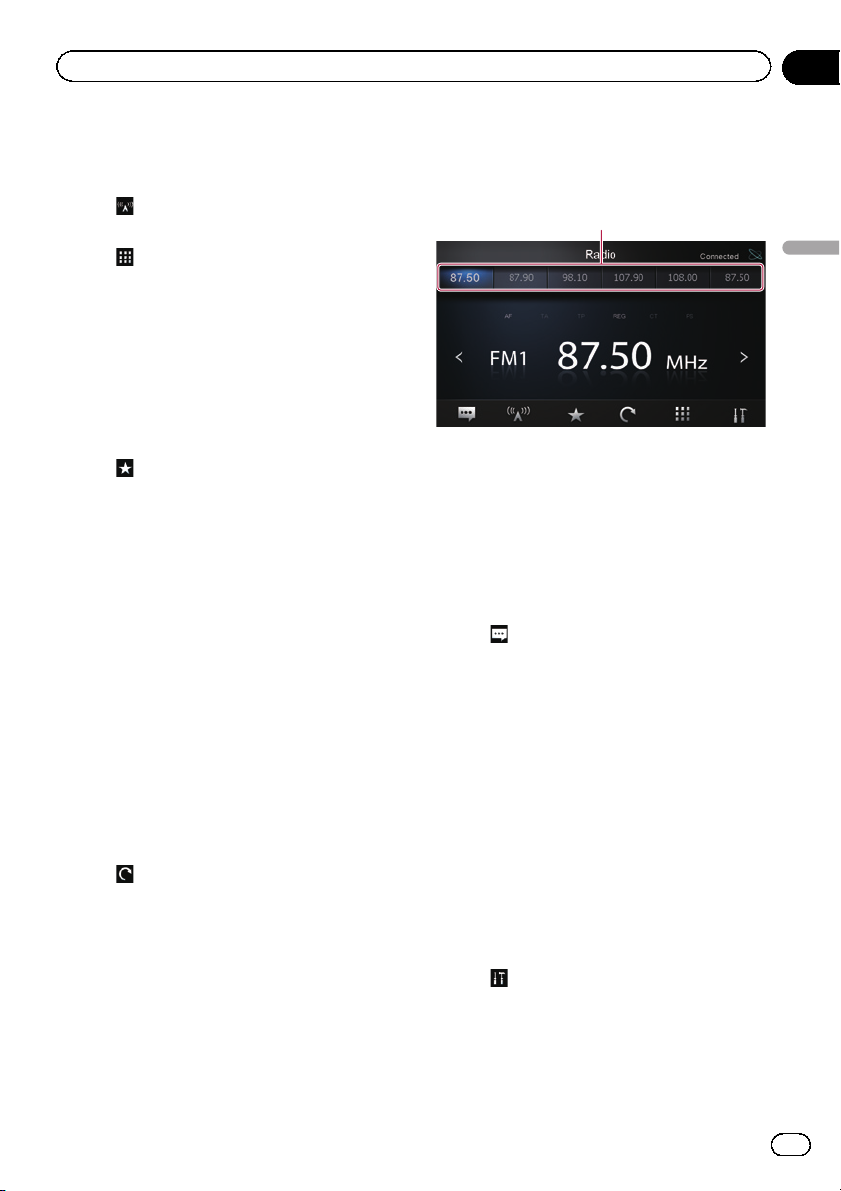

Preset channel keys
Using radio text
This tuner can display radio text data trans-
mitted by RDS stations, such as station infor-
mation, the title of the currently broadcast
song and the name of the artist.
pWhen no radio text is received, “No Text”is
displayed.
%Tap .
RDS functions
The functions related to RDS (Radio Data Sys-
tem) are available only in areas with FM sta-
tions broadcasting RDS signals. Even if this
product is receiving an RDS station, not all the
functions related with RDS will be available.
You can make the settings for the RDS func-
tion on the optional menu.
Receiving date and time data
You can set up to receive date and time data to
automatically update the date setting of this
product. (CT function)
1Tap to open the optional menu.
2 Tap [CT].
Each tap of [CT] changes the setting as fol-
lows:
!OFF (default):
Turns off CT function.
Engb 11
Chapter
04
Using the radio
Using the radio

!ON
Turns on CT function.
Tuning into alternative frequencies
You can select to enable or disable the AF (Al-
ternative frequency) function.
If you are listening to a broadcast and the re-
ception becomes weak or there are other pro-
blems, this product will automatically search
for a different station in the same network that
is broadcasting a stronger signal.
1Tap to open the optional menu.
2 Tap [AF].
Each tap of [AF] changes the setting as fol-
lows:
!ON (default):
Turns on AF function.
!OFF:
Turns off AF function.
Limiting stations to regional
programming
When AF is used to automatically retune fre-
quencies, the regional (REG) function limits
the selection to stations broadcasting regional
programmes.
1Tap to open the optional menu.
2 Tap [REG].
Each tap of [REG] changes the setting as fol-
lows:
!ON (default):
Turns on REG function.
!OFF:
Turns off REG function.
Receiving traffic announcements
TA (traffic announcement standby) lets you re-
ceive traffic announcements automatically, no
matter what source you are listening to. TA
can be activated for both a TP station (a sta-
tion that broadcasts traffic information) or an-
other enhanced network’s TP station (a station
carrying information that cross-references TP
stations).
1Tap to open the optional menu.
2 Tap [TA].
Each tap of [TA] changes the setting as fol-
lows:
!ON (default):
Turns on TA function.
!OFF:
Turns off TA function.
Setting the volume for traffic
announcements
%Use the Volume (+/–) button to adjust
the TA volume when a traffic announce-
ment begins.
The newly set volume is stored in memory and
recalled for subsequent traffic announce-
ments.
Searching for an RDS station by PTY
information
You can search for general types of broadcast-
ing programmes.
=For details, refer to PTY list on the next
page.
1Tap to open the optional menu.
2 Tap [PTY List].
3 Scroll through the list and tap the pro-
gramme type you want to search.
The tuner searches for a station broadcasting
that programme type.
pThe programmes of some stations may dif-
fer from that indicated by the transmitted
PTY.
pIf no station is broadcasting the type of pro-
gramme you searched for, the tuner returns
to the original station.
Engb
12
Chapter
04 Using the radio

PTY list
Specific Type of programme
News News
Affairs Current affairs
Info General information and advice
Sports Sports
Education Educational programmes
Drama All radio plays and serials
Culture National or regional culture
Science Nature, science and technology
Variety Light entertainment
Pop Popular music
Rock Contemporary modern music
Easy Easy listening music
Light Light classical music
Classical Serious classical music
Other Non categorised music
Weather Weather reports/meteorological information
Finance Stock market reports, commerce, trading, etc.
Children Children’s
Social Social affairs
Religion Religion affairs or services
Phone In Phone In
Travel Travel programmes, not for announcements about traffic problems
Leisure Hobbies and recreational activities
Jazz Jazz
Country Country music
Nation National music
Oldies Oldies music, golden oldies
Folk Folk music
Document Documentaries
Engb 13
Chapter
04
Using the radio
Using the radio

Starting procedure
1 Press the Home button to display the
Home screen.
2 Tap [iPod] on the Home screen.
3Tap or to select an item and tap
to complete the selection. When a track is
selected, the playback screen is dis-
played.
Reading the screen
13
4
2
1Current song (episode) information
Following informations are displayed:
!Song title (episode)
!Artist name (podcast title)
!Album title (release date)
!Song (episode) number
pThe information in brackets is displayed
when a podcast is played.
2Album artwork
3Playback condition indicator
4Play time
pThe screen display may vary according to
the iOS version.
Using the touch panel keys
!Displays the list screen.
!When the list screen is dis-
played, displays the previous
list.
In the list screen, use or to
select the song you want to listen
to.
Selects the highlighted item in the
list screen.
pSelecting a song starts play-
back.
pSelecting a category displays
the category list.
Tapping the key switches between
playback and pause.
Tapping key skips to the start of
the next song. Tapping once
skips to the start of the current
song. Tapping twice quickly will
skip to the previous song.
Touching and holding or per-
forms fast reverse or fast forward.
Engb
14
Chapter
05 Playing iPod music

CAUTION
For your safety, avoid talking on the phone as
much as possible while driving.
You can control Bluetooth connection of the
iPhone, and make a call with incoming or out-
going call histories, transferred phone book,
or dials.
To connect using the hands-free phoning func-
tion, you must first use the iPhone to pair this
product with the iPhone.
For details about the connectivity with the de-
vices featuring Bluetooth wireless technology,
refer to the information on our website.
Registering and connecting
an iPhone
pFor details on the iPhone operating proce-
dures, refer to the iPhone User Guide.
pBefore registration, make sure that
“Bluetooth”in the optional menu is set to
“ON”.
pUp to eight iPhones can be paired with this
product.
If the entries reach the maximum number,
a new entry will overwrite the oldest one.
%Use the Bluetooth setting in the iPhone
to pair this product with iPhone.
After completing pairing, Bluetooth connec-
tion starts.
pThe device name is “AppRadio”.
pThe default password (PIN code) is “0000”.
Connecting a registered iPhone
manually
1 Disconnect the Bluetooth connection if
this product is connected to the iPhone via
Bluetooth wireless technology.
2 Activate the Bluetooth wireless tech-
nology on your iPhone.
3 Tap the name of the iPhone that you
want to connect.
4Tap .
Disconnecting your iPhone
1 Tap [Phone] on the Home screen.
2Tap to open the optional menu.
3 Tap [Bluetooth] to set Bluetooth func-
tion to “OFF”.
#To temporarily disconnect Bluetooth connec-
tion, tap .
pWhen “Auto Connect”in the Bluetooth op-
tional menu is set to “ON”, or the Bluetooth
auto connect function for the iPhone is en-
abled, Bluetooth may automatically start up
connection again after disconnection.
Deleting a registered iPhone
1 Disconnect the Bluetooth connection if
this product is connected to the iPhone via
Bluetooth wireless technology.
2 Tap the name of the iPhone that you
want to delete.
3Tap .
The iPhone is deleted.
Basic operation of hands-
free phoning
The basic operations when using the hands-
free phoning function are described below.
Engb 15
Chapter
06
Using hands-free phoning
Using hands-free phoning

Using the touch panel keys
!Initiates a call.
!When there is an incoming
call, connects the call.
!Disconnects a call.
!When a call is being placed,
cancels the call.
!When there is an incoming
call, rejects the call.
Each tap of the key switches be-
tween phone audio output from
the speakers and output from the
iPhone.
Each tap of the key turns the mi-
crophone on and off.
When the list screen appears, the
previous list is displayed.
Adjusting the phone volume
During the hands-free phoning, you can adjust
the phone volume by using the Volume (+/–)
button when you are talking. The ring tone vo-
lume also can be adjusted while the phone
rings.
Making a phone call
You can make a phone call in many different
ways.
Direct dialling
1Tap .
2 Tap the number keys to enter the
phone number.
#If you tap , the entered number is deleted
one digit at a time from the end of the number.
#If you tap [Clear], the entered number is
cleared.
3Tap .
Dialling starts.
4Tap to end the call.
Calling a number in the phone
book
You can select and call a contact from the
phone book entries transferred to this product.
pBefore using this function, you need to
transfer the phone book entries stored in
your iPhone to this product.
=For details, refer to Transferring the phone
book on page 18.
1 Tap [Phone book].
2 Tap the desired name on the list.
Dialling starts.
3Tap to end the call.
Dialling from the history
The most recent calls made (dialled), received
and missed are stored in the call history list.
You can browse the call history list and call
numbers from it.
pEach call history saves 100 calls per regis-
tered iPhone. If the number of calls ex-
ceeds 100, the oldest entry will be deleted.
1 Tap [Received calls], [Dialled calls] or
[Missed calls].
The selected call history list appears.
2 Tap an entry on the list.
Dialling starts.
3Tap to end the call.
Answering an incoming call
The system informs you that it is receiving a
call by displaying a message and producing a
ring sound.
Engb
16
Chapter
06 Using hands-free phoning

pYou can set the system to automatically an-
swer incoming calls. If not set to automati-
cally answer incoming calls, you will have
to answer the calls manually.
=For details, refer to Answering a call
automatically on this page.
pThe registered name appears if the phone
number of the received call is already regis-
tered in “Phone book”.
1 To answer an incoming call, tap .
#If you tap , an incoming call is rejected.
The rejected call is recorded in the missed call
history list.
2Tap to end the call.
Using advanced functions
Stopping Bluetooth wave
transmission
You can stop transmission of electric waves by
turning off the Bluetooth function. If you do
not use the Bluetooth wireless technology, we
recommend selecting “OFF”.
1Tap to open the optional menu.
2 Tap [Bluetooth].
Each tap of [Bluetooth] changes the setting
as follows:
!ON (default):
Turns on Bluetooth function.
!OFF:
Turns off Bluetooth function.
Setting the Bluetooth auto
connect function
You can select to enable or disable the
Bluetooth auto connect function.
1Tap to open the optional menu.
2 Tap [Auto Connect].
Each tap of [Auto Connect] changes the set-
ting as follows:
!ON (default):
Activates the Bluetooth auto connect func-
tion.
!OFF:
Deactivates the Bluetooth auto connect
function.
Answering a call automatically
You can select to enable or disable auto an-
swer for handling incoming calls.
This product automatically answers incoming
calls to the iPhone, so you can answer a call
while driving without taking your hands off the
steering wheel.
1Tap to open the optional menu.
2 Tap [Auto Answer].
Each tap of [Auto Answer] changes the set-
ting as follows:
!OFF (default):
No automatic response. Respond manually.
!ON:
Answers incoming calls automatically.
Editing the password
You can change the password to be used for
authentication on your iPhone. (Default is
“0000”.)
pFour characters can be entered for a pass-
word.
1Tap to open the optional menu.
2 Tap [Passcode].
3 Enter the new password by using the
keyboard.
#If you tap , the entered number is deleted
one digit at a time from the end of the number.
#If you tap [Clear], the entered password (PIN
code) is cleared.
4 Tap [Enter].
The password is changed.
Engb 17
Chapter
06
Using hands-free phoning
Using hands-free phoning

Transferring the phone book
The phone book of an iPhone currently con-
nected to this product via Bluetooth wireless
technology can be transferred to the product.
pUp to 1 000 contacts can be transferred to
this product.
Even if the number of the contacts to trans-
fer does not exceed 1 000, the transfer will
stop when the total number of the tele-
phone numbers of the transferred contacts
exceeds 4 000.
pThe transferred phone book can be used
after another iPhone is connected to this
product. When you transfer the phone
book from another iPhone, the previous
phone book will be replaced with the new
one.
pDepending on the iPhone that is connected
to this product via Bluetooth technology,
this product may not be able to display the
phone book correctly. (Some characters
may be garbled.)
pThe transferred data cannot be edited on
this product.
1 Connect the iPhone that has the phone
book to transfer.
2Tap .
3 Tap [Phone Book Sync].
4 Tap [OK].
Transfer starts. It may take time depending on
how many entries will be transferred.
When the data is successfully imported, an
import complete message is displayed and the
phone function screen appears.
Notes for hands-free phoning
General notes
The line-of-sight distance between this pro-
duct and your iPhone must be 10 metres or
less when sending and receiving voice and
data via Bluetooth technology. However, the
actual transmission distance may be shorter
than the estimated distance, depending on
the usage environment.
Registration and connection
With some iPhones, phone book transfer may
not work even though your iPhone is paired
with this product. In that case, disconnect
your iPhone, perform pairing again from your
iPhone to this product, and then perform the
phone book transfer.
Making and receiving calls
!You may hear a noise in the following situa-
tions:
—When you answer the phone by using
the button on the phone.
—When the person on the other end of
line hangs up the phone.
!If the person on the other end of the phone
call cannot hear the conversation due to an
echo, decrease the volume level for hands-
free phoning. This may reduce the echo.
!The registered name appears if the phone
number of the received call is already regis-
tered in the phone book. When one phone
number is registered under different
names, the name that comes first in the
phone book is displayed.
!If the phone number of the received call is
not registered in the phone book, the
phone number of the received call appears.
The received call history and the
dialled number history
!Calls made or editing performed only on
your iPhone will not be reflected to the
dialled number history or phone book in
this product.
!You cannot make a call to the entry of an
unknown user (no phone number) in the re-
ceived call history.
Engb
18
Chapter
06 Using hands-free phoning

The following two functions are available. The
rear view camera feature requires a separately
sold rear view camera (e.g. ND-BC4). (For de-
tails, consult your dealer.)
Rear view camera
This product features a function that automati-
cally switches to the full-screen image of the
rear view camera installed on your vehicle.
When the gearstick is in the REVERSE (R) po-
sition, the screen automatically switches to
full-screen rear view camera image.
Camera for Rear view mode
Rear view can be displayed at all times (e.g.
when monitoring an attached trailer, etc.).
Please be aware that with this setting, camera
image is not resized to fit, and that a portion of
what is seen by the camera is not viewable.
CAUTION
Check to make sure settings for rear view camera
displays a mirror reversed image.
pImmediately verify whether the display
changes to a rear view camera image when
the gearstick is moved to REVERSE (R)
from another position.
pWhen the screen changes to full-screen
rear view camera image during normal
driving, switch to the opposite setting in
“Rear Camera”.
1 Press the Home button to display the
Home screen.
2Tap on the Home screen.
3 Tap [General].
4Tap .
5 Tap [Rear Camera].
You can select the following polarity:
!OFF (default):
Select when the rear view camera is not
connected.
!Normal:
Displays the rear view camera image with-
out change.
Select “Normal”in the following case:
!When the rear view camera is con-
nected to display a mirror reversed
image.
!When the polarity of the connected lead
is positive while the gearstick is in the
REVERSE (R) position
!Normal(GND):
Displays the rear view camera image with-
out change.
Select “Normal(GND)”in the following
case:
!When the rear view camera is con-
nected to display a mirror reversed
image.
!When the polarity of the connected lead
is negative while the gearstick is in the
REVERSE (R) position
!Mirror:
Displays the rear view camera image in mir-
ror reverse.
Select “Mirror”in the following case:
!When the rear view camera is con-
nected to display a normal image.
!When the polarity of the connected lead
is positive while the gearstick is in the
REVERSE (R) position
!Mirror(GND):
Displays the rear view camera image in mir-
ror reverse.
Select “Mirror(GND)”in the following case:
!When the rear view camera is con-
nected to display a normal image.
!When the polarity of the connected lead
is negative while the gearstick is in the
REVERSE (R) position
Engb 19
Chapter
07
Setting rear view camera
Setting rear view camera

Customising the audio
settings
1 Press the Home button to display the
Home screen.
2Tap on the Home screen.
3 Tap [Audio Settings].
The audio settings screen appears.
4 Tap the item that you want to change
the setting.
Using the equaliser
The equaliser lets you adjust equalisation to
match vehicle interior acoustic characteristics
as desired.
Recalling equaliser curves
There are seven stored equaliser curves that
you can easily recall at any time. Here is a list
of the equaliser curves:
Equaliser curve
S.Bass (Super Bass) is a curve in which only low-
pitched sound is boosted.
Powerful is a curve in which low-pitched and high-
pitched sounds are boosted.
Natural is a curve in which low-pitched and high-
pitched sounds are slightly boosted.
Vocal is a curve in which the midrange, which is the
human vocal range, is boosted.
Flat is a flat curve in which nothing is boosted.
Custom1 is an adjusted equaliser curve that you cre-
ate. A separate custom curve can be created for each
source.
Custom2 is an adjusted equaliser curve that you cre-
ate. If you select this curve, the effect is applied to all
audio sources.
pWhen “Flat”is selected, no supplement or
correction is made to the sound. This is
useful to check the effect of the equaliser
curves by switching alternatively between
“Flat”and a set equaliser curve.
1 Display the audio settings screen.
2 Tap [EQ].
3 Tap the equaliser you want.
Customising the equaliser curves
You can adjust the currently selected equaliser
curve setting as desired. Adjustments can be
made with a 3-band parametric equaliser.
!Band:
You can select the equaliser band.
!Freq:
You can select which frequency to set as
the centre frequency.
!Level:
You can select the decibel (dB) level of the
selected EQ.
!Q:
You can select the details of the curve char-
acteristics.
1 Display the audio settings screen.
2 Tap [EQ].
3 Tap one of the keys to select a curve
that you want to use as the basis of custo-
mising.
4Tap or to select the equaliser band
to adjust.
You can select the following bands:
Low —Mid —High
5Tap or to select the desired fre-
quency.
You can select the following frequencies:
Low:60 Hz —80 Hz —100 Hz —200 Hz
Mid:0.5 kHz —1 kHz —1.5 kHz —2.5 kHz
High:10 kHz —12.5 kHz —15 kHz —
17.5 kHz
Engb
20
Chapter
08 Customising preferences
