Pioneer KEH-P4020 - Radio / Cassette Player User manual

Multi-CD control High power cassette player with
FM/AM tuner
Syntoniseur FM/AM et lecteur de cassette, “Puissance
élevée”, avec contrôleur pour lecteur de CD à chargeur
Operation Manual
KEH-P4020
Mode d’emploi
English Français Español

Before You Start
Dear Customer 2
About this unit 3
About this manual 3
After-sales service for Pioneer products 3
Precautions 3
Protecting your unit from theft 4
• Removing the front panel 4
• Attaching the front panel 4
What’s what 5
Power ON/OFF
Turning the unit on 6
Selecting a source 6
Turning the unit off 6
Tuner
Listening to the radio 7
Storing and recalling broadcast
frequencies 8
Tuning in strong signals 8
Storing the strongest broadcast
frequencies 8
Cassette Player
Playing a tape 9
Repeating play 10
Skipping blank tape sections 10
Radio intercept 10
CD player
Playing a CD 11
Repeating play 11
Playing tracks in a random order 12
Scanning tracks of a CD 12
Pausing CD playback 12
Multi-CD Player
Playing a CD 13
50-disc multi-CD player 14
Repeating play 14
Playing tracks in a random order 14
Scanning CDs and tracks 14
Pausing CD playback 15
Audio Adjustments
Introduction of audio adjustments 15
Using balance adjustment 16
Using the equalizer 16
• Recalling equalizer curves 16
• Adjusting equalizer curves 17
Adjusting loudness 17
Front image enhancer (FIE) 18
Adjusting source levels 18
Initial Settings
Adjusting initial settings 19
Setting the time 19
Switching the auxiliary setting 20
Additional Information
Setting the time display on or off 20
Using the AUX source 20
• Selecting AUX as the source 20
Cassette tapes 21
Cleaning the playback head 21
Music search and repeat functions 21
Specifications 22
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to oper-
ate your model properly. After you have finished reading the instructions, put them
away in a safe place for future reference.
Contents
En
1

En 2
English Español Deutsch Français Italiano Nederlands
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of your equipment by playing it at a safe level. One
that lets the sound come through loud and clear without annoying blaring or distortion—and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against
this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
•Start your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
•Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After
all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hear-
ing damage from loud noise is often undetectable until it is too late, this manufacturer and the
Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged
exposure to excessive noise. This list of sound levels is included for your protection.
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.

Before You Start
About this unit
The tuner frequencies on this unit are allocated
for use in North America. Use in other areas
may result in improper reception.
Important
The serial number is located on the top of this
unit. For your own security and convenience, be
sure to record this number on the enclosed
warranty card.
About this manual
This unit features a number of sophisticated
functions ensuring superior reception and oper-
ation. All the functions have been designed for
the easiest possible use, but many are not self-
explanatory. This operation manual will help you
benefit fully from this product’s potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin using
this unit. It is especially important that you read
and observe precautions on this page and in
other sections.
After-sales service for Pioneer
products
Please contact the dealer or distributor from
where you purchased this unit for after-sales
service (including warranty conditions) or any
other information. In case the necessary infor-
mation is not available, please contact the com-
panies listed below:
Please do not ship your unit to the companies at
the addresses listed below for repair without
advance contact.
For warranty information please see the Limited
Warranty sheet included with this unit.
Precautions
• Keep this manual handy as a reference for
operating procedures and precautions.
• Always keep the volume low enough so you
can hear sounds outside of the car.
• Protect this product from moisture.
• If the battery is disconnected or discharged,
the preset memory will be erased and must be
reprogrammed.
CAUTION: USE OF CONTROL OR
ADJUSTMENT OR PER-
FORMANCE OF PROCE-
DURES OTHER THAN
THOSE SPECIFIED HEREIN
MAY RESULT IN
HAZARDOUS RADIATION
EXPOSURE.
CAUTION: THE USE OF OPTICAL
INSTRUMENTS WITH
THIS PRODUCT WILL
INCREASE EYE HAZARD.
U.S.A.
Pioneer Electronics Service, Inc.
CUSTOMER SERVICE DEPARTMENT
P.O. Box 1760
Long Beach, CA 90801
800-421-1404
CANADA
Pioneer Electronics of Canada, Inc.
CUSTOMER SATISFACTION DEPARTMENT
300 Allstate Parkway
Markham, Ontario L3R OP2
[phone]
1-877-283-5901
En
3

Before You Start
En 4
Protecting your unit from theft
The front panel can be detached from the head
unit and stored in the protective case provided
to discourage theft.
• Keep the front panel closed while driving.
Important
• Never use force or grip the display and the
buttons tightly when removing or attaching.
• Avoid subjecting the front panel to excessive
shocks.
• Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and pull
it gently outward.
Take care not to grip it tightly or drop it.
3 Put the front panel into the protective case
provided for safe keeping.
Attaching the front panel
Replace the front panel by holding it upright
to this unit and clipping it securely into the
mounting hooks.
English Español Deutsch Français Italiano Nederlands

En
5
Before You Start
What’s what
1VOLUME button
Press to increase or decrease the volume.
2LOCAL button (tuner)
Press to switch local function on or off.
PAUSE/SCAN button
Press to switch pause function on or off.
Press and hold for two seconds to switch
scan function on or off.
3BSM button (tuner)
Press and hold for two seconds to switch
BSM function on or off.
REPEAT/RANDOM button
Press to switch repeat function on or off.
Press and hold for two seconds to switch
random function on or off.
4OPEN button
Press to open the front panel.
5AUDIO button
Press to select various sound quality con-
trols.
65/∞/2/3buttons
Press to do manual seek tuning, fast for-
ward, reverse and track search controls. Also
used for controlling functions.
7LOUDNESS button
Press to switch loudness function on or off.
8BAND button
Press to select among three FM and one AM
band and cancel the control mode of func-
tions.
91–6 (PRESET TUNING) buttons
Press for preset tuning and disc number
search when using a multi-CD player.
0SOURCE button
This unit is switched on by selecting a
source. Press to cycle through all of the
available sources.
-EQ button
Press to select various equalizer curves.
=CLOCK button
Press to switch clock display on or off.
35
=
-
98
7
6
0
124

Power ON/OFF
En 6
English Español Deutsch Français Italiano Nederlands
Turning the unit on
Press SOURCE to turn the unit on.
When you select a source the unit is turned on.
Selecting a source
You can select a source you want to listen to. To
switch to the cassette player, load a cassette
tape in this unit (refer to page 9).
Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
CD player (one disc only)—Tuner—Cassette
player—Multi-CD player—External unit—AUX
Notes
• In the following cases, the sound source will
not change:
— When a product corresponding to each
source is not connected to this unit.
— When no cassette is set in this unit.
— When no magazine is set in the multi-CD
player.
— When the AUX (external input) is set to off
(refer to page 20).
• External Unit refers to a Pioneer product
(such as one available in the future) that,
although incompatible as a source, enables
control of basic functions by this product.
Only one External Unit can be controlled by
this product.
• When this unit’s blue/white lead is connected
to the car’s auto-antenna relay control termi-
nal, the car’s antenna extends when this
unit’s source is switched on. To retract the
antenna, switch the source off.
Turning the unit off
Press SOURCE and hold for at least one sec-
ond to turn the unit off.

Tuner
Listening to the radio
1BAND indicator
Shows which band the radio is tuned to, AM
or FM.
2FREQUENCY indicator
Shows to which frequency the tuner is
tuned.
3PRESET NUMBER indicator
Shows what preset has been selected.
4STEREO () indicator
Shows that the frequency selected is being
broadcast in stereo.
1 Press SOURCE to select the tuner.
2UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
3 Press BAND to select a band.
Press BAND until the desired band is displayed,
F1, F2, F3 for FM or AM.
4 To perform manual tuning, press 2or 3
with quick presses.
The frequencies move up or down step by step.
5 To perform seek tuning, press and hold 2
or 3for about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
• You can cancel seek tuning by pressing either
2or 3with a quick press.
• If you press and hold 2or 3you can skip
broadcasting stations. Seek tuning starts as
soon as you release the buttons.
Note
• When the frequency selected is being broad-
cast in stereo the STEREO ()indicator will
light.
21 3 4
En
7

Tuner
En 8
Storing and recalling broadcast
frequencies
If you press any of the PRESET TUNING buttons
you can easily store up to six broadcast frequen-
cies for later recall with the touch of a button.
When you find a frequency that you want to
store in memory press a PRESET TUNING but-
ton and hold until the preset number stops
flashing.
The number you have pressed will flash in the
PRESET NUMBER indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same PRESET TUN-
ING button the radio station frequency is
recalled from memory.
Notes
• Up to 18 FM stations, 6 for each of the three
FM bands, and 6 AM stations can be stored in
memory.
• You can also use 5and ∞to recall radio sta-
tion frequencies assigned to PRESET TUNING
buttons.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals for
good reception.
1 Press LOCAL to turn local seek tuning on.
Local seek sensitivity (LOC) appears in the dis-
play.
2 When you want to return to normal seek
tuning, press LOCAL to turn local seek tuning
off.
Storing the strongest broadcast
frequencies
BSM (best stations memory) lets you automati-
cally store the six strongest broadcast frequen-
cies under PRESET TUNING buttons 1–6 and
once stored there you can tune in to those fre-
quencies with the touch of a button.
Press and hold BSM for about two seconds to
turn BSM on.
BSM begins to flash. While BSM is flashing the
six strongest broadcast frequencies will be
stored under PRESET TUNING buttons in order
of their signal strength. When finished, BSM
stops flashing.
• To cancel the storage process, press BSM.
Note
• Storing broadcast frequencies with BSM may
replace broadcast frequencies you have saved
using PRESET TUNING.
English Español Deutsch Français Italiano Nederlands

En
9
Cassette Player
Playing a Tape
1TAPE DIRECTION indicator
Shows the direction of the tape transport.
2PLAY TIME indicator
Shows the elapsed playing time of the cur-
rent track.
1 Press OPEN to open the front panel.
Cassette loading slot appears.
2 Insert a cassette tape into the cassette
loading slot.
Playback will automatically start.
Cassette loading slot
TAPE EJECT button
• You can eject a cassette tape by pressing
TAPE EJECT.
3 Close the front panel.
• After a cassette tape has been inserted, press
SOURCE to select the Cassette player.
4Use
VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
5 To perform fast forward or rewind, press 2
or 3.
FF or REW appears in the display.
• To cancel fast forward or rewind and return to
playback, press BAND.
• You can cancel fast forward or rewind by
pressing 2or 3in the same direction twice.
6 To perform forward or rewind music
search, press 2or 3twice.
F-MS (forward music search) or R-MS (rewind
music search) appears in the display. The cas-
sette player will fast forward or rewind to the
next or previous blank spot on the tape and
begin to play.
• To cancel music search and return to play-
back, press BAND.
• You can cancel music search by pressing 2
or 3in the same direction again.
7 To change the direction of the tape trans-
port, press BAND.
Notes
• Do not insert anything other than a cassette
tape into the cassette loading slot.
•PLAY TIME indicator starts from 00’00” in the
following cases:
— When a tape is inserted
— When the tape direction is changed
— When you rewind the tape to the beginning
•PLAY TIME indicator is halted when fast for-
ward, rewind or music search is operating.
12

Cassette Player
En 10
English Español Deutsch Français Italiano Nederlands
Repeating play
Repeat play lets you hear the same track over
again.
1 Press REPEAT/RANDOM to turn repeat play on.
RPT appears in the display. The track presently
playing will play and then repeat.
2 Press REPEAT/RANDOM to turn repeat play off.
The track presently playing will continue to play
and then play the next track.
Skipping blank tape sections
Blank skip automatically fast forwards to the
next song if there is a long period of silence (12
seconds or longer) between songs.
1 Press 5to turn blank skip on.
BS ON appears in the display. Long periods of
silence between songs will be skipped.
2 Press 5to turn blank skip off.
BS OFF appears in the display. The complete
cassette tape will play.
Radio intercept
This function allows you to listen to the radio
during tape fast-forwarding/rewinding.
1 Press 6to turn radio intercept on.
RI ON appears in the display.
2 Press 6to turn radio intercept off.
RI OFF appears in the display.

CD player
Playing a CD
You can use this unit to control a CD player (one
disc only), which is sold separately.

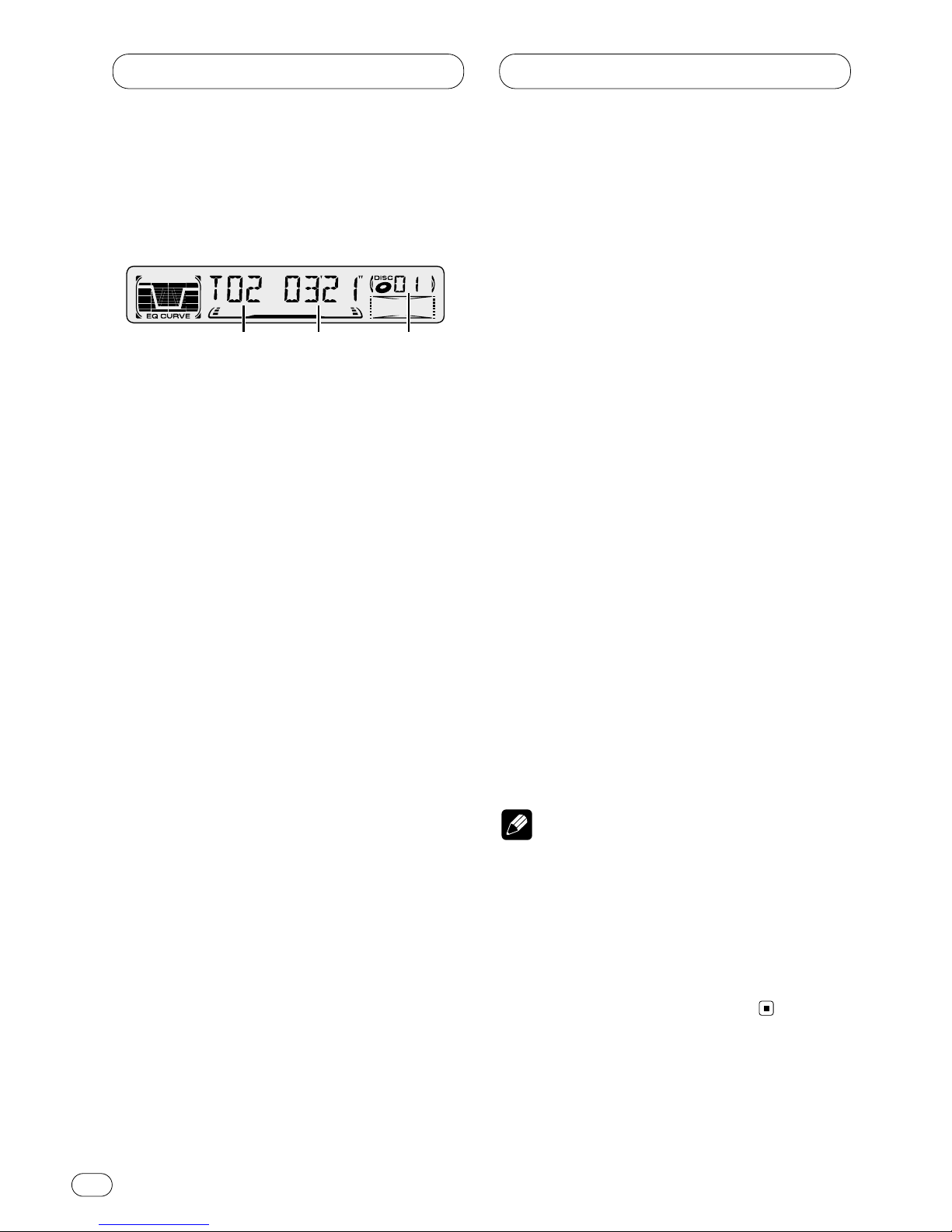

1TRACK NUMBER indicator
Shows the track currently playing.
2PLAY TIME indicator
Shows the elapsed playing time of the cur-
rent track.
1 Press SOURCE to select the CD player (one
disc only).
2UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
3 To perform fast forward or reverse, press
and hold 2or 3.
4 To skip back or forward to another track,
press 2or 3.
Pressing 3skips to the start of the next track.
Pressing 2once skips to the start of the current
track. Pressing again will skip to the previous
track.
Note
• If the built-in CD player does not operate prop-
erly, an error message such as ERROR-14 may
be displayed. Refer to the CD player owner’s
manual.
Repeating play
Repeat play lets you hear the same track over
again.
1 Press REPEAT/RANDOM to turn repeat play
on.
RPT appears in the display. The track presently
playing will play and then repeat.
2 Press REPEAT/RANDOM to turn repeat play
off.
The track presently playing will continue to play
and then play the next track.
Note
• If you perform track search or fast forward/
reverse, repeat play is automatically
cancelled.
12
En
11

CD player
En 12
Playing tracks in a random order
Random play lets you play back tracks on the
CD in a random order.
1 Press REPEAT/RANDOM for about two sec-
onds to turn random play on.
RDM appears in the display. Tracks will play in a
random order.
2 Press REPEAT/RANDOM for about two sec-
onds to turn random play off.
Tracks will continue to play in order.
Scanning tracks of a CD
Scan play lets you hear the first 10 seconds of
each track on the CD.
1 Press PAUSE/SCAN for about two seconds
to turn scan play on.
SCAN appears in the display. The first 10 sec-
onds of each track is played.
2 When you find the desired track, press
PAUSE/SCAN for about two seconds to turn
scan play off.
The track will continue to play.
Note
• After scanning of a CD is finished, normal
playback of the tracks will begin again.
Pausing CD playback
Pause lets you temporarily stop playback of the
CD.
1 Press PAUSE/SCAN to turn pause on.
PAUSE appears in the display. Play of the cur-
rent track pauses.
2 Press PAUSE/SCAN to turn pause off.
Play will resume at the same point that you
turned pause on.
English Español Deutsch Français Italiano Nederlands

En
13
Multi-CD Player
Playing a CD
You can use this unit to control a multi-CD player,
which is sold separately.
1TRACK NUMBER indicator
Shows the track currently playing.
2PLAY TIME indicator
Shows the elapsed playing time of the cur-
rent track.
3DISC NUMBER indicator
Shows the disc currently playing.
1 Press SOURCE to select the multi-CD
player.
2UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
3 Select a disc you want to listen to with the
1to 6buttons.
For discs located at 1 to 6, press the correspond-
ing number button.
If you want to select a disc located at 7 to 12,
press and hold the corresponding numbers
such as 1for disc 7, until the disc number
appears in the display.
• You can also sequentially select a disc by
pressing 5/∞.
4 To perform fast forward or reverse, press
and hold 2or 3.
5 To skip back or forward to another track,
press 2or 3.
Pressing 3skips to the start of the next track.
Pressing 2once skips to the start of the current
track. Pressing again will skip to the previous
track.
Notes
• When the multi-CD player performs the
preparatory operations, READY is displayed.
• If the multi-CD player does not operate prop-
erly, an error message such as ERROR-14 may
be displayed. Refer to the multi-CD player
owner’s manual.
• If there are no discs in the multi-CD player
magazine, NO DISC is displayed.
321

Multi-CD Player
En 14
English Español Deutsch Français Italiano Nederlands
50-disc multi-CD player
Only those functions described in this manual
are supported for 50-disc multi-CD players.
Repeating play
There are three repeat play ranges for the multi-
CD player: Multi-CD player repeat, one-track
repeat, and disc repeat.
Press REPEAT/RANDOM to select the repeat
range.
Press REPEAT/RANDOM until the desired
repeat range appears in the display.
•Nothing’s displayed — Repeat all discs in
the multi-CD player
•RPT — Repeat just the current track
•DISC — Repeat the current disc
Notes
• If you select other discs during repeat play,
the repeat play range changes to multi-CD
player repeat.
• If you perform track search or fast
forward/reverse during RPT (one-track
repeat), the repeat play range changes to
DISC (disc repeat).
Playing tracks in a random order
Random play lets you play back tracks in a ran-
dom order within the repeat range, multi-CD
player repeat and disc repeat.
1 Select the repeat range.
Refer to Repeating play on this page.
2 Press and hold REPEAT/RANDOM for about
two seconds to turn random play on.
DRDM(random playing in a disc) or RDM(ran-
dom playing in a magazine) appears in the dis-
play. Tracks will play in a random order within
the previously selected multi-CD player repeat
or disc repeat ranges.
3 Press and hold REPEAT/RANDOM for about
two seconds to turn random play off.
Tracks will continue to play in order.
Scanning CDs and tracks
While you are using DISC (disc repeat), the
beginning of each track on the selected disc
plays for about 10 seconds. When you are using
multi-CD player repeat, the beginning of the first
track of each disc is played for about 10 sec-
onds.

Multi-CD Player Audio Adjustments
1 Select the repeat range.
Refer to Repeating play on page 14.
2 Press and hold PAUSE/SCAN for about two
seconds to turn scan play on.
DSCN (scanning tracks) or SCAN (scanning
discs) appears in the display. The first 10 sec-
onds of each track of the present disc (or the
first track of each disc) is played.
3 When you find the desired track (or disc)
press and hold PAUSE/SCAN for about two sec-
onds to turn scan play off.
The track (or disc) will continue to play.
Note
• After track or disc scanning is finished, nor-
mal playback of the tracks will begin again.
Pausing CD playback
Pause lets you temporarily stop playback of the
CD.
1 Press PAUSE/SCAN to turn pause on.
PAUSE appears in the display. Play of the cur-
rent track pauses.
2 Press PAUSE/SCAN to turn pause off.
Play will resume at the same point that you
turned pause on.
Introduction of audio
adjustments

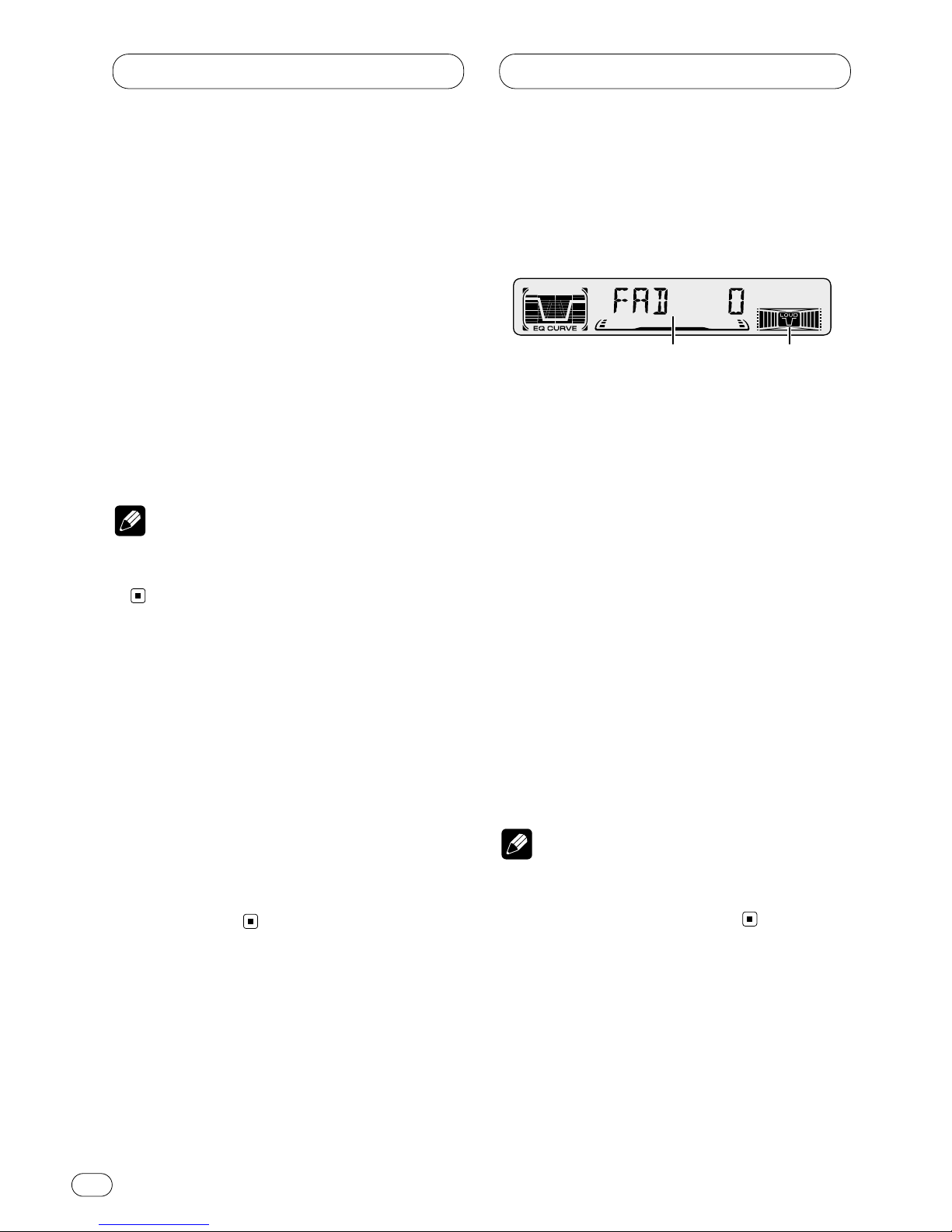

1AUDIO display
Shows the audio adjustments status.
2LOUD indicator
Appears in the display when loudness is
turned on.
Press AUDIO to display the audio function
names.
Press AUDIO repeatedly to switch between the
following audio functions:
FAD (balance adjustment)—EQ-L (equalizer)—
LOUD (loudness)—FIE (front image
enhancer)—SLA (source level adjustment)
• When selecting the FM tuner as the source,
you cannot switch to SLA.
• To return to the display of each source, press
BAND.
Note
• If you do not operate the audio function within
about 30 seconds, the display is automatically
returned to the source display.
12
En
15

Audio Adjustments
En 16
Using balance adjustment
You can select a fader/balance setting that pro-
vides an ideal listening environment in all occu-
pied seats.
1 Press AUDIO to select FAD.
Press AUDIO until FAD appears in the display.
• If the balance setting has been previously
adjusted, BAL will be displayed.
2 Press 5or ∞to adjust front/rear speaker
balance.
Each press of 5or ∞moves the front/rear
speaker balance towards the front or the rear.
•FAD F15 – FAD R15 is displayed as the
front/rear speaker balance moves from front to
rear.
•FAD 0 is the proper setting when only two
speakers are used.
3 Press 2or 3to adjust left/right speaker
balance.
When you press 2or 3, BAL 0 is displayed.
Each press of 2or 3moves the left/right
speaker balance towards the left or the right.
•BAL L9 – BAL R9 is displayed as the left/right
speaker balance moves from left to right.
Using the equalizer
The equalizer lets you adjust the equalization to
match car interior acoustic characteristics as
desired.
Recalling equalizer curves
There are six stored equalizer curves which you
can easily recall at any time. Here is a list of the
equalizer curves:
Display Equalizer curve
SPR-BASS Super bass
POWERFUL Powerful
NATURAL Natural
VOCAL Vocal
CUSTOM Custom
EQ FLAT Flat
•CUSTOM is an adjusted equalizer curve that
you create.
• When EQ FLAT is selected no supplement or
correction is made to the sound. This is useful
to check the effect of the equalizer curves by
switching alternatively between EQ FLAT and a
set equalizer curve.
Press EQ to select the equalizer.
• If the equalizer has been previously set to an
equalizer curve other than POWERFUL then the
title of that previously selected equalizer curve
will be displayed, such as SPR-BASS,
NATURAL, VOCAL, CUSTOM, or EQ FLAT.
English Español Deutsch Français Italiano Nederlands

Audio Adjustments
Adjusting equalizer curves
You can adjust the currently selected equalizer
curve setting as desired. Adjusted equalizer
curve settings are memorized in CUSTOM.
1 Press AUDIO to select the equalizer mode.
Press AUDIO until EQ-L/EQ-M/EQ-H appears in
the display.
2 Select the band you want to adjust with
the 2/3.
EQ-L (low) —EQ-M (mid) —EQ-H (high)
3 Press 5or ∞to adjust the equalizer curve.
Each press of 5or ∞increases or decreases
the equalizer curve respectively.
•+6 ––6 is displayed as the equalizer curve is
increased or decreased.
• The actual range of the adjustments are differ-
ent depending on which equalizer curve is
selected.
Notes
• If you make adjustments when a curve other
than CUSTOM is selected, the newly adjusted
curve will replace the previous curve. Then a
new curve with CUSTOM appears on the dis-
play while selecting the equalizer curve.
• You can create different CUSTOM curves for
different sources.
• The CD player (one disc only) and multi-CD
player are set to the same equalizer adjust-
ment setting automatically.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
Press AUDIO until LOUD appears in the display.
2 Select LOUD on or off with 5/∞.
3 Select the desired level with 2/3.
LOW (low) —MID (mid) —HI (high)
Note
• You can also switch LOUD on or off by press-
ing the LOUDNESS.
En
17

Audio Adjustments
En 18
Front image enhancer (FIE)
The F.I.E. (Front Image Enhancer) function is a
simple method of enhancing front imaging by
cutting mid- and high-range frequency output
from the rear speakers, limiting their output to
low-range frequencies. You can select the fre-
quency you want to cut.
Precaution
• When the F.I.E. function is deactivated, the
rear speakers output sound of all frequencies,
not just bass sounds. Reduce the volume
before disengaging F.I.E. to prevent a sudden
increase in volume.
1 Press AUDIO to select FIE.
Press AUDIO until FIE appears in the display.
2 Select FIE on or off with 5/∞.
3 Select the desired frequency with 2/3.
100—160—250 (Hz)
Notes
• After switching the F.I.E. function ON, select
the Fader/Balance mode in the Audio Menu,
and adjust front and rear speaker volume
levels until they are balanced.
• Switch the F.I.E. function OFF when using a 2-
speaker system.
Adjusting source levels
SLA (Source level adjustment) lets you adjust
the volume level of each source to prevent radi-
cal changes in volume when switching between
sources.
• Settings are based on the volume level of the
FM tuner, which remains unchanged.
1 Compare the FM tuner volume level with
the level of the source you wish to adjust.
2 Press AUDIO to select SLA.
Press AUDIO until SLA appears in the display.
3 Press 5or ∞to adjust the source volume.
Each press of 5or ∞increases or decreases
the source volume.
•SLA +4 – SLA –4 is displayed as the source
volume is increased or decreased.
Notes
• Since the FM tuner volume is the control, it is
not possible to apply source level adjustments
to the FM tuner.
• The AM tuner volume level can also be
adjusted with source level adjustments.
English Español Deutsch Français Italiano Nederlands

Adjusting initial settings
Initial settings lets you perform initial set up of
different settings for this unit.
1 Press SOURCE and hold until the unit turns
off.
2 Press AUDIO and hold until TIME appears
in the display.
Press AUDIO repeatedly to switch between the
following settings:
TIME—AUX
Use the following instructions to operate each
particular setting.
• To cancel initial settings, press BAND.
• You can also cancel initial settings by holding
down AUDIO until the unit turns off.

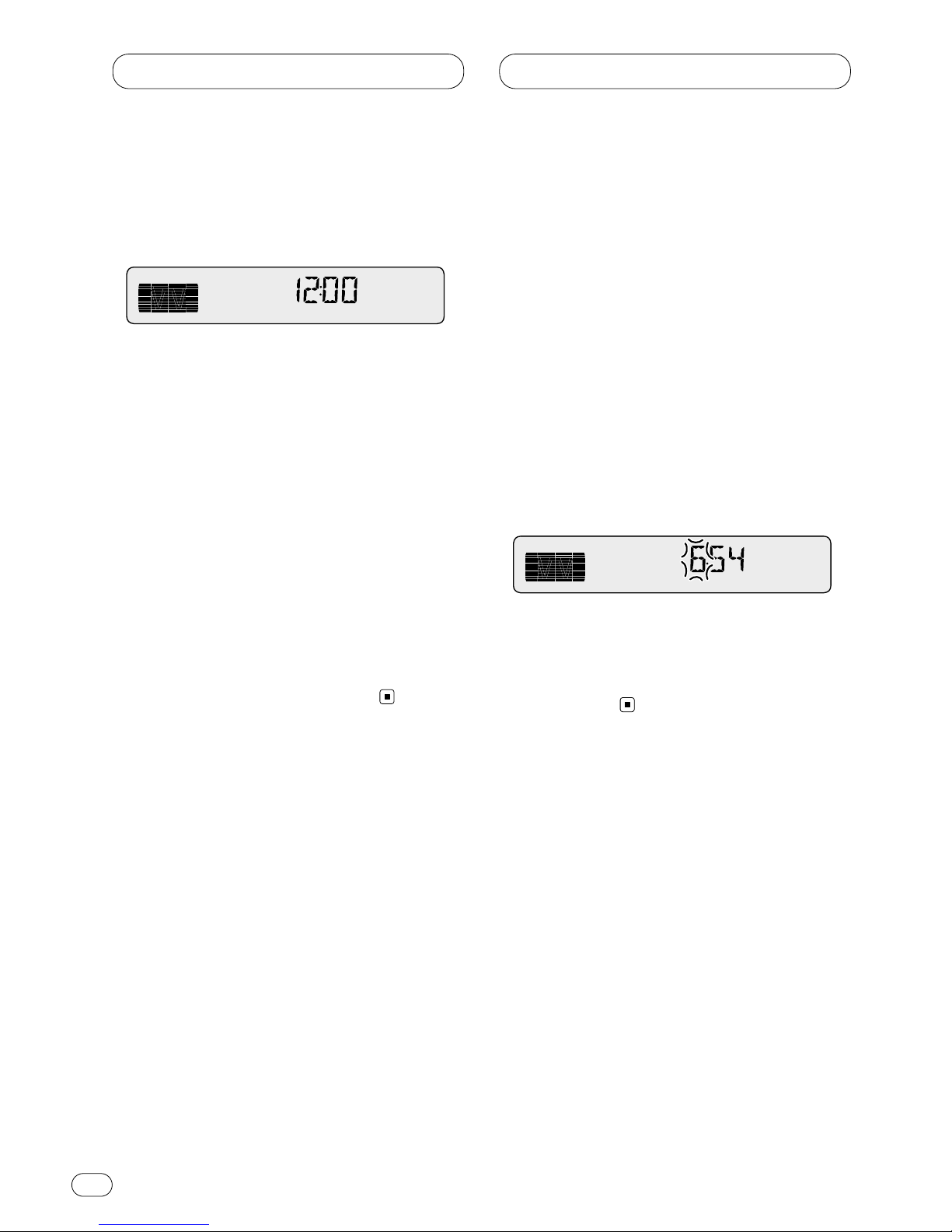

Setting the time
This is used to set the time on the unit’s clock
display.
1 Press AUDIO to select the time.
Press AUDIO until the time appears in the dis-
play.
2 Select the portion of the time display you
wish to set with 2/3.
Pressing 2/3will select a portion of the clock
display:
HOUR—MINUTE
As you select portions of the clock display the
portion selected will blink.
3 Select the correct time with 5/∞.
Pressing 5will increase the selected hour or
minute. Pressing ∞will decrease the selected
hour or minute.
Initial Settings
En
19
