Pioneer CDX-P670X1N User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZY. NOV. 2000 Printed in Japan
ORDER NO.
CRT2589
MULTI-COMPACT DISC PLAYER
CDX-P670 X1N/EW
Service
Manual
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-892 CRT2356 C7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................3
2. EXPLODED VIEWS AND PARTS LIST.......................4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................22
5. ELECTRICAL PARTS LIST ........................................28
6. ADJUSTMENT..........................................................31
7. GENERAL INFORMATION .......................................38
7.1 DIAGNOSIS ........................................................38
7.1.1 TEST MODE..............................................38
7.1.2 DISASSEMBLY .........................................44
7.1.3 CONNECTOR FUNCTION DESCRIPTION46
7.2 IC .........................................................................47
7.3 OPERATIONAL FLOW CHART...........................49
8. OPERATIONS AND SPECIFICATIONS.....................50

2
CDX-P670
A transport screw has been attached to the set in order to protect
it during transportation. After removing the transport screw,
cover the hole with the supplied seal. Be sure to remove the
transport screw before mounting the set. The removed transport
screw should be retained in the accessory bag for use the next
time the set is transported.
Transport screw
Attach to the original position before transporting the set.
Seal
After removing the transport screw, cover the hole
with the supplied seal.
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 44).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 32).
4. Since these screws protects the mechanism during
transport, be sure to affix it when it is transported for
repair, etc.

3
CDX-P670
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
2. A “CLASS 1 LASER PRODUCT” label is affixed to the
rear of the player.
3. The triangular label is attached to the mechanism
unit frame.
CLASS 1
LASER PRODUCT
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
1. SAFETY INFORMATION

4
CDX-P670
2. EXPLODED VIEWS AND PARTS LIST

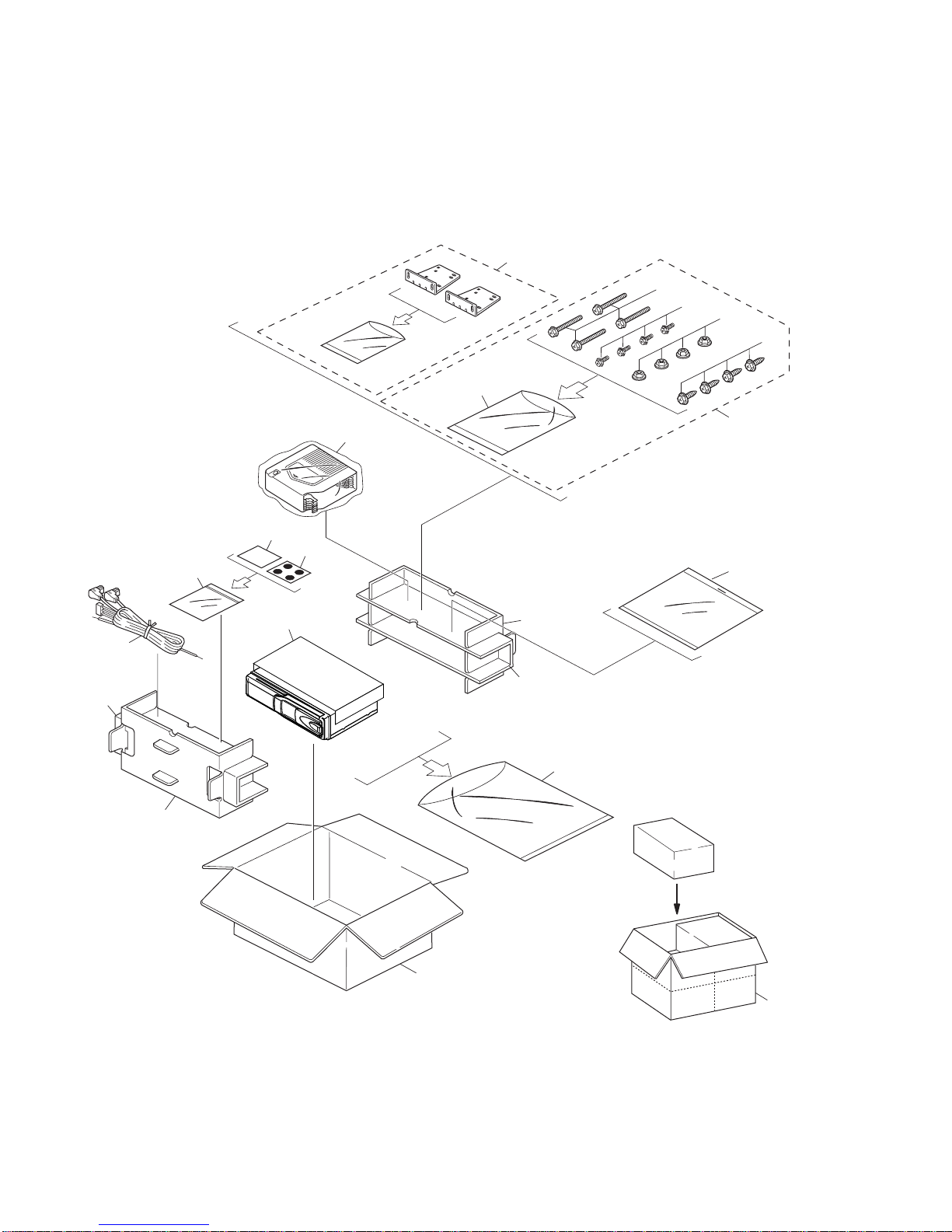

2.1 PACKING
9
8
11
12
11
15
12
19
17
10
7
13
5
4
3
1
6
2
14
18
16

5
CDX-P670
NOTE:
-Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
1 Screw Assy CEA1962
2 Screw CBA1295
* 3 Polyethylene Sheet CNM5158
4 Screw HMB60P500FMC
5 Screw HMF40P080FZK
6 Nut NF60FMC
8 Polyethylene Bag CEG1042
* 7 Polyethylene Bag CEG1099
9 Carton CHG4278
10 Contain Box CHL4278
11 Protector CHP2133
12 Protector CHP2134
13 Seal CNM5599
14-1 Owner’s Manual CRD3318
14-2 Owner’s Manual CRD3319
* 14-3 Warranty Card CRY1157
15 Magazine Assy CXB6518
16 Angle Assy CXB3591
17 Cord CDE5830
* 18 Caution Card CRP1090
* 19 Caution Card CRP1232
-PACKING SECTION PARTS LIST
Mark No. Description Part No.
- Owner’s Manual
Part No. Language
CRD3318 English, Italian, French
CRD3319 German, Dutch, Spanish

6
CDX-P670
2.2 EXTERIOR

7
CDX-P670
1 Screw BMZ26P040FMC
2 Screw BMZ30P040FZK
3 Button CAC6363
4 Screw CBA1460
5 Spring CBH1859
6 Connector CDE5525
7 Connector CDE6478
8 Upper Case CNB2431
9 Arm CNC8058
10 Insulator CNM6074
11 Panel CNS5216
12 Damper CNV5591
13 Power Unit CWX2512
14 Screw BMZ26P060FMC
15 Terminal(CN902) CKF1059
16 Plug(CN901) CKS-460
17 Connector(CN921) CKS3407
18 Connector(CN911) CKS3831
19 Holder CNC8055
20 Holder CNC8056
21 Grille Assy CXB6823
22 Door CAT2198
23 Door CAT2199
24 Lower Case Unit CXB7005
25 CD Mechanism Module(C7R2) CXK4850
26 Screw IMS20P030FZK
27 Screw IMS26P040FMC
28 Transistor(Q910) 2SD2396
* 29 Caution Card CRP1232
-EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.

8
CDX-P670
2.3 CD MECHANISM MODULE

9
CDX-P670
1 Connector CDE6069
2 CD Core Unit CWX2487
3 Connector(CN701) CKS1963
4 Connector(CN101) CKS2272
5 Screw BMZ20P025FMC
6 Screw(M2x2.5) CBA1037
7 Screw(M2x2.5) CBA1041
8 Screw(M2x2) CBA1176
9 Screw(M2x4) CBA1362
10 Screw(M2x1.4) CBA1387
11 Screw(M2x2.5) CBA1493
12 Screw(M2x1.6) CBA1476
13 Screw(M2x3) CBA1486
14 Washer CBF1038
15 Spring CBH2172
16 Spring CBH2173
17 Spring CBH2174
18 Spring CBH2175
19 Spring CBH2285
20 Spring CBH2177
21 Spring CBH2178
22 Spring CBL1390
23 Spring CBL1393
24 Short Pin CBL1239
25 Volume(VR801) CCW1023
26 Screw(M2x1.5) CBA1491
27 Shaft CLA3894
28 Arm CNC8482
29 Lever CNC7902
30 Lever CNC7904
31 Lever CNC7905
32 Lever CNC7906
33 Arm CNC7908
34 Arm CNC7909
35 Holder CNC7911
36 Holder CNC7912
37 Frame CNC7917
38 Frame CNC7918
39 Lever CNC7919
40 Stopper CNC7920
41 Frame CNC7921
42 Bracket CNC8354
43 Plate CNC8375
44 Cover CNC8434
45 Sheet CNM6009
46 Spacer CNM6428
47 Sheet CNM6296
48 PCB CNP5227
49 PCB CNP5228
50 Ball CNR1189
51 Gear CNR1531
52 Belt CNT1086
53 Gear CNV5472
54 Gear CNV5473
55 Rail CNV5920
56 Lever CNV6091
57 Gear CNV5477
58 Arm CNV5478
59 Holder CNV5480
60 Guide CNV5921
61 Guide CNV5922
62 Holder CNV5483
63 Holder CNV5484
64 Clamper CNV5485
65 Gear CNV5486
66 Gear CNV5562
67 Holder CNV5563
68 Lighting Conductor CNV5785
69 Mechanism PCB CWX2303
70 Connector(CN801) CKS1965
71 Connector(CN802) CKS3486
72 Damper Unit CXA7714
73 Chassis Unit CXB4463
74 •••••
75 Chassis Unit CXB4461
76 Magazine Holder Unit CXB4459
77 Frame Unit CXB4426
78 Arm Unit CXB2855
79 Screw Unit CXB4464
80 •••••
81 Motor Unit(M851)(SPINDLE) CXB3003
82 Motor Unit(M854)(CARRIAGE) CXB3004
83 Screw JFZ20P025FMC
84 Motor Unit(M853)(TRAY) CXB4421
85 Screw JFZ20P025FMC
86 Motor Unit(M852)(ELV) CXB3006
87 Screw JFZ20P025FMC
88 Lever Unit CXB3938
89 •••••
90 Gear Unit CXB5061
Mark No. Description Part No. Mark No. Description Part No.
-CD MECHANISM MODULE SECTION PARTS LIST

10
CDX-P670
91 Screw JGZ17P025FZK
92 Pickup Unit(Service) CXX1285
93 •••••
94 •••••
95 Screw IMS26P040FMC
96 Screw JFZ20P025FNI
97 Photo-transistor(Q851) PT4800
98 Spring Switch(S851,S853) CSN1051
99 LED(D851) CN504-2
100 Spring Switch(S852) CSN1052
Mark No. Description Part No.

11
CDX-P670
2.4 MAGAZINE ASSY
1 Magazine Assy CXB6518
2 Label CRW1415
3 Tray CNV5341
-MAGAZINE ASSY SECTION PARTS LIST
Mark No. Description Part No.

PICKUP UNIT (SERVICE) (P8)
MECHANISM
PCB
HOLOGRAM
UNIT
FOCUS ACT.
TRACKING ACT.
FO+
14
9
98
39
AC/F/E/BD
FD/TD/SD/MD
I13/I04/I02
97
11
16
15
17
18
3
5
10
12
DISC
TRP
DSP
DISC
TRP
DSP
92
95
91
LD(–)
LASER
DIODE
CARRIAGE
MOTOR
MONITOR
DIODE MD
TO+
+5V
M
SPINDLE
MOTOR M
TRY
MOTOR
HOME SW
TRPSW
DSPSW
VR802
EJECT SW
MAG SW
M
ELV
MOTOR M
17
12
27
16
15
11
8
9
2
1
4
3
7
5
10
Q101
Q701
VD
PD
LIMIT xtal
XTAL
L_OUT
LD
VREF
adena
cs
23
16
24 IPIN
IPOUT
IPPW
POWER
XIN
XOUT
13
15
98
asens
bsens
reset
CDMUTE
ELVREF
CONT
ELVPVO
ejsw
mag
disk
TRP
DSP
11
94 93
74
75
3
X202
16.93MHz
X701
10.00MHz
IC 301
BA5986FM
IC 302
LB1836M
VDD
IC 701
PD5638A
ACD CORE UNIT
Q851
D851
DSWITCH PCB
EMOTOR PCB
C
S853
S801
S803
V
EVREF
GND
EPVO
L
4
3
7
5
11
8
9
2
1
10
17
12
27
16
15
5
15
4
3
4CH SERVO DRIVER
MOTOR DRIVER
SYSTEM
CONTROLLER
CN101
CN801
CN802
S852
S851
RF AMP, SERVO, DSP, DAC
IC 201
UPD63711GC
12
CDX-P670
1234
1234
D
C
B
A

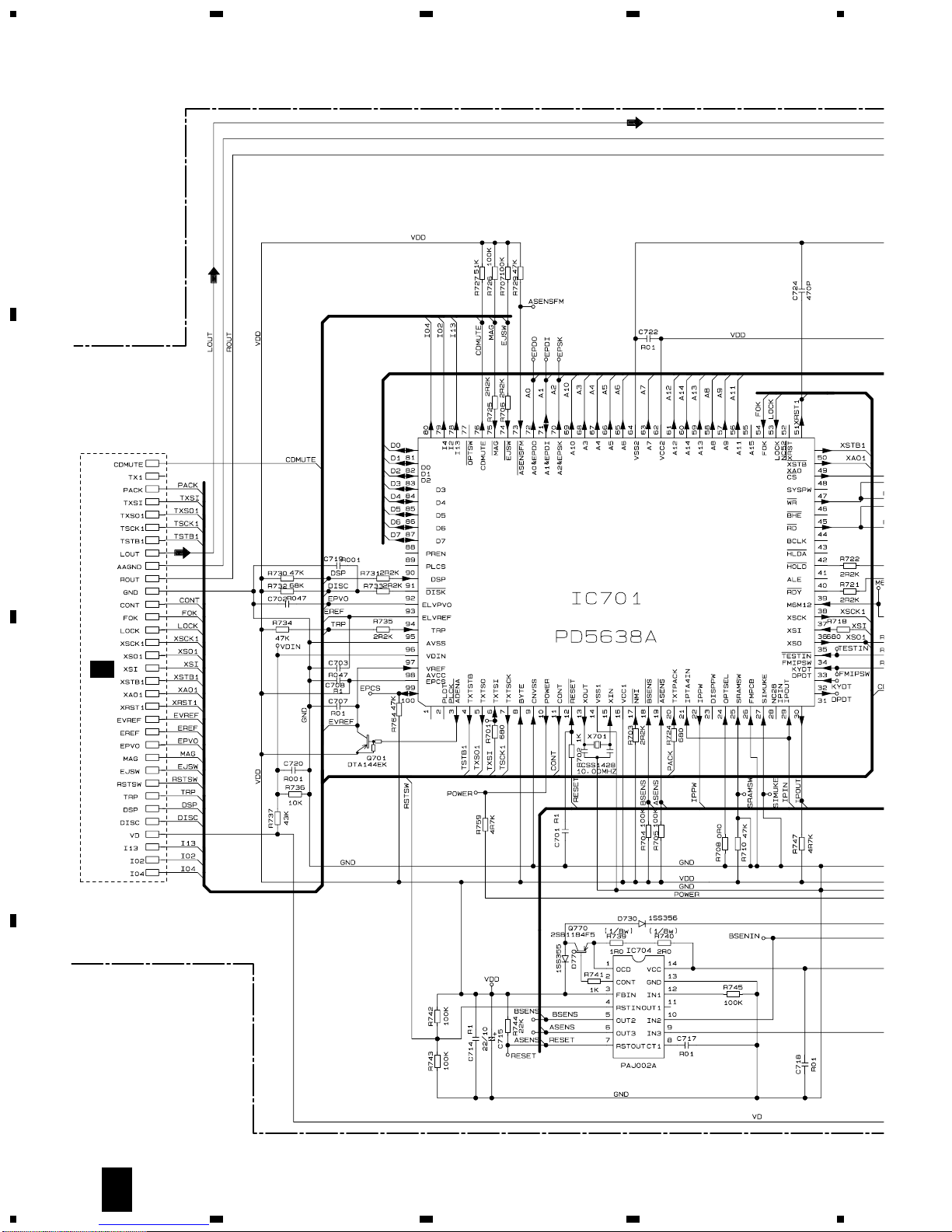

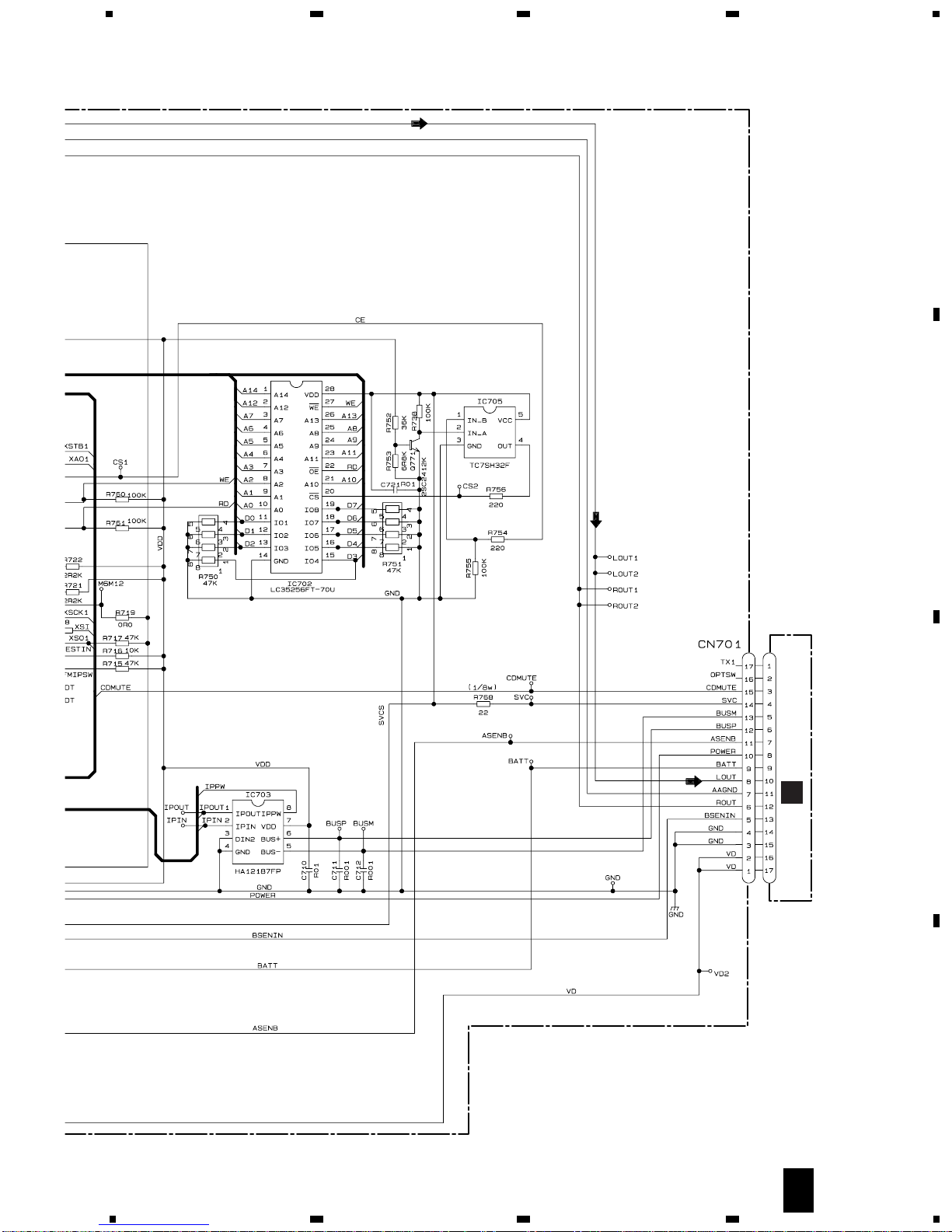

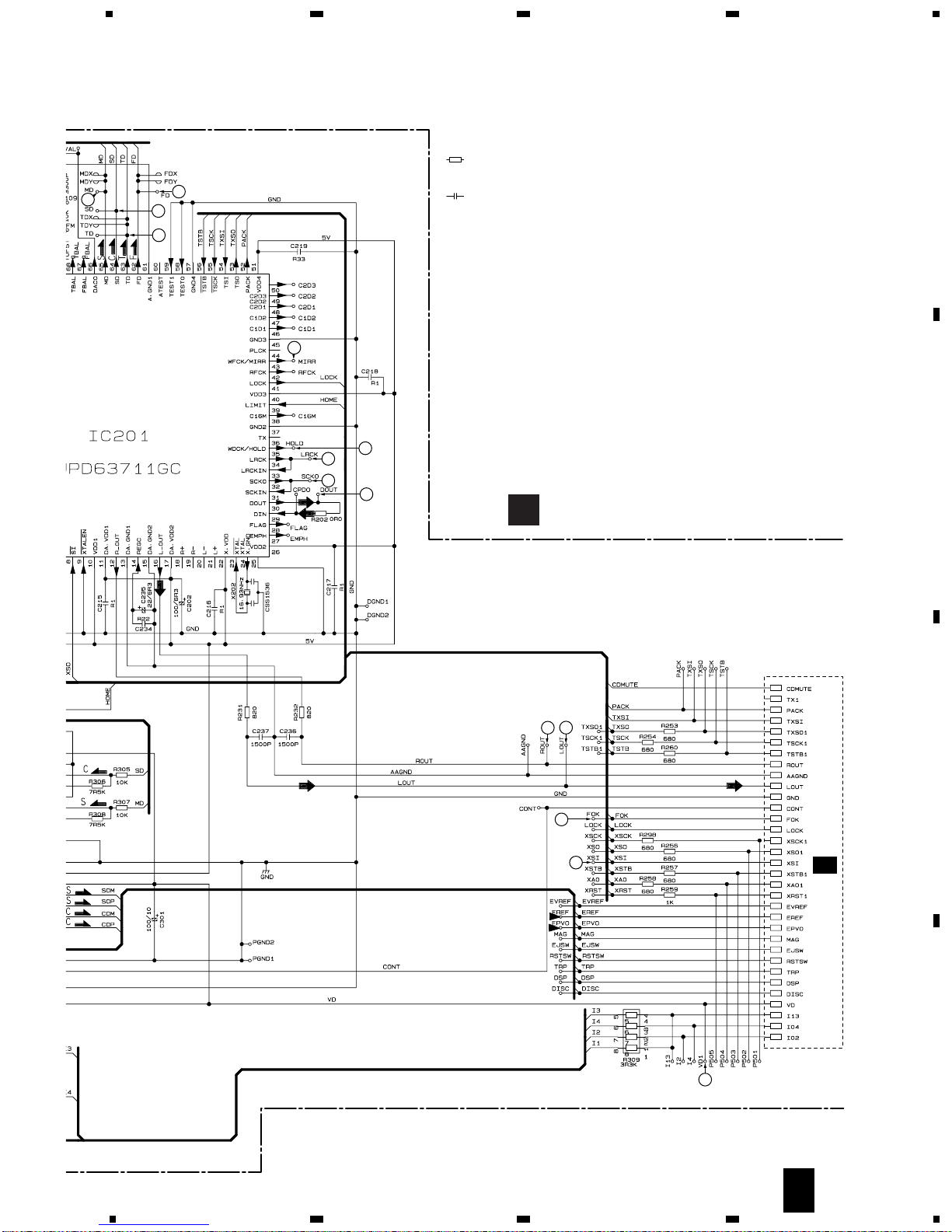

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

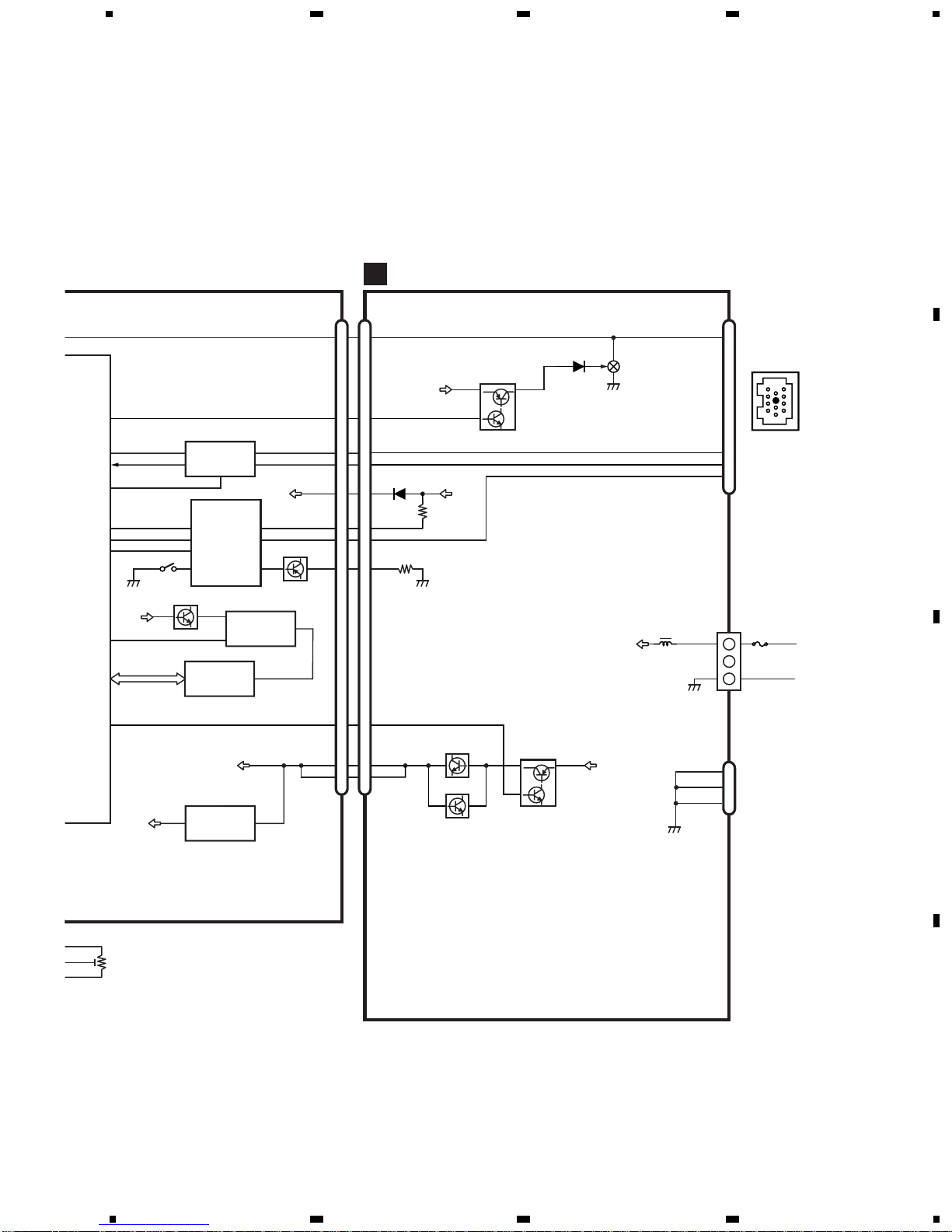

3.1 BLOCK DIAGRAM

8
12
13
VD
5V
cs
IPIN
IPOUT
IPPW
POWER
48 4
2
1
2
1
30
22
10
BUSP
15
CDMUTE
LOUT
BUSM
asens
bsens
reset
9
BATT
+B
BSENIN
ASENB 5
18 10
11
14
19 9
SVC2
5
6
12 7
4
31
RESET SW
5V REGULATOR
29
CDMUTE 76
8
5
6
20
ELVPVO
IC 202
BA05FP
Q771
Q770
VDD IC 705
TC7SH32F
IC 702
LC35256FT-70U
SRAM
IC 703
HA12187FP
IP-BUS DRIVER
IC 704
PAJ002A
CN701
16
BPOWER UNIT
10 7
1
Q942
Q911
BUP
Q941
BUP
BUP
BUP
Q910
LOUT
3CDMUTE
6BP BUSP
LCH
5
BUSM
8
ASENB
5BM
7ASNB
4SVC
1
VD
POWER
VD
VD
VD
POWER
9+B
13 BSENIN
CN911
IP-BUS OUT
CN921
L901 BUP
GND
BATT.
GND
3
2
1
CN901 FUSE
2A
10 8
217 16
Q912
S802
VR801
EPVO
LINEAR POSITION SENSOR
ER
1
2
3
CN902
13
CDX-P670
5678
5678
D
C
B
A

14
CDX-P670
1234
1234
D
C
B
A
1kΩ(B)
10kΩ(B)
112
6
13
10
4
8
VR801 CCW1023
LINEAR POSITION SENSOR
M852
CXB3006
RF AMP, SE
MOTO
4CH SER
CN801
CN802
M853
CXB4421
M851
CXB3003
M854
CXB3004
CSN1052
CSN1051
CSN1051
CN504-2 PT4800
PICKUP UNIT(SERVICE)
CXX1285
C
MECHANISM
PCB
SWITCH PCB
D
MOTOR PCB
E
3.2 CD MECHANISM MODULE
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A1/2
CDE

15
CDX-P670
5678
5678
D
C
B
A
18
7
2
5
19 20
15
17
16
21
3
9
11
10
MP, SERVO, DSP, DAC
MOTOR DRIVER
H SERVO DRIVER
CD CORE UNIT
A
A2/2
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
A1/2

16
CDX-P670
1234
1234
D
C
B
A
SYSTEM CONTROLLER
A1/2
A2/2

17
CDX-P670
5678
5678
D
C
B
A
SRAM
IP-BUS DRIVER
BCN911
A2/2

18
CDX-P670
1RFI 0.5V/div. 0.5µs/div.
Normal mode: play
1CH1: RFI 1V/div.
2CH2: MIRR 5V/div.
Test mode: Tracking open
0.5ms/div. 1CH1: RFI 1V/div.
2CH2: MIRR 5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div.
3CH1: FD 0.5V/div.
4CH2: FOR 2V/div.
Test mode: No disc, Focus close
0.2s/div. 3CH1: FD 0.5V/div.
5CH2: FOK 2V/div.
Normal mode: Focus close
0.2s/div. 6CH1: FE 0.5V/div.
7CH2: XSI 2V/div.
Normal mode: Focus close
1ms/div.
REFO →
8CH1: TE 0.5V/div.
9CH2: TD 0.5V/div.
Test mode: 32 tracks jump (REV)
0.5ms/div. 8CH1: TE 0.5V/div.
9CH2: TD 0.5V/div.
Test mode: Single jump (REV)
0.5ms/div. 8CH1: TE 0.5V/div.
9CH2: TD 0.5V/div.
Test mode: 100 tracks jump (REV)
5ms/div.
6CH1: FE 0.1V/div.
3CH2: FD 0.2V/div.
Normal mode: Play
20ms/div. 3CH1: FD 0.5V/div.
0CH2: MD 1V/div.
Normal mode: Focus close (12cm)
0.5s/div. 3CH1: FD 0.5V/div.
0CH2: MD 1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
-Waveforms
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
REFO →
REFO →
REFO →
REFO →

19
CDX-P670
8CH1: TE 0.2V/div.
9CH2: TD 0.2V/div.
Normal mode: play
8CH1: TE 0.5V/div.
!CH2: SD 0.5V/div.
TEST mode:100Tracks jump(FWD)
5ms/div. 0MD 0.5V/div. 0.1s/div.
Normal mode: Play (12cm)
0MD 1V/div. 10ms/div.
Long Search (12cm)
@EFM 1V/div. 5µs/div.
Normal mode: Play
8CH1: TE 1V/div.
#CH2: TEC 1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8CH1: TE 0.5V/div.
6CH2: FE 0.5V/div.
Normal mode:
AGC after focus close
0.2s/div.
20ms/div.
%SCKO 2V/div. 1µs/div.
Normal mode: Play
^DOUT 2V/div. 10µs/div.
Normal mode: Play
&LRCK 2V/div. 20µs/div.
Normal mode: Play
*VD 5V/div. 50ms/div.
Normal mode: No disc
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →

20
CDX-P670
(CH1: R OUT 2V/div.
)CH2: L OUT 2V/div.
Normal mode: Play (1kHz 0dB)
6CH1: FE 0.2V/div.
3CH2: FD 0.5V/div.
Normal mode: During AGC
1ms/div. 8CH1: TE 0.2V/div.
9CH2: TD 0.5V/div.
Normal mode: During AGC
1CH1: RFI 1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
500µs/div. 1ms/div.
0.5ms/div. 3CH1: FD 1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div. 9CH1: TD 0.1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →REFO →
REFO →
REFO →
REFO →
