Pioneer DEH-P4690MP User manual

Operation Manual
Multi-CD control High power CD/MP3/WMA player
with FM/AM tuner
DEH-P4690MP
DEH-P4650MP
English
Português (B)
Español

Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, put them away
in a safe place for future reference.
Before You Start
About this manual 4
Precautions 4
Features 4
About WMA 4
Use and care of the remote control 5
Installing the battery 5
Using the remote control 5
Protecting your unit from theft 5
Removing the front panel 6
Attaching the front panel 6
Whats What
ead unit 7
Remote control 7
Power ON/OFF
Turning the unit on 9
Selecting a source 9
Turning the unit off 9
Tuner
Listening to the radio 10
Introduction of advanced tuner
operation 11
Storing and recalling broadcast
frequencies 11
Tuning in strong signals 11
Storing the strongest broadcast
frequencies 12
Built in CD Player
Playing a CD 13
Introduction of advanced built-in CD player
operation 14
Repeating play 14
Playing tracks in a random order 14
Scanning tracks of a CD 14
Pausing CD playback 15
Using compression and BMX 15
Selecting the search method 15
Searching every 10 track in the current
disc 16
Using disc title functions 16
Entering disc titles 16
Displaying disc titles 17
Using CD TEXT functions 17
Displaying titles on CD TEXT
discs 17
Scrolling titles in the display 17
MP3/WMA/WAV Player
Playing MP3/WMA/WAV 18
Introduction of advanced built-in CD player
(MP3/WMA/WAV) operation 20
Repeating play 20
Playing tracks in a random order 20
Scanning folders and tracks 21
Pausing MP3/WMA/WAV playback 21
Selecting the search method 21
Searching every 10 track in the current
folder 22
Using compression and BMX 22
Switching the tag display 22
Displaying text information on MP3/WMA
disc 22
Displaying text information on WAV disc 23
Scrolling text information in the display 23
Multi CD Player
Playing a CD 24
50-disc multi-CD player 24
Introduction of advanced multi-CD player
operation 25
Repeating play 25
Playing tracks in a random order 25
Scanning CDs and tracks 26
Pausing CD playback 26
Contents
En
2

Using ITS playlists 26
Creating a playlist with ITS
programming 26
Playback from your ITS playlist 27
Erasing a track from your ITS
playlist 27
Erasing a CD from your ITS
playlist 28
Using disc title functions 28
Entering disc titles 28
Displaying disc titles 29
Using CD TEXT functions 29
Displaying titles on CD TEXT
discs 29
Scrolling titles in the display 29
Using compression and bass emphasis 29
Audio Adjustments
Introduction of audio adjustments 30
Using balance adjustment 30
Using the equalizer 30
Recalling equalizer curves 31
Adjusting equalizer curves 31
Fine adjusting equalizer curve 31
Adjusting loudness 32
Front image enhancer (F.I.E.) 32
Adjusting source levels 33
Initial Settings
Adjusting initial settings 34
Setting the clock 34
Setting the FM tuning step 34
Setting the AM tuning step 35
Switching the warning tone 35
Switching the auxiliary setting 35
Other Functions
Turning the clock display on or off 36
Using the AUX source 36
Selecting AUX as the source 36
Setting the AUX title 36
Additional Information
Understanding built-in CD player error
messages 37
CD player and care 37
CD-R/CD-RW discs 38
MP3, WMA and WAV files 38
MP3 additional information 39
WMA additional information 39
WAV additional information 39
About folders and MP3/WMA/WAV files 39
Terms 41
Specifications 43
En 3
English
Contents

About this manual
This unit features a number of sophisticated
functions ensuring superior reception and op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from this units potential
and to maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin
using this unit. It is especially important that
you read and observe precautions on this
page and in other sections.
Precautions
C UTION:
USE OF CONTROL OR DJUSTMENT OR
PERFORM NCE OF PROCEDURES
OTHER TH N THOSE SPECIFIED HEREIN
M Y RESULT IN H Z RDOUS R DI TION
EXPOSURE.
C UTION:
THE USE OF OPTIC L INSTRUMENTS
WITH THIS PRODUCT WILL INCRE SE
EYE H Z RD.
!Keep this manual handy as a reference for
operating procedures and precautions.
!Always keep the volume low enough so you
can hear sounds outside of the car.
!Protect this unit from moisture.
!If the battery is disconnected or dis-
charged, the preset memory will be erased
and must be reprogrammed.
!If this unit does not operate properly, con-
tact your dealer or nearest authorized Pio-
neer Service Station.
Features
CD playback
Music CD/CD-R/CD-RW playback is possible.
MP3 file playback
You can play back MP3 files recorded on CD-
ROM/CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
!Supply of this product only conveys a li-
cense for private, non-commercial use and
does not convey a license nor imply any
right to use this product in any commercial
(i.e. revenue-generating) real time broad-
casting (terrestrial, satellite, cable and/or
any other media), broadcasting/streaming
via internet, intranets and/or other net-
works or in other electronic content distri-
bution systems, such as pay-audio or
audio-on-demand applications. An inde-
pendent license for such use is required.
For details, please visit
http://www.mp3licensing.com.
WMA file playback
You can play back WMA files recorded on CD-
ROM/CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
WAV file playback
You can play back WAV files recorded on CD-
ROM/CD-R/CD-RW (Linear PCM (LPCM)/MS
ADPCM recordings).
About WMA
Before You Start
En
4
Section
01

The Windows Media"logo printed on the box
indicates that this unit can playback the WMA
data.
WMA is short for Windows Media Audio and
refers to an audio compression technology
that is developed by Microsoft Corporation.
WMA data can be encoded by using Windows
Media Player version 7 or later.
Microsoft, Windows Media, and the Windows
logo are trademarks, or registered trademarks
of Microsoft Corporation in the United States
and/or other countries.
Notes
!With some applications used to encode WMA
files, this unit may not operate correctly.
!With some applications used to encode WMA
files, album names and other text information
may not be correctly displayed.
Use an care of the remote
control
Installing the battery
Slide the tray out on the back of the remote
control and insert the battery with the plus (+)
and minus () poles pointing in the proper di-
rection.
WARNING
Keep the battery out of the reach of children.
Should the battery be swallowed, immediately
consult a doctor.
CAUTION
!Use only one CR2025 (3 V) lithium battery.
!Remove the battery if the remote control is not
used for a month or longer.
!Do not recharge, disassemble, heat or dispose
of the battery in fire.
!Do not handle the battery with metallic tools.
!Do not store the battery with metallic materi-
als.
!In the event of battery leakage, wipe the re-
mote control completely clean and install a
new battery.
!When disposing of used batteries, please
comply with governmental regulations or en-
vironmental public institutions rules that
apply in your country/area.
Using the remote control
Point the remote control in the direction of the
front panel to operate.
Important
!Do not store the remote control in high tem-
peratures or direct sunlight.
!The remote control may not function properly
in direct sunlight.
!Do not let the remote control fall onto the
floor, where it may become jammed under the
brake or accelerator pedal.
Protecting your unit from
theft
The front panel can be detached from the
head unit and stored in the protective case
provided to discourage theft.
!If the front panel is not detached from the
head unit within five seconds of turning off
the ignition, a warning tone will sound.
Before You Start
En 5
English
Section
01

!You can turn off the warning tone. See
Switching the warning tone on page 35.
Important
!Never use force or grip the display and the
buttons tightly when removing or attaching.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.

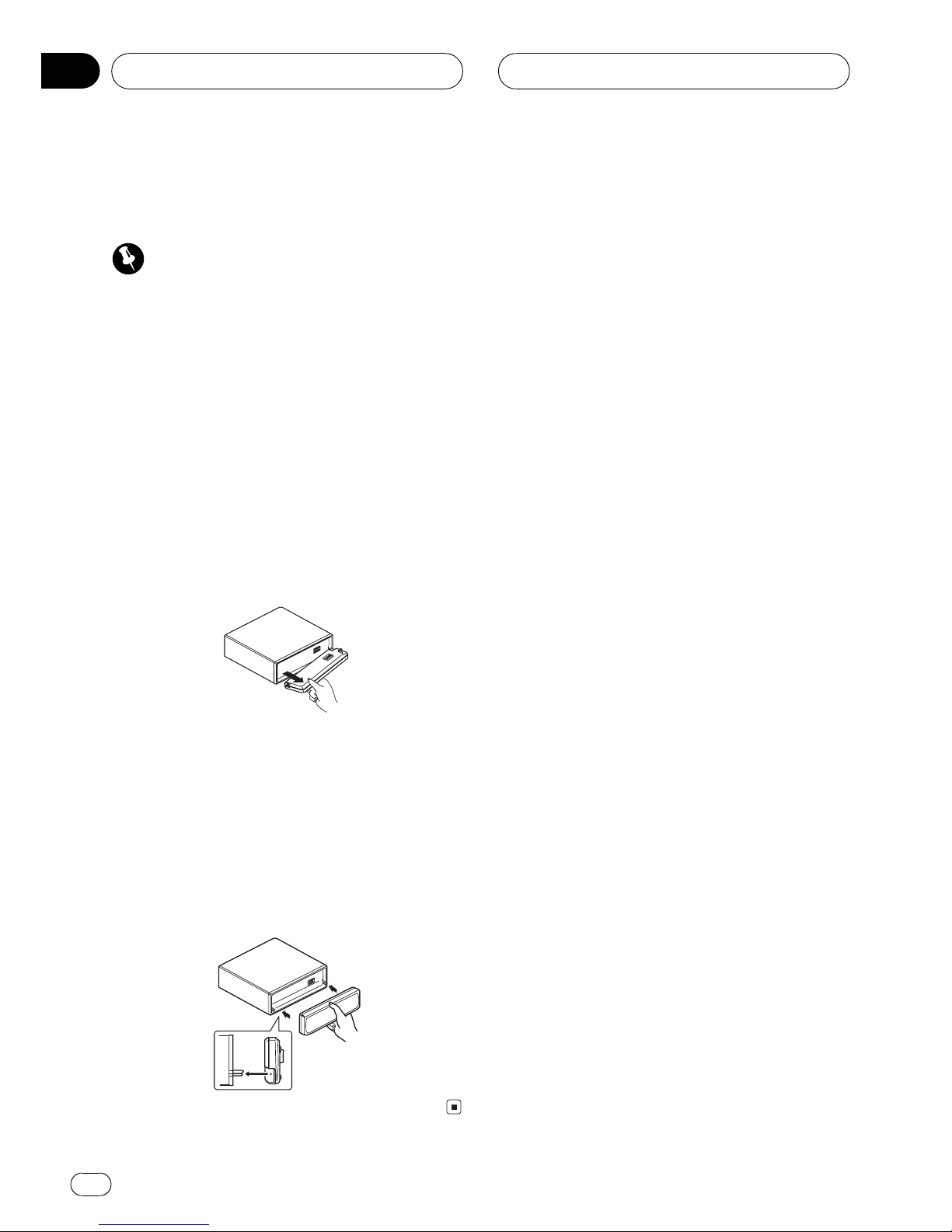

Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and
pull it gently outward.
Take care not to grip it tightly or to drop it.
3 Put the front panel into the protective
case provided for safe keeping.
Attaching the front panel
%Replace the front panel by holding it
upright to this unit and clipping it securely
into the ounting hooks.
Before You Start
En
6
Section
01

Hea unit
1CLOCK button
Press to change to the clock display.
2PAUSE button
Press to turn pause on or off.
3LOUDNESS button
Press to turn loudness on or off.
4OPEN button
Press to open the front panel.
5FUNCTION button
Press to select functions.
6AUDIO button
Press to select various sound quality con-
trols.
7a/b/c/dbuttons
Press to do manual seek tuning, fast for-
ward, reverse and track search controls.
Also used for controlling functions.
8BAND button
Press to select among three FM and one
AM bands and cancel the control mode of
functions.
916 buttons
Press for preset tuning and disc number
search when using a multi-CD player.
aEQ button
Press to select various equalizer curves.
bVOLUME
When you press VOLUME, it extends out-
ward so that it becomes easier to turn. To re-
tract VOLUME, press it again. Rotate to
increase or decrease the volume.
cSOURCE button
This unit is turned on by selecting a source.
Press to cycle through all of the available
sources.
dDISPLAY button
Press to select different displays.
Remote control
Operation is the same as when using the but-
ton on the head unit. See the explanation of
the head unit about the operation of each but-
ton with the exception of ATT, which is ex-
plained below.
Whats What
En 7
English
Section
02

eCD button
Press to select the built-in or multi-CD
player as the source.
fTUNER button
Press to select the tuner as the source.
gATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
hVOLUME button
Press to increase or decrease the volume.
g
7
6
e
5
2
f
8
h
Whats What
En
8
Section
02

Turning the unit on
%Press SOURCE to turn the unit on.
When you select a source the unit is turned
on.
Selecting a source
You can select a source you want to listen to.
To switch to the built-in CD player, load a disc
in this unit (refer to page 13).
%When using the head unit, press
SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Built-in CD playerTelevisionTuner
Multi-CD playerExternal unit 1External
unit 2AUX
%When using the re ote control, press
TUNER or CD to select a source.
Press each button repeatedly to switch be-
tween the following sources:
TUNER:TelevisionTunerSources off
CD:Built-in CD playerMulti-CD player
Sources off
Notes
!In the following cases, the sound source will
not change:
When a unit corresponding to each source
is not connected to this unit.
When no disc is set in this unit.
When no magazine is set in the multi-CD
player.
When the AUX (auxiliary input) is set to off
(refer to page 35).
!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Two external units
can be controlled by this unit. When two exter-
nal units are connected, the allocation of
them to external unit 1 or external unit 2 is
automatically set by this unit.
!When this units blue/white lead is connected
to the cars auto-antenna relay control term-
inal, the cars antenna extends when this
units source is turned on. To retract the an-
tenna, turn the source off.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Power ON/OFF
En 9
English
Section
03

Listening to the ra io
These are the basic steps necessary to operate
the radio. More advanced tuner operation is
explained starting on the next page.
Important
If you are using this unit in North, Central or
South America, reset the AM tuning step (see
Setting the AM tuning step on page 35).
1Band indicator
Shows which band the radio is tuned to, AM
or FM.
2Frequency indicator
Shows to which frequency the tuner is
tuned.
3Stereo (5) indicator
Shows that the frequency selected is being
broadcast in stereo.
4Preset nu ber indicator
Shows what preset has been selected.
1 Press SOURCE to select the tuner.
Press SOURCE until tuner is selected as the
source.
2 Use VOLUME to adjust the sound level.
Rotate to increase or decrease the volume.
3 Press BAND to select a band.
Press BAND until the desired band is dis-
played, F1,F2,F3 for FM or AM.
4 To perfor anual tuning, press cor
dwith quick presses.
The frequencies move up or down step by
step.
5 To perfor seek tuning, press and hold
cor dfor about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by pressing either
cor dwith a quick press.
#If you press and hold cor dyou can skip
broadcasting stations. Seek tuning starts as soon
as you release the buttons.
Note
When the frequency selected is being broadcast
in stereo the stereo (5) indicator will light.
Tuner
En
10
Section
04

Intro uction of a vance
tuner operation
1Function display
Shows the function status.
2LOC indicator
Shows when local seek tuning is on.
3Preset nu ber indicator
Shows what preset has been selected.
%Press FUNCTION to display the function
na es.
Press FUNCTION repeatedly to switch be-
tween the following functions:
BSM (best stations memory)LOCAL (local
seek tuning)
#To return to the frequency display, press
BAND.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the frequency display.
Storing an recalling
broa cast frequencies
If you press any of the preset tuning buttons
16you can easily store up to six broadcast
frequencies for later recall with the touch of a
button.
%When you find a frequency that you
want to store in e ory press a preset
tuning button 16 and hold until the preset
nu ber stops flashing.
The number you have pressed will flash in the
preset number indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same preset tun-
ing button 16the radio station frequency is
recalled from memory.
Notes
!Up to 18 FM stations, 6 for each of the three
FM bands, and 6 AM stations can be stored in
memory.
!You can also use aand bto recall radio sta-
tion frequencies assigned to preset tuning
buttons 16.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press FUNCTION to select LOCAL.
Press FUNCTION until LOCAL appears in the
display.
2 Press ato turn local seek tuning on.
Local seek sensitivity (e.g., LOCAL 2) appears
in the display.
3 Press cor dto set the sensitivity.
There are four levels of sensitivity for FM and
two levels for AM:
FM: LOCAL 1LOCAL 2LOCAL 3
LOCAL 4
AM: LOCAL 1LOCAL 2
Tuner
En 11
English
Section
04

The LOCAL 4 setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
4 When you want to return to nor al
seek tuning, press bto turn local seek tun-
ing off.
LOCAL:OFF appears in the display.
Storing the strongest
broa cast frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset tuning buttons 16and
once stored there you can tune in to those fre-
quencies with the touch of a button.
1 Press FUNCTION to select BSM.
Press FUNCTION until BSM appears in the
display.
2 Press ato turn BSM on.
BSM begins to flash. While BSM is flashing
the six strongest broadcast frequencies will be
stored under preset tuning buttons 16in
order of their signal strength. When finished,
BSM stops flashing.
#To cancel the storage process, press b.
Note
Storing broadcast frequencies with BSM may re-
place broadcast frequencies you have saved
using 16.
Tuner
En
12
Section
04

Playing a CD
These are the basic steps necessary to play a
CD with your built-in CD player. More ad-
vanced CD operation is explained starting on
the next page.

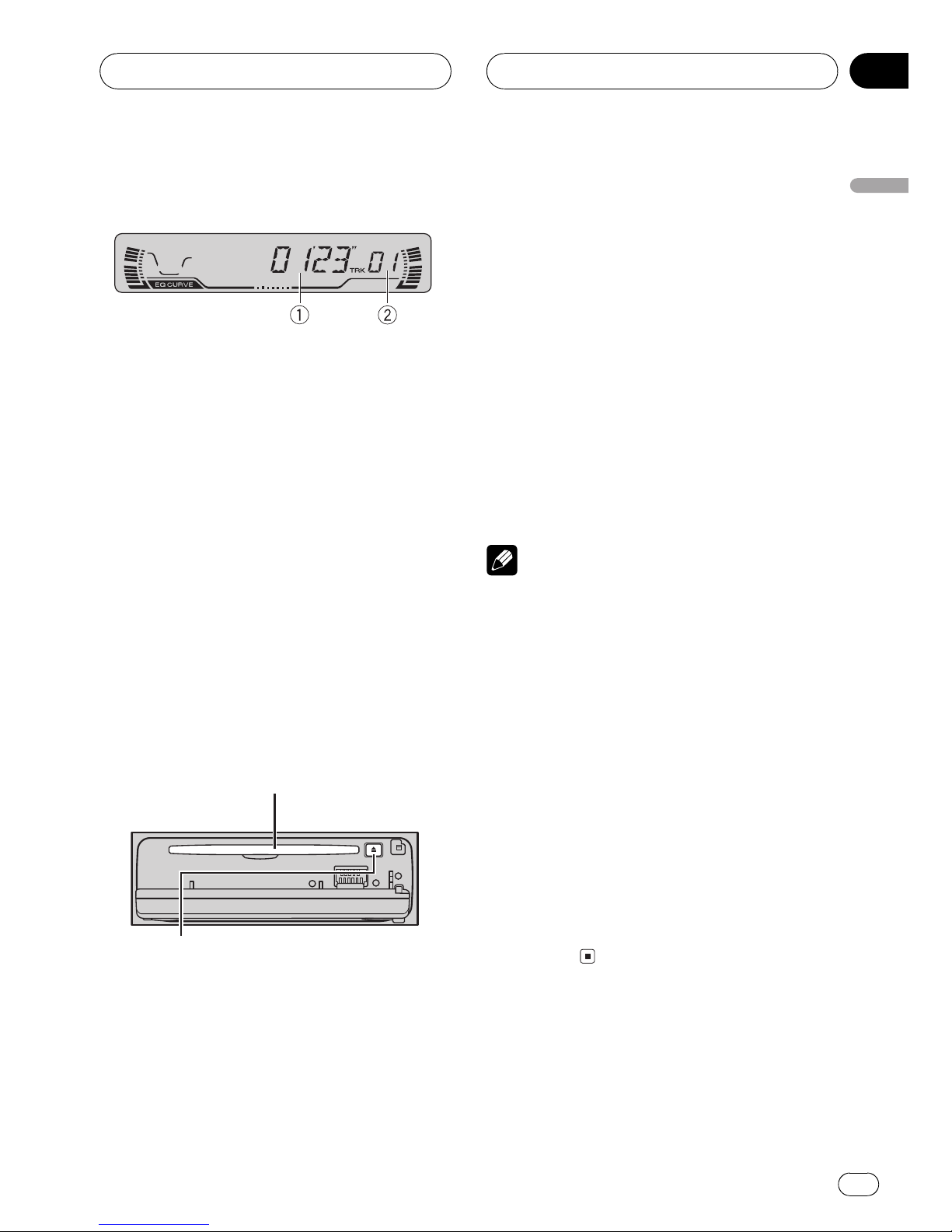

1Play ti e indicator
Shows the elapsed playing time of the cur-
rent track.
2Track nu ber indicator
Shows the track currently playing.
1 Press OPEN to open the front panel.
CD loading slot appears.
#After a CD has been inserted, press SOURCE
to select the built-in CD player.
2 Insert a CD into the CD loading slot.
Playback will automatically start.
CD loading slot
EJECT button
#You can eject a CD by pressing EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
4 Use VOLUME to adjust the sound level.
Rotate to increase or decrease the volume.
5 To perfor fast forward or reverse,
press and hold cor d.
#If you select the search method to ROUGH,
pressing and holding cor denables you to
search every ten track in the current disc. (Refer
to Selecting the search method on page 15.)
6 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
Notes
!The built-in CD player plays one, standard, 12-
cm or 8-cm (single) CD at a time. Do not use
an adapter when playing 8-cm CDs.
!Do not insert anything other than a CD into
the CD loading slot.
!If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press EJECT to eject the disc, and check the
disc for damage before inserting the disc
again.
!If the built-in CD player does not operate prop-
erly, an error message such as ERROR-11
may be displayed. Refer to Understanding
built-in CD player error messages on page 37.
!When a CD TEXT disc is inserted, the disc and
track titles begin to scroll to the left auto-
matically.
Built-in CD Player
En 13
English
Section
05

Intro uction of a vance
built-in CD player operation

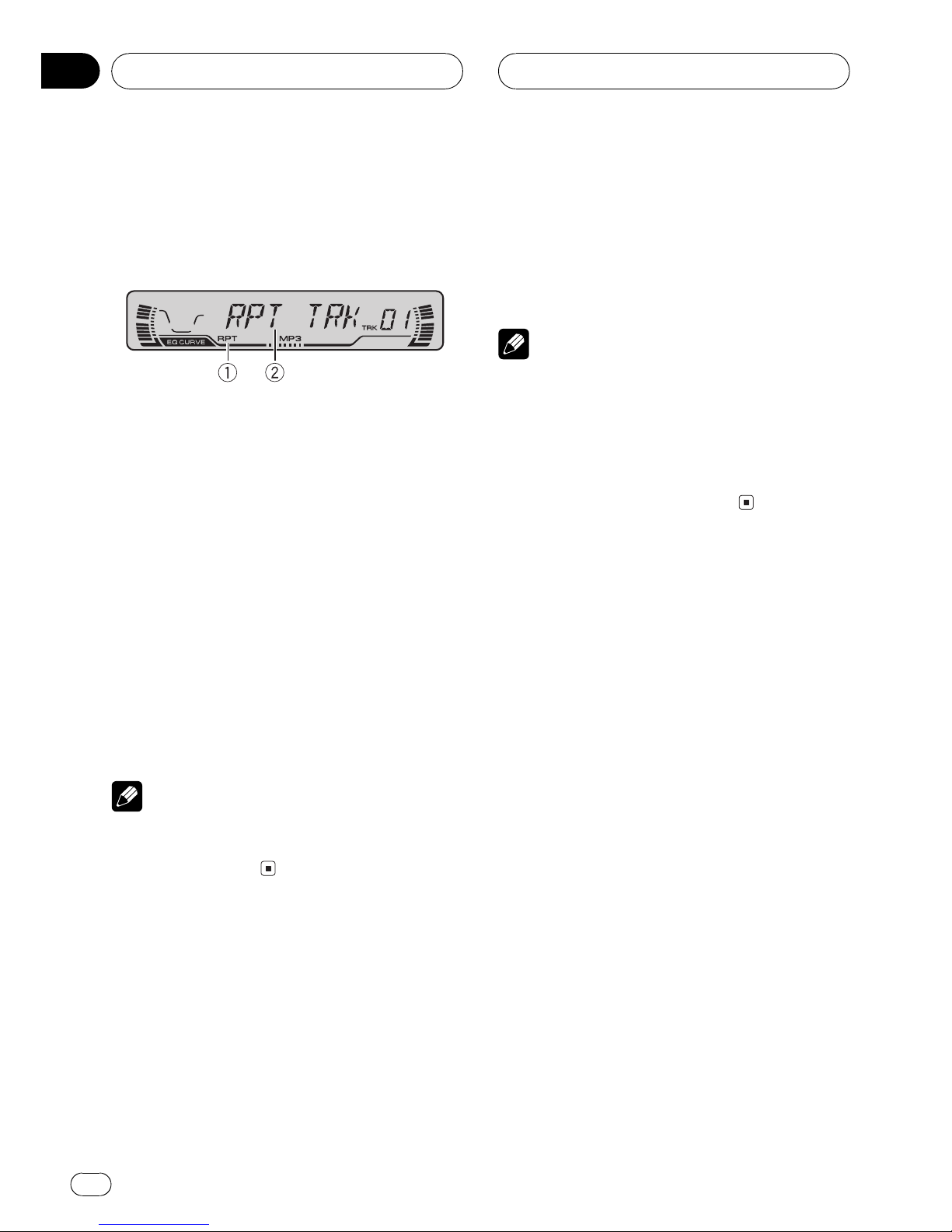

1RPT indicator
Shows when repeat play is turned on.
2Function display
Shows the function status.
%Press FUNCTION to display the function
na es.
Press FUNCTION repeatedly to switch be-
tween the following functions:
RPT (repeat play)RDM (random play)
SCAN (scan play)PAUSE (pause)COMP
(compression and BMX)FF/REV (search
method)TAG (tag display)
#To return to the playback display, press BAND.
Notes
!When playing audio data (CD-DA), it is not ef-
fective even if you turn TAG (tag display) on.
(Refer to page 22.)
!If you do not operate the function within about
30 seconds, the display is automatically re-
turned to the playback display.
Repeating play
Repeat play lets you hear the same track over
again.
1 Press FUNCTION to select RPT.
Press FUNCTION until RPT appears in the dis-
play.
2 Press ato turn repeat play on.
RPT:ON appears in the display. The track cur-
rently playing will play and then repeat.
3 Press bto turn repeat play off.
RPT:OFF appears in the display. The track cur-
rently playing will continue to play and then
play the next track.
Note
If you perform track search or fast forward/re-
verse, repeat play is automatically cancelled.
Playing tracks in a ran om
or er
Random play lets you play back tracks on the
CD in a random order.
1 Press FUNCTION to select RDM.
Press FUNCTION until RDM appears in the
display.
2 Press ato turn rando play on.
RDM :ON appears in the display. Tracks will
play in a random order.
3 Press bto turn rando play off.
RDM :OFF appears in the display. Tracks will
continue to play in order.
Scanning tracks of a CD
Scan play lets you hear the first 10 seconds of
each track on the CD.
1 Press FUNCTION to select SCAN.
Press FUNCTION until SCAN appears in the
display.
Built-in CD Player
En
14
Section
05

2 Press ato turn scan play on.
SCAN :ON appears in the display. The first 10
seconds of each track is played.
3 When you find the desired track press
bto turn scan play off.
SCAN :OFF appears in the display. The track
will continue to play.
#If the display has automatically returned to
the playback display, select SCAN again by press-
ing FUNCTION.
Note
After scanning of a CD is finished, normal play-
back of the tracks will begin again.
Pausing CD playback
Pause lets you temporarily stop playback of
the CD.
1 Press FUNCTION to select PAUSE.
Press FUNCTION until PAUSE appears in the
display.
2 Press ato turn pause on.
PAUSE:ON appears in the display. Play of the
current track pauses.
3 Press bto turn pause off.
PAUSE:OFF appears in the display. Play will re-
sume at the same point that you turned pause
on.
Note
You can also turn pause on or off by pressing
PAUSE.
Using compression an BMX
Using the COMP (compression) and BMX
functions let you adjust the sound playback
quality of the CD player. Each of the functions
have a two-step adjustment. The COMP func-
tion balances the output of louder and softer
sounds at higher volumes. BMX controls
sound reverberations to give playback a fuller
sound. Listen to each of the effects as you se-
lect through them and use the one that best
enhances the playback of the track or CD that
you are listening to.
1 Press FUNCTION to select COMP.
Press FUNCTION until COMP appears in the
display.
2 Press aor bto select your favorite set-
ting.
Press aor brepeatedly to switch between the
following settings:
COMP OFFCOMP 1COMP 2
COMP OFFBMX 1BMX 2
Selecting the search metho
You can switch the search method between
fast forward/reverse and searching every 10
track.
1 Press FUNCTION to select FF/REV.
Press FUNCTION until FF/REV appears in the
display.
#If the search method ROUGH has been pre-
viously selected, ROUGH will be displayed.
2 Press cor dto select the search eth-
od.
Press cor duntil the desired search method
appears in the display.
!FF/REV Fast forward and reverse
!ROUGH Searching every 10 track
Built-in CD Player
En 15
English
Section
05

Searching every 10 track in
the current isc
If a disc contains over 10 tracks, you can
search every 10 track. When a disc contains a
lot of tracks, you can roughly search the track
you want to play.
1 Select the search ethod ROUGH.
Refer to Selecting the search method on the
previous page.
2 Press and hold cor dto search every
10 track in a disc.
#If a disc contains less than 10 tracks, pressing
and holding drecalls the last track of a disc.
Also, if the remaining number of tracks after
searching every 10 tracks are less than 10, press-
ing and holding drecalls the last track of a disc.
#If a disc contains less than 10 tracks, pressing
and holding crecalls the first track of a disc.
Also, if the remaining number of tracks after
searching every 10 tracks are less than 10, press-
ing and holding crecalls the first track of a
disc.
Using isc title functions
You can input CD titles and display the title.
The next time you insert a CD for which you
have entered a title, the title of that CD will be
displayed.
Entering isc titles
Disc title input lets you input CD titles up to 8
letters long and up to 48 disc titles into this
unit.
1 Play a CD that you want to enter the
title.
2 Press FUNCTION and hold until TITLE IN
appears in the display.
#When playing a CD TEXT disc, you cannot
switch to TITLE IN. The disc title will have already
been recorded on a CD TEXT disc.
3 Press aor bto select a letter of the al-
phabet.
Each press of awill display a letter of the al-
phabet in A B C ... X Y Z, numbers and sym-
bols in 1 2 3 ... > [ ] order. Each press of bwill
display a letter in the reverse order, such as Z
Y X ... C B A order.
4 Press dto ove the cursor to the next
character position.
When the letter you want is displayed, press d
to move the cursor to the next position and
then select the next letter. Press cto move
backwards in the display.
5 Move the cursor to the last position by
pressing dafter entering the title.
When you press done more time, the entered
title is stored in memory.
6 Press BAND to return to the playback
display.
Notes
!Titles remain in memory, even after the disc
has been removed from this unit, and are re-
called when the disc is reinserted.
!After data for 48 discs has been stored in
memory, data for a new disc will overwrite the
oldest one.
!If you connect a multi-CD player, you can
input disc titles for up to 100 discs.
Built-in CD Player
En
16
Section
05

Displaying isc titles
You can display the title of any disc that has
had a disc title entered.
%Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
Play timeDISC TTL (disc title)
When you select DISC TTL, the title of the cur-
rently playing disc is shown in the display.
#If no title has been entered for the currently
playing disc, NO TITLE is displayed.
Using CD TEXT functions
Some discs have certain information encoded
on the disc during manufacture. These discs
may contain such information as the CD title,
track title, artists name and playback time
and are called CD TEXT discs. Only these spe-
cially encoded CD TEXT discs support the
functions listed below.
Displaying titles on CD TEXT iscs
%Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
Play timeDISC TTL (disc title)ART NAME
(disc artist name)TRK TTL (track title)
ART NAME (track artist name)
#If specific information has not been recorded
on a CD TEXT disc, NO XXXX will be displayed
(e.g., NO D-TTL).
Scrolling titles in the isplay
This unit can display the first 8 letters only of
DISC TTL,ART NAME,TRK TTL and
ART NAME. When the recorded information is
longer than 8 letters, you can scroll the text to
the left so that the rest of the title can be seen.
%Press DISPLAY and hold until the title
begins to scroll to the left.
The rest of the title will appear in the dis-
play.
Built-in CD Player
En 17
English
Section
05

Playing MP3/WMA/WAV
These are the basic steps necessary to play an
MP3/WMA/WAV with your built-in CD player.
More advanced MP3/WMA/WAV operation is
explained starting on page 20.

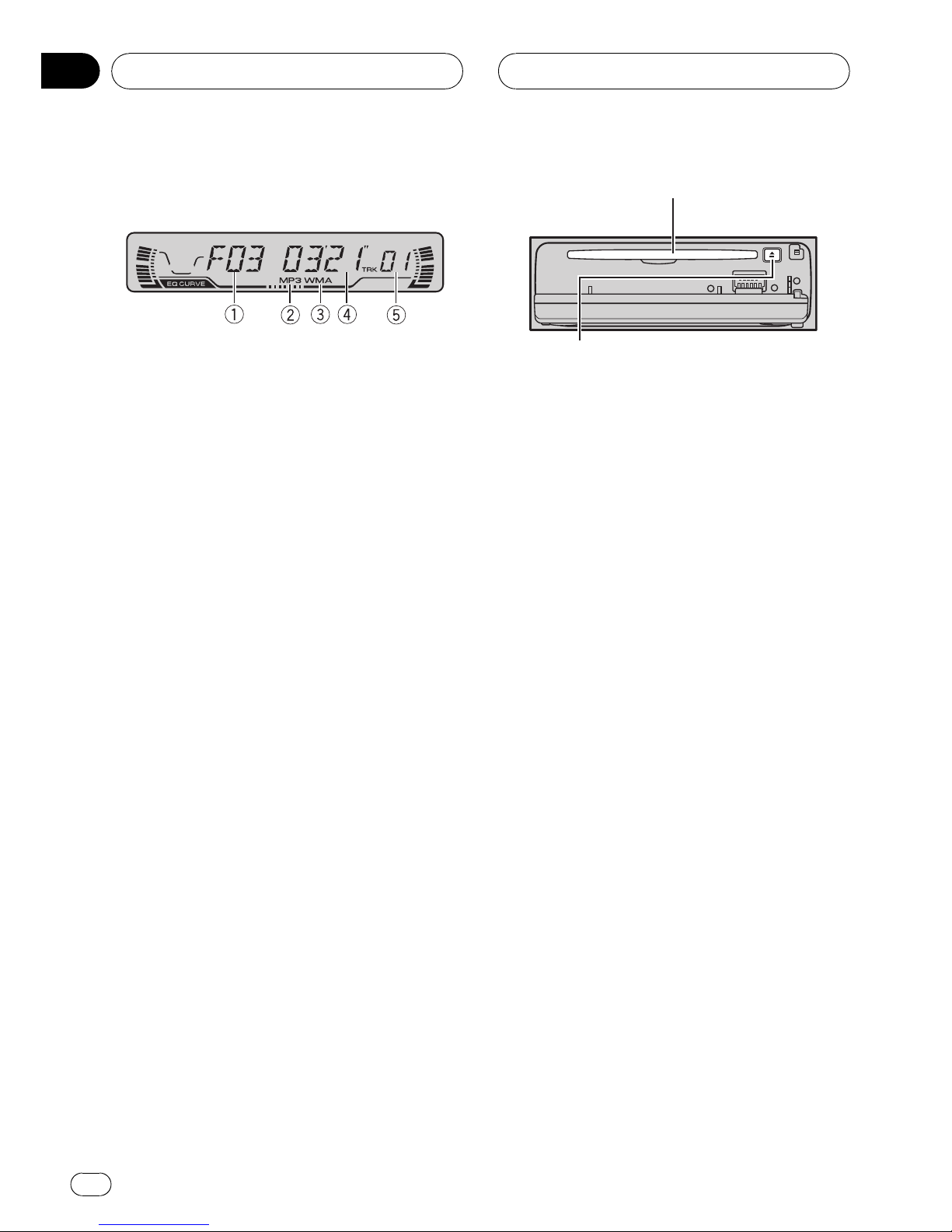

1Folder nu ber indicator
Shows the folder number currently playing.
2MP3 indicator
Shows when the MP3 file is playing.
3WMA indicator
Shows when the WMA file is playing.
4Play ti e indicator
Shows the elapsed playing time of the cur-
rent track (file).
5Track nu ber indicator
Shows the track (file) currently playing.
!If a track number 100 to 199 is selected,
don the left of the track number indica-
tor will light.
!If a track number 200 or more is selected,
don the left of the track number indica-
tor will blink.
1 Press OPEN to open the front panel.
CD loading slot appears.
#After a CD-ROM has been inserted, press
SOURCE to select the built-in CD player.
2 Insert a CD-ROM into the CD loading
slot.
Playback will automatically start.
CD loading slot
EJECT button
#You can eject a CD-ROM by pressing EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
4 Use VOLUME to adjust the sound level.
Rotate to increase or decrease the volume.
5 Press aor bto select a folder.
#You cannot select a folder that does not have
an MP3/WMA/WAV file recorded in it.
#To return to folder 01 (ROOT), press and hold
BAND. owever, if folder 01 (ROOT) contains no
files, playback commences with folder 02.
6 To perfor fast forward or reverse,
press and hold cor d.
#This is fast forward and reverse operation only
for the file being played. This operation is can-
celed when the previous or next file is reached.
#If you select the search method to ROUGH,
pressing and holding cor denables you to
search every ten track in the current folder. (Refer
to Selecting the search method on page 21.)
7 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
MP3/WMA/WAV Player
En
18
Section
06

Notes
!When playing discs with MP3/WMA/WAV files
and audio data (CD-DA) such as CD-EXTRA
and MIXED-MODE CDs, both types can be
played only by switching mode between MP3/
WMA/WAV and CD-DA with BAND.
!If you have switched between playback of
MP3/WMA/WAV files and audio data (CD-DA),
playback starts at the first track on the disc.
!The built-in CD player can play back an MP3/
WMA/WAV file recorded on CD-ROM. (Refer
to page 38 for files that can be played back.)
!Do not insert anything other than a CD into
the CD loading slot.
!There is sometimes a delay between starting
up playback and the sound being issued. This
is particularly the case when playing back
multi-session and many folders. When being
read in, FRMTREAD is displayed.
!If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press EJECT to eject the disc, and check the
disc for damage before inserting the disc
again.
!Playback is carried out in order of file number.
Folders are skipped if they contain no files. (If
folder 01 (ROOT) contains no files, playback
commences with folder 02.)
!When playing back files recorded as VBR
(variable bit rate) files, the play time will not be
correctly displayed if fast forward or reverse
operations are used.
!If inserted disc contains no files that can be
played back, NO AUDIO is displayed.
!If the inserted disc contains WMA files that
are protected by digital rights management
(DRM) , SKIPPED is displayed while the pro-
tected file is skipped.
!If all the files on the inserted disc are secured
by DRM, PROTECT is displayed.
!There is no sound on fast forward or reverse.
!If the built-in CD player does not operate prop-
erly, an error message such as ERROR-11
may be displayed. Refer to Understanding
built-in CD player error messages on page 37.
!When an MP3/WMA/WAV disc is inserted,
folder name and file name begin to scroll to
the left automatically.
MP3/WMA/WAV Player
En 19
English
Section
06

Intro uction of a vance
built-in CD player (MP3/
WMA/WAV) operation
1RPT indicator
Shows when repeat range is selected to cur-
rent track (file).
2Function display
Shows the function status.
%Press FUNCTION to display the function
na es.
Press FUNCTION repeatedly to switch be-
tween the following functions:
RPT (repeat play)RDM (random play)
SCAN (scan play)PAUSE (pause)COMP
(compression and BMX)FF/REV (search
method)TAG (tag display)
#To return to the playback display, press BAND.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the playback display.
Repeating play
For MP3/WMA/WAV playback, there are three
repeat play ranges: FLD (folder repeat), TRK
(one-track repeat) and DSC (repeat all tracks).
1 Press FUNCTION to select RPT.
Press FUNCTION until RPT appears in the dis-
play.
2 Press cor dto select the repeat range.
Press cor duntil the desired repeat range ap-
pears in the display.
!FLD Repeat the current folder
!TRK Repeat just the current track
!DSC Repeat all tracks
Notes
!If you select other folder during repeat play,
the repeat play range changes to DSC.
!If you perform track search or fast forward/re-
verse during TRK, the repeat play range
changes to FLD.
!When FLD is selected, it is not possible to play
back a subfolder of that folder.
Playing tracks in a ran om
or er
Random play lets you play back tracks in a
random order within the repeat range, FLD
and DSC.
1 Select the repeat range.
Refer to Repeating play on this page.
2 Press FUNCTION to select RDM.
Press FUNCTION until RDM appears in the
display.
3 Press ato turn rando play on.
RDM :ON appears in the display. Tracks will
play in a random order within the previously
selected FLD or DSC ranges.
4 Press bto turn rando play off.
RDM :OFF appears in the display. Tracks will
continue to play in order.
MP3/WMA/WAV Player
En
20
Section
06
