Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, keep this man-
ual in a safe place for future reference.
Before You Start
About this unit 4
About this manual 4
Features 4
About WMA 5
Use and care of the remote control 5
Installing the battery 5
Using the remote control 5
Protecting your unit from theft 6
Removing the front panel 6
Attaching the front panel 6
Whats What
ead unit 7
Remote control 7
Power ON/OFF
Turning the unit on 9
Selecting a source 9
Turning the unit off 9
Tuner
Listening to the radio 10
Introduction of advanced tuner
operation 11
Storing and recalling broadcast
frequencies 11
Tuning in strong signals 11
Storing the strongest broadcast
frequencies 12
Built in CD Player
Playing a CD 13
Introduction of advanced built-in CD player
operation 14
Repeating play 14
Playing tracks in a random order 14
Scanning tracks of a CD 14
Pausing CD playback 15
Using compression and BMX 15
Selecting the search method 15
Searching every 10 tracks in the current
disc 16
Using disc title functions 16
Entering disc titles 16
Displaying disc titles 17
Using CD TEXT functions 17
Displaying titles on CD TEXT
discs 17
Scrolling titles in the display 17
MP3/WMA/WAV Player
Playing MP3/WMA/WAV 18
Introduction of advanced built-in CD player
(MP3/WMA/WAV) operation 20
Repeating play 20
Playing tracks in a random order 20
Scanning folders and tracks 21
Pausing MP3/WMA/WAV playback 21
Using compression and BMX 21
Selecting the search method 22
Searching every 10 tracks in the current
folder 22
Displaying text information on MP3/WMA/
WAV disc 22
When playing back an MP3/WMA
disc 22
When playing back a WAV disc 23
Scrolling text information in the display 23
Multi CD Player
Playing a CD 24
50-disc multi-CD player 24
Introduction of advanced multi-CD player
operation 25
Repeating play 25
Playing tracks in a random order 25
Scanning CDs and tracks 26
Pausing CD playback 26
Using ITS playlists 26
Contents
En
2

Black plate (3,1)
<XRD7062-A/N>3
Creating a playlist with ITS
programming 26
Playback from your ITS playlist 27
Erasing a track from your ITS
playlist 27
Erasing a CD from your ITS
playlist 27
Using disc title functions 28
Entering disc titles 28
Displaying disc titles 29
Selecting discs from the disc title
list 29
Using CD TEXT functions 29
Displaying titles on CD TEXT
discs 29
Scrolling titles in the display 29
Using compression and bass emphasis 30
Audio Adjustments
Introduction of audio adjustments 31
Compensating for equalizer curves (EQ-
EX) 31
Using balance adjustment 32
Using the equalizer 32
Recalling equalizer curves 32
Adjusting equalizer curves 32
Fine-adjusting equalizer curve 33
Adjusting bass and treble 33
Adjusting bass and treble level 33
Selecting bass frequency 34
Selecting treble frequency 34
Adjusting loudness 34
Using subwoofer output 34
Turning a subwoofer on/off 34
Adjusting subwoofer settings 35
Using nonfading output 35
Adjusting nonfading output level 35
Using the high pass filter 36
Adjusting source levels 36
Initial Settings
Adjusting initial settings 37
Setting the clock 37
Setting the FM tuning step 37
Setting the AM tuning step 38
Switching the warning tone 38
Switching the auxiliary setting 38
Switching the dimmer setting 38
Adjusting display contrast 38
Setting the rear output and subwoofer
controller 39
Switching the telephone muting/
attenuation 39
Switching the Ever Scroll 40
Other Functions
Turning the clock display on or off 41
Using the AUX source 41
Selecting AUX as the source 41
Setting the AUX title 41
Introduction of DVD operation 42
Operation 42
Function menu switching 42
Using ITS playlist and disc title
functions 42
Setting the level indicator 42
Additional Information
Understanding built-in CD player error
messages 43
CD player and care 43
CD-R/CD-RW discs 43
MP3, WMA and WAV files 44
MP3 additional information 45
WMA additional information 45
WAV additional information 45
About folders and MP3/WMA/WAV files 46
Terms 47
Specifications 49
En 3
English
Contents

Black plate (4,1)
<XRD7062-A/N>4
About this unit
CAU ION:
USE OF CON ROL OR ADJUS MEN OR
PERFORMANCE OF PROCEDURES
O HER HAN HOSE SPECIFIED HEREIN
MAY RESUL IN HAZARDOUS RADIA ION
EXPOSURE.
CAU ION:
HE USE OF OP ICAL INS RUMEN S
WI H HIS PRODUC WILL INCREASE
EYE HAZARD.
!Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, this unit damage, smoke, and over-
heat could result from contact with liquids.
!Keep this manual handy as a reference for
operating procedures and precautions.
!Always keep the volume low enough so
that you can hear sounds from outside the
vehicle.
!Protect this unit from moisture.
!If the battery is disconnected or dis-
charged, the preset memory will be erased
and must be reprogrammed.
!If this unit does not operate properly, con-
tact your dealer or nearest authorized Pio-
neer Service Station.
About this manual
This unit features a number of sophisticated
functions ensuring superior reception and op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from this units potential
and to maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin
using this unit. It is especially important that
you read and observe WARNINGs and CAU
TIONs in this manual.
Features
CD playback
Music CD/CD-R/CD-RW playback is possible.
MP3 file playback
You can play back MP3 files recorded on CD-
ROM/CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
!Supply of this product only conveys a li-
cense for private, non-commercial use and
does not convey a license nor imply any
right to use this product in any commercial
(i.e. revenue-generating) real time broad-
casting (terrestrial, satellite, cable and/or
any other media), broadcasting/streaming
via internet, intranets and/or other net-
works or in other electronic content distri-
bution systems, such as pay-audio or
audio-on-demand applications. An inde-
pendent license for such use is required.
For details, please visit
http://www.mp3licensing.com.
WMA file playback
You can play back WMA files recorded on CD-
ROM/CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
WAV file playback
You can play back WAV files recorded on CD-
ROM/CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
Before You Start
En
4
Section
01

Black plate (5,1)
<XRD7062-A/N>5
About WMA
The Windows Media"logo printed on the box
indicates that this unit can play back WMA
data.
WMA is short for Windows Media"Audio
and refers to an audio compression technol-
ogy that is developed by Microsoft Corpora-
tion. WMA data can be encoded by using
Windows Media Player version 7 or later.
Microsoft, Windows Media, and the Windows
logo are trademarks, or registered trademarks
of Microsoft Corporation in the United States
and/or other countries.
Notes
!With some applications used to encode WMA
files, this unit may not operate correctly.
!Depending on the version of Windows Media
Player used to encode WMA files, album
names and other text information may not be
correctly displayed.
!There may be a slight delay when starting
playback of WMA files encoded with image
data.
!There may be a slight delay when starting
playback of WMA files encoded with image
data.
Use an care of the remote
control
Installing the battery
Slide the tray out on the back of the remote
control and insert the battery with the plus (+)
and minus () poles pointing in the proper di-
rection.
WARNING
Keep the battery out of the reach of children.
Should the battery be swallowed, immediately
consult a doctor.
CAUTION
!Use only one CR2025 (3 V) lithium battery.
!Remove the battery if the remote control is not
used for a month or longer.
!Do not recharge, disassemble, heat or dispose
of the battery in fire.
!Do not handle the battery with metallic tools.
!Do not store the battery with metallic materi-
als.
!In the event of battery leakage, wipe the re-
mote control completely clean and install a
new battery.
!When disposing of used batteries, please
comply with governmental regulations or en-
vironmental public institutionsrules that
apply in your country/area.
Using the remote control
Point the remote control in the direction of the
front panel to operate.
Before You Start
En 5
English
Section
01

Black plate (6,1)
<XRD7062-A/N>6
Important
!Do not store the remote control in high tem-
peratures or direct sunlight.
!The remote control may not function properly
in direct sunlight.
!Do not let the remote control fall onto the
floor, where it may become jammed under the
brake or accelerator pedal.
Protecting your unit from
theft
The front panel can be detached from the
head unit and stored in the protective case
provided to discourage theft.
!If the front panel is not detached from the
head unit within five seconds of turning off
the ignition, a warning tone will sound.
!You can turn off the warning tone. See
Switching the warning tone on page 38.
Important
!Never use force or grip the display and the
buttons too tightly when removing or attach-
ing.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and
pull it gently outward.
Take care not to grip it too tightly or to drop
the front panel and protect it from contact
with water or other fluids to prevent perma-
nent damage.
3 Put the front panel into the protective
case provided for safe keeping.
Attaching the front panel
%Replace the front panel by holding it
upright to the unit and clipping it securely
into the ounting hooks.
Before You Start
En
6
Section
01

Black plate (7,1)
<XRD7062-A/N>7

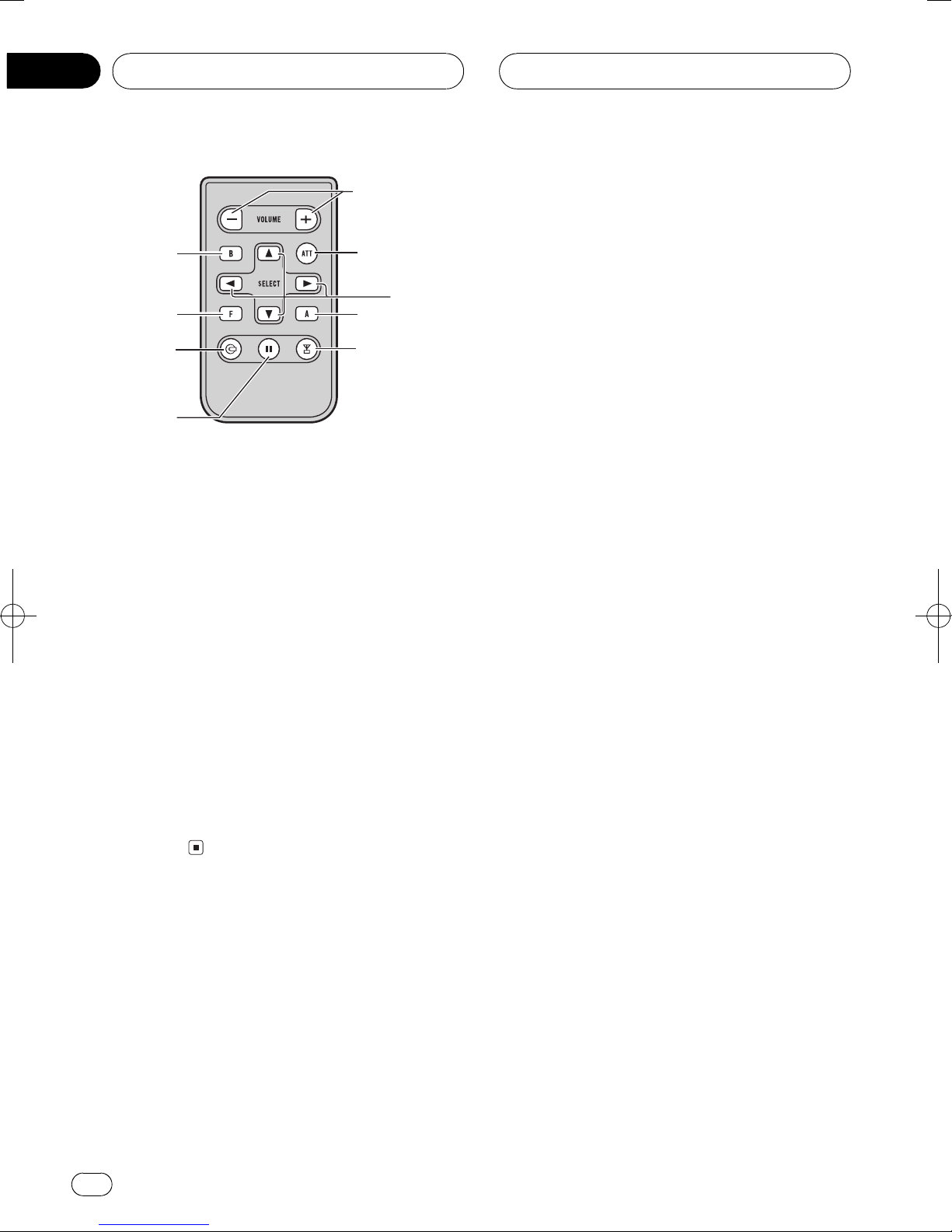

Hea unit
1CLOCK button
Press to change to the clock display.
2AUDIO button
Press to select various sound quality con-
trols.
3FUNCTION button
Press to select functions.
4OPEN button
Press to open the front panel.
5a/b/c/dbuttons
Press to do manual seek tuning, fast for-
ward, reverse and track search controls.
Also used for controlling functions.
6SW button
Press to directly select subwoofer setting
menu. See Using subwoofer output on page
34. Press and hold to select EQ-EX setting
menu. See Compensating for equalizer
curves EQ-EX) on page 31.
7EQ button
Press to select various equalizer curves.
8BAND button
Press to select among three FM bands and
one AM band and to cancel the control
mode of functions.
916 buttons
Press for preset tuning and disc number
search when using a multi-CD or multi-DVD
player.
aSOURCE button
This unit is turned on by selecting a source.
Press to cycle through all the available
sources.
bDISPLAY button
Press to select different displays.
cVOLUME
When you press VOLUME, it extends out-
ward so that it becomes easier to turn. To re-
tract VOLUME, press it again. Rotate it to
increase or decrease the volume.
Remote control
Operation is the same as when using the but-
tons on the head unit.
Whats What
En 7
English
Section
02

Black plate (8,1)
<XRD7062-A/N>8
dVOLUME button
Press to increase or decrease the volume.
eATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
fCD button
Press to select the built-in, multi-CD or DVD
player as the source.
gPAUSE button
Press to turn pause on or off.
hTUNER button
Press to select the tuner or TV as the
source.
e
5
2
f
3
d
g
h
8
Whats What
En
8
Section
02

Black plate (9,1)
<XRD7062-A/N>9
Turning the unit on
%Press SOURCE to turn the unit on.
When you select a source the unit is turned
on.
Selecting a source
You can select a source you want to listen to.
To switch to the built-in CD player, load a disc
in the unit (refer to page 13).
%When using the head unit, press
SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
TunerTelevisionDVD player/Multi
DVD playerBuilt in CD playerMulti
CD playerExternal unit 1External unit
2AUX
%When using the re ote control, press
TUNER or CD to select a source.
Press each button repeatedly to switch be-
tween the following sources:
TUNER:TunerTelevisionSources off
CD:DVD player/Multi DVD playerBuilt
in CD playerMulti CD playerSources
off
Notes
!In the following cases, the sound source will
not change:
When there is no unit corresponding to the
selected source connected to this unit.
When there is no disc in the unit.
When there is no disc in the DVD player.
When there is no magazine in the multi-
CD player.
When there is no magazine in the multi-
DVD player.
When the AUX (auxiliary input) is set to off
(refer to page 38).
!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Two external units
can be controlled by this unit. When two exter-
nal units are connected, the allocation of
them to external unit 1 or external unit 2 is
automatically set by this unit.
!When this units blue/white lead is connected
to the vehicles auto-antenna relay control
terminal, the vehicles antenna extends when
this units source is turned on. To retract the
antenna, turn the source off.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Power ON/OFF
En 9
English
Section
03

Black plate (10,1)
<XRD7062-A/N>10
Listening to the ra io
1
2
5
4
3
These are the basic steps necessary to operate
the radio. More advanced tuner operation is
explained starting on the next page.
Important
If you are using this unit in North, Central or
South America, reset the AM tuning step (see
Setting the AM tuning step on page 38).
1Stereo (5) indicator
Shows that the frequency selected is being
broadcast in stereo.
2Preset nu ber indicator
Shows which preset has been selected.
3Band indicator
Shows which band the radio is tuned to, AM
or FM.
4Signal level indicator
Shows the radio wave strength.
5Frequency indicator
Shows to which frequency the tuner is
tuned.
1 Press SOURCE to select the tuner.
Press SOURCE until you see TUNER dis-
played.
2 Use VOLUME to adjust the sound level.
Rotate it to increase or decrease the volume.
3 Press BAND to select a band.
Press BAND until the desired band is dis-
played, F1,F2,F3 for FM or AM.
4 To perfor anual tuning, briefly press
cor d.
The frequencies move up or down step by
step.
5 To perfor seek tuning, press and hold
cor dfor about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by briefly pressing
either cor d.
#If you press and hold cor dyou can skip sta-
tions. Seek tuning starts as soon as you release
the button.
Note
When the frequency selected is being broadcast
in stereo the stereo (5) indicator will light.
Tuner
En
10
Section
04

Black plate (11,1)
<XRD7062-A/N>11
Intro uction of a vance
tuner operation
1
2
3
1LOC indicator
Shows when local seek tuning is on.
2Function display
Shows the function status.
3Preset nu ber indicator
Shows which preset has been selected.
%Press FUNCTION to display the function
na es.
Press FUNCTION repeatedly to switch be-
tween the following functions:
BSM (best stations memory)Local (local
seek tuning)
#To return to the frequency display, press
BAND.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the frequency display.
Storing an recalling
broa cast frequencies
If you press any of the preset tuning buttons
16you can easily store up to six broadcast
frequencies for later recall with the touch of a
button.
%When you find a frequency that you
want to store in e ory press one of pre-
set tuning buttons 16 and hold until the
preset nu ber stops flashing.
The number you have pressed will flash in the
preset number indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same preset tun-
ing button the radio station frequency is re-
called from memory.
Notes
!Up to 18 FM stations, six for each of the three
FM bands, and six AM stations can be stored
in memory.
!You can also use aand bto recall radio sta-
tion frequencies assigned to preset tuning
buttons 16.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press FUNCTION to select Local.
Press FUNCTION until Local appears in the
display.
2 Press ato turn local seek tuning on.
Local seek sensitivity (e.g., Local 2) appears in
the display.
3 Press cor dto set the sensitivity.
There are four levels of sensitivity for FM and
two levels for AM:
FM: Local 1Local 2Local 3Local 4
AM: Local 1Local 2
The Local 4 setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
Tuner
En 11
English
Section
04

Black plate (12,1)
<XRD7062-A/N>12
4 When you want to return to nor al
seek tuning, press bto turn local seek tun-
ing off.
Local :OFF appears in the display.
Storing the strongest
broa cast frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset tuning buttons 16and
once stored there you can tune in to those fre-
quencies with the touch of a button.
1 Press FUNCTION to select BSM.
Press FUNCTION until BSM appears in the
display.
2 Press ato turn BSM on.
BSM begins to flash. While BSM is flashing
the six strongest broadcast frequencies will be
stored under preset tuning buttons 16in the
order of their signal strength. When finished,
BSM stops flashing.
#To cancel the storage process, press b.
Note
Storing broadcast frequencies with BSM may re-
place broadcast frequencies you have saved
using buttons 16.
Tuner
En
12
Section
04

Black plate (13,1)
<XRD7062-A/N>13
Playing a CD
1
2
These are the basic steps necessary to play a
CD with your built-in CD player. More ad-
vanced CD operation is explained starting on
the next page.

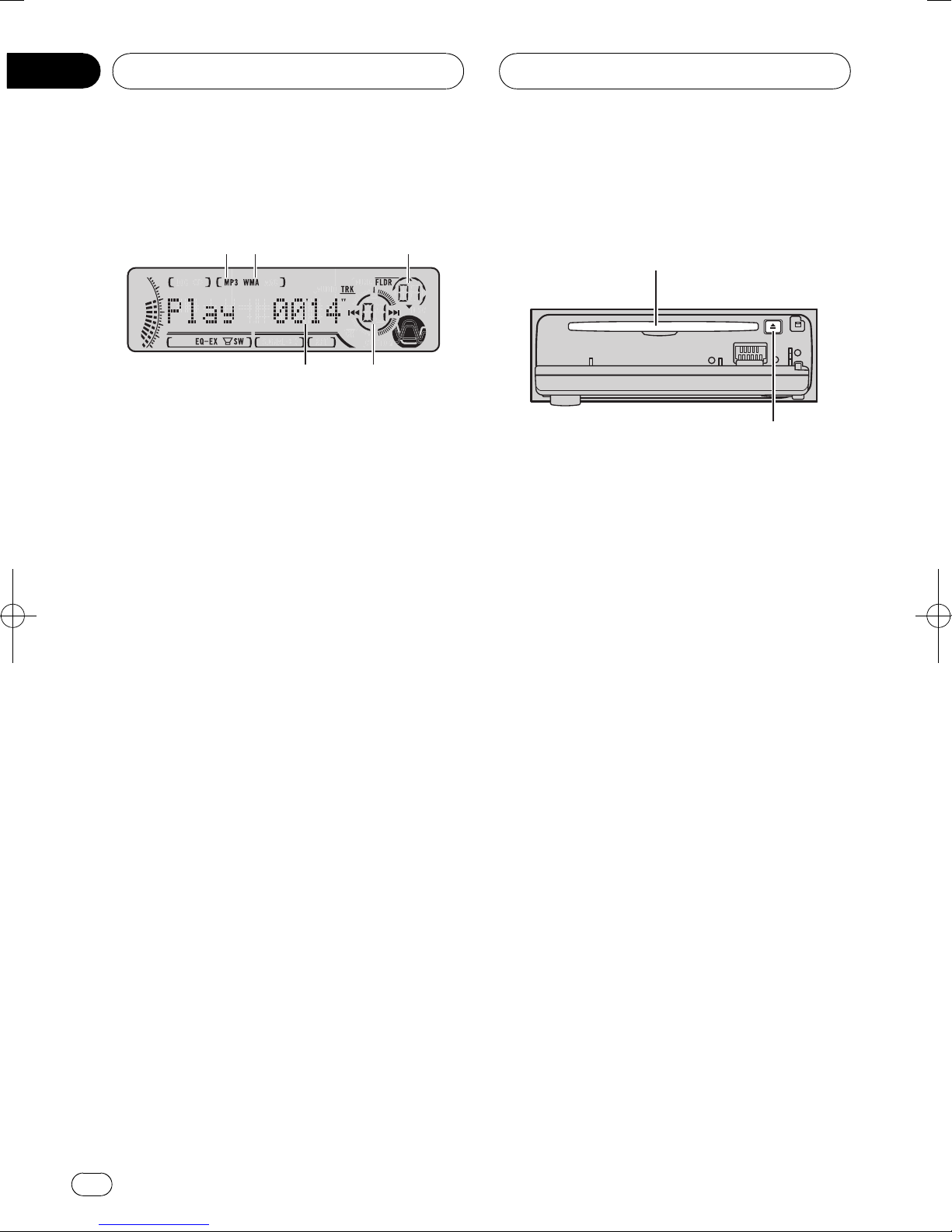

1Play ti e indicator
Shows the elapsed playing time of the cur-
rent track.
2Track nu ber indicator
Shows the track currently playing.
1 Press OPEN to open the front panel.
CD loading slot appears.
#After a CD has been inserted, press SOURCE
to select the built-in CD player.
2 Insert a CD into the CD loading slot.
Playback will automatically start.
CD loading slot
EJECT button
#You can eject a CD by pressing EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
4 Use VOLUME to adjust the sound level.
Rotate it to increase or decrease the volume.
5 To perfor fast forward or reverse,
press and hold cor d.
#If you select Rough, pressing and holding c
or denables you to search every 10 tracks in the
current disc. (Refer to Selecting the search meth-
od on page 15.)
6 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
Notes
!The built-in CD player plays one, standard, 12-
cm or 8-cm (single) CD at a time. Do not use
an adapter when playing 8-cm CDs.
!Do not insert anything other than a CD into
the CD loading slot.
!If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press EJECT to eject the disc, and check the
disc for damage before inserting it again.
!aand bcan be operated when MP3, WMA or
WAV is playing.
!If an error message such as ERROR-11 is dis-
played, refer to Understanding built-in CD
player error messages on page 43.
!When a CD TEXT disc is inserted, the disc and
track titles begin to scroll to the left automati-
cally.
!When Ever Scroll is set to ON at the initial set-
ting, CD text information scrolls continuously
in the display. If you want to display the first
10 characters of text information temporarily
and scroll from the beginning, press and hold
DISPLAY. About Ever Scroll, refer to Switching
the Ever Scroll on page 40.
Built-in CD Player
En 13
English
Section
05

Black plate (14,1)
<XRD7062-A/N>14
Intro uction of a vance
built-in CD player operation
1
2

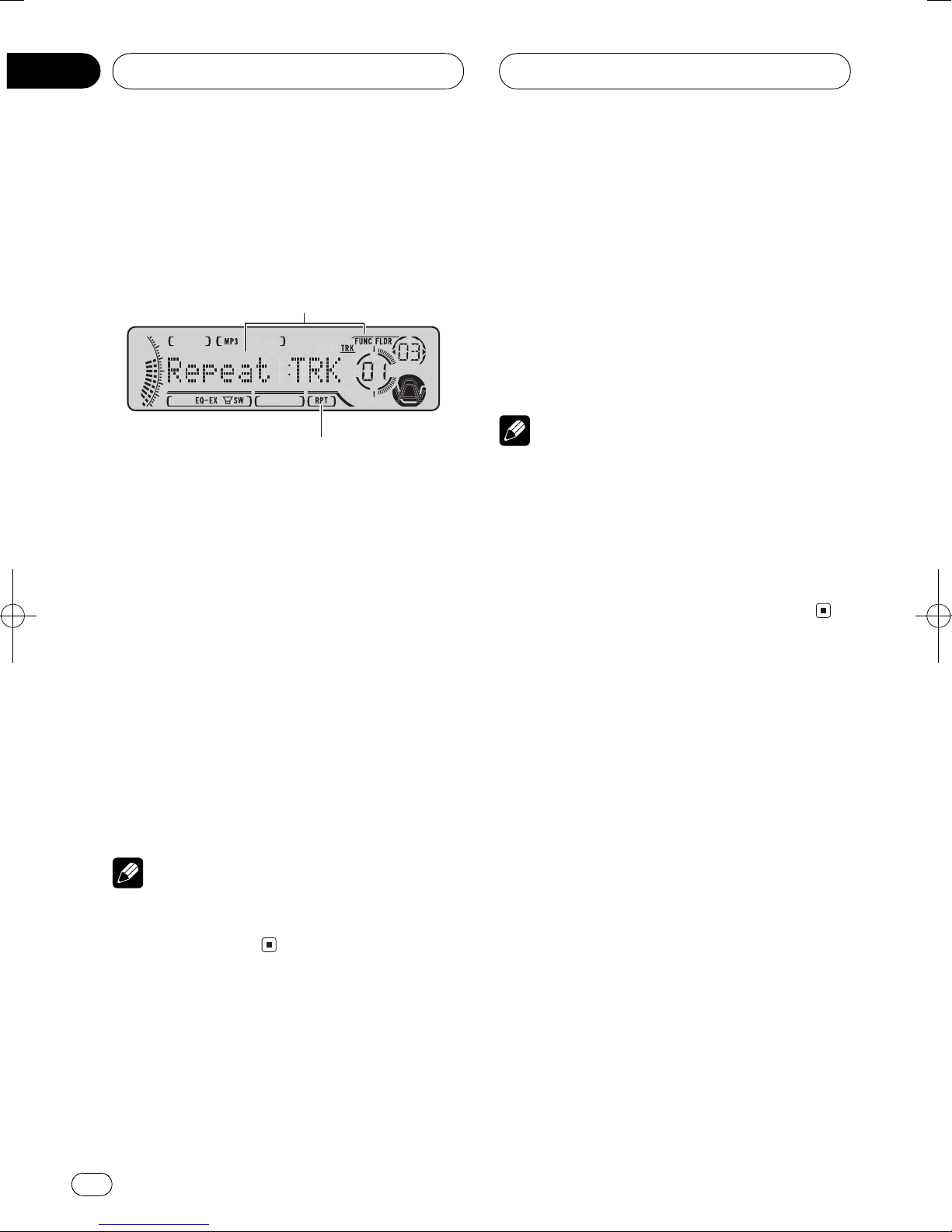

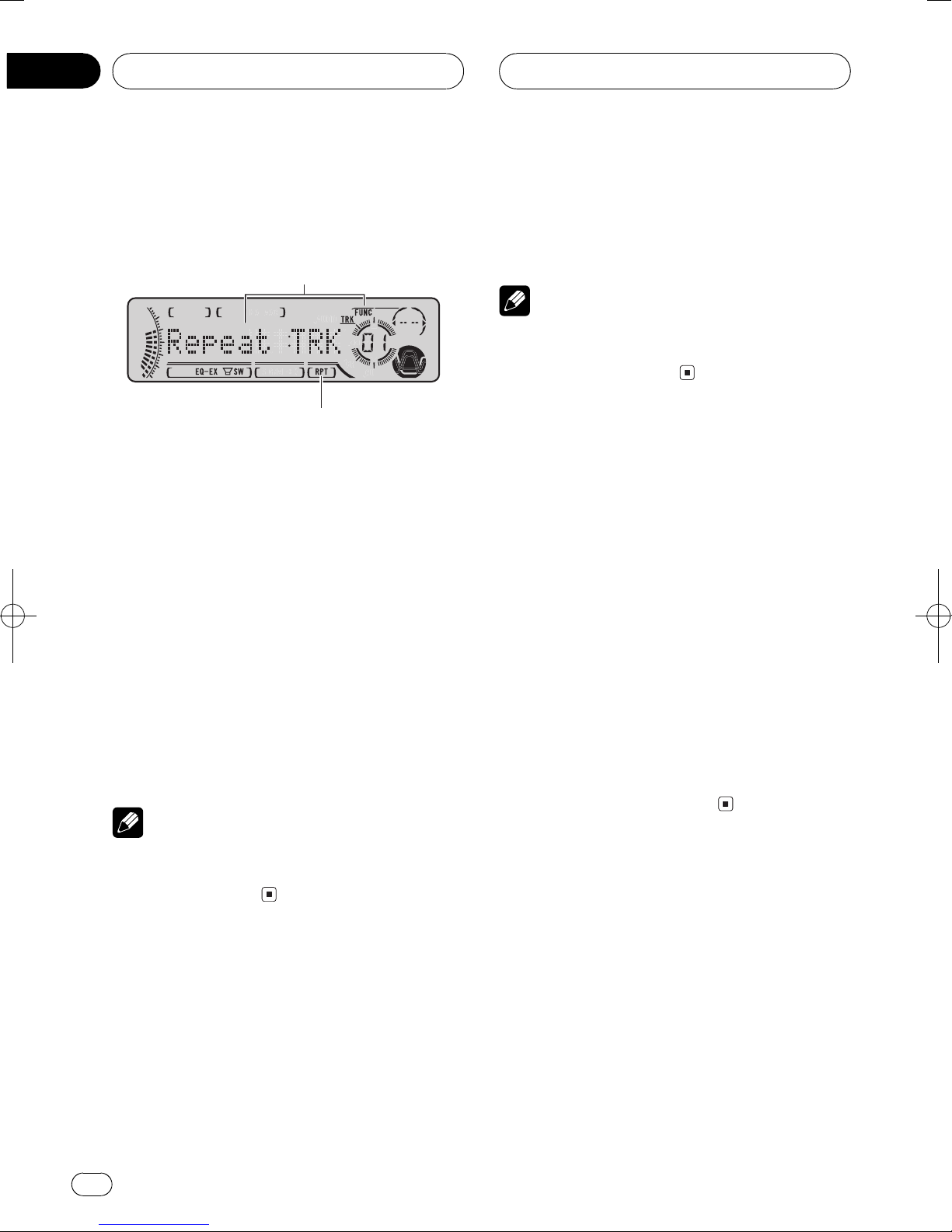

1Function display
Shows the function status.
2RPT indicator
Shows when repeat play is turned on.
%Press FUNCTION to display the function
na es.
Press FUNCTION repeatedly to switch be-
tween the following functions:
Repeat (repeat play)Rando (random play)
Scan (scan play)Pause (pause)COMP
(compression and BMX)FF/REV (search
method)
#To return to the playback display, press BAND.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the playback display.
Repeating play
Repeat play lets you hear the same track or
disc over again.
1 Press FUNCTION to select Repeat.
Press FUNCTION until Repeat appears in the
display.
2 Press cor dto select the repeat range.
This switches you to the selected setting.
!Repeat:DSC Repeat the current disc
!Repeat:TRK Repeat just the current track
Note
If you perform track search or fast forward/re-
verse during Repeat :TRK, the repeat play range
changes to Repeat :DSC.
Playing tracks in a ran om
or er
Random play lets you play back tracks on the
CD in a random order.
1 Press FUNCTION to select Rando .
Press FUNCTION until Rando appears in
the display.
2 Press ato turn rando play on.
Rando :ON appears in the display. Tracks
will play in a random order.
3 Press bto turn rando play off.
Rando :OFF appears in the display. Tracks
will continue to play in order.
Scanning tracks of a CD
Scan play lets you hear the first 10 seconds of
each track on the CD.
1 Press FUNCTION to select Scan.
Press FUNCTION until Scan appears in the
display.
2 Press ato turn scan play on.
Scan :ON appears in the display. The first 10
seconds of each track is played.
Built-in CD Player
En
14
Section
05

Black plate (15,1)
<XRD7062-A/N>15
3 When you find the desired track press
bto turn scan play off.
Scan :OFF appears in the display. The track
will continue to play.
#If the display has automatically returned to
the playback display, select Scan again by press-
ing FUNCTION.
Note
After scanning of a CD is finished, normal play-
back of the tracks will begin again.
Pausing CD playback
Pause lets you temporarily stop playback of
the CD.
1 Press FUNCTION to select Pause.
Press FUNCTION until Pause appears in the
display.
2 Press ato turn pause on.
Pause :ON appears in the display. Play of the
current track pauses.
3 Press bto turn pause off.
Pause :OFF appears in the display. Play will re-
sume at the same point that you turned pause
on.
Using compression an BMX
Using the COMP (compression) and BMX
functions let you adjust the sound playback
quality of this player. Each of the functions
have a two-step adjustment. The COMP func-
tion balances the output of louder and softer
sounds at higher volumes. BMX controls
sound reverberations to give playback a fuller
sound. Listen to each of the effects as you se-
lect through them and use the one that best
enhances the playback of the track or CD that
you are listening to.
1 Press FUNCTION to select COMP.
Press FUNCTION until COMP appears in the
display.
2 Press aor bto select your favorite set-
ting.
Press aor brepeatedly to switch between the
following settings:
COMP OFFCOMP 1COMP 2
COMP OFFBMX 1BMX 2
Selecting the search metho
You can switch the search method between
fast forward/reverse and searching every 10
tracks.
1 Press FUNCTION to select FF/REV.
Press FUNCTION until FF/REV appears in the
display.
#If the search method Rough has been pre-
viously selected, Rough will be displayed.
2 Press cor dto select the search eth-
od.
Press cor duntil the desired search method
appears in the display.
!FF/REV Fast forward and reverse
!Rough Searching every 10 tracks
Built-in CD Player
En 15
English
Section
05

Black plate (16,1)
<XRD7062-A/N>16
Searching every 10 tracks in
the current isc
If a disc contains over 10 tracks, you can
search every 10 tracks. When a disc contains
a lot of tracks, you can roughly search for the
track you want to play.
1 Select the search ethod Rough.
Refer to Selecting the search method on the
previous page.
2 Press and hold cor dto search every
10 tracks on a disc.
#If a disc contains less than 10 tracks, pressing
and holding drecalls the last track of the disc.
Also, if the remaining number of tracks after
searching every 10 tracks is less than 10, press-
ing and holding drecalls the last track of the
disc.
#If a disc contains less than 10 tracks, pressing
and holding crecalls the first track of the disc.
Also, if the remaining number of tracks after
searching every 10 tracks is less than 10, press-
ing and holding crecalls the first track of the
disc.
Using isc title functions
You can input CD titles and display the title.
The next time you insert a CD for which you
have entered a title, the title of that CD will be
displayed.

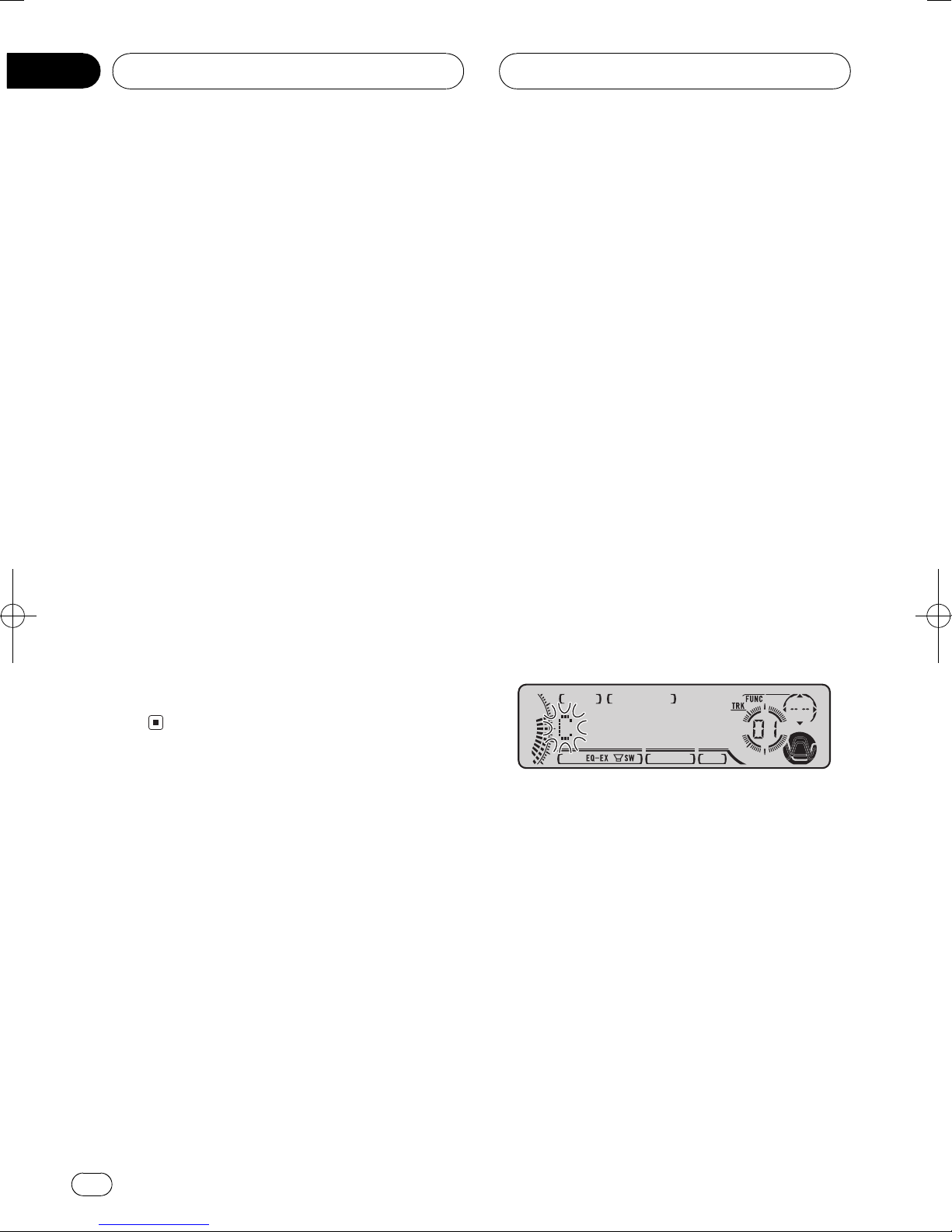

Entering isc titles
Use the disc title input feature to store up to
48 CD titles in the unit. Each title can be up to
10 characters long.
1 Play the CD that you want to enter a
title for.
2 Press FUNCTION and hold until Title In
appears in the display.
#When playing a CD TEXT disc, you cannot
switch to Title In. The disc title will have already
been recorded on a CD TEXT disc.
3 Press button 1 to select the desired
character type.
Press button 1repeatedly to switch between
the following character types:
Alphabet (upper case), numbers and symbols
Alphabet (lower case)European letters,
such as those with accents (e.g., á, à, ä, ç)
#You can select to input numbers and symbols
by pressing button 2.
4 Press aor bto select a letter of the al-
phabet.
Each press of awill display a letter of the al-
phabet in A B C ... X Y Z, numbers and sym-
bols in 1 2 3 ... > [ ] order. Each press of bwill
display a letter in the reverse order, such as Z
Y X ... C B A order.
5 Press dto ove the cursor to the next
character position.
When the letter you want is displayed, press d
to move the cursor to the next position and
then select the next letter. Press cto move
backwards in the display.
6 Move the cursor to the last position by
pressing dafter entering the title.
When you press done more time, the entered
title is stored in memory.
7 Press BAND to return to the playback
display.
Built-in CD Player
En
16
Section
05

Black plate (17,1)
<XRD7062-A/N>17
Notes
!Titles remain in memory, even after the disc
has been removed from the unit, and are re-
called when the disc is reinserted.
!After data for 48 discs has been stored in
memory, data for a new disc will overwrite the
oldest one.
!If you connect a multi-CD player, you can
input disc titles for up to 100 discs.
Displaying isc titles
You can display the title of any disc that has
had a disc title entered.
%Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
Play timeDisc Title (disc title)
When you select Disc Title, the title of the cur-
rently playing disc is shown in the display.
#If no title has been entered for the currently
playing disc, No Title is displayed.
Using CD TEXT functions
Some discs have certain information encoded
on the disc during manufacture. These discs
may contain such information as the CD title,
track title, artists name and playback time
and are called CD TEXT discs. Only these spe-
cially encoded CD TEXT discs support the
functions listed below.
Displaying titles on CD TEXT iscs
%Press DISPLAY.
Press DISPLAY repeatedly to switch between
the following settings:
Play timeDisc Title (disc title)ArtistNa e
(disc artist name)TrackTitle (track title)
ArtistNa e (track artist name)
#If specific information has not been recorded
on a CD TEXT disc, No XXXX will be displayed
(e.g., No TRK TTL).
Scrolling titles in the isplay
This unit can display the first 10 letters only of
Disc Title,ArtistNa e,TrackTitle and
ArtistNa e. When the recorded information
is longer than 10 letters, you can scroll the text
to the left so that the rest of the title can be
seen.
%Press DISPLAY and hold until the title
begins to scroll to the left.
The rest of the title will appear in the display.
Note
When Ever Scroll is set to ON at the initial setting,
CD text information scrolls continuously in the
display. If you want to display the first 10 charac-
ters of text information temporarily and scroll
from the beginning, press and hold DISPLAY.
About Ever Scroll, refer to Switching the Ever
Scroll on page 40.
Built-in CD Player
En 17
English
Section
05

Black plate (18,1)
<XRD7062-A/N>18
Playing MP3/WMA/WAV
5
2
1
4
3

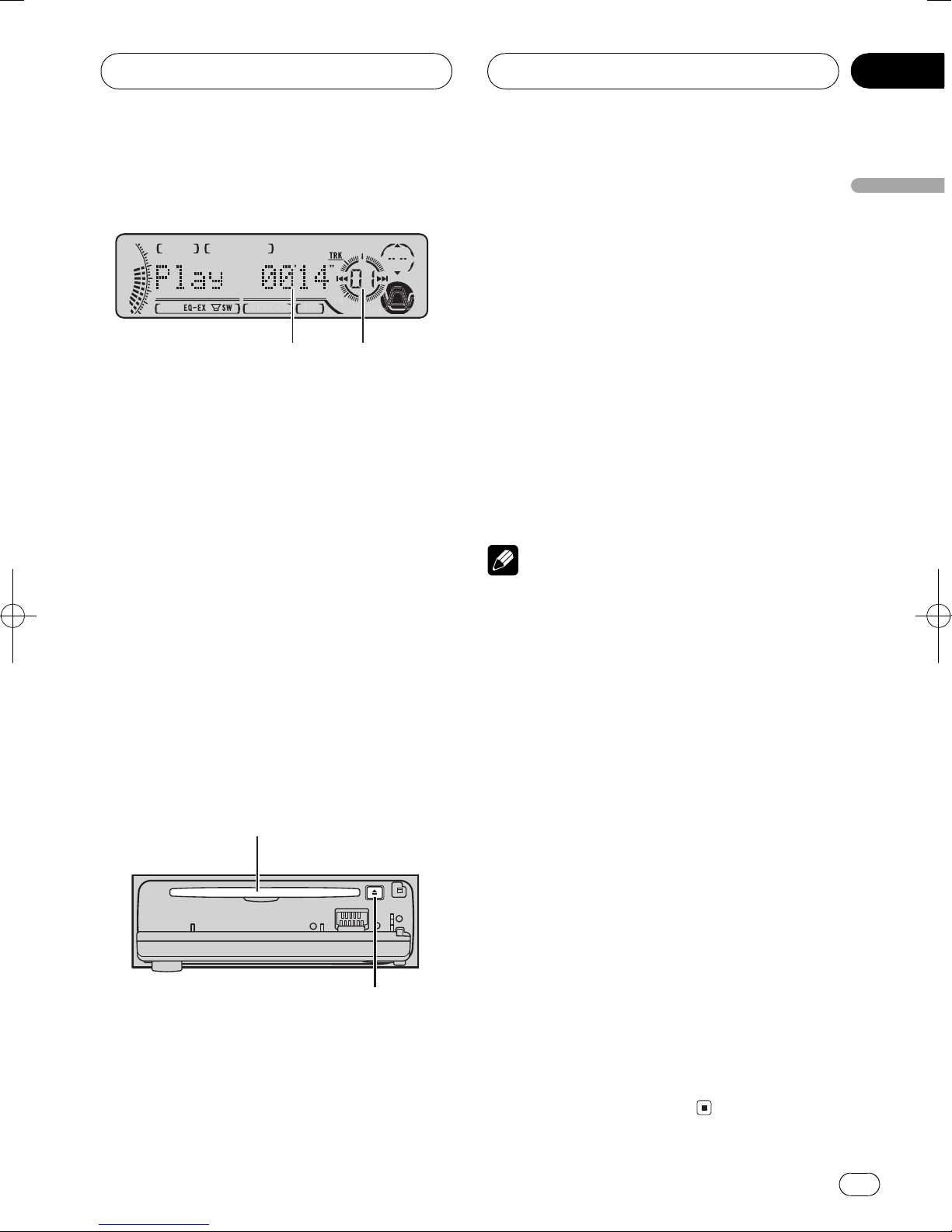

These are the basic steps necessary to play an
MP3/WMA/WAV with your built-in CD player.
More advanced MP3/WMA/WAV operation is
explained starting on page 20.
1MP3 indicator
Shows when the MP3 file is playing.
2WMA indicator
Shows when the WMA file is playing.
3Folder nu ber indicator
Shows the number of folder currently play-
ing.
4Track nu ber indicator
Shows the track (file) currently playing.
!If a track number 100 to 199 is selected,
dwill light up above the last two digits
of the track number.
!If a track number 200 or more is selected,
dwill blink above the last two digits of
the track number.
5Play ti e indicator
Shows the elapsed playing time of the cur-
rent track (file).
1 Press OPEN to open the front panel.
CD loading slot appears.
#After a CD-ROM has been inserted, press
SOURCE to select the built-in CD player.
2 Insert a CD-ROM into the CD loading
slot.
Playback will automatically start.
CD loading slot
EJECT button
#You can eject a CD-ROM by pressing EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
4 Use VOLUME to adjust the sound level.
Rotate it to increase or decrease the volume.
5 Press aor bto select a folder.
#You cannot select a folder that does not have
an MP3/WMA/WAV file recorded in it.
#To return to folder 01 (ROOT), press and hold
BAND. owever, if folder 01 (ROOT) contains no
files, playback commences with folder 02.
6 To perfor fast forward or reverse,
press and hold cor d.
#If you select Rough, pressing and holding c
or denables you to search every 10 tracks in the
current folder. (Refer to Selecting the search meth-
od on page 22.)
7 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
MP3/WMA/WAV Player
En
18
Section
06

Black plate (19,1)
<XRD7062-A/N>19
Notes
!When playing discs with MP3/WMA/WAV files
and audio data (CD-DA) such as CD-EXTRA
and MIXED-MODE CDs, both types can be
played only by switching mode between MP3/
WMA/WAV and CD-DA with BAND.
!If you have switched between playback of
MP3/WMA/WAV files and audio data (CD-DA),
playback starts at the first track on the disc.
!The built-in CD player can play back an MP3/
WMA/WAV file recorded on CD-ROM. (Refer
to page 44 for files that can be played back.)
!Do not insert anything other than a CD into
the CD loading slot.
!There is sometimes a delay between starting
up CD playback and the sound being issued.
When being read in, For atRead is dis-
played.
!If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press EJECT to eject the disc, and check the
disc for damage before inserting it again.
!Playback is carried out in order of file number.
Folders are skipped if they contain no files. (If
folder 01 (ROOT) contains no files, playback
commences with folder 02.)
!When playing back files recorded as VBR
(variable bit rate) files, the play time will not be
correctly displayed if fast forward or reverse
operations are used.
!If the inserted disc contains no files that can
be played back, No Audio is displayed.
!If the inserted disc contains WMA files that
are protected by digital rights management
(DRM) , SKIPPED is displayed while the pro-
tected file is skipped.
!If all the files on the inserted disc are secured
by DRM, PROTECT is displayed.
!There is no sound on fast forward or reverse.
!If an error message such as ERROR-11 is dis-
played, refer to Understanding built-in CD
player error messages on page 43.
!When an MP3/WMA/WAV disc is inserted,
folder name and file name automatically
begin to scroll in the display. When Ever Scroll
is set to ON at the initial setting, folder and file
name scroll continuously. About Ever Scroll,
refer to Switching the Ever Scroll on page
40.
MP3/WMA/WAV Player
En 19
English
Section
06

Black plate (20,1)
<XRD7062-A/N>20
Intro uction of a vance
built-in CD player (MP3/
WMA/WAV) operation
1
2
1Function display
Shows the function status.
2RPT indicator
Shows when repeat range is selected to cur-
rent track (file).
%Press FUNCTION to display the function
na es.
Press FUNCTION repeatedly to switch be-
tween the following functions:
Repeat (repeat play)Rando (random play)
Scan (scan play)Pause (pause)COMP
(compression and BMX)FF/REV (search
method)
#To return to the playback display, press BAND.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the playback display.
Repeating play
For MP3/WMA/WAV playback, there are three
repeat play ranges: Repeat:FLD (folder re-
peat), Repeat:TRK (one-track repeat) and
Repeat:DSC (repeat all tracks).
1 Press FUNCTION to select Repeat.
Press FUNCTION until Repeat appears in the
display.
2 Press cor dto select the repeat range.
Press cor duntil the desired repeat range ap-
pears in the display.
!Repeat:DSC Repeat all tracks
!Repeat:TRK Repeat just the current track
!Repeat:FLD Repeat the current folder
Notes
!If you select another folder during repeat play,
the repeat play range changes to
Repeat:DSC.
!If you perform track search or fast forward/re-
verse during Repeat:TRK, the repeat play
range changes to Repeat:FLD.
!When Repeat:FLD is selected, it is not possi-
ble to play back a subfolder of that folder.
Playing tracks in a ran om
or er
Random play lets you play back tracks in a
random order within the repeat range,
Repeat:FLD and Repeat:DSC.
1 Select the repeat range.
Refer to Repeating play on this page.
2 Press FUNCTION to select Rando .
Press FUNCTION until Rando appears in
the display.
3 Press ato turn rando play on.
Rando :ON appears in the display. Tracks
will play in a random order within the pre-
viously selected Repeat:FLD or Repeat:DSC
ranges.
MP3/WMA/WAV Player
En
20
Section
06
