Pioneer DEH-P640 XN/UC User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2001 K-ZZY. DEC. 2001 Printed in Japan
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-977 CRT2624 S9 CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................3
2. EXPLODED VIEWS AND PARTS LIST.......................4

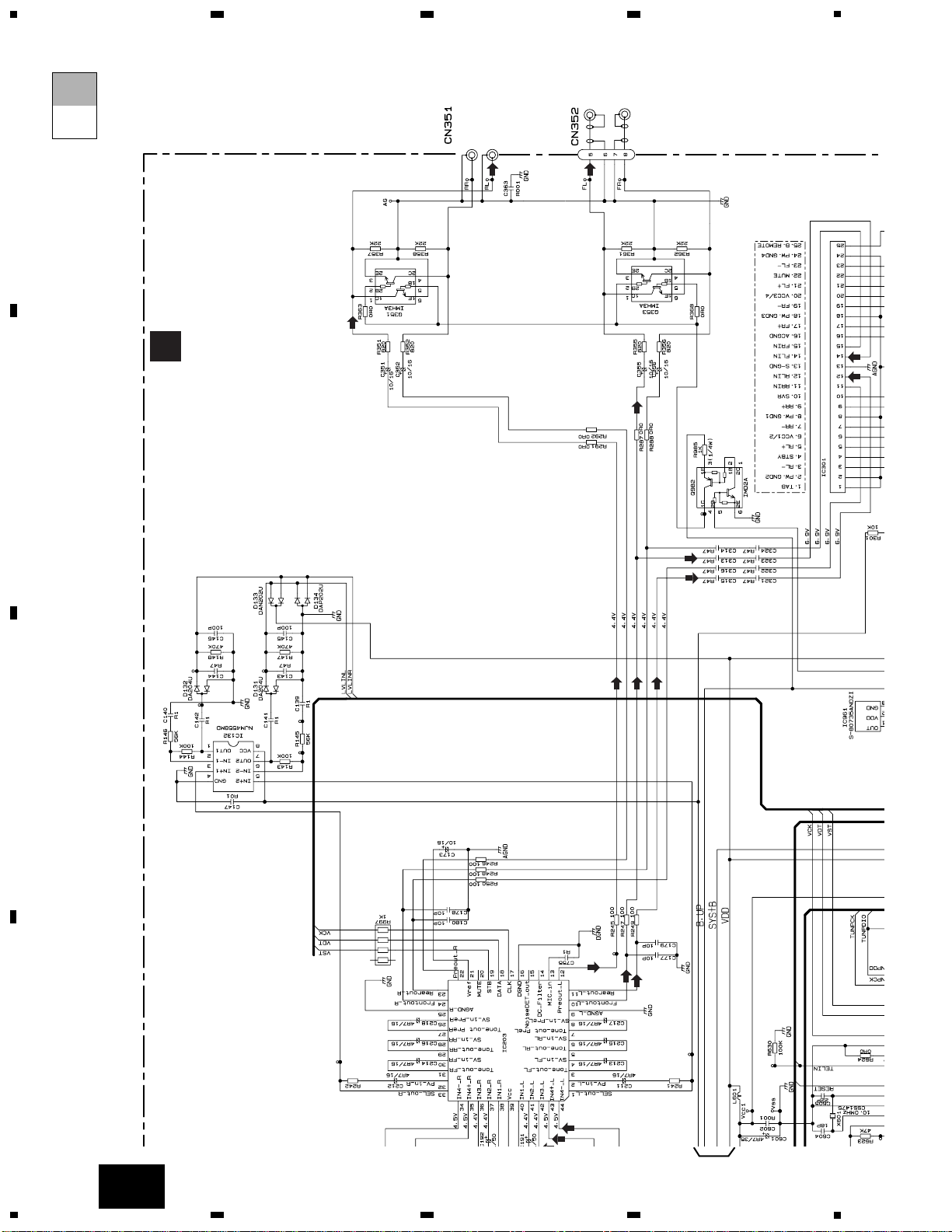

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14
4. PCB CONNECTION DIAGRAM ................................34
5. ELECTRICAL PARTS LIST ........................................42
6. ADJUSTMENT..........................................................53
7. GENERAL INFORMATION .......................................62
7.1 DIAGNOSIS ........................................................62
7.1.1 DISASSEMBLY .........................................62
7.1.2 CONNECTOR FUNCTION DESCRIPTION.......66
7.2 IC ........................................................................67
7.3 OPERATIONAL FLOW CHART...........................77
7.4 CLEANING ..........................................................78
8. OPERATIONS AND SPECIFICATIONS.....................79
For details, refer to "Important symbols for good services".
ORDER NO.
CRT2807
Service
Manual
DEH-P640/XN/UC
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER
DEH-P640 XN/UC
DEH-P6400 XN/UC
DEH-P6450 XN/ES

2
DEH-P640,P6400,P6450
-CD Player Service Precautions
1. For pickup unit(CXX1480) handling, please refer
to"Disassembly"(see page 62).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a jumper-solder).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 56).
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

3
DEH-P640,P6400,P6450
1. SAFETY INFORMATION
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

4
DEH-P640,P6400,P6450
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING (DEH-P640, P6400)
17
22
20 1
15
19
21
18
3
14
12
13
11
5
9
7
10
6
8
16
2
4

5
DEH-P640,P6400,P6450
1 Cord Assy CDE6438
2 Remote Control Unit CXB8743
3 Accessory Assy CEA2773
4 Spring CBH1650
5 Screw Assy CEA2796
6 Screw BPZ20P060FZK
7 Screw CBA1002
* 8 Polyethylene Bag CEG-127
9 Screw CRZ50P090FMC
10 Screw TRZ50P080FMC
* 11 Polyethylene Bag CEG-158
12 Handle CNC5395
13 Earth Plate CNC9450
14 Bush CNV3930
15 Polyethylene Bag CEG1173
* 16 Battery CEX1065
17 Carton See Contrast table(2)
18 Contain Box See Contrast table(2)
19 Protector CHP2251
20 Protector CHP2252
21-1 Owner’s Manual See Contrast table(2)
21-2 Installation Manual See Contrast table(2)
* 21-3 Caution Card CRP1207
* 21-4 Warranty Card See Contrast table(2)
* 21-5 Card See Contrast table(2)
21-6 Polyethylene Bag CEG1116
22 Case Assy CXB3520
Mark No. Description Part No. Mark No. Description Part No.
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
-For the applying amount of lubricants or glue, follow the instructions in this manual.
( In the case of no amount instructions, apply as you think it appropriate.)
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P640/XN/UC CRD3516 English, French
CRD3530 English, French
DEH-P6400/XN/UC CRD3517 English, French
CRD3531 English, French
(2) CONTRAST TABLE
DEH-P640/XN/UC and DEH-P6400/XN/UC are constructed the same except for the following:
Part No.
Mark No. Symbol and Description DEH-P640/XN/UC DEH-P6400/XN/UC
17 Carton CHG4615 CHG4616
18 Contain Box CHL4615 CHL4616
21-1 Owner’s Manual CRD3516 CRD3517
21-2 Installation Manual CRD3530 CRD3531
* 21-4 Warranty Card CRY1070 Not used
* 21-5 Card Not used ARY1048
(1) PACKING SECTION PARTS LIST (DEH-P640, P6400)

6
DEH-P640,P6400,P6450
2.2 PACKING (DEH-P6450)
13
18
16 1
11
15
17
10
9
8
14
4
6
7
5
2
3
12

7
DEH-P640,P6400,P6450
1 Cord Assy CDE6438
2 Spring CBH1650
3 Remote Control Unit CXB8743
4 Screw CBA1002
* 5 Polyethylene Bag CEG-127
6 Screw CRZ50P090FMC
7 Screw TRZ50P080FMC
* 8 Polyethylene Bag CEG-158
9 Handle CNC5395
10 Bush CNV3930
11 Polyethylene Bag CEG-162
* 12 Battery CEX1065
13 Carton CHG4614
14 Contain Box CHL4614
15 Protector CHP2251
16 Protector CHP2252
17-1 Owner’s Manual CRD3518
17-2 Owner’s Manual CRD3519
17-3 Installation Manual CRD3532
* 17-4 Caution Card CRP1207
17-5 Polyethylene Bag CEG1116
18 Case Assy CXB3520
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST (DEH-P6450)
-Owner's Manual, Installation Manual
Part No. Language
CRD3518 English, Spanish
CRD3519 Portuguese(B), Arabic
CRD3532 English, Spanish, Portuguese(B), Arabic

8
DEH-P640,P6400,P6450

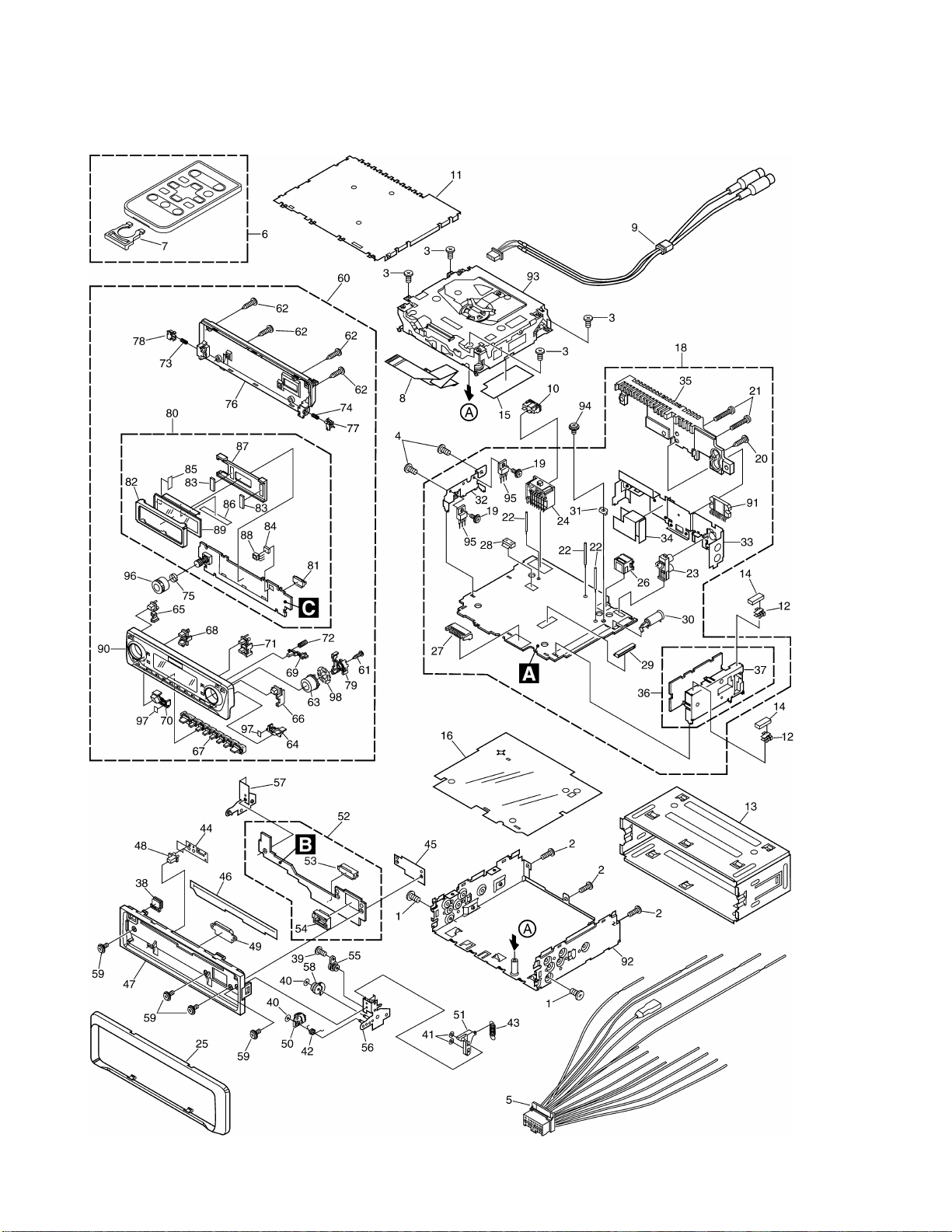

2.3 EXTERIOR

9
DEH-P640,P6400,P6450
1 Screw BMZ30P040FZK
2 Screw BMZ30P100FMC
3 Screw BSZ26P060FMC
4 Screw BSZ30P040FMC
5 Cord Assy CDE6438
6 Remote Control Unit CXB8743
7 Cover CNS7068
8 Cable CDE6714
9 Cord Assy CDE6454
10 Fuse(10A) CEK1136
11 Case CNB2686
12 Holder CNC5704
13 Holder CNC8659
14 Cushion CNM4870
15 Insulator CNM7214
16 Insulator CNM7629
17 •••••
18 Tuner Amp Unit See Contrast table(2)
19 Screw ASZ26P060FMC
20 Screw BPZ26P120FMC
21 Screw BSZ26P160FMC
22 Clamper CEF1007
23 Pin Jack(CN351) CKB1035
24 Plug(CN901) CKM1330
25 Panel See Contrast table(2)
26 Connector(CN101) CKS3408
27 Plug(CN801) CKS3537
28 Connector(CN352) CKS3598
29 Connector(CN653) CKS3835
30 Antenna Jack(CN401) CKX1056
31 Holder CNC5399
32 Holder CNC8615
33 Holder CNC9470
34 Insulator CNM6949
35 Heat Sink CNR1583
36 FM/AM Tuner Unit CWE1563
37 Holder CNC8815
38 Button(EJECT) CAC6839
39 Screw(M2x2) CBA1176
40 Washer CBF1038
41 Washer CBF1039
42 Spring CBH2428
43 Spring CBH2429
44 Spring CBL1512
45 Holder CNC9096
46 Cover CNM6854
47 Panel CNS6278
48 Pin CNV6486
49 Lighting Conductor CNV6487
50 Gear CNV6507
51 Arm CNV6508
52 Panel Unit CWM7986
53 Socket(CN1850) CKS3550
54 Connector(CN1851) CKS4462
55 Damper Unit CXB5070
56 Holder Unit CXB6356
57 Holder Unit CXB6357
58 Clutch Unit CXB6358
59 Screw IMS20P045FZK
60 Detach Grille Assy See Contrast table(2)
61 Screw BPZ20P080FMC
62 Screw BPZ20P100FZK
63 Button(SELECT) CAC7220
64 Button(SFEQ) CAC7221
65 Button(ENT) See Contrast table(2)
66 Button(AUDIO) See Contrast table(2)
67 Button(1-6) CAC7225
68 Button(DISP) CAC7226
69 Button(OPEN) CAC7227
70 Button(EQ) CAC7231
71 Button(FUNC) CAC7489
72 Spring CBH2630
73 Spring CBH2431
74 Spring CBH2430
75 Spring CBL1470
76 Cover CNS6740
77 Holder CNV6505
78 Holder CNV6506
79 Holder CNV6909
80 Keyboard Unit See Contrast table(2)
81 Connector(CN1901) CKS4524
82 Holder CNC9642
83 Cushion CNM6633
84 Cushion CNM7469
85 Spacer CNM7697
86 Spacer CNM7698
87 Holder CNV6910
88 IC(IC1903) TSOP1840SB3V
89 OEL Unit MXS8017
90 Sub Grille Assy See Contrast table(2)
91 IC(IC301) PAL007A
92 Chassis Unit CXB6100
93 CD Mechanism Module(S9ANA) CXK5501
94 Screw ISS26P055FUC
95 Transistor(Q921,999) 2SD2396
* 96 Knob CAA2697
97 Spacer CNM7807
98 Cushion CNM7808
Mark No. Description Part No. Mark No. Description Part No.
(1) EXTERIOR SECTION PARTS LIST

10
DEH-P640,P6400,P6450
Part No.
Mark No. Symbol and Description DEH-P640/XN/UC DEH-P6400/XN/UC DEH-P6450/XN/ES
18 Tuner Amp Unit CWM8149 CWM8316 CWM8097
25 Panel CNS6935 CNS6934 CNS6935
60 Detach Grille Assy CXB8427 CXB8494 CXB8244
65 Button(ENT) CAC7253 CAC7303 CAC7253
66 Button(AUDIO) CAC7254 CAC7224 CAC7254
80 Keyboard Unit CWM8098 CWM7990 CWM7990
90 Sub Grille Assy CXB8946 CXB8947 CXB8948
(2) CONTRAST TABLE
DEH-P640/XN/UC, DEH-P6400/XN/UC and DEH-P6450/XN/ES are constructed the same except for the
following:

11
DEH-P640,P6400,P6450

12
DEH-P640,P6400,P6450

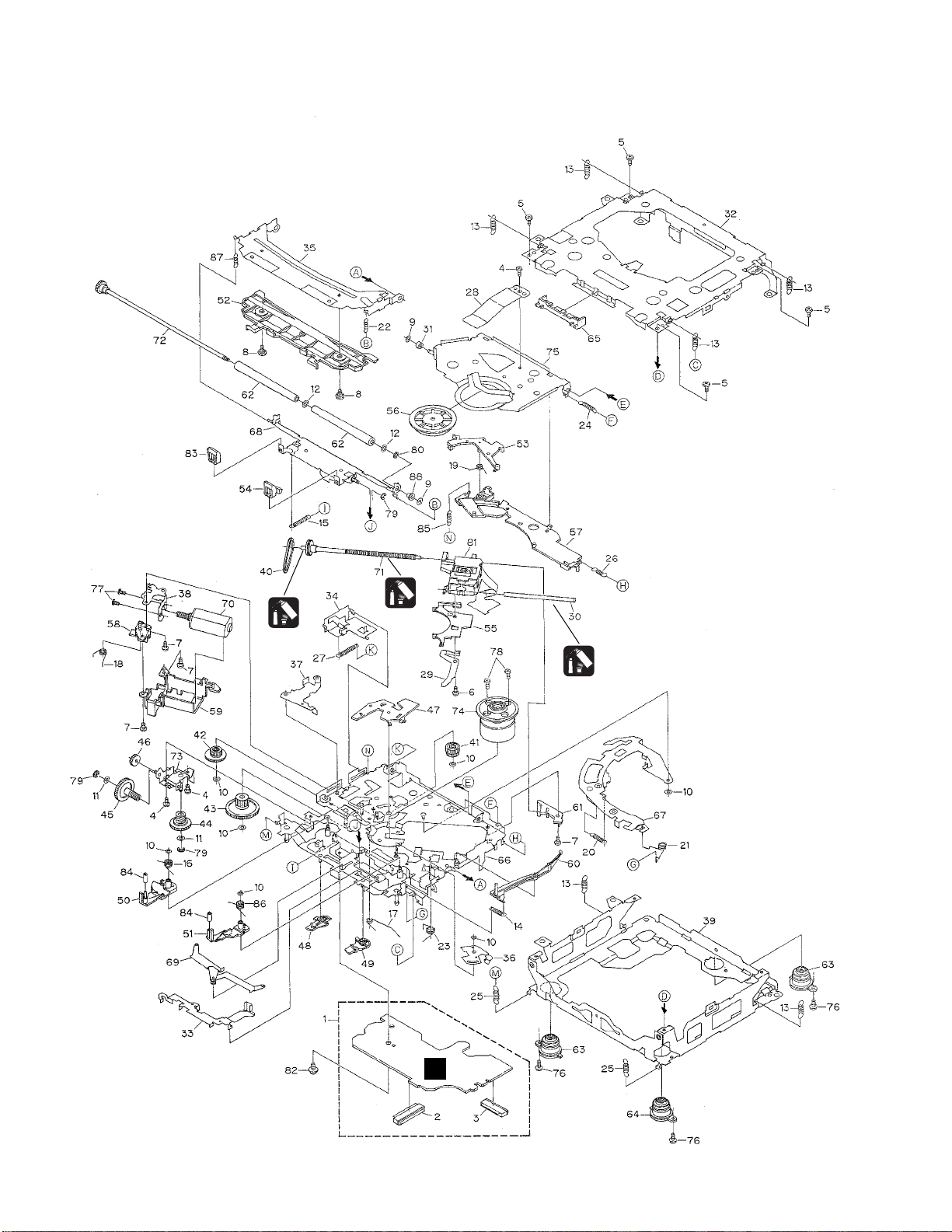

2.4 CD MECHANISM MODULE
D
GEM1035
GEM1035
GEM1040

13
DEH-P640,P6400,P6450
Mark No. Description Part No. Mark No. Description Part No.
1 Control Unit CWX2481
2 Connector(CN701) CKS1959
3 Connector(CN101) CKS3486
4 Screw BMZ20P025FMC
5 Screw BSZ20P040FMC
6 Screw(M2x4) CBA1362
7 Screw(M2x3) CBA1527
8 Screw CBA1545
9 Washer CBF1037
10 Washer CBF1038
11 Washer CBF1039
12 Washer CBF1060
13 Spring CBH2378
14 Spring CBH2379
15 Spring CBH2514
16 Spring CBH2533
17 Spring CBH2382
18 Spring CBH2383
19 Spring CBH2384
20 Spring CBH2527
21 Spring CBH2386
22 Spring CBH2537
23 Spring CBH2390
24 Spring CBH2391
25 Spring CBH2523
26 Spring CBH2426
27 Spring CBH2444
28 Spring CBL1561
29 Spring CBL1553
30 Shaft CLA3845
31 Roller CLA3910
32 Frame CNC9654
33 Lever CNC9664
34 Lever CNC8949
35 Arm CNC9661
36 Arm CNC9016
37 Arm CNC9017
38 Bracket CNC9123
39 Frame CNC9656
40 Belt CNT1086
41 Gear CNV6886
42 Gear CNV6316
43 Gear CNV6317
44 Gear CNV6318
45 Gear CNV6319
46 Gear CNV6320
47 Arm CNV6322
48 Arm CNV6323
49 Arm CNV6324
50 Arm CNV6888
51 Arm CNV6889
52 Guide CNV6327
53 Arm CNV6924
54 Guide CNV6921
55 Rack CNV6923
56 Clamper CNV6331
57 Arm CNV6332
58 Guide CNV6333
59 Cover CNV6334
60 Arm CNV6335
61 Guide CNV6336
62 Roller CNV6338
63 Damper CNV6339
64 Damper CNV6340
65 Guide CNV6925
66 Chassis Unit CXB7980
* 67 Arm Unit CXB7983
68 Arm Unit CXB7984
69 Arm Unit CXB7985
70 Motor Unit(M2) CXB5903
71 Screw Unit CXB5904
72 Gear Unit CXB8076
73 Bracket Unit CXB7982
74 Motor Unit(M1) CXB6007
75 Arm Unit CXB8504
76 Screw(M2x5) EBA1028
77 Screw JFZ20P020FMC
78 Screw JGZ17P020FZK
79 Washer YE15FUC
80 Washer YE20FUC
81 Pickup Unit(Service)(P9) CXX1480
82 Screw IMS26P030FMC
83 Guide CNV6922
84 Roller CNV6887
85 Spring CBH2509
86 Spring CBH2512
87 Spring CBH2536
88 Collar CNV6906
-CD MECHANISM MODULE SECTION PARTS LIST

14
DEH-P640,P6400,P6450
A
1234
B
C
D
1234
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
IC 101
HA12187FP
IP-BUS DRIVER
87
MUTE
XOUT
XIN
42
PEE
24
VDCONT
34
OELPW
22
40
43
44
41
SYSTEM CONTROLLER
IC 601(2/2)
PD5699A
CN401
VDD
VCC
ANT 1
2
BUS-
BU
BUS+
BUS+L
BUS-L
1
2
8
6
5TX
RX
IPPW
E
SWVDD
BU
BU
BU
CN653
Q
BU
Q852
Q
Q
Q991
Q999
TUNER AMP UNIT
13
X601
15
14
1
SWDACC
VST,VCK,VD
TUN L
BUS+L
BUS-L
CD L
Q851
35
DPDT
36
KYDT
23
SYSPW
Q101
Q102
IC 851
NJM2360M
61
EJTIN 44
CONT
CD5VON
HOME
CDLOEJ
DSCSNS
58
68
69
65
89
43
ILMPW
IC 6
PDH00
S8
DSENS
41
DSENS
CN701
CN101
DEH-P640
DEH-P645
TC7SET08FU
IC 801
24
94
LVLINL
LEVEL INDICA
5
8
1
7
CN101
11
BUZZER
IC 3
EEPROM
FM/AM TUNER UNIT
28
27
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51 CF52 CF53
IC1
MIXER, IF AMP, DET.
6
21
18
LDET
COMP
22
25 10 14 12 15 16 8 13 2 3 4
CF202
VDD
VCC
DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2
IC 2 FM MPX
AMANT
FMANT
ATT
ATT
AMRF
FMRF
RF ADJ
ANT2 ADJ
X901
10.25MHz
ANT1 ADJ
LOCL
23 LOCH
AMDET
MPXREF 41kHz
AM 2ND IF
450kHz
19
CREQ
11
DGND
1
STIND
L ch
5
R ch
924
NC FMLOCL
20177
NC NC WC
26 RFGND
Q101
M
LASER
DIODE
MONITOR
DIODE
CLAMP
SENSE
DISC
SENSE
FOCUS ACT.
SPINDLE
MOTOR
M
CARRIAGE
MOTOR
LOAD/
TRACKING ACT.
LD-
MD
FO+
TO+
15
5
4
1
PICKUP UNIT(SERVICE)(P9)
HOLOGRAM
UNIT
IC 401
BA5996FM
IC 201
TC9495F2
IC 701
BA05SFP
+5V REGULATOR
SERVO
CONTROL,
DSP,
LPF, DAC
CD
DRIVER
17
DSCSNS
2
VD
VD
VDD
11
CONT
10
LOEJ
14
L-OUT
1
CD5VON
TOP
FOP
16 SOP
15 SOM
17 LCOP
18 LCOM 22
1
2
LOEJ
78
85
L_OUT
79
9
MUTE
12 FOP TD/FD
AC,BD
F,E
SD/MD
38 RFI
43 FEI
4
14 TOP
S901
HOME
12EJ
SENSE 8EJ
SENSE
HOME 16
LD+ 14 VDD
9LDO
8MDI
IC 101
TA2153FN
RFRPIN
FEO
TEO
24
16
14 46 TEI
RF-AMP
17
2
11
10
14
1
16
DCONTROL UNIT
D
A

DEH-P640,P6400,P6450
5678
A
B
C
D
567815
12
1
BSENS
ASENS
VDD
BU
74
73
SD
SL
TUNPCE
TUNPCK
TUNPCE2
TUNPDO
ASENBO
10
11
ILB
SWVDD
OELB
ILB
SWDVDD
OELB
23
21
3
5
FL-
FL+
RL-
RL+
ACC
50
97
42
43
44
41
72
2
71
1
82
30 29 81
FLIN
14
RLIN
12
22 4
RESET
POWER AMP
IC 601(1/2)
PD5699A
IC 961
S-80735ANDZI
IC 301
PAL007A
RESET
VDD
Q911
Q931
SYSPW
TX RX IPPW
ELECTRONIC VOLUME/
SOURCE SELECTOR
BU
BU
STBYMUTE
IC 1901
PD5706A
OEL CONTROLLER/
KEY CONTROLLER
KEY MATRIX
9
11
8
KEY DATA
OEL DATA
VDD
14
CN801
CN1901
Q803
Q804
Q802
KEYBOARD UNIT
1
2
ACC
VST,VCK,VDT
N L
DPDT 3
5
DPDT
KYDT
SYS+B BU
Q921
Q922
BU
Q301
MUTE
Q351
FL 5
Q353 FL
PL
12
Q801
1
7
2
10
11
14
8
7
2
10
11
14
8
CN1850
CN1851
S1850
KYDT
4
2
5
10
8
IC 1902
FONT ROM
IC 1903
TSOP1840SB3V
REMOTE CONTROL SENSOR
OPT IN 3
1
5
GREEN
REM
27
28
DPDT
KTDT
EJECT
OEL UNIT
Q1941
4,16 2,8
MUTE
PL
FL
RL
IC 631
PDH0047A
S801
DSENS
SYSTEM CONTROLLER
Q932
Q951
VDD
ISENS 83
TELIN 10
25
B.REMOTE
FL-
FL+
RL-
RL+
IC 1904
S-818A33AUC-BGN
3.3V REGULATOR
15
VDD REGULATOR
ILL SENSE
BACKUP SENSE
ACC SENSE
TELEPHONE MUTE
SYS+B REGULATOR
3
9
11
12
10
2
5
8
6
3
9
11
12
10
2
5
8
6
11
DEH-P6400/XN/UC,
DEH-P6450/XN/ES
DEH-P640/XN/UC
DEH-P6400/XN/UC
DEH-P6450/XN/ES
PD8089A
PD8088A
PD8088A
IC1902
DEH-P640/XN/UC
DEH-P6400/XN/UC
DEH-P6450/XN/ES
PML009A
PML008A
PML008A
IC203
FL
RL
IN3-L
IN4+L
IN4-L
IN2-L
IC 203
PL
DEH-P6400/XN/UC
DEH-P6450/XN/ES
DEH-P640/XN/UC
PL
RL R LDEH-P6400/XN/UC
DEH-P6450/XN/ES
DEH-P640/XN/UC
PANEL UNIT
BC
FU
2
NJM4558MD
IC 132
57
1
SEL_OUT_L
VEL INDICATOR
CN901
Q982
B.U
CN351
CN352-2
NL1
95
BACK UP
GND
FUSE
10A
ACC
ILL
TELMUTE
B.REM

16
DEH-P640,P6400,P6450
A
1234
B
C
D
1234
3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(DEH-P640)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a A-b A-a A-b
A-a A-
2
3
1
4
EJECT
111098
765
4321
100K
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
PANEL UNIT
KEYBOARD UNIT
CN1901
FM/AM TUNER UNIT
CN701
IP-BUS
IP-BUS
DRIVER
SYSTE
ANTENNA
JACK
CONTROL UNIT
VD REGULATOR
B
C
D
FM(100%):-19.5dBs
AM(30%):-30.0dBs
CD:-0.2dBs
IP-BUS:+2.2dBs
FM: -20.5
AM: -31.0
IP-BUS: +2.2
CD: -0.2
CD5VON VD XRST XCE XPCE XPIO0 XPIO1 XPIO2
XPIO3 CDLOAJ CONT Rch AGND Lch CLCONT HOME DSCSNC GND GND PGND PGND
NC
NC
NC
NC NC NC NC CONT XPIO1 XPIO2 XPIO3 XPIO0
VDCONT
R018 R018
NC NC NC
NC
NC
NC
NC
A-a
B

17
DEH-P640,P6400,P6450
5678
A
B
C
D
5678
A
b
600µH
100K
1
2
4
3
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
RR+
RR-
FR+
FR-
FL+
FL-
RL+
RL-
ACC
GND
B.REM
BACK UP
TEL MUTE
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
ILL
FUSE 10A
CEK1136
HTELM
EMUTE
1R5K
1R5K
NC
PAL007A
0R00R0
REAR
R CH
REAR
L CH
FRONT
L CH
FRONT
R CH
TUNER AMP UNIT
ELECTRONIC VOLUME,
SOURCE SELECTOR
EM CONTROLLER
RESET
LEVEL INDICATOR
MUTE
MUTE
POWER AMP
DC/DC CONVERTER
TEL
BSENSE
ASENSE
ILL SENSE
>
PML009A
MUTE
MUTE
VDD REGULATOR
SYS+B REGULATOR
A
5dBs
0dBs
2dBs
2dBs
FM: +2.6dBs
AM: -7.9dBs
IP-BUS: +7.3dBs
CD: +7.9dBs
FM:+3.84dBs
AM: -6.66dBs
IP-BUS:+8.54dBs
CD:+9.14dBs
FM: +28.6dBs
AM: +18.1dBs
IP-BUS: +35.3dBs
CD: +35.9dBs
XPIO0 CDLOEJ CLCONT NC CD5VON XPCK XCE
XRST
TEMP
HOME NC
A-b

18
DEH-P640,P6400,P6450
A
1234
B
C
D
1234
A-a A-b
A-a A-b A-a A-b
A-a A-b
111098
765
4321
Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022
←
←
The >mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
CN701
IP-BUS
IP-BUS
DRIVER
CONTROL UNIT
VD REGULATOR
D
M(100%):-19.5dBs
M(30%):-30.0dBs
CD:-0.2dBs
IP-BUS:+2.2dBs
FM: -20.5dBs
AM: -31.0dBs
IP-BUS: +2.2dBs
CD: -0.2dBs
CD5VON
VD
XRST
XCE
XPCE
XPIO0
XPIO1
XPIO2
XPIO3
CDLOAJ
CONT
Rch
AGND
Lch
CLCONT
HOME
DSCSNC
GND
GND
PGND
PGND
R018
1
A-a

19
DEH-P640,P6400,P6450
5678
A
B
C
D
5678
A-a A-b
2 3
1 4
EJECT
100K
PANEL UNIT
KEYBOARD UNIT
CN1901
FM/AM TUNER UNIT
SYSTEM CONTR
ANTENNA
JACK
B
C
FM(100%):-1
AM(30%):-3
NC NC NC
NC
NC
NC
NC
CONT
XPIO1
XPIO2
XPIO3
XPIO0
CDLOEJ
CLCONT
NC
VDCONT
R018 R018
NC
NC
NC
NC NC NC NC
2
3 4
A-a
B

20
DEH-P640,P6400,P6450
A
1234
B
C
D
1234
A-a A-b
A-b
1
2 4
3
PAL007A
0R00R0
REAR R CH
REAR L CH
FRONT L CH
FRONT R CH
TUNER AMP UNIT
ELECTRONIC VOLUME, SOURCE SELECTOR
RESET
LEVEL INDICATOR
MUTE
POWER AMP
PML009A
MUTE MUTE
A
5dBs 0dBs 2dBs 2dBs
FM: +2.6dBs
AM: -7.9dBs
IP-BUS: +7.3dBs
CD: +7.9dBs
FM:+3.84dBs
AM: -6.66dBs
IP-BUS:+8.54dBs
CD:+9.14dBs
1
