Pioneer Super Tuner IIID AVH-P5000DVD User manual

• (Contents
)
Thank you for bUXJrgifhis Pioneer product.
PI~ase readthrough the$~::P8er~ffnginstructions sOY9LJ:~iILknow how o~erate
yowr,ffiodel properly. Afteryoqf]ave finished reading the jn~tryc:tions, keep this mc;n-
ua!::,l1a safe place for future reference. " ' .
oBe sure to read this
• Playable discs 9
• DVD video disc region numbers 9
• When an operation /s prohibited 13
~ Precautions
IMPORTANT SAFEGUARDS 6
To ensure safe driving 6
-Parking brake interlock 7
-When using adisplay connected to
REAR MONITOR OUTPUT 7
-When using arear view camel-a 7
To avoid battery exhaustion 7
~ Before You Start
Information to User 8
For Canadian model 8
About this unit 8
-Playable discs 9
-DVD video disc region numbers 9
About this manual 9
After-sales service for Pioneer
pmducts 9
Visit
our website 10
Features 10
- About WMA 11
- About MP3 12
- About AAC 12
- About DivX 12
- About the SAT RADIO READY
mark 12
To pmtect the LCD screen 12
For viewing LCD comfortably 13
-Changing the wide screen size 13
-Changing he picture adjustment 13
Wha the marks on DVDs indicate 13
-When an operation is prohibited 13
Protecting your unit fmm theft 13
-Removing the front panel 13
- Attaching the front panel 14
m En
Resetting the microprocessor 14
Feature demo mode 14
~ Operating this unit
What's What 15
-Head unit 15
-Optional remote control 15
Basic Operations 16
-Power ON/OFF 16
-Selecting asource 16
- Adjusting the volume 17
-Touch panel key basic operation 17
-Opening and closing the LCD
panel 18
Radio 19
-Basic Operations 19
-Storing and recalling broadcast
frequencies 20
-Introduction of advanced
operations
20
-Storing the strongest broadcast
frequencies 20
-Tuning in stmng signals 20
Built-in DVD player 21
-Basic Operations 21
-Basic playback controls 22
- Switching the media file type 22
-Operating the DVD menu 22
-PBC playback 23
-Playing DivX® VOD content 23
-Skipping back or forward to another
title 23
-CM skip/CM back 24
-Resume playback (Bookmark) 24
-Searching fo( the part you want to
play 24
-Changing audio language during
playback (Multi-audio) 25
-Changing the subtitle language during
playback (Multi-subtitle) 25
-Changing the viewing angle during
playback (Multi-angle) 25

-Frame-by-frame playback 26
-Slow motion playback 26
-Return to the specified scene 26
- Automatic playback of DVDs 26
- Text information 26
-Selecting tracks from the track list 27.
-Selecting files fmm the file name
list
27
-Introduction of advanced
operations
27
-Repeating play 27
-Playing tracks in random order 28
-Scanning tracks or folders 28
-Selecting audio output 28
-Using compression 29
Playing songs on iPod 29
-Basic Operations 29
-Playing video 30
-Browsing for asong/video 30
-Displaying text information on
iPod
31
-Repeating play 31
-Playing songs in arandom order
(shuffle)
31
-Playi ng all songs ina random order
(shuffle all)
31
-Operating this unit's iPod function
from your iPod
31
-Pausing asong 31
-Selecting songs from album list of
currently playing artist
31
-Changing audiobook speed 32
Playing songs on USB portable audio player/
USB memory
32
-Basic Operations 32
-Pausing compressed audio
playback
33
-Introduction of advanced
operations
33
-Displaying text information of an audio
file
33
-Selecting files from the file name
list
34
Audio Adjustments 34
-Introduction of audio adjustments 34
-Using balance adjustment 34
-Using the equalizer 35
-Adjusting loudness 36
-Using subwoofer output 36
-Boosting the bass 36
-Using the high pass filter 36
-Adjusting source levels 37
Setting up the DVD player 37
-Introduction of DVD setup
adjustments
37
-Setting the subtitle language 37
-Setting the audio language 38
-Setting the menu language 38
-Switching the assist subtitle on or
off 38
-Setting the angle icon display 39
-Setting the aspect ratio 39
-Setting the parental lock 39
-Setting the DivX subtitle file 40
-Displaying your DivX® VOD
registration code
40
-Setting for digital output 40
Initial Settings 41
-Adjusting initial settings 41
-Switching the auxiliary setting 41
-Setting the rear output and subwoofer
controller
41
-Changing languages for CAUTION 42
-Switching the sound muting/
attenuation 42
-Switching the warning tone 42
-Entering PIN code for Bluetooth
wireless connection
42
-Correcting distorted sound 43
-Resetting the audio functions 43
-Setting the security indicator 43
Other Functions 44
En CD

.C Contents
)
-Introduction of system
adjustments 44
-Changing the wide sueen mode 44
-Changing the picture adjustment 44
-Selecting the background display 45
-Setting the AV input 45
-Setting the clock 45
-Setting for real' view camera (back up
camera)
46
-Adjusting the LCD panel slide
position
46
-Setting the automatic open
function 46
-SWitching the iPod charge setting 47
-Selecting the OSD color 47
-Selecting the illumination color 47
- Adjusting the response positions of the
touch panels (Touch Panel
Calibration)
47
- USI ng the AUX source 48
-Using the external unit 49
-Using the PGM button 49
~ Available accessories
XM tuner 51
-Basic Operations 51
-Storing and recalling broadcast
stations
51
- Switching the XM channel select
mode 52
-Selecting an XM channel directly 52
-Using the MyMix function 52
-Displaying the Radio ID 53
- Switching the XM display 54
SIRIUS Satellite Radio tuner 54
-Basic Operations 54
-Stol'ing and recalling broadcast
stations
55
-Selecting the SIRIUS channel select
mode 55
-Selecting aSIRIUS channel
diI'ectly 56
o En
-Using the MyMix function 56
-Using the Game Alert function 57
-Displaying the Radio ID 58
-Switching the SIRIUS display 58
-Using Instant Replay function 58
Bluetooth Audio 59
-Basic Operations 59
-Pausing playback 60
-Introduction of advanced
operations 60
-Connecting aBluetooth audio
player 60
-Disconnecting aBluetooth audio
player 60
-Displaying BD (Bluetooth Device)
address 60
Bluetooth Telephone 61
-Basic Operations 61
-Setting up for hands,free phoning 62
-Making aphone call 62
-Taking aphone call 62
-Introduction of advanced
operations 63
-Connecting a cellular phone 63
-Disconnecting a cellular phone 63
-Registel'ing aconnected cellular
phone 64
-Deleting aregistered phone 64
-Connecting to aregistered cellular
phone 64
-Using the phone book 64
-Using the call history 66
-Using preset numbers 66
-Making acall by entering phone
number 67
-Clearing memory 67
-Setting automatic answering 67
-Setting automatic rejecting 67
- Switching the ring tone 67
-Echo canceling and nOise
reduction 68

-Displaying BD (Bluetooth Device)
address
68
Multi-CD Player 68
-Basic Operations 68
-Selecting adisc 69
-Pausing CD playback 69
-Introduction of advanced
operations
69
-Using CD TEXT functions 69
DVD Player 70
-Basic Operations 70
-Selecting adisc 70
-Selecting afolder 70
-Pausing disc playback 70
-Introduction of advanced
operations
71
TV tuner 72
-Basic Operations 72
-Storing and recalling broadcast
stations
72
-Storing the strongest broadcast
stations sequentially
72
Digital Signal Processor 73
-Introduction of DSP adjustments 73
-Using the sound field control 74
-Using the position selector 74
-Using balance adjustment 75
-Adjusting source levels 75
-Using the dynamic range control 75
-Using the down-mix function 76
-Using the direct control 76
-Using the Dolby Pro Logic II 76
-Setting the speaker setting 77
-Adjusting the speaker output
levels
78
-Selecting across-over frequency 78
-Adjusting the speaker output levels
using atest tone
78
-Using the time alignment 79
-Using the equalizer 80
-Using the auto-equalizer 81
-Auto TA and EQ (auto-time alignment
and auto-equalizing)
81
•Additional Information
Troubleshooting 84
Error messages 86
Understanding auto TA and EQ error
messages
88
Handling guideline of discs and player 89
DVD discs 89
DVD-R/DVD-RW discs 89
AVCHD recorded discs 89
CD-R/CD-RW discs 89
Dual Discs 90
Compressed audio files on the disc 90
-Example of ahierarchy 90
-Compressed audio compatibility 91
USB audio player/USB memory 91
-USB audio player/USB memory
compatibility
91
-USB audio player/USB memory 91
-Compressed audio compatibility 92
DivX video files 93
- DivX compatibility 93
About handling the iPod 93
-About iPod settings 93
Using the display correctly 93
-Handling the display 94
-Liquid crystal display (LCD) screen 94
-Keeping the display in good
condition
94
-Small fluorescent tube 95
Language code chart for DVD 96
Terms 97
Specifications 100
•
Index 102
En CD

Section
• (precautions

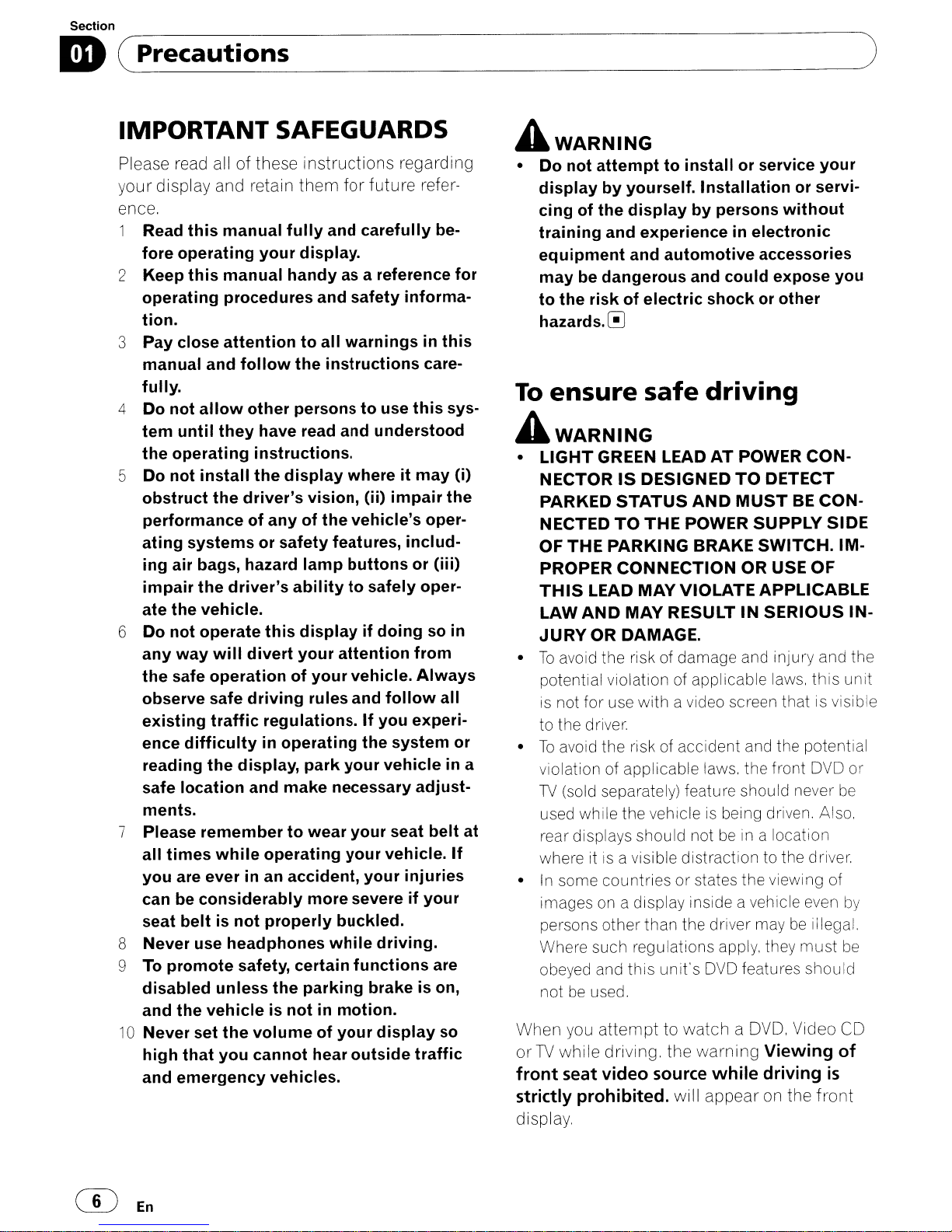

IMPORTANT SAFEGUARDS
Please read all of these instructions regarding
your display and retain them for future refer-
ence.
1Read this manual fully and carefully be-
fore operating your display.
2Keep this manual handy as areference for
operating procedures and safety informa-
tion.
3Pay close attention to all warnings in this
manual and follow the instructions care-
fully.
4Do not allow other persons to use this sys-
tem until they have read and understood
the operating instructions.
5Do not install the display where it may (i)
obstruct the driver's vision, (ii) impair the
performance of any of the vehicle's oper-
ating systems
or safety features, includ-
ing air bags, hazard lamp buttons
or (iii)
impair the driver's ability to safely oper-
ate the vehicle.
6Do not operate this display if doing so in
any way will divert your attention from
the safe operation of your vehicle. Always
observe safe driving rules and follow all
existing traffic regulations. If you experi-
ence difficulty
in operating the system or
reading the display, park your vehicle in a
safe location and make necessary adjust-
ments.
7Please remember to wear your seat belt at
all times
while operating your vehicle. If
you are ever in an accident, your injuries
can be considerably more severe if your
seat belt
is not properly buckled.
8Never use headphones while driving.
9 To promote safety, certain functions are
disabled unless the parking brake
is on,
and the vehicle is not in motion.
10 Never set the volume of your display so
high that you cannot hear outside traffic
and emergency vehicles.
CD En
)
4WARNING
•Do not attempt to install or service your
display by yourself. Installation or servi-
cing of the display by persons without
training and experience
in electronic
equipment and automotive accessories
may be dangerous and could expose you
to the risk of electric shock
or other
hazards.
[!J
To ensure safe driving
4WARNING
• LIGHT GREEN LEAD AT POWER CON-
NECTOR IS DESIGNED TO DETECT
PARKED STATUS AND MUST BE CON-
NECTED TO THE POWER SUPPLY SIDE
OF THE PARKING BRAKE SWITCH. IM-
PROPER CONNECTION OR USE OF
THIS LEAD MAYVIOLATE APPLICABLE
LAW
AND MAY RESULT IN SERIOUS IN-
JURYOR DAMAGE.
• To avoid the risk of damage and injury and the
potential violation of applicable laws. this unit
is not for use with avideo screen that is visible
to the driver.
• To avoid the risk of accident and the potential
violation of applicable laws, the front DVD or
TV (sold separately) feature should never be
used while the vehicle is being driven. Also.
rear displays should not be in alocation
where it is avisible distrac ion to the driver.
• In some countries or states the viewing of
images on adisplay inside avehicle even by
persons other than the driver may be illegal.
Where such regulations apply. they must be
obeyed and this unit's DVD features should
not be used.
When you attempt to watch aDVD. Video CD
or TV while driving. the warning Viewing of
front seat video source while driving is
strictly prohibited. will appear on the front
display,

Section
(~P_r_e_ca_u_t_io_n_s ) CD

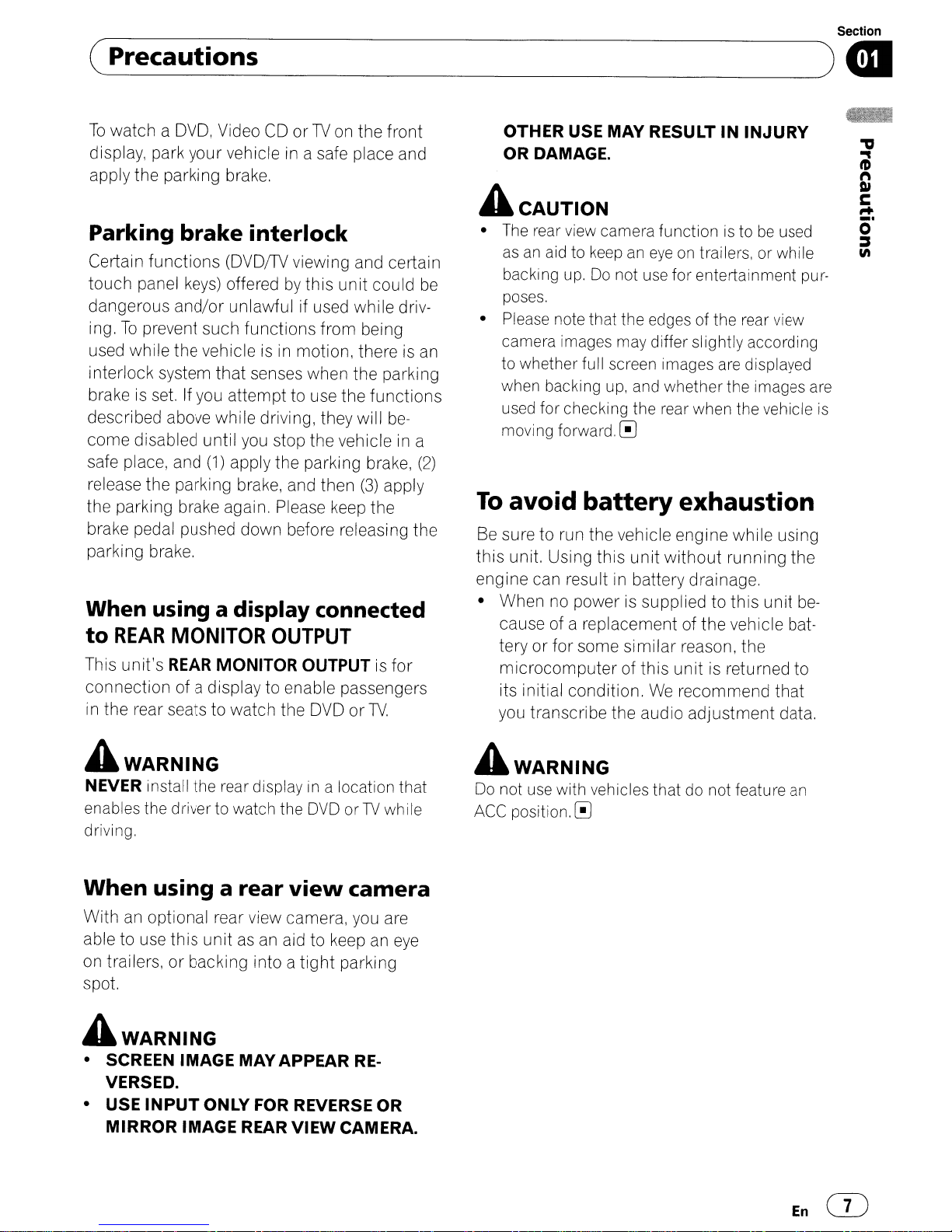

To watch aDVD, Video CD or TV on the front
display, park your vehicle in asafe place and
apply the parking brake.
Parking brake interlock
Certain functions (DVD/TV viewing and certain
touch panel keys) offered
by this unit could be
dangerous and/or unlawful if used while driv-
ing.
To prevent such functions from being
used while the vehicle
is in motion, there is an
interlock system that senses when the parking
brake is set. If you attempt to use the
functions
described above while driving, they will be-
come disabled until you stop the vehicle in a
safe place, and
(1) apply the parking brake, (2)
release the parking brake, and then (3) apply
the parking brake again. Please keep the
brake pedal pushed down before releasing the
parking brake.
When using adisplay connected
to REAR MONITOR OUTPUT
This unit's REAR MONITOR OUTPUT is for
connection of adisplay to enable passengers
in the rear seats to watch the DVD or
TV.
4WARNING
NEVER install the rear display in alocation that
enables the driver to watch the
DVD orTY while
driving.
When using arear view camera
With an optional rear view camera, you are
able to use
this unit as an aid to keep an eye
on trailers, or backing into a tight parking
spot.
4WARNING
•SCREEN IMAGE MAYAPPEAR RE-
VERSED.
•USE
INPUT ONLY FOR REVERSE OR
MIRROR IMAGE REAR VIEW CAMERA.
OTHER USE MAY RESULT
IN INJURY
OR DAMAGE.
4CAUTION
• The rear view camera function is to be used
as an aid to keep an eye on trailers. or while
backing
up. Do not use for entertainment pur-
poses.
• Please note that the edges of the rear view
camera images may differ slightly according
to whether full screen images
are displayed
when backing
up, and whether the images are
used for checking the rear when the vehicle is
moving forward. [!J
To avoid battery exhaustion
Be sure to run the vehicle engine while using
this unit. Using this unit without running the
engine can result in battery drainage.
•When no power is supplied to this
unit be-
cause of areplacement of the vehicle bat-
tery
or for some similar reason, the
microcomputer of this unit is returned to
its initial condition.
We recommend that
you transcribe the audio adjustment data.
4WARNING
Do not use with vehicles that do not feature an
ACC position. [!J
"V
.,
II)
n
DI
C
r+
_.
o
:::s
VI
En m

Section
m( Before You Start
Information to User
Alteration or modifications carried out without
appropriate authorIZation may invalidate the
user's right to operate the equipment.
For Canadian model
This Class Bdigital apparatus complies with
Canadian ICES-003.
About this unit
The tuner frequencies on this unit are allo-
cated for use in North America. Use in other
areas may result in poor reception.
4WARNING
Handling the cord on this product or cords asso-
ciated with accessories sold with the product
may expose you to chemicals listed on proposi-
tion 65 known to the State of California and other
governmental entities to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
This product contains mercury. Dis-
posal of this material may
be regu-
lated due to environmental
considerations.
For disposal or recy-
cling information, please contact
you rlocal authorities
or the Electro-
nics Industries Alliance:
www.eiae.org
CD En
)
The backlighting lamp of LCD in this
equipment contains mercury. Dispo-
sal of this material may
be regulated
due to environmental considerations
according to Local, State or Federal
Laws.
For disposal or recycling infor-
mation, please contact your local
authorities or the Electronics Indus-
tries Alliance: www.eiae.org
CAUTION:
USE OF CONTROL OR ADJUSTMENT
OR
PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT
IN HAZARDOUS RADIATION
EXPOSURE.
CAUTION:
THE USE OF OPTICAL INSTRUMENTS
WITH THIS PRODUCT WILL INCREASE
EYE HAZARD.
4 CAUTION
• Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, damage to this unit, smoke, and over-
heating could result from contact with liquids.
•Keep this manual handy as areference for op-
erating procedures and precautions.
•Always keep the volume low enough so that
you can hear sounds from outside the vehicle.
•Protect this unit from moisture.
• If the battery is disconnected or discharged.
the preset memory will be erased and must be
reprogrammed.
QImportant (Serial number)
The serial number is located on the bottom of
this unit. For your own security and convenience.
be sure to record this number on the enclosed
warranty card.

Section
(_B_e_fo_r_e_~_o_u_S_ta_rt ~) CiD

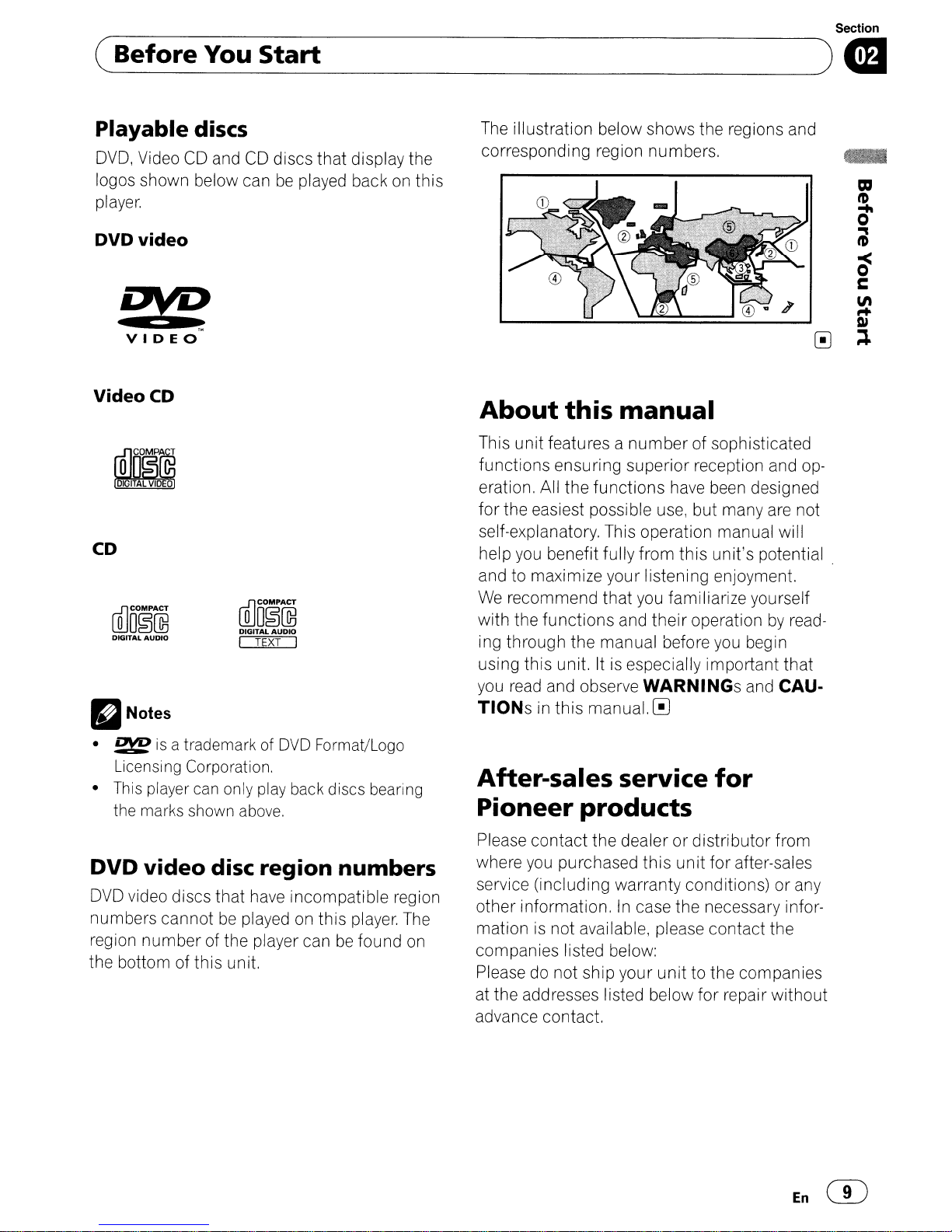

Playable discs
DVD, Video CD and CD discs that display the
logos shown below can
be played back on this
player.
DVDvideo
2ri?
VI DEO
Video CD
The illustration below shows the regions and
corresponding region numbers.
About this manual
•Notes
• ~ is atrademark of DVD Format/Logo
Licensing Corporation.
• This player can only play back discs bearing
the marks shown
above.
DVD video disc region numbers
DVD video discs that have incompatible region
numbers cannot
be played on this player. The
region number of the player can be found on
the bottom of this unit.
CD
illJo§~
DIGITAL AUDIO
illJm~~
DIGITAL AUDIO
I TEXT I
This unit features a number of sophisticated
functions ensuring superior reception and
op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from
this unit's potential.
and to maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and
their operation by read-
ing through the manual before you begin
using this unit.
It is especially important that
you
read and observe WARNINGs and CAU-
TIONs
in this manual. [!J
After-sales service for
Pioneer products
Please contact the dealer or distributor from
where
you purchased this unit for after-sales
service (including warranty conditions)
or any
other information.
In case the necessary infor-
mation
is not available, please contact the
companies listed below:
Please do not ship your
unit to the companies
at the addresses listed below for repair without
advance contact.
En m

Section
m (Before You Start
U.S.A.
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
PO. Box 1760
Long Beach, CA 90801-1760
800-421-1404
CANADA
Pioneer Electronics of Canada, Inc,
CUSTOMER
SATISFACTION DEPARTMENT
300 Allstate Parkway
Markham, Ontario
L3R OP2
1-877 -283-5901
905-479-4411
For warranty information please see the Lim-
ited
Warranty sheet included with this unit.[!)
Visit our website
Visit us at the following site:
http://www.pioneerelectronics.com
1Register your product. We will keep the details
of yourpurchase
on fi Ie to help you refer to
this information in the event of
an insurance
claim such
as loss or theft.
2Receive updates on the latest products and
technologies.
3Download owner's manuals, order product
catalogues, research new products, and
much more.
4Your feedback
is important in our continual ef-
fort to design and build the most advanced,
cunsumer-focused product
in the industry,
Serial number
(ill En
)
Features
Touch panel key operation
It is possible to operate this unit by using
touch panel key,
DVD-RJRW compatibility
It is possible to play back DVD-R/RW discs ,-e-
corded with the video format and Video Re-
cording format. (Refer to DVD-R/DVD-RW discs
on page 89,)
Video CDs featuring PBC compatibility
It is possible to play back Video CDs featuring
PBC (playback control),
WMA, MP3 and AAC compatibility
Refer to Compressed audio compatibility on
page 91.
DivX® video compatibility
Refer to DivX compatibility on page 93.
Dolby Digital/DTS compatibility
When using this unit with aPioneer multi-
channel processor, you can enjoy the atmo-
sphere and excitement provided by DVD movie
and
music software featuring 5,1 channel re-
cordings.
• Manufactured under license from Dolby
Laboratories. "Dolby", "Pro Logic", and the
double-D symbol are trademarks of Dolby
Laboratories.
D[]IDOLBYI
DIGITAL
l::Iit •••• Flr ....

Section
(~B_e_fo_r_e_¥_o_U_S_ta_rt ) CI

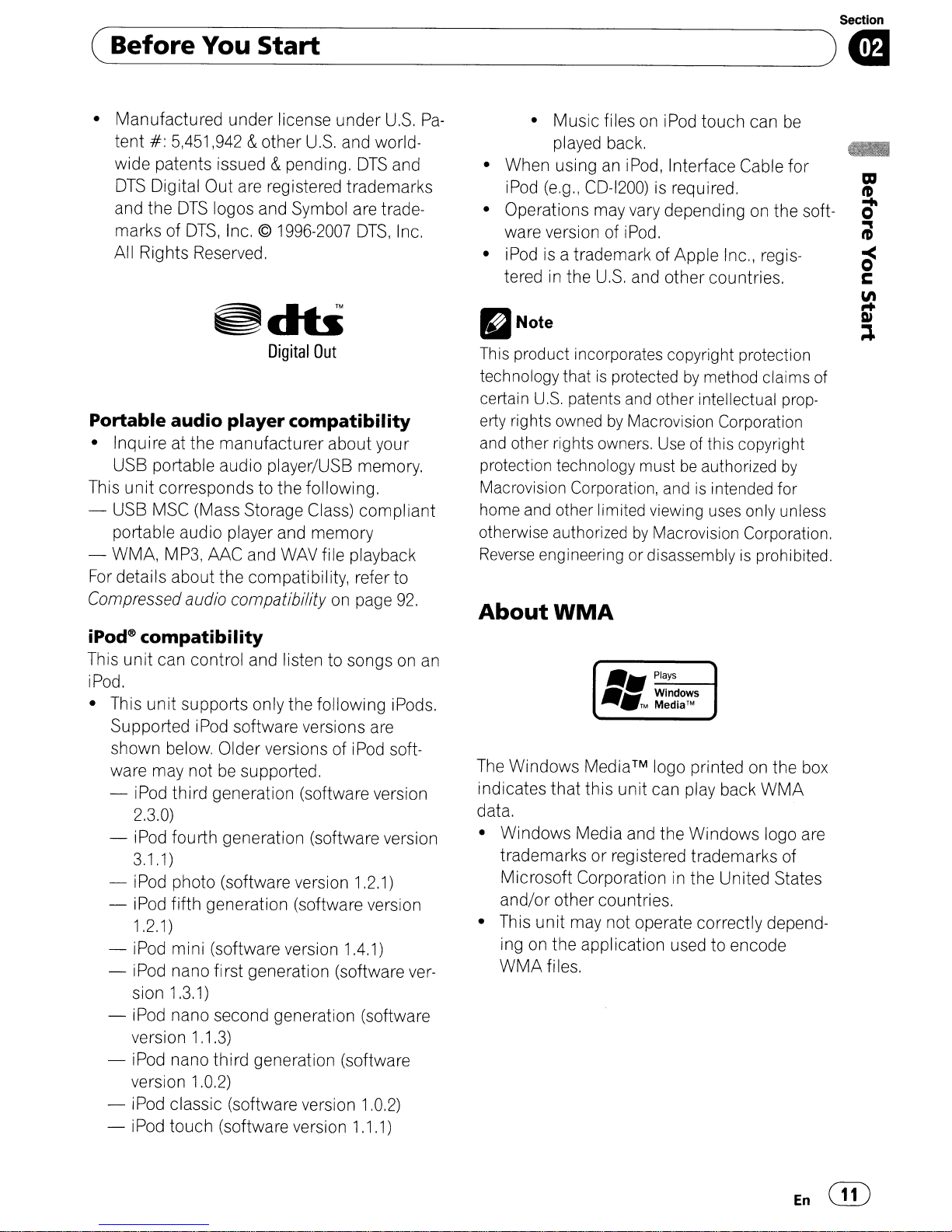

•Manufactured under license under U.S, Pa-
tent #: 5,451,942 &other U,S, and world-
wide patents issued &pending,
DTS and
DTS Digital Out are registered trademarks
and the
DTS logos and Symbol are trade-
marks of
DTS, Inc, ©1996-2007 DTS, Inc.
All Rights Reserved,
Digital Out
Portable audio player compatibility
•Inquire at the manufacturer about your
USB portable audio player/USB memory.
This
unit corresponds to the following,
-USB MSC (Mass Storage Class)
compliant
portable audio player and memory
-WMA, MP3,
MC and WAV file playback
For details about the compatibility, refer to
Compressed audio compatibility on page 92,
iPod@ compatibility
This unit can control and listen to songs on an
iPod,
•This
unit supports only the following iPods.
Supported iPod software versions are
shown below. Older versions of iPod soft-
ware may not be supported,
-iPod third generation (software version
2.3.0)
-iPod fourth generation (software version
3,1,1)
-iPod photo (software version 1,2,1)
- i
Pod fifth generation (software version
1,2,1)
-iPod mini (software version 1.4,1)
- i
Pod nano fi rst generation (software ver-
sion 1.3.1)
-iPod nano second generation (software
version 1,1,3)
-iPod nano
third generation (software
version 1.0.2)
-iPod classic (software version 1,0,2)
- iPod
touch (software version 1,1,1)
•Music files on iPod touch can
be
played back,
•When using an iPod, Interface Cable
for
iPod (e,g" CD-1200) is required,
•Operations may vary depending on the soft-
ware version of iPod.
•iPod is atrademark of Apple Inc" regis-
tered in the
U,S, and other countries.
_Note
This product incorporates copyright protection
technology that
is protected by method c1ai ms of
certain
U,S, patents and other intellectual prop-
erty rights owned
by Macrovision Corporation
and other rights owners,
Use of this copyright
protection technology must
be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing
uses only unless
otherwise authorized
by Macrovision Corporation,
Reverse engineering or disassembly is prohibited,
AboutWMA
_.p .....:.la:,:",YS_-I
_.
Windows
TM Media™
The Windows Media™ logo printed on the box
indicates
that this unit can play back WMA
data.
•
Windows Media and the Windows logo are
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
•This
unit may not operate correctly depend-
ing on the application used to encode
WMA files.
En GD

Section
liD (Before You Start
AboutMP3
Supply of this product only conveys alicense
for private, non-commercial use and does not
convey alicense nor imply any right to use
this product in any commercial (i.e. revenue-
generating) real
time broadcasting (terrestrial,
satellite, cable and/or any other media), broad-
casting/streaming via internet, intranets and/
or other networks or in other electronic con-
tent distribution systems, such
as pay-audio or
audio-on-demand applications. An indepen-
dent license for such use is required. For de-
tails, please visit
http://www.mp3Iicensing.com.
AboutAAC
This unit plays back AAC files encoded by
iTunes®.
•iTunes is atrademark of Apple Inc., regis-
tered in the
U.S. and other countries.
About DivX
DivX is acompressed digital video format cre-
ated
by the DivX® video codec from DivX, Inc.
This unit can play DivX video files recorded on
CD-R/RW/ROM and DVD-R/RW/ROM discs.
Keeping the same terminology as DVD video.
individual DivX video files are called "Titles".
When naming files/titles on aCD-R/RW or a
DVD-R/RW disc
pnorto burning, keep in mind
that by default they will be played in alphabeti-
calorder.
Official
DivX® Certified product
Plays all versions of
DivX® video (including
DivX® 6) with standal-d playback of DivX®
media files
•DivX, DivX Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
@)'En
)
About the SAT RADIO READY mark
~
'it'~I~.-I
REA 0 Y
The SAT RADIO READY mark indicates that
the Satellite Radio Tuner
for Pioneer (i.e .. XM
tuner and Sirius satellite tuner which are sold
separately) can
be controlled by this unit.
Please inquire to your dealer
or nearest
authorized Pioneer service station regarding
the satellite radio tuner that can be connected
to this unit.
For satellite radio tuner operation,
please refer to the satellite radio tuner
owne(s
manual.
•The system will use direct satellite-to-recei-
ver broadcasting technology to provide lis-
teners in
their cars and at home with
crystal-clear sound seamlessly from coast
to coast. Satellite radio will create and
package over 100 channels of digital-quality
music, news, sports, talk and
children's
programming.
•
"SAT Radio", the SAT Radio logo and all I-e-
lated marks are trademarks of Sirius Satel-
lite Radio inc., and
XM Satellite Radio
Inc. [!J
To protect the LCD screen
• Do not allow direct sunlight to fallon the
display when this
unit is not being used.
Extended exposure to direct
sunlight can
result in
LCD screen malfunction due 0
the resulting high temperatures.
•When using acellular phone, keep
the an-
tenna of the cellular phone away
from the
display to prevent disruption of the video
by
the appearance of spots, colored stri pes,
etc.
•Never touch the screen with anything be-
sides your finger when operating the touch
panel function. The screen can scratch
easily.
[!J

Section
(~B_e_fo_r_e_YO_u_S_t_a_rt ) CD
For viewing LCD comfortably
Due to its construction, the viewing angle of
the
LCD screen is limited. You can adjust it by
changing either screen size or picture adjust-
ment.
Changing the wide screen size
By changing the screen size from 4:3 to 16:9,
you can adjust the screen so that the screen
can fit to the video image you are playing.
For details concerning operation, refer to
Changing the wide screen mode on page 44.
When an operation is prohibited
When you are watching aDVD and attempt to
perform
an operation, it may not be performed
because of the programming on the disc.
When this happens, the icon
6) appears on
the screen.
•
The icon 6) may not appear with certain
discs.
I:!J
Protecting your unit from
theft
Mark Meaning
What the marks on DVDs
indicate
The marks below may be found on DVD disc
labels and packages. They indicate the type of
images and audio recorded on the disc, and
the functions
you can use.
Changing the picture adjustment
You can make the best adjustment to the pic-
ture display
by changing BRIGHTNESS,
CONTRAST, COLOR and HUE. You can also
dim or enlight the overall picture image using
DIMMER.
For details concerning operation, refer to
Changing the picture adjustment on page
44.I:!J
The front panel can be detached to deter theft.
•
If the front panel is not detached from the
head unit
within four seconds of turning off
the ignition, awarning tone will sound.
•
You can turn off the warning tone. See
Switching the warning tone on page 42.
Removing the front panel
• Pinch the top and bottom of its right
side and pull the front panel out.
Take care not pinch it too tightly or to drop it,
and also avoid contact with water
or other
fluids to prevent permanent damage.
o Important
•Handle gently when removing or attaching
the front panel.
•Avoid subjecting the front panel
to excessive
shock.
•
Keep the front panel out of direct sunlight and
high temperatures.
•
If removed, replace the front panel on the unit
before starting
up your vehicle.
Indicates the number of audio sys-
tems.
Indicates the number of subtitle lan-
guages.
(%»))
Indicates the number of viewing an-
gles.
Indicates the picture size (aspect ratio:
screen width-to-height ratio) type.
Indicates the number of the region
where playback
is possible.
En (ill

Section
liD (Before You Start

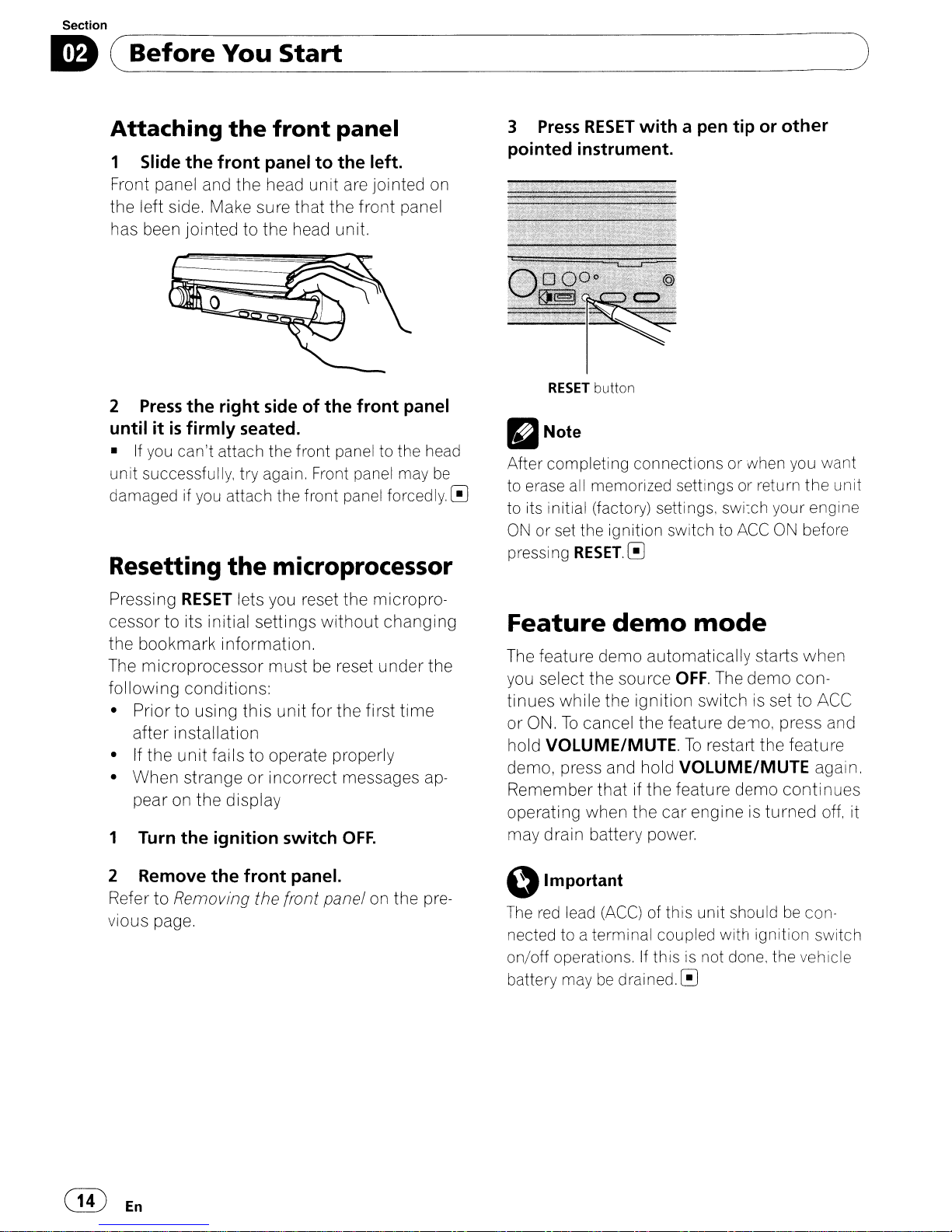

Attaching the front panel
1Slide the front panel to the left.
Front panel and the head unit are jointed on
the left side. Make sure
that the front panel
has been jointed to the head unit.
o
2 Press the right side of the front panel
until it
is firmly seated.
•If you can't attach the front panel to the head
unit successfully, try again. Front panel may
be
damaged if you attach the front panel forcedly, 0
Resetting the microprocessor
Pressing RESET lets you reset the micropro-
cessor
to its initial settings without changing
the bookmark information.
The microprocessor must be reset under the
following conditions:
•Prior to using this unit for the first time
after installation
•If
the unit fails to operate properly
•
When strange or incorrect messages ap-
pear on
the display
1Turn the ignition switch OFF.
2Remove the front panel.
Refer to Removing the front panel on the pre-
vious page.
ill) En
)
3 Press RESET with apen tip or other
pointed instrument.
RESET button
_Note
After completing connections or when you want
to erase all memorized settings or return the unit
to its initial (factory) settings,
SWitch your engine
ON or set the ignition switch to ACC ON before
pressi
ng RESET,0
Feature demo mode
The featu re demo automatically starts when
you select the source OFF. The demo con-
tinues while the ignition switch is set to ACC
or
ON. To cancel the featu re demo, press and
hold VOLUME/MUTE.
To restart the feature
demo, press and hold VOLUME/MUTE again.
Remember
that if the feature demo continues
operating when the car engine is turned off, it
may drain battery
powel".
tllmportant
The red lead (ACC) of this unit should be con-
nected to aterminal coupled with ignition switch
on/off operations.
If this is not done. the vehicle
battery may
be drained. 0

C_O_p=--e_r_a_t_i"-----=9::..-th_iS_U_"_i_t ) Ci
o
~
to
Dl
..
_.
~
u:2
..
:::r
_.
lit
C
~
_.
..
What's What
Head unit
CD VOLUME/MUTE button
Rotate it to increase or decrease the vo-
lume.
Press to cut the sound.
(]) SRC button
This unit is turned on by selecting asource.
Press to cycle through all the available
sources.
G) Disc loading slot
Insert adisc to play.
@) -/+ (TRACK) button
Press to do manual seek tuning, fast for-
ward, reverse and track search controls.
® EQ button
Press to select various equalizer curves.
®OPEN/CLOSE button
Press to open or close the LCD panel.
Press and hold to turn the
LCD panel hori-
zontal temporarily from upright position.
(J) EJECT (~) button
Press to eject adisc from this unit.
®AUX1 input jack (3.5 mm stereo/video
jack)
Use to connect an auxiliary device,
Optional remote control
The remote control CD-R55 is sold separately.
For details concerning operations, see the re-
mote control manual, 0
En (ill

Section
D (Operating this unit
Basic Operations
Power ON/OFF
CD Source icon
Turning the unit on
• When using the touch panel keys,
touch
the source icon and then touch the
desired source name.
The source names are displayed and select-
able ones are highlighted.
• When using the button, press SRC to
turn the unit on.
Turning the unit off
• When using the touch panel keys,
touch
the source icon and then touch OFF.
•When the source icon is not displayed, you
can display it by touching the screen.
• When using the button, press SRC and
hold until
the unit turns off.
Selecting asource
You can select a source you want to listen to.
To switch to the DVD player, load a disc in the
unit. To switch to the iPod or USB, connect an
iPod or USB portable audio player/USB mem-
ory to this unit.
• When using the touch panel keys,
touch
the source icon and then touch the
desired source name.
The source names are displayed and select-
able ones are highlighted.
ill) En
)
•DVD -Built-in DVD player
•RADIO -Radio
• iPod -iPod
• USB -USB portable audio player/USB
memory
• TEL -Bluetooth telephone
• BT-Audio -Bluetooth audio player
•S-DVD -DVD player/multi-DVD player
• MCD -Multi-CD player
•AUX 1-AUX 1
•AUX 2 -AUX 2
• AV - AV input
•TV -Television
• EXT 1-External unit 1
• EXT 2-External unit 2
• XM - XM tuner
• SIRIUS -SIRIUS tuner
• REARVIEW -Rear view camera
• OFF -Turn the unit off
•When the source icon is not displayed, you
can display it by touching the screen.
•While operating the menu, you cannot select
asource by touching the source icon.
• To close source select menu. touch ESC.
•When using the button, press SRC re-
peatedly to select adesired source.
_Notes
• In the following cases, the sound source Will
not change.
-When no unit corresponding to the se-
lected source is connected.
-When there is no disc or magazine in the
player.
-When AUX (auxiliary input) is set to off
(refer to page 41).
-When the AV (AV input) is not set to
VIDEO (refer to page 45).
• AUX1 is set to VIDEO by default. Set the AUX1
to OFF when not in use (refer to Switching the
auxiliary setting on page 41).
• REARVIEW (rear view camera) cannot be se-
lected by pressing SRC.

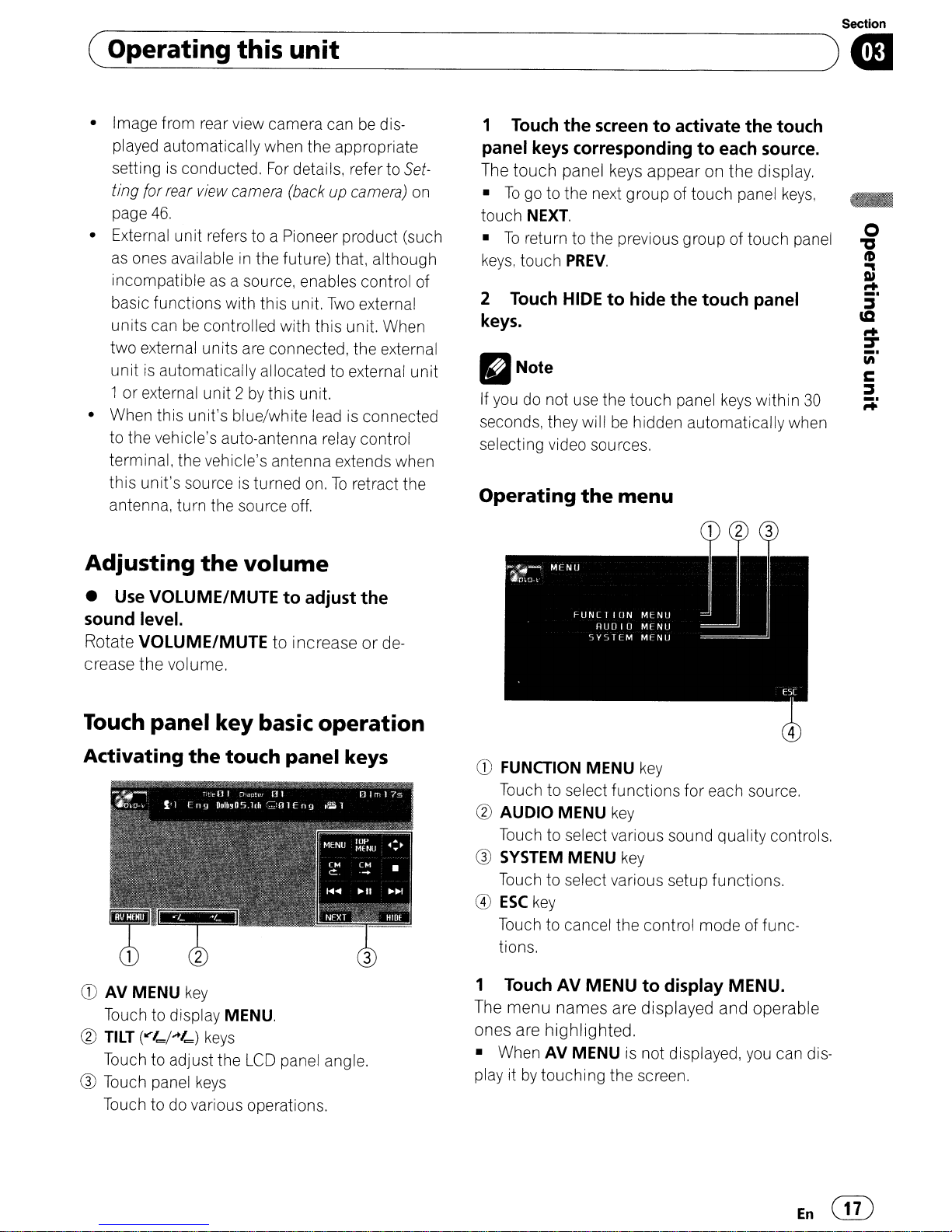

(Operating this unit
Section
)a
•Image from rear view camera can be dis-
played automatically when the appropriate
setting is conducted. For detai Is, refer to Set-
ting for rear view camera (back up camera) on
page 46.
•External unit refers to aPioneer product (such
as ones available in the future) that, although
incompatible as asource, enables control of
basic functions with this unit. Two external
units can be controlled with this unit. When
two external units are connected, the external
unit is automatically allocated to external unit
1or external unit 2 by this unit.
•When this unit's blue/white lead is connected
to the vehicle's auto-antenna relay control
terminal, the vehicle's antenna extends when
this unit's source is turned on. To retract the
antenna, turn the source off.
Adjusting the volume
• Use VOLUME/MUTE to adjust the
sound level.
Rotate VOLUME/MUTE to increase or de-
crease the volume.
Touch panel key basic operation
Activating the touch panel keys
CD AV MENU key
Touch to display MENU.
@ TILT (tt'!=/ ... ,=) keys
Touch to adjust the LCD panel angle.
G) Touch panel keys
Touch to do various operations.
1 Touch the screen to activate the touch
panel
keys corresponding to each source.
The touch panel keys appear on the display,
• To go to the next group of touch panel keys,
touch NEXT,
• To return to the previous group of touch panel
keys, touch PREV,
2 Touch HIDE to hide the touch panel
keys.
•Note
If you do not use the touch panel keys within 30
seconds, they will be hidden automatically when
selecting video sources,
Operating the menu
CD FUNCTION MENU key
Touch to select functions for each source,
@ AUDIO MENU key
Touch to select various sound quality controls,
G) SYSTEM MENU key
Touch to select various setup functions,
@) ESC key
Touch to cancel the control mode of func-
tions,
1 Touch AV MENU to display MENU.
The menu names are displayed and operable
ones are highlighted,
•When AV MENU is not displayed, you can dis-
play it by touching the screen,
En (ill

Section
• ( Operating this unit
2 Touch the desired key to display the
function names you want to operate.
• To go to the next group of function names,
touch
NEXT.
• To return to the previous group of function
names. touch
PREV.
3 Touch ESC to return to the display of
each source.
Opening and closing the LCD panel
The LCD panel will be opened or closed auto-
matically with the turning of the ignition
switch on or off. You can turn off the automatic
close/open function. (Refer to page 46.)
•Do not close
the LCD panel with hands by
force. That
cause malfunction.
•The automatic close/open function will op-
erate
the display as follows.
-
When the ignition switch is turned OFF
while the LCD panel is opened, the LCD
panel
will close after six seconds.
-
When the ignition switch is turned ON
again (or
turned to ACC), the LCD panel
will be opened automatically.
-Removing
or attaching the front panel
will
automatically close or open the LCD
panel. (Refer to page 13.)
•
When the ignition switch is turned OFF
after the LCD panel has been closed, turn-
ing the ignition switch ON again (or turning
it to ACC) will not open the LCD panel. In
this case, press OPEN/CLOSE to open the
LCD panel.
•
When closing the LCD panel, check to
make sure that it has closed completely. If
the LCD panel has stopped halfway, leaving
it like
this could result in damage.
A CAUTION
Keep hands and fingers clear of the unit when
opening. closing. or adjusting the
LCD panel. Be
especially cautious of children's hands and fin-
gers.
(ill En
)
• Press OPEN/CLOSE to open the LCD
panel.
• To close the LCD panel, press OPEN/CLOSE
again.
Adjusting the LCD panel angle
oImportant
•If you can hear the LCD panel knocking
against your vehicle's console or dashboard.
touch
TILT (""'=) to move the LCD panel alittle
forward.
•When adjusting the
LCD panel angle. be sUI-e
to touch TILT ("",=/..t,=). Forcibly adjusting the
LCD panel by hand may damage it.
• Touch TILT (",,~/-+~) to adjust the LCD
panel to an easily viewable angle.
The LCD panel angle continues changing as
long as you
touch TILT (""'=/-+1=) and hold,
•
The adjusted LCD panel angle will be memor-
ized and automatically returned to the next ti me
the
LCD panel is opened.
Turning the LCD panel horizontal
When the LCD panel is upright and it hinders
the operation of the air conditioner, the panel
can be
turned horizontal temporarily,

Section
(~O_p_e_ra_t_i"_g_th_i_s _U_"i_t ) CD
• Press and hold OPEN/CLOSE to turn the
LCD panel horizontal.
• To return to original position, press and hold
OPEN/CLOSE again.
•
The LCD panel returns to the original position
automatically with beeping sound
10 seconds
after operation.0
Radio
Basic Operations
2
CD Source icon
(1) Band indicator
®Preset number indicator
@Frequency indicator
® LOCAL indicator
Appears when local seek tuning
is on.
® CD (stereo) indicator
Appears when the selected frequency
is being
broadcast in stereo.
1 Touch the source icon and then touch
RADIO
to select the radio.
2
Touch BAND to select aband.
Touch BAND until the desired band (FM1,
FM2, FM3 for FM or AM) is displayed.
3 To perform manual tuning, briefly
touch
.... or~.
• You can also perform manual tuning by press-
ing -
or + (TRACK).
4 To perform seek tuning, keep touching
.... or ~ for about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
• You can cancel seek tuning by briefly touching
either
.... or ~.
•If you keep touching .... or ~ you can skip sta-
tions. Seek tuning starts
as soon as you release
the
key.
• You can also perform seek tuning by pressing
and holding -
or + (TRACK).
En ®

Section
liD (Operating this unit
BNote
Listening AM radio while an iPod is charged from
this unit
may generate noise. In this case. turn
the
iPod charge setting off and noise is disap-
peared. (Refer to Switching the iPod charge setting
on page 47.)
Storing and recalling broadcast
frequencies
You can easily store up to six broadcast fre-
quencies
for later recall.
•Up to
18 FM stations, six for each of the
three
FM bands, and six AM stations can
be stored in memory.
1 Touch LIST to display the preset list.
2When you find afrequency
that you
want to store in memory keep touching
one
of preset tuning keys P1 to P6 until the
beep sounds. .
The selected radio station frequency has been
stored in memory.
The next
time you touch the same preset tun-
ing key the radio station frequency
is recalled
from memory.
3 Touch ESC to return to the ordinary dis-
play.
BNote
You can also use. and'" to recall radio station
frequencies assigned to preset tuning
keys P1 to
P6.
Introduction of advanced
operations
1 Touch AV MENU and then touch
FUNCTION MENU
to display the function
names.
The function names are displayed and oper-
able ones are highlighted,
00 En
)
2 Touch ESC to return to the frequency
display.
• To return to the previous display, touch BACK,
Storing the strongest broadcast
frequencies
SSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies
under preset tuning keys P1 to P6
and once stored there you can tune in to those
frequencies
with the touch of a key.
•Storing broadcast frequencies with SSM
may replace broadcast frequencies you
have saved using
P1 to P6.
• Touch 85M on the function menu to
turn
85M on.
85M begins to flash. While 85M is flashing
the six strongest broadcast frequencies will
be
stored under preset tuning keys P1 to P6 in
order of their signal strength. When finished.
85M stops flashing.
•
To cancel the storage process, touch 85M
again.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
• Touch LOCAL on the function menu to
set the sensitivity.
Touch LOCAL repeatedly until the desired level
of sensitivity appears in the display.
There are
four levels of sensitivity for FM and
two levels
for AM:
FM: OFF-LEVEL 1-LEVEL2-LEVEL3-
LEVEL4
AM: OFF-LEVEL 1-LEVEL2
The LEVEL4 setting allows reception of only
the strongest stations. while lower settings let
you receive progressively weaker stations,0
