Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, keep this man-
ual in a safe place for future reference.
Before You Start
About this unit 6
Operating environment 7
Visit our website 7
In case of trouble 7
Protecting your unit from theft 7
–Removing the front panel 8
–Attaching the front panel 8
Resetting the microprocessor 8
Operating this unit
What’s What 9
–Head unit 9
–Optional remote control 9
Basic Operations 10
–Power ON/OFF 10
–Selecting a source 10
–Adjusting the volume 11
Tuner 11
–Basic Operations 11
–Storing and recalling broadcast
frequencies 12
–Introduction of advanced
operations 12
–Storing the strongest broadcast
frequencies 13
–Tuning in strong signals 13
–Selecting alternative frequencies 13
–Receiving traffic announcements 14
–Using PTY functions 14
–PTY list 15
Built-in CD Player 16
–Basic Operations 16
–Selecting a track directly 17
–Introduction of advanced
operations 17
–Selecting a repeat play range 18
–Playing tracks in random order 18
–Scanning folders and tracks 18
–Pausing disc playback 18
–Using compression and BMX 18
–Searching every 10 tracks in the current
disc or folder 19
–Using disc title functions 19
–Displaying text information on disc 19
–Selecting tracks from the track title
list 20
–Selecting tracks from the file name
list 20
Bluetooth Audio 21
–Basic Operations 21
–Setting up for Bluetooth audio
player 21
–Introduction of advanced
operations 22
–Searching for Bluetooth audio
player 22
–Connecting a Bluetooth audio
player 22
–Connecting to a Bluetooth audio player
automatically 23
–Playing songs on Bluetooth audio
player 23
–Pausing a song 23
–Stopping playback 23
–Disconnecting a Bluetooth audio
player 23
–Displaying BD (Bluetooth Device)
address 23
Bluetooth Telephone 24
–Basic Operations 24
–About the telephone source standby
mode 25
–Setting up for hands-free phoning 25
–Making a phone call 25
–Taking a phone call 26
–Introduction of advanced
operations 27
En 3
English
Contents

–Connecting a cellular phone 27
–Disconnecting a cellular phone 28
–Registering connected cellular
phone 28
–Deleting a registered phone 29
–Connecting to a registered cellular
phone 29
–Using the Phone Book 30
–Using the Call History 33
–Assigning preset numbers 34
–Making a call by entering phone
number 34
–Clearing memory 35
–Setting the automatic rejecting 35
–Setting the automatic answering 35
–Changing the ring tone 35
–Selecting the illumination color for
incoming calls 36
–Echo canceling and noise
reduction 36
–Displaying BD (Bluetooth Device)
address 36
Audio Adjustments 37
–Introduction of audio adjustments 37
–Using balance adjustment 37
–Using the equalizer 38
–Adjusting loudness 39
–Using subwoofer output 39
–Using the high pass filter 39
–Boosting the bass 40
–Front image enhancer (F.I.E.) 40
–Adjusting source levels 40
Initial Settings 41
–Adjusting initial settings 41
–Setting the date 41
–Setting the clock 42
–Turning the off clock display on or
off 42
–Setting the FM tuning step 42
–Switching Auto PI Seek 42
–Switching the warning tone 43
–Switching the auxiliary setting 43
–Setting the rear output and subwoofer
controller 43
–Switching the sound muting/
attenuation 43
–Multi language display setting 44
–Adjusting the illumination color 44
–Activating the BT AUDIO source 44
–Entering PIN code for Bluetooth
wireless connection 44
–Editing device name 45
–Displaying system version for
repair 45
–Resetting the Bluetooth wireless
technology module 45
Other Functions 46
–Using the AUX source 46
–Switching the display illumination 46
–Switching the button illumination 47
–Using the PGM button 47
Available accessories
Playing songs on iPod 48
–Basic Operations 48
–Browsing for a song 48
–Displaying text information on
iPod 48
–Introduction of advanced
operations 49
–Repeating play 49
–Playing songs in a random order
(shuffle) 49
–Pausing a song 49
Multi-CD Player 50
–Basic Operations 50
–Selecting a track directly 50
–Introduction of advanced
operations 50
Contents
En
4

–Using ITS playlists 51
–Using disc title functions 52
–Using CD TEXT functions 53
DVD Player 53
–Basic Operations 53
–Selecting a disc 53
–Selecting a folder 54
–Introduction of advanced
operations 54
TV tuner 55
–Basic Operations 55
–Storing and recalling broadcast
stations 55
–Storing the strongest broadcast
stations sequentially 56
Additional Information
Error messages 57
Handling guideline of discs and player 57
Dual Discs 58
Compressed audio files 58
–Example of a hierarchy 58
–Compressed audio compatibility 59
Russian character chart 59
Greek character chart 59
Specifications 61
En 5
English
Contents

If you want to dispose this product, do not mix
it with general household waste. There is a se-
parate collection system for used electronic
products in accordance with legislation that re-
quires proper treatment, recovery and recy-
cling.
Private households in the 25 member states of
the EU, in Switzerland and Norway may return
their used electronic products free of charge
to designated collection facilities or to a retai-
ler (if you purchase a similar new one).
For countries not mentioned above, please
contact your local authorities for the correct
method of disposal.
By doing so you will ensure that your disposed
product undergoes the necessary treatment,
recovery and recycling and thus prevent po-
tential negative effects on the environment
and human health.
About this unit
The tuner frequencies on this unit are allo-
cated for use in Western Europe, Asia, the
Middle East, Africa and Oceania. Use in other
areas may result in poor reception. The RDS
(radio data system) function operates only in
areas with FM stations broadcasting RDS sig-
nals.
CAUTION
!Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, this unit damage, smoke, and overheat
could result from contact with liquids.
!“CLASS 1 LASER PRODUCT”
This product contains a laser diode of higher
class than 1. To ensure continued safety, do
not remove any covers or attempt to gain ac-
cess to the inside of the product. Refer all ser-
vicing to qualified personnel.
!The Pioneer CarStereo-Pass is for use only in
Germany.
!Keep this manual handy as a reference for op-
erating procedures and precautions.
!Always keep the volume low enough so that
you can hear sounds from outside the vehicle.
!Protect this unit from moisture.
!If the battery is disconnected or discharged,
the preset memory will be erased and must be
reprogrammed.
About WMA
The Windows Media™logo printed on the box
indicates that this unit can play back WMA
data.
WMA is short for Windows Media Audio and
refers to an audio compression technology
that is developed by Microsoft Corporation.
WMA data can be encoded by using Windows
Media Player version 7 or later.
Windows Media and the Windows logo are tra-
demarks or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
!This unit may not operate correctly depend-
ing on the application used to encode
WMA files.
Before You Start
En
6
Section
01

About MP3
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use
this product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media), broad-
casting/streaming via internet, intranets and/
or other networks or in other electronic con-
tent distribution systems, such as pay-audio or
audio-on-demand applications. An indepen-
dent license for such use is required. For de-
tails, please visit
http://www.mp3licensing.com.
About Bluetooth
Bluetooth is a short-range wireless radio con-
nectivity technology that is developed as a
cable replacement for mobile phones, hand-
held PCs and other devices. Bluetooth oper-
ates in 2.4 GHz frequency range and transmits
voice and data at speeds up to 1 megabit per
second. Bluetooth was launched by a special
interest group (SIG) that comprises of Ericsson
Inc., Intel Corp., Nokia Corp., Toshiba and IBM
in 1998, and it is currently developed by nearly
2 000 companies worldwide.
!The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Pioneer Corporation
is under license. Other trademarks and
trade names are those of their respective
owners.
iPod®compatibility
You can use this unit to control an iPod adap-
ter, which is sold separately.
!iPod is a trademark of Apple Computer,
Inc., registered in the U.S. and other
countries.
Operating environment
This unit should be used within the tempera-
ture ranges shown below.
Operating temperature range: -10 °C to +60 °C
(14 °F to 140 °F)
EN300328 ETC test temperature: -20 °C and
+55 °C (-4 °F and 131 °F)
Visit our website
Visit us at the following site:
!Register your product. We will keep the de-
tails of your purchase on file to help you
refer to this information in the event of an
insurance claim such as loss or theft.
!We offer the latest information about
Pioneer Corporation on our website.
In case of trouble
Should this product fail to operate properly,
contact your dealer or nearest authorized
Pioneer Service Station.
Protecting your unit from
theft
The front panel can be detached to deter theft.
!If the front panel is not detached from the
head unit within five seconds of turning off
the ignition, a warning tone will sound.
!You can turn off the warning tone. See
Switching the warning tone on page 43.
Important
!Handle gently when removing or attaching
the front panel.
Before You Start
En 7
English
Section
01

!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and
pull it gently outward.
Take care not to grip it too tightly or to drop
the front panel and protect it from contact
with water or other fluids to prevent perma-
nent damage.
3 Put the front panel into provided pro-
tective case for safe keeping.
Attaching the front panel
%Replace the front panel by holding it
upright to the unit and clipping it securely
into the mounting hooks.
Resetting the microprocessor
The microprocessor must be reset under the
following conditions:
!Prior to using this unit for the first time
after installation
!If the unit fails to operate properly
!When strange or incorrect messages ap-
pear on the display
1 Remove the front panel.
Refer to Removing the front panel on this page.
2 Press RESET with a pen tip or other
pointed instrument.
RESET button
3 Replace the front panel by clipping it
into place.
Before You Start
En
8
Section
01

What’s What
Head unit
1PHONE button
Press to select the phone as the source.
While operating a phone source, press to
end a call, reject an incoming call or cancel
making a call.
2LIST button
Press to display the disc title list, track title
list, folder list, file list or preset channel list
depending on the source.
3MULTI-CONTROL
Move to perform manual seek tuning, fast
forward, reverse and track search controls.
Also used for controlling functions.
Turn to increase or decrease the volume.
4OPEN button
Press to open the front panel.
5DISPLAY button
Press to select different displays.
6TA/NEWS button
Press to turn TA function on or off. Press
and hold to turn NEWS function on or off.
7ILLUMINATION button
Press to select various color of display illu-
mination.
Press and hold to switch to the button illu-
mination color selection mode.
81 to 6 buttons
Press for preset tuning and disc number
search when using a multi-CD player.
9BAND button
Press to select among three FM bands and
MW/LW bands and to cancel the control
mode of functions.
aSOURCE button
This unit is turned on by selecting a source.
Press to cycle through all the available
sources.
Optional remote control
The remote control CD-R510 is sold separately.
Operation is the same as when using the but-
tons on the head unit.
bVOLUME buttons
Press to increase or decrease the volume.
cFUNCTION button
Press to select functions.
dJoystick
Move to perform manual seek tuning, fast
forward, reverse and track search controls.
Also used for controlling functions.
   
 











































Operating this unit
En 9
English
Section
02

Functions are the same as
MULTI-CONTROL except for volume con-
trol.
eDIRECT button
Press to directly select the desired track.
fCLEAR button
Press to cancel the input number when 0to
9are used.
g0 to 9 buttons
Press to directly select the desired track,
preset tuning or disc. Buttons 1to 6can op-
erate the preset tuning for the tuner or disc
number search for the multi-CD player.
hOFF HOOK button
Press to start talking on the phone while op-
erating a phone source.
iON HOOK button
While operating the phone source, press to
end a call or reject an incoming call.
jATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
kPGM button
Press to operate the preprogrammed func-
tions for each source. (Refer to Using the
PGM button on page 47.)
lAUDIO button
Press to select various sound quality con-
trols.
Basic Operations
Power ON/OFF
Turning the unit on
%Press SOURCE to turn the unit on.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Selecting a source
You can select a source you want to listen to.
To switch to the built-in CD player, load a disc
in the unit (refer to page 16).
%Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Tuner—Television—DVD player/Multi-
DVD player—Built-in CD player—Multi-
CD player—iPod—External unit 1—Exter-
nal unit 2—AUX1—AUX2—BT Audio—BT
Telephone
Notes
!In the following cases, the sound source will
not change:
—When there is no unit corresponding to the
selected source connected to this unit.
—When there is no disc or magazine in the
player.
—When the AUX (auxiliary input) is set to off
(refer to page 43).
—When the BT AUDIO source is set to off
(refer to Activating the BT AUDIO source
on page 44).
!AUX1 is set to on by default. Turn off the AUX1
when not in use (refer to Switching the auxili-
ary setting on page 43).
Operating this unit
En
10
Section
02

!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Two external units
can be controlled by this unit. When two exter-
nal units are connected, the allocation of
them to external unit 1 or external unit 2 is
automatically set by this unit.
!When this unit’s blue/white lead is connected
to the vehicle’s auto-antenna relay control
terminal, the vehicle’s antenna extends when
this unit’s source is turned on. To retract the
antenna, turn the source off.
Adjusting the volume
%Use MULTI-CONTROL to adjust the
sound level.
Tuner
Basic Operations
This unit’s AF (alternative frequencies search)
function can be turned on and off. AF should
be off for normal tuning operation (refer to
page 13).
RDS
RDS (radio data system) contains inaudible in-
formations that helps searching of the radio
stations.
!RDS service may not be provided by all sta-
tions.
!RDS functions such as AF and TA are only
active when your radio is tuned to an RDS
station.

























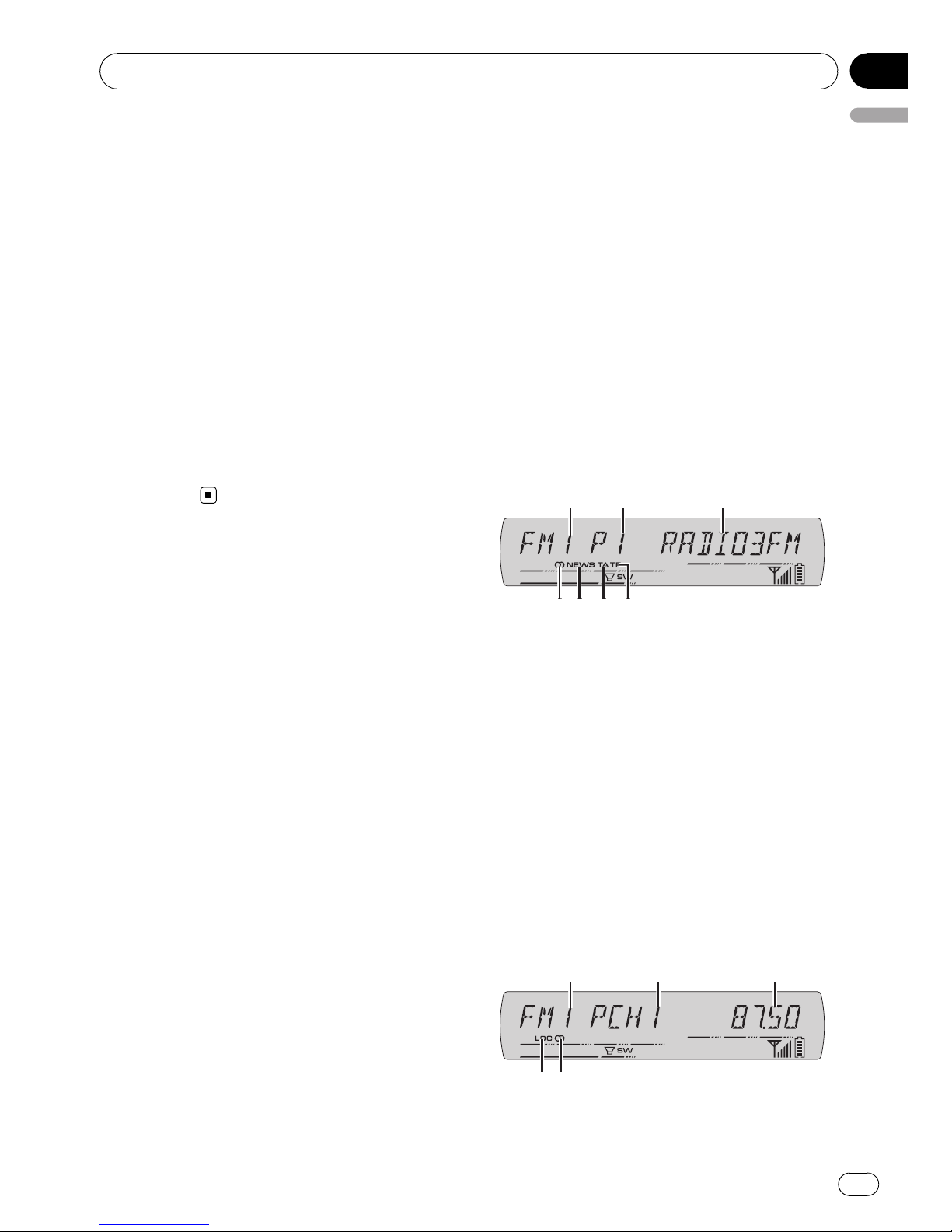

1Band indicator
2Preset number indicator
3Program service name
4TP indicator
Shows when a TP station is tuned in.
5TA indicator
Shows when TA (traffic announcement stand-
by) function is on.
6NEWS indicator
Shows when the set news program is re-
ceived.
7Stereo (5) indicator
Shows when the selected frequency is being
broadcast in stereo.
Non-RDS or MW/LW


















1Band indicator
2Preset number indicator
Operating this unit
En 11
English
Section
02

3Frequency indicator
4Stereo (5) indicator
Shows when the selected frequency is being
broadcast in stereo.
5LOC indicator
Shows when local seek tuning is on.
1 Press SOURCE to select the tuner.
2 Press BAND to select a band.
Press BAND until the desired band is dis-
played, FM1,FM2,FM3 for FM or MW/LW.
3 To perform manual tuning, push
MULTI-CONTROL left or right.
4 To perform seek tuning, push and hold
MULTI-CONTROL left or right for about one
second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by pushing
MULTI-CONTROL left or right.
#If you push and hold MULTI-CONTROL left or
right you can skip stations. Seek tuning starts as
soon as you release MULTI-CONTROL.
Storing and recalling broadcast
frequencies
You can easily store up to six broadcast fre-
quencies for later recall.
!Up to 18 FM stations, six for each of the
three FM bands, and six MW/LW stations
can be stored in memory.
1 When you find a frequency that you
want to store in memory press LIST.
2 Use MULTI-CONTROL to store the se-
lected frequency in memory.
Turn to change the preset number; press and
hold to store.
The preset number you have selected will
flash and then remain lit. The selected radio
station frequency has been stored in memory.
#You can also press and hold one of the preset
tuning buttons 1to 6to preset the desired fre-
quency.
3 Use MULTI-CONTROL to select the de-
sired station.
Turn to change the station; press to select.
#You can also change the station by pushing
MULTI-CONTROL up or down.
#You can also recall stations assigned to preset
tuning numbers PCH1 to PCH6 by pressing one
of the preset tuning buttons 1to 6.
#If you do not operate the list within about 30
seconds, the display is automatically returned to
the ordinary display.
Introduction of advanced
operations
1 Press MULTI-CONTROL to display the
main menu.
FUNCTION or AUDIO appears on the display.
2 Use MULTI-CONTROL to select
FUNCTION.
Turn to change the menu option; press to se-
lect.
The function name appears on the display.
3 Turn MULTI-CONTROL to select the
function.
Turn MULTI-CONTROL to switch between the
functions in the following order:
BSM (best stations memory)—REGIONAL (re-
gional)—LOCAL (local seek tuning)—PTY
(program type selection)—TRAFFIC (traffic an-
nouncement standby)—AF (alternative fre-
quencies search)—NEWS (news program
interruption)
#If MW/LW band is selected, you can only se-
lect BSM or LOCAL.
#To return to the frequency display, press
BAND.
#If you do not operate functions within about
30 seconds, the display is automatically returned
to the ordinary display.
Operating this unit
En
12
Section
02

Storing the strongest broadcast
frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset tuning buttons 1to 6.
Once stored you can tune in to those frequen-
cies with the touch of button.
!Storing broadcast frequencies with BSM
may replace broadcast frequencies you
have saved using buttons 1to 6.
1 Use MULTI-CONTROL to select BSM in
the function menu.
2 Press MULTI-CONTROL to turn BSM on.
Six strongest broadcast frequencies will be
stored in the order of their signal strength.
#To cancel the storage process, press
MULTI-CONTROL again.
3 Use MULTI-CONTROL to select the de-
sired station.
Turn to change the station; press to select.
#You can also change the station by pushing
MULTI-CONTROL up or down.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Use MULTI-CONTROL to select LOCAL in
the function menu.
2 Press MULTI-CONTROL to turn local
seek tuning on.
#To turn local seek tuning off, press
MULTI-CONTROL again.
3 Push MULTI-CONTROL left or right to
set the sensitivity.
There are four levels of sensitivity for FM and
two levels for MW/LW:
FM: LEVEL1—LEVEL2—LEVEL3—LEVEL4
MW/LW: LEVEL1—LEVEL2
The LEVEL4 setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
Selecting alternative frequencies
When the tuner can’t get good reception, the
unit automatically search for a different sta-
tion in a same network.
1 Use MULTI-CONTROL to select AF in the
function menu.
2 Press MULTI-CONTROL to turn AF on.
#To turn AF off, press MULTI-CONTROL again.
Notes
!Only RDS stations are tuned in during seek
tuning or BSM when AF is on.
!When you recall a preset station, the tuner
may update the preset station with a new fre-
quency from the station’s AF list. No preset
number appears on the display if the RDS
data for the station received differs from that
of the originally stored station.
!Sound may be temporarily interrupted by an-
other program during an AF frequency
search.
!AF can be turned on or off independently for
each FM band.
Using PI Seek
If the tuner can’t find a suitable station, or re-
ception status becomes bad, the unit will auto-
matically search for a different station with a
same programming. During the search,
PI SEEK is displayed and the output is muted.
Using Auto PI Seek for preset stations
When preset stations cannot be recalled, as
when travelling long distances, the unit can
be set to perform PI Seek during preset recall.
!The default setting for Auto PI Seek is off.
See Switching Auto PI Seek on page 42.
Limiting stations to regional
programming
When AF is used, the regional function limits
the selection of stations broadcasting regional
programs.
Operating this unit
En 13
English
Section
02

1 Use MULTI-CONTROL to select
REGIONAL in the function menu.
2 Press MULTI-CONTROL to turn the re-
gional function on.
#To turn the regional function off, press
MULTI-CONTROL again.
Notes
!Regional programming and regional networks
are organized differently depending on the
country (i.e., they may change according to
the hour, state or broadcast area).
!The preset number may disappear from the
display if the tuner tunes in a regional station
which differs from the originally set station.
!The regional function can be turned on or off
independently for each FM band.
Receiving traffic announcements
TA (traffic announcement standby) lets you re-
ceive traffic announcements automatically, no
matter what source you are listening to. TA
can be activated for both a TP station (a sta-
tion that broadcasts traffic information) or an
enhanced other network’s TP station (a station
carrying information which cross-references
TP stations).
1 Tune in a TP or enhanced other net-
work’s TP station.
TP indicator will light.
2 Press TA/NEWS to turn traffic an-
nouncement standby on.
#To turn traffic announcements standby off,
press TA/NEWS again.
3 Use MULTI-CONTROL to adjust the TA
volume when a traffic announcement be-
gins.
The newly set volume is stored in memory and
recalled for subsequent traffic announce-
ments.
4 Press TA/NEWS while a traffic an-
nouncement is being received to cancel the
announcement.
The tuner returns to the original source but re-
mains in the standby mode until TA/NEWS is
pressed again.
Notes
!You can also turn the TA function on or off in
the menu that appears by using
MULTI-CONTROL.
!The system switches back to the original
source following traffic announcement recep-
tion.
!Only TP and enhanced other network’s TP sta-
tions are tuned in during seek tuning or BSM
when TA is on.
Using PTY functions
You can tune in a station by using PTY (pro-
gram type) information.
Searching for an RDS station by PTY
information
You can search for general types of broadcast-
ing programs, such as those listed on the next
page.
1 Use MULTI-CONTROL to select PTY in
the function menu.
2 Push MULTI-CONTROL left or right to
select a program type.
NEWS INFO—POPULAR—CLASSICS—
OTHERS
3 Press MULTI-CONTROL to begin the
search.
The unit searches for a station broadcasting
that program type. When a station is found its
program service name is displayed.
PTY (program type ID code) information is
listed on the next page.
#To cancel the search, press MULTI-CONTROL
again.
#The program of some stations may differ from
that indicated by the transmitted PTY.
Operating this unit
En
14
Section
02

#If no station is broadcasting the type of pro-
gram you searched for, NOT FOUND is displayed
for about two seconds and then the tuner returns
to the original station.
Using news program interruption
When a news program is broadcast from a
PTY code news station, the unit can switch
from any station to the news broadcast sta-
tion. When the news program ends, reception
of the previous program resumes.
%Press TA/NEWS and hold to turn on
news program interruption.
Press TA/NEWS until NEWS:ON appears in
the display.
#To turn off news program interruption, press
TA/NEWS and hold until NEWS:OFF appears in
the display.
#A news program can be canceled by pressing
TA/NEWS.
Note
You can also turn on or off news program in the
menu that appears by using MULTI-CONTROL.
Receiving PTY alarm broadcasts
When the emergency PTY code broadcasts,
the unit receives it automatically (ALARM ap-
pears). When the broadcasting ends, the sys-
tem returns to the previous source.
!An emergency announcement can be can-
celed by pressing TA/NEWS.
PTY list
General Specific Type of program
NEWS INFO NEWS News
AFFAIRS Current affairs
INFO General information
and advice
SPORT Sports
WEATHER Weather reports/me-
teorological informa-
tion
FINANCE Stock market reports,
commerce, trading,
etc.
POPULAR POP MUS Popular music
ROCK MUS Contemporary modern
music
EASY MUS Easy listening music
OTH MUS Non-categorized music
JAZZ Jazz
COUNTRY Country music
NAT MUS National music
OLDIES Oldies, golden oldies
FOLK MUS Folk music
CLASSICS L. CLASS Light classical music
CLASSIC Classical music
Operating this unit
En 15
English
Section
02

OTHERS EDUCATE Educational programs
DRAMA Radio plays and serials
CULTURE National or regional
culture
SCIENCE Nature, science and
technology
VARIED Light entertainment
CHILDREN Children’s
SOCIAL Social affairs
RELIGION Religious affairs or ser-
vices
PHONE IN Phone in
TOURING Travel programs; not
for traffic announce-
ments
LEISURE Hobbies and recrea-
tional activities
DOCUMENT Documentaries
Built-in CD Player
Basic Operations
The built-in CD player can play back audio CD
(CD-DA) and compressed audio (WMA/MP3/
WAV) recorded on CD-ROM. (Refer to page 58
for files that can be played back.)
Read the precautions with discs and player on
page 57.





















1Track number indicator
2Folder number indicator
Shows the folder number currently playing
when the compressed audio is playing.
3Play time indicator
4RDM indicator
Shows when random play is on.
5REPEAT indicator
Shows when repeat range is selected to cur-
rent track (file).
6F-RPT indicator
Shows when repeat range is selected to cur-
rent folder.
!If a folder is selected while operating a
folder/file list, F- is displayed.
1 Press OPEN to open the front panel.
Disc loading slot appears.
Disc loading slot
EJECT button
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
Operating this unit
En
16
Section
02

2 Insert a CD (CD-ROM) into the disc load-
ing slot.
Playback will automatically start.
#Be sure to turn up the label side of a disc.
#After a CD (CD-ROM) has been inserted, press
SOURCE to select the built-in CD player.
#You can eject a CD (CD-ROM) by pressing
EJECT.
3 Close the front panel.
4 Push MULTI-CONTROL up or down to
select a folder when playing a compressed
audio.
#You cannot select a folder that does not have
a compressed audio file recorded in it.
#To return to folder 01 (ROOT), press and hold
BAND. However, if folder 01 (ROOT) contains no
files, playback commences with folder 02.
5 To perform fast forward or reverse,
push and hold MULTI-CONTROL left or
right.
#If you select ROUGH, pushing and holding
MULTI-CONTROL left or right enables you to
search every 10 tracks in the current disc (folder).
(Refer to Searching every 10 tracks in the current
disc or folder on page 19.)
6 To skip back or forward to another
track, push MULTI-CONTROL left or right.
Notes
!There is sometimes a delay between starting
up disc playback and the sound being issued.
When being read, FORMAT READ is dis-
played.
!If an error message such as ERROR-11 is dis-
played, refer to Error messages on page 57.
!When playing CD-EXTRA or MIXED-MODE
CDs, compressed audio and CD-DA can be
switched by pressing BAND.
!If you have switched between compressed
audio and CD-DA, playback starts at the first
track on the disc.
!When playing back VBR (variable bit rate) re-
corded files, elapsed play time may not be dis-
played correctly.
!When playing compressed audio, there is no
sound on fast forward or reverse.
!Playback is carried out in order of file number.
Folders are skipped if they contain no files. (If
folder 01 (ROOT) contains no files, playback
commences with folder 02.)
!Depending on the character sets in the disc,
Russian texts may be garbled. About the al-
lowed character sets for Russian texts, refer to
Compressed audio files on page 58.
Selecting a track directly
When using the remote control, you can select
a track directly by entering the desired track
number.
The remote control CD-R510 is sold separately.
!When audio files are being played back,
you can select track in the current folder.
1 Press DIRECT.
Track number input display appears.
2 Press 0 to 9 buttons to enter the desired
track number.
#You can cancel the input number by pressing
CLEAR.
3 Press DIRECT.
The track of entered number will play.
#After entering the number input mode, if you
do not perform an operation within about eight
seconds, the mode is automatically canceled.
Introduction of advanced
operations
1 Press MULTI-CONTROL to display the
main menu.
FUNCTION or AUDIO appears on the display.
2 Use MULTI-CONTROL to select
FUNCTION.
Turn to change the menu option; press to se-
lect.
The function name appears on the display.
3 Turn MULTI-CONTROL to select the
function.
Turn MULTI-CONTROL to switch between the
functions in the following order:
Operating this unit
En 17
English
Section
02

REPEAT (repeat play)—RANDOM (random
play)—SCAN (scan play)—PAUSE (pause)—
COMP/BMX (compression and BMX)—
SEARCH (search method)—TITLE INPUT (disc
title input)
#When playing a CD TEXT disc, you cannot
switch to disc title input display. The disc title will
have already been recorded on a CD TEXT disc.
#When playing compressed audio disc, you
cannot switch to disc title input display.
#To return to the ordinary display, press BAND.
#If you do not operate functions except for
TITLE INPUT within about 30 seconds, the display
is automatically returned to the ordinary display.
Selecting a repeat play range
Repeat play plays the same track/folder within
the selected repeat play range.
Also, the repeat range determines the range of
random play and scan play.
1 Use MULTI-CONTROL to select REPEAT
in the function menu.
2 Press MULTI-CONTROL to select the re-
peat range.
!DISC –Repeat all tracks
!TRACK –Repeat just the current track
!FOLDER –Repeat the current folder
#If you select another folder during repeat play,
the repeat play range changes to disc repeat.
#When playing CD, performing track search or
fast forward/reverse cancels the repeat play auto-
matically.
#When playing compressed audio, performing
track search or fast forward/reverse during
TRACK (track repeat) changes the repeat play
range to folder repeat.
#When FOLDER (folder repeat) is selected, it is
not possible to play back a subfolder of that
folder.
Playing tracks in random order
Random play plays tracks in a random order
within the selected repeat range.
Refer to Selecting a repeat play range on this
page.
1 Use MULTI-CONTROL to select
RANDOM in the function menu.
2 Press MULTI-CONTROL to turn random
play on.
Tracks will play in a random order.
#To turn random play off, press
MULTI-CONTROL again.
Scanning folders and tracks
Scan play searches the song within the se-
lected repeat range.
Refer to Selecting a repeat play range on this
page.
1 Use MULTI-CONTROL to select SCAN in
the function menu.
2 Press MULTI-CONTROL to turn scan play
on.
The first 10 seconds of each track is played.
3 When you find the desired track press
MULTI-CONTROL to turn scan play off.
#If the display has automatically returned to
the playback display, select SCAN again by using
MULTI-CONTROL.
#After scanning of a disc (folder) is finished,
normal playback of the tracks will begin again.
Pausing disc playback
1 Use MULTI-CONTROL to select PAUSE in
the function menu.
2 Press MULTI-CONTROL to turn pause
on.
Playback of the current track pauses.
#To turn pause off, press MULTI-CONTROL
again.
Using compression and BMX
Using the COMP (compression) and BMX
functions let you adjust the sound playback
quality of this unit.
1 Use MULTI-CONTROL to select
COMP/BMX in the function menu.
Operating this unit
En
18
Section
02

2 Press MULTI-CONTROL to select your fa-
vorite setting.
OFF—COMP 1—COMP 2—OFF—BMX 1—
BMX 2
Searching every 10 tracks in the
current disc or folder
You can switch the search method between
fast forward/reverse and searching every 10
tracks. Selecting ROUGH enables you to
search every 10 tracks.
1 Use MULTI-CONTROL to select SEARCH
in the function menu.
2 Press MULTI-CONTROL to select
ROUGH.
!FF/REV –Fast forward and reverse
!ROUGH –Searching every 10 tracks
#To select FF/REV, press MULTI-CONTROL
again.
3 Press BAND to return to the playback
display.
4 Push and hold MULTI-CONTROL left or
right to search every 10 tracks on a disc
(folder).
#If the rest of track number is less than 10,
pushing and holding MULTI-CONTROL recalls
the first (last) one.
Using disc title functions
You can input CD titles and display the title.
The next time you insert a CD for which you
have entered a title, the title of that CD will be
displayed.
Entering disc titles
Use the disc title input feature to store up to
48 CD titles in the unit. Each title can be up to
10 characters long.
1 Play the CD that you want to enter a
title for.
2 Use MULTI-CONTROL to select
TITLE INPUT in the function menu.
3 Press DISPLAY to select the desired
character type.
Press DISPLAY repeatedly to switch between
the following character types:
Alphabet—Numbers and symbols
4 Push MULTI-CONTROL up or down to
select a letter of the alphabet.
5 Push MULTI-CONTROL left or right to
move the cursor to the previous or next
character position.
6 Move the cursor to the last position by
pushing MULTI-CONTROL right after enter-
ing the title.
When you push MULTI-CONTROL right one
more time, the entered title is stored in mem-
ory.
7 Press BAND to return to the playback
display.
Notes
!Titles remain in memory, even after the disc
has been removed from the unit, and are re-
called when the disc is reinserted.
!After data for 48 discs has been stored in
memory, data for a new disc will overwrite the
oldest one.
!If you connect a multi-CD player, you can
input disc titles for up to 100 discs.
Displaying text information on
disc
%Press DISPLAY to select the desired text
information.
For title entered CD
Play time—DISC TITLE (disc title)
For CD TEXT discs
Play time—DISC TITLE (disc title)—
DISC ARTIST (disc artist name)—
TRACK TITLE (track title)—TRACK ARTIST
(track artist name)
Operating this unit
En 19
English
Section
02

For WMA/MP3 discs
Play time—FOLDER NAME (folder name)—
FILE NAME (file name)—TRACK TITLE (track
title)—ARTIST NAME (artist name)—
ALBUM TITLE (album title)—COMMENT
(comment)—Bit rate
For WAV discs
Play time—FOLDER NAME (folder name)—
FILE NAME (file name)—Sampling frequency
Notes
!You can scroll to the left of the title by pressing
and holding DISPLAY.
!Audio CD that contains certain information
such as text and/or number is CD TEXT.
!If specific information has not been recorded
on a disc, title or name is not displayed.
!Depending on the version of iTunes®used to
write MP3 files onto a disc, comment informa-
tion may not be correctly displayed.
!iTunes is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.
!Depending on the version of Windows Media
Player used to encode WMA files, album
names and other text information may not be
correctly displayed.
!When playing back VBR (variable bit rate)-re-
corded WMA files, the average bit rate value is
displayed.
!When playing back VBR (variable bit rate)-re-
corded MP3 files, VBR is displayed instead of
bit rate value.
!The sampling frequency shown in the display
may be abbreviated.
Selecting tracks from the track
title list
Track title list lets you see the list of track titles
on a CD TEXT disc and select one of them to
play back.
1 Press LIST to switch to the track title list
mode.
2 Use MULTI-CONTROL to select the de-
sired track title.
Turn to change the track title; press to play.
#You can also change the track title by pushing
MULTI-CONTROL up or down.
#If you do not operate the list within about 30
seconds, the display is automatically returned to
the ordinary display.
Selecting tracks from the file
name list
File name list lets you see the list of file names
(or folder names) and select one of them to
playback.
1 Press LIST to switch to the file name list
mode.
Names of files and folders appear in the dis-
play.
2 Use MULTI-CONTROL to select the de-
sired file name (or folder name).
Turn to change the name of file or folder;
press to play; push right to see a list of the
files (or folders) in the selected folder.
#You can also change the name of file or folder
by pushing MULTI-CONTROL up or down.
#To return to the previous list (the folder one
level higher), push MULTI-CONTROL left.
#If you do not operate the list within about 30
seconds, the display is automatically returned to
the ordinary display.
Operating this unit
En
20
Section
02
