Pioneer AVH-P7600DVD/UC User manual

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
CRT3410
7 INCHWIDE FULLY MOTORIZED LCD COLOR DISPLAYWITH 5 CHANNEL HIGH-POWER DVD/VCD/CD RECEIVER
AVH-P7600DVD
/UC
AVH-P7500DVD ——
——
/EW
K-ZZU. FEB. 2005 Printed in Japan
This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. Order No. Mech.Module Remarks
AVH-P7500DVD
/UC,EW CRT3039
AVH-P7500DVD
/UC,EW CRT3112
CX-3016 CRT3056 MS3 DVD Mech. Module:Circuit Description, Mech.Description, Disassembly
is a trademark of DVD Format/Logo Licensing Corporation.

AVH-P7600DVD/UC2
1234
1234
C
D
F
A
B
E
Mark No. Description AVH-P7500DVD/UC AVH-P7600DVD/UC
1-2 Owner’s Manual CRB1863 CRB2068
1-3 Owner’s Manual CRB1864 CRB2069
1-4 Installation Manual CRD3795 CRD3979
2 Carton CHG5110 CHG5504
3 Contain Box CHL5110 CHL5504
23 Screw Assy CEA3686 CEA5144
24 Screw(M4x6) CBA1468 CBA1870
* 26 Polyethylene Bag CEG1101 Not used
38 Screw BNC40P120FZK Not used
* 39 Polyethylene Bag CEG1158 Not used
40 Screw HMF40P080FZK Not used
42 Angle CNB2351 Not used
45 DC Antenna Assy CXB9183 Not used
* 46 Caution Card CZR3093 Not used
47 Antenna Unit CZX5019 Not used
* Caution Card CRN1071 Not used
Fastener Not used CNM3729
(This is in the sub carton)
PACKING(Page 10)
PACKING SECTION PARTS LIST
*:Non spare part
Mark No. Description AVH-P7500DVD/EW AVH-P7500DVD — /EW
1-2 Owner’s Manual CRB1857 CRB2062
1-3 Owner’s Manual CRB1858 CRB2063
1-4 Installation Manual CRD3794 CRD3978
2 Carton CHG5109 CHG5503
3 Contain Box CHL5109 CHL5503
23 Screw Assy CEA3686 CEA5144
24 Screw(M4x6) CBA1468 CBA1870
* 26 Polyethylene Bag CEG1101 Not used
35-2 Owner’s Manual CRB1859 CRB2064
35-3 Owner’s Manual CRB1860 CRB2065
35-4 Owner’s Manual CRB1861 CRB2066
35-5 Owner’s Manual CRB1862 CRB2067
38 Screw BNC40P120FZK Not used
* 39 Polyethylene Bag CEG1158 Not used
40 Screw HMF40P080FZK Not used
42 Angle CNB2351 Not used
Fastener Not used CNM3729
(This is in the sub carton)
PACKING SECTION PARTS LIST

AVH-P7600DVD/UC 3
5678
5678
C
D
F
A
B
E
Mark No. Description AVH-P7500DVD/UC AVH-P7600DVD/UC
2 Case CNB2967 CNB3142
17 Panel CNS7480 CNS8179
19 DVD Amp Unit CWM8813 CWN1055
53 Screw BMZ20P025FTC BMZ20P030FTB
54 Screw BMZ20P030FZK BMZ20P030FTB
55 Screw BMZ26P030FZK BMZ26P030FTC
56 Screw BMZ26P040FTC BMZ26P030FTC
62 Screw CBA1633 CBA1871
79 Panel Unit CXC1895 CXC4551
80 Screw(M2 x 4) CBA1734 CBA1873
81 Screw BPZ20P080FZK BPZ20P080FTB
82 Button(DETACH) CAC7944 CAC9124
83 Button(EJECT) CAC7945 CAC9125
86 Button CAC8149 CAC9127
87 Button(RESET) CAC8053 CAC9128
91 Cover CNS7441 CNS8246
92 Keyboard Unit CWM8823 *CWN1067
99 Screw BMZ20P025FTC IMS20P025FTC
103 Screw CBA1777 CBA1874
106 Spacer CNM8575 CNM9272
Grille Assy CXC1203 CXC4524
Grille Unit(Service) CXX1793 CXX1882
EXTERIOR(1)(Page 14)
EXTERIOR(1) SECTION PARTS LIST
99
99

AVH-P7600DVD/UC4
1234
1234
C
D
F
A
B
E
Mark No. Description AVH-P7500DVD/EW AVH-P7500DVD — /EW
2 Case CNB2967 CNB3142
17 Panel CNS7480 CNS8179
19 DVD Amp Unit CWM8817 CWN1058
53 Screw BMZ20P025FTC BMZ20P030FTB
54 Screw BMZ20P030FZK BMZ20P030FTB
55 Screw BMZ26P030FZK BMZ26P030FTC
56 Screw BMZ26P040FTC BMZ26P030FTC
62 Screw CBA1633 CBA1871
79 Panel Unit CXC1895 CXC4551
80 Screw(M2 x 4) CBA1734 CBA1873
81 Screw BPZ20P080FZK BPZ20P080FTB
82 Button(DETACH) CAC7944 CAC9124
83 Button(EJECT) CAC7945 CAC9125
86 Button CAC7948 CAC9126
87 Button(RESET) CAC8053 CAC9128
91 Cover CNS7441 CNS8246
92 Keyboard Unit CWM8827 *CWN1070
99 Screw BMZ20P025FTC IMS20P025FTC
103 Screw CBA1777 CBA1874
106 Spacer CNM8575 CNM9272
Grille Assy CXC1207 CXC4527
Grille Unit(Service) CXX1796 CXX1885
EXTERIOR(1) SECTION PARTS LIST
99
99
EXTERIOR(2)(Page 12)
EXTERIOR(2) SECTION PARTS LIST
Mark No. Description AVH-P7500DVD/UC
AVH-P7500DVD/EW AVH-P7600DVD/UC AVH-P7500DVD — /EW
177 Screw CBA1753 CBA1872
180 Cover CNS7438 CNS8248

AVH-P7600DVD/UC 5
5678
5678
C
D
F
A
B
E
Mark No. Description AVH-P7500DVD/UC AVH-P7600DVD/UC
238 Grille Unit CXC1320 CXC4557
240 Button(ENT,WIDE,MENU) CAC7935 CAC9129
241 Button CAC7936 CAC9130
242 Screw CBA1753 CBA1872
244 LCD CAW1805 CAW1871
257 Monitor Unit CWM8818 CWN1061
274 Ferrite Not used CTX1094
EXTERIOR(3)(Page 18)
EXTERIOR(3) SECTION PARTS LIST
EXTERIOR(3) SECTION PARTS LIST
Mark No. Description AVH-P7500DVD/EW AVH-P7500DVD — /EW
238 Grille Unit CXC1319 CXC4556
240 Button(ENT,WIDE,MENU) CAC7935 CAC9129
241 Button CAC7936 Not used
242 Screw CBA1753 CBA1872
244 LCD CAW1805 Not used
257 Monitor Unit CWM8822 CWN1064
TUNER SELECTOR ASSY(EW MODEL)(Page 22)
TUNER SELECTOR ASSY(EW MODEL) SECTION PARTS LIST
Mark No. Description AVH-P7500DVD/EW AVH-P7500DVD — /EW
1 Screw BSZ30P060FZK BSZ30P060FTB
6 Chassis CNA2644 CNA2819
7 Case CNB2857 CNB3157
9 Insulator CNM9548 CNM9495
10 Tuner Selector Unit CWM8837 CWN1082

AVH-P7600DVD/UC6
1234
1234
C
D
F
A
B
E
Circuit Symbol and No. AVH-P7500DVD/UC AVH-P7600DVD/UC
IC 103 IC TC7SH08FU TC7SH08FUS1
IC 104 IC PE5365C PE5495A
IC 301 IC HA12187FP HA12240FP
IC 501 IC TC7SH08FU TC7SH08FUS1
IC 502 IC TC74VHC08FT TC74VHC08FTS1
IC 503 IC TC74VHCT08AFT TC74VHCT08AFTS1
IC 552 IC TC74VHC08FT TC74VHC08FTS1
IC 1604 IC TC74VHC08FT TC74VHC08FTS1
IC 1951 IC TC74VHC08FT TC74VHC08FTS1
IC 1952 IC TC74VHC541FT TC74VHC541FTS1
IC 1953 IC TC74LCX541FT TC74LCX541FTS1
IC 7001 IC PD8113A PD8145A
IC 7002 IC PE5366C PE5496A
IC 7003 IC PD8114A PD8146A
IC 7006 IC TC7SET08FU TC7SET08FUS1
IC 7007 IC TC7SH08FU TC7SH08FUS1
L102 Inductor LCTA2R2J2520 LCTAW2R2J2520
L1001 Chip-Inductor LCTA2R2J3225 LCTAW2R2J3225
L1622 Inductor LCTA3R3J2520 LCTAW3R3J2520
R307 Not used RS1/16S472J
ELECTRICAL PARTS LIST(Page 149)
DVD AMP UNIT(UC MODEL)
Circuit Symbol and No. AVH-P7500DVD/EW AVH-P7500DVD — /EW
IC 103 IC TC7SH08FU TC7SH08FUS1
IC 301 IC HA12187FP HA12240FP
IC 501 IC TC7SH08FU TC7SH08FUS1
IC 502 IC TC74VHC08FT TC74VHC08FTS1
IC 503 IC TC74VHCT08AFT TC74VHCT08AFTS1
IC 552 IC TC74VHC08FT TC74VHC08FTS1
IC 1604 IC TC74VHC08FT TC74VHC08FTS1
IC 1951 IC TC74VHC08FT TC74VHC08FTS1
IC 1952 IC TC74VHC541FT TC74VHC541FTS1
IC 1953 IC TC74LCX541FT TC74LCX541FTS1
IC 7001 IC PD8113A PD8145A
IC 7003 IC PD8114A PD8146A
IC 7006 IC TC7SET08FU TC7SET08FUS1
IC 7007 IC TC7SH08FU TC7SH08FUS1
L102 Inductor LCTA2R2J2520 LCTAW2R2J2520
L1001 Chip-Inductor LCTA2R2J3225 LCTAW2R2J3225
L1622 Inductor LCTA3R3J2520 LCTAW3R3J2520
R307 Not used RS1/16S472J
DVD AMP UNIT(EW MODEL)
IP-BUS DRIVER
4R7K
R307

AVH-P7600DVD/UC 7
5678
5678
C
D
F
A
B
E
TUNER SELECTOR UNIT(EW MODEL)
Circuit Symbol and No. AVH-P7500DVD/EW AVH-P7500DVD — /EW
IC3002 IC TC74VHC126FT TC74VHC126FTS1
L3001 Inductor LCTA4R7J2520 LCTAW4R7J2520
L3002 Inductor LCTA1R0J3225 LCTAW1R0J3225
L3004 Inductor LCTA4R7J2520 LCTAW4R7J2520
L3702 Inductor LCKA2R2J2520 LCKAW2R2J2520
C1346 CEV100M16 CEVW100M16
C1347 CEV220M16 CEVW220M16
C3002 CEV101M1 CEVW101M1
C3101 CEV221M4 CEVW221M4
C3102 CEV221M4 CEVW221M4
C3113 CEV100M10 CEVW100M10
C3114 CEV100M10 CEVW100M10
C3120 CEV100M10 CEVW100M10
C3121 CEV100M10 CEVW100M10
C3123 CEV221M4 CEVW221M4
C3124 CEV221M4 CEVW221M4
C3132 CEV220M16 CEVW220M16
C3170 CEV100M10 CEVW100M10
C3175 CEV221M4 CEVW221M4
C3176 CEV221M4 CEVW221M4
C3183 CEV221M4 CEVW221M4
C3184 CEV221M4 CEVW221M4
C3185 CEV221M4 CEVW221M4
C3186 CEV221M4 CEVW221M4
C3510 CEV101M16 CEVW101M16
C3513 CEV330M10 CEVW330M10
C3518 CEV100M16 CEVW100M16
C3521 CEV101M16 CEVW101M16
C3704 CEV100M16 CEVW100M16
C3714 CEV330M10 CEVW330M10
C3725 CEV100M10 CEVW100M10
C3728 CEV221M4 CEVW221M4
C3729 CEV221M4 CEVW221M4
C3739 CEV100M10 CEVW100M10
C3740 CEV100M10 CEVW100M10
C3742 CEV330M10 CEVW330M10
C3745 CEV101M10 CEVW101M10
C3746 CEV221M4 CEVW221M4
C3756 CEV101M16 CEVW101M16

AVH-P7600DVD/UC8
1234
1234
C
D
F
A
B
E
MONITOR UNIT(UC MODEL)
Circuit Symbol and No. AVH-P7500DVD/UC AVH-P7600DVD/UC
IC4141 IC TC7SH08FU TC7SH08FUS1
IC4142 IC TK15404MI TK15404AMI
IC4451 IC TC7SET08FU TC7SET08FUS1
IC4731 IC TC7SET08FU TC7SET08FUS1
IC4732 IC TC7SH08FU TC7SH08FUS1
IC5002 IC TC7SET08FU TC7SET08FUS1
L4061 Inductor LCKA101J2520 LCKAW101J2520
L4071 Inductor LCKB100K2520 LCKBW100K2520
L4074 Inductor LCKB100K2520 LCKBW100K2520
L4075 Inductor LCKB100K2520 LCKBW100K2520
L4078 Inductor LCKB100K2520 LCKBW100K2520
L4101 Inductor LCKB100K2520 LCKBW100K2520
L4141 Inductor LCKB100K2520 LCKBW100K2520
L4151 Inductor LCKB100K2520 LCKBW100K2520
L4152 Inductor LCKB100K2520 LCKBW100K2520
L4181 Inductor LCKA101J2520 LCKAW101J2520
L4182 Inductor LCKA101J2520 LCKAW101J2520
L4311 Inductor LCKB100K2520 LCKBW100K2520
L4701 Inductor LCKB100K2520 LCKBW100K2520
L4801 LCKB100K2520 LCKBW100K2520
L4802 Inductor LCKB100K2520 LCKBW100K2520
L4803 Inductor LCKB100K2520 LCKBW100K2520
L4804 Inductor LCKB100K2520 LCKBW100K2520
L4863 Inductor LCKB100K2520 LCKBW100K2520
L4864 Inductor LCKB100K2520 LCKBW100K2520
L4865 Inductor LCKB100K2520 LCKBW100K2520

AVH-P7600DVD/UC 9
5678
5678
C
D
F
A
B
E
MONITOR UNIT(EW MODEL)
Circuit Symbol and No. AVH-P7500DVD/EW AVH-P7500DVD — /EW
IC4141 IC CTC7SH08FU TC7SH08FUS1
IC4142 IC TK15404MI TK15404AMI
IC4451 IC TC7SET08FU TC7SET08FUS1
IC4731 IC TC7SET08FU TC7SET08FUS1
IC4732 IC TC7SH08FU TC7SH08FUS1
IC5002 IC TC7SET08FU TC7SET08FUS1
L4061 Inductor LCKA101J2520 LCKAW101J2520S1
L4071 Inductor LCKB100K2520 LCKBW100K2520
L4071 Inductor LCKB100K2520 LCKBW100K2520
L4074 Inductor LCKB100K2520 LCKBW100K2520
L4075 Inductor LCKB100K2520 LCKBW100K2520
L4078 Inductor LCKB100K2520 LCKBW100K2520
L4101 Inductor LCKB100K2520 LCKBW100K2520
L4141 Inductor LCKB100K2520 LCKBW100K2520
L4152 Inductor LCKB100K2520 LCKBW100K2520
L4181 Inductor LCKA101J2520 LCKAW101J2520
L4182 Inductor LCKA101J2520 LCKAW101J2520
L4311 Inductor LCKB100K2520 LCKBW100K2520
L4701 Inductor LCKB100K2520 LCKBW100K2520
L4801 Inductor LCKB100K2520 LCKBW100K2520
L4802 Inductor LCKB100K2520 LCKBW100K2520
L4803 Inductor LCKB100K2520 LCKBW100K2520
L4804 Inductor LCKB100K2520 LCKBW100K2520
L4863 Inductor LCKB100K2520 LCKBW100K2520
L4864 Inductor LCKB100K2520 LCKBW100K2520
L4865 Inductor LCKB100K2520 LCKBW100K2520

AVH-P7600DVD/UC10
1234
1234
C
D
F
A
B
E

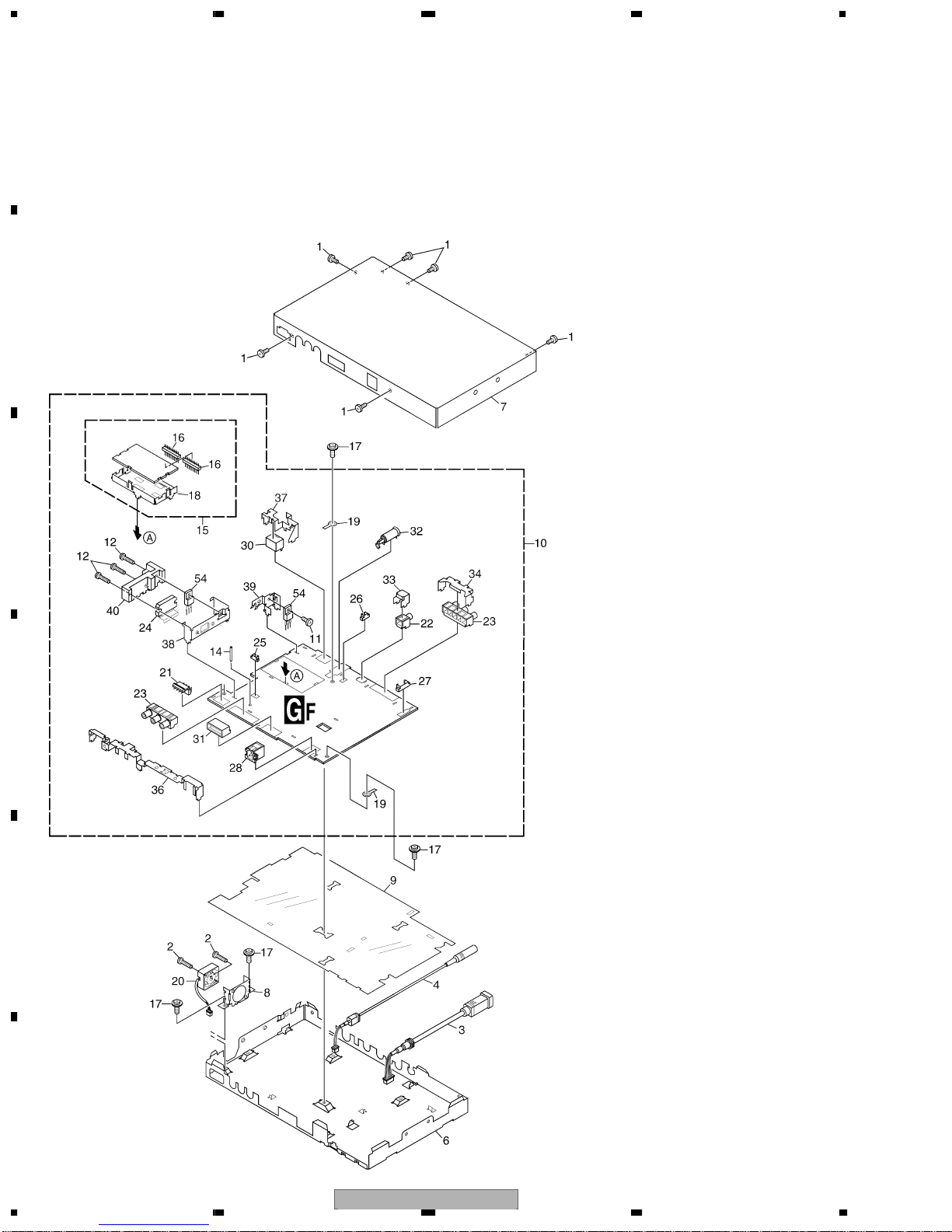

EXPLODEDVIEWS AND PARTS LIST
TUNER SELECTOR ASSY(UC MODEL)
NO
TES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List.
• The >mark found on some component parts indicatesthe importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
• Screw adjacent to mark on the product are used for disassembly.
• For the applying amount of lobricants or glue, follow the instructions in this manual.
(In the case of no amount instructions,apply as you think it appropriate.)
"

AVH-P7600DVD/UC 11
5678
5678
C
D
F
A
B
E

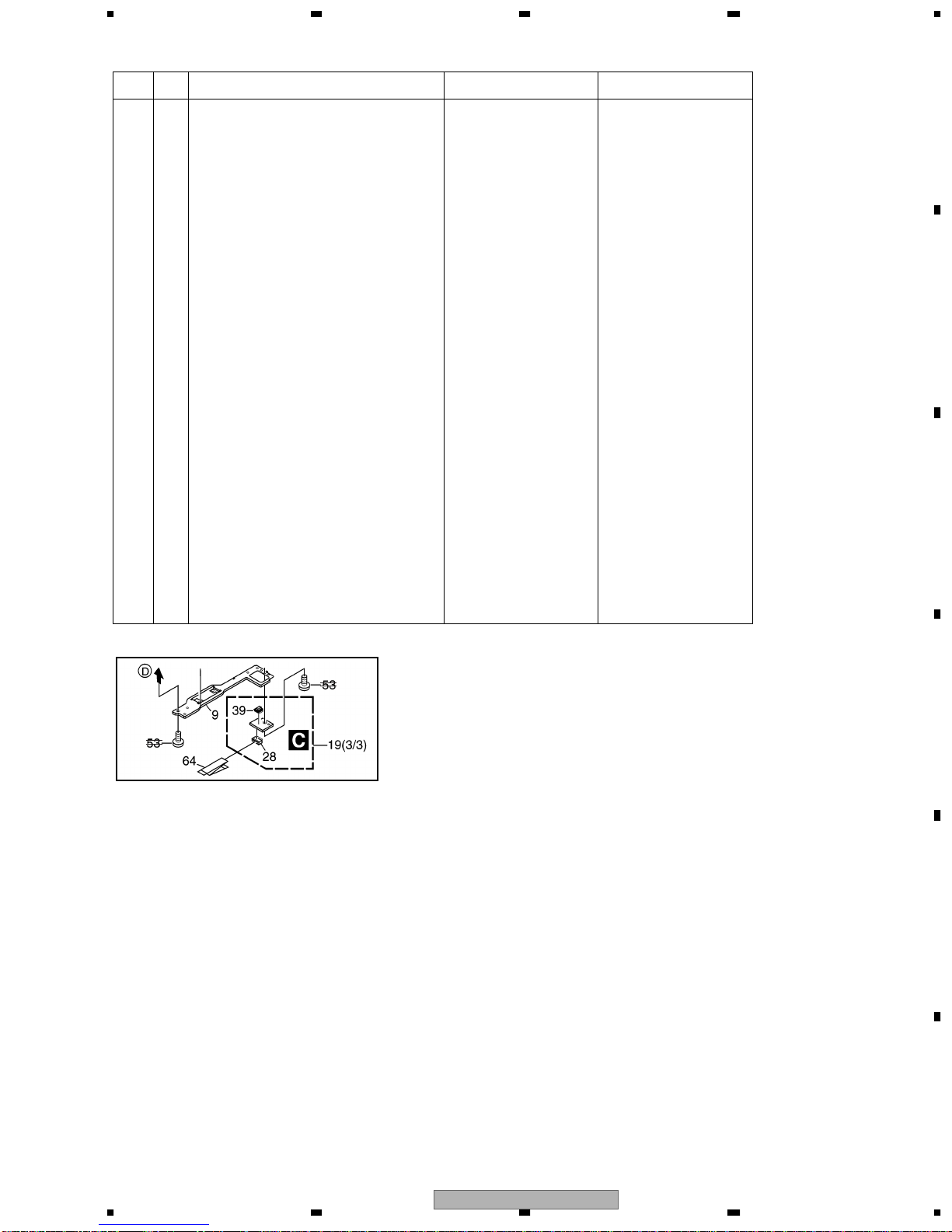

1 Screw BSZ30P060FTB
2 Screw CBA1620
3 Cord Assy CDE7255
4 Cord Assy CDE7258
5 • • • • •
• • • • •
6 Chassis CNA2819
7 Case CNB3157
8 Holder CND1773
9 Insulator CNM9495
10 Tuner Selector Unit CWN1079
11 Screw BMZ26P060FTC
12 Screw BMZ26P120FTC
13
14 Clamper CEF1038
15 FM/AM Tuner Unit CWE1651
16 Connector(CN101,CN102) CKS4653
17 Screw ISS26P060FTC
18 Holder CND1432
19 Terminal
(CN1368,CN3002) CKF1064
20 Fan Motor(M1003) CXM1186
21 Plug(CN3701) CKS-462
22 Pin Jack(CN3705) CKS4790
23 Pin Jack(CN3703,CN3704)CKS1829
24 IC(IC3701) PAL007A
25 Connector(CN3501) CKS3124
26 Connector(CN3702) CKS3125
27 Connector(CN1362) CKS3131
28 Connector(CN1360) CKS3410
29 • • • • •
30 Connector(CN3001) CKS4663
31 Connector(CN3101) CKS4701
32 Antenna Jack(CN3003) CKX1056
33 Holder CNC6746
34 Holder CNC7205
35
36 Holder CND1557
37 Holder CND1558
38 Holder CND1559
39 Holder CND1774
40 Heat Sink CNR1693
41-53 • • • • •
54 Transistor
(Q3510,Q3515) 2SD2375
Mark No. Description Part No. Mark No. Description Part No.
-TUNER SELECTOR ASSY(UC MODEL) SECTION PARTS LIST
• • • • •

AVH-P7600DVD/UC12
1234
1234
C
D
F
A
B
E

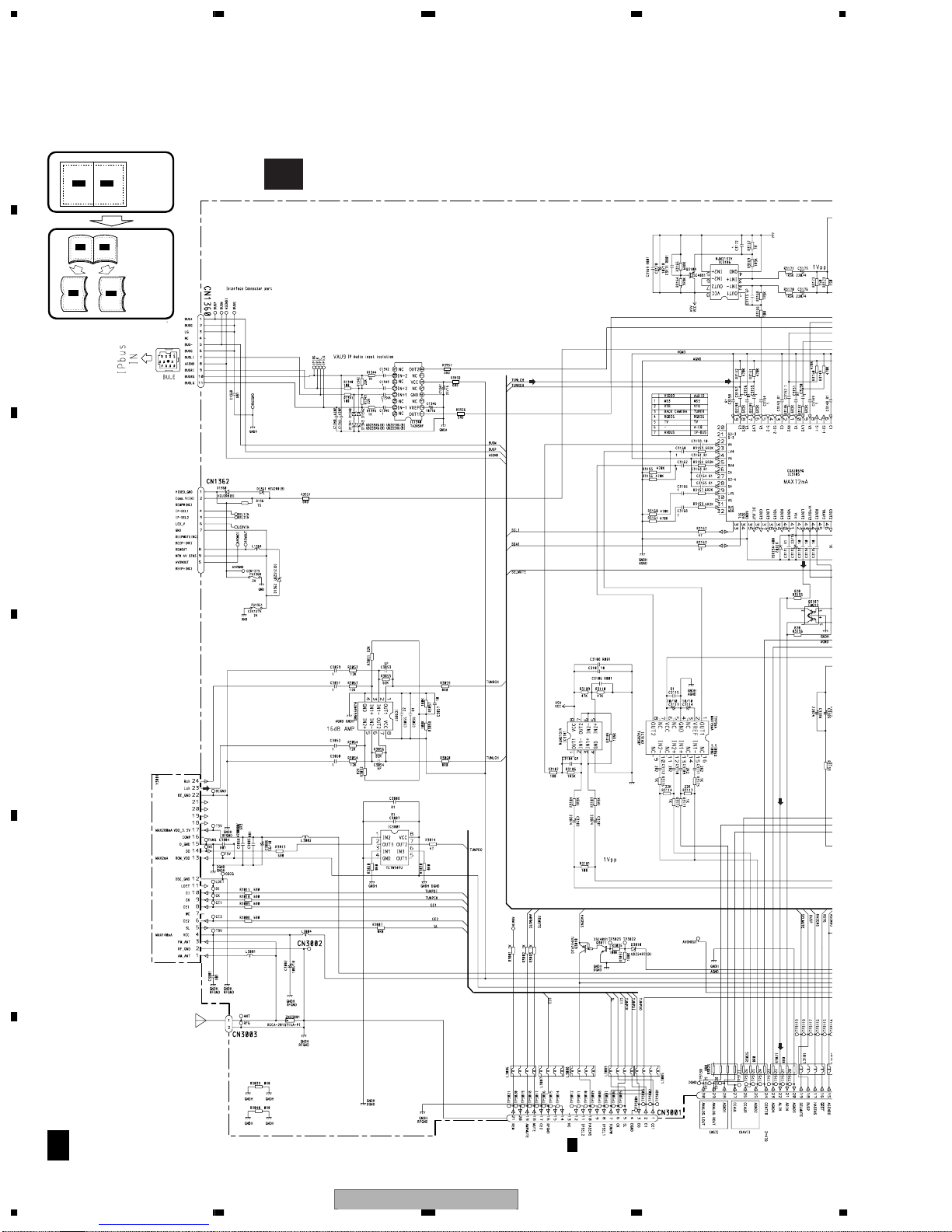

BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
TUNER SELECTOR UNIT(GUIDE PAGE)
G-a
GF
F
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
OUTPUT Z=650Ω
Output
FM/AM
ANTENNA
CN602
1/4
A
FM/AM TUNER UNIT
TUN AUDIO ISO
TUNER
NAVI VIDEO ISO
NAVI
AUDIO ISO
AV SELECTOR
BACK UP CAMERA VIDEO ISO
Input Output

AVH-P7600DVD/UC 13
5678
5678
C
D
F
A
B
E
G-b
GF
F
A-a A-b
A-a A-b
A-b
A-a
INPUT Z=100kΩ
OUTPUT Z=100Ω
DTC144EU
GF
TUNER SELECTOR UNIT
CN601
clamper
CEK1252
CEK1252
>
>
>
>
>
1/4
A
DVD
VIDEO ISO
DVD
AUDIO ISO
VTR IN VIDEO ISO VTR IN AUDIO ISO
MUTE
75ΩDRIVER
CENTER
SP ISO
POWER AMP
MUTE
VIDEO 9V
FAN
FAN MOTOR
M1003
CXM1186

AVH-P7600DVD/UC14
1234
1234
C
D
F
A
B
E
GF-b
GF-a
GF-a GF-b
12
3
NAVI VIDEO ISO
AV SELECTOR
BACK UP CAMERA VIDEO ISO

AVH-P7600DVD/UC 15
5678
5678
C
D
F
A
B
E
GF-b
GF-a
GF-a GF-b
4 5
OUTPUT Z=650Ω
Output
FM/AM ANTENNA
CN602
1/4
A
FM/AM TUNER UNIT
TUNER
NAVI
AUDIO ISO
Input
Output

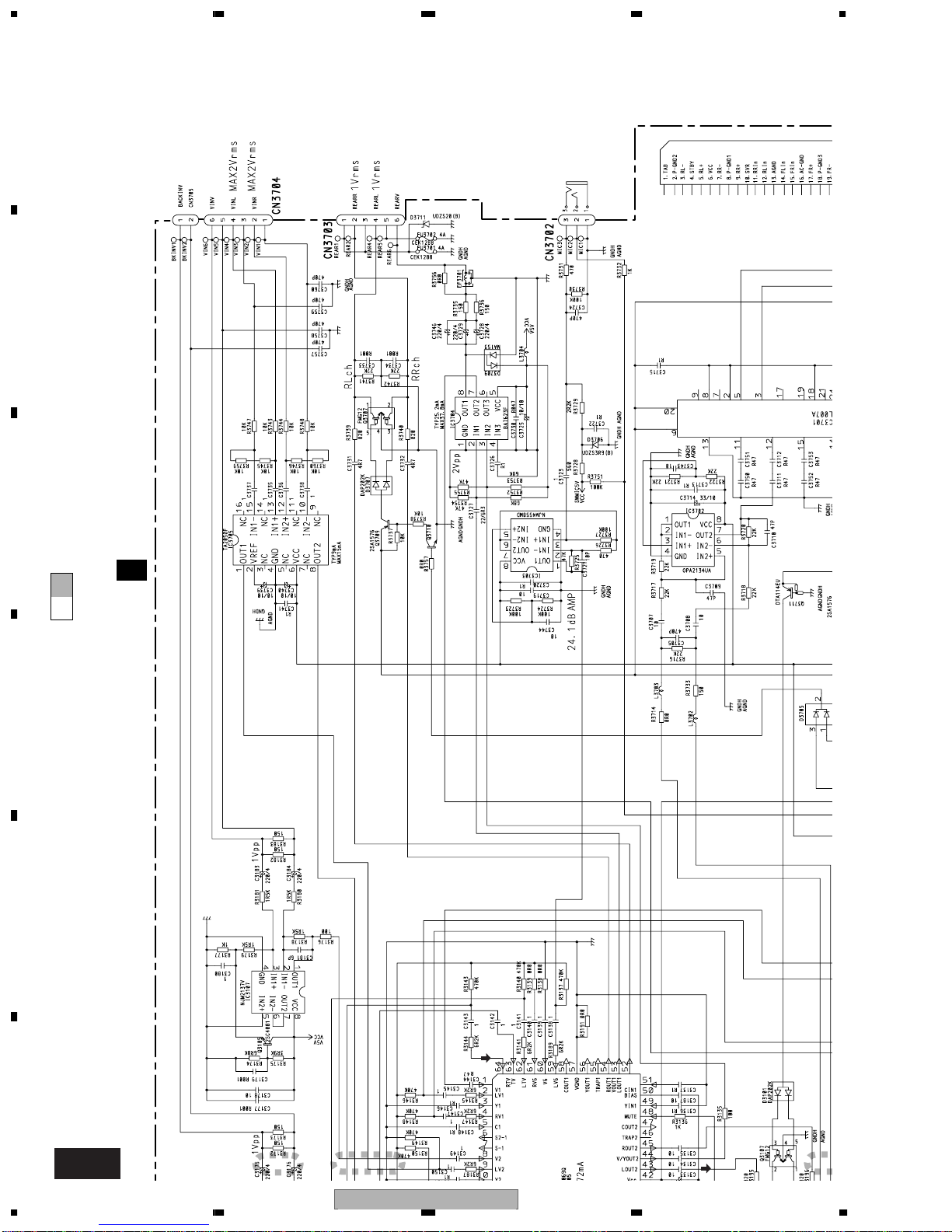

AVH-P7600DVD/UC16
1234
1234
C
D
F
A
B
E
GF-b
GF-a GF-b
12
INPUT Z=100kΩ
OUTPUT Z=100Ω
DTC144EU
GF
TUNER SELECTOR UNIT
>
>
E
CTOR
VTR IN VIDEO ISO VTR IN AUDIO ISO
MUTE
75ΩDRIVER
CENTER
SP ISO
POWER AMP

AVH-P7600DVD/UC 17
5678
5678
C
D
F
A
B
E
GF-b
GF-a GF-b
4 5
CN601
clamper
CEK1252
CEK1252
>
>
>
1/4
A
DVD
VIDEO ISO
DVD
AUDIO ISO
MUTE
VIDEO 9V
FAN
FAN MOTOR M1003 CXM1186

AVH-P7600DVD/UC18
1234
1234
C
D
F
A
B
E
ELECTRICAL PARTS LIST
NOTE:
•Parts whose parts numbers are omitted are subject to being not supplied.
•The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
•The >mark found on some component parts indicatesthe importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Circuit Symbol and No. Part No.
Unit Number:CWN1079(UC model)
Unit Name:Tuner Selector Unit
MISCELLANEOUS
IC 1340 IC TA2050F
IC 3001 IC TC7W34FU
IC 3051 IC NJM4558MD
IC 3101 IC NJM2137V
IC 3102 IC TA2050F
IC 3103 IC TA2050F
IC 3104 IC NJM2137V
IC 3105 IC CXA2069Q
IC 3106 IC NJM2137V
IC 3107 IC NJM2137V
IC 3501 IC BA033FP
IC 3502 IC BA00BC0WFP
IC 3503 IC S-812C50AUA-C3E
IC 3504 IC BA00BC0WFP
IC 3701 IC PAL007A
IC 3702 IC OPA2134UA
IC 3703 IC NJM4558MD
IC 3704 IC BA7623F
IC 3705 IC TA2050F
Q 3010 Transistor DTA144EU
Q 3011 Transistor 2SC4081
Q 3104 Transistor 2SC4081
Q 3105 Transistor 2SC4081
Q 3107 Transistor FMG12
Q 3501 Transistor DTC124EU
Q 3502 Transistor 2SA1576
Q 3503 Transistor IMD2A
Q 3504 Transistor 2SC4081
Q 3505 Transistor IMD2A
Q 3506 Transistor DTC124EU
Q 3507 Transistor 2SB1189
Q 3508 Transistor DTC124EU
Q 3509 Transistor 2SA1797
Q 3510 Transistor 2SD2375
Q 3511 Transistor 2SD1767
GF
Q 3512 Transistor 2SD1767
Q 3513 Transistor DTA114EU
Q 3514 Transistor DTC124EU
Q 3515 Transistor 2SD2375
Q 3516 Transistor 2SD1767
Q 3701 Transistor 2SC4081
Q 3702 Transistor 2SC4081
Q 3703 Transistor 2SC4081
Q 3704 Transistor DTC124EU
Q 3705 Transistor DTC323TU
Q 3706 Transistor 2SA1576
Q 3707 Transistor FMG12
Q 3709 Transistor 2SA1576
Q 3710 Transistor DTC144EU
Q 3711 Transistor DTA114EU
D 1340 Diode UDZS5R6(B)
D 1341 Diode UDZS5R6(B)
D 1342 Diode UDZS5R6(B)
D 1343 Diode UDZS5R6(B)
D 1360 Diode HZU2R0(B)
D 1361 Diode HZU2R0(B)
D 1362 Diode UDZS12(B)
D 1365 Diode UDZS12(B)
D 3010 Diode UDZS4R7(B)
D 3101 Diode DAP202K
D 3102 Diode 1SR154-400
D 3501 Diode UDZS16(B)
D 3502 Diode 1SR154-400
D 3503 Diode 1SR154-400
D 3504 Diode 1SR154-400
D 3505 Diode UDZS8R2(B)
D 3506 Diode UDZ5R6(B)
D 3507 Diode UDZ11(B)
D 3508 Diode UDZS12(B)
D 3509 Diode UDZS16(B)
D 3701 Diode 1SR154-400
D 3702 Diode 1SR154-400
D 3703 Diode UDZ8R2(B)
D 3704 Diode DAN202U
D 3705 Diode DAN202U
D 3706 Diode UDZS3R9(B)
D 3707 Diode DAP202K
D 3708 Diode 1SS355
D 3709 Diode MA153
D 3710 Diode DAN202U
Circuit Symbol and No. Part No.

AVH-P7600DVD/UC 19
5678
5678
C
D
F
A
B
E
D 3711 Diode UDZS20(B)
D 3712 Diode DAN202U
ZNR3001 Surge Protector RCCA-201Q31UA-PI
L 1364 Inductor CTF1379
L 1390 Choke Coil 2.4mH CTH1101
L 3001 Inductor LCTAW4R7J2520
L 3002 Inductor LCTAW1R0J3225
L 3004 Inductor LCKAW1R0J2520
L 3005 Inductor-Array CTF1421
L 3006 Inductor-Array CTF1421
L 3007 Inductor-Array CTF1421
L 3008 Inductor-Array CTF1421
L 3009 Inductor-Array CTF1421
L 3101 Inductor-Array CTF1421
L 3102 Inductor-Array CTF1421
L 3103 Inductor CTF1379
L 3104 Inductor CTF1379
L 3105 Inductor CTF1379
L 3106 Inductor CTF1379
L 3702 Inductor LCKAW2R2J2520
L 3703 Inductor CTF1379
L 3704 Inductor LCYC100K2125
> FU1360 Fuse 2A CEK1257
> FU1361 Fuse 2A CEK1257
> FU3004 Fuse 4A CEK1288
> FU3501 Fuse 630mA CEK1252
> FU3502 Fuse 630mA CEK1252
> FU3701 Fuse 4A CEK1288
> FU3702 Fuse 4A CEK1288
EF3701 Filter CTF1580
FM/AMTuner Unit CWE1651
RESISTORS
R 1340 RS1/16S101J
R 1341 RS1/16S101J
R 1342 RS1/16S223J
R 1343 RS1/16S223J
R 1344 RS1/16S102J
R 1345 RS1/16S102J
R 1361 RS1/10S750J
R 3001 RS1/16S102J
R 3002 RS1/16S102J
R 3003 RS1/16S102J
R 3007 RS1/16S0R0J
R 3008 RS1/16S681J
R 3009 RS1/16S681J
R 3010 RS1/16S681J
R 3011 RS1/16S681J
R 3013 RS1/16S681J
R 3014 RS1/16S470J
R 3020 RS1/16S0R0J
R 3025 RAB4C0R0J
R 3026 RAB4C0R0J
R 3027 RAB4C0R0J
R 3028 RS1/16S820J
R 3029 RS1/16S0R0J
R 3030 RS1/16S0R0J
R 3031 RS1/16S0R0J
Circuit Symbol and No. Part No.
R 3033 RS1/16S0R0J
R 3034 RS1/16S0R0J
R 3035 RS1/16S0R0J
R 3036 RS1/16S104J
R 3037 RS1/16S104J
R 3039 RS1/16S0R0J
R 3040 RS1/16S0R0J
R 3051 RS1/16S823J
R 3052 RS1/16S823J
R 3053 RS1/16S123J
R 3054 RS1/16S123J
R 3055 RS1/16S823J
R 3056 RS1/16S823J
R 3057 RS1/16S104J
R 3058 RS1/16S104J
R 3059 RS1/16S0R0J
R 3060 RS1/16S0R0J
R 3063 RS1/16S123J
R 3064 RS1/16S123J
R 3101 RS1/16S101J
R 3103 RS1/16S152J
R 3104 RS1/16S152J
R 3105 RS1/16S152J
R 3106 RS1/16S152J
R 3107 RS1/16S101J
R 3109 RS1/16S473J
R 3110 RS1/16S473J
R 3111 RS1/16S102J
R 3112 RS1/16S102J
R 3113 RS1/16S223J
R 3114 RS1/16S223J
R 3115 RS1/16S102J
R 3116 RS1/16S102J
R 3117 RS1/16S102J
R 3118 RS1/16S102J
R 3119 RS1/16S473J
R 3120 RS1/16S473J
R 3121 RS1/16S102J
R 3122 RS1/16S102J
R 3123 RS1/16S750J
R 3124 RS1/16S0R0J
R 3125 RS1/16S332J
R 3126 RS1/16S332J
R 3127 RS1/16S332J
R 3128 RS1/16S332J
R 3129 RS1/16S101J
R 3130 RS1/16S473J
R 3131 RS1/16S473J
R 3133 RS1/16S820J
R 3135 RS1/16S101J
R 3136 RS1/16S102J
R 3137 RS1/16S474J
R 3138 RS1/16S0R0J
R 3139 RS1/16S0R0J
R 3140 RS1/16S474J
R 3141 RS1/16S622J
R 3143 RS1/16S474J
R 3144 RS1/16S622J
Circuit Symbol and No. Part No.

AVH-P7600DVD/UC20
1234
1234
C
D
F
A
B
E
R 3145 RS1/16S622J
R 3146 RS1/16S474J
R 3147 RS1/16S622J
R 3148 RS1/16S474J
R 3149 RS1/16S474J
R 3150 RS1/16S474J
R 3151 RS1/16S474J
R 3152 RS1/16S474J
R 3153 RS1/16S622J
R 3154 RS1/16S622J
R 3155 RS1/16S474J
R 3156 RS1/16S474J
R 3157 RS1/16S622J
R 3159 RS1/16S622J
R 3160 RS1/16S474J
R 3161 RS1/16S474J
R 3162 RS1/16S470J
R 3163 RS1/16S470J
R 3164 RS1/16S392J
R 3165 RS1/16S682J
R 3166 RS1/16S101J
R 3167 RS1/16S102J
R 3168 RS1/16S152J
R 3169 RS1/16S152J
R 3170 RS1/16S152J
R 3171 RS1/16S152J
R 3172 RS1/16S151J
R 3173 RS1/16S151J
R 3174 RS1/16S682J
R 3175 RS1/16S392J
R 3176 RS1/16S101J
R 3177 RS1/16S102J
R 3178 RS1/16S152J
R 3179 RS1/16S152J
R 3180 RS1/16S152J
R 3181 RS1/16S152J
R 3182 RS1/16S151J
R 3183 RS1/16S151J
R 3184 RS1/16S102J
R 3185 RS1/16S622J
R 3186 RS1/16S622J
R 3187 RS1/16S622J
R 3189 RS1/16S622J
R 3190 RS1/16S622J
R 3191 RS1/16S0R0J
R 3195 RS1/16S821J
R 3196 RS1/16S821J
R 3501 RS1/16S102J
R 3503 RS1/16S562J
R 3504 RS1/16S332J
R 3510 RS1/16S102J
R 3511 RS1/16S471J
R 3512 RS1/16S102J
R 3513 RS1/16S681J
R 3514 RS1/16S223J
R 3515 RS1/16S1R0J
R 3516 RS1/16S681J
R 3518 RAB4C331J
Circuit Symbol and No. Part No.
R 3519 RAB4C221J
R 3520 RS1/16S391J
R 3521 RS1/16S223J
R 3523 RS1/16S102J
R 3524 RS1/16S0R0J
R 3525 RS1/16S473J
R 3526 RS1/16S102J
R 3527 RS1/16S223J
R 3528 RS1/16S274J
R 3529 RS1/16S0R0J
R 3530 RS1/16S102J
R 3531 RS1/16S1R0J
R 3532 RAB4C121J
R 3533 RS1/16S333J
R 3534 RS1/16S472J
R 3535 RS1/16S224J
R 3701 RS1/16S224J
R 3702 RS1/16S224J
R 3703 RS1/16S103J
R 3704 RS1/16S472J
R 3705 RS1/16S103J
R 3706 RS1/16S103J
R 3708 RS1/16S224J
R 3709 RS1/16S223J
R 3710 RS1/16S473J
R 3711 RS1/16S103J
R 3712 RS1/16S103J
R 3713 RS1/16S331J
R 3714 RS1/16S0R0J
R 3716 RS1/16S223J
R 3717 RS1/16S223J
R 3718 RS1/16S223J
R 3719 RS1/16S223J
R 3720 RS1/16S223J
R 3721 RS1/16S223J
R 3722 RS1/16S223J
R 3723 RS1/16S104J
R 3724 RS1/16S104J
R 3725 RS1/16S473J
R 3726 RS1/16S471J
R 3727 RS1/16S104J
R 3728 RS1/16S561J
R 3729 RS1/16S222J
R 3730 RS1/16S104J
R 3731 RS1/16S471J
R 3732 RS1/16S102J
R 3733 RS1/16S151J
R 3735 RS1/16S151J
R 3736 RS1/16S151J
R 3737 RS1/16S103J
R 3738 RS1/16S103J
R 3739 RS1/16S821J
R 3740 RS1/16S821J
R 3741 RS1/16S223J
R 3742 RS1/16S223J
R 3743 RS1/16S103J
R 3744 RS1/16S103J
R 3745 RS1/16S103J
R 3746 RS1/16S103J
Circuit Symbol and No. Part No.
