Pioneer KEH-P7950 ES User manual

Multi-CD/DAB control High power cassette player
with FM/AM tuner
Operation Manual
KEH-P7950
ENGLISH ESPAÑOL
PORTUGUÊS (B)
FRANÇAIS ITALIANO NEDERLANDS

1
Contents
Key Finder .................................................... 3
-Head Unit
-Remote Controller
Before Using This Product ...................... 4
About This Manual ............................................ 4
About the Demo Mode ...................................... 4
-Reverse Demo
-Feature Demo
Precaution .......................................................... 5
When using the 50-Disc Type
Multi-CD Player ........................................ 5
Remote Controller and Care .................... 6
Using the Remote Controller ............................ 6
-Switching the Mode
Batteries ............................................................ 6
Basic Operation ........................................ 7
To Listen to Music ............................................ 7
Basic Operation of Cassette Player .................. 9
-Open
-Direction Change
-Fast Forward/Rewind and Music Search
-Cassette Loading Slot
-Eject
Basic Operation of Tuner ................................ 11
-Manual and Seek Tuning
-Preset Tuning
-Band
Basic Operation of Multi-CD Player .............. 12
-Track Search and Fast Forward/Reverse
-Disc Search
-Disc Number Search
(for 6-Disc, 12-Disc types)
Corresponding Display Indications and
Buttons .................................................... 13
Entering the Function Menu ............................ 13
Function Menu Functions ................................ 14
Entering the Detailed Setting Menu ................ 15
Detailed Setting Menu Functions .................... 16
Tuner Operation ...................................... 17
-Local Seek Tuning (LOCAL)
-Best Stations Memory (BSM)
Using the Cassette Player ...................... 18
-Repeat Play (RPT)
-Blank Skip (B.S)
-Radio Intercept (R.INT)
-Dolby B NR (B NR)
Using Multi-CD Players .......................... 20
-Repeat Play (PMODE)
-Random Play (RDM)
-Scan Play (SCAN)
-Pause (PAUSE)
ITS (Instant Track Selection) .......................... 22
-ITS Programming (ITS)
-ITS Play (ITS-P)
-Erase a Track Program
-Erase a Disc Program
Disc Title ........................................................ 24
-Disc Title Input (TITLE)
-Selecting Discs by Disc Title List
(T.LIST)
-Displaying Disc Title
Compression and DBE (COMP) .................... 26
-COMP/DBE ON/OFF Switching
CD TEXT Function (for CD TEXT
compatible type) ...................................... 27
-Title Display Switching
-Title Scroll

Audio Adjustment .................................... 28
Selecting the Equalizer Curve ........................ 28
Entering the Audio Menu ................................ 28
Audio Menu Functions .................................... 29
-Balance Adjustment (Fad)
-Equalizer Curve Adjustment
(EQ-Low/Mid/High)
-Equalizer Curve Fine Adjustment
-Loudness Adjustment (Loud)
-Subwoofer Output (Sub-W1)
-Subwoofer Setting Adjustment (Sub-W2)
-Non Fading Output (NonFad)
-Non Fading Output Level Adjustment
(NonFad)
-High Pass Filter (HPF)
-Front Image Enhancer Function (FIE)
-Source Level Adjustment (SLA)
Detaching and Replacing the
Front Panel .......................................... 36
Theft Protection .............................................. 36
-Detaching the Front Panel
-Replacing the Front Panel
-Warning Tone
Initial Setting ............................................ 37
Entering the Initial Setting Menu .................... 37
Initial Setting Menu Functions ........................ 38
-Setting the Time (CLOCK)
-Setting the FM Tuning Step (FM)
-Setting the AM Tuning Step (AM)
-Setting the Warning Tone (WARN)
-Switching the AUX Mode (AUX)
-Setting the Dimmer (DIM)
-Selecting the Brightness (BRIGHT)
-Setting the Rear Speaker Lead and
Subwoofer Controller (SW)
-Switching the Muting or Handsfree
Telephoning (TEL 1)
-Switching the Telephone Standby (TEL 2)
-Switching the Motion Screen (DISP)
DFS Alarm Function ................................ 43
Activating the DFS Alarm Feature
(ALARM) ................................................ 43
Setting Entry Delay Time (DELAY) .............. 43
Activating Internal Speaker ON/OFF (SP) ...... 44
-Speaker Volume Output Adjustment
(T.VOL)
Selecting Door Switching Systems
(DOOR) .................................................... 45
-Door System Confirmation
Operation of “DFS Alarm” ............................ 46
Arming Alarm ................................................ 46
Disarming Alarm ............................................ 46
Entry Detection .............................................. 46
Other Functions ........................................ 47
Displaying the Time ........................................ 47
Switching the Entertainment Display .............. 47
Using the PGM Button (PGM) ........................ 48
-Setting the PGM Button
-Using the PGM Button
Using the AUX Source .................................... 49
-Selecting the AUX Source
-AUX Title Input (TITLE)
Using the Telephone Muting and Handsfree
Telephoning Function .............................. 50
-Telephone Muting Function
-Handsfree Telephoning Function
Cassette Player and Care ...................... 51
Precaution ........................................................ 51
-About the Cassette Player
-About Cassette Tapes
Cleaning the Head .......................................... 51
Specifications .......................................... 52
2
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

3

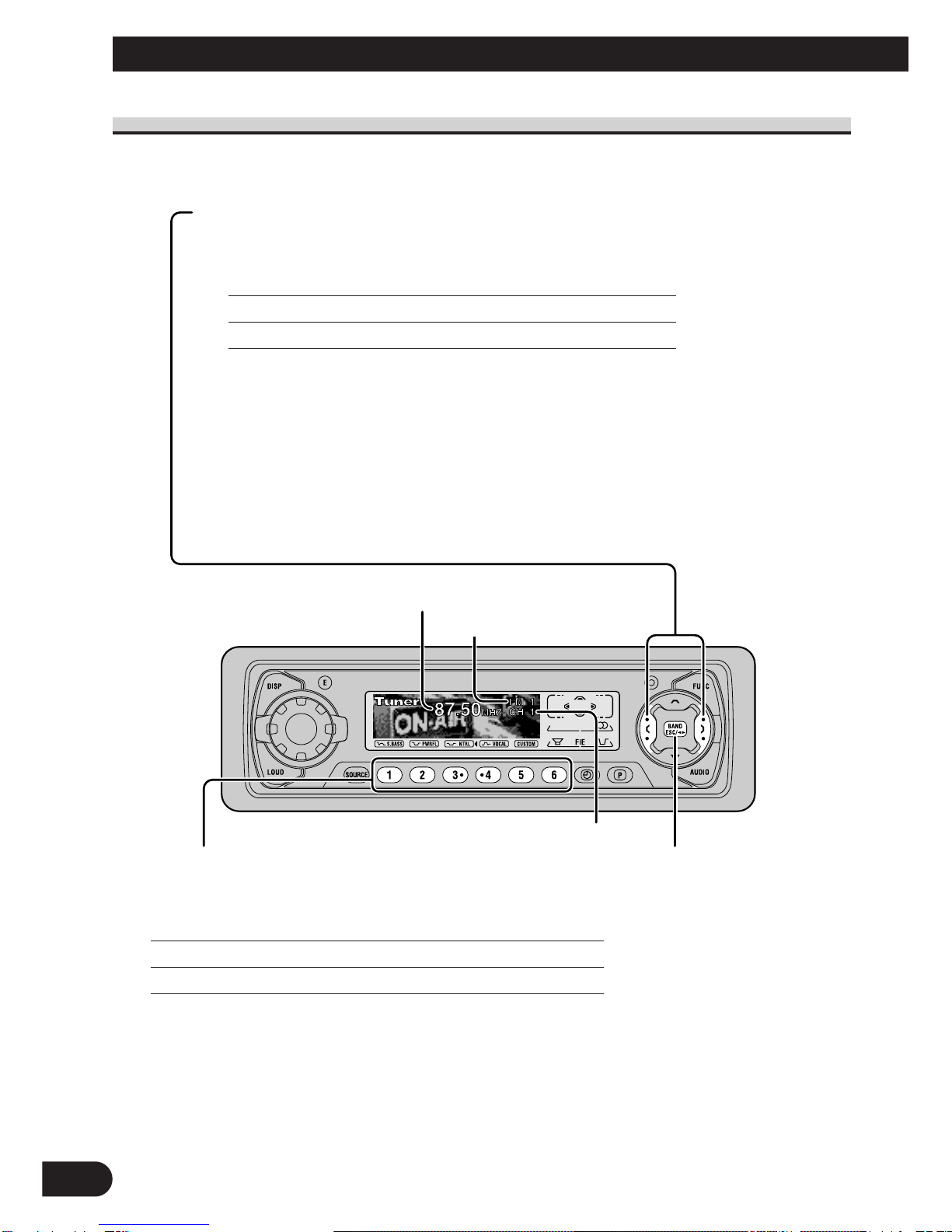

Key Finder
Head Unit
Remote Controller
A remote controller that enables remote operation of the head unit is supplied. Operation is
the same as when using buttons on the head unit.
DISPLAY button FUNCTION button
VOLUME
Buttons 1-6 AUDIO button
LOUD button SOURCE/OFF button
EQ selector
CLOCK button
PGM button
OPEN button
ENTERTAINMENT button
BAND button
5/∞/2/3button
FUNCTION button
2/3buttons
SOURCE/OFF button
5/∞buttons
AUDIO button
+/– button
Raise or lower
the bolume
BAND button
ATT button
This lets you quickly lower volume level (by about 90%).
Press once more to return to the original volume level.
PGM button

Before Using This Product
4
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
About This Manual
This product features a number of sophisticated functions ensuring superior reception and
operation. All are designed for the easiest possible use, but many are not self-explanatory.
This operation manual is intended to help you benefit fully from their potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself with the functions and their operation by
reading through the manual before you begin using this product. It is especially important
that you read and observe the “Precaution” on the next page and in other sections.
This manual explains head unit operation. You can perform the same operations with the
remote controller. The remote controller offers the convenience of ATT, a function not
provided on the head unit.
About the Demo Mode
This product features two demonstration modes. One is the Reverse Demo mode, the other
is the Feature Demo mode.
Reverse Demo
If you do not perform an operation within about 30 seconds, screen indications start to
reverse, and then continue reversing every 10 seconds. Pressing button 5 when power to
this product is switched OFF while the ignition switch is set to ACC or ON cancels the
Reverse Demo mode. Pressing button 5 again to start the Reverse Mode.
Feature Demo
The Feature Demo automatically starts when power to this product is switched OFF while
the ignition switch is set to ACC or ON. Pressing button 6 during Feature Demo operation
cancels the Feature Demo mode. Pressing button 6 again to start the Feature Mode.
Remember that if the Feature Demo continues operating when the car engine is switched
OFF, it may drain battery power.
Note:
• You cannot cancel a Demo mode when the front panel is open.
• The red lead (ACC) of this product should be connected to a terminal coupled with ignition switch
ON/OFF operations. If this is not done, the vehicle battery may be drained.

5
Before Using This Product
Precaution
• Keep this manual handy as a reference for operating procedures and precautions.
• Always keep the volume low enough for outside sounds to be audible.
• Protect the product from moisture.
• If the battery is disconnected, the preset memory will be erased and must be repro-
grammed.
• Should this product fail to operate properly, contact your dealer or nearest authorized
Pioneer Service Station.
When using the 50-Disc Type Multi-CD Player
The available functions of the 50-Disc Type Multi-CD Player are described in this
Operation Manual. Note that other 50-Disc Type Multi-CD Player functions cannnot be
used with this product.

Remote Controller and Care
Using the Remote Controller
This product is equipped with a remote controller for convenient operation.
• Point the controller in the direction of the front panel to operate.
• When the controller is not in use, attach it firmly to the provided Mounting base.
Precaution:
• Do not store the remote controller in high temperatures or direct sunlight.
• The controller may not function properly in direct sunlight.
• Do not let the remote controller fall onto the floor, where it may become jammed under the brake or
accelerator pedal.
Switching the Mode
When the head unit is connected to a DSP, change the remote controller setting. While
pressing the BAND button, press the FUNCTION button on the remote controller to
change to the ADD ON DSP mode. To return to the previous mode, press the AUDIO but-
ton while pressing the BAND button on the remote controller.
Precaution:
• If you do not connect a DSP to the head unit, do not switch to the ADD ON DSP mode. If you do,
correct operation will not be possible.
• Reset the remote controller when you change batteries.

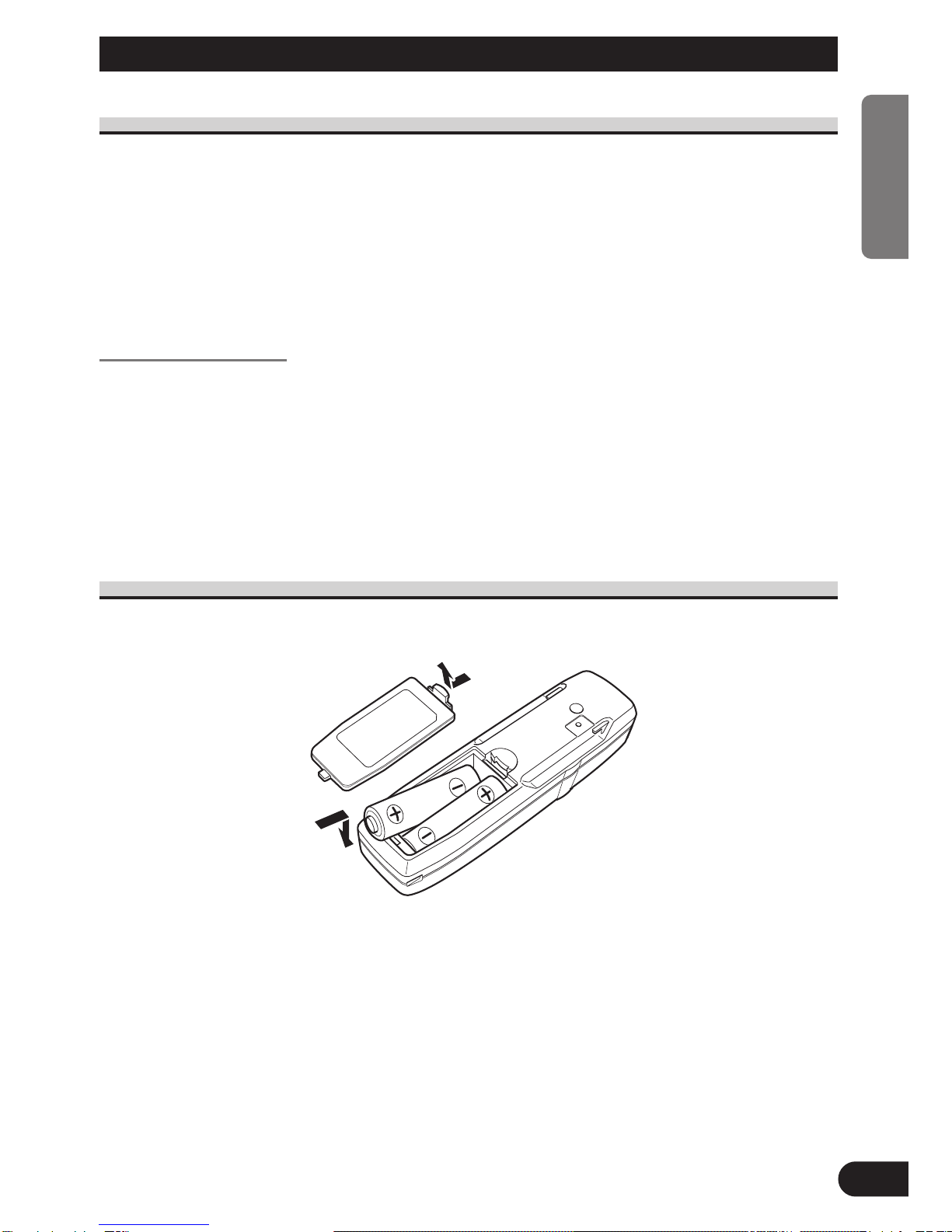

Batteries
• Remove the cover on the back of the remote controller and insert the batter-
ies with the (+) and (–) poles pointing in the proper direction.
Precaution:
• Use only AAA or IEC R03 1.5 V batteries.
• Remove the batteries if the remote controller is not used for a month or longer.
• Do not attempt to recharge the supplied batteries.
• Do not mix new and used batteries.
• If the event of battery leakage, wipe the remote controller completely clean and install new batter-
ies.
6
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

7
Basic Operation
To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a cassette in this product. (Refer to page 9.)
1. Select the desired source. (e.g. Tuner)
Each press of the SOURCE/OFF button selects the desired source in the following order:
CD player (one disc only) = TV = Tuner =DAB (Digital Audio Broadcasting) Tuner
=Tape =Multi-CD player =External Unit 1 =External Unit 2 =AUX =Telephone
standby
Note:
• External Unit refers to a Pioneer product (such as one available in the future) that, although incom-
patible as a source, enables control of basic functions by this product. Two External Units can be
controlled by this product, although “External” is displayed whether you select External Unit 1 or
External Unit 2. When two External Units are connected, the allocation of them to External Unit 1
or External Unit 2 is automatically set by this product.
• In the following cases, the sound source will not change:
* When a product corresponding to each source is not connected to this product.
* When no tape is set in this product.
* When no magazine is set in the Multi-CD player.
* When the AUX (external input) is set to OFF. (Refer to page 39.)
* When the Telephone standby is set to OFF. (Refer to page 42.)
• When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal,
the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna,
switch the source OFF.
2. Extend the VOLUME forward.
When you press the VOLUME, it extends forward so that it becomes easier to roll. To
retract the VOLUME, press it again.
Each press changes the Source ...

8
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
3. Raise or lower the volume.
Rolling the VOLUME changes the volume level.
Note:
• Roll clockwise to raise the volume level.
• Roll counterclockwise to lower the volume level.
4. Turn the source OFF.
Hold for 1 second

9
Basic Operation
Basic Operation of Cassette Player
Note:
• Be sure to close the front panel after loading or ejecting a cassette.
Switching the Display
Each press of the DISPLAY button changes the
display in the following order:
Playback mode A (Play time) =Playback
mode B
Play Time Indicator
Note:
• The continuous playback time count starts at “00 min 00 sec” at
the following times.
* When a tape is inserted.
* When the tape direction is changed.
* When you rewind the tape side currently playing back to the
beginning.
• The continuous playback time count is halted when
fast-forwarding/rewinding and while the Music Search function
is operating.
Direction Change
Open
Note:
• Use to open the front
panel when loading or
ejecting a cassette. (The
illustration on the right
shows the front panel
open.)
Direction Indicator

10
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Precaution:
• To avoid a malfunction, make sure that no metal object comes
into contact with the terminals when the front panel is open.
Eject
Note:
• The Tape function can be turned
ON/OFF with the cassette tape
remaining in this product. (Refer
to page 7.)
Fast Forward/Rewind and Music Search
• Each press of the 3button selects Fast Forward or Forward-
Music Search.
FF (Fast Forward) =F-MS (Forward-Music Search) =Normal Playback
• Each press of the 2button selects Rewind or Rewind-Music
Search.
REW (Rewind) =R-MS (Rewind-Music Search) =Normal Playback
Note:
• Fast Forward/Rewind and Music Search can be canceled by pressing the BAND but-
ton.

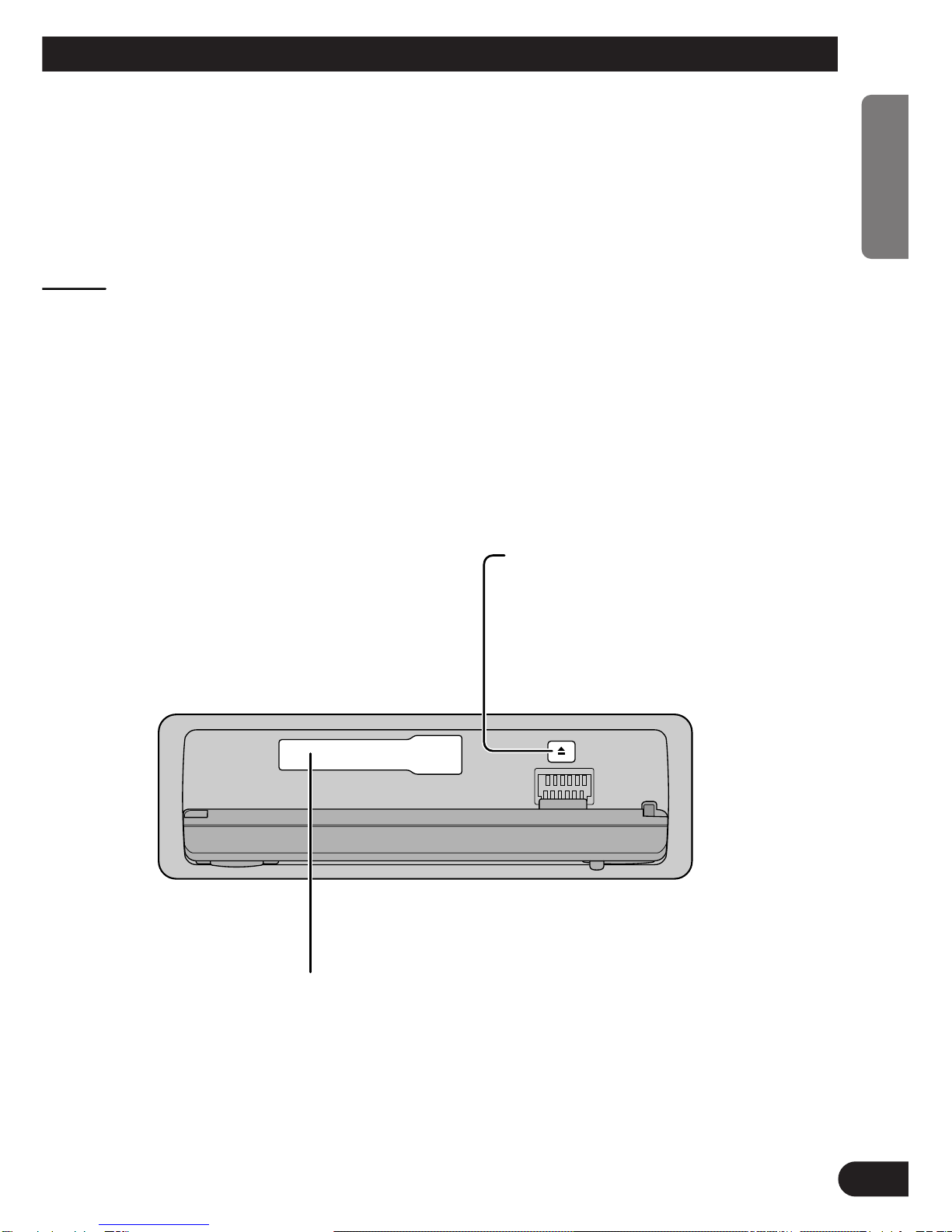

Cassette Loading Slot
Note:
• “Metal” appears automatically when a metal or
chrome tape is inserted. Nothing is displayed for
a normal tape.

11
Basic Operation
Basic Operation of Tuner
Reset the AM tuning step from 9 kHz (the factory preset step) to 10 kHz when using the
tuner in North, Central or South America. (Refer to page 39.)
Manual and Seek Tuning
• You can select the tuning method by changing the length of
time you press the 2/3button.
Manual Tuning (step by step) 0.5 seconds or less
Seek Tuning 0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can skip
broadcasting stations. Seek Tuning starts as soon as you release the button.
• Stereo indicator “” lights when a stereo station is selected.
Preset Tuning
• You can memorize broadcast stations in buttons
1 through 6 for easy, one-touch station recall.
Preset station recall 2 seconds or less
Broadcast station preset memory 2 seconds or more
Note:
• Up to 18 FM stations (6 in FM 1, FM 2 and FM 3) and 6 AM
stations can be stored in memory.
• You can also use the 5or ∞buttons to recall broadcast sta-
tions memorized in buttons 1 through 6.
Preset Number Indicator
Band
FM 1 =FM 2
=FM 3 =AM
Band Indicator
Frequency Indicator

Basic Operation of Multi-CD Player
This product can control a Multi-CD player (sold separately).
12
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Track Search and Fast Forward/Reverse
• You can select between Track Search or Fast
Forward/Reverse by pressing the 2/3button
for a different length of time.
Track Search 0.5 seconds or less
Fast Forward/Reverse Continue pressing
Play Time Indicator
Track Number Indicator
Disc Search
Disc Number Indicator
Disc Number Search (for 6-Disc, 12-Disc types)
• You can select discs directly with the 1 to 6 buttons. Just press the num-
ber corresponding to the disc you want to listen to.
Note:
• When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1
to 6 buttons for 2 seconds or longer.
Note:
• The Multi-CD player may perform a preparatory operation, such as verifying the presence of a
disc or reading disc information, when the power is turned ON or a new disc is selected for
playback. “Ready” is displayed.
• If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is dis-
played. Refer to the Multi-CD player owner’s manual.
• If there are no discs in the Multi-CD player magazine, “NO DISC” is displayed.

13
Basic Operation

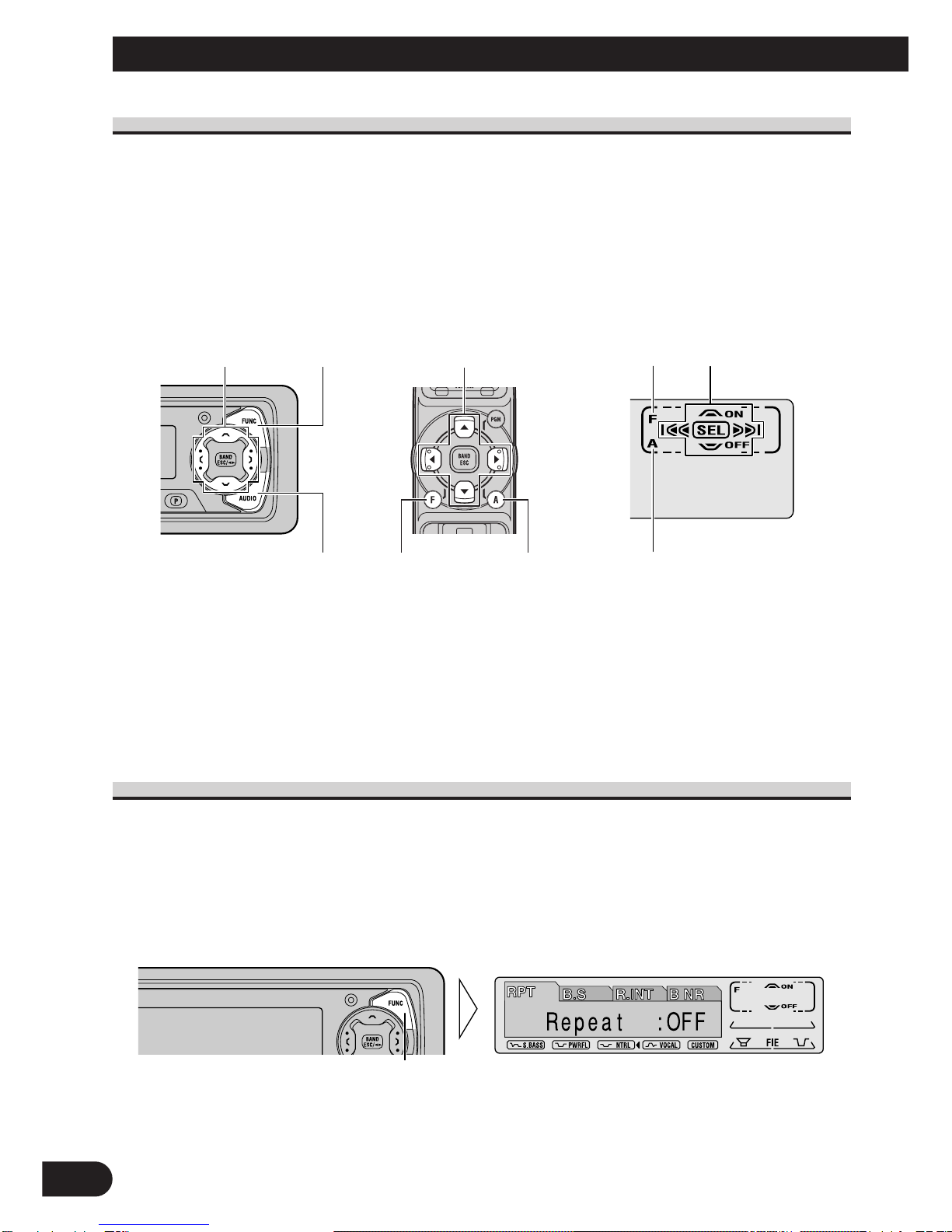

Corresponding Display Indications and Buttons
This product’s display features Key Guidance Indicators. These light to indicate which of
the 5/∞/2/3, FUNCTION and AUDIO buttons you can use. When you’re in the
Function Menu (refer to next section), Detailed Setting Menu (refer to page 15), Initial
Setting Menu (refer to page 37) or Audio Menu (refer to page 28), they also make it easy
to see which 5/∞/2/3buttons you can use to switch functions ON/OFF, switch repeat
selections and perform other operations.
Indicator and corresponding buttons are shown below.
7Head Unit 7Remote Controller 7Display
When 1is lit in the display, perform appropriate operations with the zbuttons.
When 2is lit in the display, it indicates that you are in the Function Menu, Detailed
Setting Menu or Initial Setting Menu. You can switch between each of these menus and
between different modes in the menus using button xon the head unit or remote con-
troller.
When 3is lit in the display, it indicates you are in the Audio Menu. You can switch
between modes in the Audio Menu using button con the head unit or remote controller.
Entering the Function Menu
The Function Menu lets you operate simple functions for each source.
Note:
• After entering the Function Menu, if you do not perform an operation within about 30 seconds, the
Function Menu is automatically canceled.
1. Select the desired mode in the Function Menu. (Refer to next section,
“Function Menu Functions”.)
Each press changes the Mode ...
xz
c
z
c
x
12
3

14
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
2. Operate a mode. (e.g. Repeat Play)
3. Cancel the Function Menu.
Function Menu Functions
The following chart shows functions for each source in the Function Menu. The chart also
shows indications for each function, operations and buttons used to perform operations.
For more details, or when you want to know about an operation, refer to the page number
indicated in the chart.
7Tuner
Function name (Display) Button: Operation Page
Best Stations Memory (BSM) 5: ON 17
∞: OFF
Local Seek Tuning (LOCAL) 1 5: ON 17
3∞: OFF
2 2or 3: Select (Sensitivity)
7Cassette Player
Function name (Display) Button: Operation Page
Repeat Play (RPT) 5: ON 18
∞: OFF
Blank Skip (B.S) 5: ON 18
∞: OFF
Radio Intercept (R.INT) 5: ON 19
∞: OFF
Dolby B NR (B NR) 5: ON 19
∞: OFF
The button used and the operation it performs are
indicated by the key guidance indicator. Press the
5button to switch the key guidance indicator ON,
and the ∞button to switch it OFF.

15
Basic Operation
7Multi-CD Player
Function name (Display) Button: Operation Page
Repeat Play (PMODE) 2or 3: Select (Play range) 20
Selecting Discs by Disc Title List 1 2or 3: Select (Disc Title) 25
(T.LIST) 2 5: Play
Random Play (RDM) 5: ON 20
∞: OFF
Scan Play (SCAN) 5: ON 21
∞: OFF
ITS Play (ITS-P) 5: ON 22
∞: OFF
Pause (PAUSE) 5: ON 21
∞: OFF
Compression and DBE 5or ∞: Select 26
(COMP) (Sound Quality Function)
Entering the Detailed Setting Menu
In the Detailed Setting Menu, you can operate convenient, complex functions for each
source.
1. Enter the Detailed Setting Menu.
2. Select the desired mode. (Refer to next section, “Detailed Setting Menu
Functions”.)
Each press changes the Mode ...
Hold for 2 seconds

16
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
3. Operate a mode.
4. Cancel the Detailed Setting Menu.
Note:
• You can cancel the Detailed Setting Menu by pressing the FUNCTION button again for 2 seconds.
Detailed Setting Menu Functions
The following chart shows functions for each source in the Detailed Setting Menu. The
chart also shows indications for each function, operations and buttons used to perform
operations. For more details, or when you want to know about an operation, refer to the
page number indicated in the chart.
7Tuner
Function name (Display) Button: Operation Page
Program Function (PGM) 1 2or 3: Select (Function) 48
2 5: Memory
7Cassette Player
Function name (Display) Button: Operation Page
Program Function (PGM) 1 2or 3: Select (Function) 48
2 5: Memory
7Multi-CD Player
Function name (Display) Button: Operation Page
Disc Title Input (TITLE) 1 5or ∞: Select (Letter) 24
2 2or 3: Select (Position)
3 3: Memory
ITS Programming (ITS) 5: Memory 22
Program Function (PGM) 1 2or 3: Select (Function) 48
2 5: Memory

17
Tuner Operation

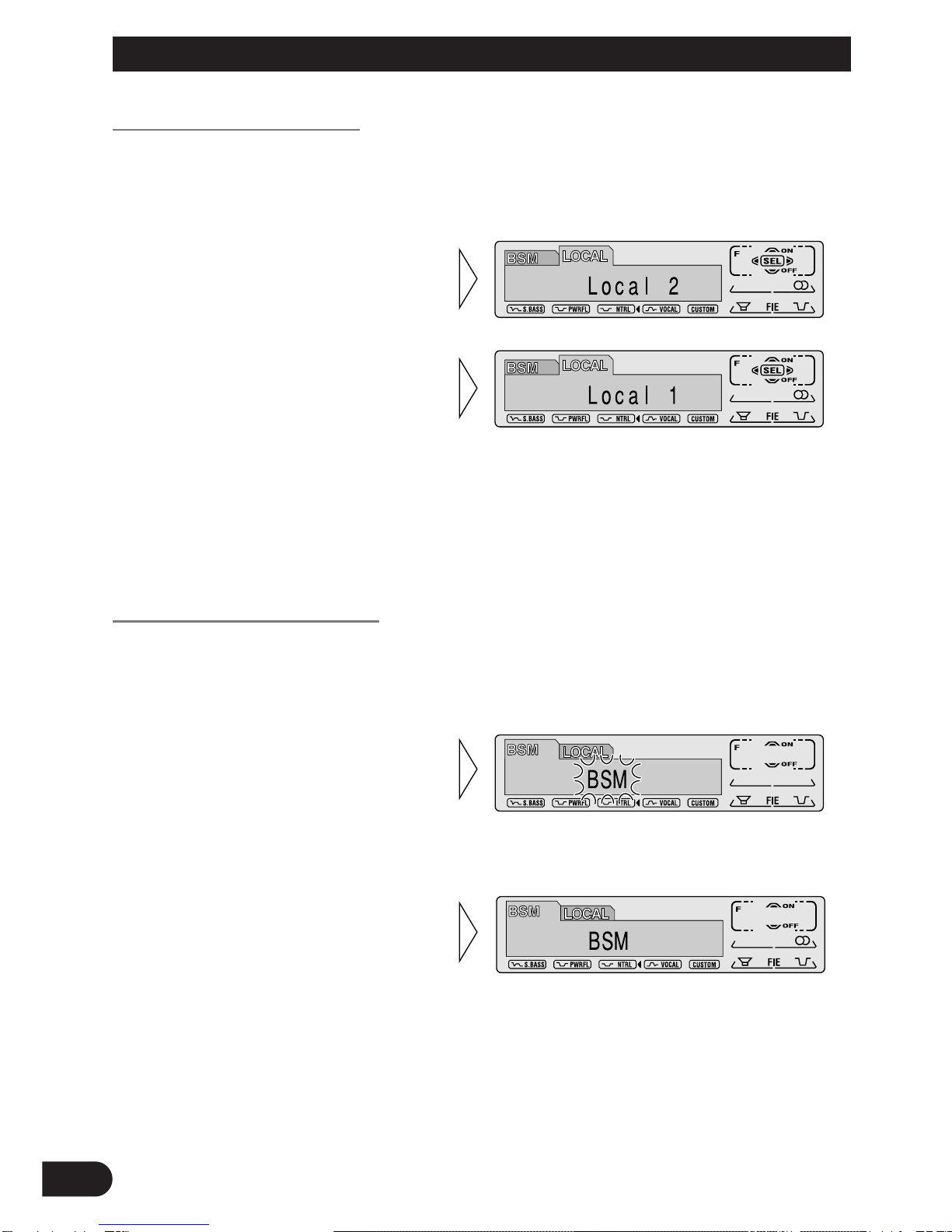

Local Seek Tuning (LOCAL)
When Local is ON, you can only select broadcast stations providing strong reception.
1. Press the FUNCTION button and select the Local mode (LOCAL) in the
Function Menu.
FM : Local 1 ÔLocal 2 ÔLocal 3 ÔLocal 4
AM : Local 1 ÔLocal 2
Note:
• The Local 4 setting allows reception of only the strongest stations, while lower settings let you
receive progressively weaker stations.
Best Stations Memory (BSM)
The BSM function stores stations in memory automatically.
1. Press the FUNCTION button and select the BSM mode (BSM) in the
Function Menu.
• To cancel the process, press
the ∞button in the Function
Menu before memorization is
complete.
2. Switch the BSM ON with the
5button.
The stations with the strongest sig-
nals will be stored under buttons
1–6 and in order of their signal
strength.
3. Select the desired Local Seek
sensitivity with the 2/3but-
tons.
2. Switch the Local ON/OFF
with the 5/∞buttons.

18
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Using the Cassette Player

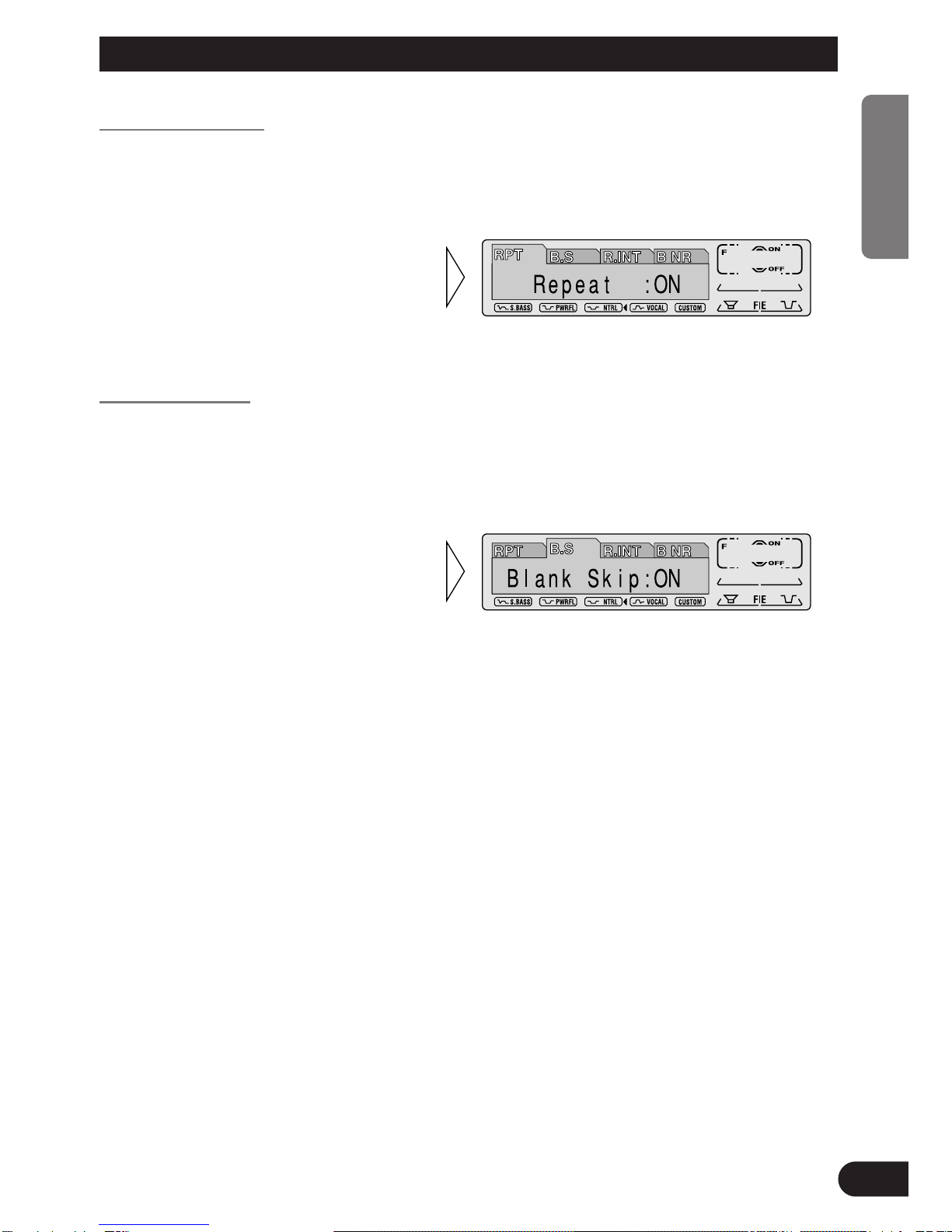

Repeat Play (RPT)
The repeat play lets you hear the same song over again.
1. Press the FUNCTION button and select the Repeat mode (RPT) in the
Function Menu.
Blank Skip (B.S)
This function fast-forwards to the next song automatically if there is a long period of
silence (12 seconds or longer) between songs.
1. Press the FUNCTION button and select the Blank Skip mode (B.S) in the
Function Menu.
2. Switch the Blank Skip
ON/OFF with the 5/∞but-
tons.
2. Switch the Repeat Play
ON/OFF with the 5/∞but-
tons.

19
Using the Cassette Player
Radio Intercept (R.INT)
This function allows you to listen to the radio during tape fast-forwarding/rewinding.
Note:
• The radio intercept function does not work during a Music Search operation.
1. Press the FUNCTION button and select the Radio Intercept mode (R.INT) in
the Function Menu.
Dolby B NR (B NR)
Switch to the Dolby B NR on when listening to a cassette recorded with Dolby B NR.
1. Press the FUNCTION button and select the Dolby B NR mode (B NR) in the
Function Menu.
Note:
• Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
2. Switch the Dolby B NR
ON/OFF with the 5/∞but-
tons.
2. Switch the Radio Intercept
ON/OFF with the 5/∞but-
tons.
