Pioneer SPH-DA120 User manual

Operation Manual
Smartphone Receiver
SPH-DA120
Be sure to read Important Information for the User
first!
Important Information for the User includes the
important information that you must understand before
using this product.
English

Thank you for buying this Pioneer product.
Please read through these instructions so you will know how to operate your model
properly. After you have finished reading the instructions, keep this document in a
safe place for future reference.
Important
The screens shown in the examples may differ
from actual screens, which may be changed
without notice for performance and function
improvements.
Introduction
Manual overview 7
–How to use this manual 7
–Conventions used in this manual 7
–Terms used in this manual 7
Notes on internal memory 7
–Before removing the vehicle battery 7
–Data subject to erasure 7
Basic operation

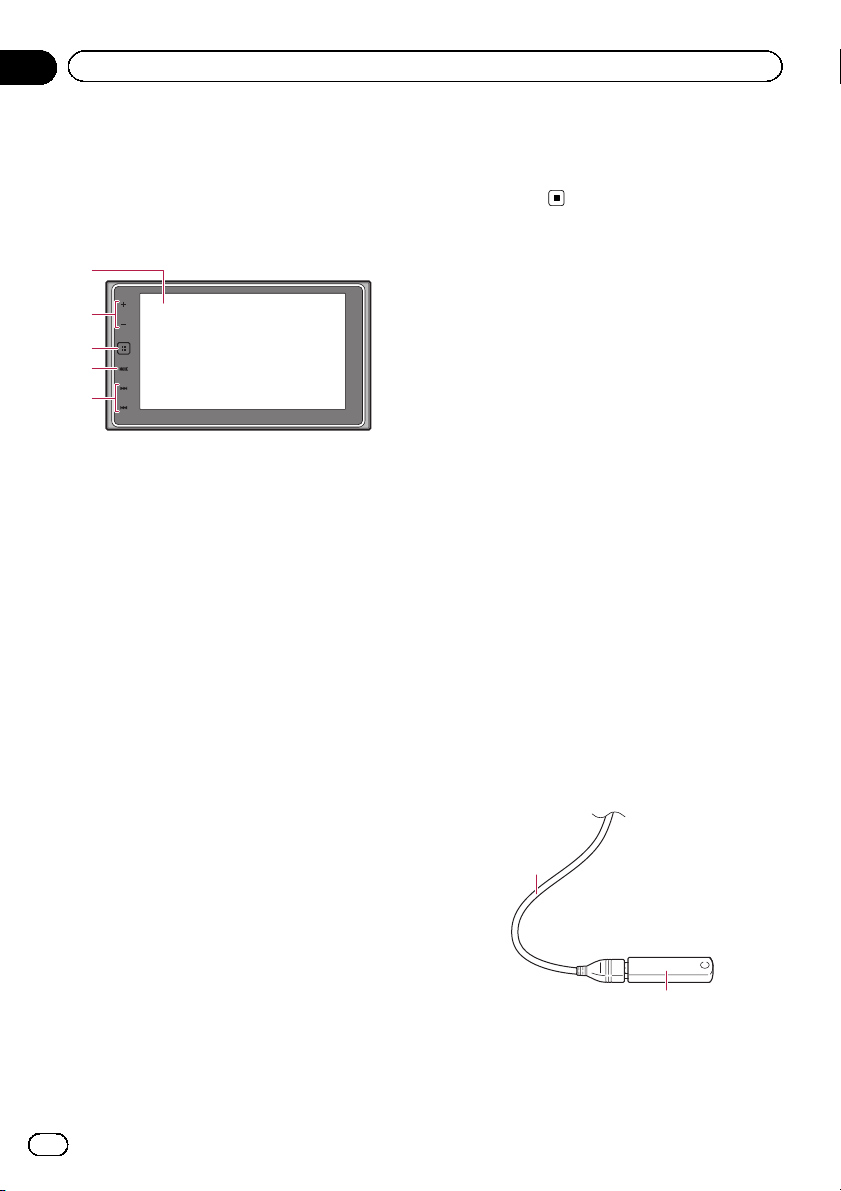

Checking part names and functions 8
Connecting media 8
–Connecting and disconnecting an
iPod 8
–Plugging and unplugging a USB
storage device 8
Startup and termination 9
On first-time startup 9
Regular startup 9
Turning off the display 9
–When the application screen is
available 9
–When the application screen is not
available 9

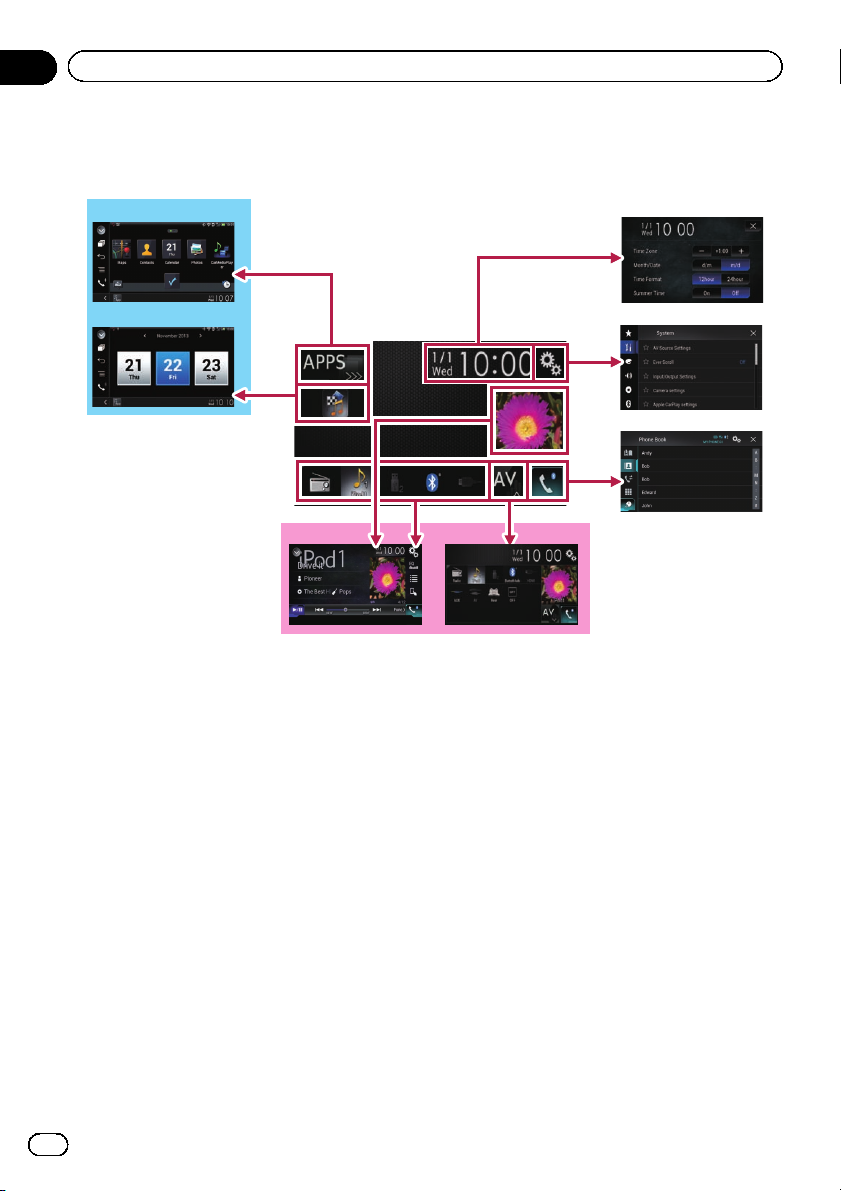

How to use the screens 10
–Switching screens using the touch
panel keys 10
–Switching screens using the
buttons 11
Supported AV source 11
Displaying the AV operation screen 12
–Selecting a front source on the AV
source selection screen 12
–Selecting a front source on the source
list 12
–Selecting a rear source 13
Turning off the AV source 13
Changing the display order of source
icons 13
Changing the display order of source
keys 13
Using the touch panel 14
–Using the common touch panel
keys 14
–Operating list screens 14
–Operating the time bar 14

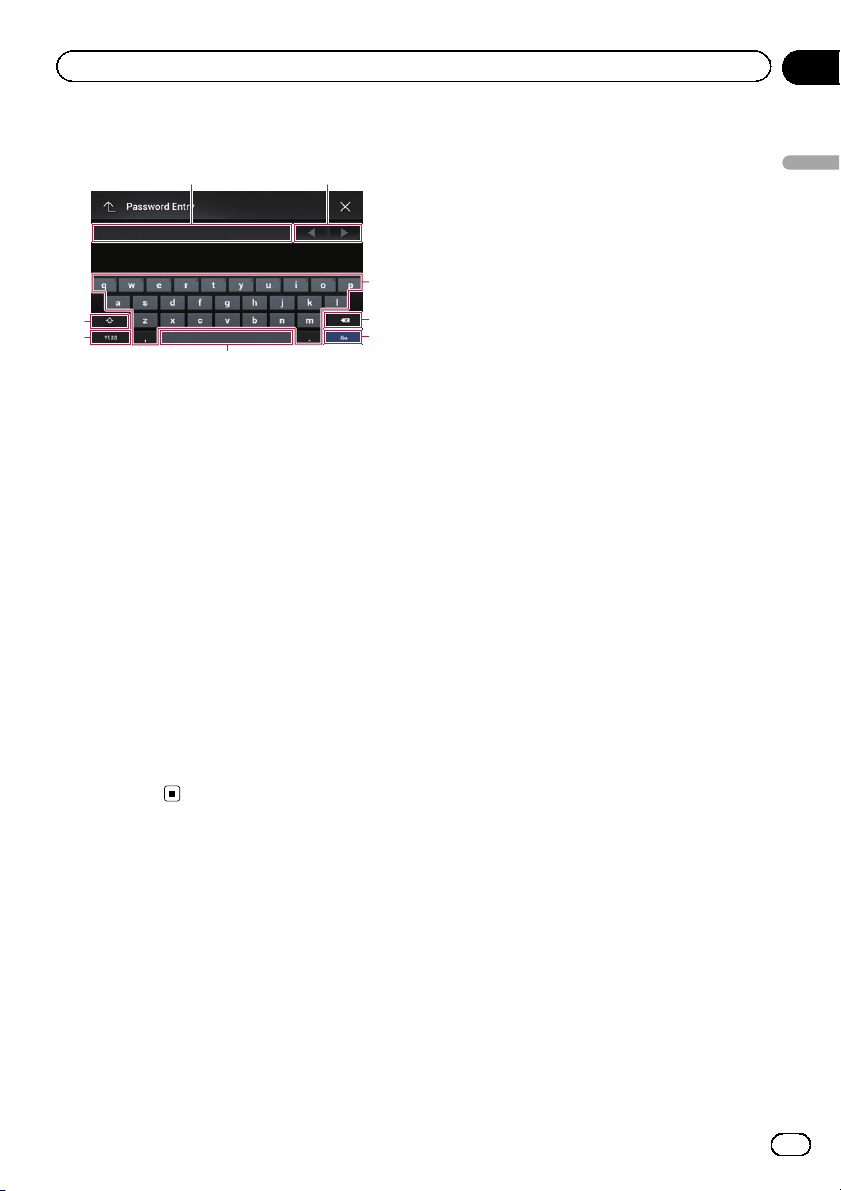

–Operating the on-screen keyboard 15
Registering and connecting a Bluetooth
device
Preparing communication devices 16
Registering your Bluetooth devices 16
–Searching for nearby Bluetooth
devices 16
–Pairing from your Bluetooth
devices 17
–Connecting to a Bluetooth device
automatically 18
–Deleting a registered device 18
Connecting a registered Bluetooth device
manually 19
Switching visibility 19
Entering the PIN code for Bluetooth wireless
connection 19
Displaying the Bluetooth device address 20
Clearing the Bluetooth memory 20
Updating Bluetooth software 20
Displaying the Bluetooth software
version 20
Contents
Engb
2

Using hands-free phoning
Displaying the phone menu 22
–Touch panel keys 22
–Reading the screen 22
Making a phone call 23
–Direct dialling 23
–Calling a number in the phone
book 23
–Dialling from the history 24
–Using the preset dial lists 25
Receiving a phone call 26
–Answering an incoming call 26
Minimising the dial confirmation screen 26
Changing the phone settings 26
–Answering a call automatically 26
–Switching the ring tone 27
–Inverting names in the phone book 27
–Setting the private mode 27
–Adjusting the other party’s listening
volume 27
Using the voice recognition function (for
iPhone) 28
Notes for hands-free phoning 28
iPod / iPhone or smartphone setup
operation
The basic flow of iPod / iPhone or
smartphone setup 30
Setting the device connection method 30
iPod compatibility 30
Android™device compatibility 31
Apple CarPlay compatibility 31
MirrorLink device compatibility 31
Information on the connections and
functions for each device 32
Using the radio
Using the touch panel keys 34
Reading the screen 34
Starting procedure 35
Selecting a band 35
Manual tuning 35
Seek tuning 35
Selecting a preset channel from the preset
channel list 36
Storing broadcast frequencies 36
Storing the strongest broadcast
frequencies 36
Tuning into strong frequencies 36
Receiving traffic announcements 37
Using news programme interruption 38
Tuning into alternative frequencies 38
Limiting stations to regional
programming 39
Switching Auto PI seek 39
–Activating the Auto PI seek for preset
stations 39
Switching the sound quality of the FM
tuner 39
Storing song information to an iPod (iTunes
Tagging) 40
Operating with the buttons 40
Playing compressed audio files
Using the touch panel keys 41
Reading the screen 42
Starting procedure 42
Switching the browse mode 43
Selecting files from the file name list 43
Selecting a file from the list related to the
song currently playing (link search) 43
Displaying the album list 44
Playing files in random order 44
Setting a repeat play range 44
Switching the media file type 44
Operating with the buttons 45
Playing compressed video files
Using the touch panel keys 46
Reading the screen 46
Engb 3
Contents

Starting procedure 47
Selecting files from the file name list 47
Setting a repeat play range 47
Slow motion playback 47
Switching the media file type 48
Operating with the buttons 48
Playing compressed still image files
Using the touch panel keys 49
Reading the screen 49
Starting procedure 50
Selecting files from the file name list 50
Playing files in random order 50
Setting a repeat play range 50
Switching the media file type 50
Setting the slideshow interval 51
Operating with the buttons 51
Using an iPod
Using the touch panel keys (for audio) 52
Using the touch panel keys (for video) 52
Reading the screen (for audio) 53
Reading the screen (for video) 53
Starting procedure 54
Setting the shuffle play 55
Setting a repeat play range 55
Selecting song or video sources from the
playlist screen 55
Using this product’s iPod function from your
iPod 56
Changing the speed of audiobook
playback 56
Displaying lists related to the song currently
playing (link search) 57
Operating with the buttons 57
Playing back music from a music app other
than iPod music, as the iPod source 57
–Using the touch panel keys 57
–Reading the screen 58
Using your iPhone or smartphone
applications
Using AppRadio Mode 59
–Using the touch panel keys (App
control side bar) 59
–Starting procedure 60
–Using the keyboard 61
–Adjusting the image size (For
smartphone users) 62
–Displaying the image of your
application (iPhone with 30-pin
connector) 62
–Displaying the image of your
application (iPhone with Lightning
connector) 63
–Displaying the image of your
application (smartphone) 63
Using Apple CarPlay 64
–Using the touch panel keys 64
–Starting procedure 65
–Setting the driving position 65
–Adjusting the volume 65
Using MirrorLink 65
–Using the touch panel keys (App
control side bar) 66
–Starting procedure 66
Using the audio mix function 66
Using a Bluetooth audio player
Using the touch panel keys 68
Reading the screen 69
Starting procedure 69
Selecting files from the file name list 70
Playing files in random order 70
Setting a repeat play range 70
Operating with the buttons 70
Using an HDMI source
Using the touch panel keys 71
Reading the screen 71
Contents
Engb
4

Starting procedure 71
Using an AUX source
Using the touch panel keys 72
Reading the screen 72
Starting procedure 72
Setting the video signal 73
Switching the operation screen 73
Using AV input
Using the touch panel keys 74
Reading the screen 74
Starting procedure 74
Setting the video signal 75
Using MIXTRAX
Touch panel keys 76
Selecting an item to play songs 76
Selecting songs not to be played 76
Specifying the playback portion 77
Setting the flash pattern 77
System settings
Setting the FM tuning step 78
Activating the Bluetooth audio source 78
Setting the ever scroll 78
Setting AV input 78
Setting the rear view camera 79
–Setting rear view camera
activation 79
–Setting the polarity of the rear view
camera 80
Setting the camera for Camera View
mode 80
Displaying the parking assist guidelines 80
Setting guidelines on the rear view
image 81
Setting the safe mode 82
Turning off the demo screen 82
Selecting the system language 82
Setting the keyboard language with the
application for iPhone 83
Setting the beep sound 83
Adjusting the picture 83
Displaying the firmware version 84
Updating firmware 84
Checking the connections of leads 85
Audio adjustments
Using fader/balance adjustment 86
Using balance adjustment 86
Switching sound muting/attenuation 87
Adjusting source levels 87
Adjusting the filter 89
–Adjusting the front and rear speaker
output 89
–Using the subwoofer output 89
Selecting the listening position 90
Adjusting the speaker output levels
finely 90
Adjusting the time alignment 91
Using the equaliser 93
–Recalling equaliser curves 93
–Customising the equaliser curves 93
–Using the auto-adjusted equaliser 94
Adjusting the equaliser curve automatically
(Auto EQ) 94
–Before operating the Auto EQ
function 94
–Performing Auto EQ 95
Theme menu
Selecting the background display 97
–Changing to the background display
image stored on the USB storage
device 97
Setting the illumination colour 98
–Selecting the colour from the preset
colours 98
–Creating a user-defined colour 98
Engb 5
Contents

Selecting the theme colour 98
Selecting the clock image 99
Changing the preinstalled splash screen 99
–Changing to the splash screen stored
on the USB storage device 100
Setting up the video player
Displaying your DivX VOD registration
code 101
Displaying your DivX VOD deregistration
code 101
Setting the video signal for the rear view
camera 101
Setting the video output format 102
Favourite menu
Creating a shortcut 103
Selecting a shortcut 103
Removing a shortcut 103
Common operations
Setting the time and date 104
Storing song information to an iPod (iTunes
Tagging) 104
Setting the “Sound Retriever”function 105
Changing the wide screen mode 105
Other functions
Selecting the video for the rear display 107
Setting the anti-theft function 107
–Setting the password 107
–Entering the password 108
–Deleting the password 108
–Forgotten password 109
Restoring this product to the default
settings 109
–Restoring the default settings 109
Appendix
Troubleshooting 110
Error messages 111
Positioning technology 115
–Positioning by GPS 115
Handling large errors 115
–When positioning by GPS is
impossible 115
–Conditions likely to cause noticeable
positioning errors 115
Detailed information for playable media 117
–Compatibility 117
–Media compatibility chart 120
Display information 125
–Phone menu 125
–System menu 125
–Theme menu 126
–Audio menu 127
–Video Setup menu 127
–Bluetooth menu 128
Contents
Engb
6

Manual overview
Before using this product, be sure to read Im-
portant Information for the User (a separate
manual) which contains warnings, cautions,
and other important information that you
should note.
How to use this manual
Finding the operation procedure for
what you want to do
When you have decided what you want to do,
you can find the page you need from the Con-
tents.
Finding the operation procedure from
a menu name
If you want to check the meaning of an item
displayed on screen, you will find the neces-
sary page from the Display information at the
end of this manual.
Conventions used in this manual
Before moving on, take a few minutes to read
the following information about the conven-
tions used in this manual. Familiarity with
these conventions will help you greatly as you
learn how to use your new equipment.
!Buttons on this product are described in
ALL CAPITALS,BOLD lettering:
e.g.)
HOME button, MODE button.
!Menu items, screen titles, and functional
components are described in bold with
double quotation marks “”:
e.g.)
“System”screen or “Audio”screen
!Touch panel keys that are available on the
screen are described in bold in brackets [ ]:
e.g.)
[Radio], [AV Source Settings].
!Extra information, alternatives and other
notes are presented in the following for-
mat:
e.g.)
pIf the home location has not been stored
yet, set the location first.
!Functions of other keys on the same screen
are indicated with #at the beginning of the
description:
e.g.)
#If you touch [OK], the entry is deleted.
!References are indicated like this:
e.g.)
=For details of the operations, refer to
How to use the screens on page 10.
Terms used in this manual
“Front display”and “Rear display”
In this manual, the screen that is attached to
the body of this product will be referred to as
the “Front display”. Any additional screen that
is commercially available and can be con-
nected to this product will be referred to as the
“Rear display”.
“Video image”
“Video image”in this manual indicates mov-
ing images of DivX®, iPod, and any equipment
that is connected to this system with an RCA
cable, such as general-purpose AV equipment.
“iPod”
In this manual, iPod and iPhone will be re-
ferred to as “iPod”.
Notes on internal memory
Before removing the vehicle
battery
If the battery is disconnected or discharged,
the memory will be erased and must be repro-
grammed.
pSome of the settings and recorded con-
tents will not be reset.
Data subject to erasure
The information is erased by disconnecting
the yellow lead from the battery (or removing
the battery itself).
pSome of the settings and recorded con-
tents will not be reset.
Engb 7
Chapter
01
Introduction
Introduction

Checking part names and
functions
This chapter gives information about the names
of the parts and the main features using the but-
tons.
1
5
2
3
4
1LCD screen
2VOL (+/–) button
Touch to adjust the AV (Audio and Video)
source volume.
3HOME button
!Touch to display the Top menu screen.
=For details of the operations, refer to
How to use the screens on page 10.
!Touch and hold to activate the voice re-
cognition function.
=For details, refer to Using the voice re-
cognition function (for iPhone) on
page 28 and Using the touch panel
keys on page 64.
4MODE button
!Touch to switch between the Application
screen and the AV operation screen.
pIf the display cannot switch from the
AV operation screen to the Applica-
tion screen when the MODE button is
touched, the display will turn off.
=For details of the operations, refer to
How to use the screens on page 10.
!Touch and hold to turn the display off.
=For details, refer to Turning off the dis-
play on page 9.
5TRK button
!Touch to perform manual seek tuning,
fast forward, reverse and track search
controls.
Connecting media
Connecting and disconnecting
an iPod
Connecting your iPod
=For details of the connections, refer to the
Installation Manual.
Disconnecting your iPod
%Pull out the cables after confirming
that no data is being accessed.
Plugging and unplugging a USB
storage device
pThis product may not achieve optimum per-
formance with some USB storage devices.
pConnection via a USB hub is not possible.
pA USB cable is required for connection.
Plugging in a USB storage device
%Plug a USB storage device into the USB
cable.
2
1
1USB cable
2USB storage device
Engb
8
Chapter
02 Basic operation

Unplugging a USB storage device
%Pull out the USB storage device after
checking that no data is being accessed.
Startup and termination
1 Start the engine to boot up the system.
After a short pause, the splash screen comes
on for a few seconds.
2 Turn off the vehicle engine to termi-
nate the system.
This product is also turned off.
On first-time startup
When you use this product for the first time,
select the language that you want to use.
1 Start the engine to boot up the system.
After a short pause, the splash screen comes
on for a few seconds.
The “Select Program Language”screen ap-
pears.
2 Touch the language that you want to
use on screen.
3 Touch the following key.
Displays the “Smartphone Setup”
screen.
4 Touch the item you want to set.
=For details, refer to Information on the con-
nections and functions for each device on
page 32.
5 Touch the following key.
Displays the Top menu screen.
#If you touch , the display returns to the pre-
vious screen.
Regular startup
%Start the engine to boot up the system.
After a short pause, the splash screen comes
on for a few seconds.
pThe screen shown will differ depending on
the previous conditions.
pIf the anti-theft function is activated, you
must enter your password.
Turning off the display
You can turn off the display at night or when
the screen is too bright.
When the application screen is
available
%Touch and hold the MODE button.
The display turns off.
When the application screen is
not available
%Touch the MODE button.
The display turns off.
pIf you touch the screen when the display is
off, it reverts to the original screen.
Engb 9
Chapter
02
Basic operation
Basic operation

How to use the screens
Switching screens using the touch panel keys
1
2
3
4
7
8
9
5
6
Engb
10
Chapter
02 Basic operation

Switching screens using the buttons
8
91
7
1Top menu screen
This is the starting menu to access the de-
sired screens and operate the various func-
tions.
pIf you touch the HOME button, the Top
menu screen is displayed.
p[APPS] is displayed when AppRadio
Mode or MirrorLink is on.
p[Apple CarPlay] is displayed when
Apple CarPlay is on.
2Time and date setting screen
You can set the time and date settings.
3Setting menu screen
You can customise the system and audio
settings, etc.
4Phone menu screen
You can access the screen that is related to
hands-free phoning.
5AV source selection screen
You can select the AV source.
6Favourite source icons
You can display the icons of frequently used
sources by dragging the icons to the display
area.
=For details of the operation, refer to
Changing the display order of source
icons on page 13.
7AV operation screen
You can customise the settings for each
source.
8Application operation screen
You can control the iPhone or smartphone
applications directly on this product.
pIf applications are not available, the Ap-
plication operation screen will not be dis-
played.
9Application menu screen
This product can switch to the application
menu, on which you can display and oper-
ate the application for an iPhone or a smart-
phone on the screen.
pIf application menus are not available,
the Application menu screen will not be
displayed.
Supported AV source
You can play or use the following sources with
this product.
Engb 11
Chapter
02
Basic operation
Basic operation

!Radio (FM, MW/LW)
The following sources can be played back or
used by connecting an auxiliary device.
!USB
!iPod
!Bluetooth audio
!AV input (AV)
!AUX
!HDMI
Displaying the AV
operation screen
1 Touch the HOME button to display the
Top menu screen.
2 Touch the AV operation key.
1
1AV operation key
The AV operation screen appears.
132
4
5
1Displays the source list.
=For details, refer to Selecting a front
source on the source list on page 12.
2Displays the Time and date setting
screen.
=For details, refer to Setting the time and
date on page 104.
3Displays the Setting menu screen.
4Recalls equaliser curves.
=For details, refer to Using the equaliser
on page 93.
5Displays the Phone menu screen.
=For details, refer to Displaying the phone
menu on page 22.
Selecting a front source on the
AV source selection screen
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following key.
Displays the AV source selection
screen.
3 Touch the source icon you want to se-
lect.
The AV operation screen of the selected
source appears.
Selecting a front source on the
source list
pThis function is not available during a call
in Apple CarPlay.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the AV operation key.
1
1AV operation key
The AV operation screen appears.
Engb
12
Chapter
02 Basic operation

3 Touch the following key.
Displays the source list.
4 Touch the source key you want to se-
lect.
The AV operation screen of the selected
source appears.
Selecting a rear source
You can select a source output to the rear dis-
play.
=For details of the operations, refer to Select-
ing the video for the rear display on page
107.
Turning off the AV source
Turn off the AV source to stop playing or re-
ceiving the AV source.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following key.
Displays the AV source selection
screen.
3 Touch [OFF].
The AV source is turned off.
Changing the display order
of source icons
You can change the display order of source
icons on the AV source selection screen.
pThis function is available only when you
stop your vehicle in a safe place and apply
the handbrake.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following key.
Displays the AV source selection
screen.
3 Touch and hold a source icon, and drag
the icon to the desired position.
pIf the source icon is moved, the order of the
source list is also changed.
Changing the display order
of source keys
You can change the display order of source
keys on the source list.
pThis function is available only when you
stop your vehicle in a safe place and apply
the handbrake.
pThis function is not available during a call
in Apple CarPlay.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the AV operation key.
1
1AV operation key
The AV operation screen appears.
3 Touch the following key.
Displays the source list.
Engb 13
Chapter
02
Basic operation
Basic operation

4 Touch the following key.
The source keys can be moved.
5 Drag the source key to the desired posi-
tion.
6 Touch the following key.
Returns to the previous screen.
pIf the source key is moved, the source icons
displayed on the Top menu screen and the
AV source screen are also moved.
Using the touch panel
You can operate this product by touching the
marks and items (touch panel keys) displayed
on the screen directly with your fingers.
pTo protect the LCD screen from damage, be
sure to touch the touch panel keys only
with your finger and do so gently.
Using the common touch panel
keys
1 2
1Returns to the previous screen.
2Closes the screen.
Operating list screens
3
12
1Touching an item on the list allows you to nar-
row down the options and proceed to the next
operation.
2Appears when all characters are not displayed
on the display area.
If you touch the key, the rest of the characters
are scrolled for display.
3Appears when items cannot be displayed on a
single page only.
Drag the scrubber bar to view any hidden
items.
Also, you can drag the list to view any hidden
items.
Operating the time bar
1
1You can change the playback point by drag-
ging the key.
pPlayback time corresponding to the po-
sition of the key is displayed while drag-
ging the key.
pThis function is not available when
using iPod function with an iPhone 5s,
iPhone 5c, iPhone 5, or iPod touch (5th
generation).
Engb
14
Chapter
02 Basic operation

Operating the on-screen keyboard
6
5
4
3
8
7
21
1Displays the characters that are entered. If
there is no text in the box, an informative
guide with text appears.
2Allows you to move the cursor to the right or
left for a number of characters equivalent to
the number of touches.
3Touching the keys enters the characters in the
text box.
4Deletes the input text one letter at a time, be-
ginning at the end of the text. Continuing to
touch the key deletes all of the text.
5Confirms the entry and allows you to proceed
to the next step.
6You can leave spaces.
A space equivalent to the number of touches
is inserted.
7Switches between alphabet and numbers/
symbols.
8You can switch between capital and lower
case letters.
Engb 15
Chapter
02
Basic operation
Basic operation

If your devices feature Bluetooth®technology,
this product can be connected to your devices
wirelessly. This section describes how to set
up a Bluetooth connection.
For details about connectivity with the devices
featuring Bluetooth wireless technology, refer
to the information on our website.
pThe “Bluetooth”menu is available only
when you stop your vehicle in a safe place
and apply the handbrake.
Preparing communication
devices
This product has a built-in function that en-
ables using devices featuring Bluetooth wire-
less technology.
=For details, refer to Notes for hands-free
phoning on page 28.
You can register and use devices that feature
the following profiles with this product.
!HFP (Hands-Free Profile)
!A2DP (Advanced Audio Distribution Pro-
file)
!SPP (Serial Port Profile)
pWhen this product is turned off, the
Bluetooth connection is also disconnected.
When the system restarts, the system auto-
matically attempts to reconnect the pre-
viously-connected device. Even when the
connection is severed for some reason, the
system automatically reconnects the speci-
fied device (except when the connection is
severed due to device operation).
pThe Bluetooth connection will be termi-
nated if Apple CarPlay is turned on.
Registering your Bluetooth
devices
You need to register your devices featuring
Bluetooth wireless technology when you con-
nect it to this product for the first time. A total
of three devices can be registered. Two regis-
tration methods are available:
!Searching for nearby Bluetooth devices
!Pairing from your Bluetooth devices
pIf three devices are already paired, “Mem-
ory Full”is displayed and pairing cannot
be performed. In such cases, delete a
paired device first.
=For details, refer to Deleting a registered
device on page 18.
Searching for nearby Bluetooth
devices
The system searches for available Bluetooth
devices near this product, displays them in a
list, and registers them for connection.
pWhen the device is already connected, this
function is inactive.
1 Activate the Bluetooth wireless tech-
nology on your devices.
pFor some Bluetooth devices, no specific ac-
tion is necessary to activate Bluetooth wire-
less technology. For details, refer to the
instruction manual of your devices.
2 Touch the HOME button to display the
Top menu screen.
3 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
4 Touch [Connection].
5 Touch the following key.
Starts searching.
Engb
16
Chapter
03 Registering and connecting a Bluetooth device

The system searches for Bluetooth devices
waiting for a connection and displays them in
the list if a device is found.
pUp to 30 devices will be listed in the order
that the devices are found.
6 Wait until your Bluetooth device ap-
pears in the list.
pIf you cannot find the Bluetooth device that
you want to connect, check that the device
is waiting for a Bluetooth wireless technol-
ogy connection.
7 Touch the Bluetooth device name you
want to register.
While connecting, “Pairing…Please wait.”is
displayed. If the connection is established,
“Paired.”is displayed.
pIf your device supports SSP (Secure Simple
Pairing), a six-digit number appears on the
display of this product. Touch [Yes] to pair-
ing the device.
pIf the connection fails, “Error”is displayed.
In such cases, try again from the begin-
ning.
pThe PIN code is set to “0000”as the default,
but can be changed.
=For details, refer to Entering the PIN code
for Bluetooth wireless connection on
page 19.
pOnce the connection is established, the de-
vice name is displayed. Touch the device
name to disconnect.
After the device is successfully registered, a
Bluetooth connection is established from the
system.
The profile icons in the registered device list
screen are displayed and illuminated as fol-
lows.
Illuminates when your mobile de-
vice is successfully connected with
the HFP (Hands-Free Profile).
Illuminates when your audio de-
vice is successfully connected with
the A2DP (Advanced Audio Distri-
bution Profile)/AVRCP (Audio/
Video Remote Control Profile).
Illuminates when the Bluetooth
connection is established with the
SPP (Serial Port Profile).
pAfter pairing, the phone book registered in
the device may be automatically trans-
mitted to this product.
#If you touch the following key, you can switch
the display between the device names and
Bluetooth device addresses.
Switches between the device
names and Bluetooth device ad-
dresses.
Pairing from your Bluetooth
devices
You can register a Bluetooth device by setting
this product to standby mode and requesting
a connection from the Bluetooth device.
pBefore registration, make sure that “Visibi-
lity”in the “Bluetooth”menu is set to
“On”.
=For details, refer to Switching visibility on
page 19.
1 Activate the Bluetooth wireless tech-
nology on your devices.
pFor some Bluetooth devices, no specific ac-
tion is necessary to activate Bluetooth wire-
less technology. For details, refer to the
instruction manual of your devices.
2 Use the Bluetooth setting in the device
to pair this product with the device.
pIf a PIN code input is required, enter a PIN
code. (The default PIN code is “0000”.)
Engb 17
Chapter
03
Registering and connecting a Bluetooth device
Registering and connecting a Bluetooth device

When the device is successfully registered,
the connection settings are made from the
device.
pIf registration fails, repeat the procedure
from the beginning.
Connecting to a Bluetooth
device automatically
If this function is set to on, a connection be-
tween your Bluetooth device and this product
will take place automatically as soon as the
two devices are less than a few metres apart.
pIf this function is set to on, a connection
with the last connected Bluetooth device
will be established automatically when the
ignition switch is turned on.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [Auto Connect] repeatedly until
the desired setting appears.
!On (default):
Turns the automatic connection on.
!Off:
Turns the automatic connection off.
If your Bluetooth device is ready for a
Bluetooth wireless connection, a connection
to this product will automatically be estab-
lished.
If connection fails, “Auto connection failed.
Retry?”appears.
Touch [Yes] to reconnect.
#To turn automatic connection off, touch [Auto
Connect] again.
pOnce the connection is established for the
first time, the connection with the device
will be established automatically when the
ignition switch is turned on from the next
time.
Deleting a registered device
When you have already registered three
Bluetooth devices and you want to add an-
other one, you must first delete one of the re-
gistered devices.
pIf a registered phone is deleted, all the
phone book entries and call history lists
that correspond to the phone will be also
cleared.
CAUTION
Never turn this product off while the paired
Bluetooth device is being deleted.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [Connection].
4 Touch the following key.
Deletes a paired device.
A message prompting you to delete a regis-
tered device appears.
5 Touch [Yes].
The device is deleted.
Engb
18
Chapter
03 Registering and connecting a Bluetooth device

Connecting a registered
Bluetooth device manually
Connect the Bluetooth device manually in the
following cases:
!Two or more Bluetooth devices are regis-
tered, and you want to manually select the
device to be used.
!You want to reconnect a disconnected
Bluetooth device.
!Connection cannot be established automa-
tically for some reason.
If you wish to start the connection manually,
carry out the following procedure.
1 Activate the Bluetooth wireless tech-
nology on your devices.
pFor some Bluetooth devices, no specific ac-
tion is necessary to activate Bluetooth wire-
less technology. For details, refer to the
instruction manual of your devices.
2 Touch the HOME button to display the
Top menu screen.
3 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
4 Touch [Connection].
5 Touch the name of the device that you
want to connect.
Switching visibility
This function sets whether or not to make this
product visible to the other device.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [Visibility] repeatedly until the
desired setting appears.
!On (default):
Turns the visibility on.
!Off:
Turns the visibility off.
Entering the PIN code for
Bluetooth wireless connection
To connect your Bluetooth device to this pro-
duct via Bluetooth wireless technology, you
need to enter a PIN code on your Bluetooth
device to verify the connection.
The default code is “0000”, but you can change
it with this function.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [PIN Code Input].
The “PIN Code”screen appears.
4 Touch [0] to [9] to input pin code (up to
8 digits).
5 Touch the following key.
Stores the PIN code in this pro-
duct.
Engb 19
Chapter
03
Registering and connecting a Bluetooth device
Registering and connecting a Bluetooth device

Displaying the Bluetooth
device address
This product can display its Bluetooth device
address.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [Device Information].
The Bluetooth device address is displayed.
Clearing the Bluetooth
memory
CAUTION
Never turn this product off while the Bluetooth
memory is being cleared.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [Bluetooth Memory Clear].
4 Touch [Clear].
The confirmation screen appears.
5 Touch [OK].
The Bluetooth memory is cleared.
#If you do not want to clear the memory, touch
[Cancel].
Updating Bluetooth software
This function is used to update this product
with the latest Bluetooth software. For details
on Bluetooth software and updating, refer to
our website.
pThe source is turned off and the Bluetooth
connection is disconnected before the pro-
cess starts.
CAUTION
Never turn this product off and never disconnect
the phone while the software is being updated.
1 Touch the HOME button to display the
Top menu screen.
2 Touch the following keys in the follow-
ing order.
The “Bluetooth”screen appears.
3 Touch [BT Software Update].
4 Touch [Start].
The data transfer screen is displayed.
pFollow the on-screen instructions to finish
updating the Bluetooth software.
Displaying the Bluetooth
software version
If this product fails to operate properly, you
may need to consult your dealer for repair.
In such cases, you may be asked to specify the
software version. Perform the following proce-
dure to check the version on this unit.
1 Touch the HOME button to display the
Top menu screen.
Engb
20
Chapter
03 Registering and connecting a Bluetooth device
