Pioneer CT-L5 User manual

ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
STEREO CASSETTE DECK
RRV1996
T–ZZR AUG. 1998 Printed in Japan
CT-L5
CONTENTS
1. SAFETY INFORMATION....................................2
2. EXPLODED VIEWS AND PARTS LIST .............3
3. SCHEMATIC DIAGRAM...................................11
4. PCB CONNECTION DIAGRAM ....................... 16
5. PCB PARTS LIST.............................................20
6. ADJUSTMENT..................................................22
7. GENERAL INFORMATION ..............................26
7.1 IC................................................................26
8. PANEL FACILITIES AND SPECIFICATIONS
...................................................................27
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model
CT-L5 Power Requirement
÷These products are component of systems.
For the system composition, accessories, instruction manuals etc., refer to the service manuals
RRV1997 for XC-L5/MYXK and RRV1986 for MJ-L5/MYXK (SP-L5/MYXK).
÷This product does not operate normally by itself. Please connect it to the STEREO CD RECEIVER
XC-L5 , for adjustment and operation inspection. If operation confirmation for the unit by itself can
not be avoided, please follow the instructions on page 22.
ZVYXK ‡DC power supplied from other system component
ASES
7
0
¶
82
3
¡1
Ÿ
DOLBY B NR

CT-L5
2
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test

CT-L5
3
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
÷PACKING PARTS LIST
1 Pad F AHA7219
2 Pad R AHA7220
3 Packing Case AHD7629
4 Operating Instructions ARE7177
(English/ French/ German/ Italian/
Dutch/ Swedish/ Spanish/ Portuguese)
NSP 5 Warranty Card ARY7022
6 Polyethylene Bag Z21-038
(0.03 ×230 ×340)
7 Packing Sheet Z23-007
(750 ×600 ×0.5)
Mark No. Description Parts No.
NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷Screw adjacent to
∞
mark on the product are used for disassembly.
1 (1/2)
1 (2/2)
6
5
4
7
2 (2/2)
2 (1/2)
3

CT-L5
4
2.2 EXTERIOR
A
A
Cut
25
22
22
211
22
9
10 3
66
22
21
20
5
23
23
19
13
1 (1/3)
20
22
17
16
14
20
1(3/3)
21
8
21
1(2/3)
7
4
15
18 (1/2)
18
(2/2)
18
Refer to " 2.3 MECHANISM
UNIT (1/2)".

CT-L5
5
÷EXTERIOR SECTION PARTS LIST
1 MAIN UNIT AWU7110
2 KEY L UNIT AWU7112
3 KEY R UNIT AWU7111
4 Connection Cable ADE7026
5 Mechanism Unit AXA7070
6 Leg AEB7090
7 Rear Panel ANC7674
NSP 8 Bottom Plate ANF7011
NSP 9 Top Plate ANK7042
10 Rivet VEC1178
11 Screw IPZ30P080FMC
12 ...............
13 Tray Panel CT AAN7185
14 Sub Panel AAP7053
15 Bottom Base AMA7006
16 Top Panel AMB7514
17 Bonnet AMA7007
18 Button X ASSY AWL7033
NSP 19 Tray Seal RRW1162
20 Screw BBZ30P060FMC
21 Screw BPZ30P060FZK
22 Screw VPZ30P080FZK
23 Screw PPZ30P150FMC
24 ...............
NSP 25 Button AAD7473
Mark No. Description Parts No.

CT-L5
6
2.3 MECHANISM UNIT (1/2)
Refer to "2.4 MECHANISM UNIT (2/2)".
12 9
16 19
11
10
14
4
7
8
3
18 16
16
5
17
6
1
13
16
16
22

CT-L5
7
1 Screw FG114-14
2 Screw UG12H-15
3 Front BLK FC64K-11
4 Washer MJ112-22
5 SP Return FK34N-11
6 Plate Hold BLK F573-258
7 Holder CST BLK F527-078
8 LDG Base FD56R-12
9 Pulley FD56T-11
10 LDG Gear FD56U-11
11 Slider FD57E-11
12 LDG Belt FF19L-12
13 Switch UE15S-14
14 MTR Reel BLK F564-313
15 ...............
16 Screw UG12H-28
17 SP Clamper FK34M-11
18 Switch UE18P-21
÷MECHANISM UNIT (1/2) PARTS LIST
Mark No. Description Parts No.

CT-L5
8

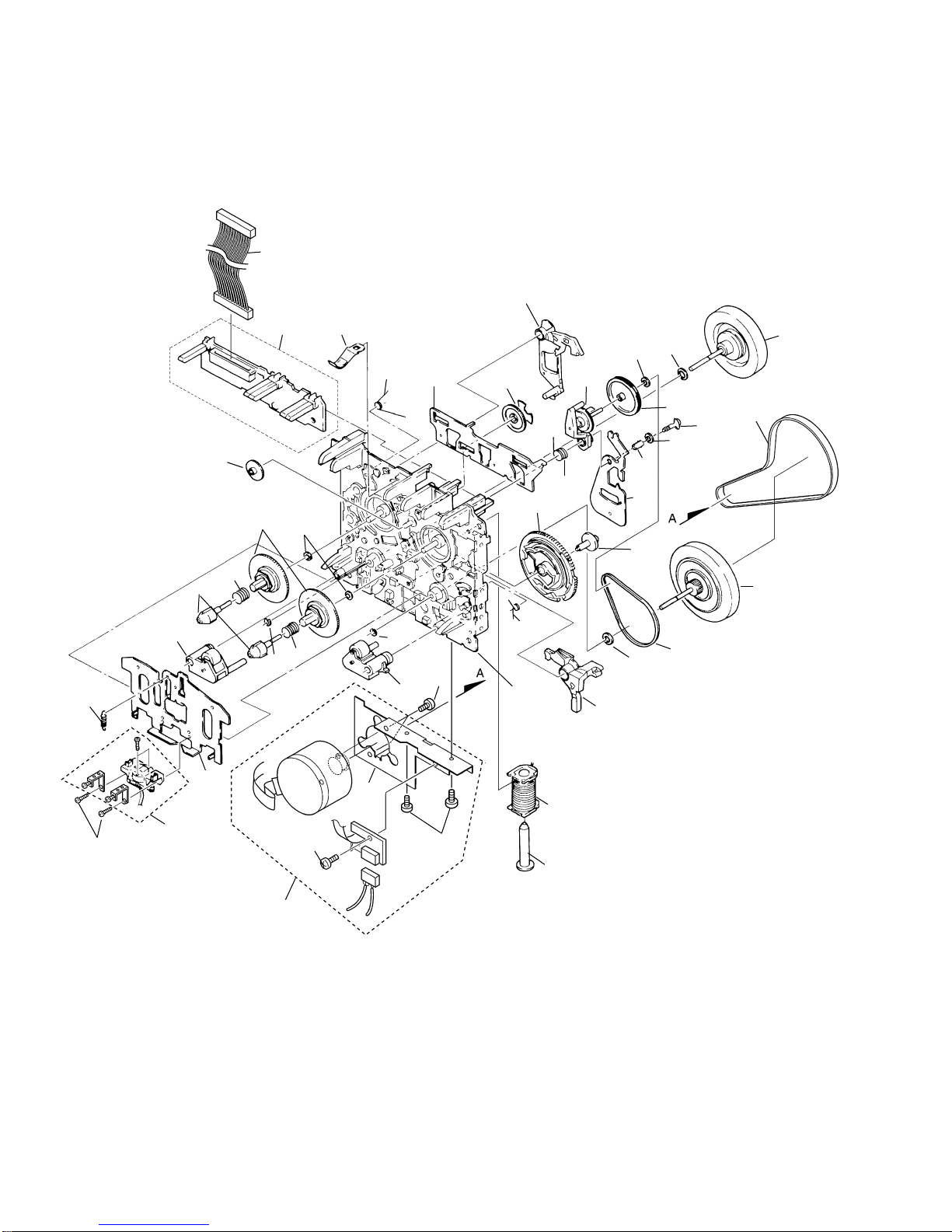

2.4 MECHANISM UNIT (2/2)
20
24 41
42
43
39
22
26
30
13
1
25
38
16
18
6
35
32
7
32
17
28
29
9
3
36
37
30
23
27
33
14
15
5
11
8
3
12
19
1
40
4
2
21
34
10 31

CT-L5
9
1 Screw KG194-36
2 Reel Feather FD57D-13
3 Screw UG11S-14
4 SP Reel(L) FK32U-12
5 SP Brake FK33B-13
6 SP Arm Play FK33P-11
7 SP Reel(R) FK32V-12
8 Spring Cassette FC65M-11
9 BKT MTR FC64M-12
10 Reel Base FD52W-12
11 Cam Gear FD52Y-23
12 Play Gear (A) FD53K-12
13 Arm Play FD53D-19
14 Plate Slide FC61L-19
15 PCB Control BLK F567-617
16 Chassis base BLK F612-231
17 Head Base FC61K-32
18 Roller Pinch BLK R F514-129
19 Roller Pinch BLK L F514-130
20 Assy F/W FR24S-11
21 Clutch Assy BLK F522-037
22 Clutch Assy BLK F522-042
23 Washer FJ111-13
24 F/R Pulley FD53F-15
25 Solenoid BLK F765-279
26 F/R Belt FF18W-12
27 Belt Main FF19H-11
28 Plate HD BLK F513-824
29 MTR MAIN BLK F525-321
30 Washer FJ111-30
31 Washer FJ111-35
32 Washer UJ16F-11
33 Lever Brake FD53P-17
34 FF Gear(A) FD53L-12
35 Cam SP FK32S-14
36 Screw UJ14A-12
37 Lever F/R FC62G-14
38 Plunger FL41S-21
39 Mecha-Cable WH65N-11
40 Spring HB FK32T- 31
41 Screw UG15V-13
42 Washer MJ112- 22
43 Washer UJ15V- 13
÷MECHANISM UNIT (2/2) PARTS LIST
Mark No. Description Parts No.

CT-L5
10

CT-L5
11
A
B
C
D
1234
1234
3. SCHEMATIC DIAGRAM
Note: When ordering service parts, be sure to refer to "EXPLODED VIE AND PARTS LIST" or
"PCB PARTS LIST".
3.1 OVERALL SCHEMATIC DIAGRAM
MAIN UNIT (AWU7110)
KEY R UNIT (AWU7111)
B
KEY L UNIT (AWU7112)
MECHANISM UNIT (AXA7070)
C
A
(A
1/2,
A
2/2
)
: PLAYBACK SIGNAL : RECORDING SIGNAL
SIGNAL ROUTE
SYSTEM
CABLE
To CD RECEIVER XC-L5 or SURROUND PROCESSOR SP-L5 or MD RECORDER MJ-L5

CT-L5
12
A
B
C
D
1234
1234

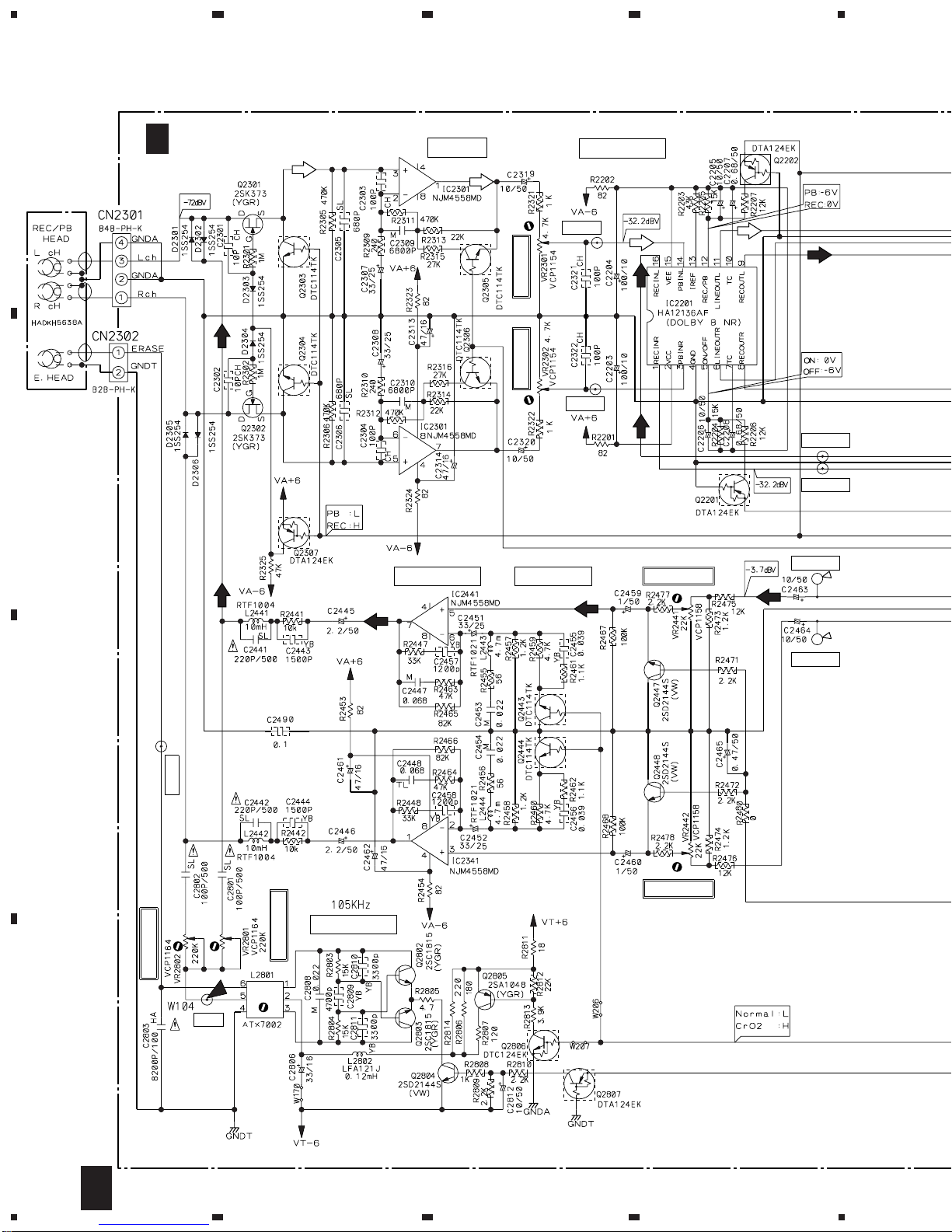

3.2 MAIN UNIT (1/2)
A1/2
MAIN UNIT (AWU7110)
MECHANISM
UNIT (1/2)
(AXA7070)
A1/2
PB AMP DOLBY B NR
REC EQ AMP
BIAS OSC.
REC MUTE REC LEVEL L
PB LEVEL LPB LEVEL R
REC LEVEL R
BIAS LEVEL R
BIAS LEVEL L
DOL TPR
BIAS
ERASE
DOL TPL
REC INL
REC INR
PB INR
PB INL

CT-L5
13
A
B
C
D
5678
5678
A1/2
5.6k
A2/2
: PLAYBACK SIGNAL
: RECORDING SIGNAL
: CHECK POINT for Service
SIGNAL ROUTE
ALC
MPX FILTER
MS
PB MUTE
TP R
TP L

CT-L5
14
A
B
C
D
1234
1234
KEY R UNIT
(AWU7111)
B
KEY L UNIT
(AWU7112)
MECHANISM
UNIT (2/2)
(AXA7070)
C
MECHA CONT.
LOADING
S. CLK
A2/2
B C
3.3 MAIN UNIT (2/2), KEY R UNIT and KEY L UNIT

CT-L5
15
A
B
C
D
5678
5678
A1/2
Short for TEST MODE
: PLAYBACK SIGNAL
: RECORDING SIGNAL
: CHECK POINT for Service
SIGNAL ROUTE
To CD RECEIVER XC-L5 or SURROUND PROCESSOR SP-L5
or MD RECORDER MJ-L5
POWER
RESET
µ-COM.
D2602, D2605, D2606: MTZJ8.2B D2601, D2603, D2604: UDZ8.2B
D2601 D2602 D2603 D2604 D2605 D2606
TC +
GNDP
TC –
MAIN UNIT (AWU7110)
A 2/2
A2/2

CT-L5
16
A
B
C
D
1234
1234
4. PCB CONNECTION DIAGRAM
BA C
KEY R UNIT
To MECHANISM
UNIT
B
MAIN UNIT
A
KEY L UNIT
C
Q2701
Q2703
Q2702
Q2704
NOTE FOR PCB DIAGRAMS:
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
Symbol in PCB
Diagrams Symbol in Schematic Diagrams Part Name
Transistor
Transistor
with resistor
Field effect
transistor
BCE
BCE
BCE
DGS
BCE
BCEBCE
DGSDGS
3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.
4. Viewpoint of PCB diagrams
Resistor array
3-terminal
regulator
CapacitorConnector
P. C. Board Chip Part SIDE B
SIDE A
SIDE A
(ANP7250–B)

CT-L5
17
A
B
C
D
5678
5678
A
To MECHANISM
UNIT
To REC/PB
HEAD
To ERACE
HEAD
To XC-L5 or MJ-L5 or SP-L5
VR2301
Q2371
Q2372
Q2103
Q2104
IC2004
Q2001
IC2002
Q2447
Q2448
Q2302
Q2301
Q2711
Q2712
Q2851
Q2803
Q2802
Q2804
Q2805
VR2302
VR2441
VR2442
VR2701
VR2802
VR2801
SIDE A

CT-L5
18
A
B
C
D
1234
1234
A
MAIN UNIT
A
Q2373
Q2374
Q2475
Q2105
Q2106
Q2251
IC2201
Q2201
Q2102
Q2108
Q2107
Q2305
Q2303
Q2304
IC2441
IC2301
Q2253
Q2254
Q2003
Q2005
Q2202
Q2101
Q2444
Q2443
Q2713
Q2714
Q2806
Q2807
Q2307
SIDE B

CT-L5
19
A
B
C
D
5678
5678
BC A
KEY R UNIT
B
KEY L UNIT
C
Q2541
IC2701
Q2705
Q2706
Q2502
Q2501
SIDE B
(ANP7250–B)

CT-L5
20
5. PCB PARTS LIST
Mark No. Description Parts No. Mark No. Description Parts No.
LIST OF PCB ASSEMBLIES
NSP TC COMP ASSY AWM7380
MAIN UNIT AWU7110
KEY R UNIT AWU7111
KEY L UNIT AWU7112
MAIN UNIT
SEMICONDUCTORS
IC2201 HA12136AF
IC2301, IC2441 NJM4558MD
IC2002 NJM7906FA
IC2701 PDC047A
Q2003 2PB709A
Q2005, Q2101, Q2102, Q2105, Q2106 2PD601A
Q2805 2SA1048
Q2711 2SB1296
Q2712 2SB1425
Q2001 2SB1566
Q2103, Q2104 2SC1740S
Q2802, Q2803 2SC1815
Q2701- Q2704 2SD1858X
Q2371, Q2372, Q2447, Q2448, Q2804 2SD2144S
Q2301, Q2302 2SK373
Q2714 DTA114EK
Q2107, Q2201, Q2202, Q2251, Q2254 DTA124EK
Q2307, Q2475, Q2807 DTA124EK
Q2705, Q2706 DTA143EK
Q2303- Q2306, Q2443, Q2444, Q2502 DTC114TK
Q2108, Q2501, Q2806 DTC124EK
Q2541, Q2713 DTC143EK
D2101, D2102, D2301- D2306, D2541 1SS254
D2607, D2711, D2712 1SS254
D2003 1SS355
D2605, D2606 MTZJ8.2B
D2001 UDZS5.6B
D2601- D2604 UDZ8.2B
COILS AND FILTERS
L2801 (OSC. COIL) ATX7002
L2501 (AXIAL INDUCTOR) LAU100J
L2802 (AXIAL INDUCTOR) LFA121J
L2441, L2442 (10 mH) RTF1004
L2443, L2444 (4.7 mH) RTF1021
F2201, F2202 (MPX. FILTER) RTF1209
CAPACITORS
C2506 CCCCH221J50
C2801, C2802 CCCSL101K2H
C2441, C2442 CCCSL221K2H
C2301, C2302 CCSQCH100D50
C2303, C2304 CCSQCH101J50
C2505, C2507- C2509 CCSQCH221J50
C2105 CCSQCH471J50
C2305, C2306 CCSQSL681J50
C2207, C2208 CEASR68M50
C2102, C2205, C2206, C2209, C2210 CEAT100M50
C2319, C2320, C2339, C2340 CEAT100M50
C2463, C2464, C2812 CEAT100M50
C2203, C2204 CEAT101M10
C2001, C2008, C2459, C2460 CEAT1R0M50
C2103 CEAT220M50
C2107, C2445, C2446, C2541 CEAT2R2M50
C2307, C2308, C2451, C2452, C2806 CEAT330M25
C2003, C2005, C2006, C2313, C2314 CEAT470M16
C2461, C2462, C2701 CEAT470M16
C2721 CEAT471M10
C2502 CEAT471M6R3
C2465 CEATR47M50
C2510 CKSQYB102K50
C2457, C2458 CKSQYB122K50
C2443, C2444 CKSQYB152K50
C2104 CKSQYB223K50
C2810, C2811 CKSQYB332K50
C2455, C2456 CKSQYB393K50
C2809 CKSQYB472K50
C2106, C2501, C2503, C2504, C2511 CKSQYF103Z50
C2531, C2543, C2702 CKSQYF103Z50
C2490, C2603 CKSQYF104Z25
C2101 CKSQYF474Z16
C2803 CQHA822J2A
C2213, C2214 CQMBA103J50
A
NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω=56 ×101 =561................................................... RD1/4PU 561J
47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J
0.5 Ω=R50 ...................................................................... RN2H Â50K
1 Ω=1R0 ......................................................................... RS1P 1Â0K
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F
