Before
You
Start
Information to User 4
For Canadian model
4
About
this
unit
4
About
this
manual
4
After-sales service
for
Pioneer products 4
Product registration
5
Precautions
5
About
the XM READY mark
5
Protecting
your
unit
from theft
5
-Removing the front panel
5
-
Attaching
the
front
panel
6
Q)
What's What
Head
unit
7
G)
Power
ON/OFF
Turning the
unit
on
9
Selecting a source
9
Turning the
unit
off
9
~Tuner
Listening to the radio
10
Storing and recalling broadcast
frequencies
10
Tuning in strong signals
10
Storing the strongest broadcast
frequencies
11
~
Cassette Player
Playing a tape
12
Radio intercept
12
~
Multi-CO Player
Playing a CD
13
Changing
the
display
13
Repeating play
13
Pausing CD playback
14
50-disc multi-CO player
14
(I)
En
GAudio
Adjustments
Introduction of audio
adjustments
15
Using balance
adjustment
15
Using
the
BTB (bass treble booster)
15
-
Adjusting
BTB
16
Adjusting loudness
16
Adjusting
source levels
16
~
Other Functions
Setting the clock
17
Turning
the
clock display on or off
17
Introduction of
XM
operation
17
-XM operation
17
-
Swiching
the XM channel select
setting
17
e Additional Information
Cassette player
18
Cassettetapes
18
Cleaning the playback head
18
Specifications
19

g

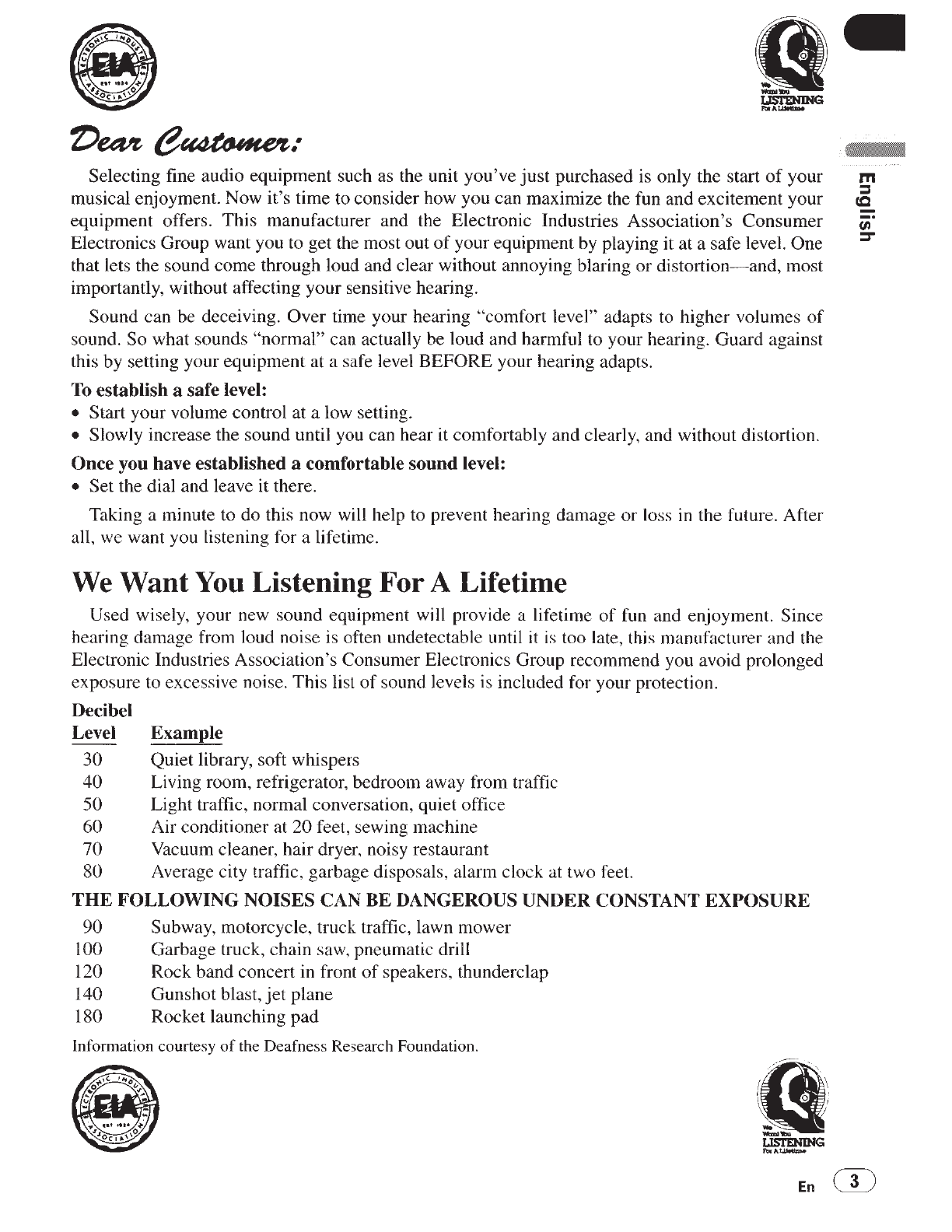

LISTENING
ftaALilolbllo
Selecting fine audio equipment such as the unit you've just purchased is only the start of your
musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic Industries Association's Consumer
Electronics Group want you to get the most out
of your equipment by playing it at a safe level. One
that lets the sound come through loud and clear without annoying blaring or distortion-and, most
importantly, without affecting your sensitive hearing.
Sound
can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of
sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against
this by setting your equipment
at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage
or loss in the future. After
all, we want you listening for a lifetime.
We Want You Listening ForA Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until
it is too late, this manufacturer and the
Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged
exposure to excessive noise. This list
of sound levels is included for your protection.
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner
at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet.
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front
of speakers, thunderclap
140 Gunshot blast,
jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation. a
> " ..
f \
I '
~ i
--
LISTENING
...... ._
m
::::s
cc
(/)
:::;
En m

Section
ID(
Before
You
Start
)
Information
to
User
using
this
unit. It is especially
important
that
you read
and
observe
precautions
on
the
next
Alteration
or
modifications carried out without page and in
other
sections.
C!J
appropriate authorization may invalidate the
user's ri
ght
to operate the equipment.
C!J
After-sales service
for
Pioneer
products
For
Canadian
model
Thi
s Class B digital apparatus complies with
Canadian
ICES-003.
About
this
unit
Th
e
tuner
frequencies
on
this
un
it a
re
allo-
ca
ted
for
use in
North
America. Use in
other
areas may
re
s
ult
in i
mproper
reception.
Q
Important (Serial number)
Th
e serial number is located
on
the top of this
unit
For
your own security and convenience.
he
sure to record this numberon the enclosed war-
ranty
ca
rd.
[!]
About
this
manual
T
his
un
it fea
tu
res a
numb
er
of
s
ophist
icated
functions e
ns
ur
ing
superior
reception and
op
-
eration.All
the
funct
ions
have been designed
for
the
easiest possible
us
e.
but
many are
not
self-explanatory. This operation manual
will
help
you benefit
fully
from
thi
s
product's
po-
tential and
to
maximize
your listening enjoy-
ment.
We r
ecommend
that
you familiari
ze
yourself
with
the
function
s
and
the
ir ope
ra
tion
by
read-
i
ng
thro
ugh
th
e
manual
before you begin
m
En
Please
contact
th
e dealer
or
distr
i
butor
from
where you purchased
thi
s
un
it
for
after-sales
service (including
warranty
conditions)
or
any
other
information.
In
case
the
necessary infor-
mation
is
not
available, please
contact
the
companies
listed below:
Please
do
not
sh
ip
your
unit
to
the
companies
at
the
addresses listed below
for
repair
without
advance contact.
U.S.A.
Pioneer
El
ec
tr
onics (USA) Inc.
CUSTOMER
SUPPORT
DIV
ISI
ON
P.
O.
Box
1760
Long Beach, CA
90801-1760
800-421-1404
CANADA
Pioneer Electronics of
Ca
nada, Inc.
CU
STO
ME
R
SATISFACTION
DEPAR
TMENT
300
Allstate Parkway
Markham, Ontario
L3
R
OP2
(905)
479-441
1
1-
877-283-5901
For
wa
rranty inf
ormation
please see
the
Lim-
ited Warranty sheet i
ncluded
wi
th
this
un
it. 0

(_
B_e_fo
_
r
_
e
_
~_o_u_S_ta_rt
_______
)
Produd
registration
Vis
it
us
at
the
following
site:
~
http://www.pioneerelectronics.com
~
Register your product.
We
will
keep
the details
of your purchase on fileto help you
re
fer to
this information in the event of an insurance
claim such
as
loss ortheft.
2 Receive updates on the
la
t
es
t products and
techno
I
og
ies.
3 Download owner's manuals, order product
catalogues, research new products, and
much more.
[!]
Precautions
• Keep
this
manual
handy
as a
re
feren
ce
fo
r
operating procedures and precautions.
• Always keep
th
e vol
ume
l
ow
enough
so you
can hear
sounds
outside of the car.
• Protect
this
product
fr
om
moisture.
• If the battery is disconnected
or
dis-
charged,
the
preset
memory
will be erased
and
must
be reprogrammed.
[!]
About
the
XM
READY
mark
((C
X/ttA )))
REA0 Y
The XM
READY
mark
printed on the
front
panel indicates
that
the
PioneerXM
tuner
(sold separately) can be controlled by
this
unit.
Please
inquire
to
your
dealer
or
nearest
author
ized Pioneer service station regarding
the
XM
tuner
that
can be connected
to
this
unit. For XM
tuner
operation, please refer to
the
XM
tuner
ow
ne
r'
s manual.
~----------------------------~
~~Notes
•
XM
Satellite Radio
is
developing a new band
of
ra
dio in the U.S.A.
Th
e system will use d
ir
ect satellite-to-receiver
broadcasting technology to provide listene
rs
in their cars and at home with crystal-clear
sound seamlessly from coast
to
coast.
XM
will
create and package up to
100
channels of di-
gital
-q
uality music, news, sports. talk and chil-
dren's programming.
•
The
XM
name and related logos are t
rade-
marks of
XM
Satellite Radio
In
c.
C!J
Protecting
your
unit
from
theft
The
front
panel
can
be detached
fr
om
the
head
unit
to
discourage theft.
~Important
• Never use force or
gr
ip the displ
ay
and the
buttons tightly when removing
or
attachin
g.
• Avoid subj
ec
ting the f
ron
t panel to excessive
shocks.
•
Keep
the front panel outof direct sun
li
ght and
high temperatures.
Removing
the
front
panel
1
Press
DETACH
to
release
the
front
panel.
Press
DETACH
and
th
e
right
side of
the
panel
is released
from
the head
un
it.
Section
•
m
:::::1
(Q
En
CD

Section
~~--------~~--------------
• ( Before You Start )
2 Grab the front panel and remove.
Grab the right side of the front panel and pull
away to the left. The
front panel will be de-
tached from the head unit.
Attaching the front panel
1 Place the front panel flat against the
head unit.
2 Press the front panel into the face of
the head unit until it is firmly seated. (Ill
(]J En

(~w_h_a_t'_s_W_h_a_t
________
)
Head unit
l } !
SOURCE
button
This
unit
is
turned
on by
selecting
a sour-ce.
Press to cycle
through
all
of
the
available
sources.
(
~
,
DISPLAY
button
Press to select
different
displays.
Also, press
to
control
external unit.
(
~
J
CLOCK
button
Press and hold
to
change
the
clock
display.
·_4
-,
TAPE
EJECT
button
Press to eject a
tape
fr-om you
(cassette
player.
,
~
·
~/.,....
buttons
Press
to
fast
forward
or
rewind
the
tape.
®
LOCAL/BSM
button
Press to
turn
local
function
on
or
off
when
tuner
is selected as a source.
Press and hold to
turn
BSM
function
on
or
off
when
tuner
is selected as a source.
Section
c
)Ci!ll
Pt-ess
to tu1-n pause on
or
off
when
til
ulti-CO
is
selected as a sour-ce.
Press and hold
to
turn
repeat on
or
off
when
tllulti-CO
is selected as a source.
Also, pt-ess
to
control
extet-nal unit.
(
:L
~
BAND button
Press
to
select
among
three
FM
and
one
AM
bands
and
cancel
the
control
mode
of
functions.
(
~
~)
BTB
button
Press
to
select
various
BTB (bass
treble
booster) setting.
c
g
~,
AUDIO button
Press to select
various
sound
quality
con-
trols.
@ DETACH
button
Press
to
remove
the
front
panel
from
the
head unit.
@
1-6
buttons
Press
for
preset
tuning
and
disc
number
search
when
using
a
multi-CO
player.
Also, press to
control
external unit.
(~1
En
\____!__)

Section
a (What's What )
@ _,.,,.. buttons
Press to do manual seek tuning. Also used
for controlling functions.
@ LOUDNESS button
Press and hold to turn loudness on or off.
@ VOLUME button
Press to increase or decrease the
volume. (!)
mEn

(~P_o_w_e_rO __ NI_O_F_F ______ ~)
Turning the unit on
• Press SOURCE to turn the unit on.
When you select a source the unit isturned
on.[!)
Selecting a source
You can select a source you want to listen to.
To switch to the cassette player, load a cas-
sette tape in this
unit (refer to page 12).
• Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Tuner-Cassette player-Multi-CO player-
External unit
.Notes
• In the following cases. the so und source wrli
not change :
-
When a un it con·espond1ng to each source
is
not co nn ected to thi s unrt.
-
When no cassette is set in this unit.
- When no magazine is set in the multi-CO
player.
• External unit refers to a Pioneer product (such
as
one available in the fu ture) that. although
i ncompa tible as a source, enables control of
basic
functions by this unit. Only one external
unit
can be control led by t his unit.
• When this
unit' s blue/white lead is connected
to the ca r's auto-antenna reiay contr·ol te rm-
ltlal,
the car's antenna extends when this
uni t's so ur ce is turned on. To t·etr·a ct the an-
tenna.
turn the source off. [!)
Turning the unit off
• Press SOURCE and hold until the unit
turns off. [!)
Section
~----------~GI
-m
::::J
(Q
f/)
:::r
En CI)

Section
& (Tuner )
Listening
to
the
radio
r.
D
Band indicator
Sh
ows which ba
nd
the radio is tuned to. AM
or
FM.
<
1)
Frequency indicator
Shows to which freque
ncy
the
tuner
is
tuned.
'·
3J
Stereo
{
CD
)
indicator
Shows
th
at
the
frequency
se
lected is being
broadcast in stereo.
A •
Preset number indicator
Shows what pre
se
t has been
se
lected.
1
Press
SOURCE
to
select
the
tuner.
2 Use VOLUME
to
adjust
the
sound level.
When
yo
u
pr
ess
VOLUME
u
p/
+ ,the vol
ume
is
raised and when pressed
dow
n/
-,
the v
olum
e
is l
ow
ered.
3
Press
BAND
to
select a band.
Press
BAND
until
th
e desired band is di
s-
played,
F1
.
F2
,
F3
for FM
or
AM
.
4
To
perform manual tuning,
press..,..
or
..,..
with
quick presses.
The frequencies move up or down step
by
step.
5
To
perform seek tuning,
press
and hold
<IIIII
or
..,..
for
about
one
second and release.
The
tun
er will scan the
fr
equenci
es
until a
broadcast strong en
ough
f
or
good reception is
found.
@
En
•
You
can cancel
seek
tuning
by
pressing either
<IIIII
or
..,..
with a quick pre
ss.
• If
yo
u pr
ess
and hold
<IIIII
or
..,..
yo
u can skip
b
ro
ad
casting stations.Seektuni
ng
starts
as
soon
as
you
rele
as
ethe buttons.
aNote
When the frequency
se
lected is being broadcast
in
ster
eo
t
he
st
e
re
o
(CD)
indicator
wi
ll
lig
h
t.
~
Storing
and
recalling
broadcast frequencies
If you
pr
ess any of the preset
tuning
butt
ons
1-6
you can ea
si
ly store
up
to six broadcast
frequencies for later recall
with
the t
ouc
h of a
button.
• When you find a frequency
that
you
want
to
store in memory
press
a preset
tuning button
1-6
and hold until
the
preset
number stops flashing.
The
nu
mber
you have pressed will flash in the
preset
nu
mber indicat
or
a
nd
then
remain lit.
Th
e selected radio s
ta
tion fre
que
nc
y has been
stored in
memo
ry.
Th
e n
ex
t
tim
e you
pr
ess the same
pr
eset tun-
ing button 1-6 t
he
radio station frequency is
recalled fr
om
memory.
aNote
Up to 18 FM station
s.
6 f
or
eac
h of t
he
thr
ee
FM
band
s.
and 6AM stations can
be
stored in mern-
OIY
[!)
Tuning in strong signals
Local seek
tun
ing lets you tune in
on
ly
tho
se
radio stations
wi
th sufficiently strong signals
for
good reception.

(Tuner
1 Press LOCALIBSM to turn local seek
tuning
on.
LOC appears in the display.
)
2 When you want to return to normal
seek tuning, press LOCAL/BSM
to turn local
seek tuning off. 0
Storing the strongest
broadcastfrequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcastfre-
quencies
under preset tuning buttons 1-6 and
once stored there you can tune in to those fre-
quencies with
the touch of a button.
• Press LOCAL/BSM and hold until the
BSM turns on.
BSM begins to flash. While BSM
1s flashing
the six strongest broadcast frequencies will he
stored under preset tuning buttons 1-6 in
order of their signal strength. When finish ed
BSM stops flashing.
•
To cancel the storage pt-ocess. press
LOCAL/BSM .
• Note
Stonng broadcast frequencies with BSM may re-
place broadcast frequencies you have saved
USinQ 1-6. l - ~ )
Section
~~----~~~ Gl
m
=
(C
(/)
:::r
En ( 11 _)

Section
D (Cassette Player
)
Playing a tape
CD Tape direction indicator
Shows the direction of the tape transport.
1 Insert a cassette tape into the cassette
loading slot.
Playback wi II automatically start.
Cassette loaclinQ slot
• You can eject a cassette tape by pr-essi n~
TAPE EJECT.
2 After a cassette tape has been inserted6
press
SOURCE to select the cassette player.
Press SOURCE until cassette player is selected
as
the source.
3 Use VOLUME to adjust the sound level.
When you press VOLUME up/+. the volume is
raised
and when pressed down/-, the volunle
is lowered.
4 To perform fast forward or rewindu
press.,.......,... or ........
Iii You can cancel fast for-ward or- r-ewi nci by
pressing ...,... or~~ in the opposite direction
lightly.
5 To change the direction of the tape
transport, press ...,......,... and ...._. simulta-
neously.
(ill En
gNote
Do not insert anything other than a cassette tape
into the cassette loading slot.
C!J
Radio intercept
Radio intercept allows you to listen to the
radio during tape fast-forwarding/rewinding.
• Press 6 to turn radio intercept on or
off. C!J

(~M_u_l_ti_-C_D_P_I_a_ye_r ____ )
Playing a CD
You can use this unit to controla multi-CO
player, which is sold separately.
(1) Disc number indicator
Shows the disc currently playing.
@ Play time indicator
Shows thP. P.IPJ.psP.rl plnying ti mP. of the cur -
rent track.
1 Press SOURCE to select the multi-CO
player.
2 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and
when pressed down / -. the volume
rs lowered.
3 Select a disc you want to listen to with
the 1-6 buttons.
For discs located at 1 to 6, pr ess the corre-
sponding number button.
If you want to select ad isc located at 7 to 12,
press and hold
th e correspond ing numbe rs
such as 1 for disc 7, until the disc number ap-
pears in
the display.
4 To perform fast forward or reverse,
press and hold
...,.. or ~.
5 To skip back or forward to another
track, press ...,.. or ~.
Pressing ..,. sk ips to the sta rt of th e next track.
Pressing ...,.. once skips to th e s tart of the c ur -
rent track. Pressing
aga in will skip to the pre-
vious tra c k.
~----------------------------~
IJNotes
• When the multi-CO player performsthe pre-
paratory operations, READY is displayed.
•
If the multi-CO player does not operate prop-
erly, an error message such as ERROR-11
may be displayed. Re fer to the multi-CO player
owner's manual.
• If there are nodiscs in the multi-CO player ma-
gazine. NO
DISC is displayed . ~
Changing the display
You can change the display.
• Press DISPLAY to switch the display.
Press DISPLAY repeatedly to sw i tch the dis-
play in
the fol l owing order:
Disc number and track number- Disc num -
bet- and play time~
Repeating play
There are three repeat play ranges t or the
multi-CO player: MCD (multi-CO player re-
peat), TRK (one-track repeat) and DSC (disc re-
peat).
• Press and hold LOCAL/BSM repeatedly
to select the desired repeat range.
• MCD -Repeat a
ll discs in the multi- CO
player·
" TRK- Repeat justthe cu rT en t track
• DSC -Repeat the cun ·e nt disc
IJNotes
• If you select otherdiscs dunng rep ea t play,
the rep
ea t pl ay ra nge changes to MCD .
.. If you perform tr ack search or fast forwar- d/ re -
verse
dur ing TRK, the repe at play range
changes to
DSC. ~
Section
•
En®

Section
B (
Multi-CD
Player )
Pausing
CD
playback
Pause lets
yo
u temporarily stop playback of
the
CD.
1
Press
LOCAL/SSM to turn pause on.
PAUSE
appears in
th
e displ
ay.
Pl
ay
of the cur-
rent track pau
ses.
2
Press
LOCAUBSM
to
turn
pause off.
Pl
ay
will resume at the same point
th
at you
turned pause on.
C!J
50-disc multi-CO
player
50-d
isc mult
i-
CO
pla
ye
rs can not
be
operated
with this unit.
~
@
En

(~A_u_d_io_A_d_ju_s_t_m_e_n_t_s -~)
Introduction of audio
adjustments
CD BTB indicator
Shows when the BTB other than FLAT is se-
lected.
® Audio display
Shows the audio adjustments status.
@ LOUD indicator
Appears in the display when loudness is
turned on.
• Press AUDIO to display the audiofunc-
tion names.
Press AUDIO repeatedly to switch between
the following audio functions:
FAD (balance adjustment)-BAS (bass adjust-
ment)-TRE (treble adjustment)-LOUD
(loudness)-SLA (source level adjustment)
• When selecting the
FM tuner as thesource,
you cannot switch to SLA.
• To return to the display of each source, press
BAND.
~~Note
If you do not operatethe audio function within
about
30 seconds, the display is automati ca lly re -
turned to thesour
ce display. 0
Using balance adjustment
You can se le ct a fader/balance setting that
provides an ideal listening environment in all
occ upied seats.
~--------------- Section
•
1 Press AUDIO to select FAD.
Press AUDIO until FAD appears in the display.
• If the balance setting has
been previously ad-
justed, BAL will be displayed.
2 Press VOLUME up/+ or down/- to ad-
just
front/rear speaker balance.
Each press of VOLUME up/+ or down/-
moves the front/rear speaker balance towards
the front
or the rear.
FAD F15- FAD R15 is displayed as the front/
rear speaker balance moves from fr ont to rear.
• FAD 0 is the proper setting when only two
speakers are used.
3 Press ...,.. or ..,.. to adjust left/right speaker
balance.
When you press <IIIII or..,., BAL 0 is displayed.
Each press
of...,.. or..,.. moves the left/right
speaker balance towards
the left or the right.
BALL 9- BAL R9 is displayed as the left/right
speaker balance moves
from left to right. [!)
Using the BTB (bass treble
booster)
There are five stored BTB settings such as
DYNAMIC, POWER, MAX, CUSTOM and
FLAT that can easily r ec all at any time.
• CUSTOM is an adjusted BTB setting that
you create.
• When
FLAT is selected no supplement or
correction is made to
th e sound.This is
useful
to check e ff ec t of the BTB se tting s
by
switching alternatively between FLAT
and set BTB setting.
• Press BTB to select the desired BTB set-
ting.
Press BTB repeatedly to sw itch between the
following BTB setting:
MAX -CUSTOM- FLAT - DYNAMIC-
POWER
m
~
cc
(/)
::r
En CID

Section
D (
Audio
Adjustments
)
Adjusting
BTB
Y
ou
can adj
ust
the
curr
e
nt
ly selected BTB set-
ting as des
ir
ed. A
djus
ted BTB
se
tt
ings are
memori
ze
d in CUSTOM.
Adjusting
bass
Yo
u can adjust the bass level.
1
Press
AUDIO
to
select
BAS.
Press
AUDIO
until
BAS
appea
rs
in the displ
ay.
2
Press
VOLUME
up/+
or
down/-
to
ad-
just
the
bass level.
Ea
ch press
of
VOLUME up/ + or
dow
n/- in-
creases
or
decreases the b
as
s l
ev
el. +6 -
-6
is
displayed as the le
ve
l is increased
or
de-
creased.
Adjusting
treble
Yo
u can adjust the
tr
eble level.
1
Press
AUDIO
to
select
TRE.
Press
AUDIO
until
TRE
appears in the display.
2 Press
VOLUME
up/+
or
down/-
to
ad-
just
the
treble
level.
Ea
ch press of
VOLUME
up
/ + or d
ow
n/- in-
creases or decreases
the
treble le
ve
l.
+6-
-6
is displayed
as
th
e level is increased or
decreased. (!)
Adjusting
loudness
Loudness c
omp
ensates for deficiencies in the
l
ow
-and high-
so
und ranges at low
vo
lume.
1
Press
AUDIO
to
select LOUD.
Press
AUDIO
un
til LOUD appears in the dis-
pl
ay
.
2 Press
VOLUME
up/+
to
turn
loudness
on.
LOUD indicator is displayed.
®
En
• To tu
rn
loudness off.
pre
ss
VOLUME down
/-.
3
Press
-<1111
or
..,..
to
select a desired level.
Each
pr
ess of
-<1111
or
..,..
selects lev
el
in the fo
l-
lowing orde
r:
LOW
(low)- HI (high)
IJNote
Y
ou
can also turn loudness on or off by pr
es
si
ng
and holding
LOUDNESS
.(!)
Adjusting source levels
SLA (source lev
el
adjustment) lets you adjust
the
vo
l
um
e l
ev
el
of each source to p
re
vent ra-
dical changes in
vo
l
um
e when switching be-
tween sources.
• Settings are based on the vol
ume
l
ev
el
of
the FM t
un
e
r,
which re
ma
ins unchanged.
1
Compare
the
FM
tuner
volume level
with
the
level
of
the
source
you
wish
to
ad-
just.
2
Press
AUDIO
to
select
SLA.
Press AUDIO
un
til SLA appears in the display.
3
Press
VOLUME
up/+
or
down/-
to
ad-
just
the
source volume.
Ea
ch press
of
VOLUME
up
/ + or d
ow
n/- in-
creases or decreases the source v
ol
ume.
SLA
+4
-
SLA
-4
is displayed as the source vo-
lume is in
ue
ased
or
decreased.
IJNotes
• Sin
ce
the FM tuner
vol
ume
is
thecontrol, it is
not p
ossi
bleto apply s
ou
r
ce
le
vel
ad
justm
en
ts
to t
he
FM t
un
er.
•
Th
eAM tuner volume l
eve
l
ca
n al
so
be
ad-
JUS
ted
with sour
ce
l
eve
l adjustments. (!)

(~o_t_h_e_r_F_u_n_ct_io __ ns ______ ~)
Setting the clock
Usethese instructions to set the clock.
1 Press SOURCE and hold until the unit
turns off.
2 Press and hold AUDIO until clock ap-
pears in
the display.
3
Press ..,.. or ..,. to select the segment of
the clock display you wish to set.
Pressing ..,.. or..,. will select one segment of the
clock display:
Hour-Minute
As you select segments of the clock display
the segment selected will blink.
. w; ....... .
~ ..
~
4 Press VOLUME up/+ or down/- to set
the clock.
Pressing VOLUME up/+ will increase these-
lected hour or minute. Pressing VOLUME
down/- will decrease the selected hour or min-
ute.
•
To cancel clock settings, press BAND.
• You can also cancel clock settings by holding
down
AUDIO until the unitturns off. C!J
Turning the clock display
on or off
You can turn the clock display on or off.
• Press and hold CLOCK to turn the clock
displayon or
off.
Each press and hold of CLOCK turns the clock
display on or off.
•
The clock display disappears temporarily
when
you perform other operations,but the clock
displayappears again after
25 seconds. C!J
~----------------------------~
Introduction of XM operation
You can use this unit with aseparately sold uni-
versal XM satellite digital tunersystem (GEX-
FM913XM) or XM satellite digital tuner (GEX-
P910XM).
For details concerning operation, refer to the
XM
tuner's operation manuals. This section
provides information on XM operations with
this unit which differs from that described in
the XM tuner's operation manual.
• This
unit controls XM tuner as an external
unit.
XM operation
XM operation of the following function with
this unit differs.
• Swiching the XM channel select setting
(Refer to this page.)
Swiching the XM channel select
setting
You can switch if you select a channel with a
channel
number or from a channel category
when you select a channel.
1 Press LOCAL/BSM to select channel se-
lect setting.
2
Each press of LOCAL/BSM changes the
channel select mode in
the following
order:
Channel numbe r select mode-Chan nel cate-
gory select mode
C!J
Section
~
· ~
m
:::::s
(Q
til
:::r
En®

Appendix
(_
A_d_d-
it-io_n_a_l
-ln_f_o_r_m_a_t_i_o_n~)
Cassette
player
• A loose
or
warped label on a cassette tape
may interfere with the eject mechanism
of
the
unit
orcause the cassette
to
become
jammed
in the unit. Avoid using such
tapes
or
remove such labels from the cas-
sette before attempting use.
•
Be
sure
to
eject tape when the
veh
icle's
ignition is
turn
ed
off.
Lea
vi
ng
the
tape in
the
unit
can deform the pinch roller caus-
ing
wow
and flutter during tape
playback. 0
Cassette
tapes
• Loose tapes should
be
rewound with the
a
id
of
a pencil and une
ven
ly wound tapes
rewound with the use of the fast forward
function.
• A loose, torn
or
warped label on a casse
tt
e
tape can jam the cassette player. Do not
use cassette tapes
with
loose, torn or
warped labels.
• Cassette tapes longerthan C-90 (90-minute
tapes) can cause the tape to
jam
in the cas-
se
tt
e player. Do not use tapes longerthan
C-90.
• Cassette tapes exposed
to
high tempera-
tures maywarp and
jam
the cassette
player. Keep cassettes
out
of direct sunli
gh
t
or
placeswhere there are high tempera-
tures.
®
En
• Store unused tapes in a tape case where
there is no danger of
them
becoming
loose, dirty ordusty.
0
Cleaning
the
playback
head
If
the
head becomes dirt
y,
the sound quality
will get bad and
ther
e will
be
sound dropouts
and other problems. If you have any of these
problems the head may need cleaning. 0

(Additional Information )
Specifications
General
Power source ............ .. .............. .14.4 V DC (10.8 -15.1 Val-
lowable)
Grounding system
................ . .. Negative type
Max. current consumption
.. .. . ... .. ... . ... ..... .. . ............. . .... ... .. . .. .. 8.5A
Dimensions (W x H x D):
DIN
D
Chassis .................. 178 x 50 x 155 mm
(7 X 2 X 6-1/8 in.)
Nose
............ . .............. 188 x 58 x 20 mm
(7-3/8 X 2-1/4 X 3/4 in.)
Chassis .
............. .. ..... 178 x 50 x 160 mm
(7 X 2 X 6-1/4 ln.)
Nose
....... . .... . ..... . ........ 170 x 48 x 15 mm
(6-3/4 X 1-7/8 X 5/8 in .)
Weight ........................... .. .... . ........ 1.4 kg (3.1 lbs)
Audio
Continuous power output IS 17 W per channel minimum
into 4 ohms . both channels driven 50 to 15.000 Hz with
no more than 5%THD
Maximum power output ....... 40 W x 4
Load impedance .
.. . ......... . .... ... .40 (4- 8 0 allowable)
Preout max output level/output impedance
........ .. ..... . ............ .. ............... . ...... 2.2 V/1 kf.l
Bass/Treble:
Bass
Frequency
..... . .. . .. ... 1 00 Hz
Gain ...
............. ..... .... .. ±12dB
Treble
Fr equency .. .... .. .... ... 1 Ok Hz
Gam ..... . ............ ... ... . ... ±12dB
Loudness contour
Low
Cassette player
. +7 dB(100Hz). + 4dBl 10
kH
z)
.. +10 dB (100 Hz l. +6.5 dB
(10k H z)
rvolume: -30 dB'l
Tape ....... ...... .... .. ... . .... ...... ..... .......... Compact cassette tape (C-
30 - C- 90)
Tape speed .... .... .... ....... ..... ... .... ... 4 .8 e m/ sec
Fas t forward /r ewindmg time
...... .. .... .......... . .................... Ap prox. 100 sec (C-60)
Wow &flutte1· ....... .. . ......... . ...... . .. 0. 13 % (WRMS)
Frequen
cy re sponse ... .. .......... 3 0- 16,000 Hz (± 3 dB)
Appendix
~----------------------------------~
Stereo separation ...... ..... . .. ...... 45 dB
Signal-to-noise ratio
...... ... .... .. 52 dB (IHF-A network)
FM tuner
Frequency range .... .. ........ .. ...... 87 .9 -107.9 MHz
Usable sensitivity
........ . .... ...... 11 dBf (1. 1t.N/75 f.l. mono,
S/N: 30 dB)
50 dB quieting sensitivity .. .. . 17 dBf (2.2i.N/75 0. , mono)
Signal-to-noise ratio
............ .. . 58 dB (IHF-A networ k)
Distortion .... .. ................ .. ..... .. ...... 0 .5 % (at 65 dBf. 1kHz,
stereo)
Frequency response
........... .... 30- 15 ,0 00 Hz ( ±3 dB )
Stereo separation
... . ................ 24 dB (at 65 dBf, 1kHz)
Selectivity
.. ... ... .. .... ... ............ .. . 71 dB
Th ree-signal intermodulabon (desired signal level)
................... .. ............ .. ............. 47 dBf (two undesired sig-
nal level: 1
00 dB f)
AM tuner
Frequency range .............. .. 530 -1,710 kHz (1 0 kHz)
Usable sensitivity
...... .... .. . .. ...... 20 f.N (S / N: 20 dB)
Sel
ect ivity .. .. ...... .. . 50 dB (±10kHz)
.Note
Specifications and thed es ign are su bject to pos-
sible modifications without notice due to im-
provements. 0
En
m
~
(Q
-·
r/1
::::r

Registeryour product
at
Enregistrez votre produit au
Registre su producto
en
~
http://www.pioneerelectronics.com
L,..._----
See "Produ
ct
registration" page
Voir la page "Enregistrement du produit"
Consulte Ia ptigina sobre "Registro del produc
to"
PIONEER CORPORATION
4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN
PIONEER ELECTRONICS
(USA)
INC.
P.O.
Box 1540, Long Beach, California 90801-1540, U.S.A.
TEL
: [phone]
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1
, B-9120 Melsele, Belgium
TEL: [phone]
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01 , Singapore 159936
TEL: 65-64
72
-1111
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria
3195
, Australia
TEL: [phone]
PIONEER ELECTRONICS
OF
CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R OP2,
Canada
TEL: [phone]
PIONEER ELECTRONICS
DE
MEXICO, S.A.
de
C.V.
San Lorenzo 1
009
3er. Piso Desp.
302
Col. Del Valle Mexico,
D.F.
C.P.
03100
TEL:
55
-5688-52-90
<KS
NZX/02H00000>
Published by PioneerCorporation.
Copyright©
2002 by PioneerCorporation.
All rights reserved.
Publication
de
PioneerCorporation.
Copyright©
2002 PioneerCorporation.
Tous droits
de
reproduction et
de
traduction
re
serves.
Printed in Malaysia
lmprime en Malaisie
<CZR2953-A>
UC
