Pioneer NXS-GW User manual

NETWORK GATEWAY
PASSERELLE DE RÉSEAU
NXS-GW
Operating Instructions
Mode d’emploi
http://pioneerdj.com/support/
The Pioneer DJ support site shown above offers FAQs, information on software and various other types of
information and services to allow you to use your product in greater comfort.
Le site de support DJ de Pioneer indiqué ci-dessus propose une FAQ, des informations sur le logiciel et divers
types d’informations et de services qui permettent une utilisation plus confortable de ce produit.
FrançaisEnglish

2En
Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After
you have finished reading the instructions, put them away in a safe place for future reference.
NOTE
THE NO USER-SERVICEABLE PARTS
COMPARTMENT WARNING IS LOCATED ON THE
APPLIANCE BOTTOM. D3-7-13-68_A1_En
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help. D8-10-1-2_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture. D3-4-2-1-3_A1_En
WARNING
This product equipped with a three-wire grounding
(earthed) plug - a plug that has a third (grounding) pin.
This plug only fits a grounding-type power outlet. If you
are unable to insert the plug into an outlet, contact a
licensed electrician to replace the outlet with a properly
grounded one. Do not defeat the safety purpose of the
grounding plug. D3-4-2-1-6_A1_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 1 cm at top, 3 cm at rear, and 1 cm at each
side). D3-4-2-1-7d*_A1_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
S002*_A1_En
CAUTION
The /ON switch on this unit will not completely
shut off all power from the AC outlet. Since the power
cord serves as the main disconnect device for the
unit, you will need to unplug it from the AC outlet to
shut down all power. Therefore, make sure the unit
has been installed so that the power cord can be
easily unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation). D3-4-2-2-2a*_A1_En
Information to User
Alterations or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment. D8-10-2_A1_En
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF
THIS EQUIPMENT ARE ON THE REAR OR BOTTOM.
RECORD THESE NUMBERS ON PAGE 12 FOR
FUTURE REFERENCE. D36-AP9-3*_A1_En
WARNING: Handling the cord on this product or
cords associated with accessories sold with the
product may expose you to chemicals listed on
proposition 65 known to the State of California and
other governmental entities to cause cancer and
birth defect or other reproductive harm.
D36-P5_B1_En
CAUTION
This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit
to other equipment. To prevent electromagnetic
interference with electric appliances such as radios
and televisions, use shielded cables and connectors
for connections.
D8-10-3a_A1_En

3
En
Contents
How to read this manual
In this manual, names of channels and buttons indicated on the prod-
uct, names of menus in the software, etc., are indicated within square
brackets ([ ]). (e.g. [MASTER] channel, [ON/OFF], [File] menu)
Before start
Features....................................................................................................... 4
What’s in the box ........................................................................................ 4
System setup example ............................................................................... 4
Names of Parts
Front panel .................................................................................................. 5
Rear panel ................................................................................................... 5
Installation guidelines
Installation on an EIA standard rack shelf board .................................... 6
Connections
Connecting to Pioneer DJ devices............................................................ 7
Registering the club information
Registration procedure .............................................................................. 9
Additional information
Troubleshooting........................................................................................ 10
About trademarks and registered trademarks ...................................... 10
External dimensions diagram ................................................................. 11
Specifications............................................................................................ 11

4En
Before start
Features
This product is a network gateway device for installation in a club to use
a club network system operated by Pioneer. When installed, information
on the club, its DJs’ playback information, etc., can be distributed to
people throughout the world via the Internet.
Main features
1Playback information, etc., sent from Pioneer DJ devices is received
via PRO DJ LINK and sent in real time to the web server.
2The product offers both the robustness needed to withstand even the
rough club environment and high reliability.
3Connection is simple and can be done by anyone, and because of its
compact size the product can be installed anywhere.
What’s in the box
!Power cord
!Operating instructions (this document)

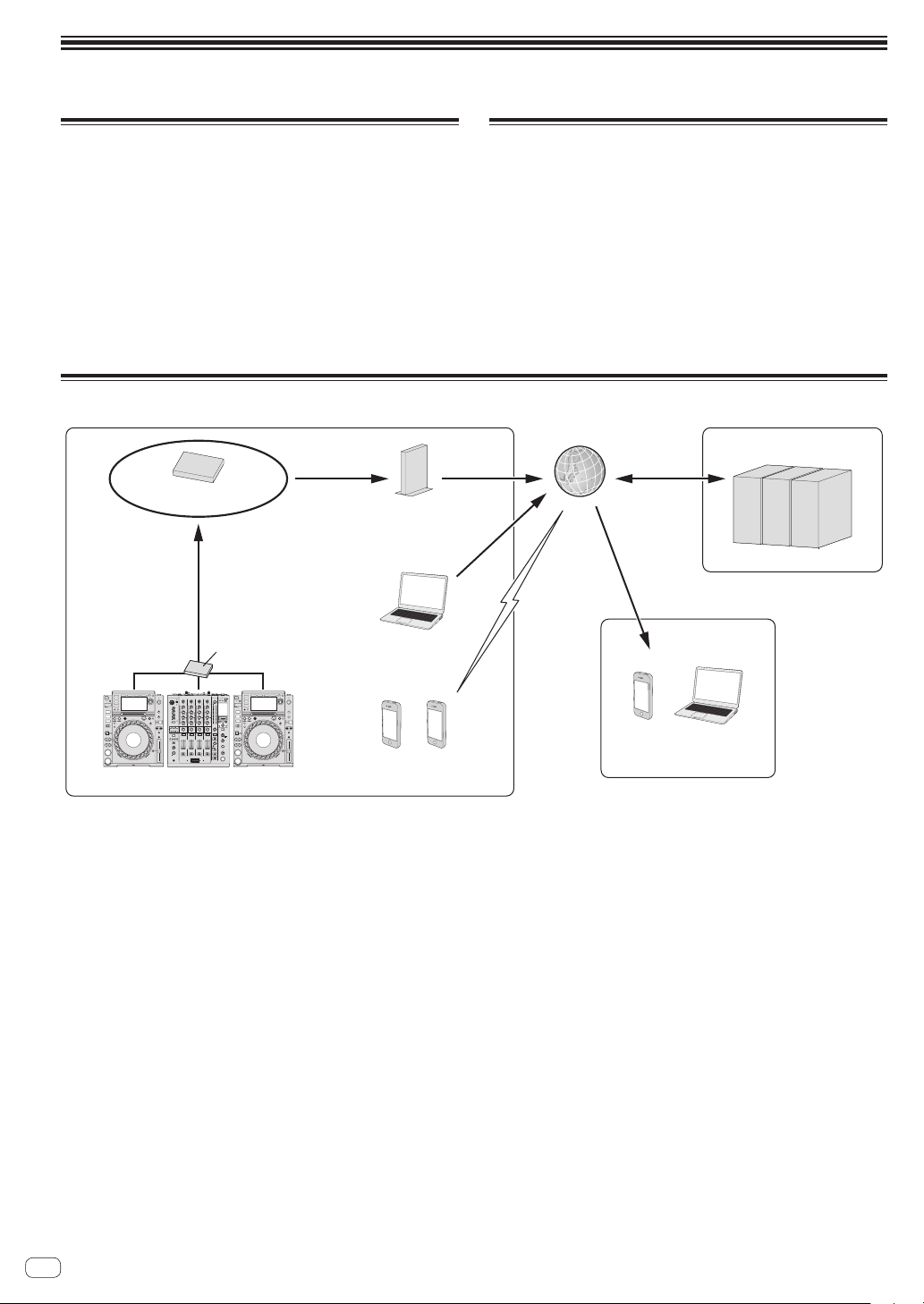

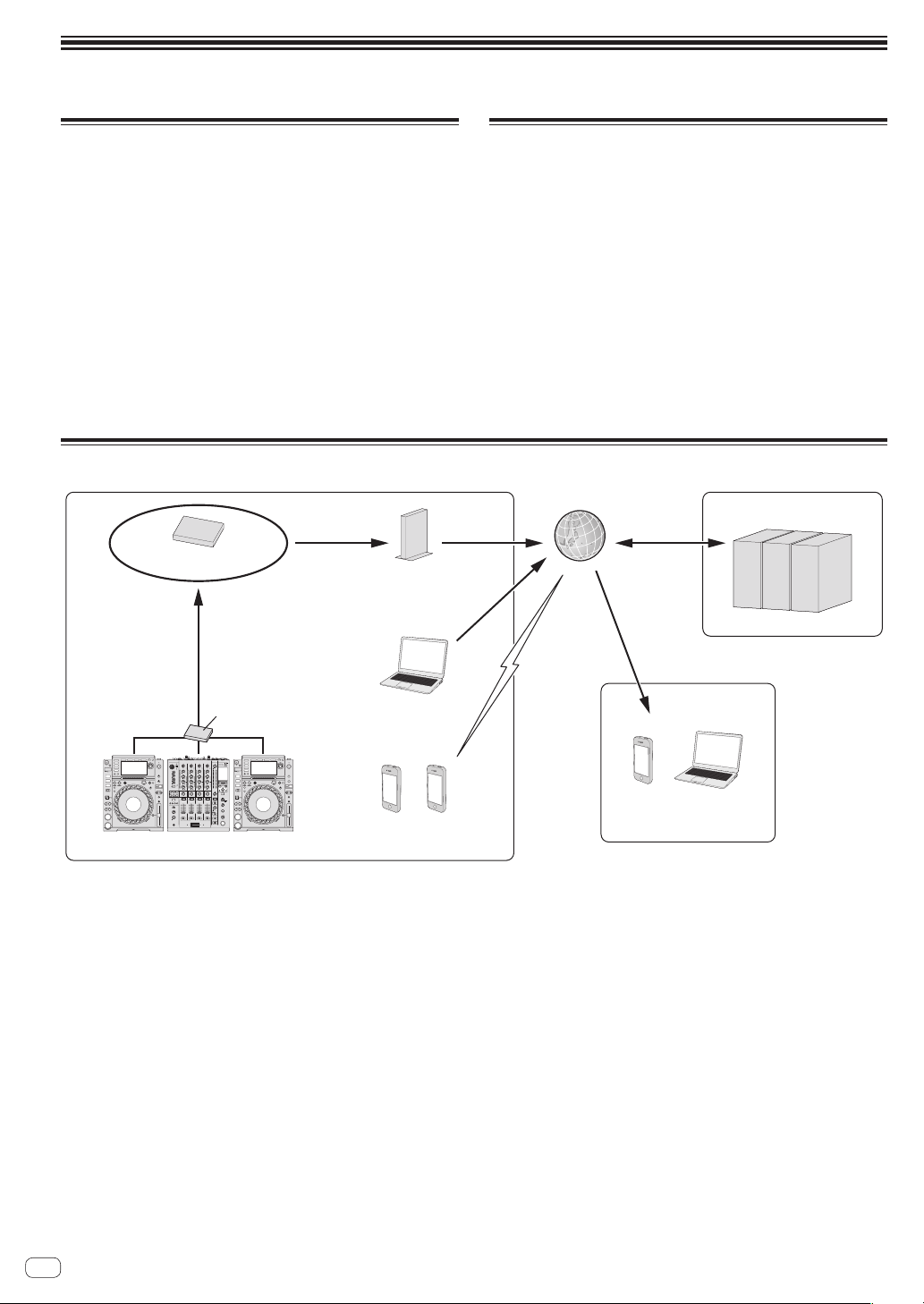

System setup example
12 12
12 12
0
0
ON TALK
OVER
OFF
9
6
-
26/
6
-
26/
6
-
26/
9
6
-
26/
6
-
26/
6
-
26/
9
6
-
26/
6
-
26/
6
-
26/
9
6
-
26/
6
-
26/
6
-
26/
0
NXS-GW
LAN hub
LAN
LAN
Pioneer
Home
PRO DJ LINK compatible Pioneer DJ devices
Router for Internet connection
(commercially available product)
Management computer
Web server
Club
Smartphones 1
Smartphone or computer1
Internet
1Customers at the club or other people interested in club music can see the information on the club, its DJs’ playback information, etc., on their
smartphones.
For detailed information on the system, see our website below.
http://djclubnetwork.com/

5
En
English
Names of Parts

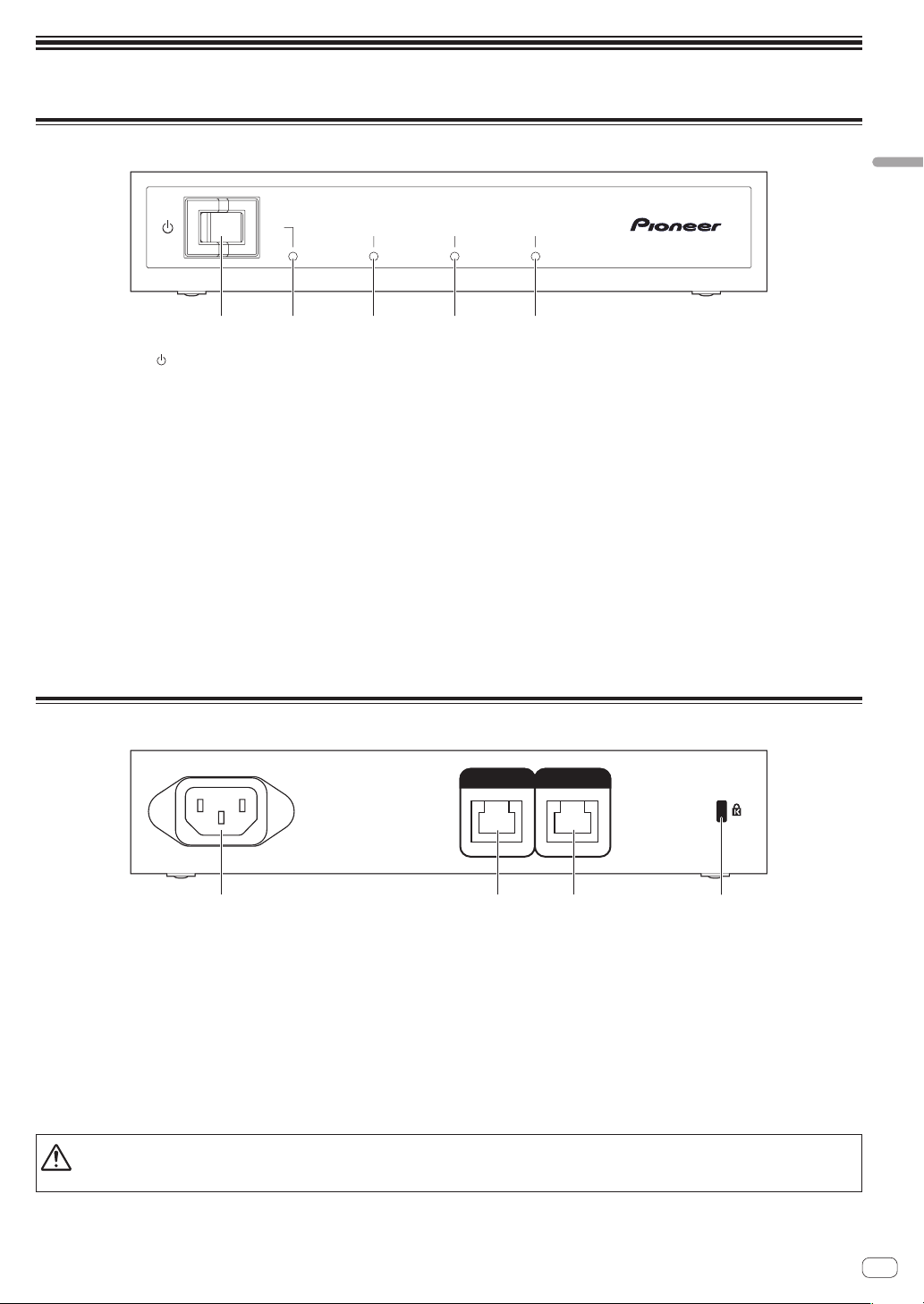

Front panel
NXS-GW
ON ALERTPRO DJ LINKINTERNET
1 2 3 4 5
1 /ON switch
Press to turn the power on and off.
2 ON indicator
Lights when this unit’s power is on.
3 ALERT indicator
!Flashing: This unit’s functions are restricted. Contact your store of purchase or a service center (page 10).
!Off: The indicator is off when the power is off, or when the power is on and the unit is operating normally.
4 PRO DJ LINK indicator
!Lit: This indicator lights when a PRO DJ LINK compatible DJ device is connected to this unit and this system can be used.
!Flashing: The indicator flashes when a PRO DJ LINK compatible DJ device is connected to this unit but this system cannot be used (page 10).
!Off: The indicator is off when nothing is connected or when the power of the device connected to this unit is off.
5 INTERNET indicator
!Lit: This indicator lights when communications with the web server have been verified and this system can be used.
!Flashing: The indicator flashes when communications with the web server have been verified but registration of the club information has not
been completed (page 10).
!Off: The indicator is off when nothing is connected or communications with the web server cannot be verified.
Rear panel
AC IN
INTERNET
PRO DJ LINK
1 2 3 4
1 AC IN
Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the
power cord.
2 INTERNET terminal
Connect to a router, etc., that is connected to the Internet.
3 PRO DJ LINK terminal
Connect to the [LINK] terminal of a PRO DJ LINK compatible Pioneer DJ mixer or to a switching hub (commercially available).
Use a 100Base-TX-compatible switching hub. Some switching hubs may not operate properly.
4 Kensington security slot
CAUTION
Do not connect the LAN port to any network which are subject to overvoltages.

Installation guidelines
!Do not place this unit on objects radiating heat, such as an amplifier, or expose it to a spotlight for an extended period of time, as this may damage
this unit.
!Install this unit away from a tuner or a TV. Otherwise, image distortion or noise may result. Also, image distortion or noise can easily occur if an
indoor antenna is used. In such cases, use an outdoor antenna or turn off the power of this unit.
!Place this unit on a level surface and a stable platform.
!Do not place heavy objects on top of this unit.
Do not allow contact with vibrating
surfaces.
To assure proper heatdissipation, be
sure to maintain this open space.
To assure proper
heatdissipation, be
sure to maintain
this open space.
To assure proper
heatdissipation, be
sure to maintain
this open space.
Installation on an EIA standard rack shelf board
This unit is half the size of an EIA standard rack (1U). When mounting it on a rack, install it on general purpose rack mount shelf or the like. Holes (for
M3 meter screws 6 mm or less in length) for fixing this unit onto a mount shelf are provided on the bottom panel, as shown on the diagram below. Use
these holes to fix this unit by screw to the shelf. Note that this unit has a depth of 138.6 mm.
!Do not install this unit directly above a power amplifier. Heat radiating from the power amplifier may damage this unit. Also, noise (hum noise, etc.)
may be generated.
!When transporting this unit, remove it from the rack. Transporting this unit without removing it from the rack may damage this unit.
!If you transport this unit without removing it from the rack, make sure vibration or shock is not applied to this unit.

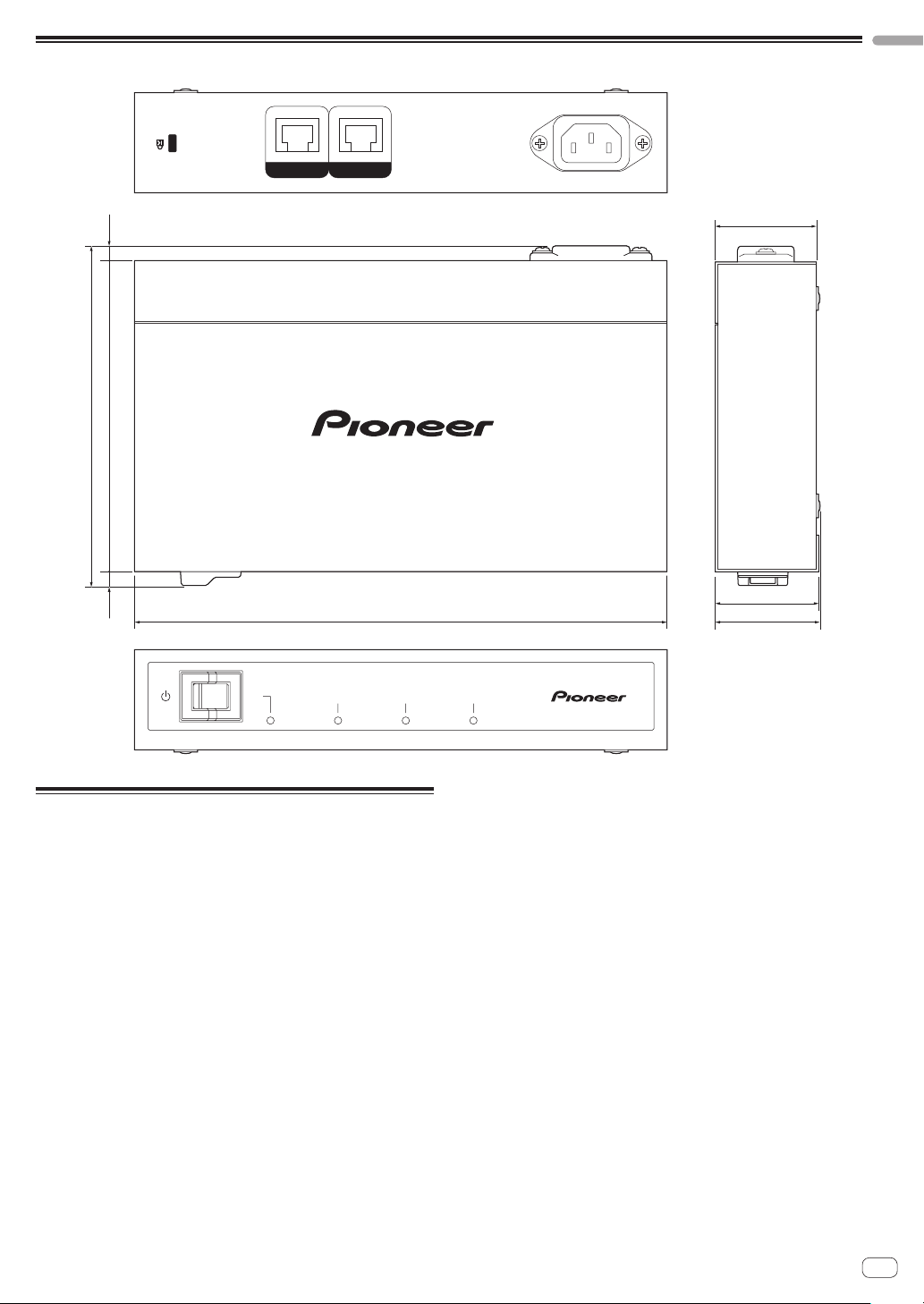

(unit:mm)
1986 6
Rack mount screw hole (M3)Rack mount screw hole (M3)
9
Rack Mount Instructions
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may
be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is
not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical
loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the
circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (e.g. use of power strips).
6En

7
En
English
Connections
Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
Refer to the operating instructions for the component to be connected.
Connect the power cord after all the connections between devices have been completed.
Connecting to Pioneer DJ devices
This unit can be connected to PRO DJ LINK compatible Pioneer DJ devices equipped with a [LINK] terminal (e.g. DJM-900NXS, DJM-2000NXS).
For details on connections, also refer to the respective DJ devices’ operating instructions.
!A separate contract with and payment to a provider offering Internet services is required.

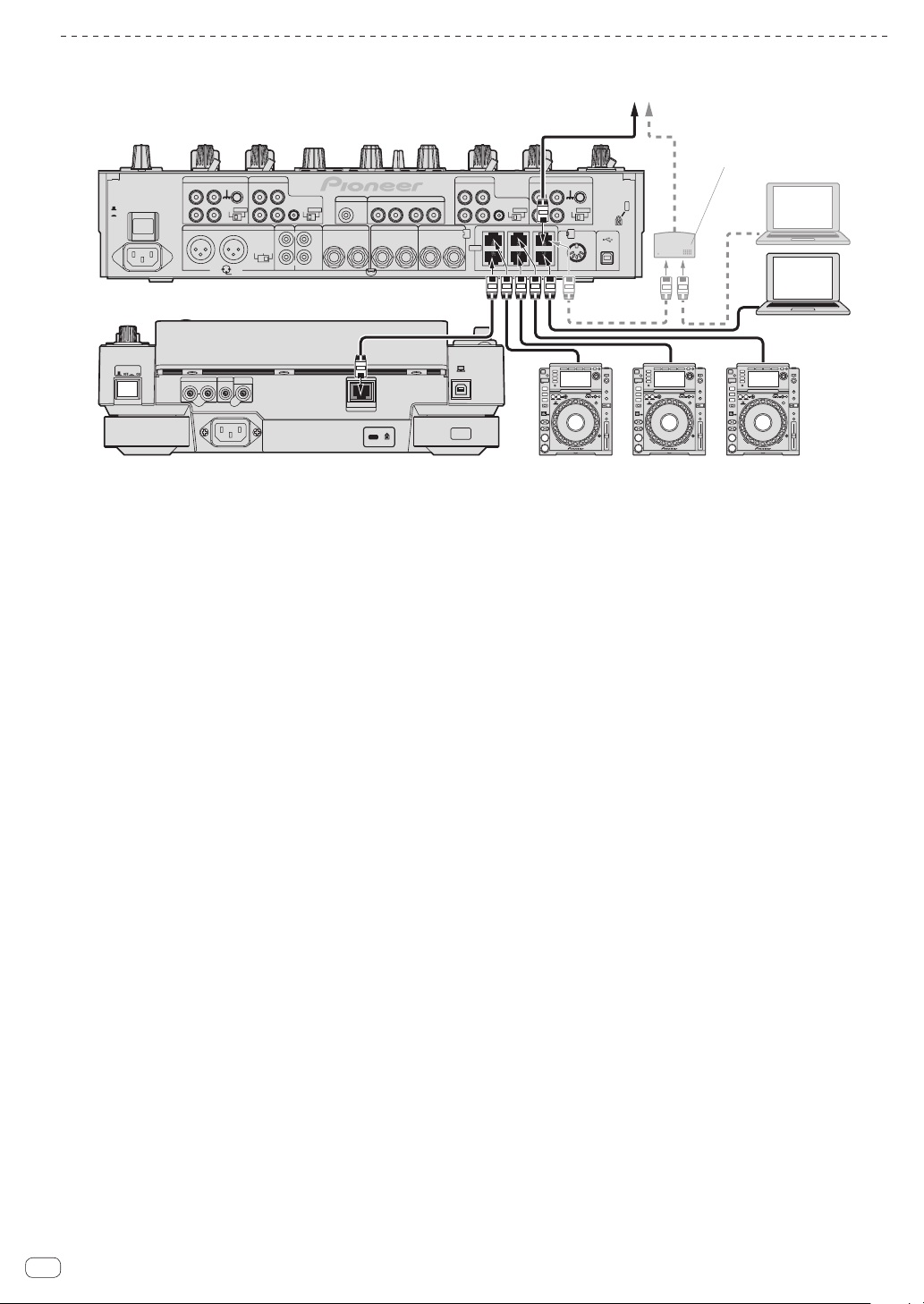

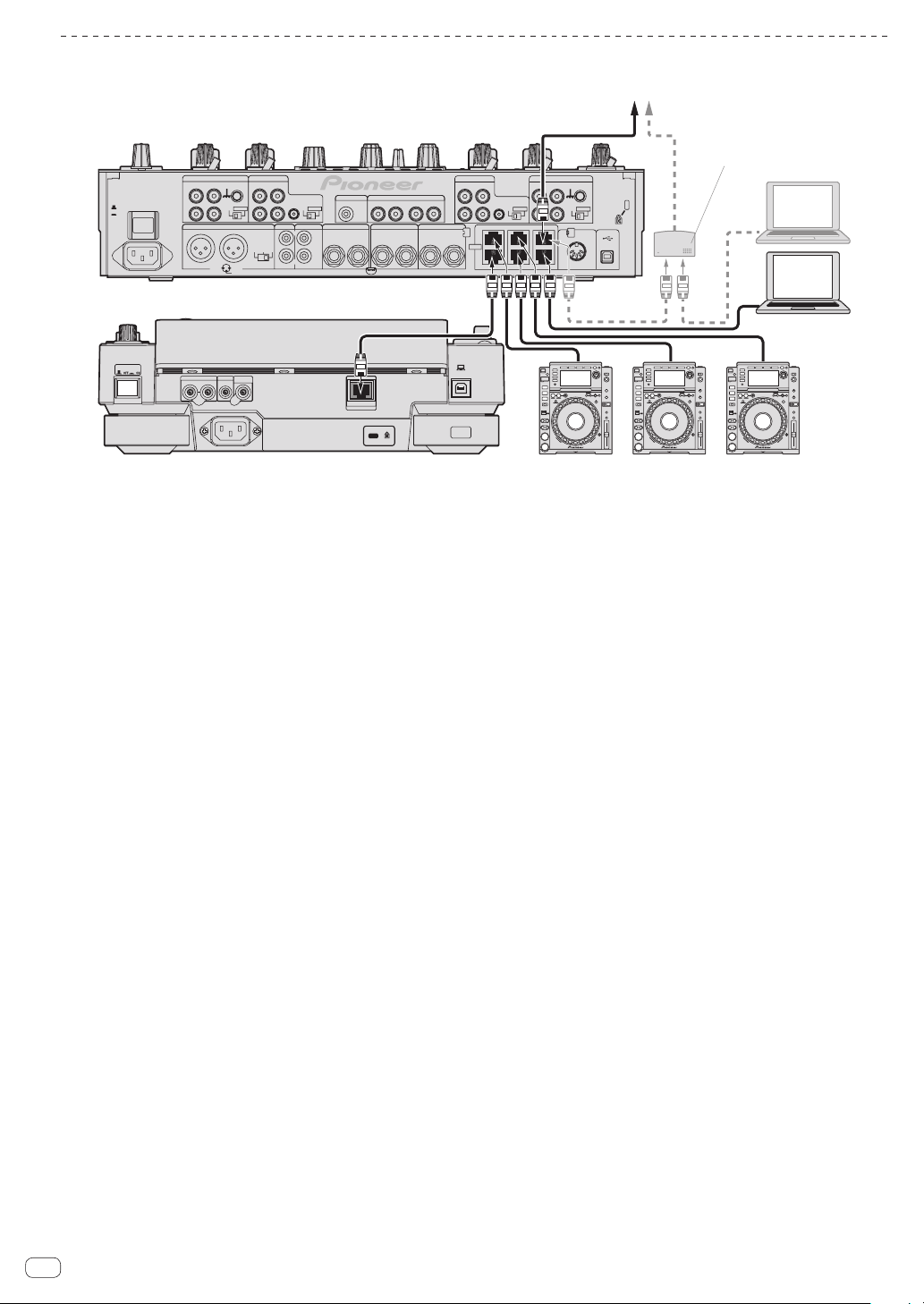

Example of connection with the DJM-900NXS
OFF
RETURN
L
L
L
1 GND2 HOT
3 COLD
L
R
LL
IN
CH3
CH4
CH1CH2
R
R
R
R
L
R
R
PHONO
CH 4CH 3
CD/ LINE
L
R
PHONO
CH 1
CD/ LINE
SIGNAL GNDSIGNAL GND
TRS
CD/ LINELINE
MASTER1MASTER2 REC OUT BOOTH
MIC2
MIDI OUT
DIGITAL
MASTER
OUT
LINK
L
R
CH 2
CD/ LINELINE
(MONO)
LR
(MONO)
SEND
POWER
AC IN
ON
CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS
DJM-900NXS
POWERCONTROL
LINK
AUDIO OUT
RL
CONTROL DIGITAL
OUT
rekordbox
AC IN
INTERNET
PRO DJ LINK
Internet
Router for
Internet connection
To power outlet Power cord
Switching hub
Computer
LAN cable
LAN cable
Rear panel
!Set the DJ player’s player number to the same number as the channel to which the audio cable is connected.
CAUTION
Risk of major electromagnetic interference. Use an STP cable for the LAN cable.

Example of connection with the DJM-2000NXS
CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS
POWERCONTROL
LINK
AUDIO OUT
RL
CONTROL DIGITAL
OUT
DJM-2000NXS
SIGNAL GND
CD
CD
L
R
L
R
PHONOCDLINE
CONTROL
OUTIN
RL
RL
R
LRL(MONO) RL(MONO)
COMPUTER 1
COMPUTER 2
LINK
CH 3CH 1
CH 4 CH 2
CH2CH3CH4CH1
DIGITAL
SIGNAL GND
CD
1GND
-6dB -3dB 0dB
2HOT
3COLD
CD
L
R
PHONO
POWEROFF
ON
MASTER
ATT.
DIGITAL CD DIGITAL
L
R
CDLINE
CONTROL
CD DIGITAL
CH 3CH4
MASTER1
MASTER2 REC OUTBOOTH SENDRETURN
DIGITAL
CH1CH2
USB
MIDI OUT
TRS
AC IN
rekordbox
To this unit’s [PRO DJ LINK] terminal
Switching hub
rekordbox
Computer
!To connect two computers to the [LINK] terminal for computer connection, use a switching hub.
!Set the channel number of the audio cable or coaxial digital cable and the player number to the same number.
8En

9
En
English
Registering the club information
In order to distribute information to clubbers throughout the world, this unit’s main feature, it is necessary to register this unit’s customer ID and the
club information (club name, location information, e-mail address, etc.).
!A separate contract with and payment to a provider offering Internet services is required.
Registration procedure
Before registering the club information, make the preparations below.
!Prepare a computer that can be connected to the Internet.

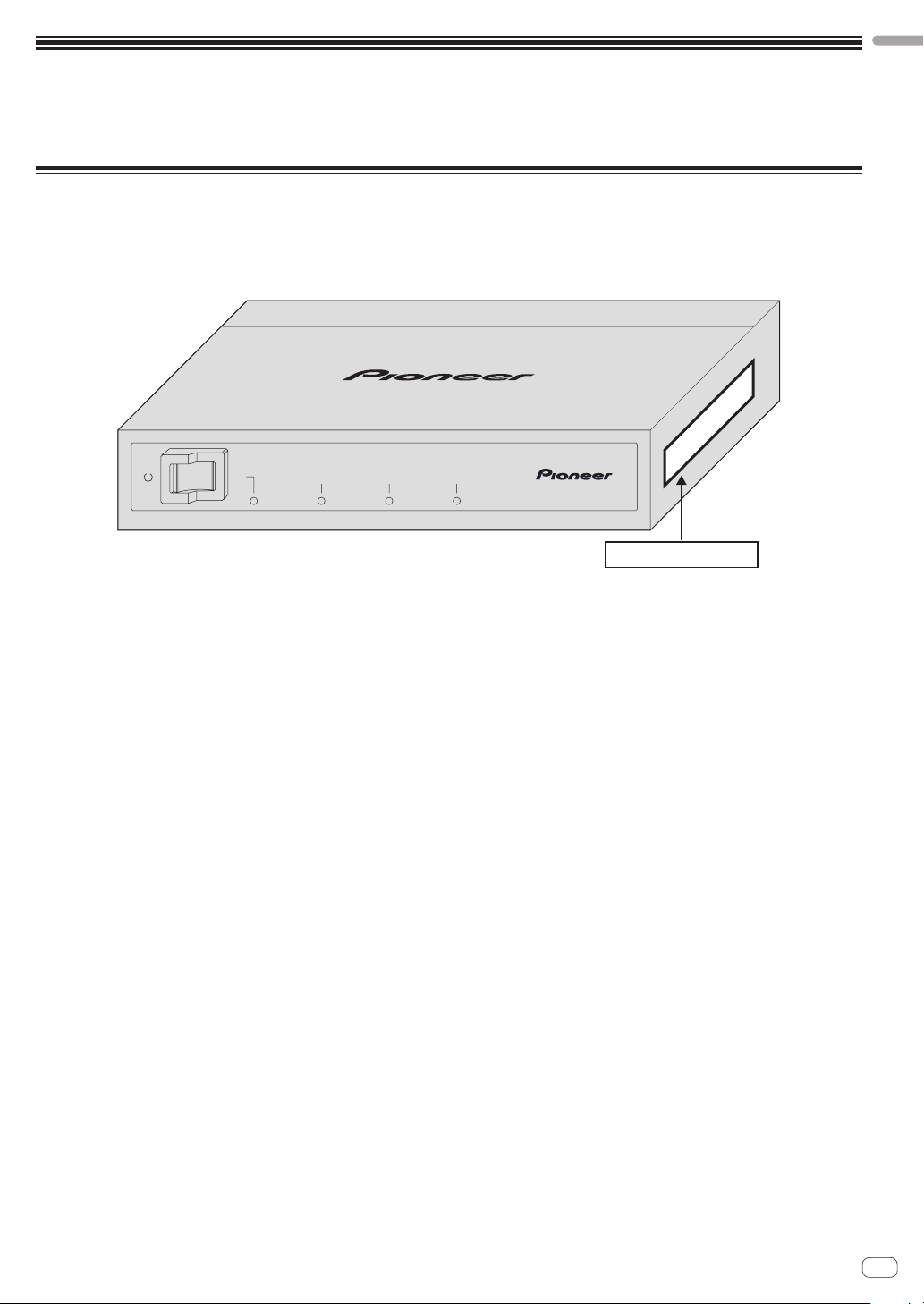

!Make a note of the customer ID attached to this unit’s side panel.
Once preparations are completed, access the website below and register the club information.
http://djclubnetwork.com/clubsignup
NXS-GW
ON ALERTPRO DJ LINK INTERNET
CUSTOMER ID :

Additional information
Troubleshooting
!Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points
below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble
cannot be rectified after checking the items below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
!The player may not operate properly due to static electricity or other external influences. In such cases, normal operation may be restored by
unplugging the power cord then plugging it back in.
Problem Check Remedy
The power is not turned on. Is the power cord properly connected? Plug in the power cord to an AC outlet.
The [INTERNET] indicator is flashing. Have you completed registration of the club
information?
Register the club information. (page 9)
The [INTERNET] indicator is off. Are the Internet side LAN terminal and the router
for Internet connection properly connected?
Properly connect the Internet side LAN terminal and the router for Internet
connection.
Is a DJ mixer connected to the Internet side LAN
terminal?
Properly connect the Internet side LAN terminal and the router for Internet
connection.
Is the power of the switching hub connected to the
Internet side or the router for Internet connection
turned on?
Turn on the power of the switching hub connected to the Internet side or the
router for Internet connection.
Is the firmware of the connected router for Internet
connection the latest version?
Update the firmware of the connected router for Internet connection to the latest
version.
Are you using a LAN cable of Cat 5 or greater for
connection?
Use a LAN cable of Cat 5 or greater for connection.
The [PRO DJ LINK] indicator is
flashing.
Is the connected DJ device a PRO DJ LINK com-
patible Pioneer DJ device?
Connect a PRO DJ LINK compatible Pioneer DJ device.
Is the firmware of the connected DJ device the
latest version?
Update the firmware of the connected DJ device to the latest version.
Are you using a LAN cable of Cat 5 or greater for
connection?
Use a LAN cable of Cat 5 or greater for connection.
Is the PRO DJ LINK compatible DJ player con-
nected directly to the [PRO DJ LINK] terminal?
Connect the DJ player to a switching hub or a PRO DJ LINK compatible DJ mixer
with a built-in hub.
Are both a PRO DJ LINK compatible DJ player
and DJ mixer connected to the [PRO DJ LINK]
terminal?
Operation will not be normal if only the DJ player or only the DJ mixer is con-
nected. Connect both.
The [PRO DJ LINK] indicator is off. Are the PRO DJ LINK side LAN terminal and DJ
mixer or switching hub properly connected?
Properly connect the PRO DJ LINK side LAN terminal and DJ mixer or switching
hub.
Is the router for Internet connection connected to
the PRO DJ LINK side LAN terminal?
Properly connect the PRO DJ LINK side LAN terminal and DJ mixer or switching
hub.
Is the power of the PRO DJ LINK side LAN termi-
nal and the DJ mixer or switching hub turned on?
Turn on the power of the PRO DJ LINK side LAN terminal and the DJ mixer or
switching hub.
The [ALERT] indicator is flashing. —This unit’s functions are restricted.
Contact your store of purchase or a service center to request repairs.
About trademarks and registered
trademarks
!Pioneer is a registered trademark of PIONEER CORPORATION.
The names of companies and products mentioned herein are the trade-
marks of their respective owners.
10 En

11
En
English
External dimensions diagram
NXS-GW
ON ALERTPRO DJ LINK INTERNET
AC IN
INTERNET PRO DJ LINK
138.6
127 6.25.4
42.5
41.3
210
40
(unit:mm)
Specifications
General
Power............................................................AC 100 V to 240 V, 50 Hz/60 Hz
Power consumption............................................................................. 60 mA
Main unit weight .......................................................................0.8 kg (1.8 lb)
Max. dimensions...................210 mm (W) × 42.5 mm (H) × 138.6 mm (D)
(8.3 in. (W) × 1.7 in. (H) × 5.5 in. (D))
Tolerable operating temperature .........+5 °C to +35 °C (+41 °F to +95 °F)
Tolerable operating humidity ...................... 5 % to 85 % (no condensation)
Input / Output terminals
PRO DJ LINK terminal and INTERNET terminal
LAN terminal (100Base TX), (LAN cable: Cat 5 or greater)........... 2 sets
!The specifications and design of this product are subject to change
without notice.
!©2013 PIONEER CORPORATION. All rights reserved.

UCP0212
PIONEER ELECTRONICS (USA) INC.
LIMITED WARRANTY
WARRANTY VALID ONLY IN THE U.S.A. AND CANADA
WARRANTY
Pioneer Electronics (USA) Inc. (PUSA) warrants that products distributed by PUSA in the U.S.A. and Canada that fail to function properly under normal use due to a manufacturing
defect when installed and operated according to the owner’s manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA,
without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA.
THIS LIMITEDWARRANTY APPLIESTOTHE ORIGINAL OR ANY SUBSEQUENT OWNER OFTHIS PIONEER PRODUCT DURINGTHEWARRANTY PERIOD PROVIDEDTHE
PRODUCTWAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER INTHE U.S.A. OR CANADA. YOUWILL BE REQUIREDTO PROVIDE A SALES
RECEIPT OR OTHERVALID PROOF OF PURCHASE SHOWINGTHE DATE OF ORIGINAL PURCHASE OR, IF RENTED,YOUR RENTAL CONTRACT SHOWINGTHE PLACE
AND DATE OF FIRST RENTAL. IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION
PREPAID, ONLY FROM WITHIN THE U.S.A. AS EXPLAINED INTHIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OFTHE PRODUCT.
PUSAWILLPAYTO RETURNTHEREPAIREDORREPLACEMENT PRODUCTTOYOUWITHINTHE U.S.A.
PRODUCT WARRANTY PERIOD Parts Labor
DJ Audio and Video ................................................................................................................................................................................... 1 Year 1 Year
The warranty period for retail customers who rent the product commences upon the date product is first put into use (a) during the rental period or (b) retail sale, whichever occurs first.
WHAT IS NOT COVERED
IFTHIS PRODUCT WAS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR,THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY ANDTHE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THIS PRODUCT IS SOLD STRICTLY “AS IS” AND “WITH ALL FAULTS".
PIONEER SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL AND/OR INCIDENTAL DAMAGES.
THIS WARRANTY DOES NOT APPLY IF THE PRODUCT HAS BEEN SUBJECTED TO POWER IN EXCESS OF ITS PUBLISHED POWER RATING.
THISWARRANTY DOES NOT COVERTHE CABINET OR ANY APPEARANCE ITEM, USER ATTACHED ANTENNA, ANY DAMAGETO RECORDS OR RECORDINGTAPES OR DISCS,ANY
DAMAGETO THE PRODUCT RESULTING FROM ALTERATIONS, MODIFICATIONS NOT AUTHORIZED IN WRITING BY PIONEER, ACCIDENT, MISUSE OR ABUSE, DAMAGE DUETO
LIGHTNING ORTO POWER SURGES, SUBSEQUENT DAMAGE FROM LEAKING, DAMAGE FROM INOPERATIVE BATTERIES, ORTHE USE OF BATTERIES NOT CONFORMINGTOTHOSE
SPECIFIED INTHE OWNER’S MANUAL.
THISWARRANTY DOES NOT COVERTHE COST OF PARTS OR LABOR WHICH WOULD BE OTHERWISE PROVIDED WITHOUT CHARGE UNDERTHISWARRANTY OBTAINED FROM
ANY SOURCE OTHERTHAN A PIONEER AUTHORIZED SERVICE COMPANY OR OTHER DESIGNATED LOCATION. THISWARRANTY DOES NOT COVER DEFECTS OR DAMAGE CAUSED
BYTHE USE OF UNAUTHORIZED PARTS OR LABOR OR FROM IMPROPER MAINTENANCE.
ALTERED, DEFACED, OR REMOVED SERIAL NUMBERS VOID THIS ENTIRE WARRANTY
NO OTHER WARRANTIES
PIONEER LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE,TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTIES SHALL APPLY AFTER THE WARRANTY PERIOD.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND SOME STATES DO NOT ALLOW THE EXCLUSIONS OR LIMITATIONS
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS ANDYOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
TO OBTAIN SERVICE
PUSA has appointed a number of Authorized Service Companies throughout the U.S.A. and Canada should your product require service. To receive warranty service you
need to present your sales receipt or, if rented, your rental contract showing place and date of original owner’s transaction. If shipping the unit you will need to package it
carefully and send it, transportation prepaid by a traceable, insured method, to an Authorized Service Company. Package the product using adequate padding material to
prevent damage in transit. The original container is ideal for this purpose. Include your name, address and telephone number where you can be reached during business
hours.
On all complaints and concerns in the U.S.A. and Canada call Customer Support at 1-800-872-4159.
For hook-up and operation of your unit or to locate an
Authorized Service Company, please call or write:
CUSTOMER SUPPORT
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1720
LONG BEACH, CALIFORNIA 90801
1-800-872-4159
http://www.pioneerelectronics.com
DISPUTE RESOLUTION
Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program
to resolve the dispute. The Complaint Resolution Program is available to you without charge. Yo u are required to use the Complaint Resolution Program before you exercise
any rights under, or seek any remedies, created by Title I of the Magnuson-MossWarranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 et seq.
To use the Complaint Resolution Program call 1-800-872-4159 and explain to the customer service representative the problem you are experiencing, steps you have taken
to have the product repaired during the warranty period and the name of the authorized Distributor/Dealer from whom the Pioneer product was purchased. After the complaint
has been explained to the representative, a resolution number will be issued. Within 40 days of receiving your complaint, Pioneer will investigate the dispute and will either:
(1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing
informing you why it will not take any action.
RECORD THE PLACE AND DATE OF PURCHASE FOR FUTURE REFERENCE
Model No. ____________________________________________ Serial No. _________________________________________ Purchase Date ______________________
Purchased From ____________________________________________________________________________________________________________________________
_
KEEP THIS INFORMATION AND YOUR SALES RECEIPT IN A SAFE PLACE
12 En

2Fr
Nous vous remercions d’avoir acquis un produit Pioneer. Veuillez lire attentivement ce mode d’emploi afin de connaître la manière d’utiliser l’appareil
comme il convient. Cela fait, conservez le mode d’emploi de façon à pouvoir vous y référer en cas de nécessité.
REMARQUE
L’AVERTISSEMENT DE PIÈCES NON RÉPARABLES
PAR L’ UTILISATEUR SE TROUVE SUR LE DESSOUS
DE L’APPAREIL.
D3-7-13-68_A1_Fr
NOTE IMPORTANTE SUR LE CABLE
D’ALIMENTATION
Tenir le câble d’alimentation par la fiche. Ne pas
débrancher la prise en tirant sur le câble et ne pas
toucher le câble avec les mains mouillées. Cela risque
de provoquer un court-circuit ou un choc électrique. Ne
pas poser l’appareil ou un meuble sur le câble. Ne pas
pincer le câble. Ne pas faire de noeud avec le câble ou
l’attacher à d’autres câbles. Les câbles d’alimentation
doivent être posés de façon à ne pas être écrasés. Un
câble abîmé peut provoquer un risque d’incendie ou un
choc électrique. Vérifier le câble d’alimentation de
temps en temps. Contacter le service après-vente
PIONEER le plus proche ou le revendeur pour un
remplacement. S002*_A1_Fr
REMARQUE IMPORTANTE
LE NUMÉRO DE MODÈLE ET LE NUMÉRO DE SÉRIE
SE TROUVENT À L’ARRIÈRE OU SUR LE FOND DE
CET APPAREIL. NOTEZ CES NUMÉROS À LA PAGE
12 POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.
D36-AP9-3*_A1_Fr
PRÉCAUTION DE VENTILATION
Lors de l’installation de l’appareil, veillez à laisser un
espace suffisant autour de ses parois de manière à
améliorer la dissipation de chaleur (au moins 1 cm sur
le dessus, 3 cm à l’arrière et 1 cm de chaque côté).
D3-4-2-1-7d*_A1_Fr
AVERTISSEMENT
Cet appareil n’est pas étanche. Pour éviter les risques
d’incendie et de décharge électrique, ne placez près de
lui un récipient rempli d’eau, tel qu’un vase ou un pot
de fleurs, et ne l’exposez pas à des gouttes d’eau, des
éclaboussures, de la pluie ou de l’humidité.
D3-4-2-1-3_A1_Fr
AVERTISSEMENT
Cet appareil est muni d’une fiche de mise à la terre
(masse) à trois fils. Comme la fiche présente une
troisième broche (de terre), elle ne peut se brancher
que sur une prise de courant, prévue pour une mise à
la terre. Si vous n’arrivez pas à insérer la fiche dans la
prise de courant, contactez un électricien qualifié pour
faire remplacer la prise par une qui soit mise à la terre.
N’annulez pas la fonction de sécurité que procure cette
fiche de mise à la terre. D3-4-2-1-6_A1_Fr
ATTENTION
L’interrupteur /ON de cet appareil ne coupe pas
complètement celui-ci de sa prise secteur. Comme le
cordon d’alimentation fait office de dispositif de
déconnexion du secteur, il devra être débranché au
niveau de la prise secteur pour que l’appareil soit
complètement hors tension. Par conséquent, veillez à
installer l’appareil de telle manière que son cordon
d’alimentation puisse être facilement débranché de
la prise secteur en cas d’accident. Pour éviter tout
risque d’incendie, le cordon d’alimentation sera
débranché au niveau de la prise secteur si vous
prévoyez une période prolongée de non utilisation
(par exemple avant un départ en vacances).
D3-4-2-2-2a*_A1_Fr

3
Fr
Sommaire
Comment lire ce manuel
Dans ce manuel, les noms de canaux et de touches indiqués sur le
produit, les noms de menus dans le logiciel, etc. sont indiqués entre
crochets ([ ]). (ex. canal [MASTER], menu [ON/OFF], menu [File])
Informations préliminaires
Caractéristiques.......................................................................................... 4
Contenu du carton d’emballage ............................................................... 4
Exemple de configuration du système ..................................................... 4
Noms des éléments
Face avant ................................................................................................... 5
Panneau arrière .......................................................................................... 5
Instructions d’installation
Installation sur une étagère rack standard EIA ....................................... 6
Raccordements
Raccordement à des appareils DJ Pioneer.............................................. 7
Enregistrement des informations du nightclub
Procédure d’enregistrement ..................................................................... 9
Informations supplémentaires
En cas de panne ....................................................................................... 10
À propos des marques commerciales et des marques déposées....... 10
Schéma des dimensions externes.......................................................... 11
Spécifications............................................................................................ 11

4Fr
Informations préliminaires
Caractéristiques
Ce produit est une passerelle de réseaux destinée à être installée dans
un nightclub pour permettre d’utiliser un système de réseaux de night-
clubs géré par Pioneer. Lorsque cette passerelle est installée, les infor-
mations du nightclub, les informations concernant les réalisations des
DJ, etc. peuvent être distribuées à d’autres personnes dans le monde
entier par Internet.
Caractéristiques principales
1Les informations de lecture, etc. envoyées par des appareils DJ
Pioneer sont reçues via la liaison PRO DJ LINK et envoyées en temps
réel au serveur web.
2Ce produit est à la fois robuste, comme il se doit pour un nightclub,
un environnement très exigeant, et extrêmement fiable.
3Son raccordement est simple et peut être effectué par n’importe qui,
et du fait de sa compacité, cet appareil peut être installé n’importe
où.
Contenu du carton d’emballage
!Cordon d’alimentation
!Mode d’emploi (ce document)
Exemple de configuration du système
12 12
12 12
0
0
ON TALK
OVER
OFF
9
6
-
26/
6
-
26/
6
-
26/
9
6
-
26/
6
-
26/
6
-
26/
9
6
-
26/
6
-
26/
6
-
26/
9
6
-
26/
6
-
26/
6
-
26/
0
NXS-GW
Concentrateur LAN
LAN
LAN
Pioneer
Maison
Appareils DJ Pioneer compatibles PRO DJ LINK
Routeur pour connexion Internet
(en vente dans le commerce)
Ordinateur de gestion
Serveur web
Club
Smartphones 1
Smartphone ou ordinateur1
Internet
1Les clients du nightclub, ou les personnes s’intéressant à la musique disco, peuvent voir les informations du nightclub, les réalisations des DJ, etc.
sur leurs smartphones.
Pour plus de détails sur le système, consultez le site web suivant.
http://djclubnetwork.com/

5
Fr
Français
Noms des éléments
Face avant
NXS-GW
ON ALERTPRO DJ LINKINTERNET
1 2 3 4 5
1 Commutateur /ON
Sert à mettre le lecteur en ou hors service.
2 Indicateur ON
S’éclaire lorsque cet appareil est allumé.
3 Indicateur ALERT
!Clignotant : Les fonctions de cet appareil sont restreintes. Contactez votre magasin ou un service après vente (page 10).
!Éteint : Cet indicateur est éteint lorsque l’appareil est éteint, ou s’il est éclairé quand il fonctionne normalement.
4 Indicateur PRO DJ LINK
!Éclairé : Cet indicateur s’allume lorsqu’un appareil DJ compatible PRO DJ LINK est raccordé à cet appareil et que ce système peut être utilisé.
!Clignotant : Cet indicateur clignote lorsqu’un appareil DJ compatible PRO DJ LINK est raccordé à cet appareil mais que ce système ne peut pas
être utilisé (page 10).
!Éteint : Cet indicateur est éteint lorsque rien n’est raccordé ou lorsque l’appareil raccordé à cet appareil est éteint.
5 Indicateur INTERNET
!Éclairé : Cet indicateur s’allume lorsque les communications avec le serveur web ont été vérifiées et que ce système peut être utilisé.
!Clignotant : Cet indicateur clignote lorsque les communications avec le serveur web ont été vérifiées mais que l’enregistrement des informa-
tions du nightclub n’est pas terminé (page 10).
!Éteint : Cet indicateur est éteint lorsque rien n’est raccordé ou que les communications avec le serveur web n’ont pas pu être vérifiées.
Panneau arrière
AC IN
INTERNET
PRO DJ LINK
1 2 3 4
1 AC IN
À relier à une prise d’alimentation avec le cordon d’alimentation fourni. Avant de brancher le cordon d’alimentation, assurez-vous que tous les
autres appareils sont raccordés.
2 Prise INTERNET
À relier à un routeur, etc. connecté à Internet.
3 Prise PRO DJ LINK
À relier à la prise [LINK] d’une table de mixage DJ Pioneer compatible PRO DJ LINK ou à un concentrateur-commutateur (en vente dans le
commerce).
Utilisez un concentrateur-commutateur compatible 100Base-TX. Certains concentrateurs-commutateurs peuvent ne pas fonctionner correctement.
4 Fente de sécurité Kensington
ATTENTION
Ne pas relier le port LAN à un réseau exposé à des surtensions.

Instructions d’installation
!Ne pas placer cet appareil sur des objets dégageant de la chaleur, par exemple sur un amplificateur, et ne pas l’exposer trop longtempas à un
projecteur, sous peine de l’endommager.
!Installer cet appareil à l’écart d’un tuner ou d’un téléviseur. Sinon, l’image présentera de la distorsion ou des parasites. De la distorsion ou des
parasites se produisent facilement lorsqu’une antenne intérieure est utilisée. Le cas échéant, utiliser une antenne extérieure ou éteindre cet
appareil.
!Posez cet appareil sur une surface plane et stable.
!Ne posez pas d’objets lourds sur cet appareil.
Ne posez pas cet appareil sur une
surface vibrante.
Pour une meilleure dissipation de la
chaleur, veillez à maintenir cet espace
libre.
Pour une meil-
leure dissipation
de la chaleur,
veillez à maintenir
cet espace libre.
Pour une meil-
leure dissipation
de la chaleur,
veillez à maintenir
cet espace libre.
Installation sur une étagère rack standard EIA
Cet appareil correspond à la moitié d’une étagère rack standard EIA (1U). Lorsque vous le montez en rack, installez-le sur une étagère rack polyvalente
ou similaire. Les trous (pour vis métriques M3 6 mm ou moins de longueur) pour la fixation de cet appareil sur une étagère se trouvent sur le panneau
inférieur, comme indiqué dans le schéma suivant. Utilisez ces trous pour fixer cet appareil à l’étagère avec les vis. La profondeur de cet appareil est de
138,6 mm.
!Ne pas installer cet appareil directement au-dessus d’un amplificateur de puissance. La chaleur dégagée par l’amplificateur de puissance peut
endommager cet appareil. De plus, du bruit (ronflement, etc.) peut se produire.
!Pour transporter cet appareil, le retirer du rack. L’appareil risque d’être endommagé s’il est transporté avec le rack.
!Si l’appareil doit être transporté sans être retiré du rack, faire attention de ne pas l’exposer à des vibrations ou chocs.
(unité:mm)
1986 6
Trou de vis de montage en rack (M3)Trou de vis de montage en rack (M3)
9
Instructions pour le montage en rack
A) Température ambiante de fonctionnement élevée - Si l’appareil est installé dans un rack fermé ou comportant d’autres appareils, la température
ambiante de l’intérieur du rack risque d’être supérieure à la température ambiante de la pièce. C’est pourquoi il faut tenir compte de la température
ambiante maximale (Tma) spécifiée par le fabricant et installer l’équipement dans un environnement compatible.
B) Circulation d’air réduite - L’équipement doit être installé dans un rack où la circulation d’air requise pour un fonctionnement correct n’est pas
compromise.
C) Chargement mécanique - L’équipement doit être installé dans le rack de façon qu’un chargement mécanique instable n’expose pas à des risques.
D) Surcharge des circuits - Au moment de raccorder l’équipement au circuit électrique, soyez particulièrement attentif à l’effet que la charge sup-
plémentaire peut avoir sur le dispositif de protection contre les surtensions et sur le câblage. Vérifiez pour cela les valeurs nominales sur les plaques
d’identification de l’équipement.
E) Mise à la terre - L’équipement monté en rack doit faire l’objet d’une mise à la terre fiable. Une attention toute particulière doit être portée aux raccor-
dements de l’alimentation électrique autres que les raccordements directs au circuit de dérivation (utilisation de multiprises, par exemple).
6Fr

7
Fr
Français
Raccordements
Veillez à toujours éteindre les appareils et à débrancher le cordon d’alimentation de la prise secteur avant de raccorder un appareil ou de changer les
liaisons.
Reportez-vous au mode d’emploi de l’appareil devant être raccordé.
Lorsque tous les appareils ont été raccordés, vous pouvez brancher le cordon d’alimentation.
Raccordement à des appareils DJ Pioneer
Cet appareil peut être raccordé à des appareils DJ Pioneer compatibles PRO DJ LINK pourvus d’une prise [LINK] (ex. DJM-900NXS, DJM-2000NXS).
Pour plus de détails sur les raccordements, reportez-vous aussi aux modes d’emploi des appareils DJ utilisés.
!Il est nécessaire de contracter un abonnement auprès d’un fournisseur de services Internet.
Exemple de raccordement avec la DJM-900NXS
OFF
RETURN
L
L
L
1 GND2 HOT
3 COLD
L
R
LL
IN
CH3
CH4
CH1CH2
R
R
R
R
L
R
R
PHONO
CH 4CH 3
CD/ LINE
L
R
PHONO
CH 1
CD/ LINE
SIGNAL GNDSIGNAL GND
TRS
CD/ LINELINE
MASTER1MASTER2 REC OUT BOOTH
MIC2
MIDI OUT
DIGITAL
MASTER
OUT
LINK
L
R
CH 2
CD/ LINELINE
(MONO)
LR
(MONO)
SEND
POWER
AC IN
ON
CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS
DJM-900NXS
POWERCONTROL
LINK
AUDIO OUT
RL
CONTROL DIGITAL
OUT
rekordbox
AC IN
INTERNET
PRO DJ LINK
Internet
Routeur pour
connexion Internet
À une prise
d’alimentation Cordon d’alimentation
Concentrateur
commutateur
Ordinateur
Câble LAN
Câble LAN
Panneau arrière
!Réglez le numéro du lecteur DJ sur le même numéro que le canal auquel le câble audio est raccordé.
ATTENTION
Risque d’interférence électromagnétique majeure. Utiliser un câble STP comme câble LAN.

Exemple de raccordement avec la DJM-2000NXS
CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS CDJ-2000NXS
POWERCONTROL
LINK
AUDIO OUT
RL
CONTROL DIGITAL
OUT
DJM-2000NXS
SIGNAL GND
CD
CD
L
R
L
R
PHONOCDLINE
CONTROL
OUTIN
RL
RL
R
LRL(MONO) RL(MONO)
COMPUTER 1
COMPUTER 2
LINK
CH 3CH 1
CH 4 CH 2
CH2CH3CH4CH1
DIGITAL
SIGNAL GND
CD
1GND
-6dB -3dB 0dB
2HOT
3COLD
CD
L
R
PHONO
POWEROFF
ON
MASTER
ATT.
DIGITAL CD DIGITAL
L
R
CDLINE
CONTROL
CD DIGITAL
CH 3CH4
MASTER1
MASTER2 REC OUTBOOTH SENDRETURN
DIGITAL
CH1CH2
USB
MIDI OUT
TRS
AC IN
rekordbox
À la prise [PRO DJ LINK] de cet appareil
Concentrateur
commutateur
rekordbox
Ordinateur
!Pour raccorder deux ordinateurs à la prise [LINK], utilisez un concentrateur-commutateur.
!Réglez le numéro de canal du câble audio ou du câble coaxial numérique et le numéro de lecteur sur le même numéro.
8Fr
