Pioneer Brite Striper 2000 User manual

BRITE STRIPER®
INSTRUCTION MANUAL & PARTS LISTING
2000

2000
Versatility
The MODEL 2000 handles all
athletic field needs with ease.
So simple to operate that any-
one can do a professional job.
5-YEAR WARRANTY
AGAINST “RUST OUT”
Ample 12 gallon paint tank
tackles large striping needs in
a snap. Pioneer’s 5-year war-
ranty (against rust) is on the
stainless steel paint tank.
BUILT STURDY FOR
YEARS OF SERVICE
Honda 4 H.P. engine powers a
Piston-Type Compressor.
Heavy-gauge welded steel
frame rolls smoothly on three
large, fully pneumatic wheels.
The MODEL 2000 has a cable-
operated control valve to
paint crisp lines and features
the Hydraulic Direct Drive Sys-
tem.
SIMPLE DESIGN
- LOW MAINTENANCE
The MODEL 2000’s simple de-
sign means low maintenance.
The air-release valve and dual
safety relief system assures
trouble-free operation. Rear
outlet valve makes cleanup a
snap.
BRITE STRIPER®
Call 800.877.1500
FULLY ADJUSTABLE SPRAY BOX
Change line width easily from 2” to 8”.
12’ HAND HOSE WITH WAND
A twelve-foot hand hose (and spray gun) with wand
and quick disconnect fitting is standard on our BRITE
STRIPER®2000. Get professional results on yardline
stencils, endzones and out-of-bounds.
SPECIAL TUNE-UP KIT FOR BRITE
STRIPER®2000
Our exclusive tune-up kit, as an accessory, for this
model includes:
2 Nozzle Tips
2 Nozzle Screens
2 Nozzle Caps
1 Tank Gasket
1 Safety Relief Valve
1 Drive Belt
1 Spark Plug
1 Air Filter
• 3-YEAR LIMITED WARRANTY •
Replacement parts for all of Pioneer’s machines are fully stocked and available for immediate de-
livery. We also carry replacement parts for many other airless line stripers.
Call your local representative or Pioneer for more information.
PN08018

PN08018
THE BRITE STRIPER®2000
ASSEMBLY INSTRUCTIONS
Tools Necessary for Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Removing from Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Handle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Speed Control Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Adjustable Spray Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
OPERATION & CARE
Before Starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Care and Operation of Compressor. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Care and Operation of Paint Tank Unit . . . . . . . . . . . . . . . . . . . . . . 5
Paint Tank Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation of Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Striping Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Clean-Up of the Paint Tank Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Clean-Up Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Normal Wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shipping the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
IDENTIFYING PROBLEMS & PARTS

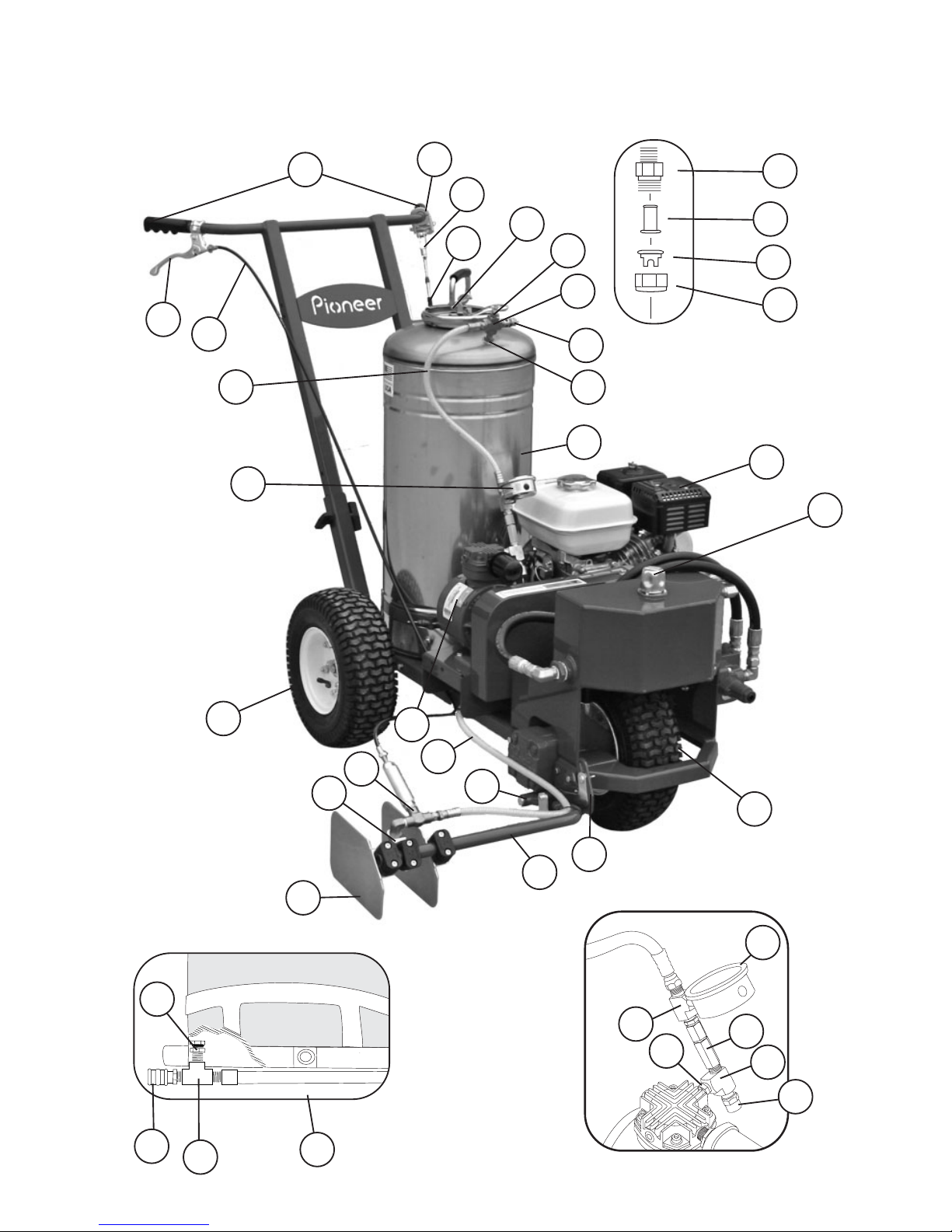

Parts List & Parts Explosion Drawings . . . . . . . . . . . . . . . . . . . . 7-8
Trouble Shooting the #2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TABLE OF CONTENTS

1
REV 2/08
If you have any questions concerning the assembly
or operation, please call our CUSTOMER SERVICE
DEPARTMENT at 800.877.1500.
TOOLS NEEDED FOR ASSEMBLY
1 - 5/8" Open End Wrench
1 - 7/16" Socket
1 - 7/16" Open End Wrench
1 - Crescent Wrench (Vise Grips may be substituted)
Allen Wrenches (supplied in hardware kit)
ASSEMBLY INSTRUCTIONS
FOR BRITE STRIPER®MODEL #2000
After Removing Box from Shipping Carton:
STEP 1.
Remove Brite Striper 2000 – two people necessary to lift
STEP 2.
Remove handle bar.
Remove box conaining:
12 Ft. Hand Hose Assembly
Hand Hose Wand
Drain Line
Shut-Off Valve Assembly
STEP 3.
Handle Assembly
Parts required:
a. Handle
b. Handle adjustment bolts
Step 1: Slide handle into frame
Step 2: Insert handle adjustment bolts
Step 3: Attach paint control lever to handle
NOTE: TEST CONTROL TRIGGER TO MAKE SURE CABLE IS ADJUSTED PROPERLY.
CABLE SHOULD HAVE SMALL AMOUNT OF SLACK.

2
MODEL 2000
STEP 4.
SPEED CONTROL CABLE
PARTS REQUIRED:
Throttle Control Cable is already attached and pre-set
at Speed Control Lever.
2 - 3/4" x 1/4" - 7/16" Hex Head Bolts
2 - 7/16" Hex Head Self Locking Nuts
TOOLS REQUIRED:
7/16" Socket
7/16" Open End Wrench

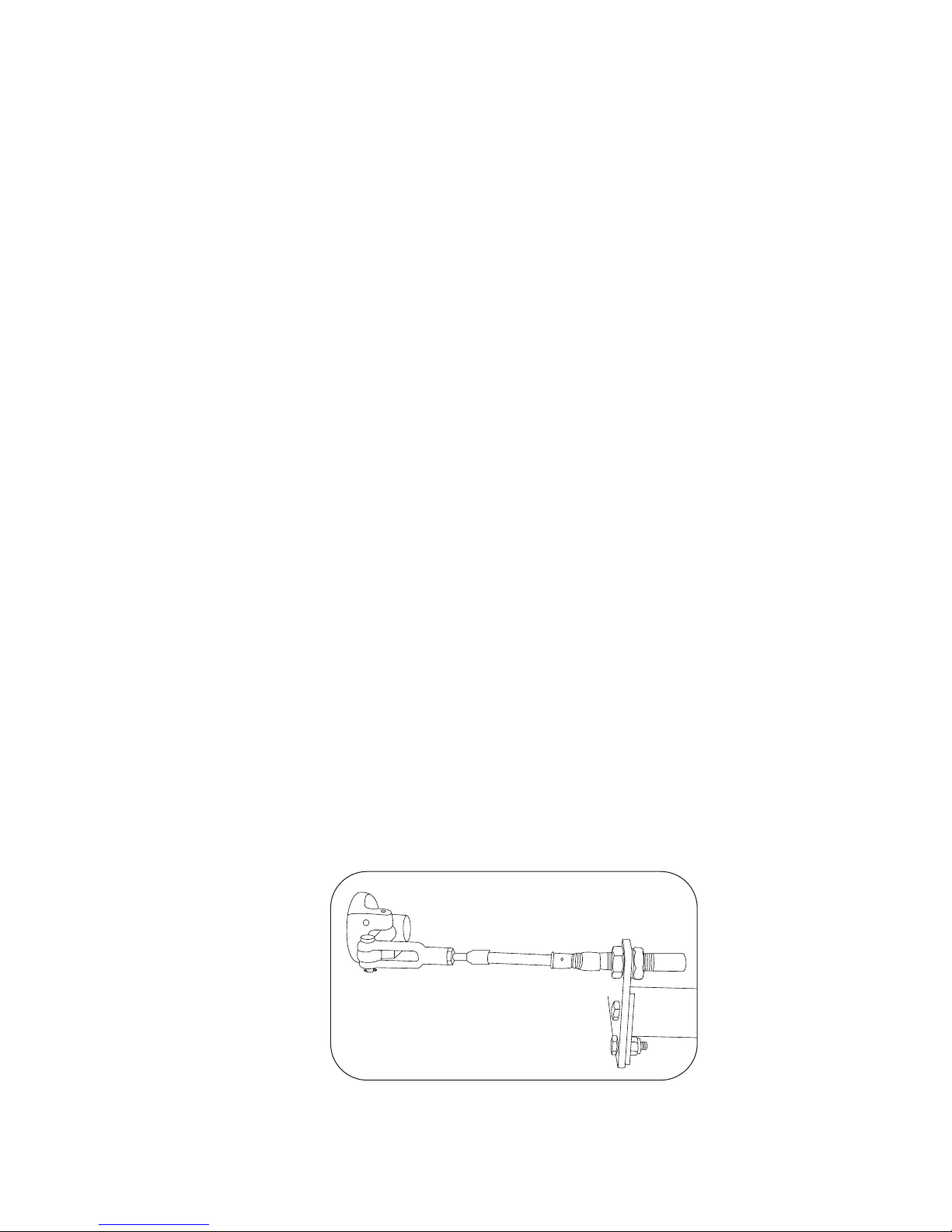

Step 1: Line up holes in speed cable bracket with the holes on
front side of engine base.
Step 2: Insert 7/16" hex head bolts through holes and attach
7/16" hex head self-locking nuts then tighten.
Step 3: Remove cotter pin from clevis pin and set aside.
Step 4: Remove clevis pin and set aside.
Step 5: Line up holes on clevis with linkage on speed
control valve.
Step 6: Insert clevis pin through aligned holes.
Step 7: Insert cotter pin into bottom of clevis pin and bend open
the tails of cotter pin to secure.

3
REV 2/08
STEP 5.
Adjustable Spray Box
Parts required:
a. Snap ring
b. Adjustable spray box
Step 1: Slide adjustable spray box bar on the front axle
Step 2: Attach carriage bolt, washer, lock washer and wingnut
Step 3: Attach snap ring on end of axle to prevent spray box bar
from sliding off
Step 4: Attach free end of paint line hose to shut-off valve and
Tighten with 5/8” wrench
(DO NOT OVER TIGHTEN). MAKE SURE NOZZLE TIP IS ALIGNED
HORIZONTALLY WITH GROUND.
Use supplied Allen Wrenches to adjust side plates for proper width.
Adjust bar height by loosening wing nut and setting desired height,
retighten wing nut. Side plates may need to be adjusted up or down
depending on height of Spray Box Bar. Use supplied Allen Wrenches.
Do not over tighten side plates. SIDE PLATES SHOULD BE ABLE TO MOVE
UP AND DOWN BY HAND.

4
MODEL 2000
BEFORE STARTING
The 2000 STRIPER is shipped with engine oil. Be sure to check the en-
closed Operating and Maintenance instructions for proper oil. Follow fill-
ing directions.
1.Carefully read and follow instructions for starting and maintaining
the engine (in a separate booklet furnished with your machine).
2.Check all hose connections and fittings making sure they are tight.
3.Be sure paint tank pump assembly is sealed tightly. Refer to care
and operation of tank unit section.
4.Check to make certain that paint tank is secured tightly.
5.Any fittings, if replaced, should have teflon tape applied before
tightening. Do not force fittings on paint tank bushings. Always
hold nut on paint tank bushing when tightening fittings.
DO NOT TIGHTEN FITTINGS WITH PRESSURE IN TANK.
CARE AND OPERATION OF COMPRESSOR
The piston-type compressor requires minimal maintenance.
Pre-lubricated ball bearings for delivery of oil free air.
APPLYING OIL TO ANY PART CAN RESULT IN REDUCED PERFORMANCE
AND MAY VOID WARRANTY.
The compressor is designed to release pressure at approximately
40 to 45 PSI. If it is not releasing, contact us immediately. You may
have a defective or damaged relief valve. If striper is left idling the release
valve on tank will release pressure.
The air filter (part# 1632) should be replaced whenever it becomes dirty
and/or clogged.
Operate compressor at lowest engine speed practical.

5
REV 2/08
CARE AND OPERATION
OF PAINTTANK UNIT
DIRECTIONS FOR OPERATING:
1. Remove pump assembly by raising locking lever to vertical position, and turning counter-
clockwise until ends of locking lever reach slots in locking ring; lift out.
2. Mix paint (in pail - not in tank) and strain through cloth or fine sieve. Paint Strainer Fil-
ters packaged 25 per case are available. Use item #PS 25 when ordering.
3. Fill tank 3/4 full, leaving remaining space for compressed air.
4. Replace pump assembly in tank, holding locking lever up in vertical position, turn clock-
wise about halfway, and push locking lever down to seal. Do not force. NEVER USE TOOL TO
TIGHTEN PUMP ASSEMBLY.
5. Optional method of pressurizing paint tank: You can build pressure by using the handle
of the pump assembly. Pump plunger up and down until sufficient pressure builds up and
spray becomes fine; re-engage pump handle by pushing down against spring and turning
back into retaining slots.
WARNING
1. Release pressure with pressure release valve when not in use. NEVER use any tool to re-
move pump if there is pressure in the tank. Failure to follow this instruction may result in
personal injury or damage.
2. Never stand with head or body over top of tank when operating or removing pump. Fail-
ure to follow this instruction may result in personal injury.
3. Periodically test hose for strength and make sure all fittings are secure. Replace worn
hose with recommended replacement parts (refer to parts list).
4. We recommend the use of goggles when spraying. Failure to follow this instruction may
result in personal injury.
WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT
IN EXPLOSIVE FAILURE WITH MAJOR INJURIES. FOR SAFE USE OF THIS PROD-
UCT—YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USE.
CAUTION: Do not leave a pressurized sprayer in the hot sun. Heat can cause pres-
sure build-up. Do not store or leave solution in tank after use. Always wear goggles,
gloves, long sleeve shirt, long pants and full foot protection when spraying. Never use
any tool to remove pump if there is pressure in sprayer. Never stand with face or
body over top of tank when pumping or loosening pump to prevent ejected pump as-
sembly and/or solution from striking and injuring you. Never pressurize sprayer by
any means other than the original pump. Do not attempt to modify or repair this prod-
uct except with original manufacturer’s parts. NEVER SPRAY FLAMMABLE MATERI-
ALS OR PRESSURE AND GAS PRODUCING CHEMICALS SUCH AS SODIUM
HYDROXIDE. ALWAYS READ CHEMICAL LABEL BEFORE FILLING SPRAYER AS
SOME CHEMICALS MAY BE HAZARDOUS WHEN USED WITH THIS SPRAYER. PRE-
USE CHECK: Remove pump (see filling, pressurizing and spraying instructions), in-
spect interior and exterior of tank for signs of deterioration (i.e. rust, bubbling,and/or
pitting) of body and bottom. Any sign of deterioration indicates possible tank weak-
ening and could result in explosive bursting under pressure. If any of these signs are
found, discard tank immediately and replace. Do not attempt to patch leaks, etc., as
this could result in serious injury. Follow filling, pressurizing and spraying instruc-
tions EXCEPT: Use water only. Pump plunger only 8-10 strokes and inspect for leaks.
Open discharge to make sure it is not clogged. If unit passes this test, release pres-
sure (see pressure releasing instructions), empty tank, and proceed with filling, pres-
surizing and spraying instructions. FILLING, PRESSURIZING AND SPRAYING
INSTRUCTIONS: To engage handle in lock position: Push handle down to completely
compress spring and rotate handle 1/4 turn, then allow handle to raise into the lock
position. To remove pump from: FUNNEL TOP STYLE: Engage handle in locked po-
sition and turn pump counterclockwise until pump can be removed from tank. 3-
PRONG CLAMP OPEN HEAD STYLE: Turn handle counterclockwise until 3-prong
clamp is loose. Then rotate clamp counterclockwise to stop and lift pump out. LOCK-
ING LEVER OPEN HEAD STYLE: Engage handle in locking hooks then lift locking
lever to its most upright position. Turn pump counterclockwise until prongs are lo-
cated under slots in funnel and lift pump out. THREAD CAP STYLE: Engage handle
in lock position and turn pump counterclockwise until pump can be removed from
tank. Prepare spray solution following directions on chemical container label. Strain
solution and fill tank to indicated usable capacity, leaving remaining space for com-
pressed air. To close after filling: NOTE: Check pump barrel to be sure no dirt or
grass is stuck to barrel. FUNNEL TOP STYLE: By placing pump into tank opening
and rotating clockwise until tightly locked and sealed in tank opening. 3-PRONG
CLAMP STYLE OPEN HEAD: Place pump prongs down into slots in funnel. Turn
clamp clockwise to furthest position under bottom slot, then turn handle clockwise
until tightly locked and sealed in place. LOCKING LEVER OPEN HEAD STYLE: Lift
locking lever into upright position. Place pump prongs into slots in funnel. Turn pump
clockwise until it stops, then push locking lever down to funnel to lock and seal in
place. THREAD CAP STYLE: Place pump into tank opening then rotate clockwise
until tightly locked and sealed in tank opening. To pressurize sprayer disengage
handle from locked position, push down, turning 1/4 turn to release handle and then
pump plunger up and down until it works hard. Refer to filling, pressurizing and
spraying instructions: To engage handle in lock position.
WARNING: THIS SPRAYER IS NOW UNDER PRESSURE AND DANGEROUS.
Always wear goggles, gloves, long sleeve shirt, long pants and sturdy foot protec-
tion when spraying. Re-pump unit as required to maintain spray force.
PRESSURE RELEASE INSTRUCTIONS: WARNING: To avoid possibility of ejected
pump assembly and/or spray material from striking and injuring you: Place unit on
its side with top directed away from you with outlet on top, open discharge and allow
remaining spray solution and pressure to be completely exhausted. Turn sprayer up-
right, then remove pump (follow filling, pressurizing and spraying instructions), while
maintaining position of top of sprayer away from you.
SPRAYER CARE, STORAGE AND MAINTENANCE: Clean tank and discharge thor-
oughly. Remove pump and empty sprayer. Sprayer tank should be hung upside down,
with pump removed, in a warm dry location. Pump should be periodically oiled by
dropping 10-12 drops of light oil down pump rod through opening in cover. At least
twice a year and always before storage, remove pump barrel from cover assembly,
apply a small amount of vaseline or other similar lubricant to barrel threads and as-
semble (if applicable).
SK-637-5 R0500
PAINT TANK LABEL

6
MODEL 2000
OPERATION OF MACHINE
1. Check to make certain that brass bleed-off valve (located on
cross fitting) is in closed position so air will not escape.
2. Make certain that your V-belt is tight.
WARNING: NEVER OPERATE UNIT WITHOUT BELT GUARD IN PLACE.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL
INJURY OR DAMAGE.
3. Test run the machine with water to see how it operates. You may
wish to practice using paint in an off-area before starting your job.
4. Start your engine. Allow compressor to build up pressure in your
paint tank from 40 to 45 PSI at which point air will automatically
release through the safety relief valve on the compressor unit.
This should only take a few minutes. Check again for loose
fittings or air leaks.
Note: The compressor unit is designed to deliver pressure between
40 to 45 PSI. A low pressure gauge is installed so that you may be
sure machine is at proper operating pressure. A safety relief valve
on the paint tank is pre-set to relieve pressure at 50 PSI ± 2 lbs.
5. It is best to operate at the lowest pressure and slowest engine
speed that is practical. This will greatly reduce wear and prevent
overspraying.
6. When done or when changing paint, always turn off machine.
7. Bleed off pressure by opening the brass bleed-off valve located
at the top of paint tank.
WARNING: ALWAYS BLEED OFF PRESSURE IN PAINT TANK BEFORE
OPENING PUMP ASSEMBLY! ! ! FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR DAMAGE.
8. When transporting machine, do not tip on side when filled
with paint.

7
REV 2/08
PARTS LIST
BRITE STRIPER®MODEL 2000
KEY# PART # DESCRIPTION
1 1503 Hand Grip
2 1505 Paint Control Lever
3 1636 Paint Control Cable
4 2071 17” Airline Hose
5 0311 Low Pressure Gauge
6 0104 Brass Tee with Nipple Fitting
7 1532 Check Valve
8 2021 Rear Wheel
- - 1218 Wheel Bearing
9 1630 Compressor
- - 1618 Compressor Pulley
10 0096 Brass Nipple
11 1629 Safety Relief Valve (comp.)
12 1638 50” Paint Line Hose
13 2004 Front Axle
14 1635 Shut-Off Valve Assy.
15 1541 Single Spray Nozzle Assy.
- - 1523 Two Head Sprayer Assy.
16 1524 Side Plate
- - 1544 Side Plate Clamp Set
17 1546 Spray Box Support Arm
18 2030 Height Adjustment Bracket
19 2020 Front Wheel
- - 2055 Hub Front Wheel
20 2005 Filler Breather Cap
21 Honda4 Engine (4 H.P. Honda)
- - 1606 * Drive Belt
- - 1519 Engine Pulley
- - 2002 Engine to Pump Coupling
- - 2028 * Air Filter (Honda)
- - 2018 * Spark Plug (Honda)
22 0080 Bushing Fitting
23 1500 12 Gallon Paint Tank
24 0103 * Safety Relief Valve
25 0090 Cross Fitting
26 0125 Bleed-Off Valve
27 5088 Female Quick Disconnect
28 0116 Nozzle Body
29 0115 * Nozzle Screen
30 0112 * Nozzle Tip
31 0114 * Nozzle Cap
- - 0135 Nozzle Assy. Kit (4 ea.
#0112 & #0115, 2 ea. #0114)
KEY# PART # DESCRIPTION
32 1102 Pump Assy.
- - 0076 Rubber End Pump Assy.
- - 0119 * Tank Gasket
33 2065 Speed Control Cable
34 2024 Clevis for Control Cable
35 2063 Speed Control Lever Assy.
- - 2026 Frame
- - 1621 Handle
- - 2037 Rear Axle
Hydraulic Components:
2073 Inline Oil Strainer
2087 12” Hose - Tank to Pump
2012 Connector Tank to Pump
2001 Hydraulic Pump
2084 Elbow on Pump
2082 16” Hose Pump to Speed
Valve & Valve to Tank
2003 Speed Control Valve
2086 Elbow Top & Bottom of
Speed Valve
2083 27” Hose Speed Valve
to Drive Motor
2017 Drive Motor
2032 Elbow for Oil Tank &
Speed Valve
Accessories:
1523 Two Head Sprayer Assy.
1212 12’ Hand Hose with Wand
0094 Wand Only
1213 12’ Hand Hose Only
1515 20’ Hand Hose with Wand
0026 25’ Retractable Spray Gun
1533 Drain Hose
2040 Floating Spray Box
*Indicate parts included
for Tuneup Kit part # 2095

1
3
4
5
9
12
13
14
15
16
17 18
19
21
23
22
24
25
26
32
2
28
29
30
31
Obscured by Rear Wheel
22
27 6
12
8
MODEL 2000
6
7
5
6
10
11
PARTS LIST
BRITE STRIPER®MODEL 2000
8
20
33
34
35

9
REV 2/08
STRIPINGTIPS
When striping always have the machine in motion before opening the
spray valve, thus eliminating a heavy “blob” of paint at the beginning.
If striping on an asphalt or concrete surface you may have a build-up of
paint on the edges of your line. This can be corrected by adjusting the tip
so the fan spray is angled at 45 degrees to each side plate. Adjust so spray
barely touches plates and your build-up will be eliminated or reduced.
Call for other spray tips.
When releasing pressure on the paint tank, hold a rag over the brass
bleed-off valve, as paint may have splashed up to the bleed-off valve and
will be blown out.
Simplest method for running test lines is to apply lines on paper or an off-
area. For a sharp cut-off at end of a line, place paper or cardboard at end,
so the line is square.
Periodically clean or replace the screen and tip located inside the spray
box assembly.
Run your engine at the slowest speed possible. This will greatly decrease
wear and tear on your entire machine.

10
MODEL 2000
CLEAN-UP OFTHETANK UNIT
1. Discharge remaining paint through drain hose (supplied with
unit) into clean container. Cap container tightly for next use.
2. Shut off gas engine.
3. Release pressure in the paint tank with brass bleed-off valve.
WARNING: NEVER USE ANY TOOL TO REMOVE PUMP IF THERE IS
PRESSURE IN THE TANK. FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY RESULT IN PERSONAL INJURY OR DAMAGE.
4. Remove Pump Assembly. Hose the inside of the tank to remove
any excess paint. Fill tank 3/4 full with water and Pioneer P.H.D.
Solution. Scrub inside of paint tank with soft nylon bristle brush,
available through Pioneer, Item # TBrush.
5. Replace pump assembly and lock in place.
6. Start gas engine and pressurize tank to proper operating
pressure, or use hand pump.
7. Discharge water and P.H.D. Solution through adjustable spray
box alternating to hand hose (if hand hose was used) until tank
is empty.
8. Shut off engine — release pressure in paint tank.
SEE STEP 3 ABOVE.
9. Remove pump assembly and fill paint tank 1/4 full of clean water.
Replace pump assembly and lock in place.
10. Start gas engine and pressurize tank to proper pressure.
11. Discharge water through adjustable spray box and hand hose
(if used) until tank is empty. REPEAT ABOVE STEP UNTIL WATER
COMES OUT CLEAR.

11
REV 2/08
CLEAN UPTIPS
All parts of your PIONEER Brite Striper®2000 should be cleaned immediately
after each use. We recommend Pioneer P.H.D. Cleaner. A clean, lint-free rag
should be used to wipe dry the inside of the tank.
A final step should then be to remove the nozzle caps and clean the nozzle tips
and screens. This can easily be done by placing all three parts into a small can of
soapy water and allowing them to soak for a few minutes. An old toothbrush can
be used for stubborn spots. Rinse Nozzle Assembly parts with clean water and
allow to air dry. Do not store with pump locked in tank, leave loose.
CAUTION: DO NOT USE WIRE OR ANY OTHER OBJECT TO CLEAN NOZZLE TIP AS
THIS MAY CAUSE TIP ORIFICE TO BECOME ENLARGED WHICH WILL RESULT IN
POOR PERFORMANCE WHEN STRIPING.
HOWTO STORE
Cleaning your machine thoroughly cannot be overemphasized. A little
extra effort at the end of each job will save you time and money when
it is time to stripe again. As stated previously, run a tankful of water
through the machine. Be sure to clean out screen inside the Nozzle As-
sembly.
IMPORTANT: BE SURE TO CLEAN PUMP UNIT IN TANK. IMMERSE IN CLEANING SO-
LUTION AND PUMP SEVERAL TIMES. FAILURE TO DO THIS MAY RESULT IN LEAKS
OR MALFUNCTION IN THE UNIT.
When storing your striper for an extended period, do the following:
1. Flush machine out thoroughly.
2. Remove hoses and drain.
3. Run engine until gas tank is empty.
4. Wipe the sides and bottom of the inside of the tank
with a clean dry rag.
5. Lubricate spray valve (shut-off valve).
6. Apply vaseline or similar substance to pump gasket.
7. Do not store with pump assembly tight.
NORMAL WEAR
Warranty will not cover repair where normal use has exhausted the
life of the part. Line stripers, like all mechanical devices, need periodic
parts replacement and service to perform well. It should be remembered
that the service life of any equipment is dependent on the care it
receives and the conditions under which it has to operate.

12
MODEL 2000
TROUBLE SHOOTING
Brite Striper®Model #2000
STRIPER DOES NOT STRIPE FULL LINE
1. Was paint strained?
2. Check paint level.
3. Check nozzle screen for clogs. Clean as needed.
4. Check nozzle tip for proper alignment — horizontal.
5. Check operating pressure — is air releasing through safety release
valve on compressor?
6. Check airline hose fittings — tighten as needed.
7. Check pulleys and belt. Adjust as necessary.
8. Check shut-off valve for clogs — clean. Adjust control cable.
9. Check paint line hose for clogs — clean.
HAND HOSE ASSEMBLY DOES NOT
SPRAY PROPERLY
1. Check nozzle, screen and tip for clogs — clean as needed.
2. Check operating pressure.
PAINT LEAKS
PAINT TANK LEAKS PAINT
Check that fittings are tight.
PUMP ASSEMBLY LEAKS PAINTTHROUGH CENTER
Check to be sure rubber end on bottom of pump assembly
is not being held open by dry paint.
PAINT LINE HOSE LEAKS PAINT
Check paint line hose fitting — tighten.
NOZZLE ASSEMBLY LEAKS
Tighten nozzle assembly.
SHUT-OFF VALVE LEAKS PAINT
Check that shut-off valve is tightened. Check control cable adjustment.

13
REV 2/08
AIR LEAKS
PUMP ASSEMBLY LEAKS AIR
1. Shut off machine.
2. Bleed pressure from paint tank.
3. Remove pump assembly and check tank gasket for damage
– replace if needed. Re-seat in pump assembly. Do not overtighten.
4. Check that brass tube is threaded tightly against top of
pump assembly. Also, check plastic cup at bottom of shaft
for excessive wear. Repair with pump assembly and
shut-off repair kit.
AIR LINE HOSE LEAKS AIR
1. Check air line hose for breaks/cuts. Replace as needed.
2. Tighten air line hose fittings.
STRIPERWILL NOT ROLL EASILY
1. Wheels should spin freely – lubricate bearings.
2. Paint line hose and 12’ hand hose should clear wheels.
STRIPER USESTOO MUCH PAINT
1. Opening in nozzle tip enlarged.
Replace with new nozzle tip.
2. Tank building too much pressure.

CALL OUR CUSTOMER SERVICE REPS
FROM 8:00a.m. - 5:00p.m. (EST) 1-800-877-1500
with any questions you may have concerning the care, assembly,
operation, or maintenance of this product. Before you call be sure
that unsatisfactory operation is not due to inadequate care or
cleaning, abuse, or neglect. This may save you time and money.
See our warranty for specific coverage.
IFYOU SHIPTHE PRODUCT
PRIOR AUTHORIZATION MUST BE RECEIVED BEFORE RETURN
Carefully pack unit and send it prepaid and adequately insured.
Attach a postage-affixed letter, detailing the complaint, to the outside
of the carton. BE SURETO SHOW RETURN AUTHORIZATION
CODE NUMBER ON OUTSIDE OF ENVELOPE.
FOR ANY REPAIRS INCLUDING
WARRANTY REPAIRS:
Call 1-800-877-1500 for repair cost estimates, and full
service information, INCLUDING RETURN AUTHORIZATION
CODE NUMBER, BEFORE SENDING YOUR UNIT.
SENDYOUR UNIT, FREIGHT PREPAIDTO:
PIONEER MANUFACTURING COMPANY
4529 Industrial Parkway
Cleveland, Ohio 44135
14
MODEL 2000

LIMITED WARRANTY
For a period of three years from date of purchase, PIONEER MANUFACTURING
COMPANY will replace for the original PURCHASERS, any part or parts* of the
line Striper (a five (5) year limited warranty against rust-out on stainless steel
tanks), found upon examination by a PIONEER FACTORY-trained representative,
to be defective in material or workmanship or both; this is the exclusive remedy.
This warranty is pro-rated as to cover 100% of the cost of materials, parts and
labor for the first twelve months of ownership, 60% the second twelve months, and
40% for the third twelve month period.The customer is responsible for all remain-
ing costs.The customer may elect to return the entire unit to the factory at his ex-
pense for repair. Or he may, at his expense, return the defective part for factory
inspection AND replacement. In no case will PIONEER MANUFACTURING au-
thorize outside repair on any unit nor will PIONEER MANUFACTURING reimburse
any customer for unauthorized work. Prior to returning any part or machine, the
CUSTOMER must obtain a RETURN MATERIAL AUTHORIZATION CODE. Call
toll free 1-800-877-1500.This warranty gives the customer specific legal rights as
well as other rights which may vary by state.There are no WARRANTIES which
extend beyond the face hereof and the warranties set forth above are in lieu of all
other warranties, EXPRESS or implied, including any and all implied warranties of
merchantability or fitness for a particular purpose, and any other obligation or lia-
bility on the part of PIONEER.
PIONEER SHALL IN NO EVENT BE RESPONSIBLE OR LIABLE TO THE
OWNER OR ANY THIRD PARTY FOR INDIRECT, SPECIAL OR CONSEQUEN-
TIAL DAMAGES WHETHER ARISING FROM DEFICIENCIES IN THE DESIGN,
MANUFACTURE, LABELING OR OPERATION OF THE BRITE STRIPER OR
FROM ANY OTHER CAUSEWHATSOEVER ANDWHETHER BASED ONTORT,
CONTRACT,WARRANTY, STRICT LIABILITY OR OTHERWISE.IN ANY EVENT,
PIONEER MANUFACTURING COMPANY INC.’S RESPONSIBILITY IS LIMITED
TO THE COST OF THE PRODUCT ITSELF.
No representative employee, agent of Pioneer, or any other person has any au-
thority to assume for Pioneer any additional or other liability or responsibility, other
than as described above, in connection with the BRITE STRIPER. Either direct or
indirect acceptance of this limited warranty constitutes approval of, and agreement
with, all of its terms and conditions by the owner.This limited warranty becomes
effective only when all invoices for the Brite Striper have been paid in full.
* The engine and compressor are covered exclusively by the manufacturer’s war-
ranty.
15
REV 2/08

to order BRITE STRIPER® Accessories
also available from
Call 800.877.1500
• Exclusive formula includes propri-
etary brightener for the brightest,
whitest lines.
• The brightener are enhanced by
video receptors so lines seem to glow
on T.V.
• Thicker richer formula is higher in
density and solids.
• Enhanced formula performs up to
50% longer.
• Due to more Halogen® 2000 and
Optiwite™ optical brightener, lines
are up to 500% brighter under UV
light and 35% brighter un sunlight.
MAX™ STENCILS
The Ultimate Field Marking Paint
• Specially designed to clean Pioneer
Athletic Field Marking Machines.
• Biodegradable
• Contains no flammable solvents
• Economical - highly concentrated,
P.H.D. cleans more at less cost
• Fast Acting - Leaves no soap scum
or residue. Keeps your athletic field
marker cleaner and brighter longer.
P.H.D.
Specially Design Cleaning Concentrate
• Exclusive formula provides the
brightest, whitest lines in the industry
• Premium field marking paint for
special events, playoffs and high pro-
file teams
• Higher concentration of premium
pigment and optical brightener than
any other natural turf paint
• Ideal choice for major champi-
onships and other nationally televised
events
GameDay
®
The Ultimate Field Marking Paint
• Helmet Stencil Kit allows you to cus-
tomize your field with your schools
helmet design.
• Available Stencil Kits: Yardline Sten-
cil Kit, Hash Mark Kit, Letter Stencil
Kit.
• Custom Stencils made with our new
stencil technology means fewer
pieces. Customizing your field has
never been as easy or affordable.
Pioneer’s Athletic Field Stencils
are made of rugged, easy to use
clean plastic for years of use. They
are lightweight enough for one
person to handle and pre-marked
for easy assembly

Easy-to-Use
•Homogenized to prevent
separation in the container.
•Finely ground ingredients
will not clog your machine.
Convenient
•Painted areas are ready to
use in one hour.
•Equipment can be washed
with soap and water.
Applications
•Football & Soccer Fields
•Walkways • Campsites
•Band Practice Areas
•Tracks • Golf Courses
•Volleyball Courts
•Baseball Fields
•Bicycle Paths
•Grass & Clay Courts
•Grass Parking Areas
•Any grass or paved areas
Packaging
Five gallon pails; One gallon
containers, 4 per case.
“The Striping People”
ATHLETIC FIELD MARKING PAINT
with Halogen®2000
BRITE STRIPE®
®
HIGHLIGHTS
• Premium grade • Now contains Halogen® 2000
for greater brightness • Unsurpassed resistance to
severe weather • Fast-drying • Concentrated • Easy-
to-use • Professional results • Homogenized for
smooth consistency
Save Time & Money
• Bright and durable even when diluted
with water up to 4 to 1.
Improved Formula
• Now 400% brighter under UV light.
• Up to 25% brighter in sunlight.
Available in a
Variety of Colors
•Pioneer offers 16 standard colors and an unlimited
variety of custom colors.
• Customize your fields with your school
colors of logo.
Phone: [phone] Fax: [phone]
www.pioneerathletics.com
4529 Industrial Parkway
Cleveland, OH 44135
