Pioneer DVR-RT400-S User manual

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
DVR-RT400-S
RRV3052
DVD-Recorder and Videorecorder
DVR-RT400-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Region No. Remarks
DVR-RT400-S NYXGB AC230V 2
For details, refer to "Important Check Points for good servicing" .
T-ZZR DEC. 2004 printed in Japan

DVR-RT400-S
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test

DVR-RT400-S 3
5678
5678
C
D
F
A
B
E
WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 50 mW
WAVELENGTH : 654 - 662 nm
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER : 100 mW
WAVELENGTH : 780 - 787 nm
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LABEL CHECK
CLAMP signals for detecting the loading state are detected
by the drive CPUs, and the design prevents laser diode
oscillation when the CLAMP signal turns OFF.
In normal operation, if no disc is clamped, the laser diode
oscillation is disabled.
However, the interlock does not always operate in the test
mode.
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 3A
laser beam.
Additional Laser Caution
1. The ON/OFF(ON:low level,OFF:high level) status of the
DRW2194

DVR-RT400-S
4
1234
1234
C
D
F
A
B
E
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
0Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.

DVR-RT400-S 5
5678
5678
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION......................................................................................................................................2
1. SPECIFICATIONS .............................................................................................................................................6
2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................8
2.1 PACKING ....................................................................................................................................................8
2.2 EXTERIOR SECTION ..............................................................................................................................10
2.3 DECK ASSY (TOP SECTION) .................................................................................................................12
2.4 DECK ASSY (BOTTOM SECTION)..........................................................................................................14
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................16
3.1 BLOCK DIAGRAM....................................................................................................................................16
3.1.1 OVERALL BLOCK DIAGRAM ............................................................................................................16
3.1.2 MPEG BLOCK DIAGRAM..................................................................................................................17
3.1.3 Y/C AUDIO / HEAD AMP BLOCK DIAGRAM.....................................................................................18
3.1.4 SYSTEM CONTROL BLOCK DIAGRAM ...........................................................................................19
3.1.5 REGULATOR BLOCK DIAGRAM.......................................................................................................20
3.1.6 OPERATION / DISPLAY BLOCK DIAGRAM......................................................................................21
3.1.7 AV IN / OUT / TUNER / Hi-Fi BLOCK DIAGRAM...............................................................................22
3.1.8 21 PIN IN / OUT BLOCK DIAGRAM ..................................................................................................23
3.1.9 POWER BLOCK DIAGRAM...............................................................................................................24
3.2 OVERALL WIRING DIAGRAM .................................................................................................................26
3.3 DVD MPEG PCB ASSY(1/6) ....................................................................................................................28
3.4 DVD MPEG PCB ASSY(2/6) ....................................................................................................................30
3.5 DVD MPEG PCB ASSY(3/6) ....................................................................................................................32
3.6 DVD MPEG PCB ASSY(4/6) ....................................................................................................................34
3.7 DVD MPEG PCB ASSY(5/6) ....................................................................................................................36
3.8 DVD MPEG PCB ASSY(6/6) ....................................................................................................................38
3.9 VCR MT PCB ASSY(1/7)..........................................................................................................................40
3.10 VCR MT PCB ASSY(2/7)........................................................................................................................42
3.11 VCR MT PCB ASSY(3/7)........................................................................................................................44
3.12 VCR MT PCB ASSY(4/7)........................................................................................................................46
3.13 VCR MT PCB ASSY(5/7)........................................................................................................................48
3.14 VCR MT PCB ASSY(6/7)........................................................................................................................50
3.15 VCR MT PCB ASSY(7/7)........................................................................................................................52
3.16 POWER PCB ASSY ...............................................................................................................................54
3.17 OPEARTION PCB ASSY........................................................................................................................56
3.18 WAVE FORMS........................................................................................................................................57
4. PCB CONNECTION DIAGRAM ......................................................................................................................62
4.1 DVD MPEG PCB ASSY............................................................................................................................62
4.2 VCR MT PCB ASSY .................................................................................................................................66
4.3 POWER PCB ASSY .................................................................................................................................70
4.4 OPERATION PCB ASSY ..........................................................................................................................71
5. PCB PARTS LIST ............................................................................................................................................72
6. ADJUSTMENT ................................................................................................................................................75
6.1 SERVICING FIXTURES AND TOOLS......................................................................................................75
6.2 ADJUSTMENT ITEMS AND NECESSARY ADJUSTMENT POINTS ......................................................76
6.3 SERVICE MODE LIST..............................................................................................................................78
6.4 CONFIRMATION OF HOURS USED .......................................................................................................79
6.5 PREVENTIVE CHECKS AND SERVICE INTERVALS .............................................................................80
6.6 MECHANICAL ADJUSTMENTS...............................................................................................................81
6.7 ELECTRICAL ADJUSTMENTS ................................................................................................................85
6.8 WHEN REPLACING NEW DVD LOADER................................................................................................87
6.9 WHEN REPLACING EEPROM (MEMORY) IC.........................................................................................88
7. GENERAL INFORMATION .............................................................................................................................90
7.1 RE-WRITE FOR DVD FIRMWARE...........................................................................................................90
7.2 MEASUREMENT OF ERROR RATE........................................................................................................91
7.3 POWER ON SEQUENCE.........................................................................................................................92
7.4 DISC REMOVAL METHOD ......................................................................................................................93
7.5 TAPE REMOVAL METHOD AT NO POWER SUPPLY .............................................................................93
7.6 PARENTAL CONTROL-RATING LEVEL...................................................................................................94
7.7 TRAY LOCK ..............................................................................................................................................94
7.8 DISASSEMBLY.........................................................................................................................................95
7.9 CAUTIONS ON DIASSEMBLING AND ASSEMBLING..........................................................................103
7.10 KEY TO ABBREVIATIONS ...................................................................................................................105
7.11 DISC/CONTENT FORMAT ...................................................................................................................106
7.12 CLEANING ...........................................................................................................................................108
8. PANEL FACILITIES .......................................................................................................................................109

DVR-RT400-S
6
1234
1234
C
D
F
A
B
E
1. SPECIFICATIONS
G-1 Outline of the product
G-2 DVD System Color System PAL
Disc Format Rec DVD-R/-RW
Play
Disc Diameter 120 mm , 80 mm
Deck Disc Loading System Front Disc Loading
Motor 3 Motors
Pick up 1-Lens 2-Beams System
Rec Time (Aprox.) XP 1 hour at 10Mbps
at 4.7GB Disc SP 2 hour at 5Mbps
LP 4 hour at 2.5Mbps
SLP (EP) 6 hour at 1.6Mbps
Playback time (Max) DVD 1-Layer 135min (4.7GB)
DVD 2-Layer 245min (8.5GB)
CD 74min
VIDEO CD --
Search speed Fwd 4 step
Actual 2-45 times (DVD)
4-40 times (CD)
Rev 4 step
Actual 2-45 times (DVD)
4-40 times (CD)
Slow speed Fwd 1/8-1/2 times
Actual --
Rev --
Actual --
G-3 VCR System VHS Player / Recorder
System Video System PAL/SECAM/MESECAM
Hi-Fi STEREO Yes
NTSC PB (PAL60Hz) Yes
Deck DECK OVD-7
Loading System Front
Motor 3
Heads Video Head 4Head
FM Audio Head 2Head
Audio / Control Mono / Yes
Erase (Full Track Erase) Yes
Tape Rec PAL/SECAM SP/LP
Speed NTSC -
Play PAL/SECAM SP/LP
NTSC SP
Fast Forward / Rewind Time (Approx.) at 25°C FF:1'12" / REW:1'12"
with Cassette E-180
Forward/Reverse NTSC or PAL-M SP = 3x,5x
Picture Search PAL or SECAM SP/LP=5x,7x / 7x, 13x
Frame Advance Yes
Slow Speed 1/5, 1/10, 1/30
G-4 Tuning Broadcasting System CCIR, FRENCH System BG, L
System Tuner and System 1Tuner
Receive CH Destination Oscar (w/HYPER), France CATV
Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm
CH Coverage (SECAM) F2~F4, FB~FQ, F21~F69
(PAL)
Intermediate Frequency PAL /SECAM (U&VH) /SECAM (VL)
Picture (FP) 38.9 / 38.9 / 34.4MHz
Sound (FS) 33.4 / 32.4 / 40.9MHz
FP-FS 5.5 / 6.5 / 6.5MHz
Auto Tuning Method ALL Band (Not C.C.I.R. CH Plan)
Auto Guide Ch Area --
Preset CH 80CH
RF Converter Output No
Channel --
Level/Impedance --
Sound Selector No
Stereo/Dual TV Sound G.ST/NICAM DUAL
Tuner Sound Muting Yes
DVD-R/-RW Video Recorder & VHS Player/Recorder
DVD-R/-RW, DVD-Video, CD-DA, CD-R/-RW
E2~E4, X~Z+2, S1~S10,
E5~E12,S11~S41,E21~E69

DVR-RT400-S 7
5678
5678
C
D
F
A
B
E
G-5 Power Power Source AC 230V 50Hz
DC --
Power Consumption 28 W at 230V 50Hz
Stand by (FIP Off) 5.5 W at 230V 50Hz
Stand by (FIP On) 6 W at 230V 50Hz
Per Year -- W
Protector Power Fuse Yes
Safety Circuit Yes
IC Protector (Micro Fuse) Yes
G-6 Regulation Safety CE
Radiation CE
Laser --
G-7 Temperature Operation 5°C - 35°C
Storage -20°C - 60°C
G-8 Operating Humidity Less than 80% RH
G-9 Signal Video Signal Output Level 1 V p-p / 75 ohm (DVD, VCR)
S/N Ratio (Weighted) 65 dB (DVD-Video) 53 dB (VCR)
Horizontal Resolution 500 Lines (DVD-Video) 240 Lines (VCR)
RGB Signal Output Level 0.7V p-p/75 ohm
Audio Signal Input Level Microphone --
Input Level Line -3.8 dBm / 50k ohm (VCR, 0dBm=0.775Vrms)
Output Level Line
Digital Output Level 0.5 V p-p / 75 ohm (DVD)
S/N Ratio at (Weighted) 90dB (DVD-Video), 42dB (VCR at SP)
Harmonic Distortion (1KHz) Typical 0.06% (DVD-Video), 1.5% (VCR at SP)
Frequency Response : DVD Mode at DVD 4 Hz - 22 kHz
DVD Mode at VIDEO CD --
DVD Mode at SVCD --
DVD Mode at CD 4 Hz - 20 kHz
VCR Mode at SP 100 Hz - 10 kHz
VCR Mode at LP 100 Hz - 5 kHz
VCR Mode at SLP (EP) --
Hi-Fi Audio Signal Dynamic Range : More than 75dB
Frequency Response 20Hz ~20kHz
Wow And Flutter : Less than 0.01 %Wrms
Channel Separation : More than 60 dB
Harmonic Distortion : Less than 0.01
-3.8 dBm / 1k ohm (VCR, 0dBm=0.775Vrms)
-12dB / 1k ohm (DVD, -20dBFs 0dBFs=2.0Vrms)

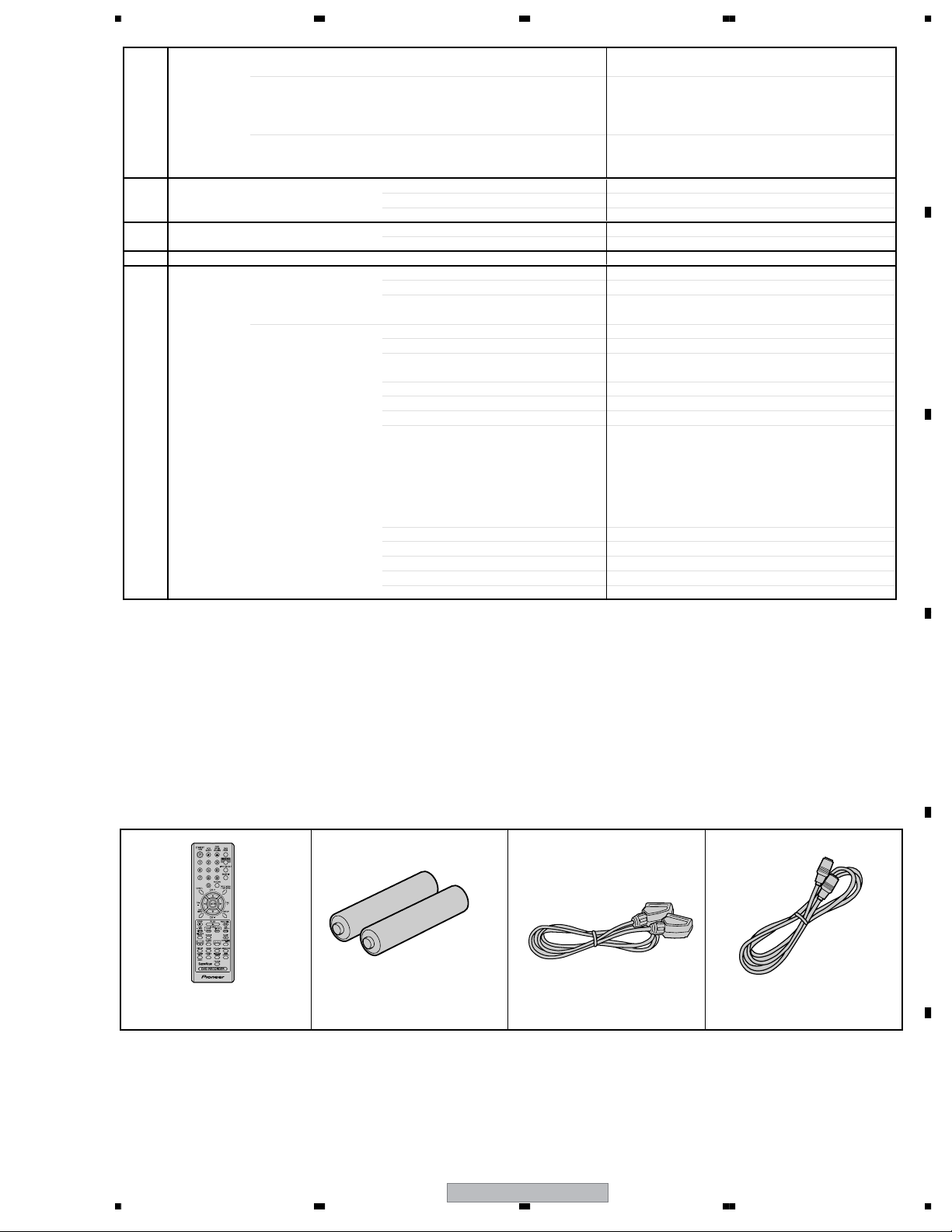

Transmitter unit
(076R0JZ030)
Accessories
Dry cell battery (AAA/R03) 21 pin SCART cable
(06CDVA5002)
75 Ωcoaxial cable
(06CDL020004)

DVR-RT400-S
8
1234
1234
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
1
6
5
3
3
13
14
15
16
2
12
8, 9, 10, 11
4
7

DVR-RT400-S 9
5678
5678
C
D
F
A
B
E
PACKING parts List
Mark No. Description Part No.
1 Gift Sheet 791UHAA001
2Package,Pad 792UHA0209
3Package,Back 792UHAA063
4 Gift Box 793UCD1215
5Pad,DVD/VR (155 x 250) 795UCA0021
6Package Front Assy 7A7920001A
7 Instruction Book Kit A2E905T975
8 Guarantee Card J2E390402A
9Warning Sheet J2E90428A
10 Operating Instructions J2E90521A
(English, French, German)
11 Operating Instructions J2E90531A
(Dutch, Spanish, Italian)
12 Polyethylene bag,Instruction JA4XD400
13 Transmitter Unit 076R0JZ030
14 75 ohm Coaxial Cable 06CDL02004
15 21 pin SCART Cable 06CDVA5002
NSP 16 Battery (AAA/R03) 1412004013

DVR-RT400-S
10
1234
1234
C
D
F
A
B
E
2.2 EXTERIOR SECTION
A
C
B
D
Refer to
"2.3 DECK ASSY (TOP SECTION)"
"2.4 DECK ASSY (BOTTOM SECTION)".
6
No. 5
DRIVE Assy R070R
No. 26
Shield. Deck
49
49
49
49
49
49
49
49
49
49
1
2
29
30
30
31
39
40
46
55
55
55
55
55
52
52
52
52
52
52
52
52
52
52
52
53
54 54
56
54
54
54
59
54
53
52
52
52
47
41
35
38
37
34
33
32
54
43
44
42
45
36
51
51
4
5
3
21
22
23
25
26
27
28
28
24
7
8
10
11
14
15
57
12
16
(1/2) 16 (2/2)
13
58
17
18
20
20
48
19
9
59
59
59
61
60
60

DVR-RT400-S 11
5678
5678
C
D
F
A
B
E
EXTERIOR SECTION parts List
Mark No. Description Part No.
1DVD MPEG PCB Assy A2E905TB10B
2 VCR MT PCB Assy A2E905T010B
3 OPERATION PCB Assy A2E905T270B
4POWER PCB Assy A2E905T240B
5 DRIVE Assy R070R VXX2976
6 DECK Assy A2D515T420A
7Front Cabi Assy 7A7010060B
NSP 8 Cabinet, Front 701WPJ1304
NSP 9 Plate, Display 711JPD0137
10 Flap, VCR 712WPJ0892
11 Flap, DVD 712WPJ0891
12 Cover, LED 713WPA0332
NSP 13 Glass, LED 713WPA0346
NSP 14 Sheet, LED 7230007878
15 Cord Clip, UL 8995034000
NSP 16 Button, Frame1 738WPB0046
NSP 17 Button, Frame2 738WPB0047
18 Spring, DVD-Flap 742WKA0001
19 Spring, Flap 743WKA0042
20 Cushion, Leg 800WFA0045
21 Bottom Cabi Assy 7G7610009A
22 Plate, Bottom 702WSA0209
23 Angle, Center 761WSA0175
24 Shield, Deck Assy 7G7610005E
25 Sheet (130 x 14 x T0.1) 7230007880
26 Shield, Deck 752WSA0437
27 Cabinet, Top 702WSB0092
28 Cushion 65TS20-20 8965TS202A
(20 x 15 x 12)
29 Holder, Deck 701WPA0686
30 Holder, Deck 701WPA0751
31 Shield, Case Head Amp 752WSA0230
32 Spring, Earth Head Amp 753WUAA006
33 Holder, End Sensor 85OP700038
34 Sheet, Rating 7226310003
35 Shield, 21PIN 761WSA0104
36 Cover, AC Head 752WSA0275
37 Shield, COMPO 752WSA0290
38 Shield, MPEG 752WSA0391
39 Shield, Jack 752WUA0008
40 Angle, DVD (L) 761WSA0150
41 Angle, DVD (R) 761WSA0151
42 Holder, Top 701WPA0781
43 Cabinet, Earth-Top 753WUA0062
44 Cushion (20 x 5 x T1) 800WFA0055
45 Cushion 65TS10-10 8965TS1017
(17.5 x 20 x 14)
46 Holder, DVD 713WPA0337
47 Cushion 65TS10-5 8965TS1015
48 Sheet, rating 7226310003
NSP 49 Tape ZTA-570F-19BK
50 • • • •
51 Screw 8109130B9U
52 Screw 810923070U
53 Screw 8109130A0U
54 Screw 810923080U
55 Screw 8109K3060U
56 Screw 810723040U
57 Screw 8110E2680U
58 Screw 811022680U
59 Screw 810223060U
>
60 Cord, AC Bush 1206659807
>
61 Fan Motor 1519X56L03
Mark No. Description Part No.

DVR-RT400-S
12
1234
1234
C
D
F
A
B
E

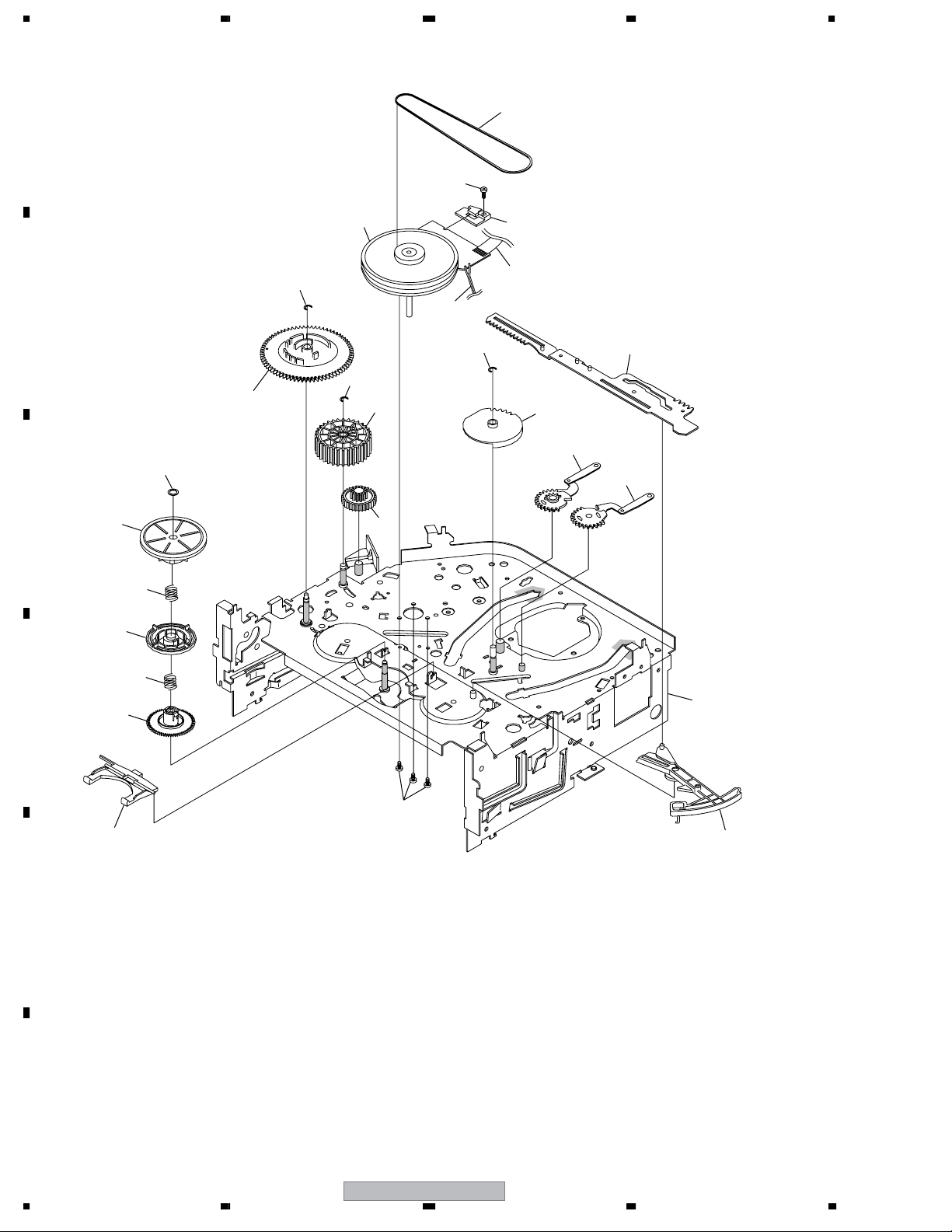

2.3 DECK ASSY (TOP SECTION)
To VCR MT PCB Assy
CP102
CONTACT SIDE
NON-CONTACT
SIDE
CD1501
34
42
48
48
29
37
47
5
4
8
23
18
52
52
22
20
19
11
10 26
27
38
24 46
2
3
32
1
9
39
50
51
31
30
36
51
51
16
17
13
14
21
15
7
6
12 33
53
28
25
35
41
49
40
47
47

DVR-RT400-S 13
5678
5678
C
D
F
A
B
E
DECK ASSY (TOP SECTION) parts List
Mark No. Description Part No.
1 Pinch Roller Block VA2 85OA400245
2 AHC Assy 85OA500026
3Worm 85OP600581
4 Base, AC Head 85OP500083
5 Spring, AC Head 85OP800324
6 Main Chassis Assy 85OA000516
7Arm Idler Assy 85OA200090
8 Inclined Base T Unit 3S 85OA400223
9 P5 Arm Assy 2 85OA400232
10 Tension Arm Assy 2 85OA400235
11 Inclined Base S Unit 85OA400231
12 Spring, Locker 85OP800367
13 Cass, Holder 85OP900736
14 Cass, Side L 85OP900748
15 Cass, Side R 85OP900749
16 Locker, R 85OP900739
17 Link Unit 85OA900228
18 Post, Cass Guide 85OP000496
19 Reel, S (S) 85OP200316
20 Reel, T (S) 85OP200317
21 Gear, Idler 85OP200308
22 Holder, Tension 85OP400492
23 Cap. P4 85OP400520
24 Band, Tension 85OP400542
25 Connect, Tension 85OP400533
26 Arm, Brake T 85OP600573
27 Band, Brake T 85OP600584
28 Spring, Tension 85OP800322
29 Spring, Brake T 85OP800360
30 Lever, Link 85OP900743
31 Lever, Flap 85OP900744
32 Cass, Opener 85OP900745
33 Reflector, LED 85OP700035
34 Bracket, Top 3V 85OP900746
35 Cord Jumper (CD1501) 122H071603
36 Cord Jumper (CD1502) 122Y021902
37 Head (Audio Control)(H5001) 1523Q91003
38 Head (Full Erase)(H5002) 1543Q02014
> 39 Motor, Loading (M101) 1596S98002
40 Micro Motor (M2003) 1589S11020
> 41 Cylinder Unit Assy (UN4001) A5L1046500
42 Cord Jumper (CD102) 122F061501
43 • • • • •
44 • • • • •
45 • • • • •
46 Screw 8107226804
47 Screw 8107226404
48 Screw 8102120604
49 Screw 8109126604
50 Screw/Washer (A) 810A130404
51 Screw/Washer (A) 810A126504
52 Polyslider Washer 82Q264713N
53 Screw 8107226604
Mark No. Description Part No.

DVR-RT400-S
14
1234
1234
C
D
F
A
B
E
2.4 DECK ASSY (BOTTOM SECTION)
8
6
23
10
2
4
15
16
24
7
3
5
9
13
22
19
18
17
21
1
20
22
22
12 11
14

DVR-RT400-S 15
5678
5678
C
D
F
A
B
E
DECK ASSY (BOTTOM SECTION) parts List
Mark No. Description Part No.
1 Belt, Capstan (S) 85OP200290
2 Main Chassis Assy 85OA000516
3 Clutch Assy 85OA200089
4 Loading Arm S Unit 85OA300065
5 Loading Arm T Unit 85OA300066
6 Gear, Clutch 85OP200311
7 Gear, Coupling 85OP200312
8Lever, Clutch 85OP200313
9 Gear, Main Loading 85OP300194
10 Lever, Tension 85OP400490
11 Cam, Pinch Roller 85OP600577
12 Cam, Main 85OP600578
13 Rod, Main 85OP600579
14 Gear, Joint 85OP600582
15 Spring, Coupling 85OP800355
16 Spring, Ring 85OP800356
17 Holder, Capstan 85OP400549
18 Cord Jumper (CD1501) 122H071603
19 Cord Jumper (CD1502) 122Y021902
> 20 Capstan DD Unit (M2001) 1510S98043
21 Screw 8107226804
22 E-Ring 83ETW30000
23 Screw 8109126604
24 Polyslider Washer 82P184505N

DVR-RT400-S
16
1234
1234
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
3.1.1 OVERALL BLOCK DIAGRAM
AV SW LA73026
SC2 CVBS 28
SC1 L/R IN 36/37
R
SPDIF
DVD L/R
FRONT Y
7 Y/C_VIDEO W/OSD
TUNER_L/R
DVD CVBS
Y/C.
AUDIO
F
R
O
N
T
CV
R
NORMAL A
A2/NICAM
MSP3417
TO RF MOD
TUNER_CVBS
MPEG PCB
AUDIO
CODEC
MPEG2
ENCODER
5 SW VIDEO
13 DVD CVBS 18 TUNER or DVD CVBS 23 SC1 CVBS 28 SC2 CVBS
SC1 CVBS OUT 25
S
C A R
T
2
7 Y/C_VIDEO W/OSD 13 DVD CVBS 28 SC2 CVBS
SC2 CVBS OUT 26
7 Y/C_VIDEO W/OSD 18 TUNER or DVD CVBS 23 SC1 CVBS
SW VIDEO or FRONT CVBS
SIF
SC1 CVBS 23
S
C A R
T
1
SC2 L/R IN 33/34
SC2 L/R OUT 30/31
SC1 L/R OUT 42/43
39/40 SW L/R 9/71 16/15 TU or DVD L/R 75/76
2/1 HI-FI L/R 78/80
Y/C VIDEO
OSD
FRONT L/R 11/73
FRONT L/R
AUDIO RCA
OUT
FRONT L/R
TUNER_L/R
HI-FI _L/R
18 TUNER or DVD CVBS
13 DVD CVBS
9/71 SW L/R 11/73 FRONT L/R 51/53 TUNER L/R 7/69 DVD L/R
PB
51/53 TUNER L/R 7/69 DVD L/R
VPS
PDC
G/Y
B/U R/V
DVD R/G/B OUT
DVD R/G/B OUT
DVD R/G/B OUT
VIDEO
SW
TUNER/IF/MOD
FRONT L/R
SW L/R
SECAM
MIX
RGB SW
FRONT C
SW
11/10 DVD L/R
2/1 HI-FI L/R 16/15 TUNER or DVD CVBS 36/37 SC1 L/R IN 2/1 HI-FI L/R 11/10 DVD L/R 33/34 SC2 L/R IN
11/10 DVD L/R 16/15 TUNER or DVD CVBS 36/37 SC1 L/R IN 33/34 SC2 L/R IN
FRONT Y
FRONT CVBS
FRONT Y
TUNER_CVBS FRONT L/R
FRONT C
FRONT CVBS
R/G/B OUT
SC2 R/G/B IN
VIDEO
SW *1
TUNER_CVBS
TUNER_CVBS
TUNER_CVBS
SW VIDEO or FRONT CVBS
HF L/R
SP/SLP CH1/2
SP/SLP CH1/2
HF COM
L
AUDIO SIGNAL VIDEO SIGNAL
*1:THE UNWANTED OF UK MODEL
Vaddis V MPEG
DECODER w/CPU
REC
L
S
VIDEO
SW
VCR DECK

DVR-RT400-S 17
5678
5678
C
D
F
A
B
E

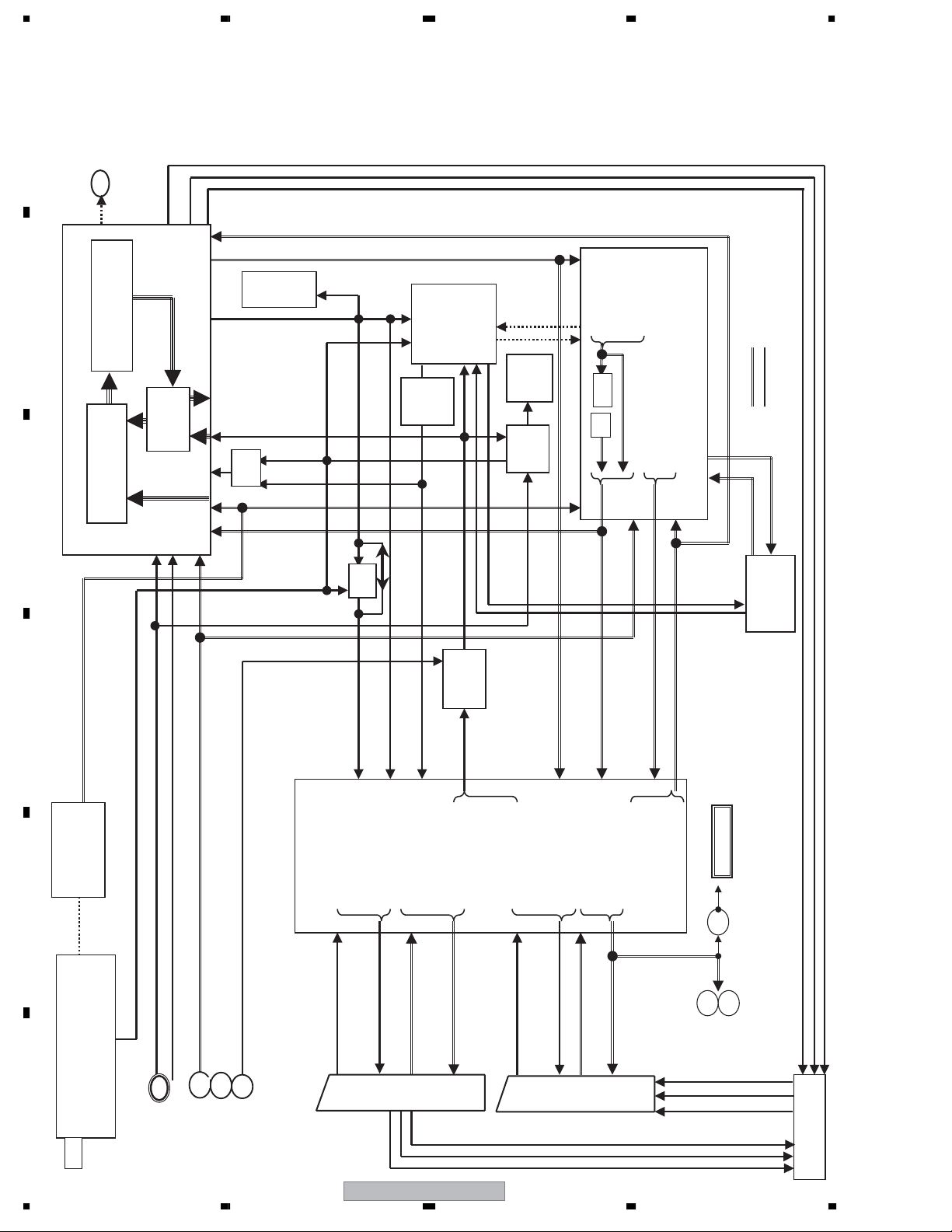

3.1.2 MPEG BLOCK DIAGRAM
F P.CON+D5V E P.CON+12V D A5V C D5V B +3.3V A +1.8V
TU_AUDIO_L/R
AUDIO_IN_L/R_1
AUDIO_IN_L/R_2
BS_AUDIO_L/R ZR35100
IC4009
MPEG ENCODER
IC4001
ZR36750E
MPEG
RAMDAT16~31
RAMDAT0~15
RAMBA0~1
RAMADD0~12
RAMDQM/RAMWE/PCLK
RAMCAS/RAMRAS/RAMCS
ATDD0~15
ATCS0~1/ATDA0~2
ATIORDY/ATDMACK
ATIOW/ATIOR/ATINTRQ
DRVRST/ATDMARQ
A B
VIDHS,VIDVS,VIDCLK,VIDVLD
SCL,SDA
VADDIS_INT,MPEG_CS,MPEG_CLK
MPEG_DATA_IN,MPEG_DATA_OUT
DATA LINE
BB 256MBIT SDRAM
HY57V561620CT-7
IC4008
HY57V561620CT-7
256MBIT SDRAM
IC4007
TU_VIDEO
COMPOSITE_IN
VIDEO IN
Y_VIDEO_IN
AMCLK_SEL
VID0_7
SBVALID,SBDAT,SBCLK,SBREQ
I55_TX0,I55_RX0
MA0~12
MDQM/MWE/MCLK
MCAS/MRAS/MCS
MBA0~1
MD0~15
MD16~31
CVBSIN
VIDEO_IN_SEL
C_VIDEO_IN
ADC_ADAT
I55_ALRCLK,I55_ABCLK
I55_AMCLK
I55_AODAT
27M_OSC
VADDIS_AMCLK
ALRCLKO/ABCLKO/AOUT0
SCL,SDA
DAC_L/R
27M_OSC
VADDIS_AMCLK
DAC_L/R
SPDIF
YUV
CVBS_OUT
RAMADD2~4
RAMDAT3~4
RAMDAT10~12
PNVMCE
FRAMDAT16~31
FRAMDAT5~9
FRAMADD5~11
FRAMADD0~1
FRAMBA0~1
B
B
C
DB
B
B
B
A
BB
F E
1RESET
BD5229G
IC4003
AUDIO IN
BR24L16FJ-WE2
EEPROM
IC4002
VIDEO OUT
AUDIO OUT
WM8776SEFT/R
AUDIO CODEC
IC7301
SN74LVC1G125DCKR
IC4010
AMCLK SW
1
24
1
2
4 6
MM1501XNRE
VIDEO SW
IC7302
DVR-R07OR
DVD-RW LODER
DK4001
CP4001
ATAPI FFC
04_6274_040_000_800
IC4006
32MBIT FLASH
M5M29KT331AVP
IC4005
MT48LC8M16A2P-7E
128MBIT SDRAM
MT48LC8M16A2P-7E
128MBIT SDRAM
IC4004

DVR-RT400-S
18
1234
1234
C
D
F
A
B
E
3.1.3 Y/C AUDIO / HEAD AMP BLOCK DIAGRAM
91
90
H.AMP
89
SCL
SDA
V. H_SW
73 74 80
83
ENV. DET
V. REC_ST-H
ENV DET
HPF
1
3
4
AE HEAD (–)
CTL-
CTL+
CP102
HEAD AUDIO
CONTROL
Q103 Q104 Q105
PB SW
SYSCON
1
3
6
5
4
AV IN/OUT/
TUNER/HI-FI SWD_VIDEO_IN
PRE AMP
98
REC EQ
VCA
P
R
LINE AMP
P
R
2MLPF
P/Q EQ
R
40
Y/C/AUDIO/HEAD AMP IC IC101 HA118225F
OSC
Q102
NORMAL A. REC ST SW
Q101
DUMMY_V. SYNC
SYSCON
63
NORMAL_A_OUT
6
NORMAL_A_IN
1
86 87 SUB
LPF
COIL, BIAS OSC L102
DVD_VIDEO_OUT
CYL
HF2
HF_COM
HF1
3
2
1
EP/LP-CH1 (R)
EP/LP_COM
EP/LP-CH2 (L)
CP101
4
5
6 7 8
9
SP-CH1 (R)
SP_COM
SP-CH2 (L)
HF1 (R)
HF_COM
HF2 (L)
2AE HEAD (+)
1FE HEAD (GND)
CP103
2FE HEAD (HOT)
TU_VIDEO_OUT
89
85
Y/C_VIDEO_OUT
REC MUTE
MAIN DE-EM
FM AGC
629 TRAP
69
71
X101
4.433619MHz
XTAL VCO/OSC
P
REC Fillter
NL E MPH DEM
HPF
DLIM DEM0 P
R
Y-LPF N.L
DE-EM
33 35
GCL
37
GCL
LPF
38
Y CCD
49 51 36
YLR
REC+DO
DO
29
V AMP
SQUELCH
Clear SYNC
V FBC/ VALC
PR
28
V FBC/ VALC
23
26
GCL
ACC
R
P
CLPF1 FH HPF
CT1 Trap
REC Trap HiFi Trap C-DL
R
P
Main Conv1
R
P
LPF Tr a p
R P
Main Conv2
BPF Pilot
Erase B.D. NP-
CONV C.K.
45
46
57
55
CCD LPF
CCD
VCA
15
21
17
R P
C LPF2
CK
RP
L-DET
AV IN/OUT/
TUNER/HI-FI
42
43
BUFFER
Q108
5
6
AUDIO REC
AUDIO PB
96
CTL-
CTL+
79 31
SYNC Sep
AUDIO_MUTE-H
SYNC 12 14
2
1
SECAM CHOMA IC IC4601 LA70100M-MPB
SECAM_IN
VV-H
82
MESECAM-H
28
17
29
16
18
77 76
SECAM-H
2
6
1
4
PA L/SECAM VIDEO SW IC IC102 MM1501XNRE

DVR-RT400-S 19
5678
5678
C
D
F
A
B
E
3.1.4 SYSTEM CONTROL BLOCK DIAGRAM
SYSCON/TIMER/SERVO IC3001 OEC0152A
POWER ON-L
DRUM PWM MS SEN-B
POWER FAIL
DUMMY V.SYNC
41
107
27
37
105
109
AV IN/OUT/
TUINER/HI-FI
VCR_P_ON-L
POWER_FAIL
VIDEO H.SW
DFG/PG
104
AUDIO MUTE-H 58
21PIN IN/OUT
LD M CTL
97
BOT-H EOT-H
26
AT 5.2V
BOT SENSOR Q3008
EOT SENSOR Q3006
2
CYL FG/PG
4
CAP PWM
108
CAP LIMIT
84
CAP FULL
102
CAP FG
9
CAP FWD-L
98
9
10
I LIMIT
CAP CTL
11
CAP VOC
12
CAP/M/F/R
MS SEN-A
28
MS_SEN A Q3005
MS_SEN B Q3004
23
4
1
CAP./LDM/
CYL UNIT
DUMMY_V.SYNC
V.H_SW
AUDIO_MUTE-H
V ENV 24 ENV.DET
CTL(+) 3
CTL(-) 4
BLAKKING-L
AFT S.CURVE 33
85
ST RESET 86
IIC SDA
IIC CLK 61
62
BLAKKING-L
ST_RESET
AFT-S.CURVE
CTL+
CTL-
RESET
77
21
3
IC3003 XC61CN3102SR
AT+5V [M-CON] SYSTEM
RESET
5 6
EEPROM IC3099 S-24C08ADPA-01
C.SYNC 111 SYNC
SCL
SDA
VCR DUB-H VCR_DUB-H
HIFI H.SW 106
HIFI ENV 32
HIFI_H.SW HIFI_ENV.DET
DRIVE_ON-H
50
DRIVE_ON-H
65
MP_DATA IN
64
MP_DATA OUT
25
CH V MUTE-H 99
CH_V_MUTE-H
5
LDM CTL
CP3001
AV IN/OUT/ TUINER/HI-FI
VADDIS_RESET
VADDIS INT 44
KEY-A 30
45
KEY-B 29
MPEG_RESET
NADDIS INT
KEY-A
KEY-B
FL_CLK
REM IN 43
48 FL_CLK
REM_IN
FL_DATA 49 FL_DATA
FL_CS 47 FL_CS
CYL _CTL
2
34
12
34
1
REEL SENS Q3002
REEL SENS Q3001
REEL T
70
REEL S
69
23
4
1
P.CON+5V
59
60
MPEG_DATA
40
MPEG_CLK
CH_A_MUTE-H
VADDIS D OUT
VADDIS IIC SDA
VADDIS IIC CLK
CH A MUTE-L
VADDIS D IN
IIC_CLK IIC_DATA
AUDIO_MUTE-H
V.REC ST-H 71 V.REC_ST-H
101
X3001 10MHz
OSC 2
OSC 1
78
80
X3002 32.678KHz
X1
X2
75
76
CENT LED D3001
REGULATOR
1CAP FG
CAP_CVO
FRONT-S-SW 52 FRONT_S_SW
P MUTE-H 87 P_MUTE-H
19 OSD_VIDEO_OUT
CV.OUT
LD/CY VCO
8
AT+12.6V
Q3007
CH A MUTE
SW
X3003 17.734475KHz
4FSC OUT
22
21
4FSC IN
63 VADDIS_CLK
MP_CLK
38
39
MPEG 5V ON-H
MPEG P ON-L
MPEG 5V ON-H
MPEG_P_ON-L 46 FIP_ON-L
FIP_ON-L
51
TAB_SW
17
16
CVIN2 CVIN1 Y/C_VIDEO_OUT
OPERATION/ DISPLAY
Y/C/AUDIO/ HEAD AMP
SW3001 LSA-1144EAU
42 CAP FG
Q3003
BUFFER
21PIN IN/OUT
AV IN/OUT/ TUINER/HI-FI
Y/C/AUDIO/ HEAD AMP
IIC_CLK IIC_DATA
IIC_CLK
IIC_DATA
PERI_CTL_IN PERI_CTL_IN
31
FRONT V SW-H FRONT_V_SW-H
100
35
SD JUDGE SYNC.DET
21PIN IN/OUT
HIFI REC MUTE-H 66 HIFI_REC_MUTE
Y/C/AUDIO/
HEAD AMP
90
VV-H
91
SECAM_IN
89
MESECAM-H
92
SECAM-H
VV-H
SECAM_IN
MESECAM-H
SECAM-H
6
1
2 4
BB_SECAM-H 53 PAL/SECAM VIDEO
SW IC IC3002 MM1501XNRE

DVR-RT400-S
20
1234
1234
C
D
F
A
B
E
3.1.5 REGULATOR BLOCK DIAGRAM
13
12
9
8 7
6
5 4 2
TUNER+32V
P. FA I L
DRIVE ON H
UNREG+3.3V
UNREG+3.3V AT+5.2V
AT+5.2V
AT+13V
MOTOR+12V
POWER
AT+12V
P. CON+12V
16
15
14
HEATER+
HEATER-
-22V
1MOTOR+27V 24V REG.
Q1701
VOLTAGE CTL IC1702 KIA431A-AT
P. CON+5V
SW
Q1708
M-CON+5V
SW
Q1711
MPEG+5V
SW
Q1704
MPEG
P. CON SW
Q1707 M-CON
POWER SW
Q1712
AT+12V REG. IC1704 KIA78R12API
P. CON+12V REG. IC1705 KIA78R12API 8V REG.
Q1703
POWER SW
Q1713
P. CON+3.3V REG. IC1701 BA00BC0WT-V5
4
1
2
4
12
1
3
4
2
P. CON+1.8V REG. IC1706 BA00BC0WT-V5
4
1
2
MPEG SW
Q1714
H.VOLT-CTL
Q1709
HEATER SW
Q1710
P. CON+8V
P. CON+5V
AT+12.6V
CAP_VCO
OPERATION/ DISPLAY
SYSCON
MPEG P.CON+5V
AT+5V(M-CON)
MPEG 5V ON-H
AT+5.2V
VCR_P_ON-L
MP_P.CON+1.8V
MP_P.CON+3.3V
POWER_FAIL
MPEG_P_ON-L
DRIVE_ON-H
TUNER+32V -22V HEATER- HEATER+ FIP_ON-L
SYSCON
SYSCON
AV IN/OUT/ TUNER/HI-FI
CP1701
