Pioneer PDV-10 Quick start guide

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Allexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2000
RRV2265
T–ZZR JAN. 2000 Printed in Japan
PDV-10
PORTABLE DVD PLAYER
¶This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
PDV-LC10 RRV2212
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ZU/CA ‡AC120V Adapter
ZY ‡AC230V Adapter
Type Power Requirement Remarks
Model
PDV-10

PDV-10
2
PCB ASSEMBLIES
P9-6 NSP PDVDS ASSY VWG2143 VWG2144 VWG2143
P9-8 NSP PDVDM ASSY VWS1406 VWS1435 VWS1414
P9-25 DISPLAY ASSY (PDVDS Assy) VXX2674 VXX2679 VXX2679
P9-26 MAIN ASSY (PDVDM Assy) VXX2673 VXX2712 VXX2690
PACKING
P5-2 AC Adapter VWX1222 VWX1220 VWX1222
P5-3 Polyethylene Bag Z21-020 VHL1051 Z21-020
P5-7 Operating Instructions (Dutch) VRD1103 Not used VRD1103
P5-8 Operating Instructions (Swedish) VRD1104 Not used VRD1104
P5-9 Operating Instructions (Spanish) VRD1105 Not used VRD1105
P5-10 Operating Instructions (English) VRB1241 VRB1240 VRB1241
P5-11 Operating Instructions (French) VRD1100 Not used VRD1100
P5-12 Operating Instructions (German) VRD1102 Not used VRD1102
P5-13 Operating Instructions (Italian) VRD1101 Not used VRD1101
P5-16 AC Power cord ADG1127 RDG1034 ADG1127
P5-20 Battery Pack (NI-MH) VEM1026 Not used Not used
P5-21 Packing Case (Boby) VHG1866 Not used Not used
P5-22 Packing Case (Battery) VHG1868 Not used Not used
P5-23 Packing Carton VHG1867 VHG1909 VHG1910
P5-24 NSP Warranty Card ARY7022 ARY7023 ARY7022
P5-26 Battery Charger VWY1060 Not used Not used
P5-27 Battery Case VXX2697 Not used Not used
P5-28 Mirror Mat Sheet DHL1050 VHB1074 VHB1074 Insulating Aircap
P5-29 Pad A VHB1072 Not used Not used
P5-30 Pad B VHB1073 Not used Not used
P5-31 Packing Plat (Side) VHC1054 Not used Not used
P5-32 Packing Plat VHC1055 Not used VHC1062
Intermediate Plat Not used VHC1046 VHC1046 No.1
Bottom Board Not used VHC1048 VHC1048 No.2
Master Carton Not used VHG1907 VHG1908 No.3
7CONTRAST OF MISCELLANEOUS PARTS
PDV-10/ZU/CA, PDV-10/ZY and PDV-LC10/ZY are constructed the same except for the following :
CONTRAST TABLE
Part No. Remarks
PDV-LC10 / PDV-10 / PDV-10 /
Symbol and Description
Ref.
No. Mark
ZY type ZU/CA type ZY type
NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷Reference Nos. indicate the pages and Nos. in the service manual for the base model.
÷When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω=56 ×101 =561................................................... RD1/4PU 561J
47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J
0.5 Ω=R50 ...................................................................... RN2H Â50K
1 Ω=1R0 ......................................................................... RS1P 1Â0K
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F

PDV-10
3
Hand hold Not used VEE1006 VEE1006 No.4
EXTERIOR
P7-1 LCD Cover VNA2070 Not used Not used
P7-2 Insulating Sheet L VEC2080 Not used Not used
P7-3 Earth Plate B VBK1092 Not used Not used
P7-4 LCD Monitor VXX2668 Not used Not used
P7-5 LCD Monitor PCB Assy VXX2669 Not used Not used
P7-6 Inverter PCB Assy VXX2670 Not used Not used
P7-7 Protective Tape VEC2073 Not used Not used
P7-8 Cushion B VEC1311 Not used Not used
P7-9 Cover Plate VNH1056 Not used Not used
P7-10 Speaker VVY1002 Not used Not used
P7-11 Earth Plate A VBK1091 Not used Not used
P7-12 LCD Locker VNK4492 Not used Not used
P7-13 Locker Spring VBH1316 Not used Not used
P7-14 Cushion C VEB1307 Not used Not used
P7-15 Mode Button VNK4486 Not used Not used
P7-16 Earth Plate C VNH1057 Not used Not used
P7-17 Switch Cap VNK4481 Not used Not used
P7-18 Flexible Sheet VEC2084 Not used Not used
P7-19 F.P.C 22P VNP1693 Not used Not used
P7-20 Rear Cover VNK4484 Not used Not used
P7-22 LCD Holder VNK4485 Not used Not used
P9-1 Body Assy VXA2375 VXA2396 VXA2408
P9-7 Electrostatic Sheet VEC2082 VEC2121 VEC2121
P9-9 Selector Knob VNK4478 Not used Not used
P9-10 Chassis Assy VXA2376 VXA2390 VXA2376
P9-13 Power Knob VNK4477 VNK4541 VNK4541
P9-28 65 Label Not used ARW7050 Not used No.5
P9-29 N/P Selector knob VNK4543 Not used VNK4543
P9-30 Label Service Not used VRW1815 Not used No.6
P9-31 Caution Label Not used VRW1805 Not used No.7
P11-1 Top Cover VNK4471 VNK4624 VNK4651
Name Plate Not used VAM1090 VAM1090 No.8
P11-6 Leg Rubber VBH1302 VEB1313 VEB1313
P11-14 Free Stopper VXB1001 Not used Not used
P11-15 Label Assy VRW1823 VRW1822 VRW1823
Spacer C Not used VEC2100 VEC2100 No.9
Cushion B Not used VEC1945 Not used No.10
• The numbers in the remarks column correspond to the numbers on the exploded diagram. Refer to “EXPLODED VIEWS”.
• For PCB ASSEMBLIES, Refer to “CONTRAST TABLE OF PCB ASSEMBLIES” and “SCHEMATIC DIAGRAM”.
Part No. Remarks
PDV-LC10 / PDV-10 / PDV-10 /
Symbol and Description
Ref.
No. Mark
ZY type ZU/CA type ZY type

PDV-10
4
No.4 No.1
No.3
Packing Carton
Front mark
Tray
PDV-10
Sheet (Insulating Aircap)
Polyethylene Bag
AC Adapter
PDV-10 (Body)
No.2
EXPLODED VIEWS
PACKING SECTION
÷EXTERIOR SECTION
ZU/CA:Only
ZU/CA:Only
ZU/CA:Only
Top Cover
Body Assy
VEB1061
No. 8
No. 9
Leg Rubber
Leg Rubber
PDVDM ASSY
PDVDS ASSY
No. 10
No.7
No.5
No.6

PDV-10
5
IC401 NJM2100V Not used Not used
IC403, IC405 TC74HC4053AFT Not used Not used
IC415, IC417 NJM2073M Not used Not used
IC851 NJM2235V Not used Not used
Q13 UMH9N Not used Not used
Q402, Q413, Q854 2SD2114K Not used Not used
Q405 DTA124EUA Not used Not used
Q406, Q411 UMH1N Not used Not used
Q410 UMD2N Not used Not used
Q853 2SA1576A Not used Not used
Q858 DTC124EUA Not used Not used
D611 UDZS5.1B Not used Not used
L5 VTL1122 Not used Not used
L12 VTL1123 Not used Not used
L14 VTL1124 Not used Not used
L101, L102, L303, L601 VTL1061 LCYA100J2520 LCYA100J2520
L304 VTL1141 LCYA2R7J2520 LCYA2R7J2520
F2 DTF1098 Not used Not used
C4, C36, C453, C454, C455 CKSSYF104Z16 Not used Not used
C462, C878 CKSSYF104Z16 Not used Not used
C42 VCH1171 Not used Not used
C401, C406 VCH1168 Not used Not used
C411, C439 CKSRYB473K16 Not used Not used
C422, C437, C438, C470 CKSSYB223K16 Not used Not used
C413, C418, C419, C421 VCH1174 Not used Not used
C412, C440 CCSRCH181J50 Not used Not used
C456 CKSSYF103Z50 Not used Not used
C467, C468 VCH1169 Not used Not used
C628 CKSSYB103K16 CKSSYF103Z50 CKSSYF103Z50
C855 VCH1175 Not used Not used
C858, C859, C877, C882 CKSRYB104K16 Not used Not used
R52 RS1/16SS101J Not used Not used
R53 RS1/16SS473J Not used Not used
R334 RS1/16SS221J RS1/16SS470J RS1/16SS470J
R402, R405, R415, R424, R860 RS1/16SS102J Not used Not used
R403, R416 RS1/16SS104J Not used Not used
R409, R471, R841, R867 RS1/16S222J Not used Not used
R413, R442 RS1/16SS182J Not used Not used
R470, R414 RS1/16S6802F Not used Not used
R401, R404, R406, R407, R437, R464 RS1/16SS1602F Not used Not used
R418, R420, R429, R431 RS1/16S151J Not used Not used
R419, R421, R430, R432, R598 RS1/16SS153J Not used Not used
R438, R465 RS1/16SS1602F RS1/16SS0R0J RS1/16SS0R0J
R433, R466, R468, R469 RS1/16SS822J Not used Not used
R472, R473, RS1/16SS103J Not used Not used
R475, R476, R701, R840 RS1/16SS0R0J Not used Not used
R721 RS1/16SS0R0J Not used RS1/16SS0R0J
R844– R850, R886 RS1/16SS0R0J Not used Not used
R490– R493, R496, R497, R883 Not used RS1/16SS0R0J RS1/16SS0R0J
R884, R1000 Not used RS1/16SS0R0J RS1/16SS0R0J
R597 RS1/16SS203J RS1/16SS0R0J RS1/16SS0R0J
R723 RS1/16SS113J Not used RS1/16SS113J
R885 RS1/16SS472J Not used Not used
R896, R899 RS1/16SS102J Not used Not used
R908, R910, R920, R924 RS1/16SS331J RS1/16SS101J RS1/16SS101J
VWS1435, VWS1414 and VWS1406 are constructed the same except for the following :
CONTRAST TABLE OF PCB ASSEMBLIES
PDVDM ASSY
AF
Mark Symbol and Description Part No.
VWS1406 VWS1435 VWS1414 Remarks

PDV-10
6
R812, R914 RS1/16SS221 RS1/16SS101J RS1/16SS101J
S601 QSG1003 Not used Not used
S850 VSH1023 Not used VSH1023
S603 VSG1019 VSG1017 VSG1019
S604 VSH1024 Not used VSH1024
S605 VSG1019 Not used VSG1019
S850 VSH1023 Not used Not used
CN401 VKN1464 Not used Not used
R2007 RS1/16S203J RS1/16S363J
R2018 RS1/16S273J RS1/16S622J
R2024 Not used RS1/16S473J
Mark Symbol and Description Part No.
VWG2143 VWG2144 Remarks
PDVDS ASSY
VWG2144 and VWG2143 are constructed the same except for the following :
B
Mark Symbol and Description Part No.
VWS1406 VWS1435 VWS1414 Remarks

PDV-10
7
A
B
C
D
1234
1234

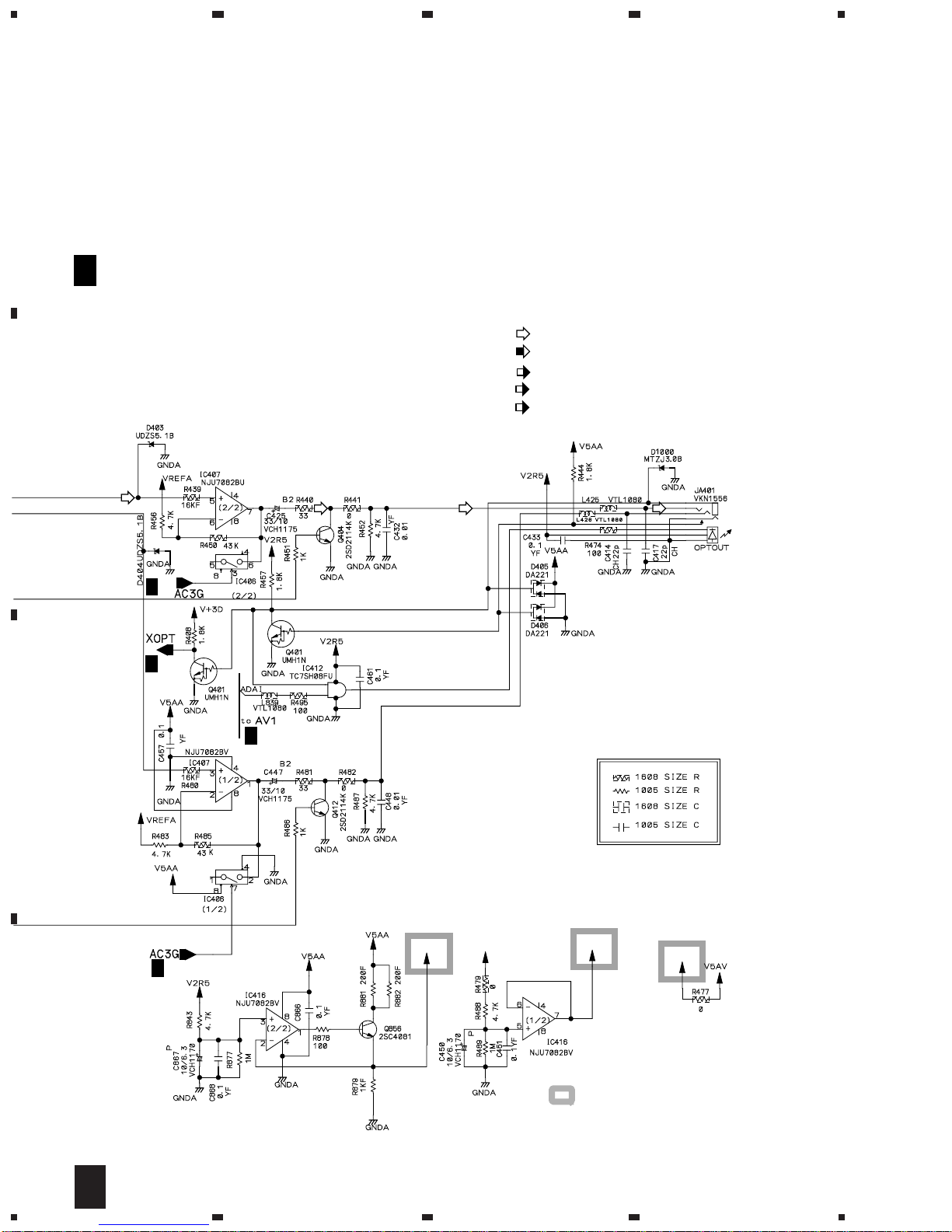

7SCHEMATIC DIAGRAM
7PDVDM ASSY(5/6) (ANALOG AV SECTION)
IN/XO
S-VIDEO OUT
AV IN/OUT JACK
Tantalum A
Tantalum A
Tantalum
Tantalum A
Tantalum
Tantalum A
Tantalum A
Tantalum A
Tantalum A
Tantalum
Tantalum
Tantalum
Tantalum A
: AUDIO SIGNAL ROUTE
: ROM DATA SIGNAL ROUTE
: V/CB SIGNAL ROUTE
: Y SIGNAL ROUTE
: C SIGNAL ROUTE
(V/CB)
(Y)
(C)
from Q858
(V)
(V) (V) (V)
(V)
(C)
(Y)
(Y)
(Y)
(C)
(V/CB)
5/6 F
PDVDM ASSY(5/6)
A
4/6
A
4/6
A
3/6
A
2/6
A
6/6
A
2/6
A
2/6
A
4/6
A
V+5DAC
VREFA
HEAD
PHONE VR
: The power supply is shown
with the marked box.
(PDV-10/ZU/CA : VWS1435)
(PDV-10/MY : VWS1414)
A 5/6F

PDV-10
8
A
B
C
D
1234
1234
A 5/6F
HP OUT JACK
Tantalum
Tantalum
Tantalum
Tantalum
: AUDIO SIGNAL ROUTE
: ROM DATA SIGNAL ROUTE
: V/CB SIGNAL ROUTE
: Y SIGNAL ROUTE
: C SIGNAL ROUTE
(V/CB)
(Y)
(C)
5/6 F
PDVDM ASSY(5/6)
A
2/6
A
4/6
A
2/6
A
2/6
A
V5AA
VREFA
V2R5
V2A
: The power supply is shown
with the marked box.
(PDV-10/ZU/CA : VWS1435)
(PDV-10/MY : VWS1414)
