Pioneer PDV-LC10 User manual

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 1999
c
ZY ‡AC230V Adapter or Battery pack
ZU/CA ‡AC120V Adapter or Battery pack
ZL ‡AC230V Adapter or Battery pack
PDV-LC10
RRV2212
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST................ 4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .. 12
4. PCB CONNECTION DIAGRAM.......................... 31
5. PCB PARTS LIST ............................................... 38
6. ADJUSTMENT .................................................... 42
CONTENTS
T – ZZR SEPT. 1999 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
PORTABLE DVD PLAYER
Type Power Requirement Remarks
Model
PDV-LC10
DIGITAL OUT (OPTICAL)
PHONES HOLDON/OFF
COLOR BRIGHT MONITOR
7. GENERAL INFORMATION ................................ 44
7.1 DIAGNOSIS................................................. 44
7.1.1 DISASSEMBLY ...................................... 44
7.1.2 TROUBLE SHOOTING .......................... 47
7.2 PARTS ......................................................... 48
7.2.1 IC ............................................................ 48
7.2.2 DISPLAY..................................................... 61
8. PANEL FACILITIES AND SPECIFICATIONS .... 62

PDV-LC10
2
1. SAFETY INFORMATION
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage , etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.

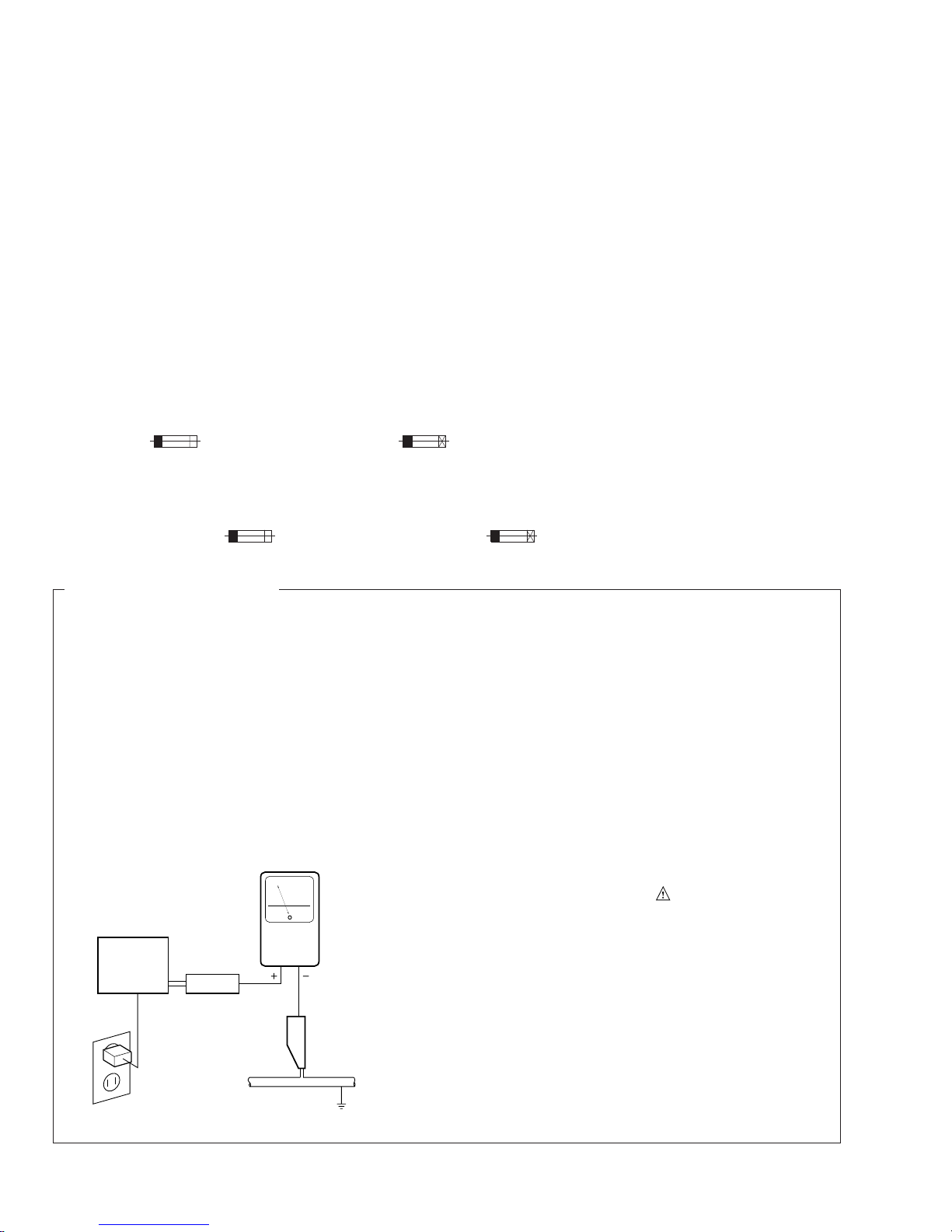

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
(FOR USA MODEL ONLY)
Also test with plug
reversed
(Using AC adapter
plug as required)
Device
under
test
Test all exposed
metal surfaces
Earth ground
Leakage
current
tester
Reading should
not be above
0.5 mA
AC Leakage Test
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les
pièces de remplacement doivent avoir la même désignation.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts
must be of identical designation.

PDV-LC10
3

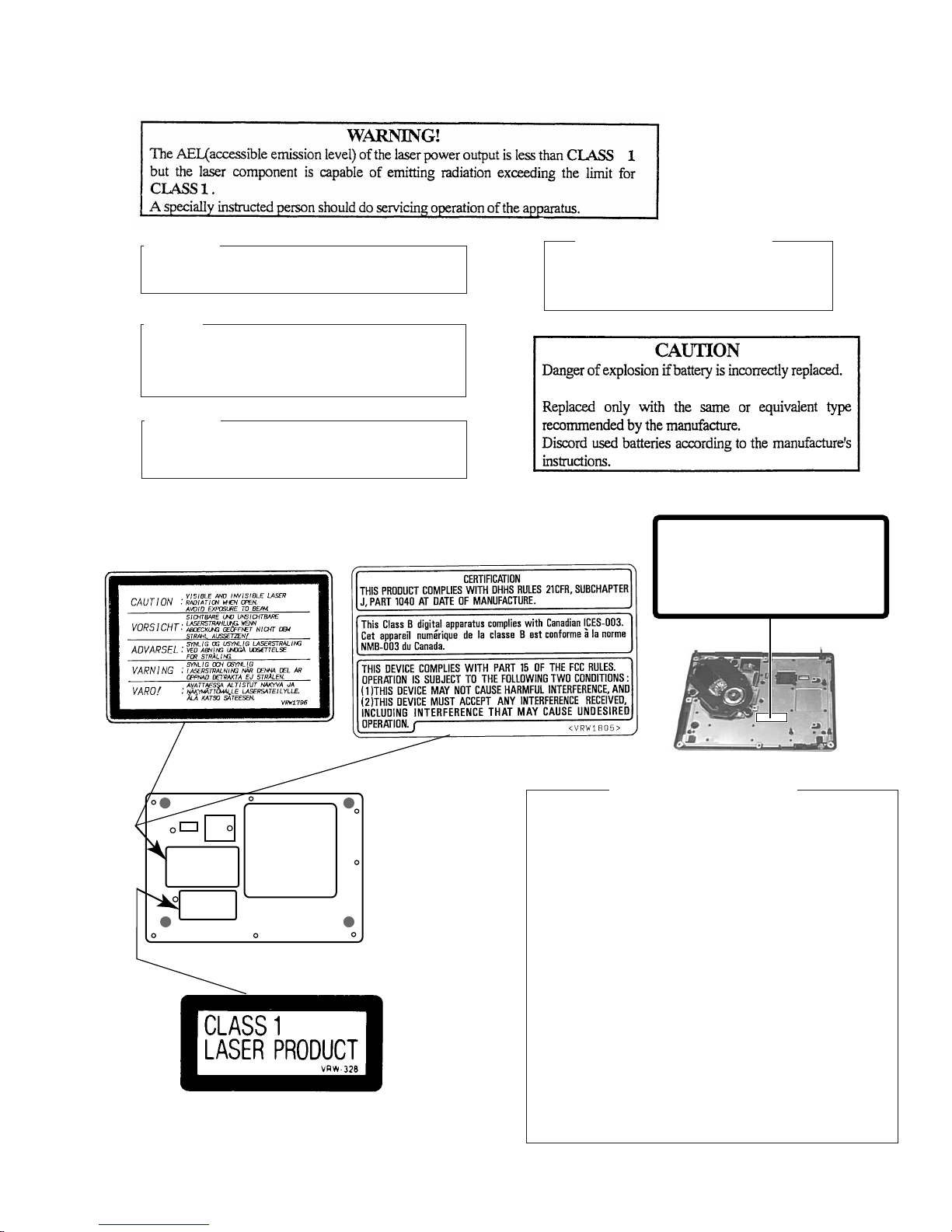

LABEL CHECK
ZY Type Only : VRW1796
ZY Type Only : VRW-328
VRW1805
ZU/CA Type Only :
To Reverse side
LABEL
Additional Laser Caution
1. Laser Interlock Mechanism
If the switch to detect door-open state (S603: DISC OPEN DET)
is open, the laser interlock mechanism operates and shuts down
the power source (Q100) to the laser diode drive circuit. The
system microcomputer detects this condition and does not issue
the Laser On command.
If Q100 is defective, accompanying a short-circuit between the
emitter and the collector, the system microcomputer judges this
status as the door-open state, and it does not issue the Laser
On command as long as Q611 is not defective, even if S603 is
open.
Therefore, the laser does not light unless S603 is intentionally
short-circuited in door-open state.
To light the laser in Test mode, short-circuit S603.
Hold S603 in the depressed position from the top, as it is a push
switch.
2. NEVER directly look at the objective lens from a short distance
whenlighting the laser by short-circuitingS603indoor-openstate.
CAUTION :
LASER RADIATION WHEN OPEN, AVOID LONG-TERM
VIEWING OF DIRECT LASER RADIATION.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR PER-
FORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
LASER DIODE CHARACTERISTICS
FOR DVD : MAXIMUM OUTPUT POWER : 3.2 mw
WAVELENGTH : 650 nm
FOR CD : MAXIMUM OUTPUT POWER : 3.3 mw
WAVELENGTH : 780 nm
CAUTION :
TO PREVENT RISK OF ELECTRIC SHOCK AND LASER
EXPOSURE, DISCONNECT THE AC ADAPTER OR THE
BATTERY BEFORE REMOVE SCREWS.
LASER RADIATION WHEN OPEN,
AVOID LONG-TERM VIEWING OF
DIRECT LASER RADIATION.
< VRW1815 >
CAUTION
ZU/CA type Only
: VRW1815

4
PDV-LC10
2.1 PACKING
2. EXPLODED VIEWS AND PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•Screws adjacent to mark on the product are used for disassembly.
Top
Rear
PDV-LC10
Front mark
28
32
21
6
4
5
1
23
32
3
31
22
30
20
29
29
19
27
26
10
11
12
13
24
7
8
9
25
Accessory
14,15, 24, 25
18 16 17
16
6
3
ZU/CA, ZY Only
3
ZY Only
ZU/CA Only
33

5
PDV-LC10
2 AC Adapter VWX1222 VWX1220 VXX2696
3 Polyethylene Bag Z21-020 VHL1051 Z21-020
7 Operating Instructions (Dutch) VRD1103 Not used Not used
8 Operating Instructions (Swedish) VRD1104 Not used Not used
9 Operating Instructions (Spanish) VRD1105 Not used Not used
10 Operating Instructions (English) VRB1241 Not used Not used
11 Operating Instructions (French) VRD1100 Not used Not used
12 Operating Instructions (German) VRD1102 Not used Not used
13 Operating Instructions (ltalian) VRD1101 Not used Not used
14 Operating Instructions (English) Not used VRB1240 VRB1242
15 Operating Instructions (Chinese) Not used Not used VRD1106
16 AC Power cord ADG1127 RDG1034 ADG1127
19 Optical fiber Cable VDE1062 VDE1062 Not used
23 Packing Carton VHG1867 VHG1869 VHG1870
NSP 24 Warranty Card ARY7022 ARY7023 Not used
NSP 25 Caution VRM1076 VRM1076 Not used
32 Packing Plat VHC1055 Not used Not used
1 Tray VHB1069
2 AC Adapter See Contrast table (2)
3 Polyethylene Bag See Contrast table (2)
4 Remote control unit VXX2639
(CU-PDV003)
5 Battery Holder (Remote) VNK4490
6 Packing Plat (Top) VHC1045
7 Operating Instructions See Contrast table (2)
8 Operating Instructions See Contrast table (2)
9 Operating Instructions See Contrast table (2)
10 Operating Instructions See Contrast table (2)
11 Operating Instructions See Contrast table (2)
12 Operating Instructions See Contrast table (2)
13 Operating Instructions See Contrast table (2)
14 Operating Instructions See Contrast table (2)
15 Operating Instructions See Contrast table (2)
16 AC Power cord See Contrast table (2)
17 AV Cable VDE1058
18 S-Video Cable VDE1059
19 Optical fiber Cable See Contrast table (2)
20 Battery Pack (NI-MH) VEM1026
(1) PACKING PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
21 Packing Case (Boby) VHG1866
22 Packing Case (Battery) VHG1868
23 Packing Carton See Contrast table (2)
NSP 24 Warranty Card See Contrast table (2)
NSP 25 Caution See Contrast table (2)
26 Battery Charger VWY1060
27 Battery Case VXX2681
28 Mirror Mat Sheet DHL1050
29 Pad A VHB1072
30 Pad B VHB1073
31 Packing Plat (Side) VHC1054
32 Packing Plat See Contrast table (2)
NSP 33 Lithium Battery(CR2025) VEM1009
Part No. RemarksMark ZY type ZU/CA type ZL type
(2) CONTRAST TABLE
PDV-LC10/ZY, ZU/CA and ZL are constructed the same except for the following:
No. Symbol and Description

6
PDV-LC10

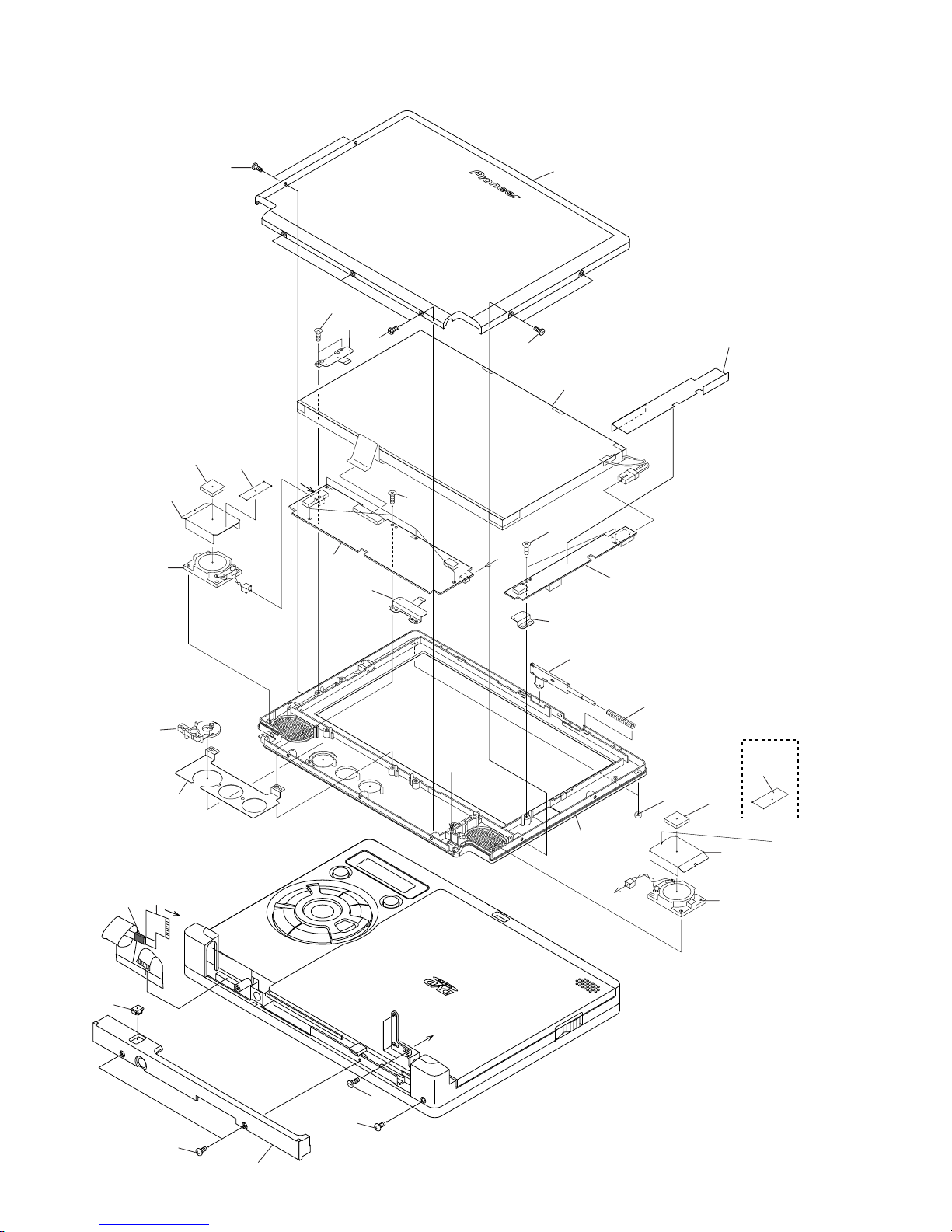

2.2 EXTERIOR (1/2) SECTION
21
21
1
15
23
9
A
20
12
8
10
11
B
B
21 2
4
9
13
22
16
5
21
14
6
21
10
21
21
A
C
C
19
87
24
ZY:Only
3
3
23
17
18
Refer to " 2.3 EXTERIOR
(2/2) SECTION".

7
PDV-LC10
1 LCD Cover VNA2070
2 lnsulating Sheet L VEC2080
3 Earth Plate B VBK1092
4 LCD Monitor VXX2668
5 LCD Monitor PCB Assy See Contrast table (2)
6 lnverter PCB Assy VXX2670
7 Protective Tape VEC2073
8 Cushion B VEB1311
9 Cover Plate VNH1056
10 Speaker VVY1002
11 Earth Plate A VBK1091
12 LCD Locker VNK4492
13 Locker Spring VBH1316
14 Cushion C VEB1307
15 Mode Button VNK4486
(1) EXTERIOR (1/2) SECTION PARTS LIST
Mark No. Description Part No. 16 Earth Plate C VNH1057
17 Switch Cap VNK4481
18 Flexible Sheet VEC2084
19 FPC 22P VNP1693
20 Rear Cover VNK4484
21 Screw P2x5 VBA1062
22 LCD Holder See Contrast table (2)
23 Screw P2x6 VBA1061
24 Conducting Tape See Contrast table (2)
Mark No. Description Part No.
Part No. RemarksMark ZY type ZU/CA type ZL type
(2) CONTRAST TABLE
PDV-LC10/ZY, ZU/CA and ZL are constructed the same except for the following:
5 LCD Monitor PCB Assy VXX2683 VXX2669 VXX2669
22 LCD Holder VNK4485 VNK4599 VNK4485
No. Symbol and Description
24 Conducting Tape VEC2115 Not used Not used

8
PDV-LC10
2.3 EXTERIOR (2/2) SECTION
5
7
24
1
3
2
18
TRAVERSE MECHA ASSY
KIT EXCHANGE
17
21
19
20
17
17 16
9
826
29
ZY,ZL:Only
22 23
10
11
4
31
32
13
12
33
14
28
ZU/CA:Only
ZU/CA:Only
ZL:Only
ZY:Only ZY,ZU/CA:Only
30
15
27
25
6

9
PDV-LC10
1 Body Assy See Contrast table (2)
2 Display Lens VNK4475
3 Caution Label VRW1774
4 • • • • •
5 Electrostatic Sheet C VEC2114
NSP 6 PDVDS ASSY See Contrast table (2)
7 Electrostatic Sheet B VEC2082
NSP 8 PDVDM ASSY See Contrast table (2)
9 Selector Knob VNK4478
10 Chassis Assy See Contrast table (2)
11 Connector Cover VNK4480
12 LED Lens VNK4493
13 Power Knob VNK4477
14 IR Filter VNK4476
15 Insulating Sheet A VEC2065
16 Cover Sheet VEC2072
17 Floating Rubber VEB1303
18 Traverse Mecha Assy VXX2657
19 Display LCD VAW1051
NSP 20 Spacer VEC2064
(1) EXTERIOR (2/2) SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
21 Optical Mini Jack VKN1556
22 Mini Jack DKN1152
23 Mini Jack 4-Poie VKN1555
24 DC Power Mini Jack VKN1557
25 DISPLAY ASSY See Contrast table (2)
26 MAIN ASSY See Contrast table (2)
27 FFC ASSY VXX2658
28 65 Label See Contrast table (2)
29 N/P Selector Knob See Contrast table (2)
30 Label Service See Contrast table (2)
31 Caution Label See Contrast table (2)
NSP 32 Caution Label (F) See Contrast table (2)
32 SISIR Label See Contrast table (2)
Part No. RemarksMark ZY type ZU/CA type ZL type
(2) CONTRAST TABLE
PDV-LC10/ZY, ZU/CA and ZL are constructed the same except for the following:
1 Body Assy VXA2375 VXA2389 VXA2375
NSP 6 PDVDS ASSY VWG2143 VWG2144 VWG2145
NSP 8 PDVDM ASSY VWS1406 VWS1381 VWS1407
10 Chassis Assy VXA2376 VXA2390 VXA2376
25 DISPLAY ASSY VXX2674 VXX2678 VXX2679
26 MAIN ASSY VXX2673 VXX2659 VXX2677
28 65 Label Not used ARW7050 Not used
29 N/P Selector Knob VNK4543 Not used VNK4543
30 Label Service Not used VRW1815 Not used
31 Caution Label VRW1796 VRW1805 Not used
NSP 32 Caution Label (F) VRW–328 Not used Not used
33 SISIR Label Not used Not used VRW1816
No. Symbol and Description

10
PDV-LC10
2.4 EXTERIOR (UP-SIDE ) SECTION
1
2
16
6
6
6
15
6
14
13
9
8
11
712 4
3
7
10
7
5
Body Assy
Bottom View

11
PDV-LC10
1 Top Cover See Contrast table (2)
2 Carrying Spacer VEE1009
3 Cross Key VNK4473
4 Function Button VNK4472
5 Cover Spring VBH1314
6 Leg Rubber VEB1302
7 Screw P2x6 VBA1061
8 Stopper VNK4491
9 Stopper Spring VBH1315
10 Keep Plate VNH1058
11 Open Knob VNK4479
12 Open Knob Spring VBH1313
13 Reinforcing Plate VNH1055
14 Free Stopper VXB1001
15 Label Assy See Contrast table (2)
16 Open Label VRW1782
(1) EXTERIOR (UP-SIDE ) SECTION PARTS LIST
Mark No. Description Part No.
Part No. RemarksMark ZY type ZU/CA type ZL type
(2) CONTRAST TABLE
PDV-LC10/ZY, ZU/CA and ZL are constructed the same except for the following:
1 Top Cover VNK4471 VNK4601 VNK4471
15 Label Assy VRW1795 VRW1797 VRW1795
No. Symbol and Description

PDV-LC10
12
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
UD/RL
ZOOM
80
81
29CN2001
30CN2001
OSC2
OSG1
67
74
52
56
57
I
96
97
RESET OUT
SCK0
SI0
S2001
S2013
SETUP
AVON
LCD TP
PAL
BAT_SL
LCD ON
TVSEL TVSEL
REV
DOWNUP
TOPMEN
FWD
LEFT
STOP
PLAY/PAUSE
RIGHT
ENTER
TITLE
MENU
SELEG
78
216 15 195 7
31
26
47
23
77
SEG15
COM0
COM3
SEG0
LCD
Panel
X2001
39 16 17 19 204 526 35 7 8 10
CN2001
OPENSW
DISCOP
LT
XREADY
18 11 87 71 70
19 36 37 39 40
CN602
IC2001
PE5060A
µ-CONTROL IC
To CN401
PDV-LC10 Only
V2001 VAW1051
24 256 15
10 16
27 28 30
—
—
—
——
—
–
–
–
Spindle
Motor TA
FA
Slider
IC101
RF IC
IC351
BA5929FP
IC251
BA6195FP
RF RF
LA9701M
VCO
A/D
CONV.
Sync
Demod
Spindle
control
ECC &
ID Reg.
Sub-CPU
I/F
DRAM I/F
(bus arbitor)
CPU
I/F
DMA
CD-ROM Sync gen.
Sub-code Buffer
VBR Buffer
16M bit DRAM
SREQ
FLDV
XRESET
27
16
PCM DATA, DOUT
PDVDM ASSY
PDVDS ASSY
LPF
PWM
FG
FG
16
TE
FG
TRKG DRV FOCS DRV SLD DRV SPDL DRV
FE
MY-CHIP
SHI-ASIC
IC610
PD4995A
IC201
SERVO DSP
LC78652W
IC602
PD3410A
SH1 ASIC
3V-5V
LVL
SHIFT
IC608
KM48V2100CS
IC603
TC74VHC541AFT
A
B
1
60
62
18
9
56
4
126
107
181
118
102
165
2-5
72-77,102,103
9-12
2-5
112-119
22-50
55-66
108-111
146
170
162 203
161
6484 8210398 97 78
3
55
54
14
32 33 20
46
45
47
48
44
74
26
52-59 146-163
: AUDIO SIGNAL ROUTE
: RF SIGNAL ROUTE
: V/CB SIGNAL ROUTE
: Y SIGNAL ROUTE
: C SIGNAL ROUTE
(V/CB)
(Y)
(C)

PDV-LC10
13
216
3
1
Serial
I/F
Modulator
Controller
D/A
D/A
LPF
ADA0
BCK
LRCK
VOUTL
IC404(DAC IC)
PE8001A
3
24
51
10
10
29
14
IC403(2/3)
IC403(1/3)
IC402
(3/4)
IC402
(1/4)
L
EXT EXT
INT
INT
TC74HC4053AFT
NJM2112V
NJM2112V
XAMUTE
XAMUTE
TC74HC4053AFT
Q403
IC602
IC852(TK15402M)
IC851(NJM2235V)
S850(1/2)
VSH1023
S850(2/2)
VSH1023
OUT
IN
OUT
IN
3
1
2
CC
Y
Y
V
F801
F801
F801
Q871 VTF1098
VTF1098
V
Q861
7
12
3
4
5
14
10
9
3
1
7
Q853,854
IC853
OUT
IN
NC
4
6
5
1
3
4
2
S Terminal
OUT
1
2
3
4
5
AUDIO &
VIDEO LINE
IN/OUT
TO LCD C
TO LCD Y
IC407(1/2)
IC407(2/2)
VR401
IC2001 11
IC2001 21
QR406
Q404
Q412
SW601
DSP_OPEN
TP402
SP-L
SP-R
H-Phone
TP405
+B
+
-
+
-
QR405
IC4417
IC415
Q851 VTF1098
FLDV
Program Stream
27M
16/36M
SREQ
XRESET
PCM DATA
CPU
I/F
AV-1
AV Decoder
CLOCK
GEN.
SYSTEM
Decoder
(DMUX)
AV Sync
controller
MPEG2
Video
Decoder
Sub-
Decoder
GUI
Memory Controller
16M bit SDRAM
CODE Buffer
(Video, Audio, Sub-picture,GUI)
MIX
AC3/MPEG1
Audio Decoder
Copy
Guard
NTSC
/PAL
encode
DAC ANAC
ANAY
ANACOMP
DAC
DAC
S/PDIF
IC802
MB811171622A-100FN
IC801
MB86373
(MPEG2 Decoder)
197
78-88
53-56
159-194
91
16
20
39
36
62
67
65
45
205
(V/CB)
(V/CB)
(Y)
(Y)
(Y)
(Y)
(C)
(C)
(C)
(C)
(Y)
(C)
(V/CB)

PDV-LC10
14
A
B
C
D
1234
1234

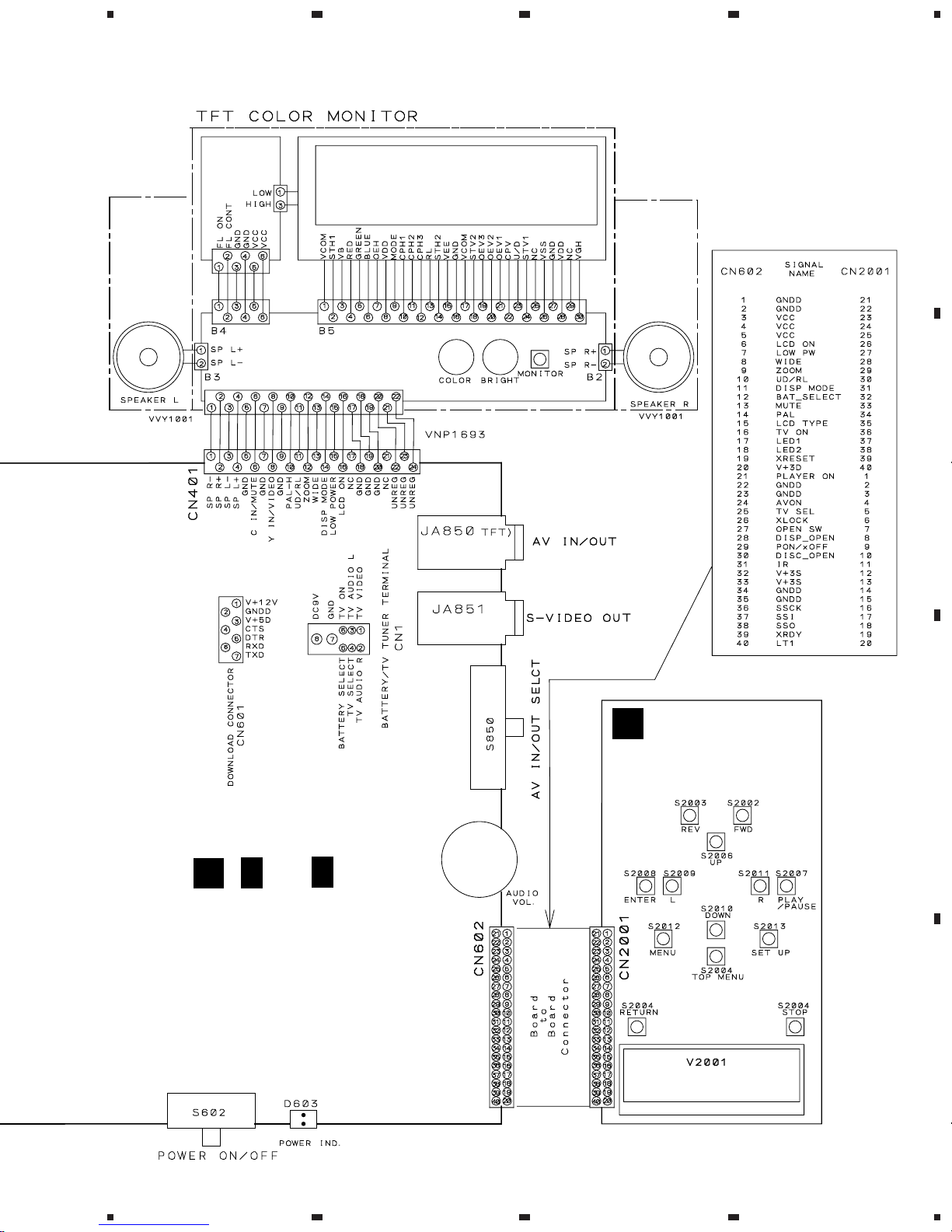

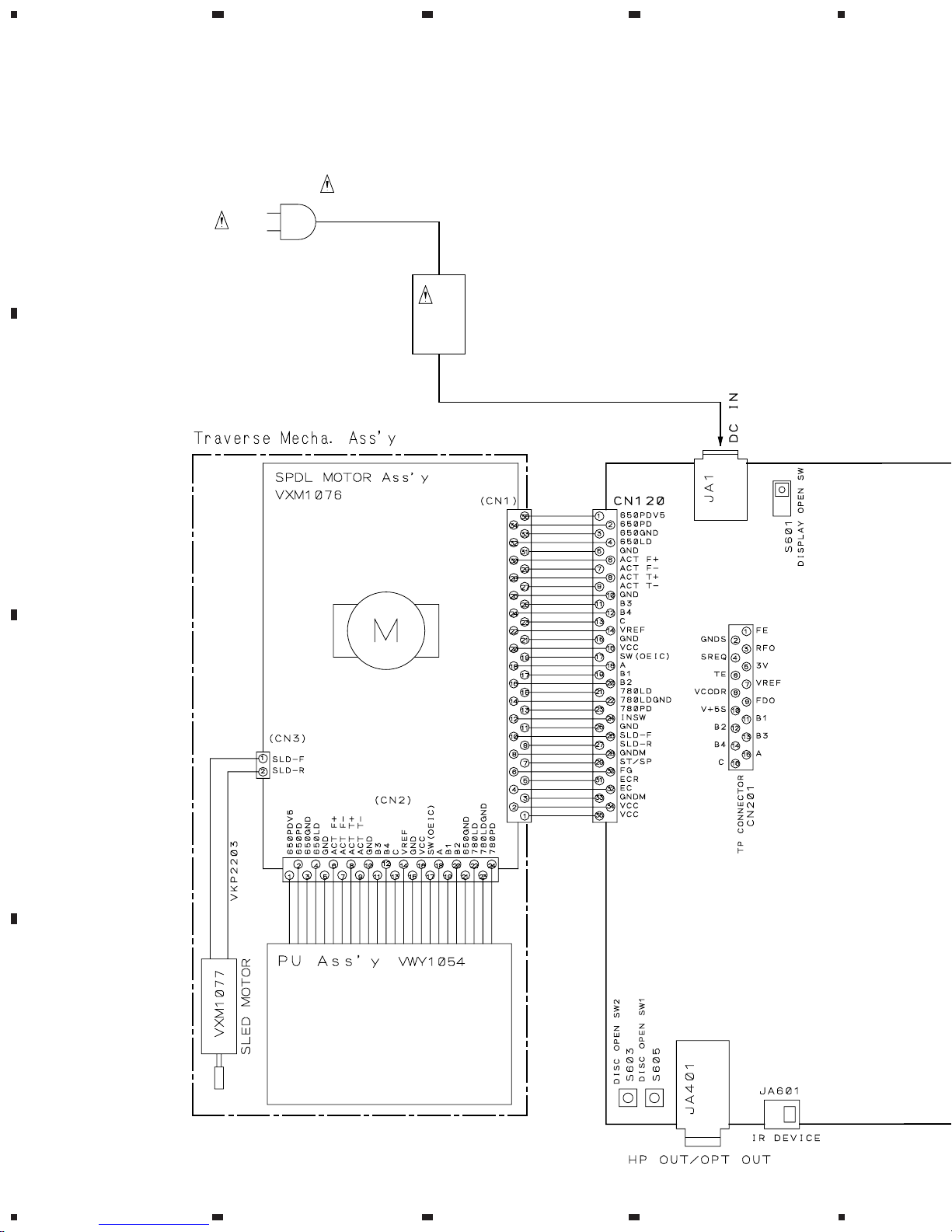

3.2 OVERALL WIRING DIAGRAM
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
VXX2657
VKN1557
VXX2658
VKN1556
ZY, ZL : AC220-230V
50/60Hz
ZU/CA : AC120V
60Hz
AC POWER CORD
ZY,ZL : ADG1127
ZU/CA: RDG1034
AC ADAPTER
ZY : VWX1222
ZU/CA: VWX1220
ZL : VXX2696

PDV-LC10
15
A
B
C
D
5678
5678
PDVDS ASSY
PDVDM ASSY
(VWS1406 : ZY)
(VWS1381 : ZU/CA)
(VWS1407 : ZL)
(VWG2143:ZY)
(VWG2144:ZU/CA)
(VWG2145:ZL)
( A 1/6 – A 6/6)
A
B
LCD Panel
LCD Driver
Back
Light Panel
VKN1555
DKN1152
VAW1051
B1

PDV-LC10
16
A
B
C
D
1234
1234

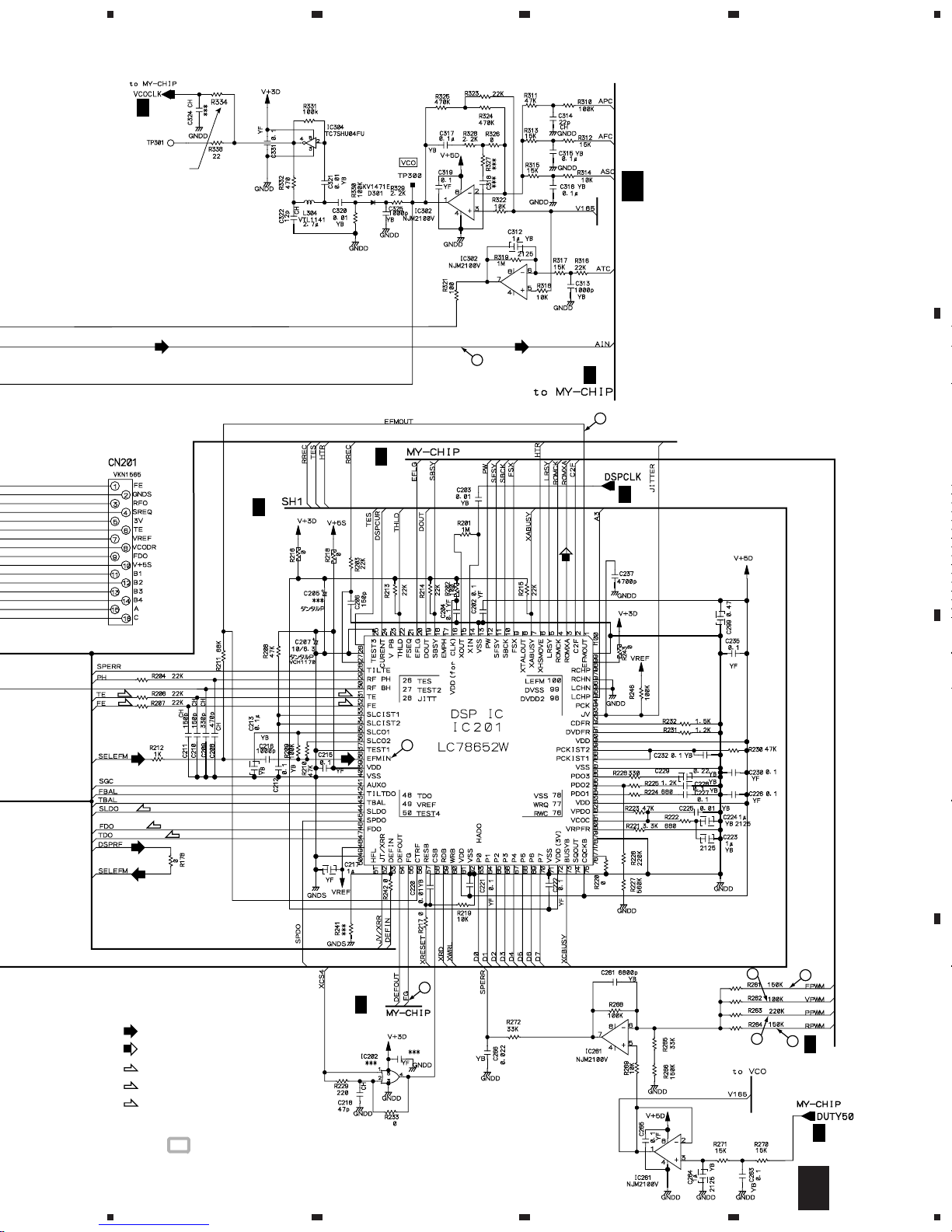

3.3 PDVDM ASSY (1/6) (FTS SECTION)
1/6
A
VREF
size
size
size
size
TRAVERSE MECHANISM ASSY
2/6
A
2/6
A
3/6
A
2/6
A
2/6
A
2/6
A
2/6
A
2/6
A
2/6
A
(S)
(S)
(S)
(T)
(T)
(T)
(T)
(T)
(T)
(T)
(CD)
(CD)
(DVD)
(DVD)
(DVD) (DVD)
(F)
(F)
(F)
(F)
(F)
(F)
(F)
(F)
(F) (F)
(F)
(DVD)
1
2
4
CHIP SIZE
Resistor
Capactor

PDV-LC10
17
A
B
C
D
5678
5678
1/6
A
R334
ZY:220 Ω
ZU/CA, ZL:47 Ω
3/6
A
3/6
A
2/6
A
4/6
A
3/6
A
3/6
A
3/6
A
3/6
A
(DVD)
from IC261
(CD)
(DVD)
(CD) (CD)
(CD)
(CD)
: RF SIGNAL ROUTE
: ROM DATA SIGNAL ROUTE
: FOCUS SERVO LOOP LINE
: TRACKING SERVO LOOP LINE
: SLIDER SERVO LOOP LINE
(F)
(F) (F)
(T) (T)
(F) (T)
(S)
(T)
(S)
1/6
PDVDM ASSY(1/6)
(VWS1406:ZY)
(VWS1381:ZU/CA)
(VWS1407:ZL)
A
7
6
3
9
10
5
8
11
IC302
: The power supply is shown with the marked box.

PDV-LC10
18
A
B
C
D
1234
1234
3.4 PDVDM ASSY (2/6) (SH1 SECTION)
2/6
A
1/6
A
1/6
A
5/6
A
6/6
A
6/6
5/6
A
1/6
A
3/6
A
to IC602-64
to IC602
-84
CN2001
B
R598
ZY:15kΩ
ZU/CA,ZL
:Not used
R597
ZY:20kΩ
ZU/CA,ZL
:Not used
A
ZY ZU/CA, ZL
ZY ZU/CA, ZL
R1000:0 Ω

PDV-LC10
19
A
B
C
D
5678
5678
2/6
A
3/6
A
5/6
A
1/6
A
5/6
A
4/6
A
5/6
A
1/6
A4/6
A
1/6
A
4/6
A
3/6
A
1/6
A
4/6
A
from CN602
from Q611
2/6
A
PDVDM ASSY(2/6)
(VWS1406:ZY)
(VWS1381:ZU/CA)
(VWS1407:ZL)
size
size
size
size
: The power supply is shown with the marked box.
CHIP SIZE
Resistor
Capactor
N/P Selector
SW
ZY,ZL ONLY
20MHz

PDV-LC10
20
A
B
C
D
1234
1234
3.5 PDVDM ASSY (3/6) (MY-CHIP SECTION)
3/6
A
4/6
A
2/6
A
1/6
A
1/6
A
4/6
A
4/6
A
2/6
A
(CD)
(CD)
(DVD)
(DVD)
(DVD)
3/6
A
size
size
size
size
CHIP SIZE
Resistor
Capactor
PDVDM ASSY(3/6)
(VWS1406:ZY)
(VWS1381:ZU/CA)
(VWS1407:ZL)
