Pioneer Rx-310 User manual

Operating

Instructions

Thank

you

for

buying

this

Pioneer

product.

Please

read

through

these

operating

instructions

so

you

will

know

how

to

operate

your

model

properly.

After

you

have

fin-

ished

reading

the

instructions,

put

them

away

in

a

safe

place

for

future

reference.

In

some

countries

or

regions,

the

shape

of

the

power

plug

and

power

outlet

may

sometimes

differ

from

that

shown

in

the

explanatory

drawings.

However,

the

method

of

connecting

and

operating

the

unit

is

the

same.

WARNING:

to

prevent

Fine

OR

SHOCK

HAZARD,

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE.

IMPORTANT

NOTICE

{For

U.S.

and

Canadian

modeis]

The

serial

number

for

this

equipment

is

jocated

on

the

rear

panel.

Please

write

this

serial

number

on

your

enclosed

war-

ranty

card

and

keep

in

a

secure

area.

This

is

for

your

security.

[For

Canadian

model]

CAUTION:

to

prevent

ELectRIC

SHOCK

DO

NOT

USE

THIS

(POLARIZED)

PLUG

WITH

AN

EXTENSION

CORD,

RECEPTACLE

OR

OTHER

OUTLET

UNLESS

THE

BLADES

CAN

BE

FULLY

INSERTED

TO

PREVENT

BLADE

EXPOSURE.

ATTENTION:

pour

prevenin

Les

cHocs

ELec-

TRIQUES

NE

PAS

UTILISER

CETTE

FICHE

POLARISEE

AVEC

UN

PROLONGATEUR

UNE

PRISE

DE

COURANT

OU

UNE

AUTRE

SORTIE

DE

COURANT,

SAUF

SI

LES

LAMES

PEUVENT

ETRE

INSEREES

A

FOND

SANS

EN

LAISSER

AUCUNE

PARTIE

A

DECOUVERT.

TWO

VOLTAGE

SELECTOR

SWITCHES

Only

multi-voltage

models

are

provided

with

these

swit-

ches.

Australian

model

is

not

provided

with

these

swit-

ches.

Mains

voltages

in

Saudi

Arabia

are

127

V

and

220

V

only.

Never

use

this

model

with

110

V

setting

in

Saudi

Arabia.

The

line

voltage

selector

switches

are

on

the

rear

panel.

Before

FEATURES

CHECKING

ACCESSORY

ITEMS

BEFORE

OPERATION

ANTENNA

CONNECTIONS

|

PANEL

FACILITIES

..

REMOTE

CONTROL

UNIT

FACILITIES

TURNTABLE

FACILITIES

..

HOW

TO

HANDLE

CASSETTE

TAPES

..

i

|

GRAPHIC

EQUALIZER

CONTROLS............0..--0005

CONTENTS

9

mAste

b-

STEREO

CASSETTE

TAPE

DECK

RECEIVER

RX=-310

STEREO

TURNTABLE

PL-2102/PL-310Z

your

model

is

shipped

from

the

factory,

these

switches

are

set

to

the

power

requirements

of

the

destination.

Check

they

are

set

properly

before

plugging

the

power

cord

into

the

house-

hold

wall

socket.

if

the

voltage

is

not

properly

set

or

if

you

move

to

an

area

where

the

voltage

requirements

differ,

adjust

the

selector

switches

as

follows.

1.

Use

a

medium-size

screwdriver.

2.

First,

insert

a

screwdriver

into

the

groove

of

the

voltage

selector

at

the

top,

and

adjust

so

that

the

tip

of

the

groove

points

to

the

voltage

value

of

your

area.

3.

Next,

insert

a

screwdriver

into

the

groove

of

the

voltage

selector

at

the

bottom

and

adjust

until

the

voltage

is

the

same

as

at

the

top.

S|

Both

switches

must

be

*

5 :

ahv

nov

in

the

same

switch

hay

120v~

127

setting.

ral

hroy-urw

oF

rov-20v

CHANNEL

STEP/FM

DE-EMPHASIS

SWITCH

The

unit

has

been

factory

preset

to

the

channel

allocation

and

de-emphasis

value

for

the

area

in

which

it

is

to

be

sold.

If

these

value

are

set

incorrectly,

the

frequency

display

may

stop

at

the

wrong

frequency,

or

sound

may

be

distorted,

resulting

in

an

inability

to

reproduce

reception

signals

at

their

proper

sound

quality.

For

this

reason,

be

sure

to

confirm

that

the

values

are

set

correctly

before

first

using

the

unit.

{100

kHz/10

kHz/75

ys]

position:

Set

to

this

position

for

areas

with

FM

reception

step

of

100

kHz,

AM

10

kHz,

and

de-emphasis

75

ys.

[50

KHz/9

kHz/50

ps]

position:

Set

to

this

position,

for

areas

with

FM

reception

step

of

50

kHz,

AM

9

kHz,

and

de-emphasis

of

50

ws.

When

unsure

about

the

channel

alfocation

end

de-emphasis

values

for

your

area,

con-

sult

your

dealer

for

correct

information.

DE-EMPHASIS

PRELIMINARY

OPERATIONS..

BASIC

OPERATIONS

Be

TAPE

COPYING

..0.........cteccceesscecnene

ese

eeasereesoner

RECORDING

AND

PLAYBACK

USING

OPTIONAL

AUDIO

TIMER

-

MIC

MIXING...

MAINTENANCE

.

TROUBLESHOOTING

SPECIFICATIONS

....

®)

PIONEER’

The

future

of

sound

and-vision.

IMPORTANT

The

lightning

flash

with

arrowhead,

within

an

equilateral

triangle,

is

intended

to

alert

the

user

of

the

presence

of

uninsulated

“dangerous

voltage”

within

the

product's

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

person:

READ

INSTRUCTIONS

—

Ail

the

safety

and

operating

instructions

should

be

read

before

the

appliance

is

operated

RETAIN

INSTRUCTIONS

—

The

operating

instruc-

tions

should

be

retained

for

future

reference

HEED

WARNING

—

All

warnings

on

the

appliance

and

in

the

operating

instructions

should

be

adhered

to.

FOLLOW

INSTRUCTIONS

—

All

operating

and

use

instructions

should

be

followed.

WATER

AND

MOISTURE

—

The

appliance

should

not

be

used

near

water

~~

for

example,

near

a

bathtub,

washbow/i,

kitchen

sink,

laundry

tub.

in

a

wet

basement,

or

near

a

swimming

pool,

etc

LOCATION

—

The

appliance

should

be

installed

in

3

stable

location.

WALL

OR

CEILING

MOUNTING

—

The

appliance

should

not

be

mounted

to

a

wall

or

ceiling

VENTILATION

--

The

appliance

should

be

situated

so

that

its

location

or

position

does

not

interfere

with

its

proper

ventilation.

For

example,

the

ap-

pliance

should

not

be

situated

on

a

bed,

sofa.

rug,

or

similar

surface

that-may

block

the

ventilation

openings:

or,

placed

in

a

built-in

installation,

such

as

a

bookcase.

or

cabinet

that

may

impede

the

flow

of

air

through

the

ventilation

openings

HEAT

—

The

appliance

should

be

situated

away

from

heat

sources

such

as

radiators,

heat

registers.

stoves,

or

other

appliances

(including

amplifiers)

that

produce

heat.

POWER

SOURCES

-»

The

appliance

should

be

connected

te

a

power

supply

only

of

the

type

described

in

the

operating

instructions

or

as

marked

on

the

appliance.

POWER-CORD

PROTECTION

--

Power-supply

cords

should

be

routed

so

that

they

are

not

likely

to

be

walked

on

or

pinched

by

items

placed

upon

or

against

them,

paying

particular

attention

to

cords

at

plugs,

convenience

receptacles,

and

the

point

where

they

exit

from

the

appliance

POLARIZATION

=

If

your

purchased

product

is

provided

with

a

polarized

power

plug,

please

read

the

following.

instructions.

This

product

is

equipped

with

a

polarized

alternating

current

line

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

CAUTION:

TO

PREVENT

THE

RISK

OF

ELECTRIC

SHOCK.

00

NOT

REMOVE

COVER

{OR

BACK}.

NO

USER-

SERVICEABLE

PARTS

INSIDE.

REFER

SERVIC-

ING

TO

QUALIFIED

SERVICE

PERSONNEL.

SAFETY

INSTRUCTIONS

POWER

LINES

—An

outdoor

antenna

should

be

located

away

from

power

lines.

NONUSE

PERIODS—The

power

cord

of

the

appliance

should

be

unplugged

from

the

outlet

when

left

unused

for

2

tong

period

of

time

OBJECT

AND

LIQUID

ENTRY

—

Care

should

be

taken

so

that

objects

do

not

fail

and

tiquids

are

not

spilled

into

the

enclosure

through

openings

DAMAGE

REQUIRING

SERVICE

—

The

appliance

should

be

serviced

by

2

Pioneer

authorized

ser-

vice

center

or

qualified

service

personnel

when:

@

The

power-supply

cord

or

the

piug

has

been

darnaged:

or

©

Objects

have

falten,

or

liquid

has

been

spilted

into

the

appliance:

or

©

The

appliance

has

been

exposed

to

rain:

or

@

The

appliance

does

not

appear

to

operate

nor-

matiy

or

exhibits

2

marked

change

in

perfor-

mance;

or

@

The

appliance

has

been

dropped:

or

the

enclosure

damaged

SERVICING

—The

user

should

not

attempt

to

service

the

appliance

beyond

that

described

in

the

operating

instructions.

For

all

other

servicing.

contact

the

nearest

Pioneer

authorized

service

center

Power

SERVICE

ENTRANCE

CONDUCTORS.

The

exclamation

point

within

an

equilateral

triangle

+5

intended

to

alert

the

user

of

the

presence

of

important

operating

and

maintenance

{servicing}

instructions

i

the

literature

accompanying

the

appliance.

OUTDOOR

ANTENNA

GROUNDING

--

!f

an

out-

side

antenna

is

coanected

to

the

antenna

termi-

nal,

be

sure

the

antenna

system

is

grounded

so

as

to

provide

some

protection

against

voltage

surges

and

built

up

static

charges

In

the

U.S.A.

section

810

of

the

National

Elec

trical

Code,

ANSI/NFPA

No.

70-1984,

provides

information

with

respect

to

proper

grounding

of

the

mast

and

supporting

structure,

grounding

of

the

lead-in

wire

to

an

antenna

discharge

unit,

size

of

grounding

conductors,

location

of

antenna-

discharge

unit,

connection

to

grounding

elec

trodes,

and

requirements

for

the

grounding

elec

trode.

See

Fig.

A.

a)

Use

No:

10

AWG

(5.3

mm?)

cop-

per,

No.

8

AWG

(8.4

mm?)

alu-

minum,

No.

17

AWG

(1.0

mm?)

copperciad

steel,

bronze

wire,

or

larger

as

ground

wire,

b)

Secure

antenna

lead-in

and

ground

wires

to

house

with

stand-off

insulators

spaced

from

4

feet

(1.22

meters)

to

6

feet

(4.83

meters)

opart

cc)

Mount

antenna

discharge

unit

as

closely

as

possible

to

where

lead-

in

enters

house

STAND

OFF)

Use

jumper

wire

not

smaller

than

INSULATORS?

No.6

AWG

(13.3

mm*)

copper.

or

the

equivalent.

when

a

sepa-

rate

antenna-grounding

electrode

is

used.

See

NEC

Section

810-21

(1)

ANTENNA

LEAO

(N

WIRE

TO

EXTERNAL

ANTENNA

TERMINALS

OF

PROOUCT

plug

(a

plug

having

one

blade

wider

than

the

ene

me

other).

This

plug

will

f

:

nk

7

1).

This

plug

will

fit

into

the

power

outlet

only

eaaeng

Mt

anirenin

one

way.

This

isa

safety

feature.

Hyou

are

unable

ce

avice

erance

4

CLAMPS

DISCHARGE

UNIT

¢

to

insert

the

plug

fully

inte

the

outlet.

try

reversing

EQUIPMENT

GaoUNo

the

plug.

f

the

plug

should

still

fail

to

fit,

contact

WIRE

at

your

electrician

to

replace

your

obsolete

outlet

Do

not

defeat

the

safety

purpose

of

the

polarized

plug

POWER

SERVICE

CLEANING

~The

appliance

should

be

cleaned

only

GROUNDING

ELECTRODE

SYSTEM

with

@

polishing

cloth

or

a

soft

dry

cloth.

Never

{6

Intevor

meat

wates

ne)

ciean

with

furniture

wax,

benzine,

insecticides

or

(7

OPTIONAL

ANTENNA

GROUNOING

ELECTROI

ORIVEN

8

FEET

(24¢

mi

BONDING

—

He

INTO

THE

EARTH

other

volatile

quids

since

they

may

corrode

the

JUMPERd

off

IE

REQUIRED

BY

cabinet.

FIGA

8

LOCAL

CODES

SEE.

Uo

NEC

SECTION

810-21

iff

2

FEATURES

BEFORE

OPERATION

High

power

output

5-band

graphic

equalizer

System

remote

contro!

Stereo

double

cassette

tape

deck

Synchronized

recording

start

High-speed

copy

Relay

play

Auto

tape

selector

Auto

recording

level

Quartz

PLL

synthesizer

FM/AM

tuner

Up

to

24

stations

random

pre-set

CHECKING

ACCESSORY

ITEMS

®

Remote

control

unit

Seem

®

FM

T-type

antenna

°

AM

loop

antenna

BEFORE

OPERATION

REMOTE

CONTROL

UNIT

[1]

Remove

the

cover

of

the

battery

compartment

on

the

reverse

side

of

the

remote

control

unit.

[2}

Take

out

the

two

size

“AAA”

[IEC

RO3

(UM-4)]

dry

cell

batteries

supplied

and

load

them

into

the

battery

compartment,

taking

care

to

follow

the

markings

on

the

compartment.

{3]

Replace

the

cover

of

the

battery

compartment.

Cautions

for

handling

dry

cell

batteries.

Misusing

dry

ceil

batteries

can

result

in

electrolyte

leakage

or

explo-

sions.

Bear

in

mind

the

following

points

for

getting

the

most

out

of

your

batteries,

@

When

loading

the

batteries

into

the

battery

compartment,

make

sure

the

plus

©

and

minus

@

polarities

correspond

to

the

mark-

ings

on

the

compartment.

®

Even

though

they

may

be

the

same

shape,

batteries

come

with

different

voltage

ratings.

Do

not

mix

or

use

different

types

of

bat-

teries

tagether.

Use

only

the

same

kind

of

batteries.

@

Do

not

mix

up

new

batteries

and

used

batteries

but

replace

ail

the

batteries

at

the

same

time.

e

Do

not

heat

up,

disassemble

or

short-circuit

batteries

or

throw

them

into

a

fire.

e

Some

batteries

are

rechargeable

while

others

are

not.

Observe

the

cautionary

notes

on

the

batteries

and

use

them

properly.

TURNTABLE

PL-210Z/PL-310Z

INITIAL

TURNTABLE

SET-UP

1.

Check

the

parts.

=

EP

adaptor

Platter

mat

Platter

2.

Puil

dust

cover

up

and

off

of

rear

hinges.

(PL-210Z

PL-310Z)

3.

Turn

over

platter.

4,

Pinch

belt

on

inner

rim

between

thumb

and

fore-

finger.

5.

Slip

belt

over

thumb

and

pull

out,

inserting

thumb

in

hole.

6.

Insert

forefinger

from

top

of

platter

and

transfer

belt

to

forefinger.

7.

Lower

platter

>~-*~

spindle.

8.

Release

belt

onto

pulley.

Pulley

f

@

Rorject

9.

Place

the

platter

mat

on

the

platter.

(with

“PIONEER”

side

up)

10.

Remove

the

vinyl

band

holding

the

tonearm.

1

1.

Remove

the

tonearm

from

the

arm

rest.

jo3

12.

Remove

the

stylus

cover.

3

ANTENNA

CONNECTIONS

RADIO

RECEPTION

IS

NOT

POSSIBLE

UNLESS

THE

ANTENNA

IS

PROPERLY

CONNECTED.

The

strength

of

a

broadcast

signal

varies

from

one

area

to

another.

Signal

propagation

is

especially

poor

in

metropolitan

areas,

where

there

are

many

tall

building,

and

in

mountainous

areas.

Proper

antenna

installation

is

vital

to

good

reception.

AM

ANTENNA

The

AM

loop

antenna

supplied

with

the

cassette

tape

deck

receiver

should

be

connected

to

the

AM

antenna

terminals.

The

antenna

should

be

placed

at

a

distance

from

the

cas-

sette

tape

deck

receiver,

and

should

not

be

allowed

to

touch

metallic

objects.

Avoid

placing

it

near

CD

players,

personal

computers,

television

sets,

and

other

devices

gen-

erating

radio

frequencies.

Setting

up

the

AM

antenna

°

Fold

out

the

supports

on

the

bottom

of

the

antenna.

Insert

the

stopper

in

the

hole

in

the

antenna

to

lock

them

in

place.

*

Place

the

antenna

on

a

level

surface

and

rotate

it

to

locate

the

orientation

that

yields

the

best

reception.

AM

Loop

Antenna

Set-up

Hole

Stopper

AM

Loop

Antenna

Connection

The

accessory

AM

loop

antenna

must

be

connected

to

ensure

proper

reception.

External

AM

antenna

indoor

AM

antenna

Provide

a

vinyl-coated

wire

(5

to

6

meters

long).

Secure

one

end

to

the

AM

terminal

and

the

other

end

to

a

wail

or

other

high

location,

Outdoor

AM

antenna

{f

reception

is

still

poor

even

when

a

lead

antenna

has

been

stretched

out

indoors,

stretch

out

a

vinyl-coated

wire

and

se-

cure

it

outdoors.

Connecting

the

external

AM

antenna

Outdoor

AM

antenna

indoor

AM

antennal

NOTE:

Do

not

detach

the

AM

foop

antenna

when

using

the

external

AM

antenna.

4

AM

loop

antenna

FM

ANTENNA

FM

T-type

antenna

attachment

Connect

the

accessory

FM

T-type

antenna

to

the

FM

termi-

nals.

Stretch

the

antenna

out

to

its

full

length,

and

affix

it

to

@

wall,

etc.

Stretch

out

both

ends.

ro)

x

Ge

x

Correct

Wrong

The

accessory

FM

T-type

antenna

must

be

connected

to

ensure

proper

reception.

External

FM

antenna

installation

Use

an

external

antenna

when

the

signals

from

the

station

are

weak

and

cannot

be

picked

up

by

the

accessory

FM

T-type

antenna,

or

when

the

sound

heard

is

accompanied

by

large

amounts

of

noise.

There

are

two

ways

of

connecting

the

external

FM

antenna

to

the

ANTENNA

terminals;

with

3009

feeder

wire

or

with

a

750

coaxial

cable.

:

It

is

recommended

that

you

use

the

752

coaxial

cable,

so

that

the

effects

of

extraneous

noise

are

reduced

to

a

minimum.

When

the

connecting

cable

is

a

752

coaxial

cable

Core

75

coaxial

cable

©

When

the

connecting

cable

is

a

3000

Shield

(3)

feeder

wire

3000

feeder

——_ex]

aca

[elo]

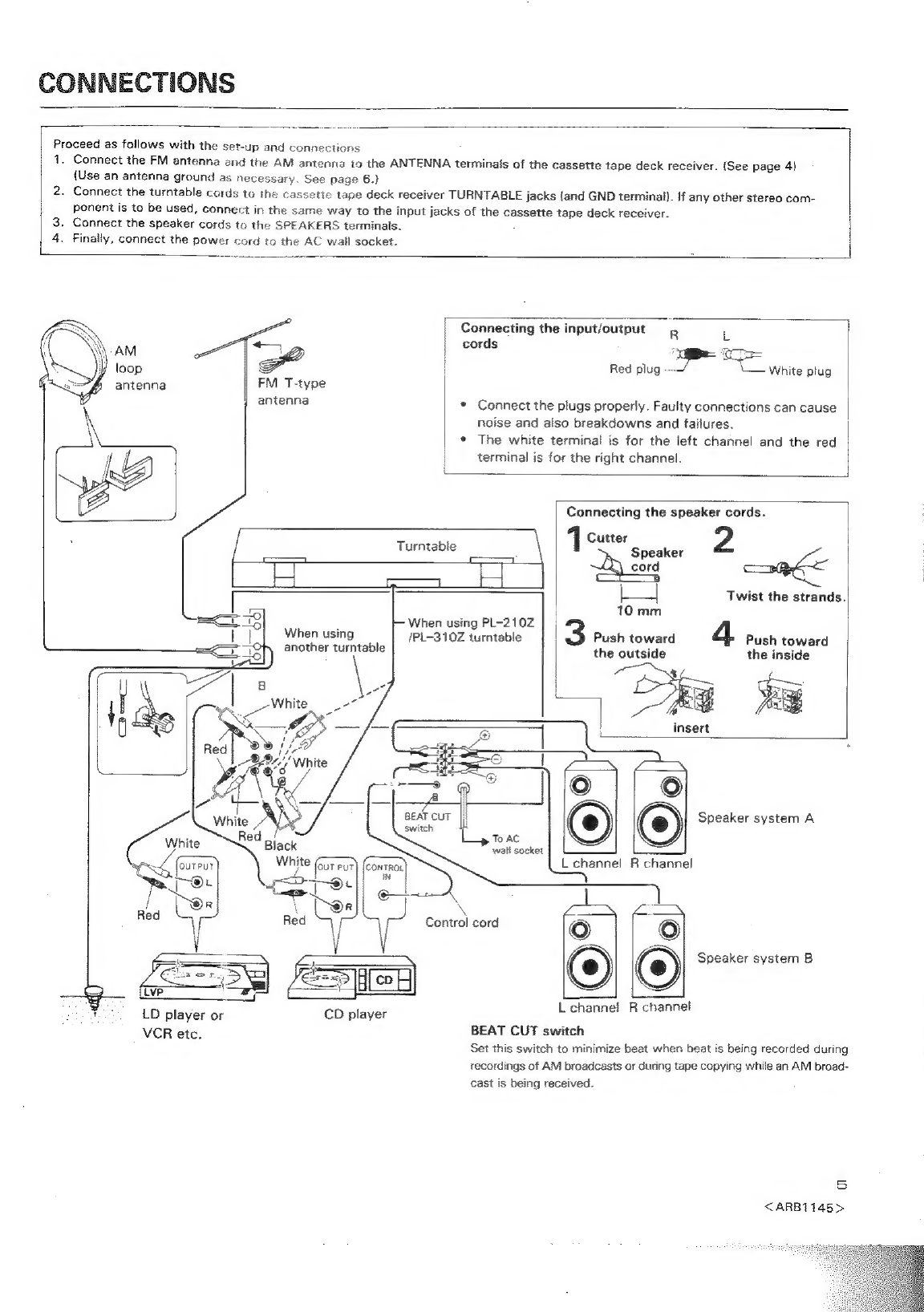

CONNECTIONS

Sea

1

|

Proceed

as

follows

with

the

set-up

and

connections

1.

Connect

the

FM

antenna

and

the

AM

antenna

io

the

ANTENNA

terminals

of

the

cassette

tape

deck

receiver.

(See

page

4)

{Use

an

antenna

ground

as

nec

sary.

See

page

6.}

2.

Connect

the

turntable

cords

to

+

ette

tape

deck

receiver

TURNTABLE

jacks

(and

GND

terminal).

if

any

other

stereo

com-

ponent

is

to

be

used,

connect

in

the

same

way

to

the

input

jacks

of

the

cassette

tape

deck

receiver.

3.

Connect

the

speaker

cords

to

the

SPEAKERS

terminals.

4.

Finally,

connect

the

power

cord

to

the

AC

wall

socket.

Connecting

the

input/output

R

L

AM

|

cords

x

2

|

ae

loop

|

Red

plug

White

plug

antenna

|

FM

T-type

antenna

e

Connect

the

plugs

properly.

Faulty

connections

can

cause

|

noise

and

also

breakdowns

and

failures.

|

¢

The

white

terminal

is

for

the

left

channel

and

the

red

|

terminal

is

for

the

right

channel.

|

Connecting

the

speaker

cords.

:

Cutter

2

|

Turntable

1

Speaker

|

:

2d

cord

ag

:

j=]

Twist

the

strands.

|

10

mm

F

When

using

PL-210Z

When

using

/Pi-310Z

turntable

Push

toward

Push

toward

another

turntable

the

outside

the

inside

:

eo

||

6

@)

(e)

Speaker

system

A

Ld

L

channel

R

channel

ic)

BEAT

CUT

switch

Ly

Teac

wall

socket

|

Control

cord

Speaker

system

B

Feet

ceat

7]

We.

*

LD

player

or

CD

player

VCR

etc

BEAT

CUT

switch

:

Set

this

switch

to

minimize

beat

when

beat

is

being

recorded

during

recordings

of

AM

broadcasts

or

during

tape

copying

while

an

AM

broad-

L

channel

R

channel

cast

is

being

received.

5

CONNECTIONS

Antenna

ground

Although

grounding

is

not

necessary

for

reception,

it

is

recom-

mended

for

protection

against

damage

from

lightning

if

an

out-

door

FM

antenna

is

used.

Grounding

is

recommended

as

weil

to

help

reduce

noise

and

humming.

NOTE:

Never

make

the

ground

connection

to

a

gas

pipe

as

sparks

could

cause

the

gas

to

ignite.

NOTE

ABOUT

SPEAKER

CONNECTIONS

°¢

Speaker

systems

used

should

have

an

impedance

of

be-

tween

80

and

160.

*

Be

sure

that

connections

are

secure.

Check

to

make

sure

that

wires

do

not

protrude

from

their

terminals.

®

Do

not

allow

the

speaker

cords

to

become

shorted.

Damage

may

result

to

your

equipment.

e

Do

not

attempt

to

simultaneously

connect

two

s

of

speakers

to

a

single

side

(A

or

8).

When

using

two

speakers,

connect

one

set

to

side

A

and

one

set

to

AC

OUTLET

SWITCHED

100W

MAX

(Multi-voitage

model

only)

Power

supplied

through

this

outlet

is

turned

on

and

off

by

this

equipment’s

POWER

switch.

Total

electrical

power

consumption

of

connected

equipment

should

not

exceed

100

W.

NOTE:

Do

not

connect

appliances

with

high

power

consumption

such

as

heaters,

irons,

or

television

sets

to

the

AC

OUTLET,

in

order

to

avoid

overheating

or

fire

risk.

This

can

cause

this

equipment

to

malfuntion.

To

control

a

unit

other

than

this

receiver

using

the

re-

mote

control

unit

@

In

the

case

of

PIONEER

equipment

marked

sR

which

is

provided

with

a

remote

sensor,

operate

the

equipment

by

aiming

the

remote

contro!

unit

at

the

remote

sensor

on

the

equipment.

@®

For

equipment

marked

,

without

a

remote

sensor,

operation

of

the

equipment

by

facing

the

remote

con-

trol

unit

towards

the

remote

sensor

of

the

cassette

deck

receiv-

er

possible

with

connection

from

the

CONTROL

OUT

jack

to

the

CONTROL

IN

jack.

Use

a

commercially

available

cable

with

mini-plugs

for

the

connection.

PANEL

FACILITIES

we)

our

(—

CONTROL

O~:

“2

—¥@)

our

CONTROL

yal

gE

(7

CO

plaver

Cassette

deck

receiver

ty

Equipment

with

the

Rj

mark.

)

©)

IS

e

a2)

63)

e

©

)

6

PANEL

FACILITIES

TUNER

SECTION

@STATION

CALL

switches

(BAND

selector

switch

(FM/AM)

This

is

used

to

select

the

band

of

the

desired

station.

The

These

are

used

to

recall

preset

broadcasting

stations

and

to

preset

the

station.

(@)

FREQUENCY

(STATION

NUMBER)

DISPLAY

@

INDICATORS

[TUNED]

This

lights

to

indicate

that

a

station

has

been

optimally

tuned

in.

[STEREO]

This

lights

during

FM’stereo

reception.

{FM

MONO]

Lights

when

the

FM

MONO

switch

is

pressed

to

select

monaural

FM

reception.

{AUTO

TUNING]

Lights

when

the

auto

tuning

mode

is

selected

during

FM/AM

reception.

@)

MEMORY

switch

This

switch

is

used

to

memorize

stations.

When

the

switch

is

pressed,

the

FREQUENCY

indicator

will

flash.

To

memorize

the

frequency

of

any

station,

press

the

STATION

CALL

switch

while

the

frequency

indicator

is

flashing.

G)FM

MONO

switch

Normally,

the

FM

MONO

indicator

remains

off.

However,

it

may

not

be

possible

to

tune

in

a

desired

FM

station

because

it

is

too

far

away

or

because

its

signals

are

too

weak.

In

cases

like

these,

press

the

switch

to

set

the

reception

to

the

mon-

aural

mode

(FM

MONO

indicator

lights)

and

tune

in

the

station.

The

program

of

an

FM

stereo

broadcast

will

be

heard

in

mono.

This

switch

will

not

function

for

AM

reception.

(®AUTO/MANUAL

switch

Use

to

select

either

the

AUTO

mode

or

MANUAL

mode

for

FM/AM

reception.

@TUNING

switch

The

function

of

this

switch

differs

according

to

whether

AUTO

tuning

or

MANUAL

tuning

is

Selected.

{AUTO

tuning

mode]

When

this

mode

is

selected,

AUTO

TUNING

indicator

lights

(press

AUTO/MANUAL

switch

if

the

indication‘is

not

lighting}.

When

the

“+”

side

is

pressed,

the

frequencies

are

scanned

in

ascending

order;

when

the

“—"

side

is

pressed,

they

are

scanned

in

descending

order.

Scanning

stops

as

soon

as

a

station

has

automatically

been

tuned

in.

Auto

scanning

is

terminated

when

either

TUNING,

AUTO/

MANUAL,

BAND

or

MEMORY

swich

is

pressed.

[MANUAL

tuning

mode]

When

this

mode

is

selected,

AUTO

TUNING

indicator

turns

off

(press

AUTO/MANUAL

switch

if

the

indicator

is

lighting}.

When

the

“+"

side

is

pressed

once,

the

frequency

is

raised

one

step.

When

the

“—”

side

is

pressed

once,

the

frequency

is

lowered

one

step.

When

the

“+”

side

is

kept

pressed,

the

frequency

increases

and

when

the

“—”

side

is

kept

pressed,

it

decreases.

bands

change

aiternately

each

time

the

switch

is

pressed.

>_>

FM

reception

AM

reception

—_»>——_—,

L

@

POWER

(STANDBY/ON)

switch

When

this

switch

is

set

to

the

ON

position,

the

STAND-

BY/SLEEP

indicator

goes

out

and

power

is

supplied

to

the

main

circuits

of

the

cassette

deck

receiver.

Disconnect

the

power

cord

from

the

power

outlet

when

you

do

not

plan

to

use

the

cassette

deck

receiver

for

a

long

period

of

time.

The

cassette

deck

receiver

has

a

backup

function,

so

it

will

return

|

to

the

original

status

when

the

power

cord

is

unplugged

and

soon

again

plugged

into

the

power

outlet.

40

STANDBY/SLEEP

indicator

This

indicator

lights

in

stand-by

status

or

when

the

SLEEP

function

is

operating

when

the

power

cord

is

connected

to

a

power

outlet.

When

the

SLEEP

key

on

the

remote

control

unit

is

pressed,

the

sleep

function

is

activated

for

approximately

60

minutes,

then

enters

the

standby

mode.

(The

STANDBY/SLEEP

indica-

tor

flashes

faster

as

the

end

of

the

remaining

time

nears.)

(DPHONES

jack

This

is

a

‘standard

plug-type

jack”’

for

headphones.

|

NOTE:

Sound

is

not

heard

from

the

speakers

when

headphones

are

in

use.

(2)

SPEAKERS

switch

(

@

A,

=m

A+B)

This

is

used

to

select

the

speaker

through

which

you

wish

to

listen

HA

:

When

the

speakers

connected

to

A

terminals

are

in

use.

=a

A+B

:

When

the

speakers

connected

to

A

and

B

ter-

‘

minals

are

in

use.

(There

is

no

sound

if

A

+

Bis

selected

when

speakers

are

connected

only

to

the

A

terminals.)

Be

sure

to

use

A

terminals

when

you

use

one

pair

of

speakers

only.

No

sound

will

be

heard

through

the

speakers

when

only

one

pair

of

speakers

are

connected

to

B

terminals.

(3

GRAPHIC

EQUALIZER

controls

The

equalizer

is

divided

into

five

frequency

ranges

(100

Hz,

330

Hz,

1

kHz,

3.3

kHz,

10

kHz)

to

adjust

music

to

the

individual

taste

of

the

listener.

NOTE:

Effective

only

for

audio

playback.

Does

not

work

far

recording

H

and

copying

operations.

we:

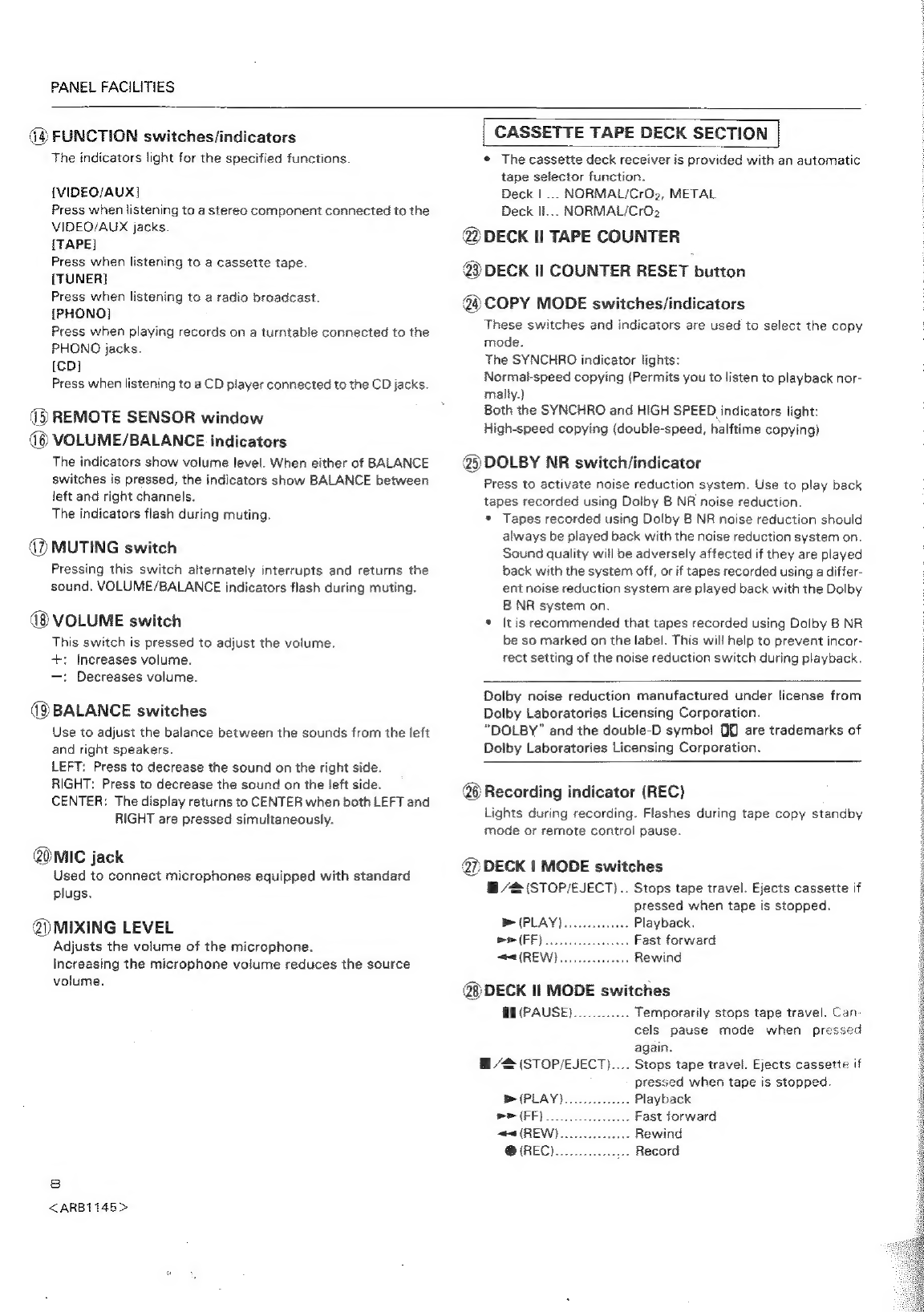

PANEL

FACILITIES

44

FUNCTION

switches/indicators

The

indicators

light

for

the

specified

functions.

VIDEO/AUX]

Press

when

listening

to

a

stereo

component

connected

to

the

VIDEO/AUX

jacks.

[TAPE]

Press

when

listening

to

a

cassette

tape.

TUNER]

Press

when

listening

to

a

radio

broadcast.

PHONO]

Press

when

playing

records

on

a

turntable

connected

to

the

PHONO

jacks.

CD]

Press

when

listening

to

a

CD

player

connected

to

the

CD

jacks.

45

REMOTE

SENSOR

window

a6)

VOLUME/BALANCE

indicators

The

indicators

show

volume

level.

When

either

of

BALANCE

switches

is

pressed,

the

indicators

show

BALANCE

between

left

and

right

channels.

The

indicators

flash

during

muting.

(?

MUTING

switch

Pressing

this

switch

alternately

interrupts

and

returns

the

sound.

VOLUME/BALANCE

indicators

flash

during

muting.

VOLUME

switch

This

switch

is

pressed

to

adjust

the

volume.

+:

Increases

volume.

—:

Decreases

volume.

(9

BALANCE

switches

Use

to

adjust

the

balance

between

the

sounds

from

the

left

and

right

speakers.

LEFT:

Press

to

decrease

the

sound

on

the

right

side.

RIGHT:

Press

to

decrease

the

sound

on

the

left

side.

CENTER:

The

display

returns

to

CENTER

when

both

LEFT

and

RIGHT

are

pressed

simultaneously.

20

MIC

jack

Used

to

connect

microphones

equipped

with

standard

plugs.

@)

MIXING

LEVEL

Adjusts

the

volume

of

the

microphone.

Increasing

the

microphone

volume

reduces

the

source

volume.

8

CASSETTE

TAPE

DECK

SECTION

©

The

cassette

deck

receiver

is

provided

with

an

automatic

tape

selector

function.

Deck

|

...

NORMAL/CrOz,

METAL

Deck

li...

NORMAL/CrO2z

@

DECK

tl

TAPE

COUNTER

23

DECK

Il

COUNTER

RESET

button

@

COPY

MODE

switches/indicators

These

switches

and

indicators

are

used

to

select

the

copy

mode.

The

SYNCHRO

indicator

lights:

Normal-speed

copying

(Permits

you

to

listen

to

playback

nor-

mally.)

Both

the

SYNCHRO

and

HIGH

SPEED

indicators

light:

High-speed

copying

(double-speed,

halftime

copying)

25

DOLBY

NR

switch/indicator

Press

to

activate

noise

reduction

system.

Use

to

play

back

tapes

recorded

using

Dolby

B

NR

noise

reduction.

°

Tapes

recorded

using

Dolby

B

NR

noise

reduction

should

always

be

played

back

with

the

noise

reduction

system

on.

Sound

quality

will

be

adversely

affected

if

they

are

played

back

with

the

system

off,

or

if

tapes

recorded

using

a

differ-

ent

noise

reduction

system

are

played

back

with

the

Dolby

B

NR

system

on.

°

Itis

recommended

that

tapes

recorded

using

Dolby

B

NR

be

so

marked

on

the

label.

This

will

help

to

prevent

incor-

rect

setting

of

the

noise

reduction

switch

during

playback.

Dolby

noise

reduction

manufactured

under

license

from

Dolby

Laboratories

Licensing

Corporation.

“DOLBY”

and

the

double-D

symbol!

0

are

trademarks

of

Dolby

Laboratories

Licensing

Corporation.

6)

Recording

indicator

(REC)

Lights

during

recording.

Flashes

during

tape

copy

standby

mode

or

remote

control

pause.

QP

DECK

|

MODE

switches

B

/@(STOP/EJECT)..

Stops

tape

travel.

Ejects

cassette

if

pressed

when

tape

is

stopped.

..

Playback.

Fast

forward

..

Rewind

B

(PLAY)

ee

(FF)...

<ta(REW}...

@

DECK

li

MODE

switches

8B

(PAUSE)...

Temporarily

stops

tape

travel.

Can

cels

pause

mode

when

pressed

again.

@

/@

(STOP/EJECT}....

Stops

tape

travel.

Ejects

cassette

if

pressed

when

tape

is

stopped.

B

(PLAY)...

Playback

ee

(FF)...

..

Fast

forward

<<

(REW)

Rewind

@

(REC)...

Record

REMOTE

CONTROL

UNIT

FACILITIES

Range

of

remote

control

When

the

remote

control

unit

is

pointed

at

the

REMOTE

SEN-

SOR

window

on

the

deck

receiver

and

any

of

its

keys

is

pressed,

the

cassette

deck

receiver

and

other

components

can

be

operated

by

remote

control.

Distance:

Within

a

range

of

about

7

meters

from

the

REMOTE

SENSOR

window

Angle:

Within

approx.

30

degrees

from

the

center

of

the

REMOTE

SENSOR

window

Remote

contro!

will

not

be

possible

if

there

is

an

obstacle

be-

tween

the

remote

controf

unit

and

the

REMOTE

SENSOR

window.

fear

‘

ee

|

vinux

TAPE

TUNER

PHONG

@FUNCTION

selector

keys

®STATION

key

+

(UP):

Used

to

tune

in

the

station

numbers

in

ascending

order.

—

(DOWN):

Used

to

tune

in

the

station

numbers

in

descending

order.

@

TAPE

88

(PAUSE)

key

Use

to

pause

during

tape

playback

or

recording.

Press

again

to

release

the

pause.

Refer

to

‘‘Remote

control

pause”’

for

details.

®CD

keys

&

(Play)...

Function

on

the

amplifier

section

is

set

to

CD

mode.

Begins

CD

playback.

§8

(Pause).

..

Press

to

temporarily

pause

playback.

B

(Stop)

..

.

Press

to

stop

playback.

DISC

iiasctesteus

soo

Disc

numbers

can

be

selected

when

used

together

with

a

Pioneer

maga-

zine

type

CD

player.

When

pressed

once,

play

advances

to

the

beginning

of

the

when

pressed

continuously,

ad-

vances

to

further tracks.

When

pressed

once,

play

returns

to

the

beginning

of

the

currently

playing

track;

when

pressed

continuously,

returns

to

earlier

tracks.

ei

(Track

search)

...

tea

(Track

search)

...

Remote

Control

Pause

(When

remote

control

pause

is

possible)

|

Deck!

|

Deck

it

[Relay

Play]

Source

|

SYNCHRO

PLAY

|

PLAY

REC.

|

Deck!

|

Yes

~

vest

|

—**

|

yeser*

|

Deck

I

-

yes

|

Yes*

yes

|

yes***

@

POWER

key

@MUTING

key

@VOLUNE

(+:UP,

—:DOWN)

key

@

SLEEP

key

Pressing

this

key

sets

the

sleep

timer

to

approximately

60

minutes.

The

STANDBY/SLEEP

indicator

flashes

while

the

sleep

timer

is

operating.

The

SLEEP

indicator

flashes

faster

as

the

end

of

the

remaining

time

nears.

*When

pause

is

applied

while

the

deck

is

playing

back.

**Use

remote

control

pause

only

for

Deck

II

during

tape

dub-

bing.

The

Deck

II

pause

will

not

be

released

even

if

Deck

|

is

played

back

in

this

status.

***Both

Deck

|

and

Deck

Ji

will

pause.

Pressing

the

remote

control

PAUSE

key

again

releases

the

pause.

NOTES.

*

Remote

control

pause

is

also

released

when

the

deck

oper-

ating

status

is

changed

by

using

any

of

the

main

unit

operat-

ing

switches

except

for

the

Deck

If

PAUSE

switch

{except

for

item

**

above).

When

pause

is

applied

from

the

remote

con-

trol,

it

is

recommended

that

the

pause

also

be

released

from

the

remote

control.

°

fa

pause

is

applied

while

one

deck

is

playing

back,

the

pause

will

not

be

released

even

if

the

FF,

REW,

STOP/EJECT

switches

of

the

other

deck

are

operated.

{Pressing

the

PLAY

switch

releases

the

pause

and

enters

the

relay

playback

mode.}

9

TURNTABLE

FACILITIES

(OPTIONAL)

NOTE:

|

Mlustration

shows

PL-310Z.

PL-210Z

is

not

equipped

with

disc

size

switch.

@

EP

adaptor

Piace

over

the

spindle

to

play

45-rpm

singles.

@®

Platter

spindle

@

Platter

mat

@

Platter

@®

SPEED

switch

Set

this

switch

in

accordance

with

the

speed

of

the

record.

33:

For

33-1/3

rpm

records.

45:

For

45

rpm

records.

©

ARM

ELEVATION

switch

e

Use

the

switch

for

manual

play.

e@

Use

the

switch

to

suspend

record

play

temporarily.

e

Use

the

switch

when

changing

the

tracks

during

actual

play.

[UP]

:

The

tonearm

rises

(the

stylus

moves

away

from

the

record).

[DOWN]

:

The

tonearm

descends

(the

stylus

is

lowered

onto

the

record).

@®

SIZE

switch

(only

PL-310Z)

Set

this

switch

in

accordance

with

the

size

of

the

record.

30:

For

30

cm

records.

17:

For

17

cm

records.

10

STOP

switch

(PL-210Z)

Press

this

switch

when

stopping

play.

PLAY/STOP

switch

(only

PL-310Z)

Press

this

switch

when

starting

auto

play

or

when

stopping

play.

NOTE:

Be

sure

to

press

the

switch

firmly

when

starting

playback:

if

not

pressed

firmly,

the

platter

may

rotate

without

the

to-

nearm

moving.

@®

Cartridge

@

Tonearm

©

Arm

rest

@

Dust

cover

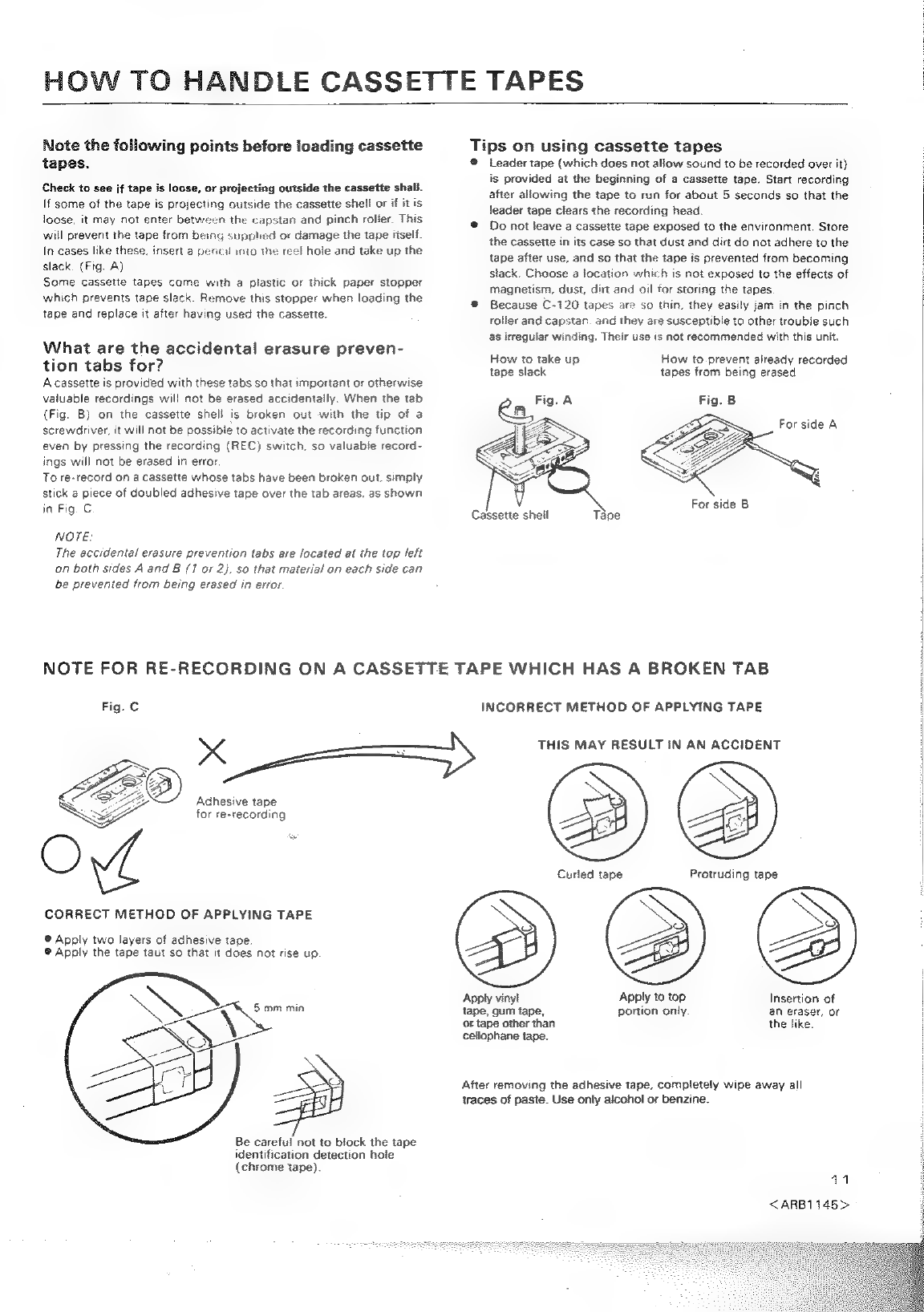

HOW

TO

HANDLE

CASSETTE

TAPES

Note

the

following

points

before

loading

cassette

tapes.

Check

to

see

if

tape

is

loose,

or

projecting

outside

the

cassette

shall.

lf

some

of

the

tape

is

projecting

outside

the

cassette

sheil

or

if it

is

loose,

it

may

not

enter

between

the

capstan

and

pinch

roller.

This

will

prevent

the

tape

from

being

suppled

or

damage

the

tape

itself

In

cases

like

these,

insert

a

pencil

into

the

real

hole

and

take

up

the

slack.

(Fig.

A)

Some

cassette

tapes

come

with

a

plastic

or

thick

paper

stopper

which

prevents

tape

slack.

Remove

this

stopper

when

loading

the

tape

and

replace

it

after

having

used

the

cassette.

What

are

the

accidental

erasure

preven-

tion

tabs

for?

A

cassette

is

provided

with

these

tabs

so

that

important

or

otherwise

valuable

recordings

will

not

be

erased

accidentally.

When

the

tab

(Fig.

B)

on

the

cassette

shell

is

broken

out

with

the

tip

of

a

screwdriver,

it

will

not

be

possible

to

activate

the

recording

function

even

by

pressing

the

recording

(REC)

switch,

so

valuable

record-

ings

will

not

be

erased

in

error.

To

re-record

on

a

cassette

whose

tabs

have

been

broken

out,

simply

stick

a

piece

of

doubled

adhesive

tape

over

the tab

areas,

as

shown

in

Fig.

C

NOTE:

The

accidental

erasure

prevention

tabs

are

located

at

the

top

left

on

both

sides

A

and

B

{7

or

2},

so

that

material

on

each

side

can

be

prevented

from

being

erased

in

error.

Tips

on

using

cassette

tapes

®

Leader

tape

(which

does

not

allow

sound

to

be

recorded

over

it}

is

provided

at

the

beginning

of

a

cassette

tape.

Start

recording

after

allowing

the

tape

to

run

for

about

5

seconds

so

that

the

leader

tape

clears

the

recording

head.

@

Do

not

leave

a

cassette

tape

exposed

to

the

environment.

Store

the

cassette

in

its

case

so

that

dust

and

dirt

do

not

adhere

to

the

tape

after

use,

and

so

that

the

tape

is

prevented

from

becoming

slack.

Choose

a

location

which

is

not

exposed

to

the

effects

of

magnetism,

dust,

dirt

and

oil

for

storing

the

tapes

®

Because

C-120

tapes

are

so

thin,

they

easily

jam

in

the

pinch

roller

and

capstan.

and

they

are

susceptible

to

other

trouble

such

as

irregular

winding.

Their

use

is

not

recommended

with

this

unit.

How

to

take

up

tape

slack

How

to

prevent

already

recorded

tapes

from

being

erased

Fig.

B

For

side

A

For

side

B

NOTE

FOR

RE-RECORDING

ON

A

CASSETTE

TAPE

WHICH

HAS

A

BROKEN

TAB

Fig.

©

Adhesive

tape

for

re-recording

CORRECT

METHOD

OF

APPLYING

TAPE

®

Apply

two

layers

of

adhesive

tape.

®

Apply

the

tape

taut

so

that

it

does

not

rise

up

Be

careful

not

to

block

the

tape

identification

detection

hole

(chrome

tape).

xX

==>

INCORRECT

METHOD

OF

APPLYING

TAPE

THIS

MAY

RESULT

IN

AN

ACCIDENT

Zep

a:

Curled

tape

Protruding

tape

=

D>

>

<Zx

Apply

vinyt

Apply

to

top

Insertion

of

tape,

gum

tape,

portion

only.

an

eraser,

or

of

tape

other

than

the

like.

cellophane

tape.

After

removing

the

adhesive

tape,

completely

wipe

away

all

traces

of

paste.

Use

only

alcohol

or

benzine.

41

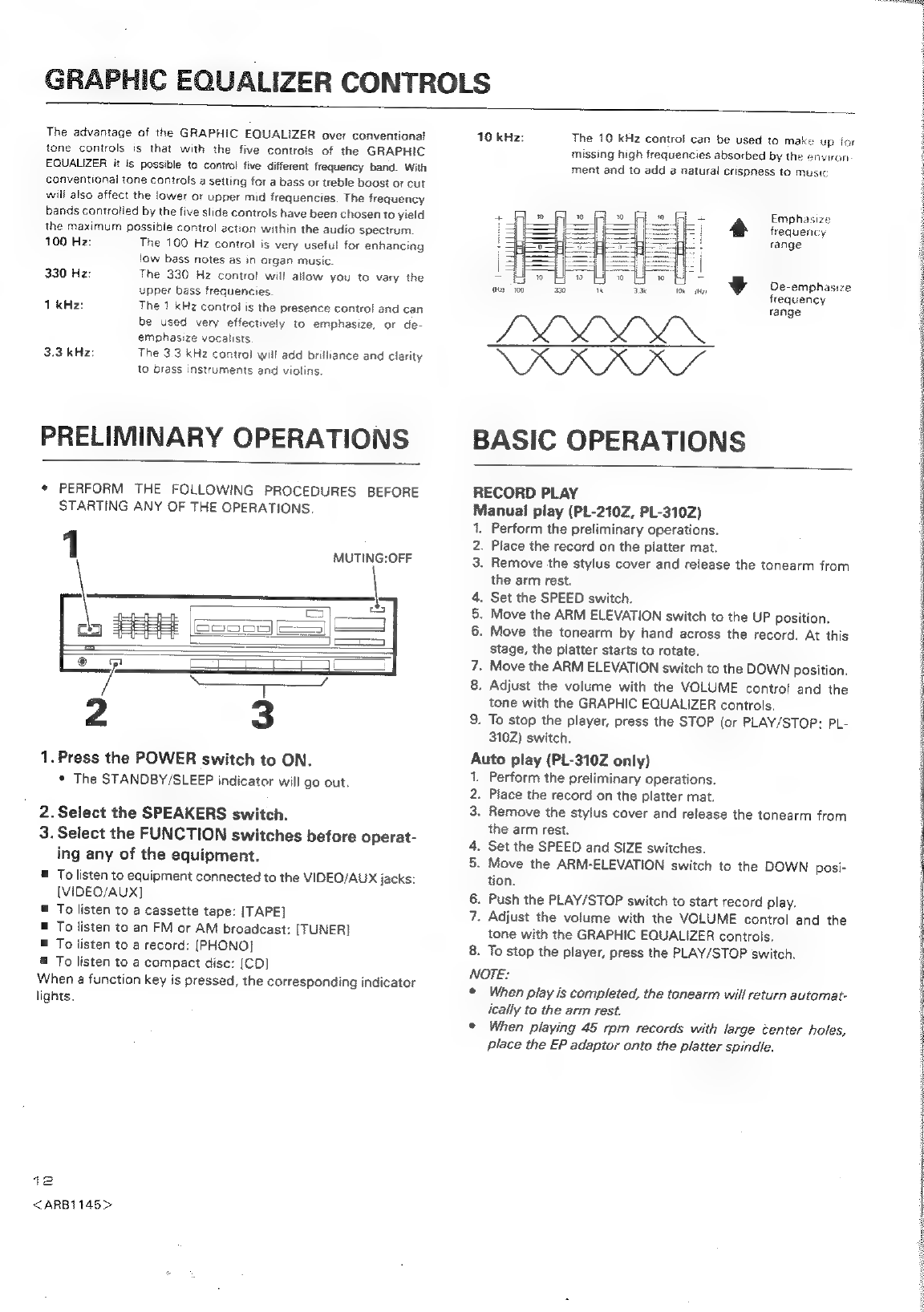

GRAPHIC

EQUALIZER

CONTROLS

The

advantage

of

the

GRAPHIC

EQUALIZER

over

conventional

tone

controls

is

that

with

the

five

controls

of

the

GRAPHIC

EQUALIZER

it

is

possible

to

control

five

different

frequency

band.

With

conventional

tone

controls

a

setting

for

a

bass

or

treble

boost

or

cut

will

also

affect

the

lower

or

upper

mid

frequencies.

The

frequency

bands

controlled

by

the

five

slide

controls

have

been

chosen

to

yield

the

maximum

possible

control

action

within

the

audio

spectrum.

100

Hz:

The

100

Hz

control

is

very

useful

for

enhancing

low

bass

notes

as

in

organ

music

330

Hz:

The

330

Hz

contro!

will

allow

you

to

vary

the

upper

bass

frequencies

1

kHz:

The

1

kHz

control

is

the

presence

control

and

can

be

used

very

effectively

to

emphasize,

or

de-

emphasize

vocalists

3.3

kHz:

The

3.3

kHz

control

will

add

brilliance

and

clarity

to

brass

instruments

and

violins

PRELIMINARY

OPERATIONS

10

kHz:

The

10

kHz

control

can

be

used

to

make

up

for

missing

high

frequencies

absorbed

by

the

environ

ment

and

to

add

a

natural

crispness

to

music

Emphasize

a

frequency

range

4

De-emphasie

frequency

range

BASIC

OPERATIONS

*

PERFORM

THE

FOLLOWING

PROCEDURES

BEFORE

STARTING

ANY

OF

THE

OPERATIONS.

1

MUTING:OFF

1.

Press

the

POWER

switch

to

ON.

°

The

STANDBY/SLEEP

indicator

will

go

out.

2.

Select

the

SPEAKERS

switch.

3.

Select

the

FUNCTION

switches

before

operat-

ing

any

of

the

equipment.

@

To

listen

to

equipment

connected

to

the

VIDEO/AUX

jacks:

[VIDEO/AUX]

@

To

listen

to

a

cassette

tape:

[TAPE]

§

To

listen

to

an

FM

or

AM

broadcast:

[TUNER]

@

To

listen

to

a

record:

[PHONO]

@

To

listen

to

a

compact

disc:

[CD]

When

a

function

key

is

pressed,

the

corresponding

indicator

lights.

RECORD

PLAY

Manual

play

(PL-210Z,

PL-310Z)

1.

Perform

the

preliminary

operations.

2.

Place

the

record

on

the

platter

mat.

3.

Remove

the

stylus

cover

and

release

the

tonearm

from

the

arm

rest.

4.

Set

the

SPEED

switch.

5.

Move

the

ARM

ELEVATION

switch

to

the

UP

position.

6.

Move

the

tonearm

by

hand

across

the record.

At

this

stage,

the

platter

starts

to

rotate.

7.

Move

the

ARM

ELEVATION

switch

to

the

DOWN

position.

8.

Adjust

the

volume

with

the

VOLUME

control

and

the

tone

with

the

GRAPHIC

EQUALIZER

controls.

9.

To

stop

the

player,

press

the

STOP

(or

PLAY/STOP:

PL-

310Z)

switch.

ae

play

(PL-310Z

only)

Perform

the

preliminary

operations.

Ei

Place

the

record

on

the

platter

mat.

3.

Remove

the

stylus

cover

and

release

the

tonearm

from

the

arm

rest.

4.

Set

the

SPEED

and

SIZE

switches.

5.

Move

the

ARM-ELEVATION

switch

to

the

DOWN

posi-

tion.

6.

Push

the

PLAY/STOP

switch

to

start

record

play.

7.

Adjust

the

volume

with

the

VOLUME

control

and

the

tone

with

the

GRAPHIC

EQUALIZER

controls.

8.

To

stop

the

player,

press

the

PLAY/STOP

switch.

NOTE:

©

When

play

is

completed,

the

tonearm

will

return

automat-

ically

to

the

arm

rest.

°

When

playing

45

rpm

records

with

large

center

holes,

place

the

EP

adaptor

onto

the

platter

spindle.

12

BASIC

OPERATIONS

LISTENING

TO

THE

BROADCASTS

AUTO/MANUAL

switch

TUNING

switch

STATION

CALL

switch

MEMORY

switch

BAND

selector

switch

Auto

tuning

The

electronic

tuning

circuit

inside

the

cassette

deck

receiver

will

automatically

search

for

the

station.

1.

Perform

the

preliminary

operations

on

page

12.

2,

Select

the

desired

broadcasting

band

using

the

BAND

selector

switch,

3.

Press

the

AUTO/MANUAL

switch

to

establish

the

auto

tuning

mode

(the

AUTO

TUNING

indicator

will

light).

4.

Press

the

“+”

or

“—"

side

TUNING

switch

for

higher

or

lower

frequency.

The

frequency

will

change

rapidly

during

scanning.

The

auto

tuning

will

stop

automatically

when

the

station

is

Jocated

and

the

TUNED

indicator

will

light

up.

NOTE:

|

When

the

auto

tuning

is

in

use,

reception

may

not

be

possible

|

aver

long

distances

or

when

signals

are

weak.

At

these

times

|

manual

tuning

is

recommended.

|

5.

Adjust

the

volume

with

the

VOLUME

control

and

the

tone

with

the

GRAPHIC

EQUALIZER

controls.

Manual

tuning

1.

Perform

the

preliminary

operations

on

page

12.

2.

Select

your

desired

broadcasting

band

using

the

BAND

selector

switch.

3.

Press

the

AUTO/MANUAL

switch

to

establish

the

manual

tuning

mode

(the

AUTO

TUNING

indicator

goes

off).

4.

Press

the

TUNING

switch

to

focate

the

frequency

of

your

desired

station.

For

step-by‘step

searching,

press

the

TUNING

switch

once

and

release

it

immediately.

For

continuous

rapid

scanning

keep

the

TUNING

switch

pressed.

The

TUNED

indicator

will

light

up

when

the

station

is

tuned

in

best.

NOTE:

|

The

TUNED

indicator

will

not

function

for

broadcasts

received

over

long

distances

ar

when

signals

are

weak.

5.

Adjust

the

volume

with

the

VOLUME

control

and

the

tone

with

the

GRAPHIC

EQUALIZER

controls.

PRESETTING

STATIONS

Presetting

From

1

to

24

FM/AM

stations

can

be

preset.at

random.

Press

the

STATION

CALL

switch

once

for

1

—

12

(Mode

1}

and

twice

for

13

—

24

(Mode

2).

1.

Tune

in

desired

station.

©

See

the

auto

tuning

section

for

information

on

recep-

tion

using

auto

tuning.

¢

See

the

manual

tuning

section

for

information

on

recep-

tion

using

manual

tuning.

2.

Press

the

MEMORY

switch.

e

The

display

will

flash

(about

3

seconds).

MEMORY

S

=

aes

a)

She

Frequency

D

display

3.

Press

the

STATION

CALL

switch.

*¢

While

the

display

is

flashing,

press

the

switch

cor-

responding

to

the

station

which

you

wish

to

preset

or

re-preset.

When

presetting

a

station

to

Mode

1

(e.g.

presetting

a

sta-

tion

to

No.

9):

By

pressing

the

STATION

CALL

switch

once,

the

station

wilt

be

preset

to

Mode

1.

Frequency

display

a

i

=

When

presetting

a

station

Mode

2

(e.g.

presetting

a

sta-

uD

once

switch

number

STATION

CALL

tion

to

No.

21):

Mode

2

stations

are

preset

by

pressing

the

STATION

CALL

switch

twice

within

about

2

seconds.

9/21

Frequency

]

display

PD

STATION

CALL

Press

twice

switch

number

e

After

you

press

the

STATION

CALL

switch,

the

display

will

‘flash

for

about

2

seconds,

then

the

station

will

be

memo-

rized.

if

you

press

another

switch

(except

the

FM

MONO

and

AUTO/MANUAL

switch)

while

the

display

is

flashing,

the

station

will

not

be

memorized.

Pressing

the

STATION

CALL

switch

twice

within

about

2

seconds

switches

alternately

between

Mode

1

and

Mode

2.

~

12)

press

twice

(13

-

24)

>

Mode

1

—_,

&

Mode

2

within

about

2

sec.

;

13

BASIC

OPERATIONS

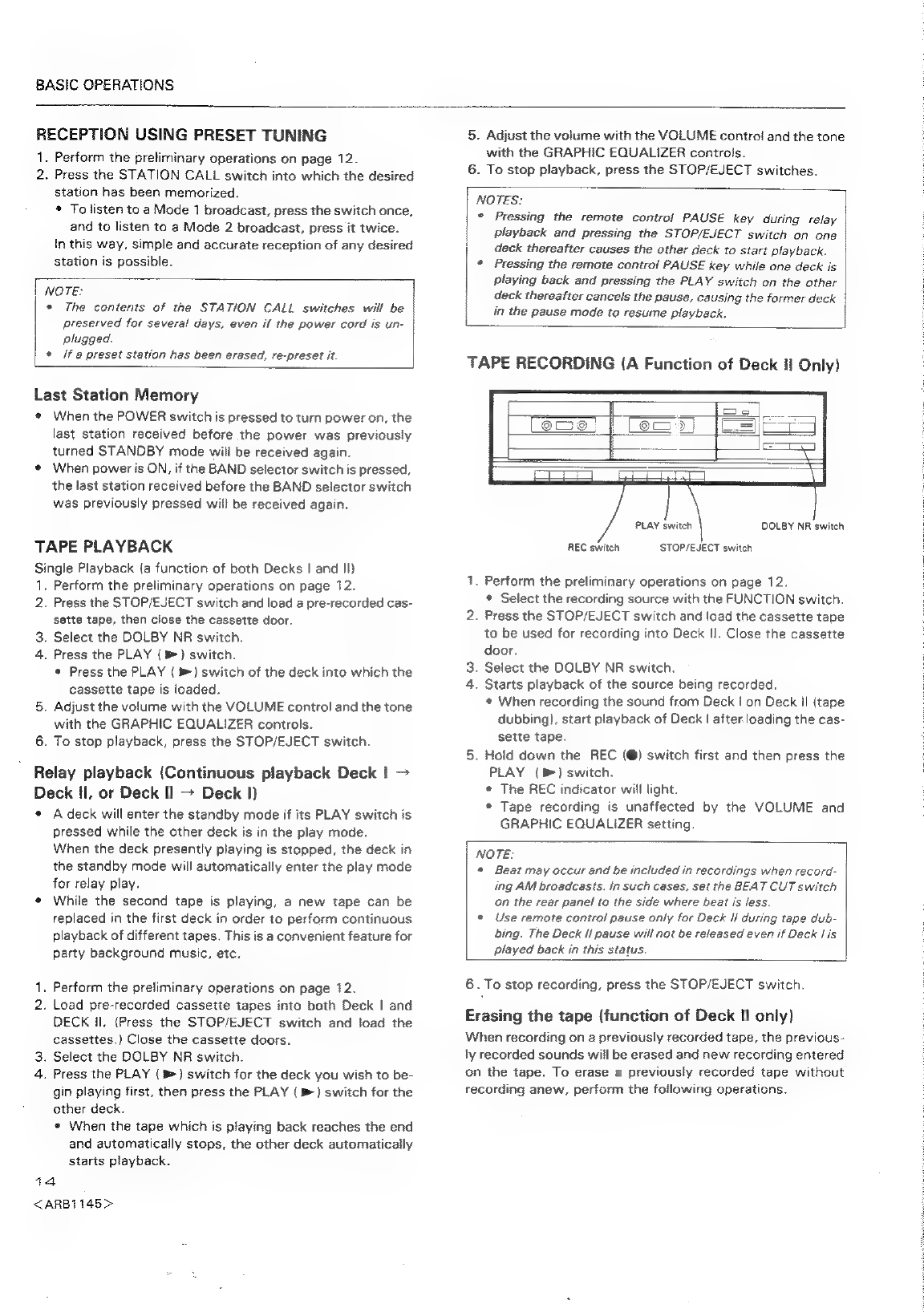

RECEPTION

USING

PRESET

TUNING

1.

Perform

the

preliminary

operations

on

page

12.

2.

Press

the

STATION

CALL

switch

into

which

the

desired

station

has

been

memorized.

*

To

listen

to

a

Mode

1

broadcast,

press

the

switch

once,

and

to

listen

to

a

Mode

2

broadcast,

press

it

twice.

In

this

way,

simple

and

accurate

reception

of

any

desired

station

is

possible.

|

NOTE:

*

The

contents

of

the

STATION

CALL

switches

will

be

preserved

for

several

days,

even

if

the

power

cord

is

un-

plugged.

*

/f

a

preset

station

has

been

erased,

re-preset

it.

Last

Station

Memory

*

When

the

POWER

switch

is

pressed

to

turn

power

on,

the

last

station

received

before

the

power

was

previously

turned

STANDBY

mode

will

be

received

again.

®

When

power

is

ON,

if

the

BAND

selector

switch

is

pressed,

the

last

station

received

before

the

BAND

selector

switch

was

previously

pressed

will

be

received

again.

TAPE

PLAYBACK

Single

Playback

(a

function

of

both

Decks

|

and

Il)

1.

Perform

the

preliminary

operations

on

page

12.

2.

Press

the

STOP/EJECT

switch

and

load

a

pre-recorded

cas-

sette

tape,

then

close

the

cassette

door.

3.

Select

the

DOLBY

NR

switch.

4.

Press

the

PLAY

(®)

switch.

@

Press

the

PLAY

(

B)

switch

of

the

deck

into

which

the

cassette

tape

is

loaded.

5.

Adjust

the

volume

with

the

VOLUME

control

and

the

tone

with

the

GRAPHIC

EQUALIZER

controls.

6.

To

stop

playback,

press

the

STOP/EJECT

switch.

Relay

playback

(Continuous

playback

Deck

|

>

Deck

Il,

or

Deck

Il

>

Deck

1)

°

A

deck

will

enter

the

standby

mode

if

its

PLAY

switch

is

pressed

while

the

other

deck

is

in

the

play

mode.

When

the

deck

presently

playing

is

stopped,

the

deck

in

the

standby

mode

will

automatically

enter

the

play

mode

for

relay

play.

®

While

the

second

tape

is

playing,

a

new

tape

can

be

replaced

in

the

first

deck

in

order

to

perform

continuous

playback

of

different

tapes.

This

is

a

convenient

feature

for

party

background

music,

etc.

.

Perform

the

preliminary

operations

on

page

12.

2.

Load

pre-recorded

cassette

tapes

into

both

Deck

|

and

DECK

Il.

(Press

the

STOP/EJECT

switch

and

load

the

cassettes.)

Close

the

cassette

doors.

3.

Select

the

DOLBY

NR

switch.

4.

Press

the

PLAY

(2)

switch

for

the

deck

you

wish

to

be-

gin

playing

first,

then

press

the

PLAY

(

®

}

switch

for

the

other

deck.

@

When

the

tape

which

is

playing

back

reaches

the

end

and

automatically

stops,

the

other

deck

automatically

Starts

playback.

44

5.

Adjust

the

volume

with

the

VOLUME

control

and

the

tone

with

the

GRAPHIC

EQUALIZER

controls.

6.

To

stop

playback,

press

the

STOP/EJECT

switches.

NOTES:

°

Pressing

the

remote

control

PAUSE

key

during

relay

playback

and

pressing

the

STOP/EJECT

switch

on

one

i

deck

thereafter

causes

the

other

deck

to

start

playback.

¢

Pressing

the

remote

control

PAUSE

key

while

one

deck

is

playing

back

and

pressing

the

PLAY

switch

on

the

other

deck

thereafter

cancels

the

pause,

causing

the

former

deck

|

in

the

pause

mode

to

resume

playback.

TAPE

RECORDING

(A

Function

of

Deck

lf

Only)

ome!

|

l

H

i"

|

Oe

PLAY

switch

DOLBY

NR

switch

REC

switch

STOP/EJECT

switch

1.

Perform

the

preliminary

operations

on

page

12.

*

Select

the

recording

source

with

the

FUNCTION

switch.

2.

Press

the

STOP/EJECT

switch

and

load

the

cassette

tape

to

be

used

for

recording

into

Deck

II.

Close

the

cassette

door.

3.

Select

the

DOLBY

NR

switch.

4.

Starts

playback

of

the

source

being

recorded.

¢

When

recording

the

sound

from

Deck

|

on

Deck

Il

(tape

dubbing),

start

playback

of

Deck

|

after.loading

the

cas-

sette

tape.

5.

Hold

down

the

REC

(@)

switch

first

and

then

press

the

PLAY

(B)

switch.

e

The

REC

indicator

will

light.

e

Tape

recording

is

unaffected

by

the

VOLUME

and

GRAPHIC

EQUALIZER

setting.

f

NOTE:

°

Beat

may

occur

and

be

included

in

recordings

when

record-

ing

AM

broadcasts.

In

such

cases,

set

the

BEAT

CUT

switch

on

the

rear

panel

ta

the

side

where

beat

is

less.

e

Use

remote

control

pause

only

for

Deck

If

during

tape

dub-

bing.

The

Deck

Hf

pause

will

not

be

released

even

if

Deck

lis

played

back

in

this

status.

6.

To

stop

recording,

press

the

STOP/EJECT

switch.

Erasing

the

tape

(function

of

Deck

Il

only)

When

recording

on

a

previously

recorded

tape,

the

previous-

ly

recorded

sounds

will

be

erased

and

new

recording

entered

on

the

tape.

To

erase

a

previously

recorded

tape

without

recording

anew,

perform

the

following

operations.

|

;

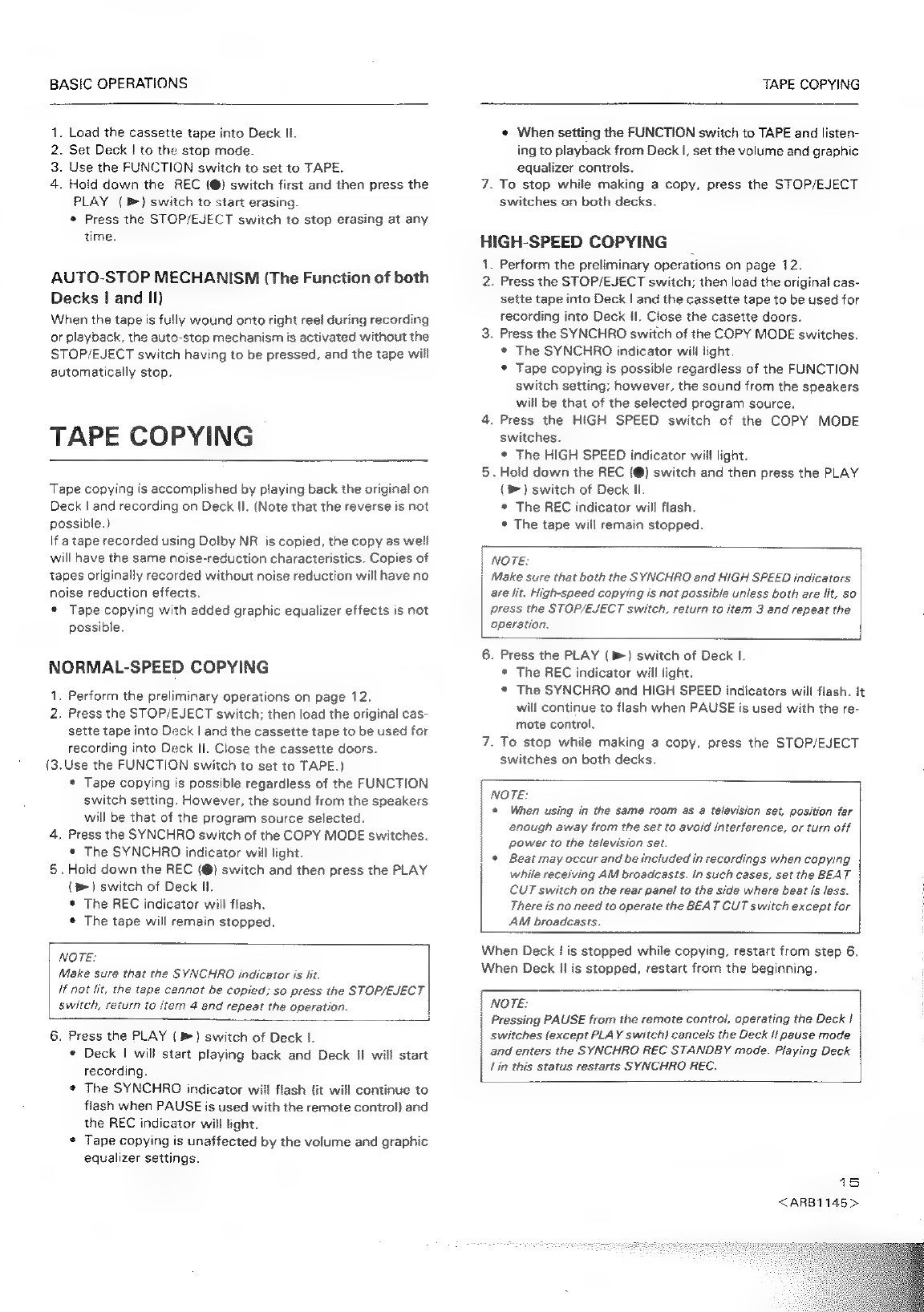

BASIC

OPERATIONS

TAPE

COPYING

1.

Load

the

cassette

tape

into

Deck

II.

2.

Set

Deck

|

to

the

stop

mode.

3.

Use

the

FUNCTION

switch

to

set

to

TAPE.

4.

Hold

down

the

REC

(@)

switch

first

and

then

press

the

PLAY

()

switch

to

start

erasing.

®

Press

the

STOP/EJECT

switch

to

stop

erasing

at

any

ume.

AUTO-STOP

MECHANISM

(The

Function

of

both

Decks

|

and

Il)

When

the

tape

is

fully

wound

onto

right

reel

during

recording

or

playback,

the

aute-stop

mechanism

is

activated

without

the

STOP/EJECT

switch

having

to

be

pressed,

and

the

tape

will

automatically

stop.

TAPE

COPYING

Tape

copying

is

accomplished

by

playing

back

the

original

on

Deck

|

and

recording

on

Deck

II.

(Note

that

the

reverse

is

not

possible.)

If

a

tape

recorded

using

Dolby

NR

is

copied,

the

copy

as

well

will

have

the

same

noise-reduction

characteristics.

Copies

of

tapes

originally

recorded

without

noise

reduction

will

have

no

noise

reduction

effects.

°

Tape

copying

with

added

graphic

equalizer

effects

is

not

possible.

NORMAL-SPEED

COPYING

1.

Perform

the

preliminary

operations

on

page

12.

2.

Press

the

STOP/EJECT

switch;

then

load

the

original

cas-

sette

tape

into

Deck

|

and

the

cassette

tape

to

be

used

for

recording

into

Deck

Il.

Close

the

cassette

doors.

(3.Use

the

FUNCTION

switch

to

set

to

TAPE.)

*

Tape

copying

is

possible

regardless

of

the

FUNCTION

switch

setting.

However,

the

sound

from

the

speakers

will

be

that

of

the

program

source

selected.

4,

Press

the

SYNCHRO

switch

of

the

COPY

MODE

switches.

®

The

SYNCHRO

indicator

will

light.

§&.

Hold

down

the

REC

(@)

switch

and

then

press

the

PLAY

(t)

switch

of

Deck

Il.

¢

The

REC

indicator

will

flash.

®

The

tape

will

remain

stopped.

NOTE:

Make

sure

that

the

SYNCHRO

indicator

is

lit.

ff

not

lit,

the

tape

cannot

be

copied;

so

press

the

STOP/EJECT

switch,

return

to

item

4

and

repeat

the

operation.

6.

Press

the

PLAY

{

B»)

switch

of

Deck

|.

¢

Deck

|

will

start

playing

back

and

Deck

il

will

start

recording.

@

The

SYNCHRO

indicator

wil!

flash

(it

will

continue

to

flash

when

PAUSE

is

used

with

the

remote

contro!)

and

the

REC

indicator

will

light.

©

Tape

copying

is

unaffected

by

the

volume

and

graphic

equalizer

settings.

e«

When

setting

the

FUNCTION

switch

to

TAPE

and

listen-

ing

to

playback

from

Deck

|,

set

the

volume

and

graphic

equalizer

controls.

7.

To

stop

while

making

a

copy,

press

the

STOP/EJECT

switches

on

both

decks.

HIGH-SPEED

COPYING

1.

Perform

the

preliminary

operations

on

page

12.

2.

Press

the

STOP/EJECT

switch;

then

load

the

original

cas-

sette

tape

into

Deck

|

and

the

cassette

tape

to

be

used

for

recording

into

Deck

Il.

Close

the

casette

doors.

3.

Press

the

SYNCHRO

switch

of

the

COPY

MODE

switches.

®

The

SYNCHRO

indicator

will

light.

©

Tape

copying

is

possible

regardless

of

the

FUNCTION

switch

setting;

however,

the

sound

from

the

speakers

will

be

that

of

the

selected

program

source.

4.

Press

the

HIGH

SPEED

switch

of

the

COPY

MODE

switches.

*®

The

HIGH

SPEED

indicator

will

light.

5.

Hold

down

the

REC

(@)

switch

and

then

press

the

PLAY

(®

)

switch

of

Deck

Il.

®

The

REC

indicator

will

flash.

©

The

tape

will

remain

stopped.

NOTE:

;

Make

sure

that

both

the

SYNCHRO

and

HIGH

SPEED

indicators

are

lit.

High-speed

copying

is

not

possible

unless

both

are

lit,

so

press

the

STOP/EJECT

switch,

return

to

item

3

and

repeat

the

operation.

6.

Press

the

PLAY

(B®)

switch

of

Deck

|.

@

The

REC

indicator

will

light.

°

The

SYNCHRO

and

HIGH

SPEED

indicators

will

flash.

It

will

continue

to

flash

when

PAUSE

is

used

with

the

re-

mote

control.

7.

To

stop

while

making

a

copy,

press

the

STOP/EJECT

switches

on

both

decks.

NOTE:

°

When

using

in

the

same

room

as

a

television

set,

position

far

enough

away

from

the

set

to

avoid

interference,

or

turn

off

power

to

the

television

set.

°

Beat

may

occur

and

be

included

in

recordings

when

copying

while

receiving

AM

broadcasts.

in

such

cases,

set

the

BEAT

CUT

switch

on

the

rear

panel

to

the

side

where

beat

is

less.

|

There

is

no

need

to

operate

the

BEAT

CUT

switch

except

for

AM

broadcasts.

When

Deck

|

is

stopped

while

copying,

restart

from

step

6.

When

Deck

|i

is

stopped,

restart

from

the

beginning.

NOTE:

|

Pressing

PAUSE

from

the

remote

control,

operating

the

Deck

|

switches

(except

PLAY

switch}

cancels

the

Deck

If

pause

mode

and

enters

the

SYNCHRO

REC

STANDBY

mode.

Playing

Deck

(in

this

status

restarts

SYNCHRO

REC.

45

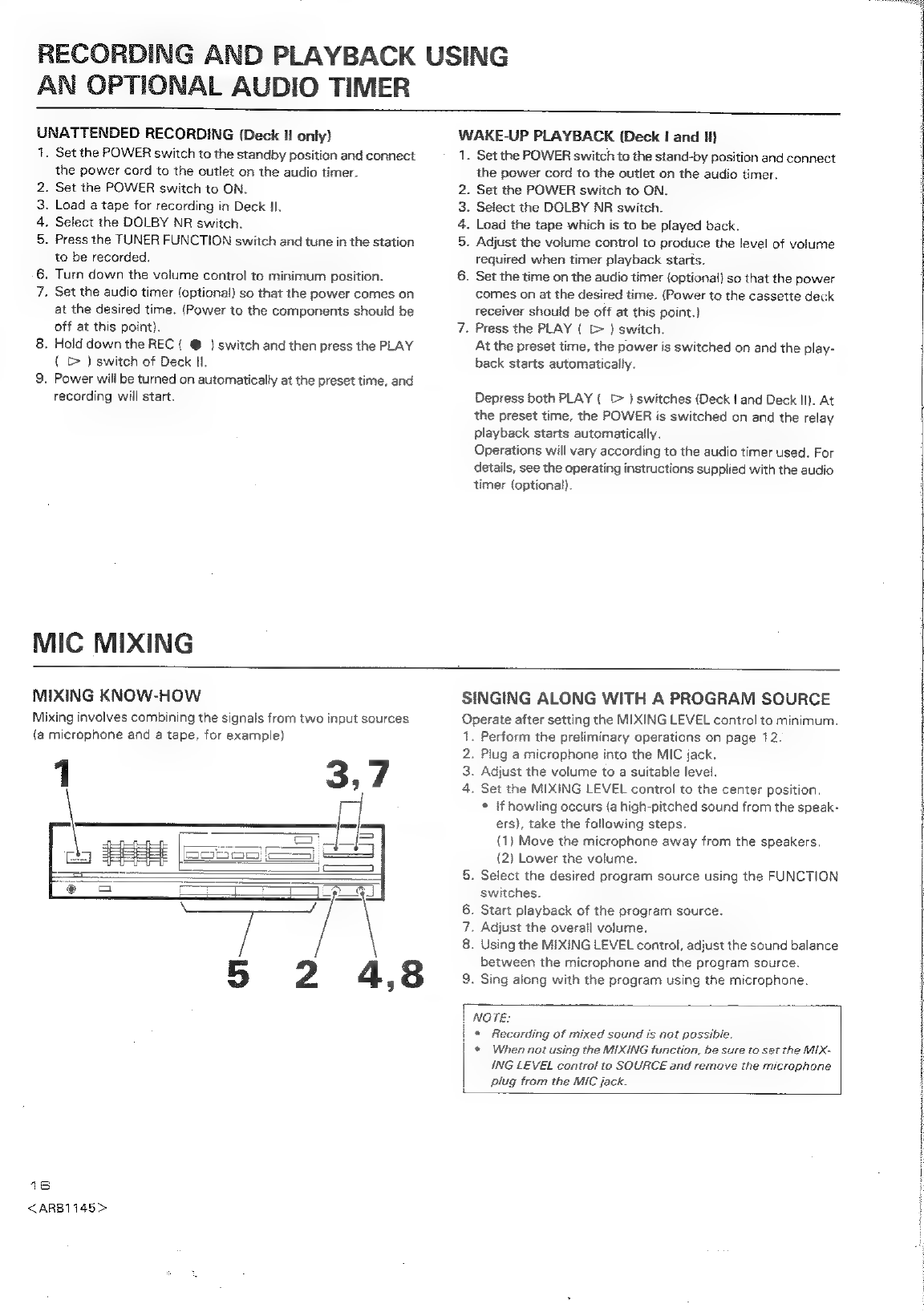

RECORDING

AND

PLAYBACK

USING

AN

OPTIONAL

AUDIO

TIMER

UNATTENDED

RECORDING

(Deck

1!

only}

1,

Set

the

POWER

switch

to

the

standby

position

and

connect

the

power

cord

to

the

outlet

on

the

audio

timer.

.

Set

the

POWER

switch

to

ON.

.

Load

a

tape

for

recording

in

Deck

II.

.

Select

the

DOLBY

NR

switch.

.

Press

the

TUNER

FUNCTION

switch

and

tune

in

the

station

to

be

recorded.

.

Turn

down

the

volume

control

to

minimum

position.

.

Set

the

audio

timer

(optional)

so

that

the

power

comes

on

at

the

desired

time.

(Power

to

the

components

should

be

off

at

this

point).

8.

Hold

down

the

REC

(

@

}

switch

and

then

press

the

PLAY

(

[>

)

switch

of

Deck

Il.

9.

Power

will

be

turned

on

automatically

at

the

preset

time,

and

recording

will

start.

oOkRWN

SO

MIC

MIXING

WAKE-UP

PLAYBACK

(Deck

I

and

Il}

1.

Set

the

POWER

switch

to

the

stand-by

position

and

connect

the

power

cord

to

the

outlet

on

the

audio

timer.

.

Set

the

POWER

switch

to

ON.

.

Select

the

DOLBY

NR

switch.

.

Load

the

tape

which

is

to

be

played

back.

.

Adjust

the

volume

control

to

produce

the

level

of

volume

required

when

timer

playback

starts.

.

Set

the

time

on

the

audio

timer

(optional)

so

that

the

power

comes

on

at

the

desired

time.

(Power

to

the

cassette

deck

receiver

should

be

off

at

this

point.)

7.

Press

the

PLAY

(

&

})

switch.

At

the

preset

time,

the

power

is

switched

on

and

the

play-

back

starts

automatically.

oR

WN

>)

Depress

both

PLAY

(

[>

)

switches

(Deck

|

and

Deck

II).

At

the

preset

time,

the

POWER

is

switched

on

and

the

relay

playback

starts

automatically.

Operations

will

vary

according

to

the

audio

timer

used.

For

details,

see

the

operating

instructions

supplied

with

the

audio

timer

(optional).

MIXING

KNOW-HOW

Mixing

involves

combining

the

signals

from

two

input

sources

(a

microphone

and

a

tape,

for

example)

p__]

16

SINGING

ALONG

WITH

A

PROGRAM

SOURCE

Operate

after

setting

the

MIXING

LEVEL

control

to

minimum.

1.

Perform

the

preliminary

operations

on

page

12.

2.

Plug

a

microphone

into

the

MIC

jack.

3.

Adjust

the

volume

to

a

suitable

level.

4.

Set

the

MIXING

LEVEL

control

to

the

center

position.

*

If

howling

occurs

(a

high-pitched

sound

from

the

speak-

ers),

take

the

following

steps.

{1}

Move

the

microphone

away

from

the

speakers.

(2)

Lower

the

volume.

5.

Select

the

desired

program

source

using

the

FUNCTION

switches.

6.

Start

playback

of

the

program

source.

.

Adjust

the

overall

volume.

8.

Using

the

MIXING

LEVEL

control,

adjust

the

sound

balance

between

the

microphone

and

the

program

source.

.

Sing

along

with

the

program

using

the

microphone.

~

oO

|

No

TE:

Recording

of

mixed sound

is

not

possible.

*

When

not

using

the

MIXING

function,

be

sure

to

set

the

MIX-

ING

LEVEL

control

to

SOURCE

and

remove

the

microphone

plug

from

the

MIC

jack.

MAINTENANCE

CLEANING

THE

HEAD

SECTION

The

heads,

capstan

and

pinch

roller

are

parts

which

are

liable

to

get

dirty

quite

easily.

In

particular,

if

the

heads

are

dirty,

the

high

frequency

components

of

the

sound

will

not

be

reproduced

and

the

stereo

balance

will

be

impaired,

resulting

in

a

deterioration

of

sound

quality.

it

is

therefore

recommended

that

the

head

section

be

cleaned

regularly.

1,

Press

the

STOP/EJECT

switch

to

open

the

cassette

door.

2.

Dip

a

cleaning

swab

into

the

cleaning

fluid

and

use

it

to

wipe

the

heads,

capstan,

and

pinch

roller.

NOTE:

°

Clean

the

head

as

shawn

in

the

below

drawing.

Head

Capstan

DEMAGNETIZING

THE

HEAD

The

head

becomes

magnetized

when

you

use

the

tape

deck

for

prolonged

periods

of

time.

This

results

in

noise

being

gener-

ated

and

the

treble

dropping

off

during

recording

and

playback.

The

head

should

therefore

be

demagnetized

regularly

with

a

head

demagnetizer

(sold

separately).

For

further

details,

re-

fer

to

the

operating

instructions

accompanying

your

head

demagnetizer.

NOTE:

*

Do

not

hold

screwdrivers,

metal

objects,

or

magnets

close

to

the

heads.

|

°

When

demagnetizing

the

heads,

be

sure

the

unit’s

POWER

switch

is

in

the

standby

position.

REPLACING

THE

STYLUS

1.

Remove

the

stylus

gently.

Cartridge

2.

Attach

the

new

stylus

to

the

cartridge

and

replace

the

screw,

NOTE:

e

The

service

life

of

the

stylus

on

the

supplied

cartridge

ranges

from

800

to

1,000

hours.

@

Using

a

worn

or

damaged

stylus

can

damage

your

re-

cords

and

distort

the

sound

reproduction.

Remember

to

replace

the

stylus

at

the

earliest

possible

date.

©

Always

use

the

PIONEER

“PN-240"

as

a

replacement

sty-

lus.

©

Always

ask

for

a

genuine

PIONEER

replacement

stylus.

PRECAUTION

If

the

turntable

is

mounted

directly

on

or

against

a

speaker,

the

vibration

from

the

speaker

will

be

transported

to

the

to-

nearm’s

cartridge,

thus

causing

feedback

howling.

Be

sure

that

speakers

are

mounted

sufficiently

separated

from

the

turntable.

127

<ARB1I145

>

TROUBLESHOOTING

Incorrect

operations

are

often

mistaken

for

trouble

and

malfunctions.

If

you

think

that

there

is

something

wrong

with

this

component,

check

the

points

below.

Sometimes

the

trouble

may

lie

in

another

component.

Investigate

the

other

components

and

electrical

appliances

being

used.

If

the

trouble

cannot

be

rectified

even

after

exercising

the

checks

listed

below,

ask

your

nearest

PIONEER

authorized

service

center

or

your

dealer

to

carry

out

repair

work.

Amplifier

section

Symptom

Cause

Remedy

No

sound

from

speakers.

+

Is

volume

fevel

turned

down?

*

Is

Muting

on?

els

the

SPEAKERS

switch

in

the

wrong

position?

*

Are

headphones

connected

to

the

PHONES

jack?

*

Increase

volume

level.

Press

the

Muting

switch

to

cancel

muting.

©

Set

it

to

the

correct

position.

*

Disconnect

the

headphones.

Cassette

tape

deck

section

Symptom

Cause

Remedy

Tape

deck

will

not

work.

*

1s

deck

in

pause

mode?

*

Is

tape

loaded

correctly?

*

Press

PAUSE

switch

to

release

pause

mode.

*

Load

correctly.

No

sound

from

tape

deck.

*

Is

TAPE

FUNCTION

switch

selected?

*

Is'a

blank

tape

loaded?

«

Are

heads

clean?

*

Press

TAPE

FUNCTION

switch.

*

Load

a

pre-recorded

tape.

*

Ciean

heads.

Recording

not

possible.

—

*

Is

tape

loaded

in

Deck

i?

*

Are

heads

clean?

*

Is

a

tab

on

the

cassette

tape

removed?

*

Load

tape

in

Deck

II

for

recording.

*

Clean

heads.

*

Use

a

cassette

tape

with

tabs,

or

place

a

piece

of

adhesive

tape

on

the

back

edge

(see

page

11).

Copying

not

possible

*

Is

3

tab

on

the

cassette

tape

removed?

*

Use

a

cassette

tape

with

tabs,

or

place

a

piece

of

adhesive

tape

on

the

back

edge

(see

page

11).

High

frequency

sounds

not

reproduced,

*

Is

a

non-Dolby

NR

tape

being

played

back

with

the

Dolby

NR

system

on?

*

Turn

off

the

Dolby

NR

system.

High

frequencies

over-

emphasized,

Noise

picked

up

during

recording

of

tape,

record,

radio,

etc.

Tuner

section

Symptom

i

*

Is

a

Dolby

NR

tape

being

played

back

with

the

Dolby

NR

system

off?

*

Turn

on

the

Dolby

NR

system.

Is

power

to

TV

set

turned

on?

is

unit

located

too

close

to

TV

set?

*

Did

you

try

operating

the

BEAT

CUT

switch

(for

AM

broad-

casts

onfyl?

*

Turn

off

TV

set.

*

Move

unit

at

least

30

cm

from

TV

set.

*

Set

the

BEAT

CUT

switch

on

the

rear

panel

to

the

side

where

noise

is

less.

Cause

Remedy

No

sound.

*

1s

TUNER

FUNCTION

switch

selected?

*

Press

TUNER

FUNCTION

switch

AM

reception

not

possible.

*

Is

loop

antenna

connected?

*

1s

BAND

selector

switch

set

to

AM?

*

Is

station

tuned

in

properly?

*

Connect

loop

antenna.

*

Press

the

BAND

selector

switch

for

AM.

*

Tune

in

station

properly.

FM

reception

not

possible.

i

*

Is

antenna

connected?

*

is

BAND

selector

switch

set

to

FM?

*

Connect

antenna,

following

instructions

on

page

4,

5

*

Press

the

BAND

selector

switch

for

FM.

|

Large

amount

of

noise

*

Are

radio

waves

weak,

causing

antenna

input

to

be

insufficient?

*

Switch

OFF

the

COD

player.

Turntable

Symptom

Cause

Remedy

Turntable

does

not

work.

*

is

drive

belt

properly

attached?

*

Attach

belt

correctly.

No

sound

*

Is

PHONO

FUNCTION

switch

selected?

*

Press

PHONO

FUNCTION

switch.

Static,

scratching

noise

produced.

*

Is

record

surface

dirty?

*

I$

record

warped

or

scratched?

*

Clean

record

*

Replace

record.

Remote

Control

Unit

Cause

Remedy

i

Symptem

Remote

control

operation

is

not

possible.

*

Battery

is

not

installed

in

remote

control

unit.

*

Battery

is

dead.

*

Remote

control

cord

is

not

connected.

*

Insert

battery.

*

Insert

a

new

battery.

*

Correctly

connect

remote

control

cord.

18

|

SPECIFICATIONS

Amplifier

Section

Continuous

Average

Power

Output

is

36

watts*

per

channel,

min.,

at

8

ohms

from

20

Hertz

to

20,000

Hertz

with

no

more

than

0.09%**

total

harmonic

distortion.

*

Measured

pursuant

to

the

Federal

Trade

Commission's

Trade

Regulation

rule

Power

Output

Claims

for

Amplifier.

**

Measured

by

Audio

Spectrum

Analyzer.

Continuous

Power

Output

Music

power

{both

channel

driven)

socom,

TOO

W

+

100

W

(1kHz,

T.H.D.

10%,

8Q)

Peak

music

power

L

+R

channels

re

400

W

Frequency

Response

PHONO

MM

..-

20

Hz

to

20,000

Hz

+2

dB

CD,

VIDEO/AUX

0

Hz

to

70,000

Hz

+

2

dB

Signal-to-

Noise

Ratio

(IHF,

short

circuited,

A

network)

PHONO

MM...

.

65

dB

CD,

VIDEO/AUX.

.

90

dB

Graphic

Equalizer

frequency

band

seceehepentetueyeusensee

100

Hz,

330

Hz,

1

kHz,

3.3

kHz,

10

kHz,+10dB

FM

Tuner

Section

Frequency

range.....

Usable

Sensitivity

...

MON

..87.5

MHz

to

108

MHz

6

dBf,

IHF

(1.7

#V/75

ohms)

Signal-to-Noise

Ratio

(85

dBf,

Input)

---------

Mono:

70

dB

Stereo:

67

dB

ART@RNEANPUt

ss

sscescssssssozestebieentusasiaonniscodunasenes

300

2

balanced

75

Q

unbalanced

AM

Tuner

Section

Frequency

range

When

10

kHz

step

.

When

9

kHz

step.

Antenna...

-530

kHz

to

1,700

kHz

.531

kHz

to

1,602

kHz

...

Loop

Antenna

Tape

Deck

Section

Systems

Heads.

+.

4

track,

2-channe!

stereo

-Recording/

playback

head

<1

Playback

head

&

1

Erasing

head

*

1

..

DC

servo

2

speed

motor

x

2

No

more

than

0.3%

(WRMS)

Wow

and

Flutter

Fast

Winding

Time..........000..0..

Approximately

105

seconds

{C-60

tape)

Frequency

Response

—20

dB

recording:

Normal

tape...

eeeeeeeeeeeeeee

35

Hz

to

14,000

Hz

+6

dB

cro,

35 Hz

to

15,000

Hz

+6

dB

Signal-to-Noise

Ratio

Dolby

NROFF,

:ccsscsesesisiessis

d2shdoceetbchasvcanidearticenasgteions

50

dB

Noise

Reduction

Effect

Dolby

B

type

NR

ON..

Miscellaneous

Power

requirements

-AC

110

V/120-127

V/220

V/240

V

(switchable),

«More

than

10

dB

{at

5

kHz)

50/60

Hz

Power

Consumption

+:

cstcsicetteeertsssveerens

310

W

Dimensions...

420

(W)

X

280

(H)

X

320

(D}

mm

16-9/16

(W)

X

11

(H)

X

12-5/8

(D)

in

Weight

(without

package)

............:00

8.7kg

(19ib

3az)

Furnished

Parts

FM

T-type

Antenna

AM

Loop

Antenna

Operating

instructions

.

Remote

control

unit.

Dry

cell

batteries

[AAA

(RO3)].

19

<ARB1146

>

SPECIFICATIONS

Turntable

[PL-210Z,

PL-310Z]

Motor,

Platter

Motor

Type...

DC

servo

motor

Delve

Method.

cn0%

04.

scysassasvavceroastere

reise.

ooesn

belt

drive

SP

COD

iiss

svcchoness

cutie

dy

sssnnebvsrtvencieetiodilcdoestocd

33-1/3,

45

RPM

Speed

Variation

0.07%

WRMS

(JIS)

40.10%

WTD

Peak

(DIN)

68

dB

(DIN-B)

295

mm

dia.,

aluminum

die-cast

Signai-to-Noise

Ratio

Pi

TYPO

ccsssbisesssdevsrscredssne

static-balance

type,

straight

tonearm

Replacement

stylus

Stylus...

eceseres

0.6 mil

diamond

Output

voltage

2.5

mV(1

kHz,

5

cm/s,

Lat.

peak)

Tracking

Force

5

—

2.5

g

(optimum

2.0

g)

Frequency

Response.

serseeeee

10

HZ

to

30,000

Hz

Load

Resistance.

47

kQ

Cartridge

Weight...

Others

Dimensions

ti

Oa

|

Re

ee

420

(W)

x

95

(H)

X

356

(D)

mm

16-9/16

(W)

X

3-3/4

(H)

X

14

(D)

in

+420

(W)

X

95

.(H)

X

356

(D)

mm

16-9/16

(W)

x

3-3/4

(H)

*

14

(D)

in

-2.7

kg

(5

Ib

15

oz)

-2.7

kg

(6

lb

15

02)

Accessories

ER

AG

a

torseen

cists

testessvesnchecttosatsensutesSoepesvicertcoddesivicbascudebdebte

1

NOTE:

Specifications

and

the

design

subject

to

possible

modific-

ations

without

notice

due

to

improvements.

PIONEER

ELECTRONIC

CORPORATION

4-1,

Meguro

1-Chome,

Meguro-ku,

Tokyo

183,

Japan

PIONEER

ELECTRONICS

[USA]

INC.

2265

East

220th

Street

Long

Beach,

California

90810

U.S.A.

P.O.

BOX

1720

Long

Beach,

California

90801-1720

U.S.A.

PIGNEER

ELECTRONICS

OF

CANADA,

INC.

505

Cochrane

Drive,

Markham,

Ontario

L3R

8E3

Canada

PIONEER

ELECTRONIC

[EUROPE]

N.V.

Keetbergiaan

1,

2740

Beveren,

Beigium

TEL:

03/775-28-08

PIONEER

ELECTRONICS

AUSTRALIA

PTY.

LTD.

178-184

Boundary

Road,

Braeside,

Victoria

3195.

Australia

TEL:

{03}

580-9911

<88FOOYY6C02>

Printed

in

Japan

<ARB1145-A>
