Pioneer CS-99 User manual

15" Illl00rtR
SPEAKER
5.WAY
SYSTEM
rcffiffiroIffiffiffiR
ffiffiffitrffiffi*ffiffiffi
The grille made of natural wood to match
modern furniture. lmpressive bass by a 15"
(38 cm) woofer, and fine treble by tweeters.
Model CS-99 is the highest-quality speaker
system.
OPERATION GUIDE
VVORLD-FAMOUS BRAN() IN HI-FI REPRODUCTION

cs-gsl

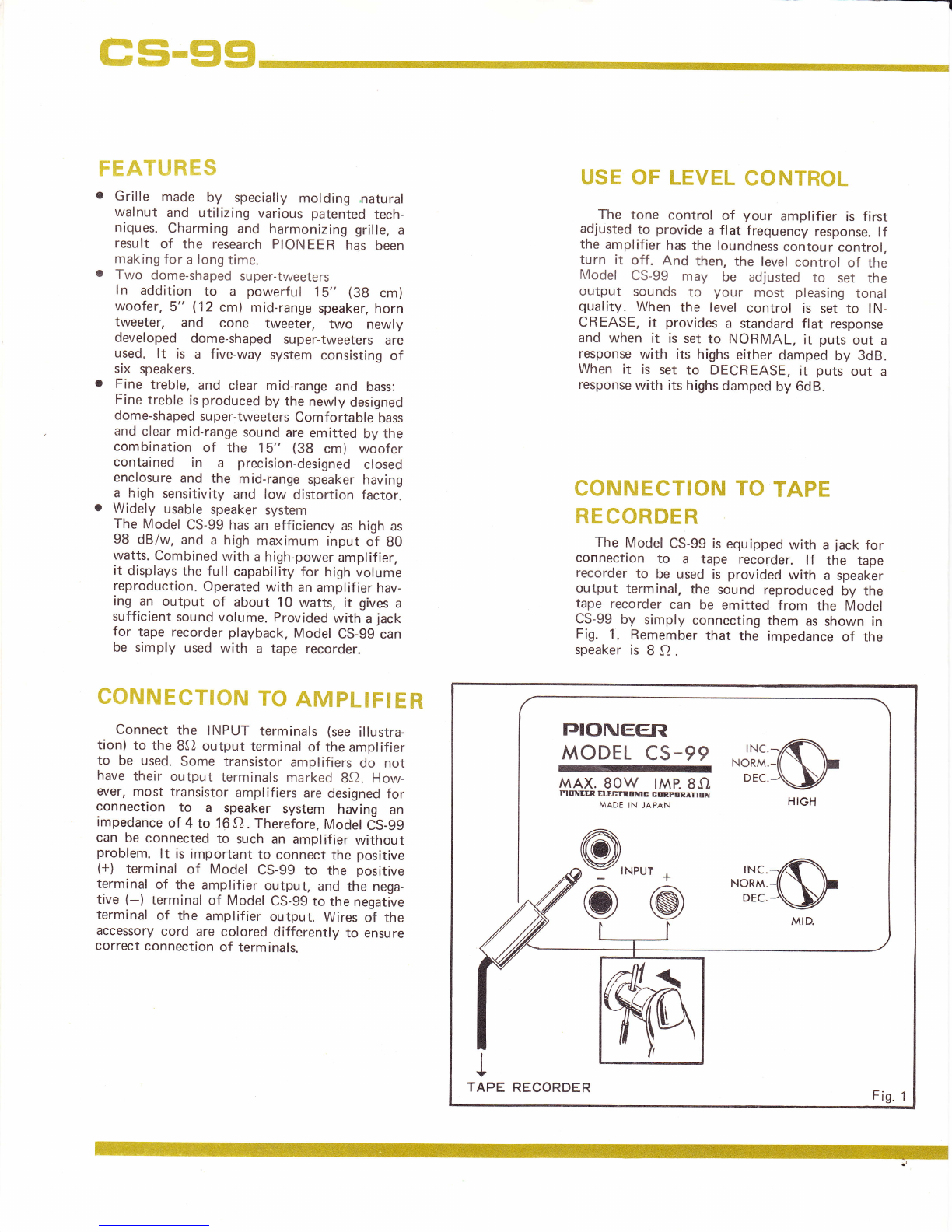

FEATURES
o Grille made by specially molding natural
walnut and utilizing various patented tech-
niques. Charming and harmonizing grille, a
result of the research PIONEER has been
making for a long time.
o Two dome-shaped super-tweeters
ln addition to a powerful 15" t38 cm)
woofer, 5" (12 cm) mid-range speaker, horn
tweeter, and cone tweeter, two newly
developed dome-shaped super-tweeters are
used. lt is a five-way system consisting of
six speakers.
. Fine treble, and clear mid-range and bass:
Fine treble is produced by the n-ewly designed
dome-shaped super-tweeters Comfortable bass
and clear mid-range sound are emitted by the
combination of the 15" (38 cm) woofer
contained in a precision-designed closed
enclosure and the mid-range speaker having
a high sensitivity and low distortion factor.
o Widely usable speaker system
The Model CS-99 has an efficiency as high as
98 dB/w, and a high maximum input of 80
watts. Combined with a high-power amplifier,
it displays the full capability for high volume
reproduction. Operated with an amplifier hav-
ing an output of about 10 watts, it gives a
sufficient sound volume. Provided with a jack
for tape recorder playback, Model CS-9g can
be simply used with a tape recorder.
CONNECTION TO AMPLIFIER
Connect the INPUT terminals (see illustra-
tion) to the 8S/ output terminal of the amplifier
to be used. Some transistor amplifiers do not
have their output terminals marked 8S/. How-
ever, most transistor amplifiers are designed for
connection to a speaker system having an
impedance of 4 to 10 ,fl. Therefore, Model CS-gg
can be connected to such an amplifier without
problem. lt is important to connect the positive
(+) terminal of Model CS-gg to the positive
terminal of the amplifier output, and the nega-
tive (-) terminal of Model CS-gg to the negative
terminal of the amplifier output. Wires of the
accessory cord are colored differently to ensure
correct connection of terminals.
USE OF LEVEL CONTROL
The tone control of your amptifier is first
adjusted to provide a flat frequency response. lf
the amplifier has the loundness contour control,
turn it off. And then, the level control of the
Model CS-99 may be adjusted to set the
output sounds to your most pleasing tonal
quality. When the level control is set to lN-
CREASE, it provides a standard flat response
and when it is set to NORMAL, it puts out a
response with its highs either damped by 3dB.
When it is set to DECREASE, it puts out a
response with its highs damped by 6dB.
CONNECTION TO TAPE
RE CORDE R
The Model CS-99 is equipped with a jack for
connection to a tape recorder. lf the tape
recorder to be used is provided with a speaker
output terminal, the sound reproduced by the
tape recorder can be emitted from the Model
CS-99 by simply connecting them as shown in
Fig. 1. Remember that the impedance of the
speaker is 8 Sl .
TJIONEETI
MODEL CS-99
MAX. 80W tMP. 8rI
FIIINEEE ELEGTN,ENIG GITTPTITANEN
MADE IN JAPAN
@,*,,,
@s
MID.
I
*
TAPE RECORDER Fis. 1

cs-99
NOTE
The cabinet of the Model CS-99 is made of
walnut, the same material as that of high-class
furniture. lt is oil-finished to make the most of
the characteristics of natural walnut. The quality
can be retained for long by polishing it with wax
every three or four months. Evenly wax the
cabinet with dry cloth. Completely wipe off
excessive wax by rubbing the cabinet along the
grain with a new piece of dry cloth, and polish it.
lf the cabinet should be scratched, gently
rub the scratched portion with steel wool or
sandpaper ( # 400-500), apply wax, and polish
there.
n0
'rJ
z t00
3ea
a
\J
ABo
tJ-l
70
60
tr0
a
z 100
Uso
=
O
ABo
UJ
q10
50
U)
3ao
O
=?n
UJ
C)
=20
o
Li
dtn
60
40 60 80 100 400 600 1,00a 2,000
F!(EQUENCY /l\/ Hz ,000 t0,000 20,000
400 600 1,000 2,000
FRFQUFNCy tN Hz 4,000 6,000 10,000 20,c00 40,000
cs -gg
20
0L
20 400 600 t,000
FREQUEA/CY 2,000
IN Hz
.-r<\.
ll l-1'
MID HIGH LEVEL
INCREASE/.
NORMAL /
RECREASE
lr
,/.2)rf
cs -gg l-
lt
OU B0 100 4p00 6,000 10,000 20,000 40,000

cs-gsl
LISTENING TECHNIOUES
Better sound effect can be obtained by laying
a rug on the floor and hanging a curtain on the
wall which is opposite to the front of the
speaker system. ln stereo reprocluction, the
distance between right and left speakers much
affects the sound emitted. lt is recommended
to locate the speakers 5 to I feet apart.
* The sensitivity has been measured in ac-
cordance with JIS C5531 set forth in 1969.
The value in parentheses is a corresponding
figure measured in accordance with the super-
seded JIS C5501. (JlS: Japan lndustrial
Standards)
(7OHO3FO3S) PIONEER ELECTRONICS U.S.A. CORPORATION
140 Smith St., Farmingdale, L.1., N.Y. 11735, U.S.A.
Composition:
lmpedance:
Frequency Range:
" Sensitivity
Maximum lnpu|
Crossover Frequency
Dimensions
Weight:
PToNEER ELECTRONTC (EUROPE) NV
Frankrilklei 64-68, 2000 Antwerp, Belgium
SPECIFICATIONS
-Type of Cabinet:
Loudspea kers: Closed type
Woofer, 15" 1
Mid-range 5" 1
Cone tweeter 1
Horn tweeter 1
Super-tweeter
dome-shaped 2
6-speaker, S-way
Bo.
25 -22000 Az
98 dB/w (104 dB/w)
B0 watts
600 Hz
4000 Hz
7500 Hz
14000 Hz
25" (635 mm) high
15-15116" (404 mm) wide
11-7l16" (290 mm) deep
Without package 53 lb (24kg)
-
PIoNEEFI ELECTFIoNIe coFIPoFIATIo
15-5, 4-Chome, Ohmori-nishi, Ohta-ku, Tokyo, Japan J
