Pioneer VSX-505S User manual

Operating
Instructions .
re S ‘i Sri Conta
§D PHONGER noomar amnomcena VSX-8O55
AUDIO/VIDEO
STEREO
RECEIVER
lustration shows Multi-voltage model.
Thank you for buying this Pioneer product.
Please
read
through
these
operating
instructions
so
you
will
know
how
to
operate
your
model
properly.
After
you
have
finished
reading
the
instructions,
put
them
away
in
a
safe
place
for
future
reference.
In
some
countries
or
regions,
the
shape
of
the
power
plug
and
power
outlet
may
sometimes
differ
from
that
shown
in
the
explanatory
drawings.
However
the
method
of
connecting
and
operating
the
unit
is
the
same.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The
serial
number
for
this
equipment
is
located
on
the
rear
panel.
Please
write
this
serial
number
on
your
enclosed
warranty
card
and
keep
it
in
a
secure
area.
This
is
for
your
security.
[For Canadian model]
CAUTION: To PREVENT ELECTRIC SHOCK DO NOT USE
THIS
(POLARIZED)
PLUG
WITH
AN
EXTENSION
CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
ATTENTION:
Pour
PREVENIR
LES
CHOCS
ELECTRIQUES
NE
PAS
UTILISER
CETTE
FICHE
POLARISEE
AVEC
UN
PROLONGATEUR,
UNE
PRISE
DE
COURANT
OU
UNE
AUTRE
SORTIE
DE
COURANT,
SAUF
SI
LES
LAMES
PEUVENT
ETRE
INSEREES
A
FOND SANS
EN
LAISSER
AUCUNE
PARTIE
A
DECOUVERT.
=}
| DEMO MODE
@
The
demonstration
mode
is
activated
by
turning
on
the
power
switch
while
holding
down
the
RETURN
button
(from
power
standby
condition).
The
demonstration
will
appear
on
the
display.
®
Press
any
button
to
cancel
the
demonstration.
Activating
the
demonstration
mode
causes
memory
contents
to
return
to
their
original
default
condition,
except
the
tuner.
WARNING:
To
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
MOISTURE,
|
RETURN
function
This
function
returns
the
unit
to
its
initial
settings
with
the
tuner
ready
to
receive
a
broadcast.
This
is
heipful
during
troubleshooting
or
when
no
sound
is
output.
For
details,
|
refer
to
page
13.
|
[
THE
POWER
SWITCH
IS
SECONDARY
CONNECTED
AND
THEREFORE
DOES
NOT
SEPARATE
THE
UNIT
FROM
|
MAINS
POWER
IN
STANDBY
POSITION.
© PIONEER:
The Art of Entertainment

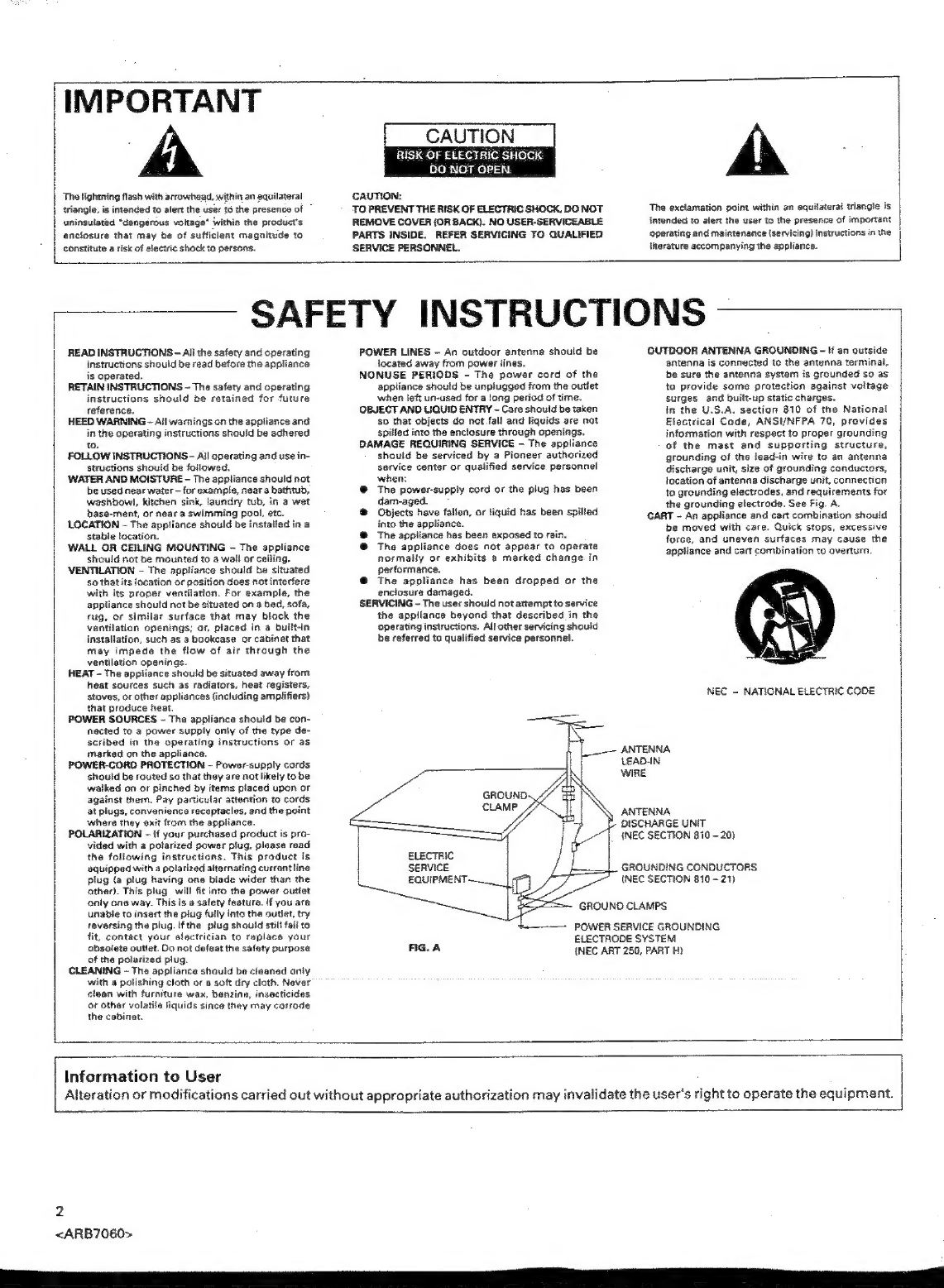

IMPORTANT
‘The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
uninsuiated “dangerous voltage‘ within the product's
anciosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
RISK OF ELECTRIC SHOCK:
CO NOT GPEN:
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK}. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral triangie is
Intended to alert the user to the presence of important
‘operating and maintenance (servicing) instructions in the
titerature accompanying the appliance.
READ INSTRUCTIONS — Ail the safety and operating
instructions should be read before the appliance
is operated.
RETAIN INSTRUCTIONS ~ The safety and operating
instructions should be retained for future
reference.
HEED WARNING ~ Ail warnings on the appliance and
in the operating instructions shouid be adhered
to.
FOLLOW INSTRUCTIONS - Ail operating and use in-
structions should be foltowed.
WATER AND MOISTURE - The appliance should not
be used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
base-ment, or near a swimming pool, etc.
LOCATION - The appliance should be installed in a
stable location.
WALL OR CEILING MOUNTING -~ The appliance
should not be mounted to a wall or ceiling.
VENTILATION - The appliance should be situated
so that its location or position does not interfere
with its proper ventiiation. For example, the
appliance should not be situated on a bed, sofa,
rug, or similar surface that may block the
ventilation openings; or, placed in a built-in
installation, such as a bookcase or cabinet that
may impede the flow of air through the
ventilation openings.
HEAT - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances (including arnplifiers}
that produce heat.
POWER SOURCES - The appliance should be con-
nected to a power supply oniy of the type de-
scribed in the operating instructions or as
marked on the appliance.
POWER-CORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them. Pay particular attention to cords
at plugs, convenience receptacles, and the point
where they exit from the appliance.
POLARIZATION - if your purchased product is pro-
vided with a polarized power ptug, please read
the following instructions. This product is
equipped with a polarized alternating currentline
plug (a plug having one blade wider than the
ather}. This plug will fit into the power outlet
only one way. This is a safety feature. if you are
unable to insect the piug fully into the outlet, try
reversing the plug. ifthe plug should still fail to
fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose
of the polarized plug.
CLEANING ~ The appliance should be cleaned only
with 4 polishing cloth or a soft diy cloth. Never
clean with furniture wax, benzine, insecticides
or other volatile liquids since they may corrode
the cabinet.
POWER LINES - An outdoor antenna should be
located away from power lines,
NONUSE PERIODS - The power cord of the
appliance should be unpiugged from the outlet
when left un-used for a long period of time.
OBJECT AND UQUID ENTRY - Care should be taken
so that objects do not fall and liquids are not
spilfed into the enclosure through openings.
DAMAGE REQUIRING SERVICE - The appliance
should be serviced by a Pioneer authorized
service center or qualified service. personnel
when:
The power-supply cord or the plug has been
darm-aged.
Objects have falten, or tiquid has been spilled
into the appliance.
The appliance has been exposed to rain.
The appliance does not appear to operate
normally or exhibits a marked change. in
performance.
@® The appliance has been dropped or the
enclosure damaged.
SERVICING ~ The user shouid not attempt to service
the appliance beyond that described in the
operating instructions, All other servicing should
be referred to qualified service personnel.
ELECTRIC
SERVICE
EQUIPMENT:
SAFETY INSTRUCTIONS
OUTDOOR ANTENNA GROUNDING - if an outside
antenna is connected to the antenna terminal,
be sure the antenna system is grounded so as
to provide some protection against voitage
surges and built-up static charges.
in the U.S.A. section 810 of the National
Electrical Code, ANSi/NFPA 70, provides
information with respect to proper grounding
of the mast and supporting structure,
grounding of the fead-in wire to an antenna
discharge unit, size of grounding conductors,
tocation af antenna discharge unit, connection
to grounding electrodes, and requirements for
the grounding electrode. See Fig. A
CART ~ An appliance and cart combination should
be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the
appliance and cart combination to overturn.
NEC - NATIONAL ELECTRIC CODE
ANTENNA
LEAD.
WIRE
IN
ANTENNA
DISCHARGE UNIT
{NEC
SECTION 816 - 20)
GROUNDING CONDUCTORS.
(NEC
SECTION 810-21)
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
FIG. A
{NEC ART 250, PART H)
Information to User
Jad
Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.
2
<ARB7060>

| CONTENTS
ACCESSORY ITEMS: c2.cciccceesessoocsasasevspsvsuepdeecasecusatsnstsbnee sav sanebucsvatusevsseccetedecbbasesecscbeceteoee 3
BEFORE OPERATING, ADJUST THE POSITION OF THESE SWITCHES ......
ONE TOUCH OPERATION

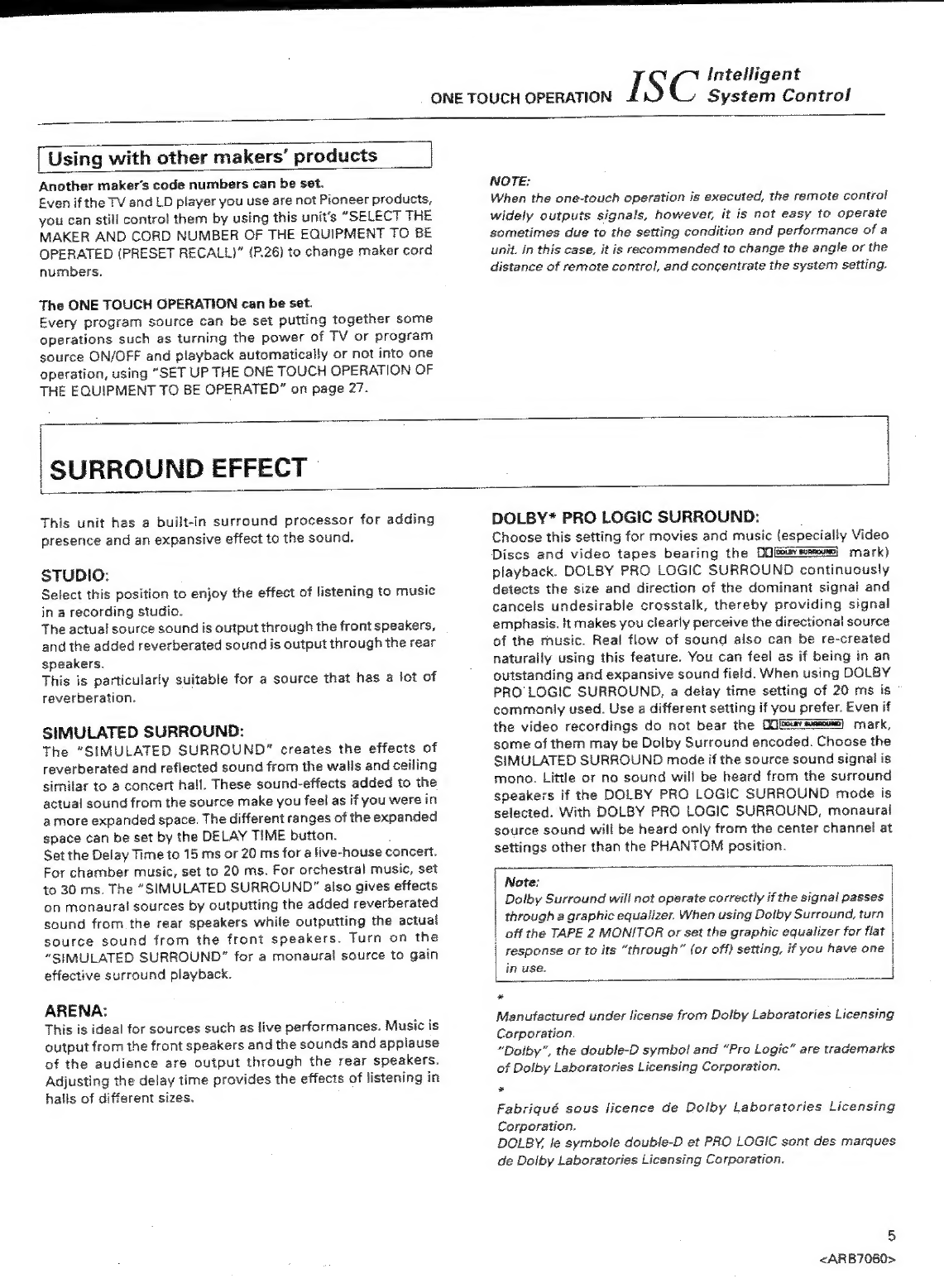

SURROUND EFFECT

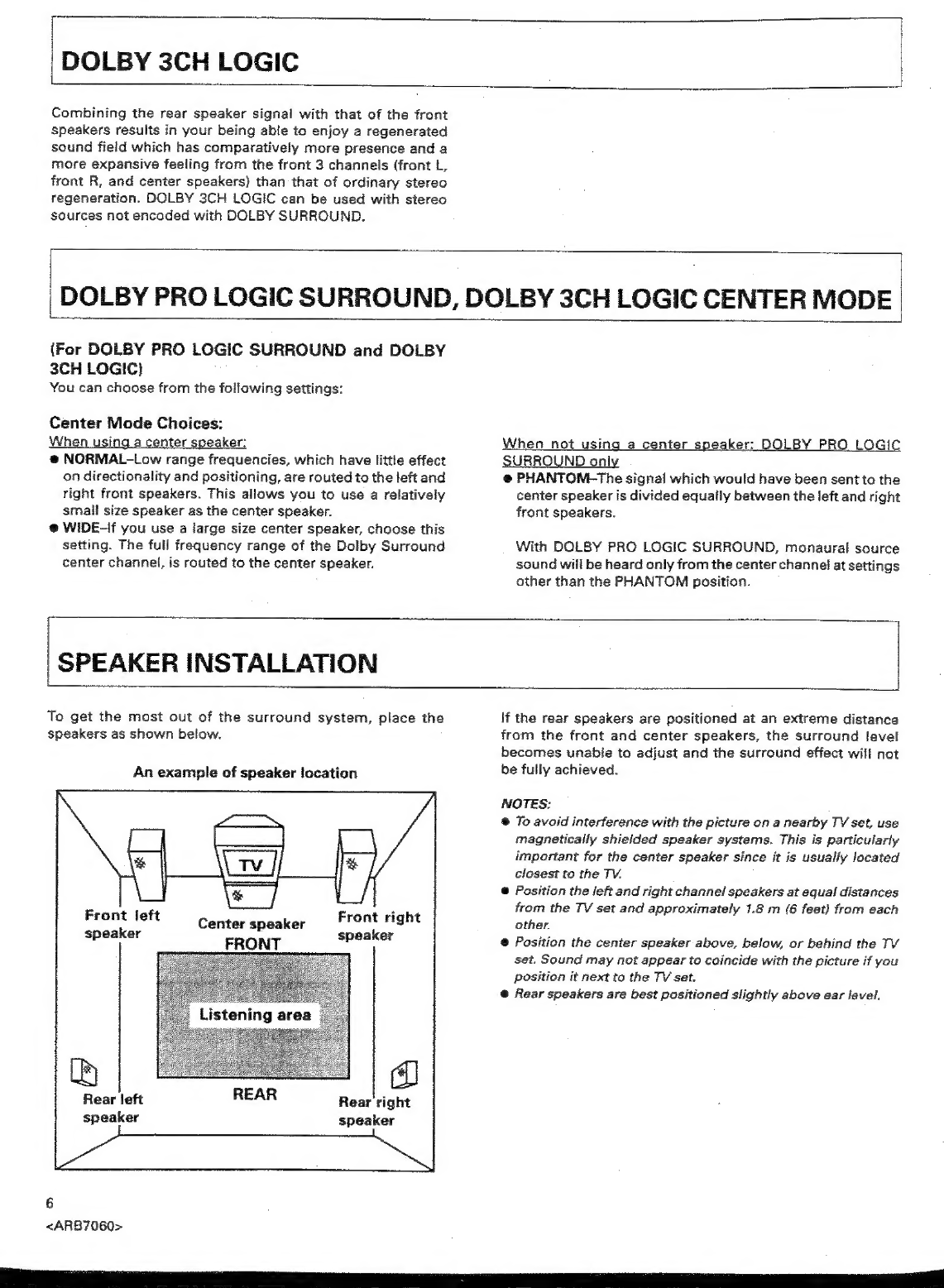

DOLBY 3CH LOGIC ..
DOLBY PRO LOGIC SURROUND, DOLBY 3CH LOGIC CENTER MODE ....
SPEAKER INSTALLATION...

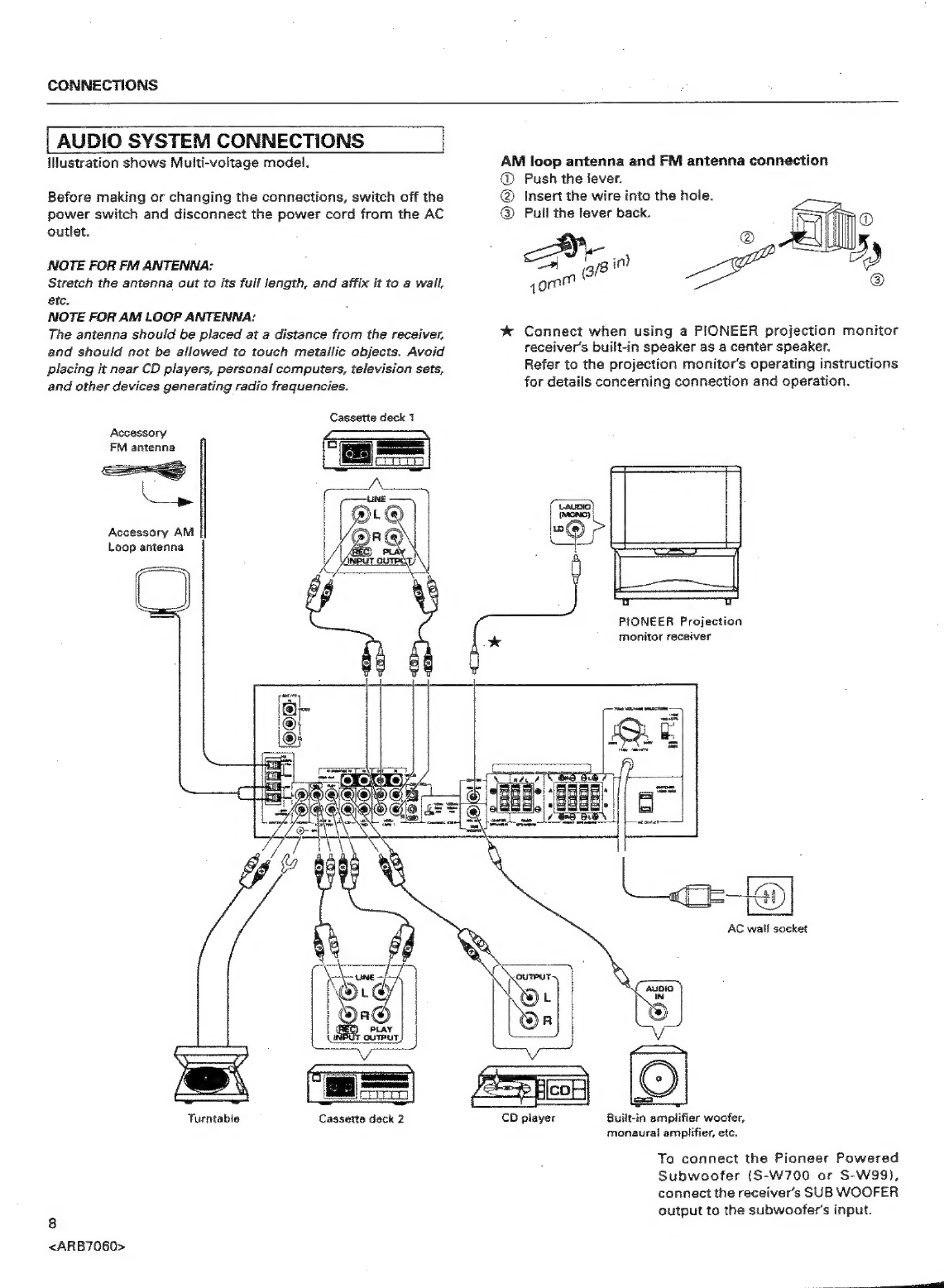

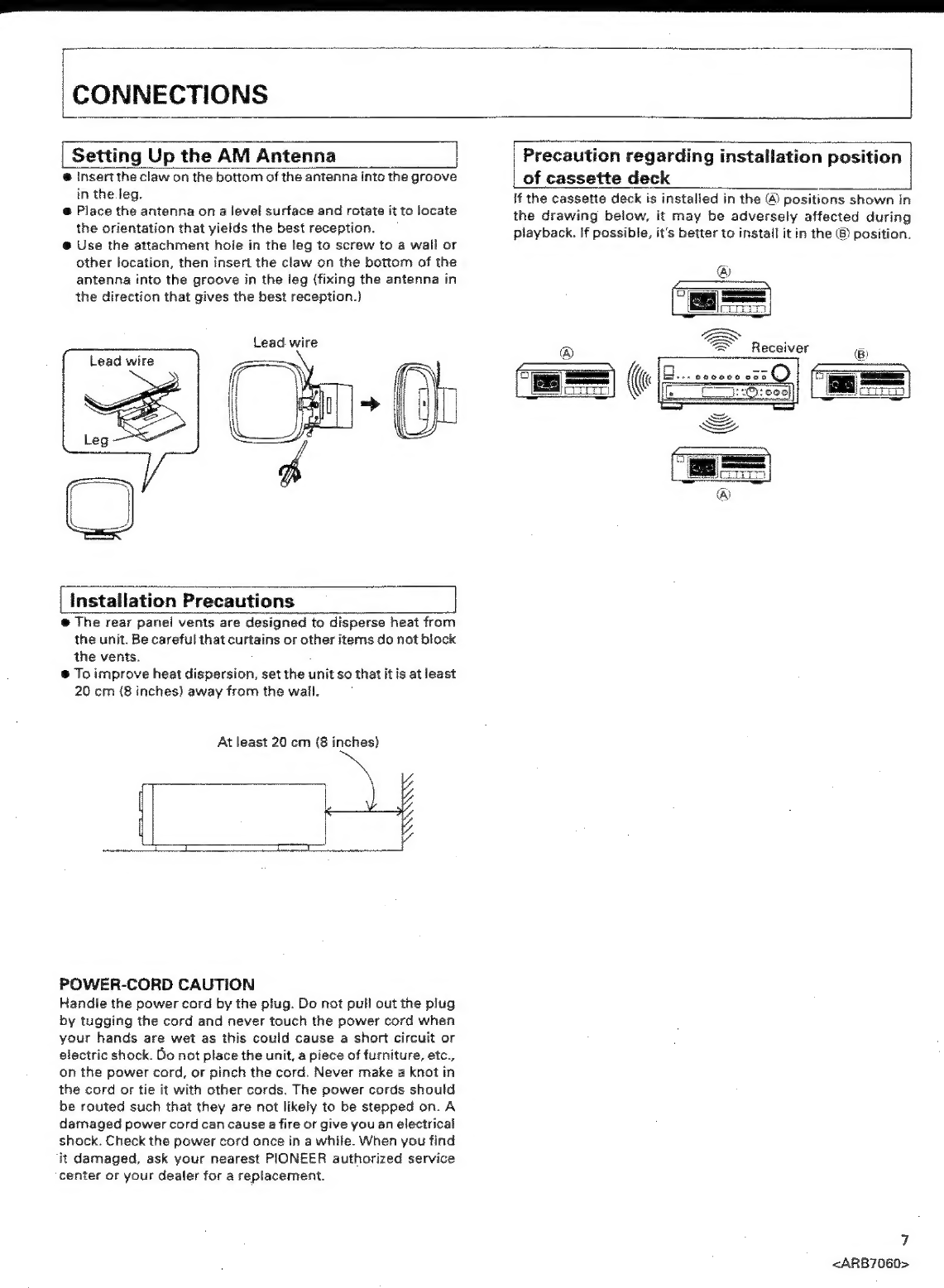

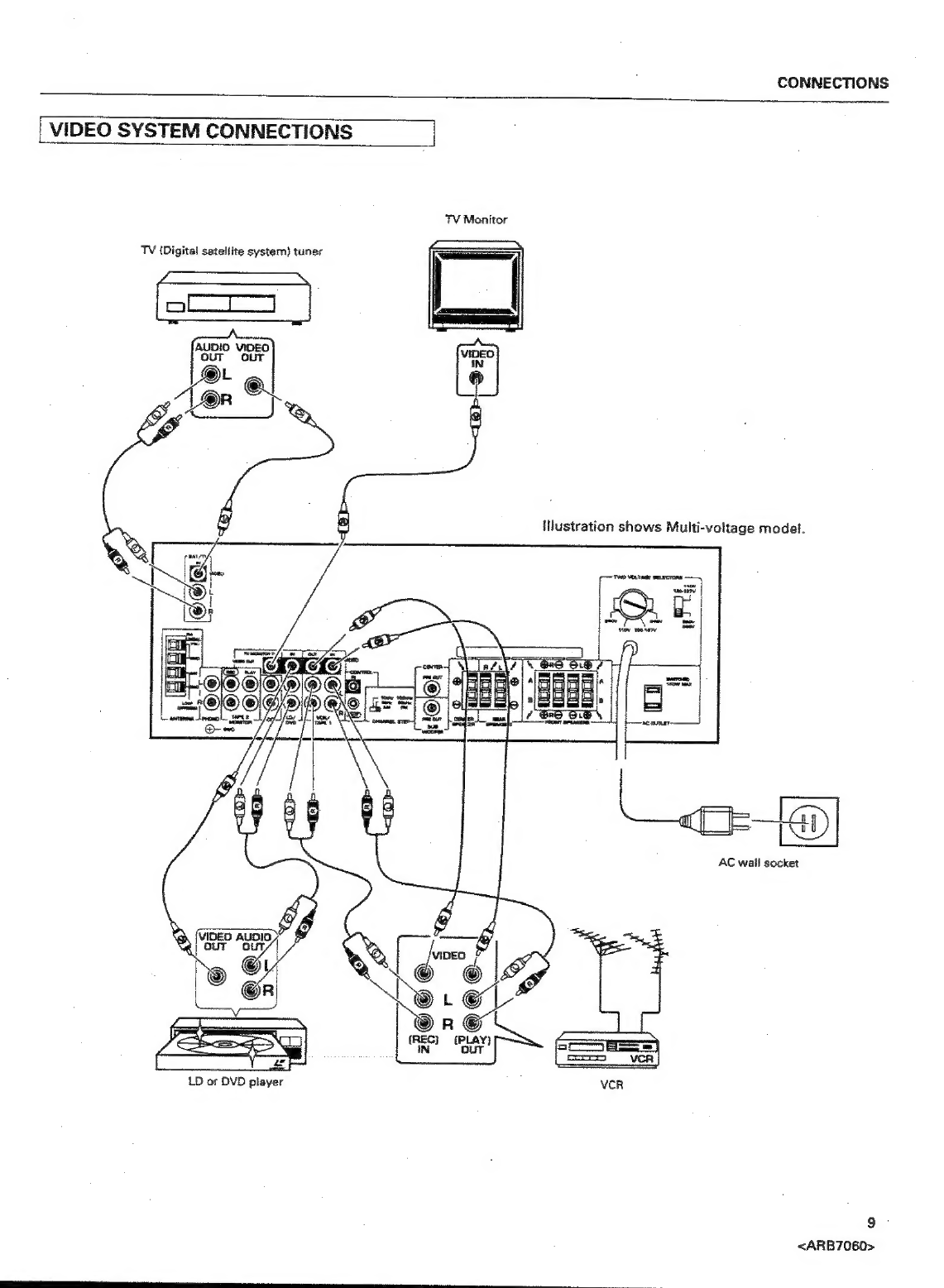

CONNECTIONS

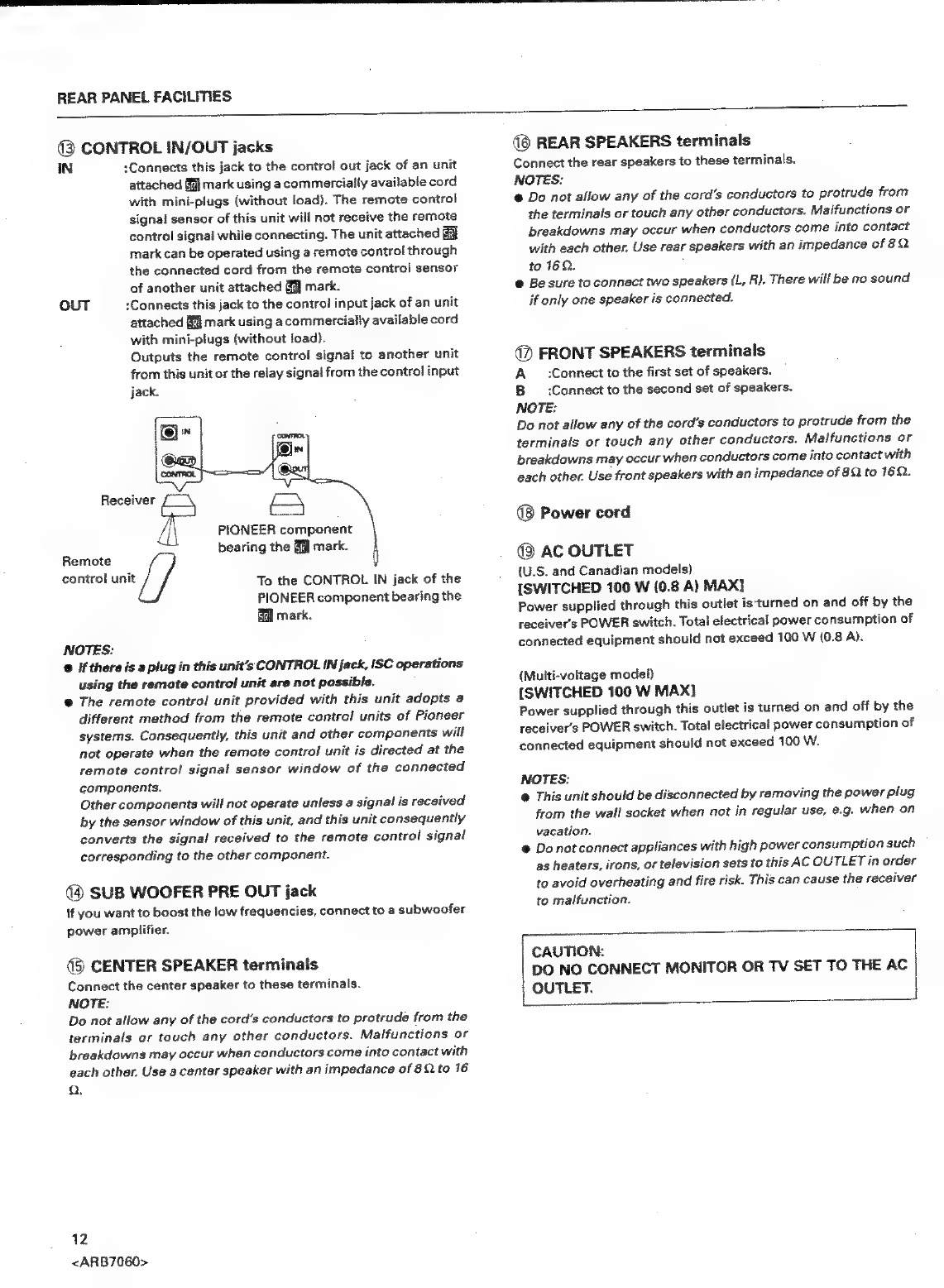

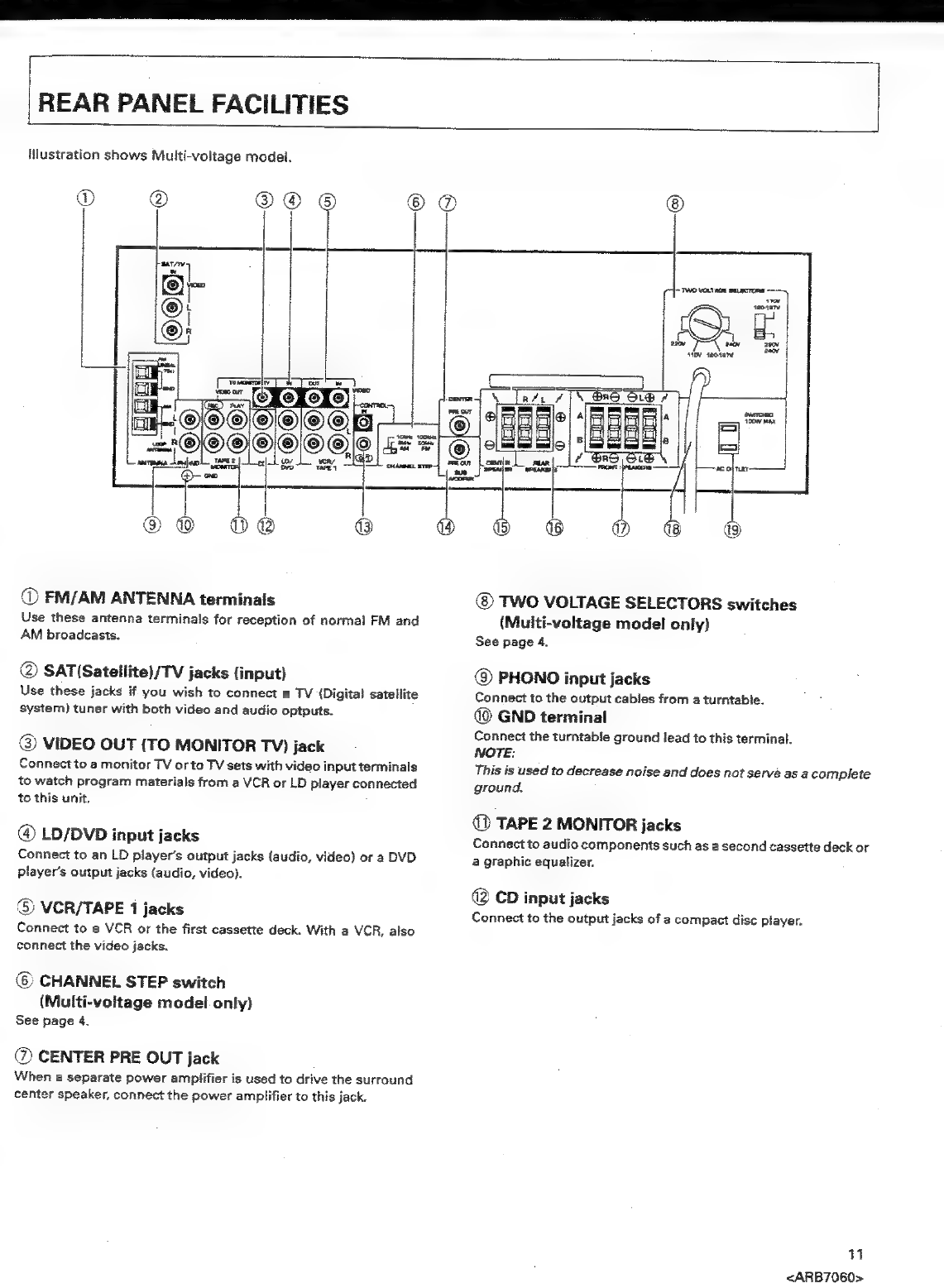

REAR PANEL FACILITIES

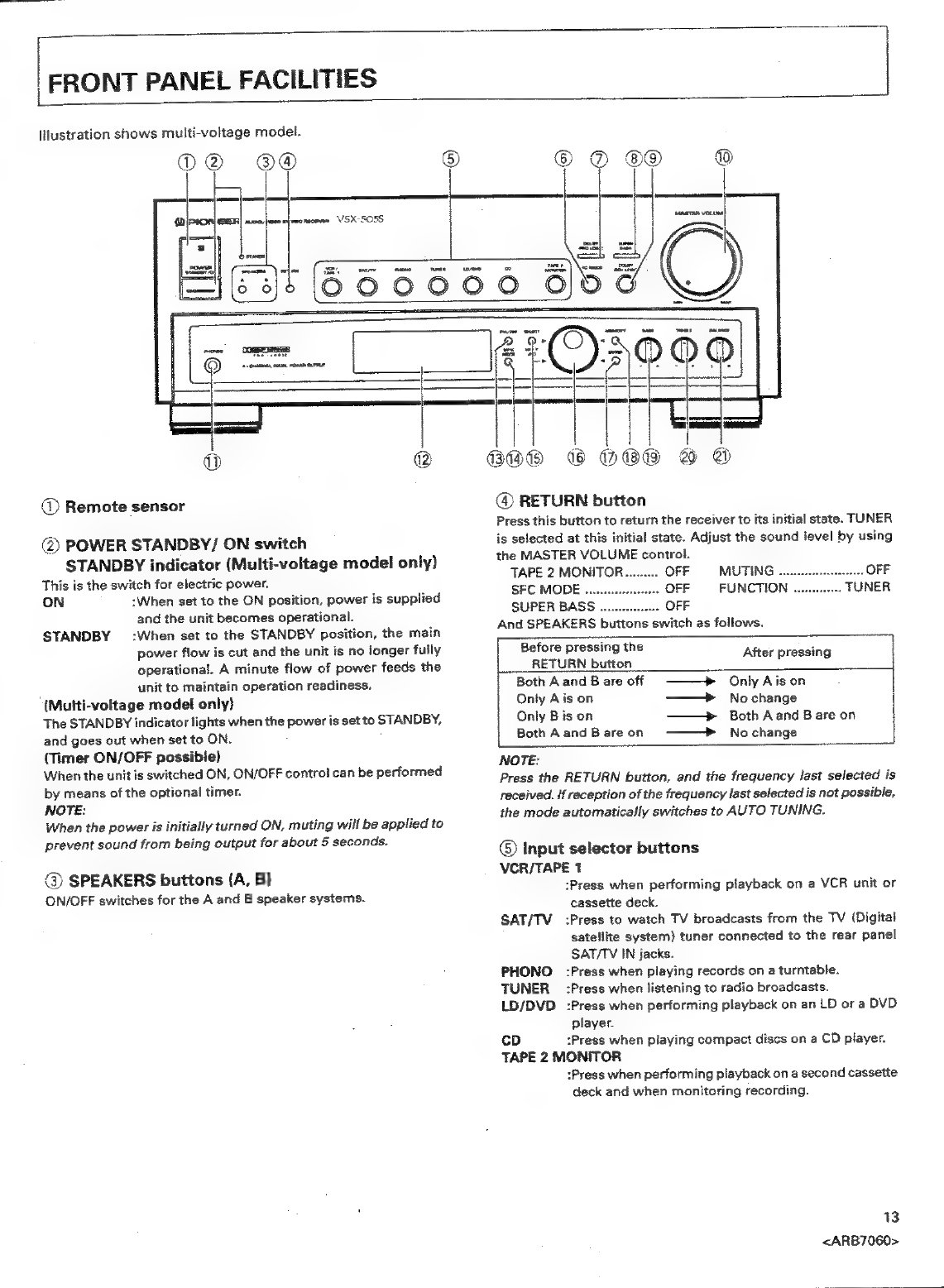

FRONT PANEL FACILITIES
OPERATING THE TUNER
TUNING INTO STATIONS ....
PRESET TUNING
RECEIVING FM SIMULCAST TV PROGRAMS
OPERATING THE AUDIO/VIDEO COMPONENTS ..
PLAYBACK

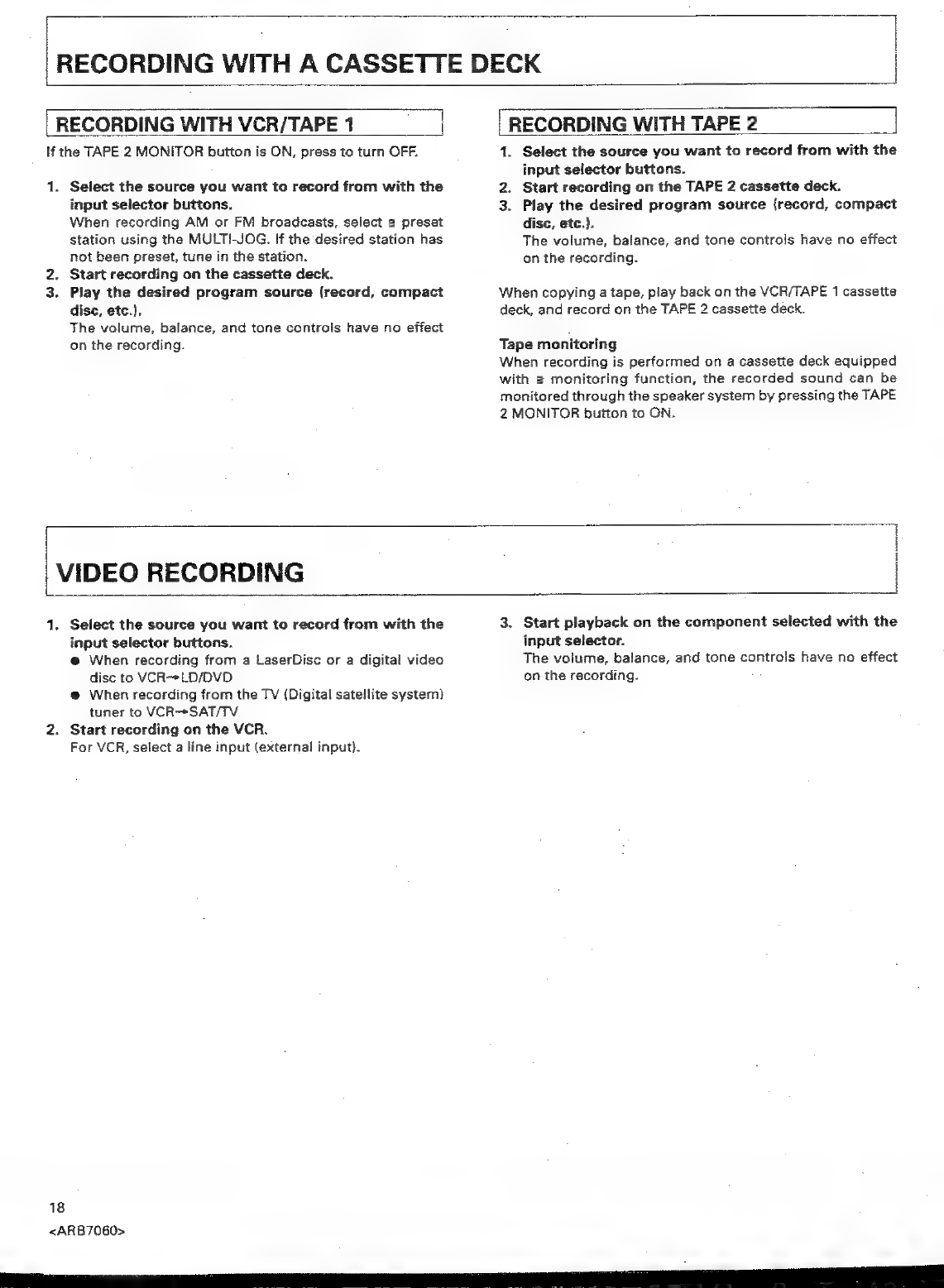

RECORDING WITH A CASSETTE DECK
VIDEO RECORDING
HINTS FOR BETTER RECEPTION

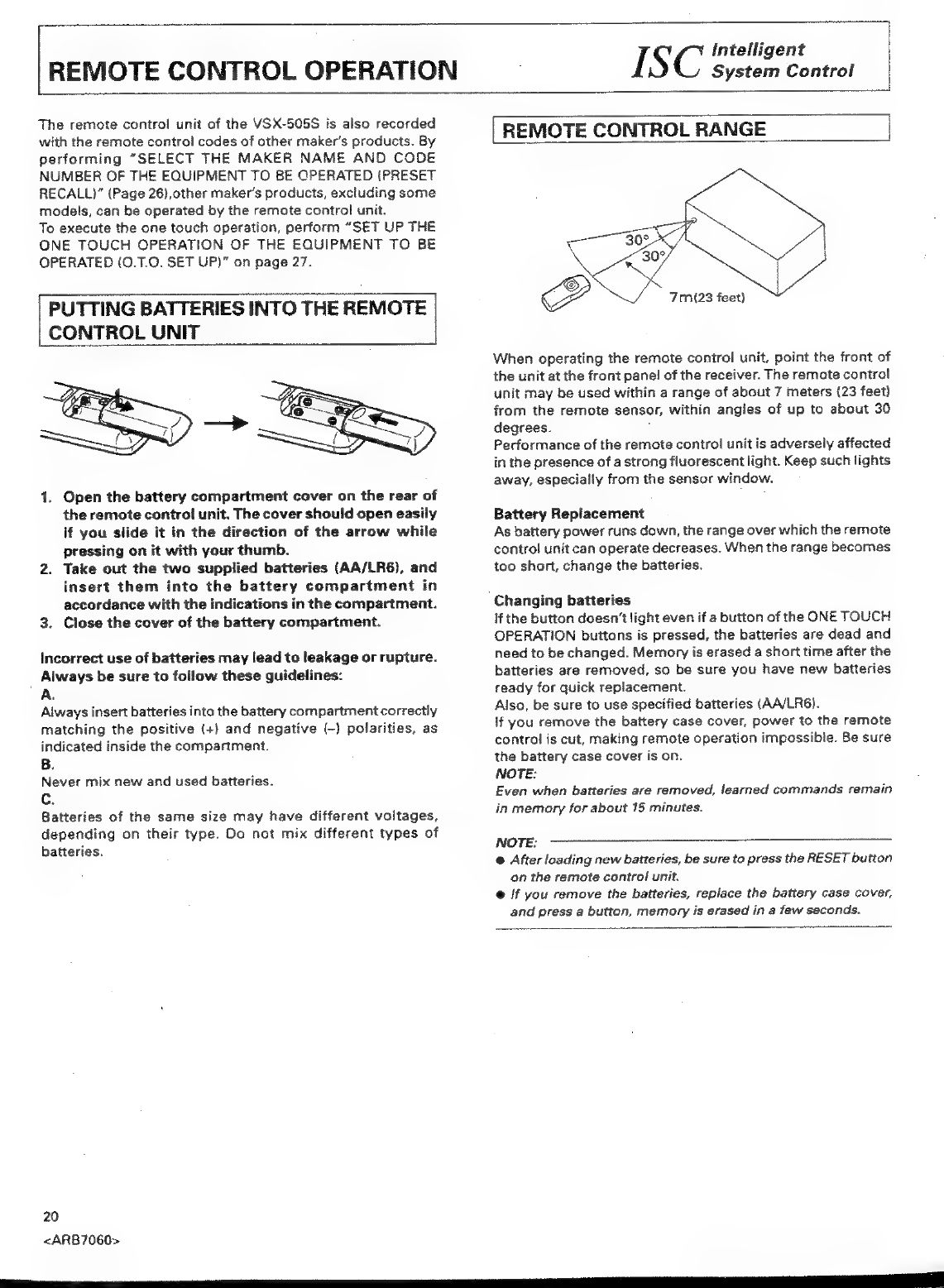

REMOTE CONTROL OPERATION .....
SETTING THE VARIOUS SURROUND EFFECTS (SURROUND MODE) ....
EASY OPERATION OF OTHER MAKER’S PRODUCTS BY
REMOTE CONTROL UNIT (REMOTE SET UP) .............cccscsesseeeseeesersescsssussuncsssenenas 26
TROUBLESHOOTING
LIST OF MAKER CODES 31
SPECIFICATIONS 35
|
ACCESSORY ITEMS
FM antenna
AM Loop Antenna
Remote control unit
Dry cell battery
(AA/LR6) x2
3
<ARB7060>

| BEFORE OPERATING, ADJUST THE POSITION OF THE THESE SWITCHES
TWO VOLTAGE SELECTOR SWITCHES |
(Not availabie on U.S. and Canadian models)
CHANNEL STEP SWITCH
| (Multi-voltage model only}
Only multi-voltage model is provided with these
switches. U.S. and Canadian models are not provided
with these switches. Mains voitages in Saudi Arabia
are 127 V and 220 V only. Never use this model with
the 110 V setting in Saudi Arabia.
The line voltage selector switches are on the rear panel. Check
that they are set properly before plugging the power cord into
the household wall socket. If the voltage is not properly set or if
you move to an area where the voltage requirements differ, adjust
the selector switches as follows.
1. Use a medium-size screwdriver.
2. First, insert the screwdriver in the groove of the voltage selector
at the right, and adjust so that the tip of the groove points to
the voltage value of your area.
3. Next, insert the screwdriver in the groove of the voltage
selector at the left and adjust until the voltage is the same as
at the right. WO VOLTAGE SELECTORS
P {>> 101
ee 108 “
i
Medium-size t
The unit has been factory preset to the channel allocation value
for the area in which it is to be soid. if this value is set incorrectly,
the tuned in frequency may be wrong, or sound may be distorted,
resulting in an inability to reproduce reception signals at their
proper sound quality. For this reason, be sure to confirm that
the values are set correctly before first using the unit.
(FM 100 kHz/AM 10 kHz) position:
Set to this position for areas with an FM reception step of 100
kHz and AM 10 kHz.
(FM 50 kHz/AM $ kHz) position:
Set to this position, for areas with an FM reception step of 50
kHz and AM 9 kHz.
NOTE:
When unsure about the channel allocation for your area, consult
your dealer for correct information.
ale
CHANNEL STEP
ONE TOUCH OPERATION
L S C syste ona
ISC (intelligent system control) is a general term for the
following functions.
@ One touch operation
This enables the desired operation using a button.
@ Easy set up
This enables the easy operation of setting the remote
control's code number, surround and one-touch operation
according to the message on the display.
@ Heads up remote
The operational characteristic of remote control is
intensified to five buttons (Select/Adjust buttons (A, <<,
ft, 7) and ENTER (c>) button).
4
<ARB7060>
What is one-touch operation?
One-touch operation enables operation of multiple audio/
video functions at the touch of a button.
For example, with LD play one-touch operation, the following
operations are performed automatically after you press a
singie button on the remote control.
@ RECEIVER
@ RECEIVER
@wv..
@ to.
@ tb
When the components yau are using are ali made by Pioneer,
you can use the factory settings.

a
Intelligent
ONE
TOUCH
OPERATION
[
S
C;
System
Controj
|
Using
with
other
makers’
products
Another
maker's
code
numbers
can
be
set.
Even
if
the
TV
and
LD
player
you
use
are
not
Pioneer
products,
you
can
still
control
them
by
using
this
unit's
“SELECT
THE
MAKER
AND
CORD
NUMBER
OF
THE
EQUIPMENT
TO
BE
OPERATED
(PRESET
RECALL)”
(P.26)
to
change
maker
cord
numbers.
The
ONE
TOUCH
OPERATION
can
be
set.
Every
program
source
can
be
set
putting
together
some
operations
such
as
turning
the
power
of
TV
or
program
source
ON/OFF
and
playback
automatically
or
not
into
one
operation,
using
“SET
UP
THE
ONE
TOUCH
OPERATION
OF
THE
EQUIPMENT
TO
BE
OPERATED”
on
page
27.
NOTE:
When
the
one-touch
operation
is
executed,
the
remote
control
widely
outputs
signals,
however,
it
is
not
easy
to
operate
sometimes
due
to
the
setting
condition
and
performance
of
a
unit.
In
this
case,
it
is
recommended
to
change
the
angle
or
the
distance
of
remote
control,
and
concentrate
the
system
setting.
|
SURROUND
EFFECT
This
unit
has
a
built-in
surround
processor
for
adding
presence
and
an
expansive
effect
to
the
sound.
STUDIO:
Select
this
position
to
enjoy
the
effect
of
listening
to
music
in
a
recording
studio.
The
actual!
source
sound
is
output
through
the
front
speakers,
and
the
added
reverberated
sound
is
output
through
the
rear
speakers.
This
is
particularly
suitable
for
a
source
that
has
a
lot
of
reverberation.
SIMULATED SURROUND:
The
“SIMULATED
SURROUND”
creates
the
effects
of
reverberated
and
refiected
sound
from
the
walls
and
ceiling
similar
to
a
concert
hall.
These
sound-effects
added
to
the
actual
sound
from
the
source
make
you
feel
as
if
you
were
in
amore
expanded
space.
The
different
ranges
of
the
expanded
space
can
be
set
by
the
DELAY
TIME
button.
Set
the
Delay
Time
to
15
ms
or
20
ms
for
a
five-house
concert.
For
chamber
music,
set
to
20
ms.
For
orchestral
music,
set
to
30
ms.
The
“SIMULATED
SURROUND"
aiso
gives
effects
on
monaural
sources
by
outputting
the
added
reverberated
sound
from.
the
rear
speakers
while
outputting
the
actual
source
sound
from
the
front
speakers.
Turn
on
the
“SIMULATED
SURROUND”
for
a
monaural
source
to
gain
effective
surround
playback.
ARENA:
This
is
ideal
for
sources
such
as
live
performances.
Music
is
output
from
the
front
speakers
and
the
sounds
and
applause
of
the
audience
are
output
through
the
rear
speakers.
Adjusting
the
delay
time
provides
the
effects
of
listening
in
halis
of
different
sizes.
DOLBY* PRO LOGIC SURROUND:
Choose this setting for movies and music (especially Video
Discs and video tapes bearing the DOfeavsemem} mark)
playback. DOLBY PRO LOGIC SURROUND continuously
detects the size and direction of the dominant signal and
cancels undesirable crosstalk, thereby providing signal
emphasis.
It
makes
you
clearly
perceive
the
directional
source
of the music. Real flow of sound also can be re-created
naturally
using
this
feature.
You
can
feel
as
if
being
in
an
outstanding
and
expansive
sound
field.
When
using
DOLBY
PRO
LOGIC
SURROUND,
a
delay
time
setting
of
20
ms
is
commonly
used.
Use
a
different
setting
if
you
prefer.
Even
if
the video recordings do not bear the OU Baamames) mark,
some
of
them
may
be
Dolby
Surround
encoded.
Choose
the
SIMULATED SURROUND made if the source sound signal is
mono. Little or no sound will be heard from the surround
speakers if the DOLBY PRO LOGIC SURROUND mode is
selected.
With
DOLBY
PRO
LOGIC
SURROUND,
monaural
source sound will be heard only from the center channel at
settings other than the PHANTOM position.
r
Note:
Dolby Surround will not operate correctly if the signal passes |
through a graphic equalizer. When using Dolby Surround, turn
off the TAPE 2 MONITOR or set the graphic equalizer for flat
response or to its “through” (or off) setting, if you have one
in use.
*
Manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
“Dolby”,
the
double-D
symbol
and
“Pro
Logic”
are
trademarks
of
Dolby
Laboratories
Licensing
Corporation.
*
Fabriqué
sous
licence
de
Dolby
Laboratories
Licensing
Corporation.
DOLBY, le symbole double-D et PRO LOGIC sont des marques
de Dolby Laboratories Licensing Corporation.
5
<ARB7060>

DOLBY 3CH LOGIC
Combining the rear speaker signal with that of the front
speakers results in your being able to enjoy a regenerated
sound field which has comparatively more presence and a
more expansive feeling from the front 3 channels (front L,
front R, and center speakers} than that of ordinary stereo
regeneration. DOLBY 3CH LOGIC can be used with stereo
sources not encaded with DOLBY SURROUND.
_DOLBY
PRO
LOGIC
SURROUND,
DOLBY
3CH
LOGIC
CENTER
MODE
|
|
(For DOLBY PRO LOGIC SURROUND and DOLBY
3CH LOGIC)
You can choose from the following settings:
Center Mode Choices:
When using a center speaker:
@ NORMAL-Low range frequencies, which have little effect
on directionality and positioning, are routed to the left and
right front speakers. This allows you to use a relatively
small size speaker as the center speaker.
@ WIDE-if you use a large size center speaker, choose this
setting. The full frequency range of the Dolby Surround
center channel, is routed to the center speaker.
When not using a center speaker: DOLBY PRO LOGIC
SURROUND only
@ PHANTON-The signal which would have been sent to the
center speaker is divided equally between the left and right
front speakers.
With DOLBY PRO LOGIC SURROUND, monaural source
sound will be heard only from the center channel at settings
other than the PHANTOM position.
| SPEAKER INSTALLATION
|
To get the most out of the surround system, place the
speakers as shown below.
An example of speaker location
Front left
speaker
Front right
Center speaker
P speaker
FRONT
Ka
Rear left
speaker
speaker
Rear right
6
<ARB7060>
lf the rear speakers are positioned at an extreme distance
from the front and center speakers, the surround level
becomes unabie to adjust and the surround effect will not
be fully achieved.
NOTES:
@ To avoid interference with the picture on a nearby TV set, use
magnetically shielded speaker systems. This is particularly
important for the center speaker since it is usually located
closest to the TV.
® Position the left and right channel speakers at equal distances
from the TV set and approximately 1.8 m (6 feet) from each
other.
@ Position the center speaker above, below, or behind the TV
set. Sound may not appear to coincide with the picture if you
position it next to the TV set.
® Rear speakers are best positioned slightly above ear level.

| CONNECTIONS
Setting Up the AM Antenna
@ Insert the claw on the bottom of the antenna into the groove
in the leg.
@ Place the antenna on a Jevel surface and rotate it to jocate
the orientation that yields the best reception.
®@ Use the attachment hole in the leg to screw to a wail or
other location, then insert the claw on the bottom of the
antenna into the groove in the leg (fixing the antenna in
the direction that gives the best reception.)
Lead wire
Lead wire
Installation Precautions
@ The rear panei vents are designed to disperse heat from
the unit. Be careful that curtains or other items do not block
the vents.
@ To improve heat dispersion, set the unit so that it is at least
20 cm (8 inches) away from the wail.
At least 20 cm (8 inches)
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the plug
by tugging the cord and never touch the power cord when
your hands are wet as this could cause a short circuit or
electric shock. Do not place the unit, a piece of furniture, etc.,
on the power card, or pinch the cord. Never make a knot in
the cord or tie it with other cords. The power cords should
be routed such that they are not likely to be stepped on. A
damaged power cord can cause a fire or give you an electrical
shock. Check the power cord once in a while. When you find
it damaged, ask your nearest PIONEER authorized service
center or your dealer for a replacement.
Precaution regarding installation position
of cassette deck __ |
If the cassette deck is installed in the @ positions shown in
the drawing below, it may be adversely affected during
playback. if possible, it’s better to install it in the (® position.
7
<ARB7060>

CONNECTIONS
AUDIO SYSTEM CONNECTIONS
iHustration shows Multi-voltage model.
Before making or changing the connections, switch off the
power switch and disconnect the power cord from the AC
outlet.
NOTE FOR FM ANTENNA:
Stretch the antenna out to its full length, and affix it to a wall,
ete,
NOTE FOR AM LOOP ANTENNA:
The antenna should be placed at a distance from the receiver,
and should not be allowed to touch metailic objects. Avoid
placing it near CD players, personal computers, television sets,
and other devices generating radio frequencies.
Cassette deck 17
Accessory
FM antenna
SQ
ere
Accessory AM
Loop antenna
Turntable Cassette deck 2
8
<ARB7060>
AM ioop antenna and FM antenna connection
@ Push the lever.
@ Insert the wire into the hole.
‘ es ——~
@ Pull the lever back. aI
yi
eel 5
Al
gia
i
ea
a
omm
% Connect when using a PIONEER projection monitor
receiver's built-in speaker as a center speaker.
Refer to the projection monitor's operating instructions
for details concerning connection and operation.
(|
E>
PIONEER Projection
monitor receiver
AC wall socket
A ETERS REE S
feEsycor| \\
CD player Built-in amplifier woofer,
monaurai amplifier, etc.
To connect the Pioneer Powered
Subwoofer (S-W700 or S-W99),
connect the receiver's SUB WOOFER
output to the subwoofer’s input.

CONNECTIONS
| VIDEO SYSTEM CONNECTIONS
TV Monitor
TV (Digital satellite system) tuner
illustration
shows
Multi-voltage
model.
LD or DVD player
9
<ARB7060>

CONNECTIONS
SPEAKER CONNECTIONS |
Speaker cord connection
@ Push the lever down (or up).
@® Insert the cord into the hole. ®
@® Pull the lever back. ¥
DS
a is in) a
yore
NOTE: FRONT
Use speakers with an impedance of 8Q to 16Q.
Left Center
10
<ARB7060>
REAR

REAR PANEL FACILITIES
Illustration
shows
Multi-voltage
model.
® ®@
@ FM/AM ANTENNA terminals
Use
these
antenna
terminals
for
reception
of
normal
FM
and
AM
broadcasts.
@
SAT(Satellite)/TV
jacks
(input)
Use
these
jacks
if
you
wish
to
connect
a
TV
{Digital
satellite
system)
tuner
with
both
video
and
audio
optputs.
@ VIDEO OUT (TO MONITOR TV) jack
Connect
to
a
monitor
TV
orto
TV
sets
with
video
input
terminals
to
watch
program
materials
from
a
VCR
or
LD
player
connected
to this
unit.
@ LD/DVD input jacks
Connect
to
an
LD
player's
output
jacks
(audio,
video)
or
a
DVD
player's output jacks (audio, video).
(3) VCR/TAPE 1 jacks
Connect
to
a
VCR
or
the
first
cassette
deck.
With
a
VCR,
also
connect the video jacks.
@ CHANNEL STEP switch
(Multi-voltage model only)
See page 4.
@ CENTER PRE OUT jack
When
a
separate
power
amplifier
is
used
to
drive
the
surround
center
speaker,
connect
the
power
amplifier
to
this
jack.
@®
©
©
®
@
TWO
VOLTAGE
SELECTORS
switches
(Multi-voltage
model
only)
See
page
4,
@ PHONO input jacks
Connect to the output cables from a turntable.
(© GND terminal
Connect
the
turntable
ground
lead
to
this
terminal.
NOTE:
This
is
used
to
decrease
noise
and
does
not
serve
as
a
complete
ground,
@ TAPE 2 MONITOR jacks
Connect
to
audio
components
such
as
a
second
cassette
deck
or
a
graphic
equalizer.
@ CD input jacks
Connect to the output jacks of a compact disc player.
‘Td
<ARB7060>

REAR
PANEL
FACILITIES
4 CONTROL IN/OUT jacks
IN
:Connects
this
jack
to
the
control
out
jack
of
an
unit
attached
&j
mark
using
a
commercially
available
cord
with
mini-plugs
(without
load).
The
remote
control
signal
sensor
of
this
unit
will
not
receive
the
remote
control
signal
while
connecting.
The
unit
attached
mark
can
be
operated
using
a
remote
control
through
the
connected
cord
from
the
remote
control
sensor
of
another
unit
attached
@]
mark.
OUT
:Connects
this
jack
to
the
control
input
jack
of
an
unit
attached
&]
mark
using
a
commercially
available
cord
with
mini-plugs
(without
load).
Outputs
the
remote
control
signal
to
another
unit
from
this
unit
or
the
relay
signal
from
the
control
input
jack.
Receiver
PIONEER component
bearing the @ mark.
Remote
control
unit
To
the
CONTROL
IN
jack
of
the
PIONEER component bearing the
mark.
NOTES:
©
If
thera
is
a
plug
in
this
unit's
CONTROL
IN
jack,
ISC
operations
using
the
remote
control
unit
are
not
possible,
@
The
remote
control
unit
provided
with
this
unit
adopts
a
different
method
from
the
remote
control
units
of
Pioneer
systems.
Consequently,
this
unit
and
other
components
will
not
operate
when
the
remote
control
unit
is
directed
at
the
remote
control
signal
sensor
window
of
the
connected
components.
Other
components
will
not
operate
unless
a
signal
is
received
by
the
sensor
window
of
this
unit,
and
this
unit
consequently
converts
the
signal
received
to
the
remote
control
signal
corresponding
to
the
other
component.
4 SUB WOOFER PRE OUT jack
if
you
want
to
boost
the
low
frequencies,
connect
to
a
subwoofer
power amplifier.
5
CENTER
SPEAKER
terminals
Connect
the
center
speaker
to
these
terminals.
NOTE:
Do
not
allow
any
of
the
cord’s
conductors
to
protrude
from
the
terminals
or
touch
any
other
conductors.
Malfunctions
or
breakdowns
may
occur
when
conductors
come
into
contact
with
each
other,
Use
a
center
speaker
with
an
impedance
of
8Q
to
16
a2.
12
<ARB7060>
®
REAR
SPEAKERS
terminals
Connect
the
rear
speakers
to
these
terminals.
NOTES:
@
Do
not
allow
any
of
the
cord’s
conductors
to
protrude
from
the
terminals
or
touch
any
other
conductors.
Maifunctions
or
breakdowns
may
occur
when
conductors
come
inte
contact
with
each
other.
Use
rear
speakers
with
an
impedance
of
8Q
to
169.
@
Be
sure
to
connect
two
speakers
(L,
R).
There
will
be
no
sound
if
only
one
speaker
is
connected.
a
FRONT
SPEAKERS
terminals
A__
:Connect
to
the
first
set
of
speakers.
B
:Connect
to
the
second
set
of
speakers.
NOTE:
Do
not
allow
any
of
the
cord’s
conductors
to
protrude
from
the
terminals
or
touch
any
other
conductors.
Malfunctions
or
breakdowns
may
occur
when
conductors
come
into
contact
with
each
other,
Use
front
speakers
with
an
impedance
of
8Q
to
16Q.
(8 Power cord
@®
AC
OUTLET
(U.S, and Canadian models)
[SWITCHED 100 W (0.8 A) MAX]
Power
supplied
through
this
outlet
isturned
on
and
off
by
the
receiver's
POWER
switch.
Total
electrical
power
consumption
of
connected
equipment
should
not
exceed
100
W
(0.8
A).
(Muiti-voltage model)
[SWITCHED 100 W MAX}
Power
supplied
through
this
outlet
is
turned
on
and
off
by
the
receiver's
POWER
switch.
Total
electrical
power
consumption
of
connected
equipment
should
not
exceed
100
W.
NOTES:
@
This
unit
should
be
disconnected
by
removing
the
power
plug
from
the
wall
socket
when
not
in
regular
use,
e.g.
when
on
vacation.
@
Do
not
connect
appliances
with
high
power
consumption
such
as
heaters,
irons,
or
television
sets
to
this
AC
OUTLET
in
order
to
avoid
overheating
and
fire
risk.
This
can
cause
the
receiver
to
malfunction.
CAUTION:
DO
NO
CONNECT
MONITOR
OR
TV
SET
TO
THE
AC
OUTLET.

=
|
FRONT
PANEL
FACILITIES
Iilustration
shows
multi-voltage
model.
®
@ Remote sensor
@)
POWER
STANDBY/
ON
switch
STANDBY
indicator
(Multi-voltage
model
only}
This
is
the
switch
for
electric
power.
ON
:When
set
to
the
ON
position,
power
is
supplied
and
the
unit
becomes
operational.
:When
set
to
the
STANDBY
position,
the
main
power
flow
is
cut
and
the
unit
is
no
longer
fully
operational.
A
minute
flow
of
power
feeds
the
unit
to
maintain
operation
readiness.
(Multi-voltage
model
only)
The
STANDBY
indicator
lights
when
the
power
is
set
to
STANDBY,
and
goes
out
when
set
to
ON.
(Timer
ON/OFF
possibile)
When
the
unit
is
switched
ON,
ON/OFF
control
can
be
performed
by
means
of
the
optional
timer.
NOTE:
When
the
power
is
initially
turned
ON,
muting
will
be
applied
to
prevent
sound
from
being
output
for
about
5
seconds.
STANDBY
@) SPEAKERS buttons (A, B)
ON/OFF
switches
for
the
A
and
B
speaker
systems.
BOH
©
WOH
@
@
@ RETURN button
Press this button to return the receiver to its initial state. TUNER
is
selected
at
this
initial
state.
Adjust
the
sound
level
by
using
the MASTER VOLUME control.
TAPE 2 MONITOR......... OFF
SFC
MODE
....
wa
OFF
FUNCTION
......e
TUNER
SUPER BASS .. OFF
And SPEAKERS buttons switch as follows.
MUTING 0. eee neceeerreee OFF
Before pressing the
Att i
RETURN button bad pabeitis
Both A and B are off ———® Only Ais on
Only Ais on ——> Nochange
Only Bis on ——» Both Aand Bare on
Both AandBareon ——*® Nochange
NOTE:
Press
the
RETURN
button,
and
the
frequency
last
selected
is
received.
If
reception
of
the
frequency
last
selected
is
not
possible,
the
mode
automatically
switches
to
AUTO
TUNING.
© Input selector buttons
VCR/TAPE 1
:Press when performing playback on a VCR unit or
cassette deck.
SAT/TV_
:Press
to
watch
TV
broadcasts
from
the
TV
(Digital
satellite
system)
tuner
connected
to
the
rear
panel
SAT/TV
IN
jacks.
PHONO :Press when playing records on a turntable.
TUNER :Press when listening to radio broadcasts.
LD/DVD
:Press
when
performing
playback
on
an
LD
or
a
DVD
player.
cD :Press when playing compact discs on a CD player.
TAPE 2 MONITOR
:Press when performing playback on a second cassette
deck and when monitoring recording.
13
<ARB7060>

FRONT PANEL FACILITIES
@® SFC MODE button
Each time you press it, the mode and the display indications
change as follows.
C STUDIO—> SIMULATED SURROUND cz
off «—-——— ARENA
@ DOLBY PRO LOGIC button
Switches DOLBY PRO LOGIC SURROUND on and off.
@® SUPER BASS button
Press this button when you want to boost the bass.
@ DOLBY 3CH LOGIC button
Select this setting when stereo-source regeneration and rear
speakers are not connected and you wish to use the front L,
front R, and center speakers to enjoy audio/visual material
bearing the DU euvsssme! mark.
MASTER VOLUME control
Use it to simultaneously adjust the sound volume from the front,
center, and rear speakers.
@) PHONES jack
Connect the plug on your headphones to this jack. Set SPEAKERS
A and B switches to OFF if you want to cut the sound from the
speakers and listen to it only through the headphones.
@® Display section
See page 15.
@ FM/AM button
Use this to switch between FM and AM frequency band reception.
MPX MODE button
Use to select the auto stereo mode or monaural mode when
listening to FM broadcasts. The monaural mode has been
selected when the MONO indicator in the display section is fit.
Auto stereo mode
Normally, feave is this mode for reception. When a stereo FM
broadcast is received, it will be automatically reproduced in
stereo.
Monaural mode
When receiving distant stations or stations with weak broadcast
signals, the input signal may be weak, thus resulting in increased
noise during FM stereo broadcasts. In this event, setting the
receiver to the monaural mode will reduce the noise. In this case,
however, FM stereo broadcasts will be reproduced in monaural
sound.
NOTE:
This button has no effect on reception of AM broadcasts.
14
<ARB7060>
4 SELECT button
- Press this button to switch to the station mode. Then you can
turn the MULTI-JOG to select a station.
When in the Frequency mode, tuning the MULTI-JOG raises or
fowers the frequency.
48 MULTI-JOG
Use during tuner operation to select frequencies and station
numbers.
@ ENTER button
Press this button when you are in the frequency preset mode,
and the displayed frequency is memorized in the selected station.
{Station indications stop flashing and stay lit.)
d@ MEMORY button
Press this button to switch to the frequency preset mode.
@® BASS control
Use to adjust the iow-frequency level. Turn clockwise to boost
bass, and counterclockwise to attenuate bass.
@ TREBLE contro!
Use to adjust the high-frequency level. Turn clockwise to boost
treble, and counterclockwise to attenuate treble.
@) BALANCE contro!
Use to adjust the sound volume balance between left and right
speakers.
L :Decreases the sound on the right side.
R_ :Decreases the sound on the left side.
Usually, left and right volume levels should be the same.
eee

FRONT PANEL FACILITIES
DISPLAY SECTION
‘&) TAPE 2 indicator
Lights up when the input selector is set to TAPE 2 MONITOR ON.
) DOLBY 3CH LOGIC indicator
© SFC indicator
This lights when an SFC mode (STUDIO, SIMULATED
SURROUND, ARENA) is selected.
(D) MEMORY indicator
©) DOLBY PRO LOGIC indicator
(© MONO/STEREO indicator
MONO :Lights up when the FM MONO mode is
selected with the MPX MODE button.
STEREO :Lights up when a stereo FM broadcast is being
received.
© TUNED indicator
Lights up when a station is tuned.
@ JOG MODE indicators
When operating the TUNER with the multi-jog, these indicate
the station mode (ST) or the frequency mode (FREQ).
@ SP (SPEAKERS) A, B indicators
Shows which speaker system (or systems) are switched on.
@ Character display
15
<ARB7060>

OPERATING THE TUNER
Press the POWER switch to the ON position.
Select TUNER with the input selector.
Be sure to turn the TAPE 2 MONITOR button OFF when
listening to AM or FM broadcasts.
Switch ON the SPEAKERS button corresponding to the
speakers you wish to use.
FM auto stereo reception and monaural reception
Each time you press the MPX MODE button, the MONO
indicator in the display section lights or goes out.
@ if an FM stereo broadcast is received when the MONO
indicator
is
out,
the
STEREO
indicator
lights,
and
sound
is in stereo.
@ If an FM stereo broadcast is received when the MONO
indicator is lit, the sound will be monaural. If there is
interference during stereo mode reception, switch to
mona. The sound will become monaural but interference
will be reduced.
TUNING INTO STATIONS
Turn the MULTI-JOG, and the tuning frequency changes.
Turning in a clockwise direction raises the frequency, while
turning in a counter-clockwise direction lowers the frequency.
PRESET TUNING
1. Use the FM/AM button to select either FM or AM.
Confirm that the JOG MODE indicator in the display
shows “FREQ”.
If “ST” is displayed, press the SELECT buttan to switch
to “FREQ”.
2. Turn the MULTI-JOG until you reach the frequency of
a desired station.
When a stations is received, the TUNED indicator will light
up.
NOTE:
The TUNED indicator may not light with broadcasts received over
long distances, or when the broadcast signals are extremely
weak.
3. Adjust the volume and tone as desired.
Auto tuning
Auto tuning is convenient when you do not remember the
frequency of a desired station, or when you wish to find
stations
that
you
do
not
normally
listen
to.
Operate
by
remote
control. (Refer to page 23.)
FREQUENCY PRESETTING
ag 9000000 090
1. Tune into the desired station.
See the section “TUNING INTO STATIONS”. In addition
to station frequencies, the MPX MODE {auto stereo mode
or monaural mode) can also be preset (FM only).
16
<ARB7060>
2. Press the MEMORY button.
The station number flashes in the display. (Memory mode}
3. Turn the MULTI-JOG to select the station you want
to memorize, and press the ENTER button.
@ The station number lights in the display, indicating that
it has been memorized.
@ If you do not press the ENTER button within about
five seconds after selecting a station, the memory
mode is canceled.
4. Repeat steps 1 to 3 to preset additional stations.
A total of 30 AM and FM stations may be preset. When
you store a new preset, it takes the place of the previously
stored station (if any).

PRESET TUNING
LISTENING TO BROADCASTS USING
| PRESET TUNING
1. Press the SELECT button.
The “ST” of the JOG MODE’s indicator lights in the
display, and the mode switches to station cail.
2. Turn the MULTI-JOG to select a station.
3. Adjust the volume and tone as desired.
NOTE:
Even if the receiver power cord is unplugged, data remains in
memory for several days. If the contents of the memory are
erased, preset once more,
Last station memory
When the POWER switch is pressed to turn the power on,
the last station received before the power was previously
turned off will be turned in again. When the power is ON, if
the FM/AM button is pressed, the last station received before
the FM/AM button was previously pressed will be turned in
again.
|
| RECEIVING FM SIMULCAST TV PROGRAMS
By combining a TV set with this receiver, you can receive FM
simulcast TV programs (stereo TV sound transmitted from
an FM radio station) while viewing the video portion on your
Ty.
1. Select the desired TV program with the TV set.
2. Tune in the desired FM simulcast TV program on the
receiver.
3. Adjust the volume and tone controls as desired.
i
| OPERATING THE AUDIO/VIDEO COMPONENTS
Press the power switch to the ON position, and turn on the
power to the other components you wish to use (for example,
TV, VCR, cassette deck, etc.).
|
| PLAYBACK
1, Use the input selector buttons to select the desired
program source.
Program Source input selector |
To play back on a VCR connected |
to the VCR/TAPE 1 jacks, or to play VCR/TAPE 1
back on a cassette deck
To watch the TV picture from a TV
|
(Digital satellite system) tuner SAT/TV
connected to the SAT/TV jacks
To listen to records Ne PHONO
iS lita
To watch a LaserDisc or a digital | LD/DVD
video disc
! To listen to a tape on the cassette |
deck connected to TAPE 2
MONITOR jacks
TAPE 2 MONITOR
To listen to compact discs | cD
|
H
|
* If you select a music source other than TAPE 2, switch OFF
the TAPE 2 MONITOR.
2. Operate the appropriate audio/video component to
play back the program source.
For a video source, switch the TV connected to this unit
to the video input mode.
3. Adjust the volume and tone controls as desired.
Refer to pages 5, 6 and 24 for details concerning surround
operation.
17
<ARB7060>

RECORDING WITH A CASSETTE DECK |
RECORDING WITH VCR/TAPE 1 |
RECORDING WITH TAPE 2
If the TAPE 2 MONITOR button is ON, press to turn OFF.
1. Select the source you want to record from with the
input selector buttons.
When recording AM or FM broadcasts, select a preset
station using the MULT!-JOG. If the desired station has
not been preset, tune in the station.
2. Start recording on the cassette deck.
3. Play the desired program source (record, compact
disc, etc.).
The voiume, balance, and tone controis have no effect
on the recording.
1.
2.
3.
Select the source you want to record from with the
input selector buttons.
Start recording on the TAPE 2 cassette deck.
Piay the desired program source (record, compact
disc, etc.).
The volume, balance, and tone controls have no effect
on the recording.
When copying a tape, play back on the VCR/TAPE 1 cassette
deck, and record on the TAPE 2 cassette deck.
Tape monitoring
When recording is performed on a cassette deck equipped
with @ monitoring function, the recorded sound can be
monitored through the speaker system by pressing the TAPE
2 MONITOR button to ON.
VIDEO RECORDING
|
|
H
|
=f
1. Select the source you want to record from with the
input selector buttons.
@ When recording from a LaserDisc or a digital video
disc to VCR--LD/DVD
@ When recording from the TV {Digital satellite system)
tuner to VCR-*SAT/TV
2. Start recording on the VCR.
For VCR, select a line input (external input).
18
<ARB7060>
A a
Start playback on the component selected with the
input selector.
The volume, balance, and tone controls have no effect
on the recording.

HINTS FOR BETTER RECEPTION
EXTERNAL FM ANTENNA
The main advantage of FM over AM is the quality of the
broadcast signal. In order to benefit fully from the high signa
quality of FM broadcasts, it is recommended that a special-
purpose FM antenna be installed. In weak signal areas, a
multi-element (3-element, 5-element, 7-element) antenna
should be used.
GROUNDING
Grounding is recommended if reception of FM programs is
impaired by noise. To ground, connect a thick polyvinyl-
insulated wire to the GND terminal and attach the other end
to a metal water pipe or grounding bar or wind it around a
copper plate and bury it.
NOTE:
Never connect a wire to a gas pipe for grounding since sparks
may ignite the gas.
| EXTERNAL AM ANTENNA
If it is not possible to obtain adequate AM reception even by
changing the orientation of the AM loop antenna, a separate
indoor antenna or an outdoor antenna should be installed.
INDOOR AM ANTENNA
Use a vinyl-insulated wire 5 to 6 meters long (15 to 18 feet)
and connect one end to the AM antenna terminal and affix
the other end to the wall or ceiling, as high as possible.
NOTE:
Do not detach the AM loop antenna when using an indoor or an
outdoor AM antenna.
OUTDOOR AM ANTENNA
If reception quality is not improved sufficiently even when
an indoor antenna is used, a vinyl-insulated wire should be
installed outside and fixed in place.
Connecting the 75 Q coaxial cable
75 Q coaxial cable mth
GROUND
AM antenna connection
Outdoor AM antenna
indoor AM antenna
(Polyvinyl
insulated wire}
=
AM loop antenna
19
<ARB7060>

REMOTE CONTROL OPERATION
The remote control unit of the VSX-505S is also recorded
with the remote control codes of other maker's products. By
performing “SELECT THE MAKER NAME AND CODE
NUMBER OF THE EQUIPMENT TO BE CPERATED (PRESET
RECALL)” (Page 26),other maker's products, exctuding some
models, can be operated by the remote control unit.
To execute the one touch operation, perform “SET UP THE
ONE TOUCH OPERATION OF THE EQUIPMENT TO BE
OPERATED (0.T.O. SET UP)” on page 27.
PUTTING BATTERIES INTO THE REMOTE
CONTROL UNIT
1. Open the battery compartment cover on the rear of
the remote contro! unit. The cover should open easily
if you slide it in the direction of the arrow while
pressing on it with your thumb.
2. Take out the two supplied batteries (AA/LR6), and
insert them into the battery compartment in
accordance with the indications in the compartment.
3. Close the cover of the battery compartment.
incorrect use of batteries may lead to leakage or rupture.
Always be sure to follow these guidelines:
UA.
Always insert batteries into the battery compartment correctly
matching the positive {+) and negative (-) polarities, as
indicated inside the compartment.
8.
Never mix new and used batteries.
c.
Batteries of the same size may have different voltages,
depending on their type. Do not mix different types of
batteries.
20
<ARB7060>
L S C On conael
REMOTE CONTROL RANGE
sex A
723 feet)
When operating the remote contro! unit, point the front of
the unit at the front panel of the receiver. The remote control
unit may be used within a range of about 7 meters (23 feet)
from the remote sensor, within angles of up to about 30
degrees.
Performance of the remote control unit is adversely affected
in the presence of a strong fluorescent light. Keep such lights
away, especially from the sensor window.
Battery Replacement
As battery power runs down, the range over which the remote
control unit can operate decreases. When the range becomes
too short, change the batteries.
Changing batteries
If the button doesn’t light even if a button of the ONE TOUCH
OPERATION buttons is pressed, the batteries are dead and
need to be changed. Memory is erased a short time after the
batteries are removed, so be sure you have new batteries
ready for quick replacement.
Also, be sure to use specified batteries (AA/LRB).
if you remove the battery case cover, power to the remote
contral is cut, making remote operation impossible. Be sure
the battery case cover is on.
NOTE:
Even when batteries are removed, learned commands remain
in memory for about 15 minutes.
NOTE:
@ After loading new batteries, be sure to press the RESET button
on the remote control unit.
®@ ff you remove the batteries, replace the battery case cover,
and press a button, memory is erased in a few seconds.
ee EEE
