CONTENTS
T – ZZK OCT. 1998 Printed in Japan
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST................ 3
3. SCHEMATIC DIAGRAM ..................................... 14
4. PCB CONNECTION DIAGRAM.......................... 34
5. PCB PARTS LIST ............................................... 49
6. ADJUSTMENT .................................................... 55
7. GENERAL INFORMATION ............................... 61
7.1 PARTS ......................................................... 61
7.1.1 IC ......................................................... 61
7.1.2 DISPLAY.............................................. 73
7.2 DISASSEMBLY ........................................... 75
7.3 BLOCK DIAGRAM....................................... 78
8. PANEL FACILITIES AND SPECIFICATIONS.... 80
STEREO CD/VCD CASSETTE DECK RECEIVER
XR-VS99
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement The Voltage can be converted by
XR-VS99 the following method.
DBDXJ AC110-127V/220-230V/240V With the voltage selector
DLXJ/NC AC110-127V/220-230V/240V With the voltage selector
PREV NEXT RETURN SELECT

2
XR-VS99
Printed on the Rear Panel
LABEL CHECK (For DLXJ/NC type)
Additional Laser Caution
1.Laser Interlock Mechanism
The position of the switch (S8501) for detecting loading
state is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
switch (S8501) is pressed physically.
Thus,theinterlockwillnolongerfunctioniftheswitch(S8501)
is released physically and deliberatery.
The interlock also does not function in the test mode ∗ .
Laser diode oscillation will continue, if pin 62 of
LA9240ML (IC8101) on the CD ASSY mounted on the
$M Loading Mechanism assembly is connected to GND,
or else the terminals of Q8101 are shorted to each other
(fault condition).
2.Whenthecoverisopened,close viewing of the objective
lens with the naked eye will cause exposure to a Class
1 laser beam.
∗ : Refer to page 60.
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 1.3 mW
WAVELENGTH: 790 nm ±25 nm

3
XR-VS99

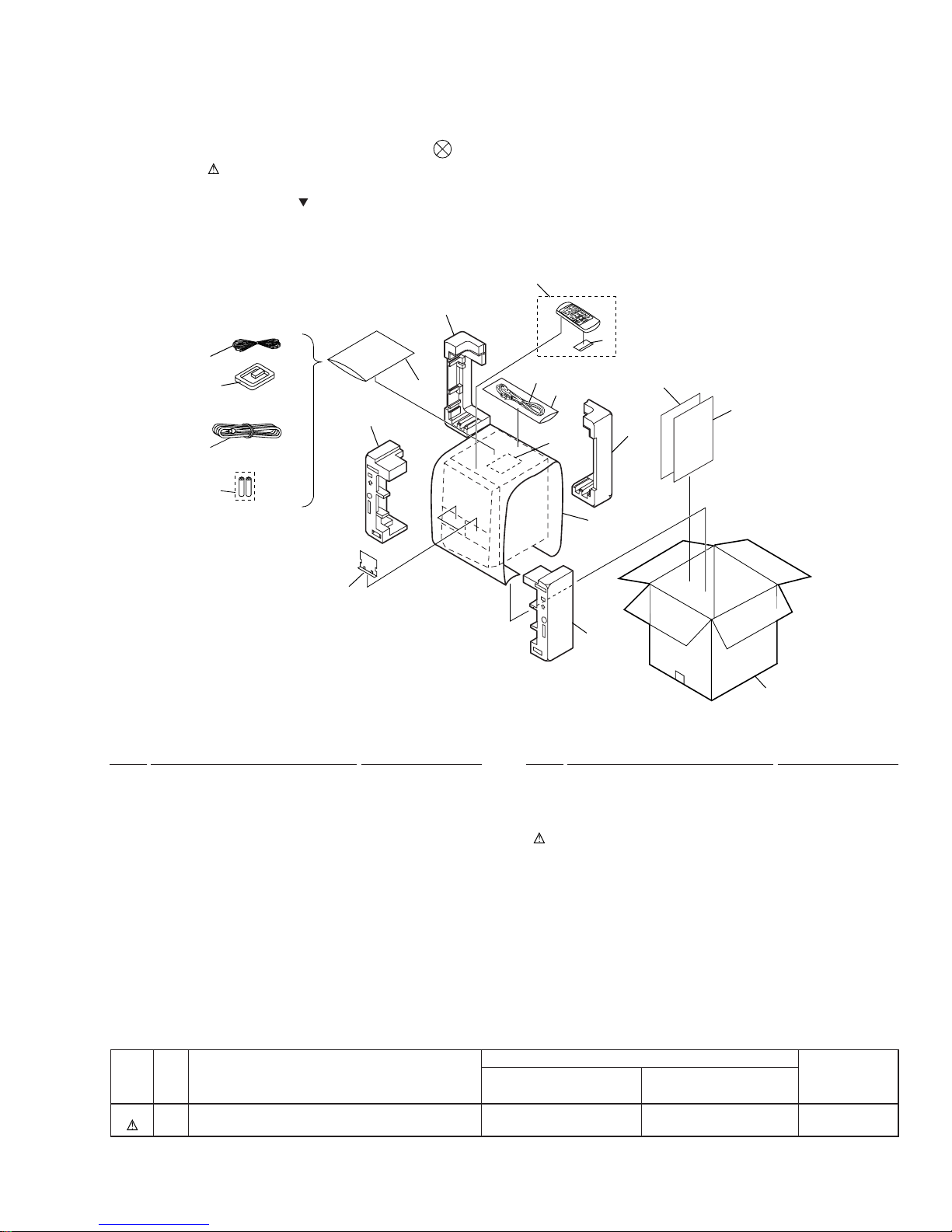

2.1 PACKING
1 FM Antenna ADH7004
2 Operating Instructions XRE3019
(English/Chinese)
3 AM Loop Antenna XTB3001
4 Remote Control Unit XZN3010
(CU-XR052)
5 Battery Cover AZA7204
NSP 6 Dry Cell Battery (R6P, AA) VEM-013
7 Polyethylene Bag Z21-038
(0.03 ×230 ×340)
8 Front Pad XHA3005
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES: •Parts marked by "NSP" and can not be supplied.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•Screws adjacent to mark on the product are used for disassembly.
9 Rear Pad XHA3006
10 Packing Case See Contrast table (2)
11 Packing Sheet AHG7049
12 • • • • •
13 Power Cord See Contrast table (2)
NSP 14 Polyethylene Bag AHG7033
15 Operating Instructions XRE3018
16 Video Cord VDE1034
NSP 17 Caution Card XAX3130
NSP 18 Door Spacer XHG3002
Mark No. Description Part No.
(2) CONTRAST TABLE
XR-VS99/DBDXJ and DLXJ/NC are constructed the same except for the following :
Mark No. Symbol and Description Part No. Remarks
XR-VS99 XR-VS99
/DBDXJ /DLXJ/NC
10 Packing Case XHD3055 XHD3038
13 Power Cord ADG1158 ADG1154
VOL
KARAOKESFC
DISC DISC DISC
CLEAR
STATION
REMOTECONTROLUNIT CU-XR025
MONO BAND
PGM
REPEATRANDOM
AUX
P.BASSDISPLAY
SLEEP
POWER
6
16
1
37
9(1/2)
8(1/2)
8(2/2)
9(2/2)
10
2
13 14
11
15
4
5
18
17

4
XR-VS99
2.2 EXTERIOR (1/2)
212
12
Note :
Attatch on the same numbers ×three.
Refer to
"2.5 $M MECHANISM VCD".
Note :
Hook Tray cap on top of loading tray and then
insert the bottom three hooks.
9
9
11
15
11
15
11
1
6
10
4
5
7
14
13
3
9
8
17
16
18
9
19
19

5
XR-VS99
(1) EXTERIOR (1/2) PARTS LIST
Mark No. Description Part No.
1 16P F.F.C/30V XDD3006
NSP 2 $M Mechanism VCD XXA3007
3 Volume Knob XAA3005
4 FL Cover A XAK3026
5 FL Cover B XAK3036
6 Tray Cap XZN3047
7 Display Panel XAK3047
8 Bonnet Case XZN3040
9 Screw BPZ30P100FZK
10 Pioneer Badge XZN3049
11 Screw VBT30P080FZK
12 Disc Label XAX3127
13 Jog Knob Assy XXG3024
14 Bass Knob XAB3005
15 Screw BCZ30P080FZK
16 Cord Stopper DNF1128
17 Push Rivet AEC7138
18 Mic Knob XAB3004
19 Cushion Rubber XEB3002

6
XR-VS99

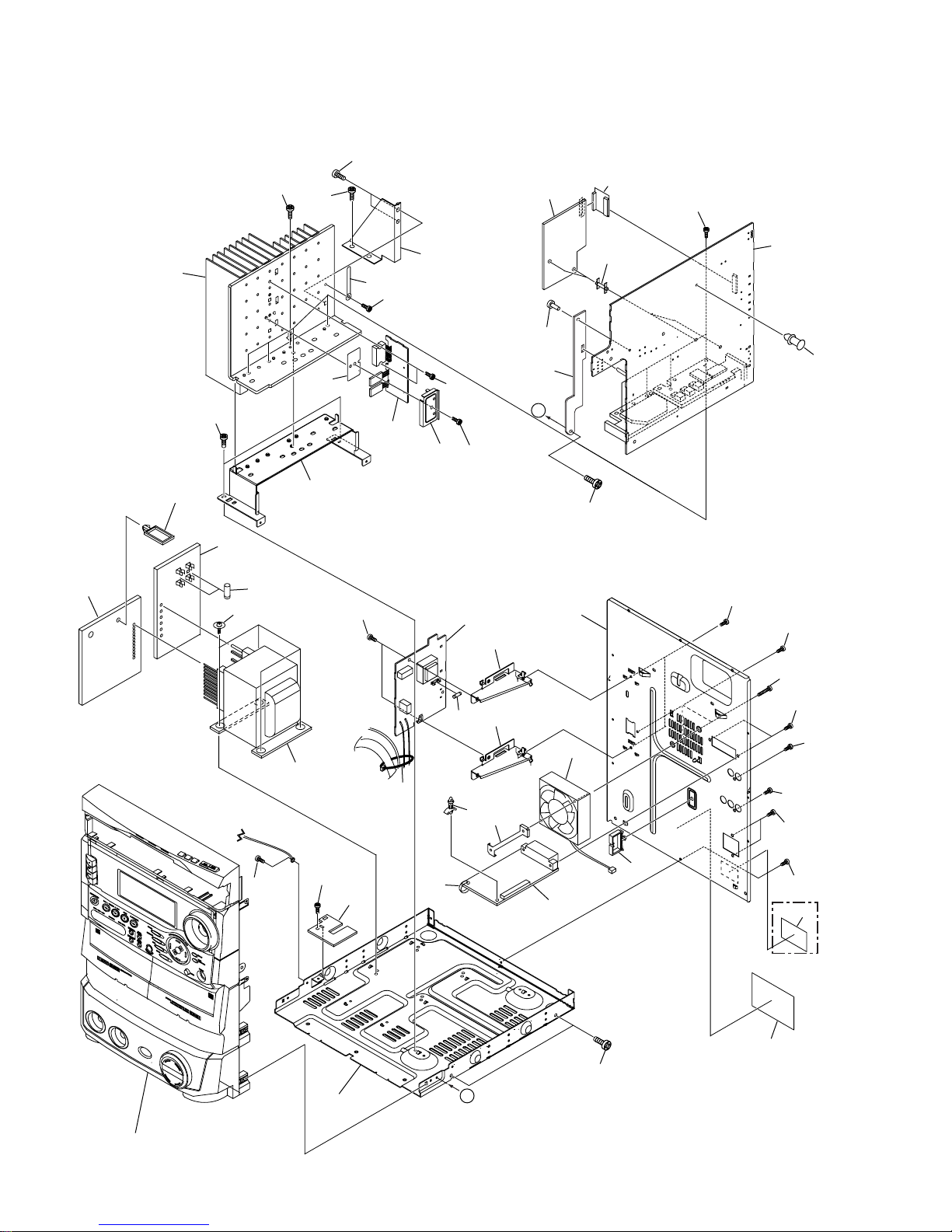

2.3 EXTERIOR (2/2)
b
b
d
a
a
aaa
a
a
bbb
b
bb
cccc
aa
b
a
c
d
19
Refer to
"2.4 FRONT PANEL SECTION".
8
17
19
19
19 29
22
7
11
33
19
19
13
27
35
27
16
34
30
38
28
28
2
3
6
5
4
9
10
14
15
25
36
21
19
31
32
37
41
42
18
1
19
24
24
24
19
26
24
19
24
11
22
39
40
A
A
43
DLXJ/NC Type only

7
XR-VS99
(1) EXTERIOR (2/2) PARTS LIST
Mark No. Description Part No.
1 AF Assy XWZ3136
2 SECONDARY Assy XWZ3137
3 PRIMARY Assy XWZ3111
4 FM/AM TUNER MODULE AXQ7065
5 Power Transformer (T1) XTS3018
6 Fuse (FU2, FU3 : T3.15A) AEK1059
7 Fuse (FU1 : 6.3A) REK1030
NSP 8 Chassis XNA3001
9 DC Fan Motor AXM7003
10 Fan Plate ANG7153
11 PCB Bracket XNG3006
12 • • • • •
13 Heat Sink XNH3004
14 Wire Clip A XEC3003
15 Rear Panel XNC3007
16 Cord Stopper DNF1128
NSP 17 SUPPORT Assy XNP3009
18 Screw BBZ30P140FMC
19 Screw VBZ30P080FZK
20 • • • • •
21 Screw ASZ40P060FMC
22 Binder ZCA-SKB90BK
23 • • • • •
24 Screw BPZ30P100FZK
25 Screw BBZ30P300FMC
NSP 26 Name Label See Contrast table (2)
27 Screw BBZ30P060FMC
28 Screw IBZ30P135FMC
29 SUB TRANS Assy XWZ3113
30 REAR AMP Assy XWZ3160
31 TRADE Assy XWZ3140
32 PRO LOGIC Assy XWZ3133
33 H.S.Bracket XNG3007
34 FET Bracket XNG3009
35 H.S.Support XNG3014
36 Wire Clip B XEC3004
37 PCB Spacer B XEC3005
38 Mica Sheet XEE3002
39 Locking Spacer XEC3009
40 Card Spacer XEC3008
41 Push Rivet AEC7069
42 Shield Plate XNK3004
43 Caution Label See Contrast table (2)
Mark No. Description Part No.
(2) CONTRAST TABLE
XR-VS99/DBDXJ and DLXJ/NC are constructed the same except for the following :
Mark No. Symbol and Description Part No. Remarks
XR-VS99 XR-VS99
/DBDXJ /DLXJ/NC
NSP 26 Name Label XAL3015 Not used
43 Caution Label Not used PRW1018

8
XR-VS99

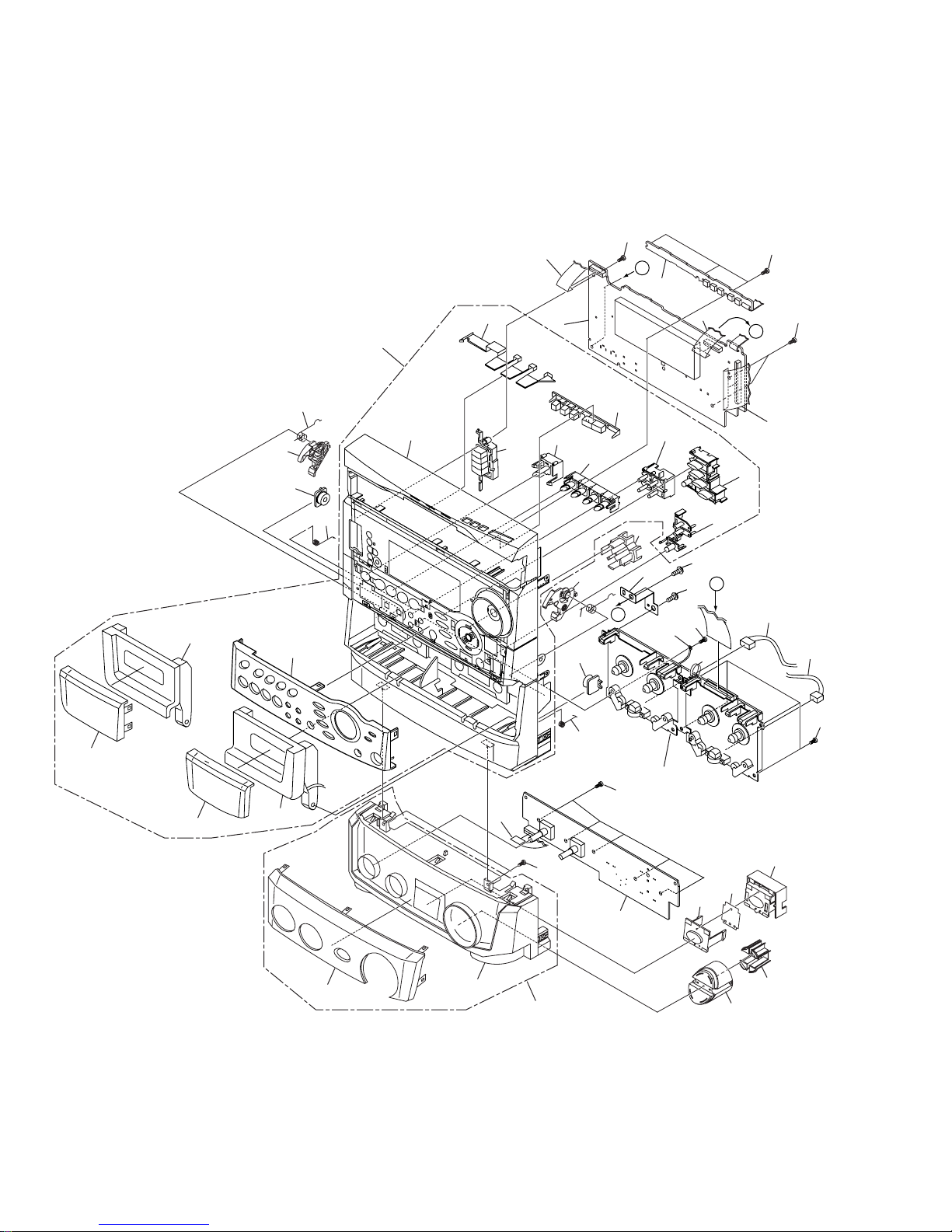

2.4 FRONT PANEL SECTION
17
17
26
32
23
15
18
19
21
21
33
30
31
27
13
14
16
25
24 35
2
1
6
717
8
36
34(2/2)
34(1/2)
37
20
28
44 43
45
17
6
38
Refer to
"2.7 MECHANISM UNIT".
40
12
17
17
10
46 9
17
3
5
42
41
39
A
A
B
11 17
17
B

9
XR-VS99
(1) FRONT PANEL SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 DISPLAY Assy XWZ3138
2 CD SW LED Assy XWZ3131
3 SUB DISPLAY Assy XXG3014
4 • • • • •
5 Cord With Plug DE007VE0
6 Flexible Cable 14P XDD3011
7 Flexible Cable 19P XDD3009
8 Flexible Cable 40P XDD3005
9 Connector Assy 3P XDE3013
10 Connector Assy 5P XDE3014
11 GND Plate A XNG3004
12 Mechanism Unit XYM3003
13 Door Spring L XBH3001
14 Door Spring R XBH3002
15 Latch Spring L ABH7130
16 Latch Spring R ABH7131
17 Screw BPZ30P100FZK
18 Latch Mold L XMR3001
19 Latch Mold R XMR3002
NSP 20 Jog Lens XAK3025
21 Damper Assy AXA7052
22 • • • • •
NSP 23 Front Panel Assy XXG3015
24 Function Button XZN3020
25 CD Button XZN3018
26 CD Lens XZN3037
27 Deck Lens L XZN3035
28 Deck Lens R XZN3036
29 • • • • •
30 Door Pocket L XZN3013
31 Door Pocket R XZN3015
32 Front Panel A XZN3011
33 Sub Panel A XZN3032
34 Power Button XZN3022
35 Play Button XZN3024
36 S.C. Button XZN3026
37 TIMER Button XZN3029
38 Sub Buttun XAD3012
39 Dolby Lens XAK3034
40 Diffusion Sheet XAK3035
41 Dolby Panel XAK3042
42 Button Lens XAK3044
NSP 43 Front Panel Assy B XXG3028
44 Sub Panel B XZN3054
45 Front Panel B XZN3051
46 Binder ZCA-SKB90BK

10
XR-VS99
2.5 $M MECHANISM VCD
8
7
14
13
12 26
15
21 25
22
24
23
11
5
2
1
10
16
18
29
29 6
17
19
9
27
28
29
29
29
Refer to "2.6 SERVO MECHANISM ASSY".
29
29
29
29
4
3
3020
B
B
A
A
31

11
XR-VS99
1 Servo Mechanism AXA7039
2 SPINDLE MOTOR Assy AEA7009
3 SLEAD MOTOR Assy AEA7010
4 Gear A AEA7013
5 Gear B AEA7014
6 Screw AEA7015
7 Screw AEA7016
8 Screw AEA7017
9 Screw AEA7018
10 Leaf Switch AEA7011
Mark No. Description Part No.
•SERVO MECHANISM ASSY PARTS LIST
2.6 SERVO MECHANISM ASSY
1
9
9
9
7
4
5
8
6
3
210
9
•$M MECHANISM VCD PARTS LIST
Mark No. Description Part No.
1 MOTOR Assy XWZ3080
NSP 2 SW Assy XWZ3081
3 VCD SURVO Assy XWX3003
4 TRADE Assy XWZ3082
5 Servo Spring ABH7126
6 Belt AEB7072
7 Clamp Magnet AMF7001
8 Yoke ANB7067
9 Mecha Base XNW3001
10 Loading Tray XNW3002
11 Servo Base XNW3003
12 Rotary Tray ANW7113
13 Clamper ANW7091
14 Clamper Holder XNW3004
15 Main Cam ANW7093
16 Gear Pully ANW7094
17 Lock Lever ANW7095
18 Planet Gear ANW7096
19 Actuater ANW7097
20 13P F.F.C/30V XDD3008
21 15P F.F.C/30V XDD3007
22 Connector Assy (6P) ADE7010
23 Float Rubber A AEB7063
24 Float Rubber B AEB7066
25 Servo Mechanism Assy AXA7039
26 Screw IPZ30P080FMC
27 Carriage Motor VXM1033
28 Motor Pulley PNW1634
29 Ha Narl GEM1016
30 Card Spacer AEC7143
31 Cushion Rubber XEB3004

12
XR-VS99

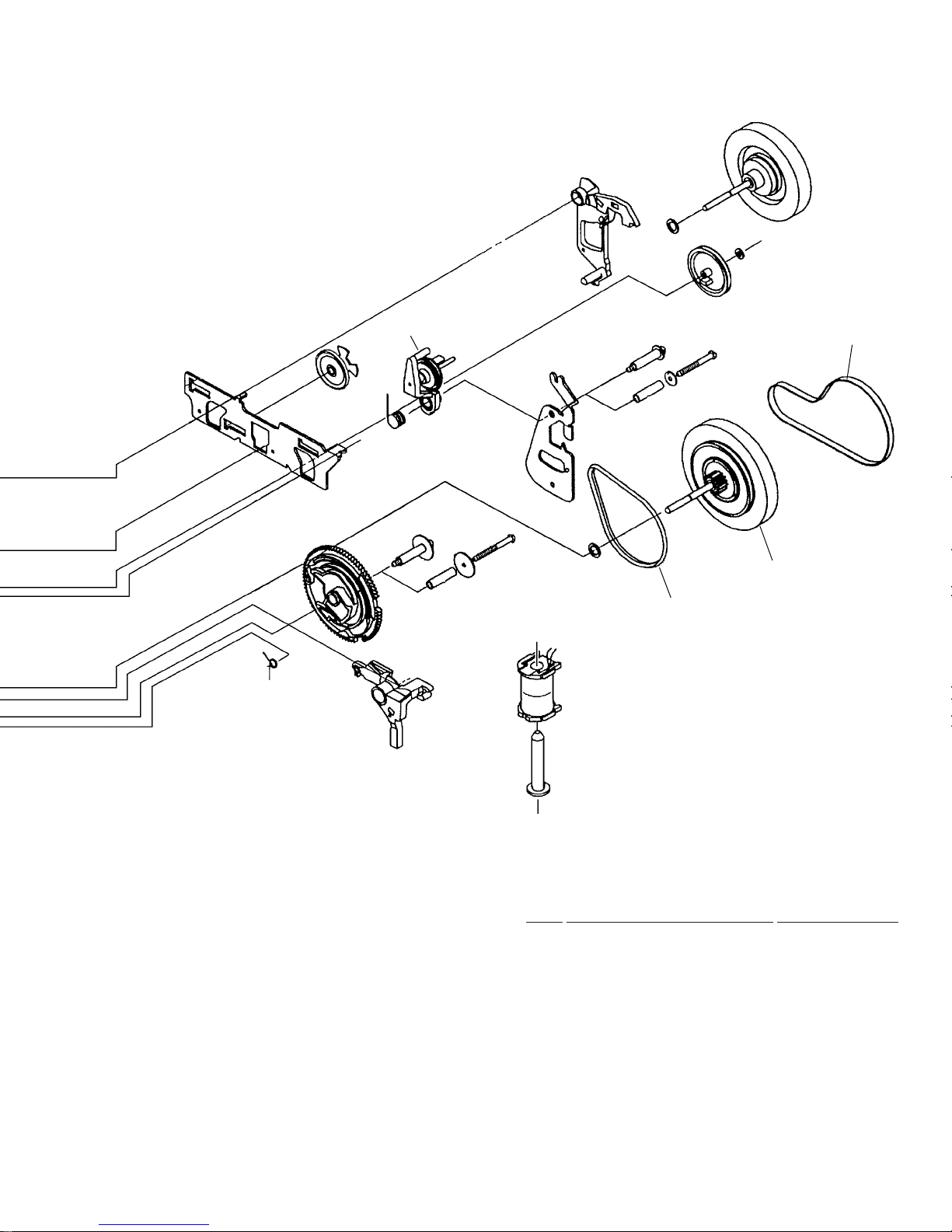

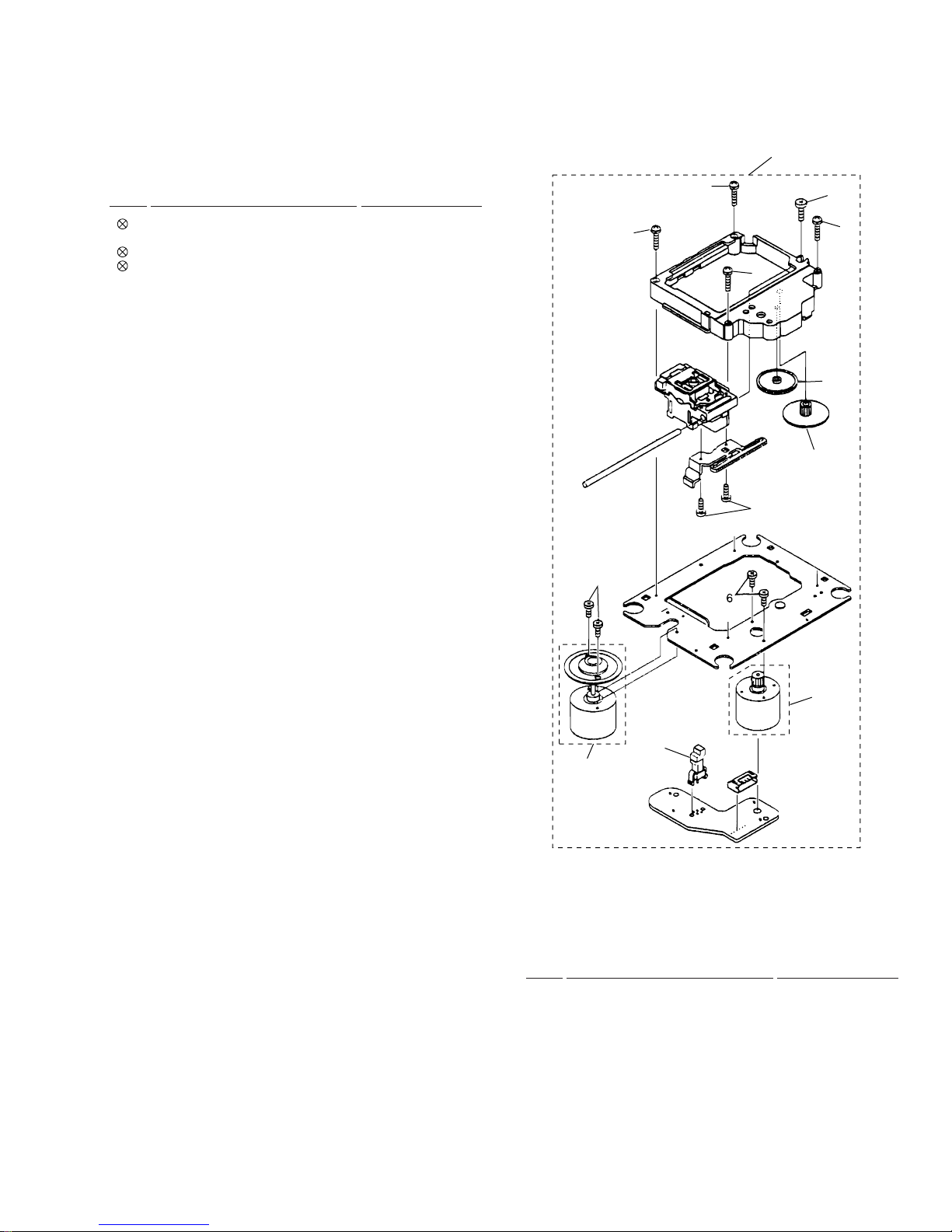

2.7 MECHANISM UNIT
1
10
13
12
Mech. Ι
Mech. ΙΙ
Mech. ΙΙ
Mech. Ι
Mech. ΙΙ
Only
Mech. Ι
Only
Mech. ΙΙ
Only
1
9
4
2
7

13
XR-VS99
5
11
8
6
Mark No. Description Part No.
•MECHANISM UNIT PARTS LIST
1 Plate HD BLK (Mech. ΙΙ) F513-811
1 Plate HD BLK (Mech. Ι) F513-819
2 Motor Main BLK (Mech. ΙΙ only) F525-324
3 • • • • •
4 PCB Control BLK F567-621
5 Clutch Assy BLK F522-037
6 Main Belt FF17G-31
7 Joint Belt 113 (Mech. ΙΙ only) FF19D-21
8 Clutch Assy BLK F522-045
9 Roller Pinch BLK R F514-129
10 Roller Pinch BLK L F514-130
11 F/R Belt FF18W-12
12 Plate Base BLK F512-127
13 Plate Base BLK F512-128

XR-VS99
14
A
B
C
D
1234
1234
3. SCHEMATIC DIAGRAM

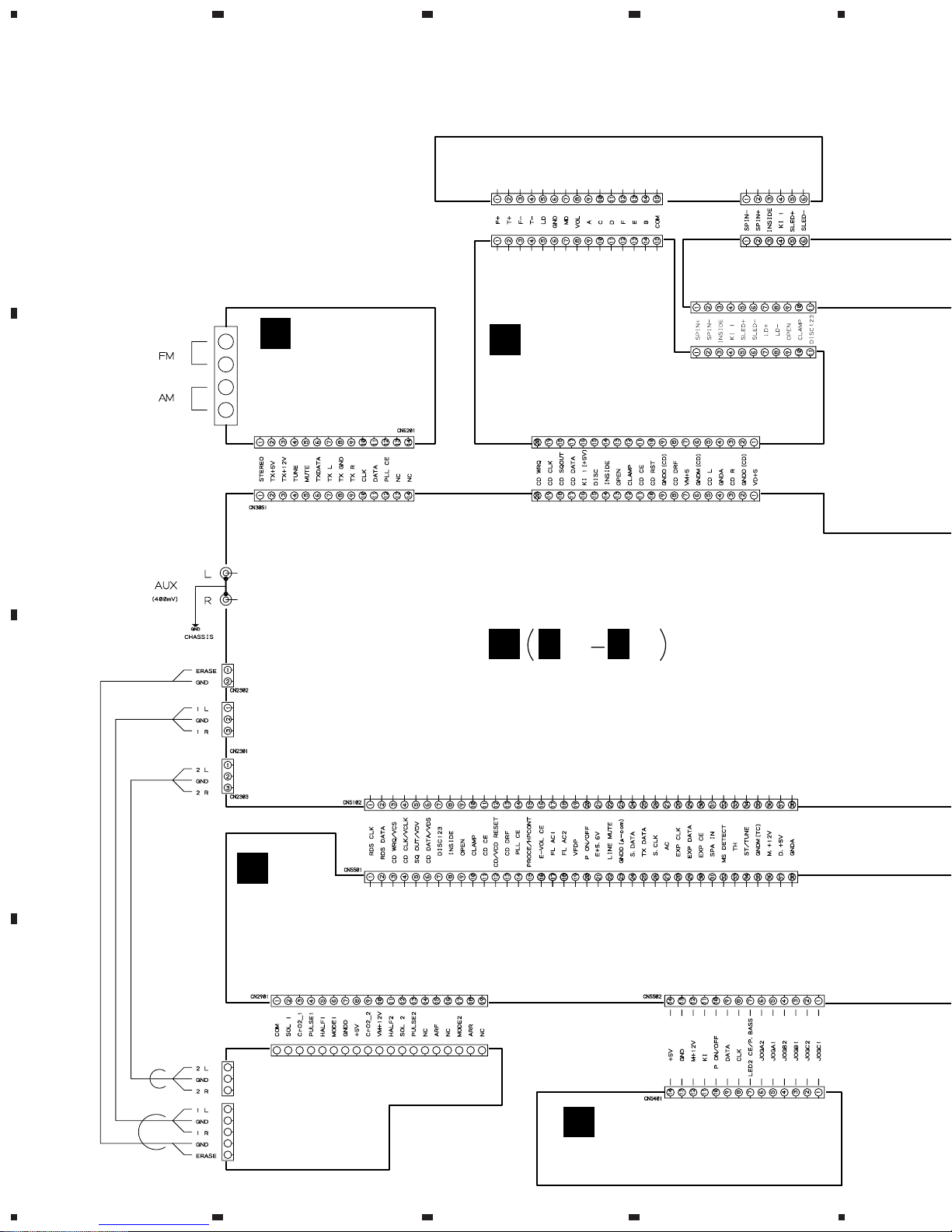

3.1 OVERALL WIRING DIAGRAM
1/3
AF ASSY
(XWZ3136)
DISPLAY ASSY
(XWZ3138)
SERVO MECHANISM ASSY (AXA7039)
E
VCD SURVO ASSY
(XWX3003)
CN1053
CN1001 CN9001
CN9002
CN1002
DECK MECHA
B
I
SUB DISPLAY ASSY
(XWZ3132)
K
FM/AM
TUNER MODULE
(AXQ7065)
A
E
3/3
E

XR-VS99
15
A
B
C
D
5678
5678
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
CN9501
REAR AMP ASSY
(XWZ3160)
L
SECONDARY
ASSY
(XWZ3137)
F
CD SW LED
ASSY
(XWZ3131)
J
PRIMARY
ASSY
(XWZ3111)
G
SUB TRANS
ASSY
(XWZ3113)
H
MOTOR
ASSY
(XWZ3080)
C
SW ASSY
(XWZ3081)
TRADE
ASSY
(XWZ3140)
M
PRO
LOGIC
ASSY
(XWZ3133)
N
DA
DB
TRADE ASSY
(XWZ3082)

XR-VS99
16
A
B
C
D
1234
1234

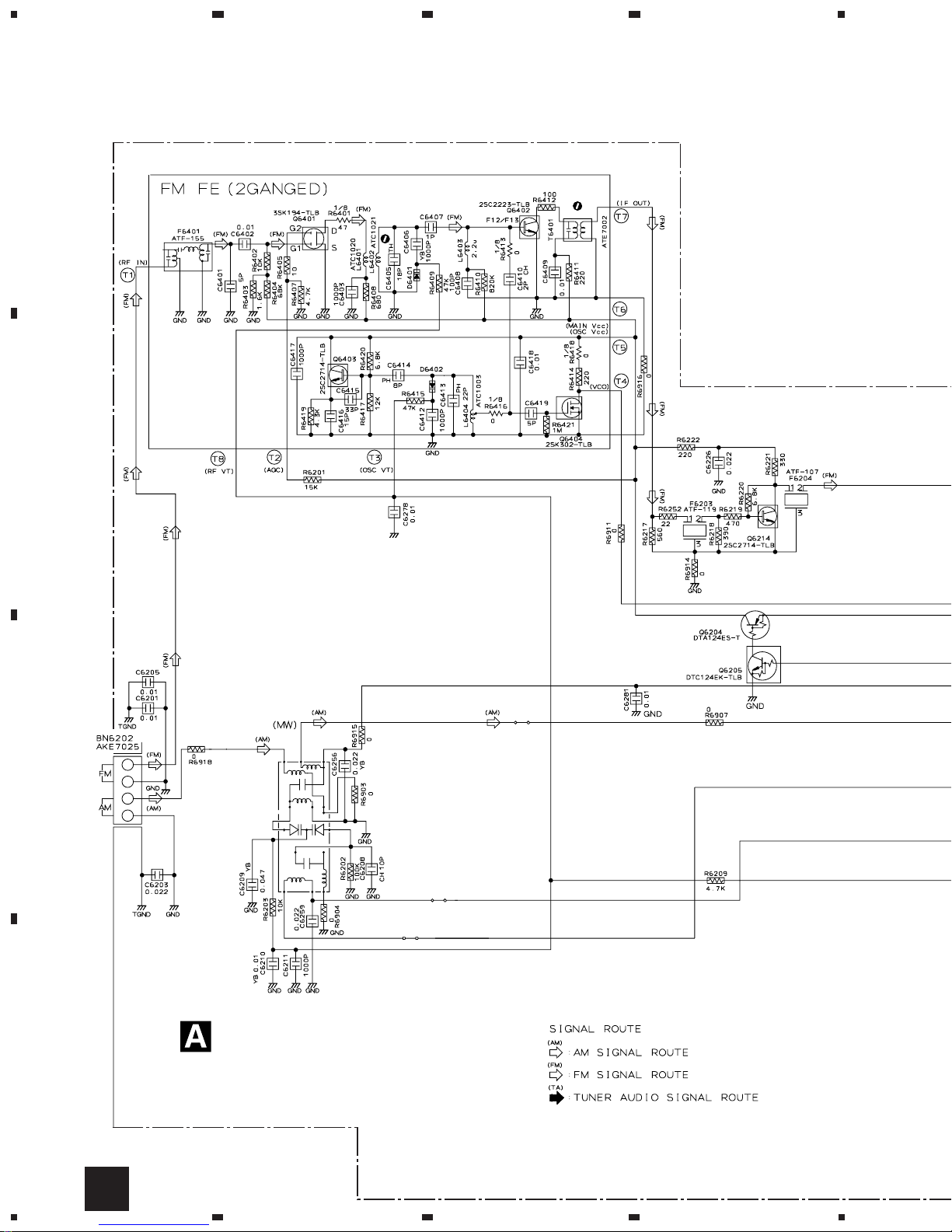

3.2 FM/AM TUNER MODULE
RF AMP
1T378A
1T378A
MIX AMP
BUFFER
IF AMP
FM +B SW
MW RF TUNING BLOCK
AKX7041
OSC
FM/AM TUNER MODULE
(AXQ7065)
A

XR-VS99
17
A
B
C
D
5678
5678

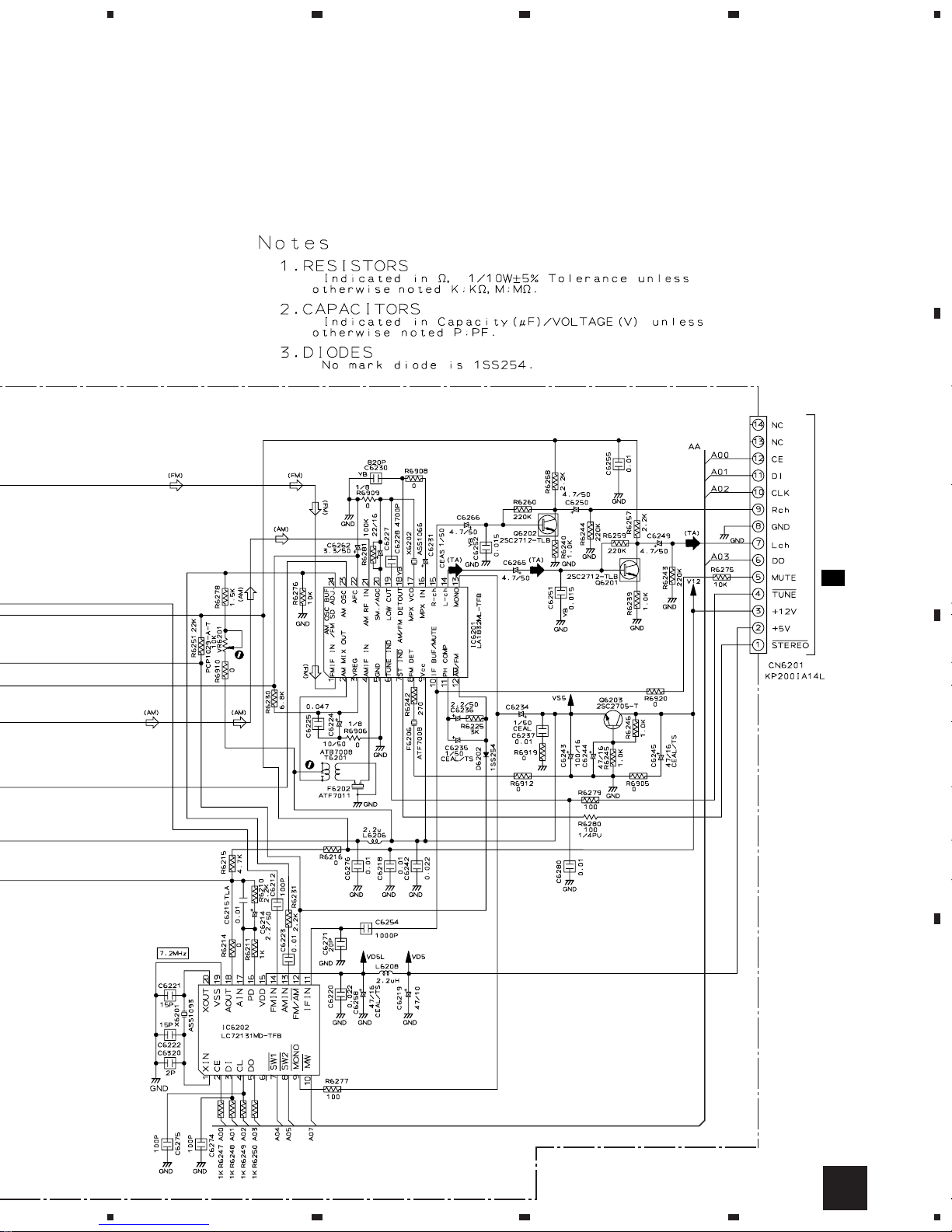

AF AMP
REGULATOR
PLL
AF AMP
2/3E
CN3051
A

XR-VS99
18
A
B
C
D
1234
1234
DA
SW ASSY (XWZ3081)
DB
TRADE ASSY
(XWZ3082)
1
2

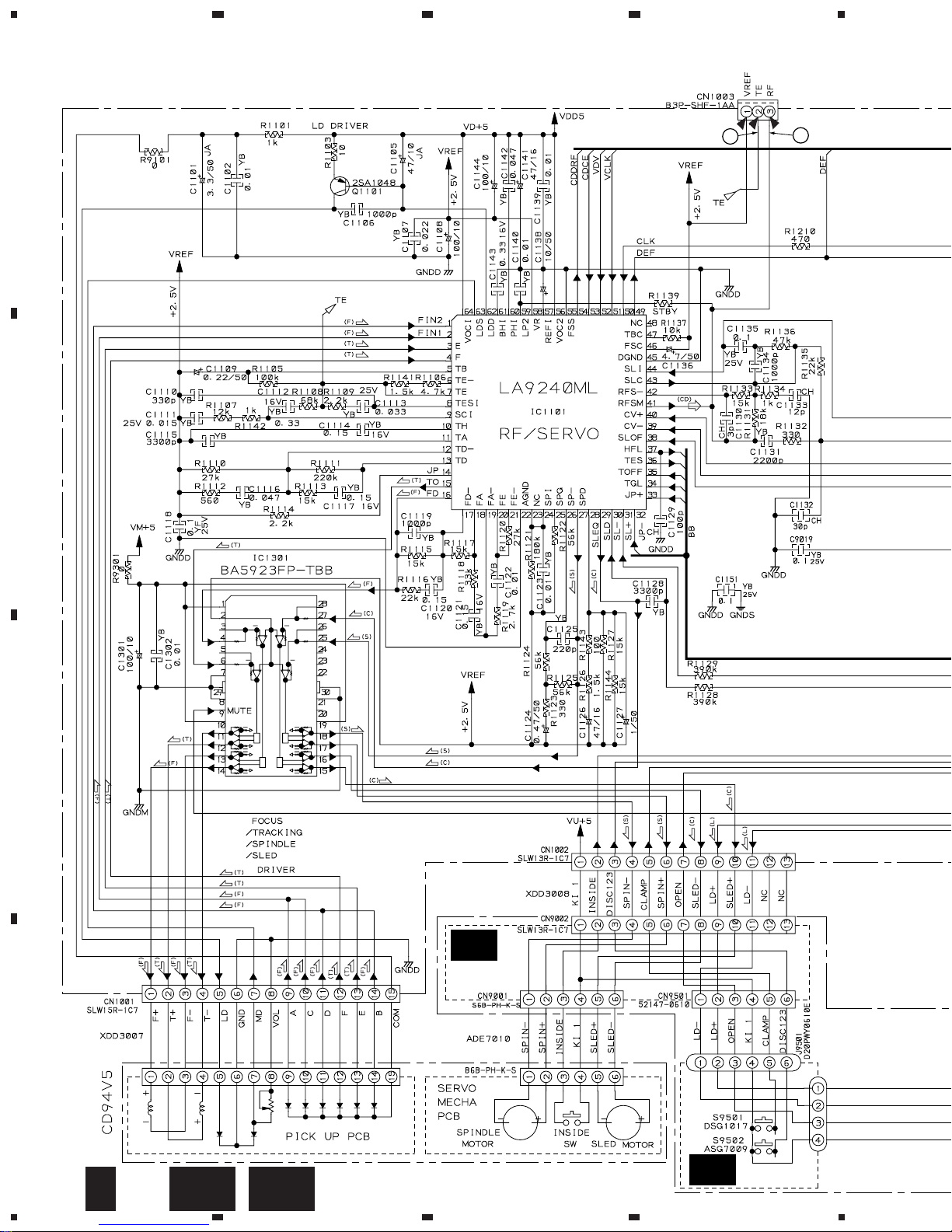

3.3 VCD SURVO, MOTOR, SW and TRADE ASSEMBLIES
1/2BDA DB

XR-VS99
19
A
B
C
D
5678
5678

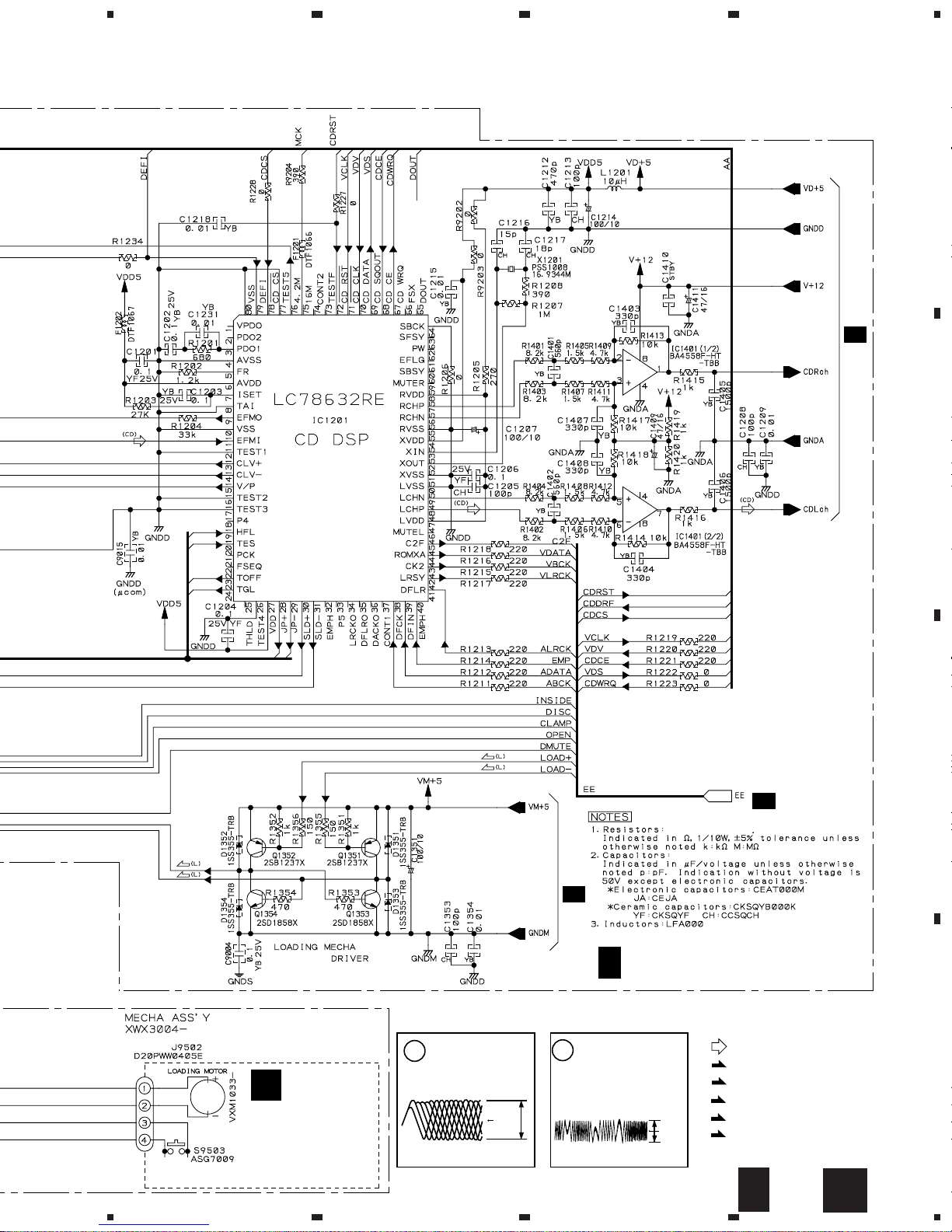

VCD SURVO ASSY (1/2)
(XWX3003)
B 1/2
2/2
B
2/2
B
2/2
B
SIGNAL ROUTE
:CD AUDIO SIGNAL ROUTE
: FOCUS SERVO LOOP LINE
: TRACKING SERVO LOOP LINE
: SPINDLE MOTOR ROUTE
: CARRIAGE MOTOR ROUTE
: LOADING MOTOR ROUTE
(CD)
(FS)
(TS)
(SM)
(CM)
(LM)
C
MOTOR ASSY
(XWZ3080)
CN1003- Pin 3 :
PLAY MODE (RF)
VREF:CN1003- Pin1
VREF
2.0Vp-p
CN1003- Pin 2 :
TEST MODE,
Tracking Open(TRER)
1.0Vp-p
H : 500nsec/div H : 5msec/div
VREF
12
Note: The encircled numbers
denote measuring point in the
schematic diagram.
C
1/2B

XR-VS99
20
A
B
C
D
1234
1234
2/2B
