XC-L11

RRV2470

1. SAFETY INFORMATION...................................... 2

2. EXPLODED VIEWS AND PARTS LIST ............... 3

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM... 10

4. PCB CONNECTION DIAGRAM ......................... 22

5. PCB PARTS LIST............................................... 30

6. ADJUSTMENT.................................................... 34

CONTENTS 7. GENERAL INFORMATION ................................ 37

7.1 DISASSEMBLY ............................................ 37

7.2 PARTS .......................................................... 40

7.2.1 IC ............................................................ 40

7.2.2 DISPLAY................................................. 43

8. PANEL FACILITIES AND SPECIFICATIONS....... 44

T – ZZR JUNE 2001 Printed in Japan

STEREO CDTUNER

PLAY/PAUSE

STANDBY/ON

6OPEN/CLOSE

STOP

0

7

Type Model Power Requirement

XC-L11

ZVYXJ DC power supplied from other system component

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Remarks

÷This products are component of systems. This product does not operate normally by

itself. Please connect it to the STEREO CD TUNER XC-L11 and the STEREO POWER

AMPLIFIER M-L11, for adjustment and operation inspection.

¶This product is a system(s) component.

Be sure to connect it to the prescribed system component(s), otherwise damage may

result.

Component Model Service manual Remarks

STEREO CD TUNER XC-L11 RRV2470 This manual.

STEREO POWER AMPLIFIER M-L11 RRV2479

SPEAKER SYSTEM S-L11-LRW –– RRV2483

–– S-L11-Q-LRW RRV2484

STEREO CASSETTE DECK CT-L11 RRV2471

MINIDISC RECORDER MJ-L11 RRV2472

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2

XC-L11

IMPORTANT

THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY

INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER: 5 mW

WAVELENGTH: 780 – 785 nm

1. Laser Interlock Mechanism

The loading position detect switch (in CD mechanism

assembly) is set to "CLMP ON(CD CLOSE)" (ON:low

level,OFF:high level) position, the system control

IC(IC5501) get the "CLMP" signal, and hand the laser

"LDON" signal to IC1101.

Then a laser diode can be lighted except when the level of

signal CLMP is low.

The interlock also does not function in the test mode∗.

Laser diode oscillation will continue, if pin 1 of TA2150FN

(IC1101) on the RF AMP is connected to GND, or pin 19 is

connected to low level (ON), or else the terminals of

Q1101 are shorted to each other (fault condition).

2. When the cover is opened, close viewing of the objective

lens with the naked eye will cause exposure to a Class 1

laser beam.

∗: Refer to page 34.

Additional Laser Caution

WARNING!

Lithium batteries. Danger of explo-

sion. Replacement must be done by

qualified personnel and only by fol-

lowing the instructions given in the

service manual.

This

warning

is

stated

on

the

product

or in

the operating instructions. When replacing the

lithium batteries, follow the note below.

Dispose

of

the

used

battery

promptly. Keep

away from children.

Do not disassemble

and

do

not

dispose

of

in

fire.

The

battery

used

in this device may present a

fire or chemical hazard if mistreated. Do not

recharge,

disassemble,

heat above 100°C or

incinerate. Replace only with the same Part

Number. Use of another battery may

present

a

risk

of

fire

or

explosion.

Note: The

lithium

battery

installation

po-

sition is shown in the exploded views.

ADVARSEL!

Lithiumbatteri −Eksplosionsfare

ved

fejlagtig håndtering. Udskiftning må

kun ske med batteri af samme fabrikat

og type. Levér det brugte batteri tilbage

til leverandøren.

Denne

advarsel

or

angivet

på

produktet

eller i brugsvejledningen. Ved udskiftning

af lithium batterierne følges nedenstående

anveisning.

Batterierne

må

kun

udskiftes

med

batteri-

er af samme type og mærke.

1. SAFETY INFORMATION

LITHIUM BATTERY NOTICE

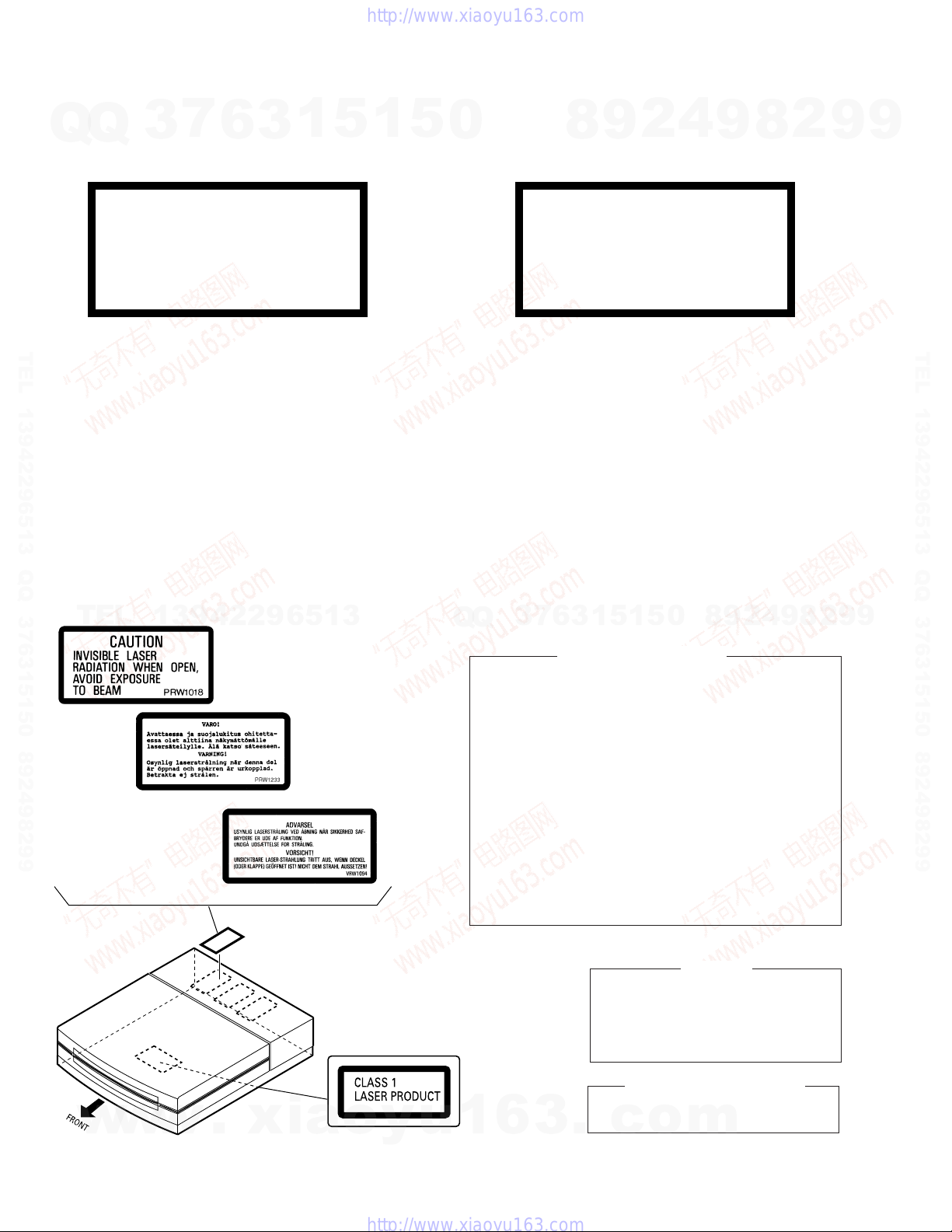

LABEL CHECK
