Piper 1008-SS User manual

HOLDING CABINETS
1008-SS, 1016-SS, 1016-SS-D
Installation and Operating Manual
For service information call 800-544-3057
Please have the following information available
before calling. Information can be found on the
identification/certification tag:
•Model Number
•Serial Number
•Date of Purchase
•Part Description and number as shown in parts list
IMPORTANT INFORMATION
READ BEFORE USE
Piper Products, Inc
300 South 84th Avenue
Wausau, WI 54401
Phone: [phone] . FAX: [phone]
This manual contains important safety information concerning the maintenance, use and operation of this product.
Failure to follow these instructions could result in damaging equipment, voiding the warranty, serious injury or even death.

TABLE OF CONTENTS
INTRODUCTION
FREIGHT DAMAGE CLAIMS
SAFETY PRECAUTIONS
UNPACKING YOUR EQUIPMENT
INSTALLATION
OPERATING INSTRUCTIONS
SPECIFICATIONS
MAINTENANCE
GENERAL CLEANING
TROUBLESHOOTING GUIDE
REPLACEMENT PARTS
WIRING DIAGRAM - MODEL 1008-SS
WIRING DIAGRAM - MODEL 1016-SS
WIRING DIAGRAM - MODEL 1016-SS-D
WARRANTY
2
2
3
3
4
5
5
6
7
8
9
10
11
12
13
2
INTRODUCTION
Congratulations! You have just purchased one of the finest pieces of equipment on the
market today. Before installing or operating your new Piper equipment, you should read
through this manual. This manual should be retained for further reference as it contains
installation and operating instructions, service tips, part lists and warranty information.
For your safety, read and follow all cautions and warnings.
FREIGHT DAMAGE CLAIMS
Your Piper equipment was carefully inspected and packed before leaving our factory. The
transportation company assumes full responsibility for safe delivery of this equipment.
Piper Products cannot assume responsibilities for damage or loss incurred in transit.
Visible damage or loss should be noted on the freight bill and signed by the person
making the delivery.
A freight claim should be filed immediately with the transportation company. If damage is
unnoticed or concealed until equipment is unpacked, notify the transportation company
immediately and tell them you want to file a concealed damage claim. This must be done
within five (5) days after delivery was made. Be sure to retain all packing material and
cartons.
WARNING
Installation of this equipment should be done only by persons qualified or licensed
to install electrical equipment. All electrical and plumbing must meet local, state,
and federal codes.
Plumbing installation must be performed by a qualified plumber.
Adjustments and service work should be performed only by a qualified service
technician. Service is available through Authorized Piper Parts and Service
Distributors throughout the United States. For a complete listing of these call or
write Piper Products, Inc. for the name of the nearest distributor.
This equipment is intended for commercial use only. Not for household use.
Use of other than genuine Piper replacement parts or service work performed by
other than an authorized Piper service agent will void the warranty.
Do not use any corrosive cleaners. Piper only approves soap and water for
cleaning stainless steel.
1

4
SAFETY PRECAUTIONS
1. Read all instructions and warranty before operating unit.
2. Equipment should be installed by a qualified electrician familiar with local electrical
codes.
3. Equipment should be installed on a solid, level floor.
4. Adequate space should be allocated surrounding the unit to allow for proper airflow
and provide access for servicing (see electrical information for more details).
5. Flammable materials should not be stored near the equipment. Do not cover or block
any openings or vents.
6. Surfaces on equipment may become extremely hot. Exercise caution when operating.
7. Do not over bake food. Oven should be attended to prevent product from burning or
causing a fire.
8. All warnings and operating instructions should be followed.
9. When replacement parts are required, be sure the service technician has parts
specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electrical shock or other hazards.
10. This Operators Manual should be retained for future reference.
UNPACKING YOUR EQUIPMENT
1. Check crate for damage upon arrival. Make notation on freight of any damage.
2. Uncrate equipment and check for concealed damage. If damaged, call freight
company immediately to come and inspect the equipment. Save the crate and
packing material for inspection.
TO REMOVE THE EQUIPMENT FROM THE SKID
1. Tilt unit backward at a 45˚ angle.
2. Push down on front of skid breaking off narrow board on back.
3. Remove skid by pulling forward.
YOUR SHIPMENT SHOULD CONSIST OF:
1008
1 - Model 1008-SS Holding Cabinet
1 - Water Pan
1016
1 - Model 1016-SS Holding Cabinet
1 - Water Pan
ASSEMBLY INSTRUCTIONS
Place the stainless steel water pan into the opening in the bottom of the unit, on top of
the heating element.
3
INSTALLATION
ELECTRICAL CONNECTION
WARNING!!!! DO NOT USE EXTENSION CORDS (VOIDS WARRANTY)
Ground:
The electrical outlet must be provided with an efficient ground, and the voltage and the
frequency of the electrical line matches those indicated on the data plate.
If unsure about the efficiency of the ground, have your electrical circuit checked
by a qualified technician.
• Carefully remove carton or crate from unit. Remove all loose packing materials,
making sure that no small parts or accessories are lost. Inspect the unit for concealed
damage before discarding packing materials.
• It is the responsibility of the installer to comply with all local codes.
• Unlock brakes on casters and roll unit to area where it is to be used.
• Electrical installation should be made by a licensed electrician.
• Check unit nameplate for electrical requirements. Make sure that the thermostats are
all set to the “OFF” position. Connect the electrical power cord and plug to a properly
sized power source of the correct voltage.
• Supplied voltage must correspond with the voltage specified on the serial plate.
WARNING!: Improper voltage supplied to the unit will void the warranty.
Voltage variation can cause erratic operation and serious damage to the
electrical system.
• All external wiring should conform to the national, state and local electrical code
requirements. See electrical specifications listed in the back of this manual for more
details on your Holding Cabinet.
• Equipment must be properly grounded to prevent electrical shock.
• Equipment must have a separate ground.
• For more details see electrical specifications listed on the wiring diagram in the
back of this manual.
WARNING!: Allow 4” from wall on the rear of the unit for airflow.

OPERATING INSTRUCTIONS
• Turn the power switch “ON”.
• Fill water pan.
• Set the thermostat to the desired temperature. Allow approximately 30 minutes to
reach temperature.
HINT: You may want to place your product in a room temperature pan - NOT a cold pan.
This keeps the cabinet from working to get back to the desired temperature.
WARNING!: Low water level or scale build-up in the manual-fill water pan will
cause premature failure of the humidity system and will void the warranty.
MAINTENANCE
To obtain the best performance from your equipment, it should be cleaned daily and
maintained in good condition.
SAFETY / ENVIRONMENTAL CAUTION
PERSONAL PROTECTION:
Check your company safety and environmental policy before cleaning or servicing.
Safety Tip! : Utilize protective gloves and safety glasses
ELECTRICAL POWER:
Before performing EXTENDED CLEANING where electrical components can
become wet, the power switch must be turned to OFF and the unit disconnected
from the power source.
WARNING: Do not use any chlorinated or highly caustic cleaners, acids,
ammonia or other corrosive cleaners. These may cause corrosion and/
or damage to the stainless steel. Piper only approves soap and water for
cleaning stainless steel. Water pan must be emptied and cleaned after each
serving period.
REQUIRED MONTHLY MAINTENANCE:
• Check thermostat settings
• Check operating temperature of unit
• Check electrical connection
65
Model Description Height Width Depth Glide
Spacing
18” x 26”
Capacity
12” x 20”
Capacity
Ship
Wt.
(lbs.)
Voltage Watts Amps NEMA
1008-SS Half Size 48.875” 29.75” 31.625” 1.5” 8 16 280 120V 2000 16.7 5-20P
1016-SS Full Size 74.75” 29.75” 31.625” 1.5” 16 32 460 120V 2750 22.9 5-30P
1016-SS-D Double Unit 74.75” 29.75” 31.625” 1.5” 16 32 460 120V 4000 33.3 5-50P
HOLDING CABINET SPECIFICATIONS

GENERAL CLEANING
CAUTION: BURN HAZARD: Some exterior surfaces on unit will get hot.
Use caution when touching these areas.
DO NOT clean the unit while it contains any food product. Remove food
product and allow unit to cool completely before cleaning or servicing.
CAUTION: Prior to cleaning or maintenance, turn all switches “OFF” and
disconnect the power.
Stainless Steel and Aluminum:
• Piper only approves soap and water for cleaning stainless steel.
• NOTICE: Do NOT use chlorinated cleaners.
Hardened Foods or Scale Deposits:
• Clean hardened foods or scale deposits by utilizing a plastic scouring pad and a
mild detergent. Rinse completely with warm water and dry.
• NOTICE: Do NOT use steel wool
SYMPTOMS REMEDIES
Insufficient heat in the holding
cabinet
Check circuit breaker.
Check if blower is operating.
Check for faulty thermostat. Indicator light should come “ON” when
thermostat is turned up.
Check to see if door fits properly.
Excessive heat in holding
cabinet
Check for faulty thermostat.
Check to see if humidity burner cycles off with the indicator light.
Insufficient humidity in the
holding cabinet
Check fuse.
Check water level in water pan. If dry, check for leak or small hairline
crack in the water pan.
Check humidity burner under water pan.
Check to see if humidity control is functioning properly.
• Indicator light should stay “ON” in the high position.
• Indicator light should be “OFF” in the off position.
(The humidity control operates like a regulator. The indicator light will
cycle “ON” longer as the dial setting is adjusted higher).
Check if blower is operating.
Check to see if door fits properly.
Excessive humidity in the
holding cabinet.
Check humidity burner under water pan.
Check to see if humidity control is functioning properly.
• Indicator light should stay “ON” in the high position.
• Indicator light should be “OFF” in the off position.
(The humidity control operates like a regulator. The indicator light will
cycle “ON” longer as the dial setting is adjusted higher).
TROUBLESHOOTING GUIDE
If problems are not found by the following checks, then you should contact your Authorized
Parts and Service Dealer for service. They have the necessary parts and training to repair
your unit quickly and efficiently.
DANGER: Disconnect all power to unit before servicing.
Call Piper Products directly at 800-544-3057 if you need further assistance.
87

REPLACEMENT PARTS
ITEM NO. PART NUMBER DESCRIPTION
1 600172 LABEL - 1008, 1016
2 706103 KNOB, ROGAN CONTROL
3 0113614 HIGH LIMIT
4 705160 INDICATOR LIGHT, RED
5 705484 3 POLE SWITCH
6 705747 THERMOMETER, DIGITAL DISPLAY
7 704414 6” CHROME REFLECTOR BOWL
8 704412 ELEMENT, RANGE BURNER
9 705366 TERMINAL BLOCK, 3 POLE 75 AMP
10 102156 CLIP THERMOSTAT
11 705846 FAN BLADE - 6-1/4”
12 704761 HEATING ELEMENT - U SHAPED, 120V, 750W (1008 AND 1016-SS-D)
12 (optional) 704760 HEATING ELEMENT U-SHAPED 120V, 1500W (1016-SS)
13 705348 LUG TERMINAL, GROUND
14 705847 FAN BLADE - 4”
15 12-0005400-002 MOTOR BRACKET, PROOFER
16 706400B FAN MOTOR
17 706155 60 MINUTE TIMER
18 705708 THERMOSTAT
19 705532 BUZZER
19
18
16
17
15
14
13
12
11
10
10
9
8
7
6
5
4
3
2
1
SCALE:
N/A
DATE:
SALES #
REVISIONS
SHEET
DRAWN BY:

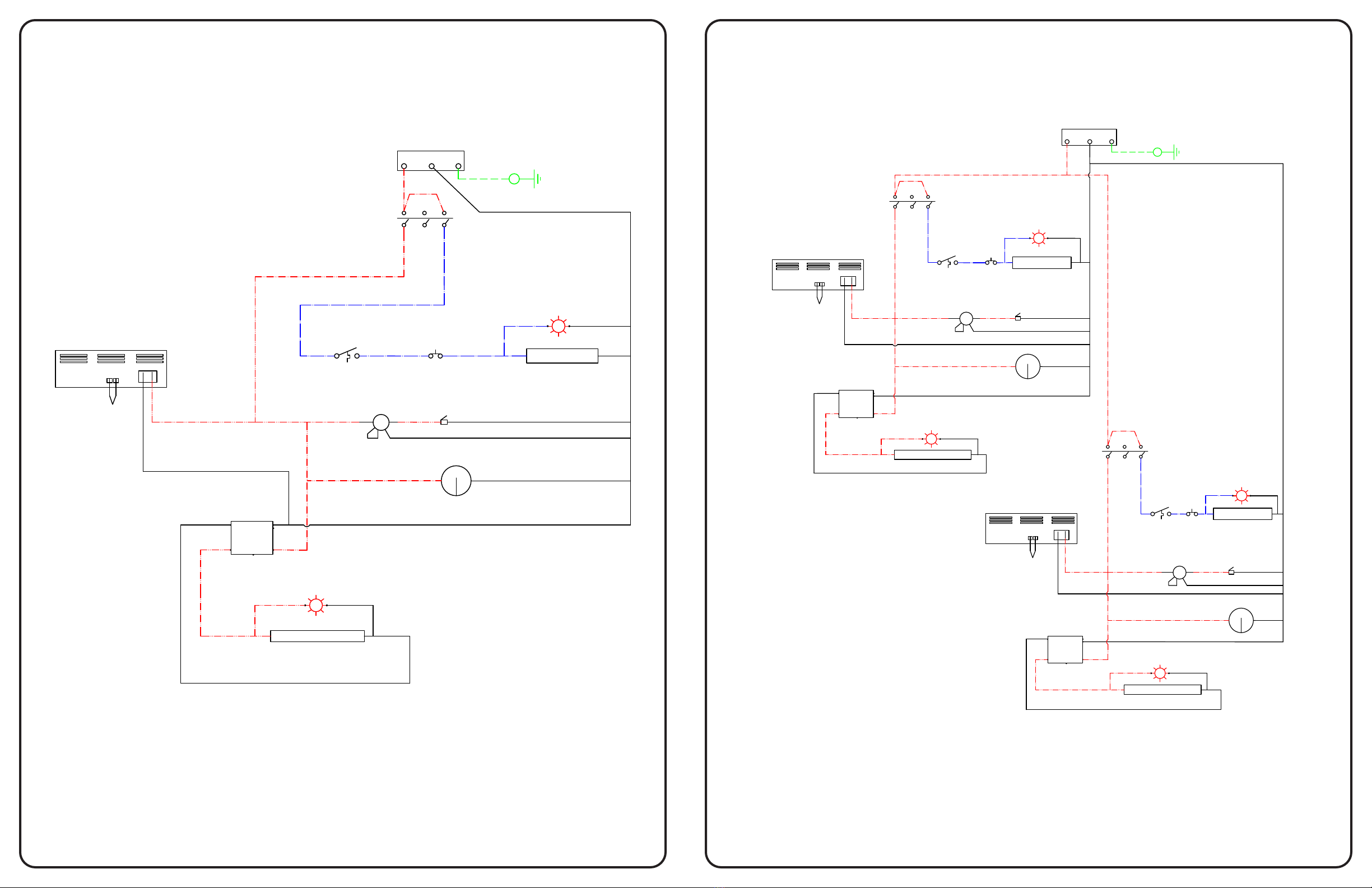

WIRING DIAGRAM
300 South 84th Ave.
WAUSAU, WI. 54401
PH. [phone]
FAX [phone]
www.piperonline.net Travis N.
1
1008-SS
05/04/2020
xxxxxxxxxx
PIPER
The Food-Focused Equipment Company
a CFSBRANDS company
on off
T1 T2 T3
L1 L2 L3
T-Stat
H1 L1
HC L2
P
A
B
D
timer Buzzer
light
PL
L1 NG
MAIN BLOCK
750 watts
240 volt 1500 watts
light
PL
probe
power supply
N L1
NTC probe
Digital Display part # 705747
hi-limit
fan
1008-SS WIRING DIAGRAM
109

1016-SS WIRING DIAGRAM
SCALE:
N/A
DATE:
SALES #
REVISIONS
SHEET
DRAWN BY:
WIRING DIAGRAM
300 South 84th Ave.
WAUSAU, WI. 54401
PH. [phone]
FAX [phone]
www.piperonline.net Travis N.
1
1016-SS
05/04/2020
xxxxxxxxxx
PIPER
The Food-Focused Equipment Company
a CFSBRANDS company
on off
T1 T2 T3
L1 L2 L3
T-Stat
H1 L1
HC L2
P
A
B
D
timer Buzzer
light
PL
L1 NG
MAIN BLOCK
1500 watts
240 volt 1500 watts
light
PL
probe
power supply
N L1
NTC probe
Digital Display part # 705747
hi-limit
fan
1016-SS-D WIRING DIAGRAM
SCALE:
N/A
DATE:
SALES #
REVISIONS
SHEET
DRAWN BY:
WIRING DIAGRAM
300 South 84th Ave.
WAUSAU, WI. 54401
PH. [phone]
FAX [phone]
www.piperonline.net Travis N.
1
1016-SS-D unit
5/04/2020
xxxxxxxxxx
PIPER
The Food-Focused Equipment Company
a CFSBRANDS company
on off
T1 T2 T3
L1 L2 L3
T-Stat
H1 L1
HC L2
P
A
B
D
timer Buzzer
light
PL
L1 NG
MAIN BLOCK
750 watts
240 volt 1500 watts
PL
probe
power supply
N L1
NTC probe
Digital Display part # 705747
hi-limit
fan
on off
T1 T2 T3
L1 L2 L3
T-Stat
H1 L1
HC L2
P
A
B
D
timer Buzzer
light
PL
750 watts
240 volt 1500 watts
PL
probe
power supply
N L1
NTC probe
Digital Display part # 705747
hi-limit
fan
1211

PIPER PRODUCTS, INC. LIMITED WARRANTY
Piper Products, Inc. warrants to the original purchaser that its equipment will be free from defects
in the materials and/or parts for a period of 12 months from date of shipment and reported to the
factory.
The purchaser is responsible for having equipment properly installed, operated under normal
conditions with proper supervision and to perform periodic preventative maintenance. Equipment
failures caused by inadequate water quality, improper cleaning, harsh chemicals, or acids are not
covered under warranty.
The manufacturer’s obligation under this warranty shall be the replacement or repair of defective
parts within the warranty period. Excessive labor (more than 1/2 hour) required to access Piper
equipment built into cabinets, tables or structures by others, is NOT covered under labor warranty.
Example: Piper multiple- or single-well food wells. All labor shall be performed during regular
working hours. Overtime premium will be charged to buyer. After thorough examination, the decision

Any defective parts to be repaired or replaced must be returned to Piper Products, Inc., 300 South
84th Avenue, Wausau, WI 54401, transportation charges prepaid, and they must be properly packed
and tagged. The serial and model number of the equipment and date of original installation of such
equipment must be given. However, after one year we will not assume any responsibility for any

covered by this warranty. Our obligation hereunder to repair or replace a defective part is the
exclusive remedy for breach of this warranty; and we will not be liable for any other damages or
claims, including consequential damages.
If, upon inspection by Piper Products, Inc. or its Authorized Service Agency, it is determined that
this equipment has not been properly installed or has not been used in an appropriate manner, has

or other identifying marks have been removed, defaced or changed or the unit has been repaired or
altered by persons other than expressly approved by Piper Products, Inc., the warranty will be void.
If the equipment has been subjected to misuse or misapplication, neglect, abuse, accident, damage

any situation occurs which voids the warranty the manufacturer shall not be liable for any damage to
any person or any property which may result from the use of the equipment thereafter.
Warranty is limited to Piper manufactured products only and does not apply to other equipment
which may be connected to or installed within.
No representative, dealer, distributor or any other person is authorized or permitted to make any
other warranty or obligate Piper Products, Inc. to any liability not strictly in accordance with this
policy.
This warranty is in lieu of all other warranties expressed or implied, including any warranty of

not be liable to purchaser for any consequential or incidental damages including but not limited to

any breach of warranty. Piper Products, Inc
300 South 84th Avenue
Wausau, WI 54401
Phone: [phone] . FAX: [phone]
13
