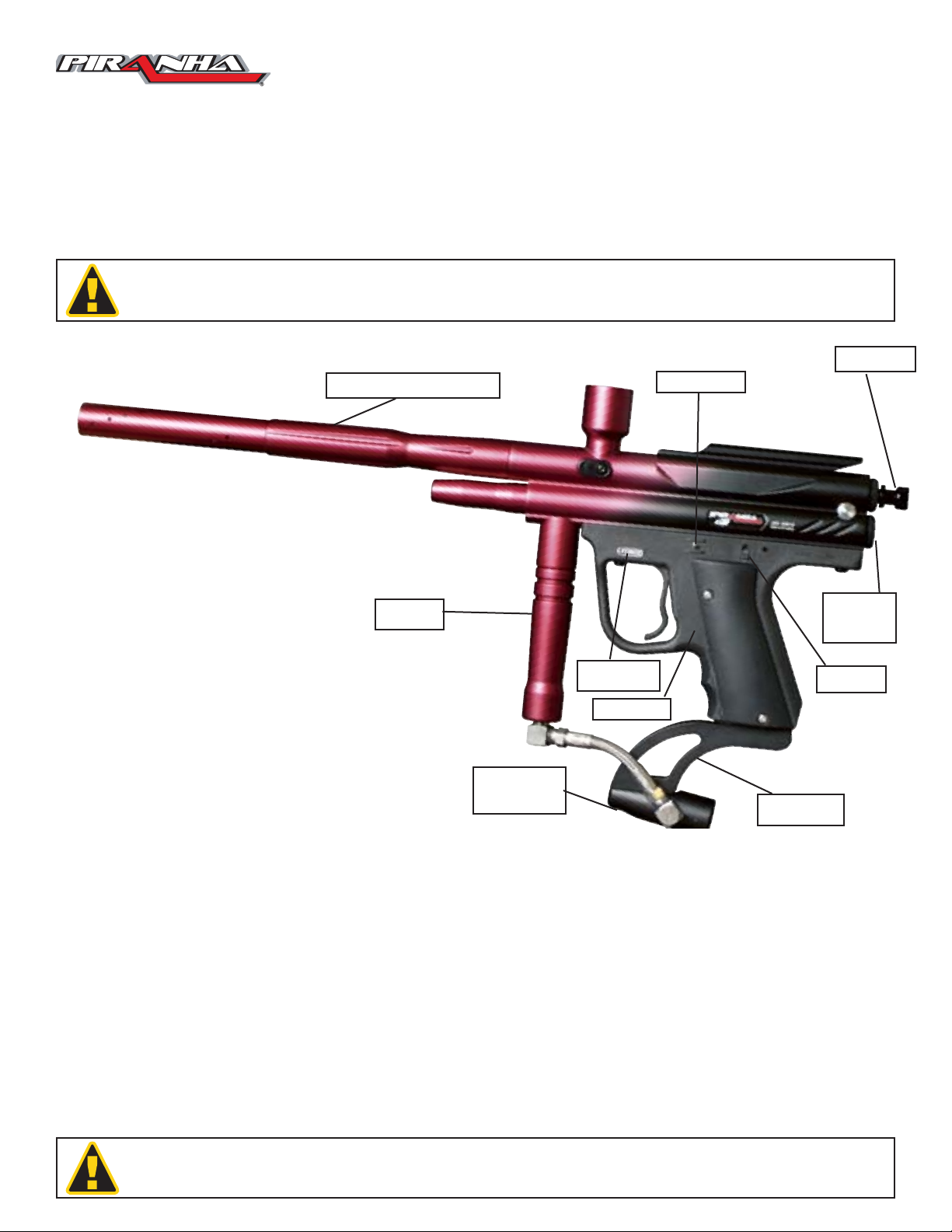

Piranha RAVAGE User manual

INSTRUCTIONS FOR USE
Cocking Rod
Velocity
Adjustment
Screw
On/Off Button
Sear Release
Gas Thru Grip
On/Off Indicator
Charge Port
Drop Forward
PMI High Performance Barrel
10º Bottom Line
Adapter
RAVAGE
The Ravage eForce grip frame is capable of high rates of fire and an agitating hopper such as an
Extreme Rage Overdrive, VL Revolution, Halo, or Evolution 2 is recommended for better performance.
SEAR RELEASE SLIDE:The sear release slide is located on the left
hand side of the Ravage grip frame. Toreinstall the bolt/block/hammer
assembly, push the sear release slide up before the hammer comes in con-
tact with the sear. That will allow the bolt/block/hammer assembly to slide
easily into the marker.
ON/OFF BUTTON: The on/off is the silver button
located on the left hand side of the gripframe. Push it once
and the red on/off indicator will then light up. Push the
on/off button again to turn it off. The frame should be left
offwhen not using the marker or you will drain the battery.
RAVAGE BATTERY: The Ravage comes with a 9 volt rechargeable battery. You must charge it for a full 22 hours before initial use since the it does not come fully charged.
For best long term battery life, repeat this process every time it is drained. You can also use a regular 9 volt battery with this frame if your rechargeable battery is dead or if you
want to play with the frame right away. You will need to remove the right grip panel when you need to replace it.
WARNING: PMI RECOMMENDS USING THE 9V RECHARGEABLE BATTERY PROVIDED FOR OPTIMAL PERFORMANCE. DO NOT
USE THE BATTERY CHARGER WHEN USING ANY NON-RECHARGEABLE BATTERY.
BURST BUTTON Press the Burst Button once to turnthe marker on 3
Shot Burst. Press the Burst Button again to turn the frame to 6 Shot Burst.
Press the Burst Button again to turn the frame to 9 Shot Burst. Press the
Burst Button again to turn it back to semi-auto.
FULL AUTO BUTTON Press the Full Button once to turnthe frame to
Full Auto. Press the Full Button again to turn it back to semi-auto.
eFORCE BATTERY The eForce frame comes with a 9 volt
rechargeable battery. You must charge it for a full 22 hours with the
marker turned off before initial use since it does not come fully
charged. For best long term battery life, repeat this process every
time it is drained. You can also use a regular 9 volt battery with this
frame if your rechargeable battery is dead or if you want to play
with the frame right away. You will need to remove the right grip
panel when you need to replace it. A blinking on/off indicator light
means your eForce frame needs to be charged right away.Always
charge with the marker turned off.
TOURNAMENT LOCK SWITCH The Tournament Lock Switch
enables you to play in a tournament or at a field that does not allow full
auto and burst modes by restricting the marker to semi-automatic only. All
eForce frames come with the Tournament Lock off so you can immediately
put the marker in full auto or burst mode. See Piranha manual (5.3) page
32 or Piranha manual (5.1) page 28.
WARNING: Never use water to clean the marker, or you run the risk of damaging the electronic trigger frame.

54
42
25
62
66
68
72
71
63
67
66
70
69
77
73
75
74
76
64
70
78
13
25
33
34
34
12
11
32
35
14
26
20
19
28
37
37 6
7
9
10
37
3
2
39
31 4
1
5
43
42
41
45
45
40
15
17
16
18
27
37
36
59
60
1. Milled Receiver Body 71690
2. 9” Barrel 10124
3. ASA Slug 71670
4. Sight Rail 71680
5. Field Strip Pin Assembly 10021
6. Valve Body 10027
7. Valve Cup Seal Assembly 10127
9. Valve Guide 10520
10. Valve Spring 71597
11. Minlon Bolt 71668
12. Rear Block w/ Cushion 71662
13. Minlon Cocking Rod 71669
14. Hammer Assembly 10024
15. Blue Hammer Spring 10351
16. ASA O-ring 10608
17. Spring Guide 10301
18. Vertical ASA Adapter 71520
19. Ball Detent Cap 10101
20. Ball Detent 10160
25. Velocity Screw 10026
26. Valve Set Screw 10513
27. ASA Screw 71580
28. Ball Detent Screw 10180
31. Sight Rail Screws 20010
32. Bolt Pin 10291
33. Velocity Screw O-Ring 10460
34. Rear Block O-Rings 10260
35. Blue Hammer O-Ring 10129
36. Screen Filter 71667
37. Valve O-Rings 41010
37. Gas Thru Grip O-Ring 41010
37. ASA Slug O-Ring 41010
39. Barrel O-Ring 10161
40. Gas-Thru Foregrip 10788
41. 7" SS hose 47015
42. Bottom line SS screw 42016
43. 10˚ Bottom Line Adapter 42013
45. 90° Elbows 47000
54. Drop Forward 71242
59. Front Bolt O-Ring 57738
60. Standard Cocking B/B/H Assembly 71297
61. eForce Polymer Double Trigger Frame Assembly 59093
62. eForce Sear Release Slide 71585
63. Grip 70105
64. Rear Trigger Frame Screw 71583
65. Front eForce Trigger Frame Screw 71582
66. Grip Screws 10782
67. eForce Trigger 71586
68. eForce Sear 71591
69. eForce Trigger Spring 71587
70. eForce Sear/Trigger Pin 71588
71. eForce Trigger/Spring Pin 71589
72. eForce Sear Spring 71590
73. eForce Board Screws 71592
74. eForce Board Cover 71593
75. eForce Electronic Board 71594
76. eForce Solenoid 71595
77. eForce Charge Port Cover 71596
78. 8.4V Rechargeable Battery 70181
