Pittsburgh Automotive 69514 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 19j
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2012 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 69514
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 4
Setup .......................................................... 4
Operation .................................................... 7
Maintenance ............................................... 8
Parts Lists and Diagrams .......................... 10
Warranty .................................................... 12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
General Safety Warnings
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
1. Study, understand, and follow all instructions
before operating this device.
2. Do not exceed 2 ton rated capacity
for the Engine Crane.
3. Use only on hard, level surfaces.
4. Before moving, lower the load to
the lowest possible point.
5. Use only sling or chains with a rated capacity
greater than the weight of the load being lifted.
6. Do not allow load to swing or drop
violently while lowering or moving.
7. Do not make any alterations or modifications
to Engine Crane. Do not adjust safety valve.
8. Properly extend leg extensions and secure
boom in proper setting before use.
9. Follow capacities marked on boom; capacity
decreases as boom lengthens.
10. Wear ANSI-approved safety goggles and
heavy-duty work gloves during use.
11. Verify replacement jack has same rating,
mounting points and maximum length.
12. Do not use for aircraft purposes.
SAFETY OPERATION MAINTENANCESETUP

Page 3For technical questions, please call 1-888-866-5797.Item 69514
13. Inspect before every use; do not use
if parts loose or damaged.
14. Keep your work area clean and well lit.
Cluttered work areas invite accidents.
15. Keep bystanders, children, and visitors away
while operating Engine Crane. Distractions
can cause you to lose control.
16. Stay alert. Watch what you are doing, and
use common sense when operating a jack.
Do not use a jack while tired or under the
influence of drugs, alcohol, or medication. A
moment of inattention while operating jacks
may result in serious personal injury.
17. Follow instructions in the “Inspection, Maintenance,
And Cleaning” section of this manual. Use
of unauthorized parts or failure to follow
maintenance instructions may create a risk of
injury and may void any applicable warranty.
18. Maintain labels and nameplates on the
Engine Crane. These carry important
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
19. Before use, read manufacturer’s instruction
manual for the object you will lift.
20. Industrial applications must follow
OSHA requirements.
21. The warnings, precautions, and instructions
discussed in this manual cannot cover all possible
conditions and situations that may occur. The
operator must understand that common sense and
caution are factors, which cannot be built into this
product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
SAFETYOPERATIONMAINTENANCE SETUP

Page 4 For technical questions, please call 1-888-866-5797. Item 69514
Specifications
Specifications
Jack Capacity 8 Ton
Boom Positions
2 Ton 84 IN.
1-1/2 Ton 89 IN.
1 Ton 95 IN.
1/2 Ton 100 IN.
Assembly
Part
#32
14x90
mm
Part
#8
14x100
mm
Part
#11
16x80
mm
Part
#20
16x90
mm
Part
#15
16x100
mm
Part
#16
16x110
mm
Part
#2
12x80
mm
Part
#25
8x20
mm
Part
#29
8x12
mm
TO PREVENT SERIOUS INJURY AND DEATH: The correct bolts must be used during
assembly. Carefully compare bolts to Bolt Identification illustration above and the measurements shown in
the parts list and assembly diagrams near the end of this manual to make sure that the correct bolts are
used in the correct place.
WARNING! For safety and ease of assembly, use two people to assemble the Shop Crane.
CAUTION! DO NOT TIGHTEN ANY BOLTS UNTIL YOU ARE FULLY FINISHED WITH ASSEMBLY.
OTHERWISE PARTS WILL NOT LINE UP PROPERLY.
SAFETY OPERATION MAINTENANCESETUP

Page 5For technical questions, please call 1-888-866-5797.Item 69514
CAUTION! DO NOT TIGHTEN ANY BOLTS UNTIL YOU ARE FULLY FINISHED WITH ASSEMBLY.
OTHERWISE PARTS WILL NOT LINE UP PROPERLY.
25
24
23
22
30
21 26
27
28 2923
(Assembled)
Figure A

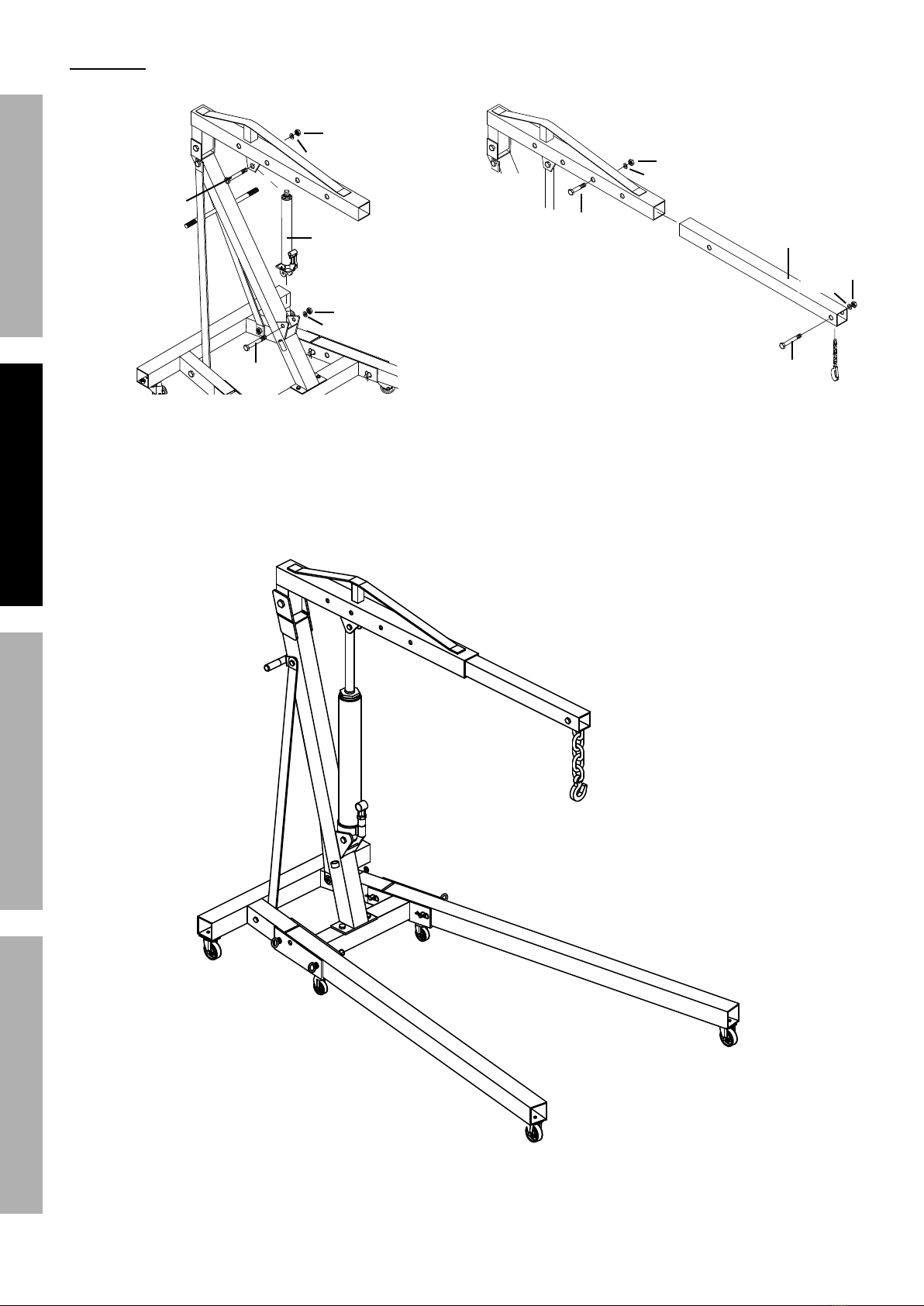

1. Slide the Legs into the front of the Base
and Lock Legs in place using the Lock Pins.
To insert the Lock Pins, lift up on front of Base
until holes line up. After all four Lock Pins are
inserted, insert one R-Pin through small hole at
end of each Lock Pin until it snaps into place.
Note: Make sure Lock Pins are
secure before proceeding.
Base Assembly
9 10
8
(Assembled)
Figure B
2. Use the Bolts, Washers, and Nuts to secure
the bottom of the Post to the Base.
Washer
Washers
Nut
Nut
Post
Support
Bolt (15)
Bolt (15)
Bolt (16)
The bends of the
Supports face out
at the top and in
at the bottom as
shown above.
Support
Post
Leg Leg
Support
Figure C
3. Use two Bolts, Washers and Nuts to fasten the lower
ends of the Supports to the inside of the Frame,
then use one Bolt, Washer and Nut to fasten the top
ends of the Supports and the Handle to the Post.
Handle
Post
Support
Support
(Not shown)
Figure D
Note: Slide the Handle between the Supports
and Post, align all holes, then secure in place.
Washer
Boom
Nut
Bolt (16)
Figure E
4. Use the Bolt, Washer and Nut to attach
the Boom to the top of the Post.
SAFETYOPERATIONMAINTENANCE SETUP

Page 6 For technical questions, please call 1-888-866-5797. Item 69514
CAUTION! DO NOT TIGHTEN ANY BOLTS UNTIL YOU ARE FULLY FINISHED WITH ASSEMBLY.
OTHERWISE PARTS WILL NOT LINE UP PROPERLY.
Washer
Washer
Nut
Nut
Jack
Bolt (20)
Bolt (11)
Figure F
5. Use a Bolt, Washer and Nut to attach lower end
of the Jack to the Post and another Bolt, Washer
and Nut to attach the top of the Jack to the Boom.
Washer
Washer
Nut
Nut
Boom Extension
Bolt (2)
Bolt (32)
Figure G
6. Slide the Boom Extension into the Boom and use the
Bolt, Washer and Nut to secure at the desired load
rating. Use the Bolt, Washer and Nut to attach the
Hook and Chain to the end of the Boom Extension.
7. After assembly, tighten all Nuts and Bolts securely
using a Wrench or Socket (sold separately).
Figure H: Assembled Engine Crane
SAFETY OPERATION MAINTENANCESETUP

Page 7For technical questions, please call 1-888-866-5797.Item 69514
Operating Instructions
Read ENTIRE IMPORTANT SAFETY INFORMATION section at beginning of this manual
including all text under subheadings therein before set up or use of this product.
Note: Once Assembly is complete, tighten ALL Bolts before initial operation.
Lifting and Lowering
1.
3/4 Ton Load
Figure I
Locate the hole on the Boom with a weight limit
higher than the weight you will be lifting.
For example: Locate the 1 TON hole on the Boom
for a load that is under one Ton. See Figure 9.
2.
Figure J
Washer
Nut
Bolt
Adjust the Boom Extension
so the hole furthest from the
hook-end aligns with the chosen hole on the
Boom. Secure into place by inserting the Bolt
through all aligned holes and tightening in place
with the Washer and Nut. See Figure 10 above.
WARNING! Do not stand under an object that is
being lifted by the Engine Crane. Be aware of the
possibility of a load slipping off the Hook and Chain. An
item that falls from the Crane can cause serious injury.
3. Move the Crane so that the Hook and Chain
is directly above the item to be lifted.
4. Securely attach the Hook and Chain to the item.
5. To raise the Boom, turn the Jack’s release valve
fully clockwise (right). Insert the Handle into the
Jack and pump (up and down) repeatedly until
the item has been lifted to the desired height.
WARNING! Fully tighten the release valve
or else the Jack may lower or may not
be able to reach the full height.
WARNING! DO NOT MOVE THE CRANE WHEN
UNDER LOAD. The Casters are not designed to
be rolled when the Crane is lifting heavy objects.
6. To lower the Crane, SLOWLY turn the Jack’s
release valve counterclockwise (left).
Folding the Frame
WARNING! Do not fold crane while loaded.
1. Lower Crane all the way.
2. Remove R-Pins from the front Lock Pins. Remove
the front Lock Pins. Leave rear Lock Pins in.
3. Raise Leg until it rests against Handle.
4. Insert a front Lock Pin into the middle hole of
the Base, for each Leg, and reinsert R-Pins.
Bleeding Instructions
IMPORTANT! Before first use, check for proper
hydraulic oil level and thoroughly test the
equipment. If it does not work properly, bleed
excess air from its hydraulic system as follows:
1. Open Release Valve and lower Jack completely.
2. Remove Oil Plug and fill with hydraulic
oil (sold separately) to full level.
3. Apply downward pressure to the Boom and
Pump the Jack Handle quickly several times.
4. Check the Oil Fill Hole and, if necessary,
top off the Oil Fill Hole with hydraulic oil.
5. Replace the Oil Plug and close the Release Valve.
6. Test the equipment several times for proper
operation before attempting to lift a load. If, after
bleeding, the equipment still does not appear to be
working properly, do not use the equipment until it
has been repaired by a qualified service technician.
SAFETYOPERATIONMAINTENANCE SETUP

Page 8 For technical questions, please call 1-888-866-5797. Item 69514
Maintenance and Servicing
Procedures not specifically explained in this
manual must be performed only by a
qualified technician.
TO PREVENT SERIOUS INJURY
FROM ACCIDENTAL OPERATION:
Do not use damaged equipment. If abnormal
noise or vibration occurs, have the problem
corrected before further use.
Cleaning, Maintenance, and Lubrication
1. Before each use, inspect the general condition
of the Jack. Check for broken, cracked, or bent
parts, loose or missing parts, and any condition that
may affect the proper operation of the product. If a
problem occurs, have the problem corrected before
further use.
Do not use damaged equipment.
2. Before each use, thoroughly test the Jack
for proper operation prior to its actual use. If
the Jack appears not to be working properly,
follow Bleeding instructions on page 9.
3. Change the hydraulic oil at least
once every three years:
a. With the Jack fully lowered, remove the Oil
Filler Plug on the side of the Housing.
b. Tip the Jack to allow the old hydraulic oil
to drain out of the Housing completely,
and dispose of the old hydraulic oil in
accordance with local regulations.
c. With the Jack upright, completely fill the Housing
with a high quality hydraulic oil (not included) until
the oil just begins to run out of the Oil Fill Hole.
d. Open the valve Release Screw and pump
the Handle to bleed air from the system.
e. Reinstall the Oil Filler Plug.
4. Wipe dry with a clean cloth. Then, store the
Jack in a safe, dry location out of reach of
children and other non-authorized people.
SAFETY OPERATION MAINTENANCESETUP

Page 9For technical questions, please call 1-888-866-5797.Item 69514
Troubleshooting
TO PREVENT SERIOUS INJURY: Use caution when troubleshooting malfunctioning
jack. Stay clear of supported load. Completely resolve all problems before use. If
solutions presented in Troubleshooting guide do not solve the problem, have a qualified technician inspect and
repair jack before use. After jack is repaired: Test it carefully without a load by raising and lowering it fully,
checking for proper operation, BEFORE RETURNING JACK TO OPERATION.
DO NOT USE A DAMAGED OR
MALFUNCTIONING JACK!
POSSIBLE SYMPTOMS
PROBABLE SOLUTION
(Make certain that the Jack
is not supporting a load
while attempting a solution.)
Jack will
not lift at
its weight
capacity
Chain
and/or
Hook
lowers
under
load
Pump
stroke
feels
spongy
Chain
and/or
Hook
will not
lift all
the way
Handle
moves
up when
Jack is
under
load
Oil
leaking
from
Filler
Plug
X X
Check that Release Valve is
closed fully.
Bleed air from the system.
X X X
Valves may be blocked and may
not close fully. To flush the valves:
1. Lower the Chain / Hook
and securely close the
Release Valve.
2. Manually lift the Chain /
Hook several inches.
3. Open the release valve and
force the Chain / Hook down
as quickly as possible.
XX X
Jack may be low on oil. Check
the oil level and refill if needed.
Jack may require bleeding -
see instructions on page 9.
X
Unit may have too much
hydraulic oil inside, check fluid
level and adjust if needed.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
SAFETYOPERATIONMAINTENANCE SETUP

Page 10 For technical questions, please call 1-888-866-5797. Item 69514
21
14
17
27
1
30
28
19
18
7
16
20
11
2
25
29
3 4 5
6
26
24
23
22
10932
12 13
31
1098
13
12
15
1213
12 13
12 13
16
23

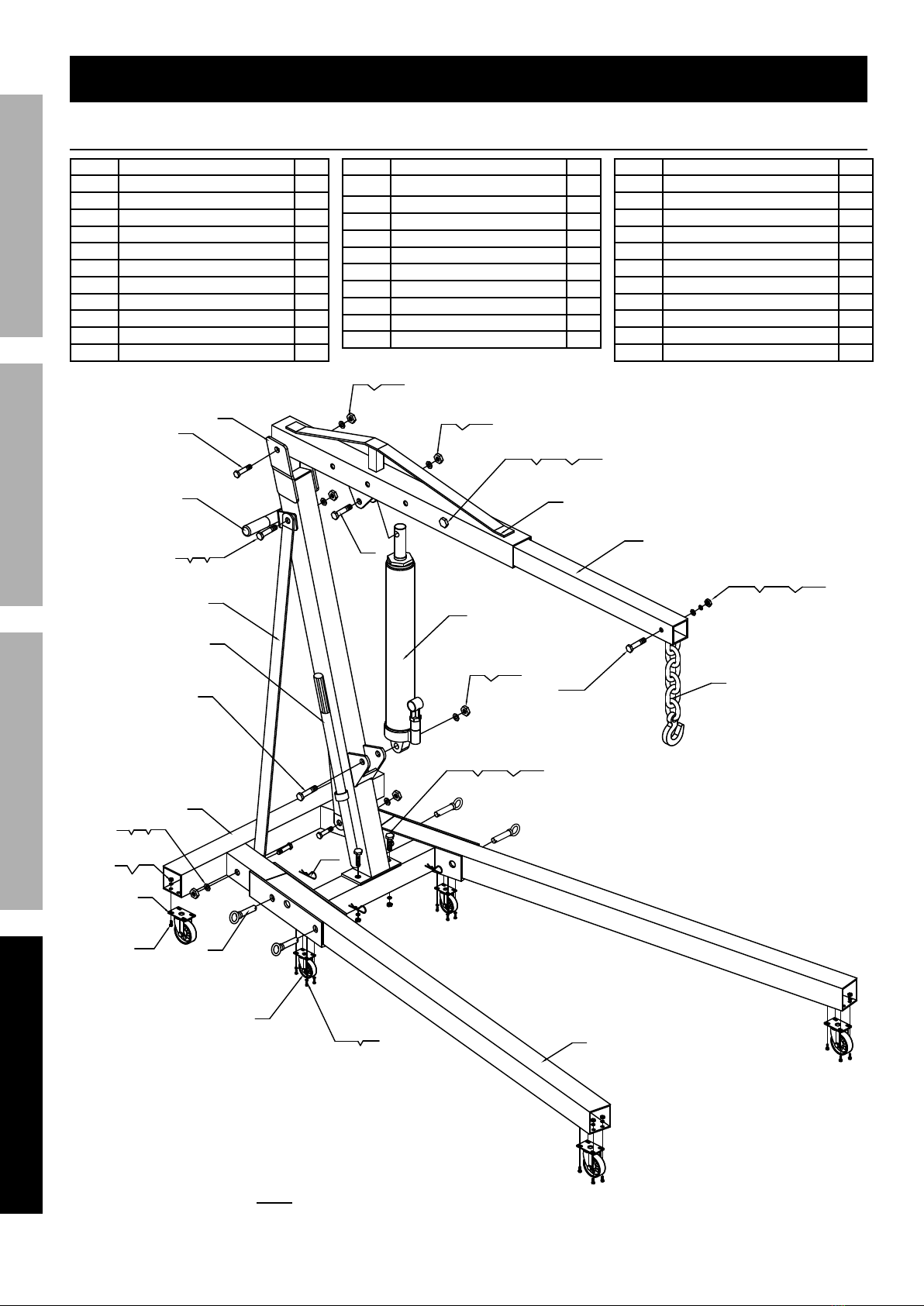

Parts Lists and Diagrams
Crane Parts List and Diagram
Part Description Qty
1 Hook & Chain 1
2 Hex Bolt M12x80 1
3 Lock Washer Ø12 1
4 Flat Washer Ø12 1
5 nut M12 1
6 Boom Extension 1
7 Boom 1
8 Hex Bolt M14x100 2
9 Flat Washer Ø14 3
10 nut M14 3
11 Hex Bolt M16x80 1
Part Description Qty
12 Flat Washer Ø16 6
13 nut M16 6
14 Main Post 1
15 Hex Bolt M16x100 2
16 Hex Bolt M16x110 2
17 Support 2
18 Handle 1
19 8 Ton Long Ram Jack 1
20 Hex Bolt M16x90 1
21 Base 1
Part Description Qty
22 nut M8 16
23 Lock Washer Ø8 24
24 3½" Swivel Caster 4
25 Hex Bolt M8x20 16
26 Lock Pin 4
27 R Pin 4
28 3" Swivel Caster 2
29 Hex Bolt M8x12 8
30 Leg 2
31 Handrail 1
32 Hex Bolt M14X90 1
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
SAFETY OPERATION MAINTENANCESETUP

Page 11For technical questions, please call 1-888-866-5797.Item 69514

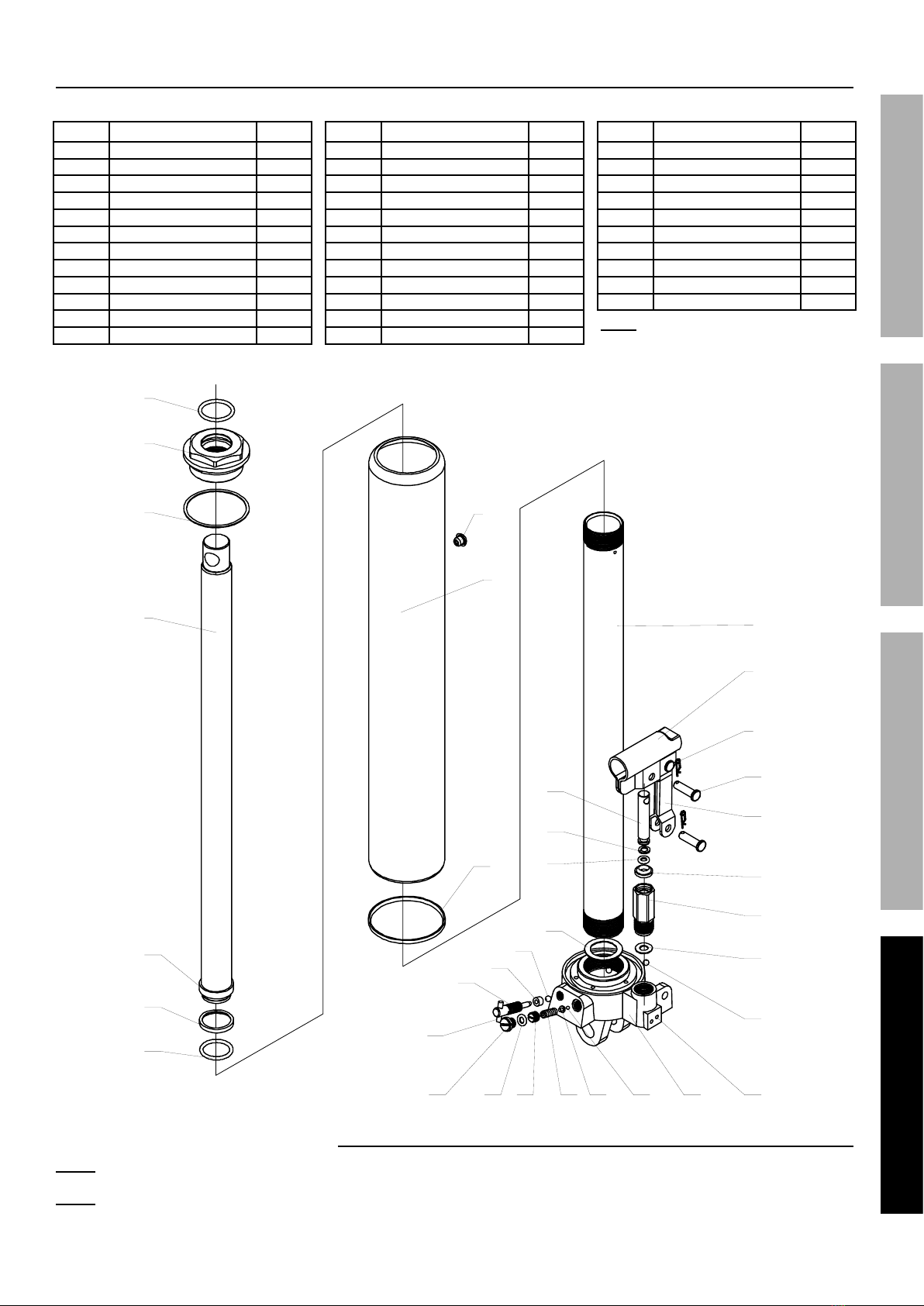

Jack Parts List and Diagram
Part Description Qty
1A Piston Rod 1
2A O-Ring 1
3A Top Cap 1
4A Rectangle Ring 1
5A Cover 1
6A Cylinder 1
7A Piston 1
8A Socket 1
9A Locking Spring 3
10A Axis Pin 2
11A Dust Ring 1
12A Pump Body 1
Part Description Qty
13A Pump Core 1
14A Snap Ring 1
15A O-Ring 1
16A Washer 1
17A Base 1
18A Bolt M5x12 2
19A Trapezoid Ring 1
20A Bowl Ring 1
21A O-Ring 1
22A Piston 1
23A Washer 1
24A Steel Ball Ø4 1
Part Description Qty
25A Spring Base 1
26A Rectangle Ring 1
27A Screw 1
28A Adjustable Screw 1
29A Adjustable Spring 1
30A Linkage 1
31A Steel Ball Ø6 3
32A Rectangle Ring 1
33A Release Valve Rod 1
34A Round Pin 1
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
3 4
3 3
3 1
3 2
3 1
3 0
2 92 82 7 2 6 2 5 2 4
2 3
1 8
1 6
1 7
1 5
1 4
1 3
1 2
1 1
1 0
9
6
8
2 2
2 1
2 0
1 9
7
5
4
3
2
1
Note: When re-ordering parts from this
list, use the part number with the “A”
suffix.
SAFETYOPERATIONMAINTENANCE SETUP

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
