Pittsburgh 90980 Installation manual

16” LASER LEVEL
WITH 360° ROTATING HEAD
Model 90980
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2003 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10k,10l

Page 2For technical questions, please call 1-800-444-3353.SKU 90980
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions, assembly, operating,
inspection, maintenance and cleaning
procedures. Write the product’s serial number
in the back of the manual near the assembly
diagram (or month and year of purchase if
product has no number). Keep this manual
and the receipt in a safe and dry place for
future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling, and
all other information provided with
this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible
injury or death.
DANGER indicates a
hazardous situation
which, if not avoided, will result
in death or serious injury.
WARNING indicates a
hazardous situation
which, if not avoided, could
result in death or serious injury.
CAUTION, used with
the safety alert
symbol, indicates a hazardous
situation which, if not avoided,
could result in minor or moderate
injury.
NOTICE is used to
address practices not
related to personal injury.
CAUTION, without the
safety alert symbol, is
used to address practices not
related to personal injury.
General Safety Warnings
WARNING! Read all safety warnings
and instructions. Save all warnings
and instructions for future
reference.
Laser Light.
Avoid direct eye
exposure.
1. Do not direct the laser beam into the
eyes of any person or animal. Doing
so may cause severe injury to the eye.
2. Verify Laser Level is in the “Off” position
before making any adjustments or
changing the batteries.
3. Position batteries in proper polarity and
do not install batteries of different types,
charge levels, or capacities together.
4. Remove batteries if Laser Level is not to
be used for a long period of time.
5. The Laser Level is a delicate instrument;
do not drop or jar the Laser Level.
6. Wear ANSI-approved safety goggles and
heavy-duty work gloves during use.
7. Keep work area clean and well lit.
8. This product is not a toy. Keep it out of
reach of children.

Page 3For technical questions, please call 1-800-444-3353.SKU 90980
9. Keep children and bystanders away
while operating Laser Level.
10. Inspect before every use; do not use if
parts loose or damaged.
11. Stay alert, watch what you are doing
and use common sense when operating
Laser Level. Do not use Laser Level
while you are tired or under the inuence
of drugs, alcohol or medication.
12. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts.
13. Maintain labels and nameplates on
the tool. These carry important safety
information. If unreadable or missing,
contact Harbor Freight Tools for a
replacement.
14. WARNING: This product contains or,
when used, produces a chemical known
to the State of California to cause cancer
and birth defects or other reproductive
harm. (California Health & Safety Code
§ 25249.5, et seq.)
15. The warnings, precautions, and
instructions discussed in this instruction
manual cannot cover all possible
conditions and situations that may occur.
It must be understood by the operator
that common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
SAVE THESE
INSTRUCTIONS.
SPECIFICATIONS
Laser Range Projects Up to 1500 ft.
Max. Tripod Height 42”
Swivel Head Range 360°
Batteries (2) AAA (included)
DANGER
LASER LIGHT
AVOIDDIRECTEYE EXPOSURE
Max. Output: <5 mW,
Wavelength: 650 nm ± 10 nm
CLASS IIIa LASER PRODUCT
This product complies with
21 CFR 1040.10 and 1040.11
Diode Mfr.: Sean & Stephen Corp.
4F, NO3, Lane 335, Sec 4, Hsin-Yi Rd.
Taipen, China
Manufacture Date: ___________, _______
UNPACKING
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon as
possible.
INSTRUCTIONS FOR PUTTING
INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch to Off
before adjusting Laser Level..
Note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
REV 10k

Page 4For technical questions, please call 1-800-444-3353.SKU 90980
Assembly
1. Your Laser Level will require some
assembly prior to use. Read entire
manual to become familiar with product
BEFORE you use the Laser Level. Be
sure you have all parts described in the
Parts List and Assembly Diagram located
on the last page of this manual.
2. Unfold Tripod (15) by pulling out on the
Tripod arms. Turn the Knob (17) to lock
the arms in place. See Figure 1, below.
3. The legs of the Tripod can be raised or
lowered by lifting the latch on the body
of the Tripod and sliding the leg in or out
to the desired height. Push the latch
down into place to Lock the Leg in place.
Repeat for the remaining two legs.
4. Set the Tripod on a at surface. Once
the Tripod (15) is set up, you can raise
and lower the Rotating Head (7) by
turning the Handle (18) located at the top
of the Tripod. See Figure 2, below.
5. Wind the Handle clockwise to raise the
Rotating Head and counterclockwise to
lower the Rotating Head.
6. Set the Plastic Body (5) into the slot in
the Tripod. See Figure 3, below. Tighten
the Knob (14) on the top of the Tripod to
secure the Plastic Body in place.
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
Initial Leveling
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION: Turn Power Switch
to Off before adjusting Level.
1. Turn the three Adjusting Knobs (16) one
at a time to level the Rotating Head (7).
See Figure 4, below.
Tripod
(15)
Figure 1
Knob (17)
Latch
Arms
Handle (18)
Rotating
Head (7)
Tripod
(15)
Figure 2
Knob (14)
Plastic
Body (5)
Figure 3
Tripod slot
Adjusting
Knobs (16)
Vertical Bubble (3)
Figure 4
Horizontal Bubble (4)

Page 5For technical questions, please call 1-800-444-3353.SKU 90980
2. Keep turning the Adjusting Knobs (16)
until the Bulls-Eye Bubbles (19) oat
exactly in the center of the circle. See
Figure 5, below.
3. NOTE: The Bulls-Eye Bubbles (19)
are intended for initial leveling of the
Rotating Head (7) only. After placing
the Plastic Body (5) into the tripod slot,
further leveling should be done using
the Horizontal Bubble (4) as a reference.
See Figure 4 on preceding page.
General Operating Instructions
1. Designate a work area that is clean and
well-lit. The work area must not allow
access by children or pets to prevent
distraction and injury.
2. NOTE: The numbers indicated in Figures
6a and 6b are for reference only. The
Laser Level knobs are not numbered.
3. Set the level parallel to knobs ‘1’ and
‘2’ as shown in Figure 4a below. Adjust
knobs ‘1’ and ‘2’ until the Horizontal
Bubble (4) is in the center.
4. Turn the level 90°. It should now be over
knob ‘3’ as shown in Figure 6b below.
5. Adjust knob ‘3’ until the Horizontal
Bubble (4) is again in the center.
6. Turn Level back 90°, to the position as
shown in Figure 6b. The Horizontal
Bubble (4) should still be in the center.
If it is not, repeat the steps above. If,
after repeated attempts, the Level is still
uneven check all mountings to ensure
nothing is loose and that the Plastic
Body (5) is properly seated in tripod slot.
7. Once Laser Level is set in Tripod, you
may set the laser to the type of beam
you wish to use. The laser projects up
to 1,500 feet. Set the Lens Fixture (11)
“Down”; and this mode will x the Level
Laser beam to a beam splitter (-) mode.
The beam splitter mode will project a
horizontal line. Set the Lens Fixture (11)
to the top mode and this mode will set
the Laser Level beam to a dot. Turn the
Laser Level “ON” by pressing the “ON/
OFF” button (9).
8. WARNING! Do not point the Laser
Level at people or animals.
9. Once you have leveled the Level
Laser in the Tripod (15), you can use
it for many applications. Rotating the
Rotating Head (7) with the laser ON and
set to the beam splitter (-) mode, you
can set a line of equal height in a room
to verify alignment of pictures, electrical
plugs, or shelving. The Laser Level
can also be used to set a level for any
Figure 6a
Figure 6b
Bulls-Eye
Bubbles (19)
Figure 5
Top View
Top View

Page 6For technical questions, please call 1-800-444-3353.SKU 90980
surface while providing a bright beam to
mark your settings by.
MAINTENANCE AND
SERVICING
 Proceduresnotspecically
explained in this manual must
beperformedonlybyaqualied
technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the OFF the Laser Level
before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT SERIOUS INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration
occurs, have the problem
corrected before further use.

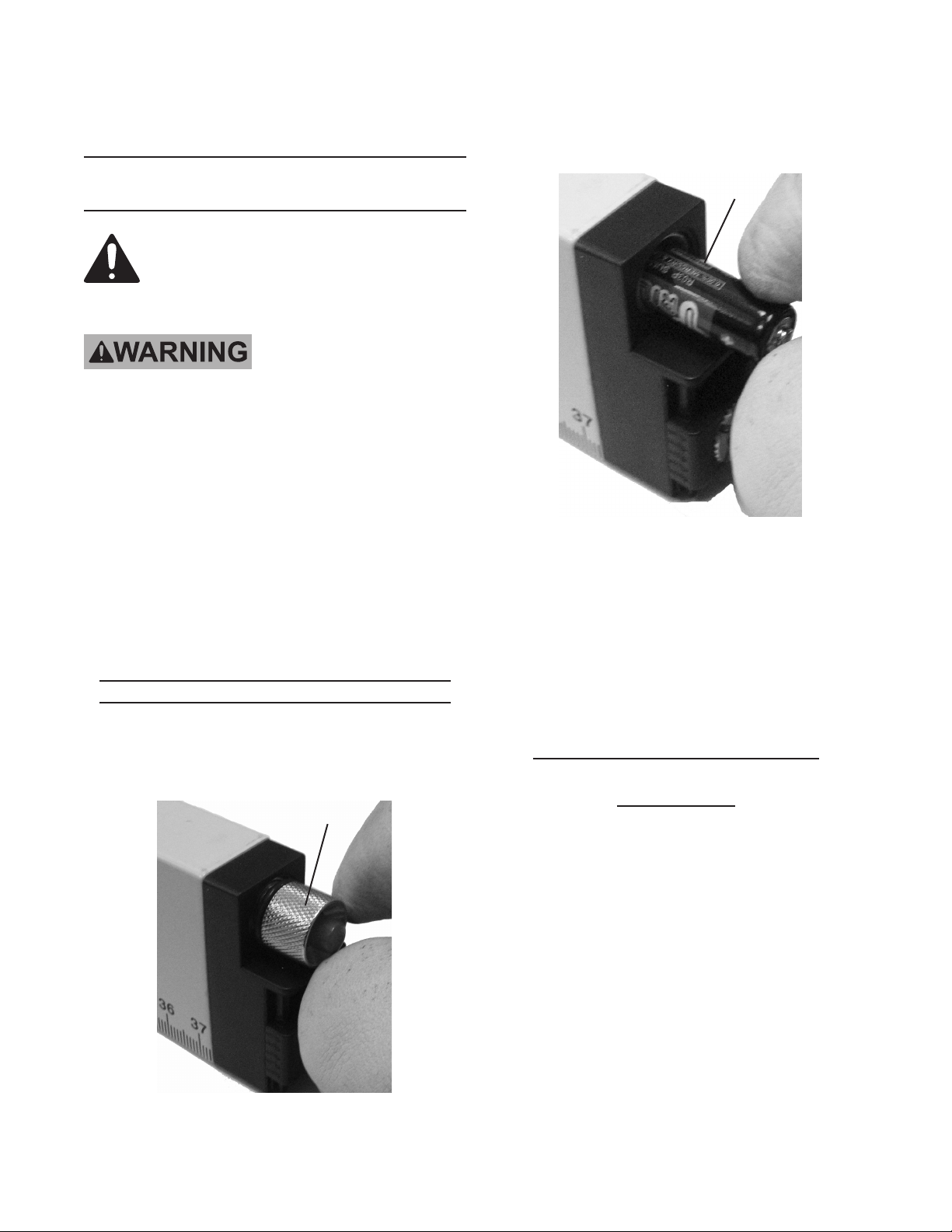

Installing and Removing Batteries
1. Remove the Battery Cover (13) located
under the On/Off Button (9). See Figure
7, below.
2. The Laser Level uses two (2) “AAA”
batteries. Remove the old batteries and
insert two new batteries. See Figure 8,
below.
3. WARNING! Verify batteries are inserted
according to indicated polarity (so that
positive and negative ends match the
diagram on the end of the Laser Level).
4. Replace the Battery Cover (13).To
prevent accidents, turn off the tool and
disconnect its power supply after use.
Cleaning, Maintenance, and
Lubrication
1. BEFORE EACH USE, inspect the
general condition Laser Level. Check for
loose hardware, misalignment or binding
of moving parts, cracked or broken parts,
and any other condition that may affect
its safe operation.
2. AFTER USE, wipe external surfaces of
the tool with clean cloth.
3. Store the Laser Level indoors and out of
children’s reach.
Figure 7
Figure 8
Battery Cover
(13)
“AAA”
Batteries

Page 7For technical questions, please call 1-800-444-3353.SKU 90980
Part Description Qty.
1Laser Aperture 1
2 Back Cover 1
3 Vertical Bubble 1
4 Horizontal Bubble 1
5 Plastic Body 1
6 Level Modules 1
7 Rotating Head 1
8 Battery Spring 1
9 On/Off Button 1
10 Front Cover 1
Part Description Qty.
11 Lens Fixture 1
12 Fan Lens 1
13 Battery Cover 1
14 Knob 1
15 Tripod 3
16 Adjusting Knob 3
17 Knob 1
18 Handle 1
19 Bulls-Eye Bubble 2
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS
A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY
OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE
IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS,
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
PARTS LIST AND ASSEMBLY DIAGRAM
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as
replacement parts.
17
15
1
2
345
6
7
89
10
11
12
13
16
14
18
19
