Post bases Heavy-duty version

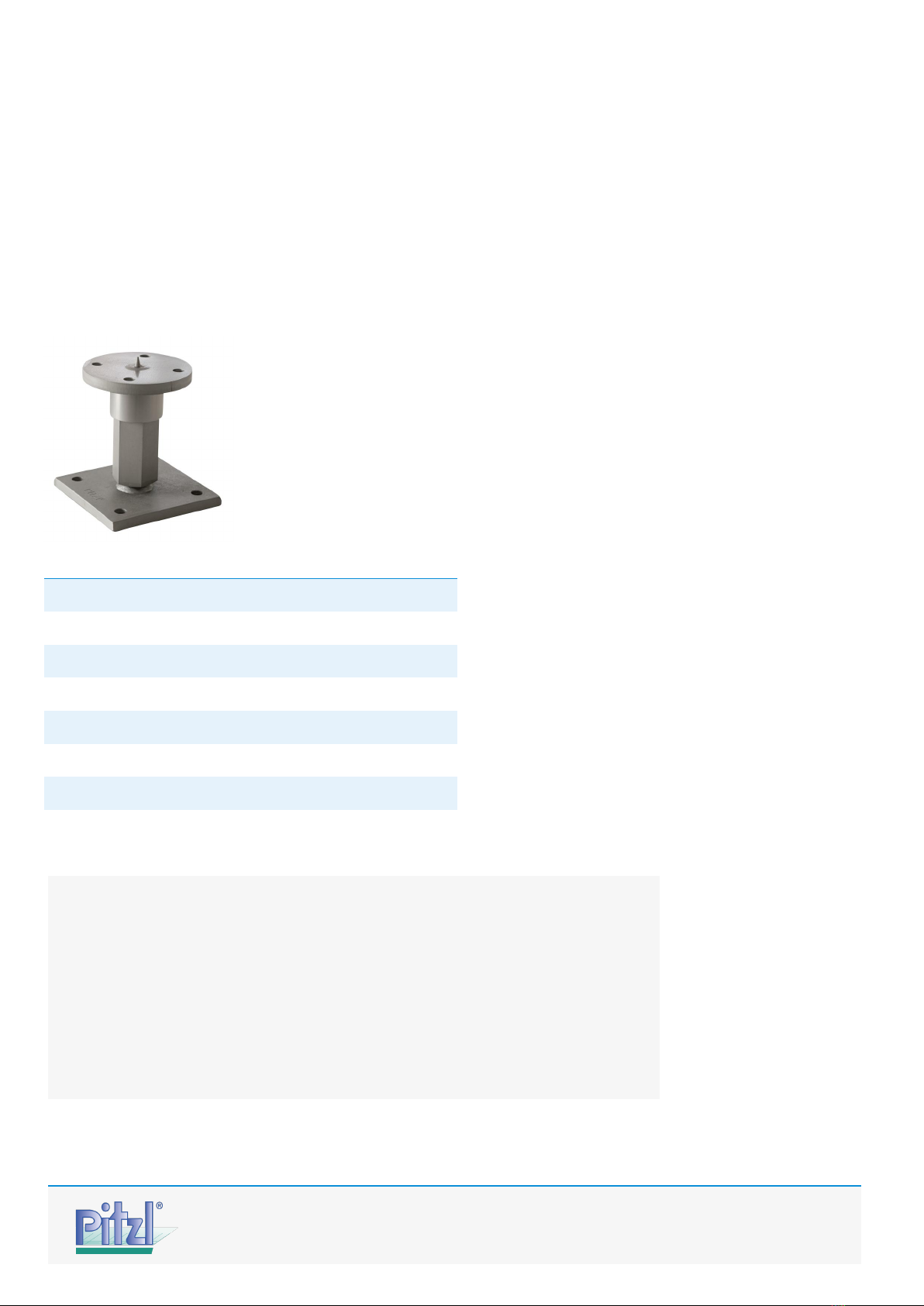

PTP plus post base 10529.1193
Pfostenträger schwere Ausführung Stecksystem Z
Dreh – Klick, das neue innovative Pfostenträger System.
Mit wenigen Handgriffen, ohne zeitaufwendige und umständliche Verschraubungen, ermöglicht das neue Stecksystem
eine effiiziente Montagelösung. Maximale Lastaufnahmen bei Druck, Zug und horizontalen Lasteinwirkungen werden
durch die optimale Materialstärkenabstimmung des Pfostenträgers garantiert. Eine Höhenverstellung ist auch in
eingebautem Zustand und unter hoher Lasteinwirkung möglich.
Upper plate in mm Ø 120 x 12
Lower plate in mm 140 x 140 x 12
Thread, M30 low. 150
Borehole Ø 13 mm bottom 4
Borehole Ø 12 mm top 4
Adjustment range, mm 209 - 269
CE CE approval requested
Assembly instructions 10529.1193
Installation instruction
The pre-assembly of the post base is already performed in the workshop and provides for a quick and
comfortable work on the building site. The innovative Pitzl‘s plug-in system can be smoothly and fast
locked and unlocked. The upper plate can with only few gestures be separated from the rest of the post
base.
1. Turn the fastening anticlockwise up to stop.
2. Press fastening down.
3. Press fastening further anticlockwise.
