Pixapro CITI600 User manual

Made In China
All-in-One Outdoor Flash
PIXAPRO® LTD.
50 Popes Lane,
Oldbury,
West Midlands,
B69 4PA
Tel: [phone]
Web: www.essentialphoto.co.uk
E-mail: [email protected]
Company Registration No. 07601334 INSTRUCTION MANUAL
English

Before using this product
Please read this user manual carefully in order to ensure your safety and the proper operation of this product. Keep
for future reference.
Thank you for purchasing this PIXAPRO® product.
The PIXAPRO CITI600 All-in-One Portable Flash is a powerful 600Ws Strobe with, a self-contained rechargeable
Li-Ion Battery. The CITI600 can be triggered by the PIXAPRO® PRO ST-III series flash trigger set in M/Multi
mode, etc. With master & slave functions. The CITI600 can also use in combination with other Speedlites,
Portable Flashes and Studio Flashes etc. in the PIXAPRO® range, making your shooting experience a lot simpler.
The Pixapro CITI600 features a Bowens S-Type mount, enabling it to be used with a wide range of dedicated light
shaping accessories. The CITI600 provides you with studio quality lighting on location, whether you are shooting
indoors and outdoors. The CITI600 Flash offers:
• Compatible wireless system: When using PIXAPRO® PRO ST-III Trigger system, fully support M/Multi flash
system of Canon, Nikon, etc. Workable as Slave unit in a wireless flash group.
• Dot-matrix LCD panel: with clear and convenient operation.
•
Built-in 2.4GHz wireless receiver: with all-in-one functions and 80 meters further transmission
• Studio quality light: up to 600Ws, GN 87 (m ISO 100, with standard reflector).
• External battery pack: professional lithium battery pack (lithium, 11.1V/8700mAh), 0.01-2.5s recycling and 500
full power flashes.
• Lightweight and portable even with power and accessories
• Wireless control: With built-in PIXAPRO® PRO ST-III Trigger system to achieve wireless control. PIXAPRO®
PRO AC flash trigger can also be used to wirelessly adjust flash power level and trigger the flash. CITI600 has
3.5mm sync cord jack and PC sync socket to achieve various sync triggering mode.
•
Wide-range accessories: CITI600 uses the popular Bowens S-Type mount whose accessories includes
softbox, beauty dish, snoots, clolor gels, etc.
• Power can be adjusted from full power to 1/256 in 1/3 stop increments
• Consistent color temperature at 5600±200K over the entire power range
• 1/8000s high-speed sync flash, Focus-assist beam on/off & high-speed sync triggering
The powerful and portable CITI600 meets the demands of freelance commercial photographers,
photojournalists, wedding and beach portraiture shooters, event and backpack photographers, photograph
enthusiasts, etc.
Foreword
- 1 - - 2 -
For Your Safety
Always keep this product dry. Do not use in rain or in damp conditions.
This product contains high-voltage electronic parts. Touching the high-voltage circuit inside it may result in
electric shock. Do not disassemble. Should repairs become necessary, this product must be sent to an
authorized maintenance center.
Stop using this product if it breaks open due to extrusion, falling or heavy impact. Otherwise, as electric
shock may occur if you touch the electronic parts inside it.
Do not fire the flash directly into the eyes (especially those of babies) within short distances. Otherwise visual
impairment may occur. When taking pictures of babies, keep the flash unit at least 1 meter (3.3 feet) away
from them. Using bounce flash to reduce light intensity is also recommended.
Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain
circumstances, these materials may be sensitive to the strong light emitting from this flash unit and fire or
electromagnetic interference may result.
Do not leave or store the flash unit if the ambient temperature reads over 50°C (e.g. in automobile). Otherwise
the electronic parts may be damaged.

Foreword
For your safety
Name of Parts
Body
LCD Panel
Included Accessories
Separately Sold Accessories
Installing Reflector (Other Accessories)
Attaching Flash Tube
Adjusting Handle
Battery
Power Management
Wireless Flash Mode
High-Speed Sync
Flash Mode—M: Manual Flash
Flash Mode—Multi/Stroboscopic Flash
Wireless Flash Shooting: Radio (2.4GHz) Transmission
Wireless Settings
Setting the Communication Channel
Setting the Communication Group
Wireless Flash Shooting
C.Fn: Setting Custom Functions
Modeling Lamp
Other Applications
Wireless Control Function
Sync Triggering
Protection Function
Technical Data
Firmware Upgrade
Maintenance
Contents
1
2
5
9
10
10
11
12
14
15
18
19
19
20
21
22
22
- 3 - - 4 -
Conventions used in this Manual
This manual is based on the assumption that both the camera and camera
flash’s power switches are powered on.
Reference page numbers are indicated by “p.**”.
The following alert symbols are used in this manual:
The Caution symbol indicates a warning to prevent shooting problem.
The Note symbol gives supplemental information.

MODE
MENU GR/CH
H
OFF/ON
- 5 - - 6 -
Name of Parts Name of Parts
Body:Body:
S-Type
Accessory Mount
Fan Inlet
Fan Outlet
Lithium Battery
(1) M Manual Flash
Ridge
Battery
Locking Ring
Socket
Body:
LCD Panel:
Groove
Direction
Adjusting Handle
Umbrella Mounting Hole
Handle Lock Ring
Handle
<MODE> Mode Selection Button
< >Modeling Lamp Button
<ON/OFF>Power Switch
< H>
High Speed Sync Button
<MENU> Menu Button
<GR/CH>
Group/Channel Button
Select Dial
< SET >Set Button
< >Test Button /
Flash Ready Indicator
< > Wireless Selection Button
Accessory Mount
Tube Socket
Modeling
Lamp (LED)
Battery Power Jack
Mini USB Port
Wireless Control Port
3.5mm Sync Cord Jack
Light Sensor
Battery Indicator Button M: Manualflash
Manualflashoutput

0
180 0 180
- 7 - - 8 -
Name of Parts Name of Parts
(2) Multi Flash
Multi:Stroboscopic flash
Number of flashes
Flash frequency
S1/S2
LCD Panel:
(3) Radio Transmission Shooting
Firing group
Channel
: Radio transmission
wireless shooting
Flash duration
(4) Slave Unit
CITI600 can be used in combination with the following accessories sold separately, so as to achieve best
photography effects: ST-III Wireless Flash Trigger, PRO AC Remote Control, Softbox, Beauty Dish, Fold Up
Umbrella, Snoots, Light Stand, etc.
Separately Sold Accessories
Installing Reflector (Other Accessories)
1. 2. Insert the reflector into the Accessory
Mount and clock wise to lock it up.
Pull back the Locking Switch for
the S-Type Accessory mount.
Attaching Flash Tube
1. Remove the reflector or other
accessories from the flash head.
2. Match the flash tube in the Tube
Socket. Push the flash tube in until it
is securely seated into the socket.
1. Flash tube 2. Lithium battery pack 3.Battery charger 4. Power cord 5. Lamp cover 6. Instruction manual
Included Accessories
Adjusting Handle
1. When the Direction Adjusting Handle
is not pulled out, screw clockwise
while unscrew anti clockwise.
2. The Direction Adjusting Handle's rotation angle should be restrained from 0 to
180 degrees below the flash body. Please pull out the Direction Adjusting
Handle, adjust the appropriate angle, and manipulate the step 1 before
colliding with the flash body.
1 3 4 52

- 9 - - 10 -
CITI600 can only be set as slave unit (receiver end). Press Wireless Selection Button to set radio
transmission. When using radio transmission, CITI600 will automatically switch between Canon (C) and
Nikon (N) system according to ST-III series transmitter.
Wireless Flash Mode
Battery
Features
1.
This flash unit uses Li-ion polymer battery which is capable of producing up to approximately 500 Full-Powered Flashes
Per Charge.
2. It is reliably safe. Internal circuitry protects against overcharging, overdischarge, power surges, and short circuit.
3. 4 hours recharge time to fully charge the battery using the standard battery charger.
Cautions
Do not short circuit.
Do not expose to rain or immerse into water. This battery is not water proof.
Keep out of reach of children.
No over 24 hours' continuous charging.
Store in dry, cool, ventilated places.
Do not put aside or into fire.
Dead batteries should be disposed of according to local regulations.
If the battery has not been used for over 3 months, please perform a full recharge.
Push down the battery pack
2until it is locked.
Match the battery's groove with
1the main battery compartment's
ridge.
Push the battery pack upward
2to unload it.
Push the Battery Locking Ring
1to the right.
Mounting and Removing the Battery Pack
Mounting:
Removing:
Battery
Power Management
Long press the <ON/OFF> Power Switch for 2 seconds to control the on/off of the flash unit. Turn off the power
pack if the flash unit will not be used for an extended period (approx. 1 hour).
C.Fn Disabling Auto Power Off function is recommended when the flash is used off camera. (C.Fn-APO, Page 18)
Battery Level Indication
Attach the battery pack to the flash correctly. Be aware of the battery level by check the battery level indication on
the LCD panel when using.
Note: The two indications are almost the same except of grids shift.
3 grids
2 grids
1 grid
Blank grid
Blinking
1 red grid +3 green grids
1 red grid +2 green grids
1 red grid +1 green grid
1 red grid
Full battery
Medium battery
Low battery
Lower battery, please recharge it.
Battery Level Indication
on the LCD Panel
(Indicating battery level and
management of the whole flash
system)
LED Battery Level Indication on
the Battery
(Indicating battery level and
management of non-loaded battery)
The battery level is going to be used out immediately.
And the flash will auto power off in 1 minute.
Note: Please recharge the battery as soon as possible
(within 10 days). Then, the battery can be used or be
placed for long period.
Meaning

H
MODE
MENU
OFF/ON
GR/CH
Flash Mode — M: Manual Flash
The flash output is adjustable from 1/1 full power to 1/256th power in 1/3rd stop increments. To obtain a correct
flash exposure, use a hand-held flash meter to determine the required flash output.
Press < MODE > button so
1that < M > is displayed.
Turn the Select Dial to choose a
2desired flash output amount.
Press < SET > button again
3to confirm the setting.
1/4
1/2
1/1
1/1–0.3
1/2+0.7
1/1-0.7
1/2+0.3
1/2-0.3
1/4+0.7
1/2-0.7
1/4+0.3
······
······
Press < MENU > button to enter C.FN-SLAVE to choose S2 function, so that this flash can also function as an
optical S2 secondary flash with optical sensor in M manual flash mode. This is useful when cameras have pre-flash
function. With this function, the flash will ignore a single “preflash” from the main flash and will only fire in response
to the second, actual flash from the main unit.
Optical S1 Secondary Unit Setting
In M manual flash mode, press <MENU> button to enter C.FN-SLAVE to choose S1 function, so that this flash can
function as an optical S1 secondary flash with optic sensor. With this function, the flash will fire synchronously when
the main flash fires, the same effect as that by the use of radio triggers. This helps create multiple lighting effects.
Optical S2 Secondary Unit Setting
● S1 and S2 optical triggering is only available in M manual flash mode.
Flash Output Range
The following table makes it easier to see how the stop changes in terms of f/stop when you increase or decrease
the flash output. For example, when you decrease the flash output to 1/2, 1/2-0.3, or 1/2-0.7, and then increase the
flash output to more than 1/2, 1/2+0.3, 1/2+0.7, and 1/1 will be displayed.
Figures displayed when reducing flash output level
Figures displayed when increasing flash output level
- 11 - - 12 -
H
MODE
MENU
OFF/ON
GR/CH
High-Speed Sync
High Speed Sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is convenient
when you want to use aperture priority for fill-flash portraits.
Please use ST-III series transmitter.
2
Press High Speed Sync Button
1so that < > is displayed.
● If you set a shutter speed that is the same as or slower than the camera’s maximum flash sync speed, < >
will not be displayed in the viewfinder.
● With high-speed sync, the faster the shutter speed, the shorter the effective flash range.
● To return to normal flash, press < > button again. Then < > will disappear.
● Multi flash mode cannot be set in high-speed sync mode.
● Over-Heat protection may be activated after 50 consecutive high-speed sync flashes.
Flash Mode — High Speed Sync
H
MODE
MENU
OFF/ON
GR/CH
H
MENU
OFF/ON
GR/CH

H
MODE
MENU
OFF/ON
GR/CH
H
MENU
OFF/ON
GR/CH
H
MODE
MENU
OFF/ON
GR/CH
Flash Mode — Multi: Stroboscopic Flash
Set the flash frequency and flash
3times.
● Press <SET> Button to select the
flash times. Turn the Select Dial to
set the number.
● Press <SET> Button to select the
flash frequency. Turn the Select
Dial to set the number.
● After you finish the setting, press
<SET> button and all the settings
will be displayed.
With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple images of a moving
subject in a single photograph. You can set the firing frequency (number of flashes per sec. expressed as Hz), the
number of flashes, and the flash output.
Press <MODE> button so that
1<MULTI> is displayed.
Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below to calculate the
shutter speed and set it with the camera.
Number of Flashes / Flash Frequency = Shutter Speed
For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed should be at least 2
seconds.
To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in
succession. After 10 times, allow the camera flash to rest for at least 15 minutes. If you try to use the stroboscopic
flash more than 10 times in succession, the firing might stop automatically to protect the flash head. If this happens,
allow at least 15 minutes' rest for the camera flash.
● Stroboscopic flash is most effective with a highly reflective subject against a dark background.
● Using a tripod and a remote control is recommended.
● A flash output of 1/1 and 1/2 cannot be set for stroboscopic flash.
● Stroboscopic flash can be used with“buLb”.
● If the number of flashes is displayed as “--”, the firing will continue until the shutter closes or the battery is
exhausted. The number of flashes will be limited as shown by the following table.
Maximum Stroboscopic Flashes:
1/4
1/8
1/16
1/32
1/64
1/128
1/256
1
7
14
30
60
90
100
100
2
6
14
30
60
90
100
100
3
5
12
30
60
90
100
100
4
4
10
20
50
80
100
100
5
4
8
20
50
80
100
100
6-7
3
6
20
40
70
90
90
8-9
3
5
10
30
60
80
80
Flash
Output
Hz 10
2
4
8
20
50
70
70
11
2
4
8
20
40
70
70
12-14
2
4
8
20
40
60
60
15-19
2
4
8
18
35
50
50
20-50
2
4
8
16
30
40
40
60-100
2
4
8
12
20
40
40
Turn the Select Dial to choose
2a desired flash output.
- 13 - - 14 -
A
t
50%
10%
t=0.5
t=0.1
Flash Mode — M: Manual Flash
Display Flash Duration
Flash duration refers to the length of time that from flash’s firing to reach the half peak at maximum. The half peak
at maximum is usually expressed as t=0.5. In order to provide the photographer with more concrete data, this
product uses t=0.1. The difference between t=0.5 and t=0.1 is shown in the following picture.
The flash duration will only be displayed on the LCD panel in M mode.

- 15 - 16 -
4. Wireless Flash Shooting
H
MODE
MENU
OFF/ON
GR/CH
Wireless Flash Shooting: Radio (2.4GHz) Transmission
3. Setting the Communication Group
Short press the < GR/CH > Button to choose group ID from A to E.
Positioning and Operation Range (Example of wireless flash shooting)
● Autoflash Shooting with One Slave Unit
● Use the supplied mini stand to position the slave unit.
● Before shooting, perform a test flash and test shooting.
● The transmission distance might be shorter depending on the conditions such as positioning of slave units, the
surrounding environment and whether conditions.
Transmission distance is about 80m
H
MODE
MENU
OFF/ON
GR/CH
H
MODE
MENU
OFF/ON
GR/CH
1. Wireless Settings
Press < > Wireless Setting Button again until < > is displayed on the panel.
Long press the <GR/CH>
1Button for 2 seconds so that
channels ID is displayed on
the LCD panel.
Turn the Select Dial to choose a
2channel ID from 1 to 32.
Press the <SET> button to
3 confirm.
CITI600 uses the PIXAPRO® PRO ST-III Trigger system, which has great compatibility with other products in our
product range. The CITI600 can automatically switch to slave unit according to the master unit instead of setting
manually. When receiving the master unit’s signal, “C” or “N” will be displayed on the LCD panel.
Nikon cameras (using ST-III-N) and Canon cameras (using ST-III-C) can use one or more CITI600 flashes
simultaneously.
*As a slave unit, CITI600 can be controlled by the following master units: HyBRID360 ETTL, HyBRID360 ITTL, ST-
III-C, ST-III-N, etc.
2. Setting the Communication Channel
If there are other wireless flash systems nearby, you can change the channel IDs to prevent signal interference. The
channel IDs of the master unit and the slave unit(s) must be set to the same.
Wireless Flash Shooting: Radio (2.4GHz) Transmission
H
MODE
MENU
OFF/ON
GR/CH
H
MENU
OFF/ON
GR/CH

- 17 - - 18 -
Wireless Flash Shooting: Radio (2.4G) Transmission

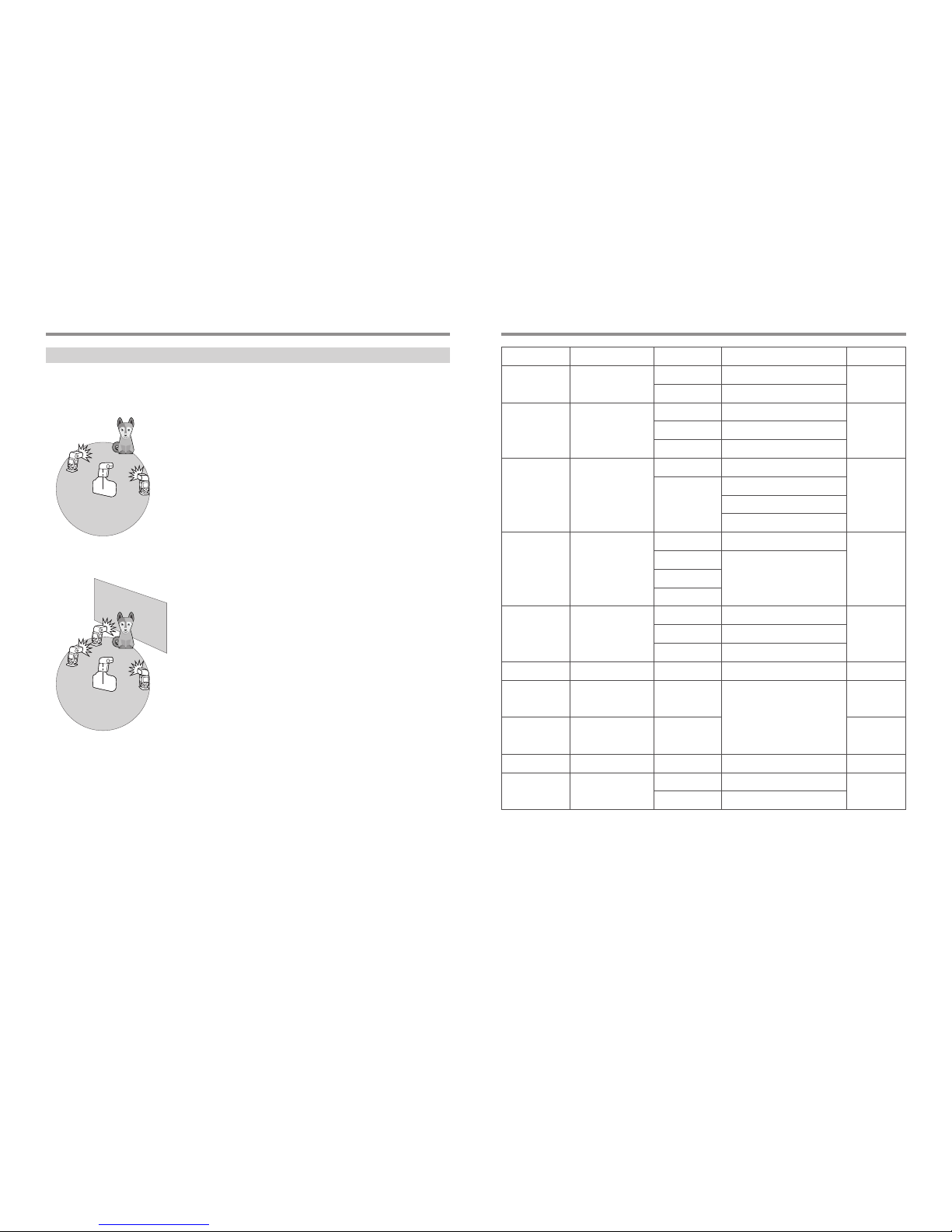

Wireless Multiple Flash Shooting
You can set and shoot with a different flash mode for each firing group.
● Auto Shooting with Two Slave Groups
A
B
A
B
C
●Auto Shooting with Three Slave Groups
BEEP
SLAVE
FAN
SLEEP
LIGHT
UNITS
ALT
LCD
RESET
Beeper
S1/S2 mode selection
Fan working mode
Auto power off
Backlighting time
Total number of flashes
Triggering times
LCD contrast
Parameter resetting
ON
OFF
OFF
S1
S2
OFF
AUTO
OFF
1HR
2HR
3HR
12sec
OFF
ON
OFF, 0.01~30S
NO
M mode
NO
NO
NO
M/Multi mode
M mode
M mode
2~4
1. Press < MENU > Button to enter C.Fn menu. The “Ver x.x” in the top-right corner refers to the software version.
2. Select the Custom Function Signs.
* Turn the Select Dial to select the Custom Function Signs.
3. Change the Setting.
* Press<SET> button and the Setting Signs are highlighted.
* Turn the Select Dial to set the desired number. Press <SET> button will confirm the settings.
4. Exit C.Fn Menu.
* Press <MENU> Button to exit.
C.Fn: Setting Custom Functions
Custom Function
Signs Functions Setting Signs Settings & Descriptions Restrictions
0~9
NO
YES
ON
OFF
OFF
S1 mode
S2 mode
OFF
Temperature <45°: OFF
Temperature >45°: LOW FAN
Temperature >60°: HIGH FAN
OFF
Auto power off without any
operation
Off in 12 sec.
Always off
Always lighting
Can be triggered as second curtain
Use UNITS in combination with
ALT: UNITS sets the total
number of flashes; ALT sets the
triggering times before flash’s firing
10 levels
Reseting
NO
Delay flash
DELAY

- 19 - - 20 -
1. Over-Heat Protection
●To avoid overheating and deteriorating the flash head, do not fire more than 100 continuous flashes in fast
succession at 1/1 full power. After 100 continuous flashes, allow a rest time of at least 10 minutes.
●If you fire more than 100 continuous flashes and then fire more flashes in short intervals, the inner over-
heat protection function may be activated and make the recycling time over 10 seconds. If this occurs, allow a
rest time of about 10 minutes, and the flash unit will then return to normal.
●
When the over-heat protection is activated,
is shown on the LCD display.
Number of flashes that will activate over-heat protection:
Protection Function
Power Output Level
1/1
1/2（+0.3,+0.7）
1/4（+0.3,+0.7）
1/8（+0.3,+0.7）
1/16（+0.3,+0.7）
1/32（+0.3,+0.7）
1/64（+0.3,+0.7）
1/128（+0.3,+0.7）
Number of Flashes
100
150
200
300
400
500
1000
Meaning
LCD Panel
1/256（+0.3,+0.7）
Number of flashes that will activate over-heat protection in high-speed sync mode:
2. Other Protections
● The system provides real-time protection to secure the device and your safety. The following lists prompts for
your reference:
Power Output
1/1
1/2（+0.3,+0.7）
1/4（+0.3,+0.7）
1/8（+0.3,+0.7）
1/16（+0.3,+0.7）
1/32（+0.3,+0.7）
1/64（+0.3,+0.7）
1/128（+0.3,+0.7）
1/256（+0.3,+0.7）
Times
50
60
75
100
150
200
300
Other Applications
Modeling Lamp
CITI600 is equipped with a 10W LED modeling lamp which has 3 steps of light adjustment and two
always lighting modes.
• Short press the Modeling Lamp Button to set the steps:
One step: 30% of power output; off in 30 minutes (prevent overheating)
Two step: 60% of power output; off in 20 minutes (prevent overheating)
Three step: 100% of power output; off in 10 minutes (prevent overheating)
• Long press the modeling lamp for 2 seconds to set modeling modes:
1.Always lighting
2.Modeling lamp auto off when firing.
Wireless Control Function
The flash unit is built in with a Wireless Control Port so that you can
wirelessly adjust the power level of the flash and the flash triggering.
To control the flash wirelessly, you need a PRO AC remote control set
(on-camera and on-flash). Insert its receive end into the Wireless Control
Port on the flash and insert the transmit end into the camera hot shoe.
Settings made on the hotshoe-mounted transmit and receive ends will be
wirelessly communicated to the flash. Then you can press the camera
shutter release button to trigger the flash. You can also hold the transmit
end at hand to control your off-camera flash.
For full instructions on the use of PRO series Flash Triggers, see
its user manual.
Sync Triggering
Uses a Φ3.5mm Sync Cable Jack. Insert a sync cable here and the flash will be fired synchronously with the
camera's shutter.
Modeling Lamp
H
MODE
MENU
OFF/ON
GR/CH
A failure occurs on the recycling system so that the flash cannot fire.Please restart the
flash unit. If the problem still exists, please send this product to a maintenance center.
The system gets excessive heat. Please allow a rest time of 10 minutes.
The voltage on two outlets of the flash tube is too high.
Please send this product to a maintenance center.
There are some errors occurred during the upgrading process.
Please using the correct firmware upgrade method.
E1
E2
E3
E9

- 21 - - 22 -
This flash supports firmware upgrade through the USB port. Update information will be released on our
official website.
USB connection line is not included in this product. The USB port is a standard Micro USB socket. Common
USB connection line is applicable.
● Shut down the device immediately should abnormal operation be detected.
● Avoid sudden impacts and the product should be dedusted regularly.
● It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.
● Maintenance of the flash must be performed by our authorized maintenance department which can provide original
accessories.
● This product, (with the exception of consumables e.g. flash tube), is covered by a 2-year warranty.
●
Unauthorized servicing will void the warranty.
●
If the product had failures or has gotten wet, please do not use it until it has been repaired by professionals.
● Changes made to the specifications or designs may not be reflected in this manual.
Maintenance
Firmware Upgrade
Technical Data
Model
Flash Mode
Guide No. (m ISO 100)
Flash Duration
POWER
Power Output
Stroboscopic Flash
Sync mode
Delay Flash
Mask
Fan
Beeper
Modeling Lamp (LED)
Optical Slave Flash
Flash Duration Indication
Display
•
Wireless Flash (2.4GHz transmission)
Wireless Flash Function
Controllable Slave Groups
Transmission Range (approx.)
Channels
• Power Supply
Power Supply
Full Power Flashes
Recycle Time
Battery Indicator
Power Indication
• Sync Triggering Mode
• Color Temperature
• Dimensions
Dimension (with battery)
Net Weight (with battery)
CITI600
M/Multi
87 (m ISO 100, with standard reflector)
1/220 to 1/10000 seconds (T0.1)
600Ws
9 steps: 1/256~1/1
Provided (up to 100 times, 100Hz)
High-speed sync (up to 1/8000 seconds), first-curtain sync, and second-curtain sync
0.01~30 Seconds
√
√
√
10W
S1/S2
√
Dot-matrix panel
Slave, Off
5 (A, B, C, D, E)
80m
32 (1~32)
Lithium battery pack (11.1V/8700mAh)
500
Approx. 0.01-2.5s
√
Power off automatically after approx. 60 minutes of idle operation.
3.5mm sync line, wireless control port
5600±200k
220x245x125 mm (flash tube & reflector not included)
2.69 kg (flash tube & reflector not included)
